Anti-Lock Brake System (ABS) Module: Installation

  1. To install, reverse the removal procedure.

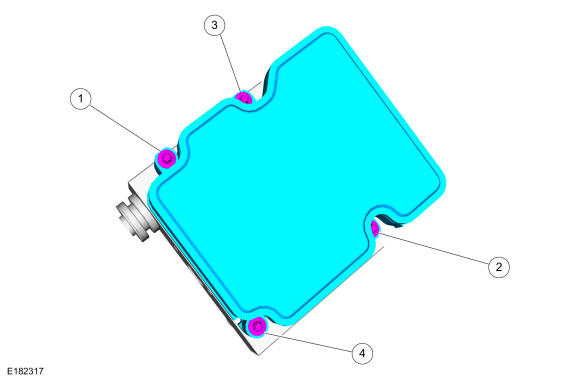

  2. Torque the module screws in stages.

    Torque

    :Stage 1: 18 lb.in (2 Nm)

    Stage 2: 27 lb.in (3 Nm)

GFD564448Courtesy of FORD MOTOR COMPANY
