External Controls - 8F35

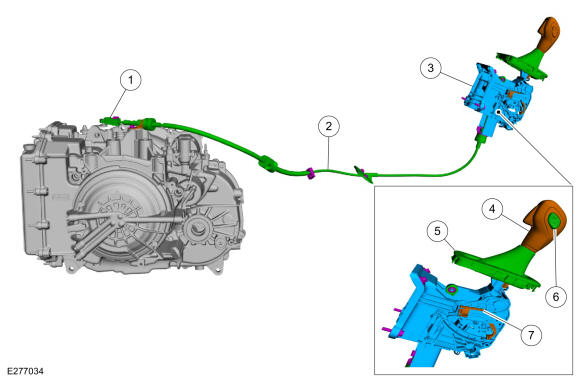

GFD572628Courtesy of FORD MOTOR COMPANY
Item Description
1 Selector lever cable adjuster
2 Selector lever cable
3 Selector lever assembly
4 Selector lever knob
5 Selector lever bezel
6 SelectShift® switch
7 Brake shift interlock actuator
