OEM Electrical Wiring Diagram Introduction: Introduction

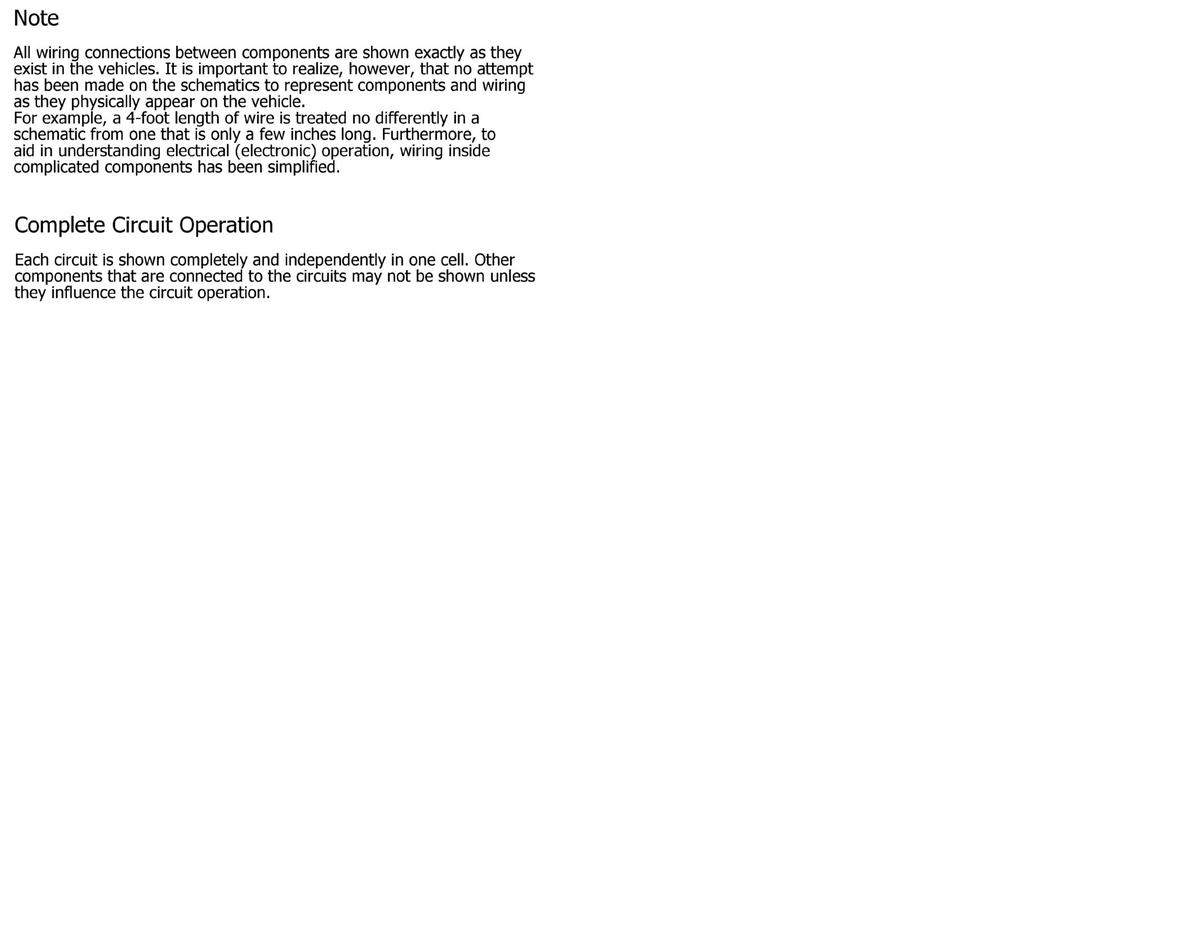

GFDWR130018Courtesy of FORD MOTOR COMPANY

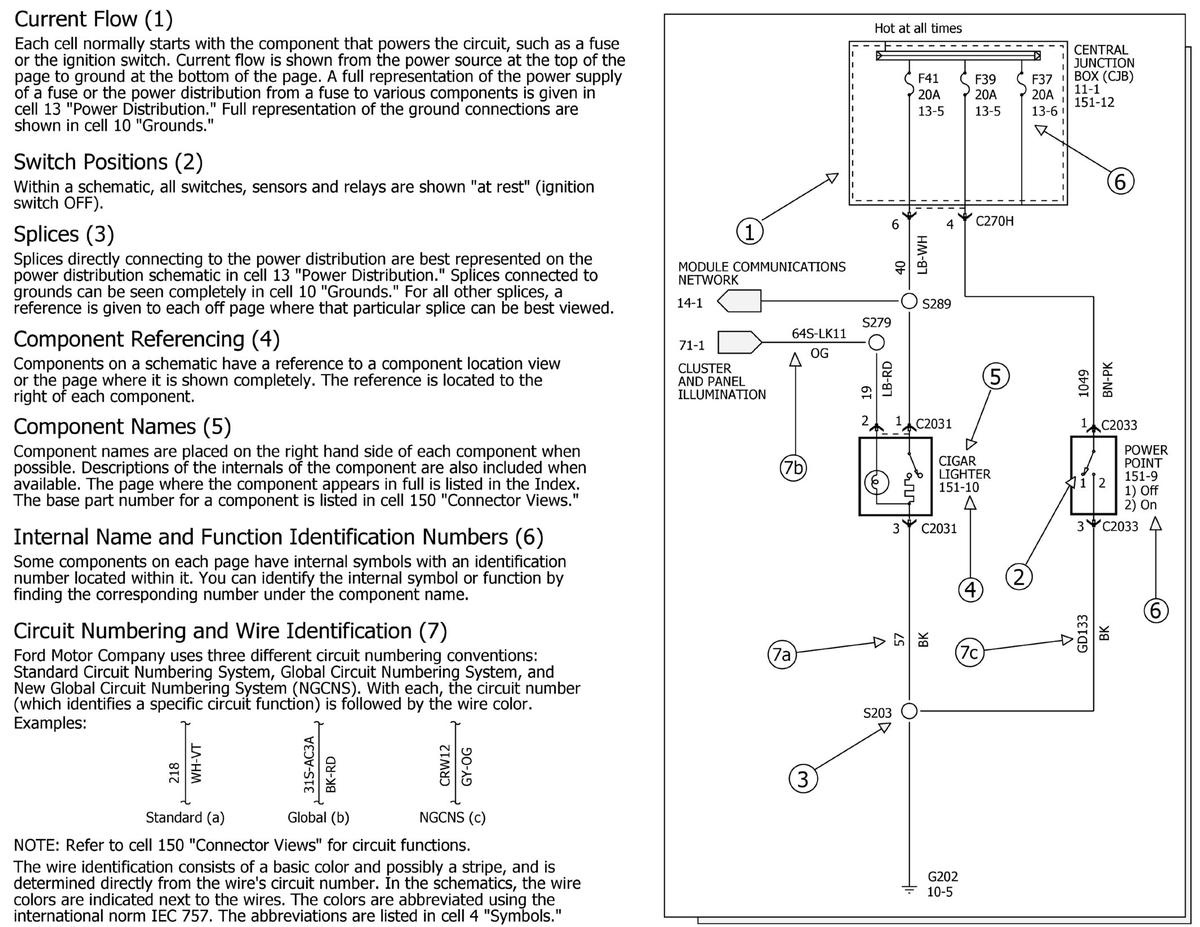

GFDWR130019Courtesy of FORD MOTOR COMPANY

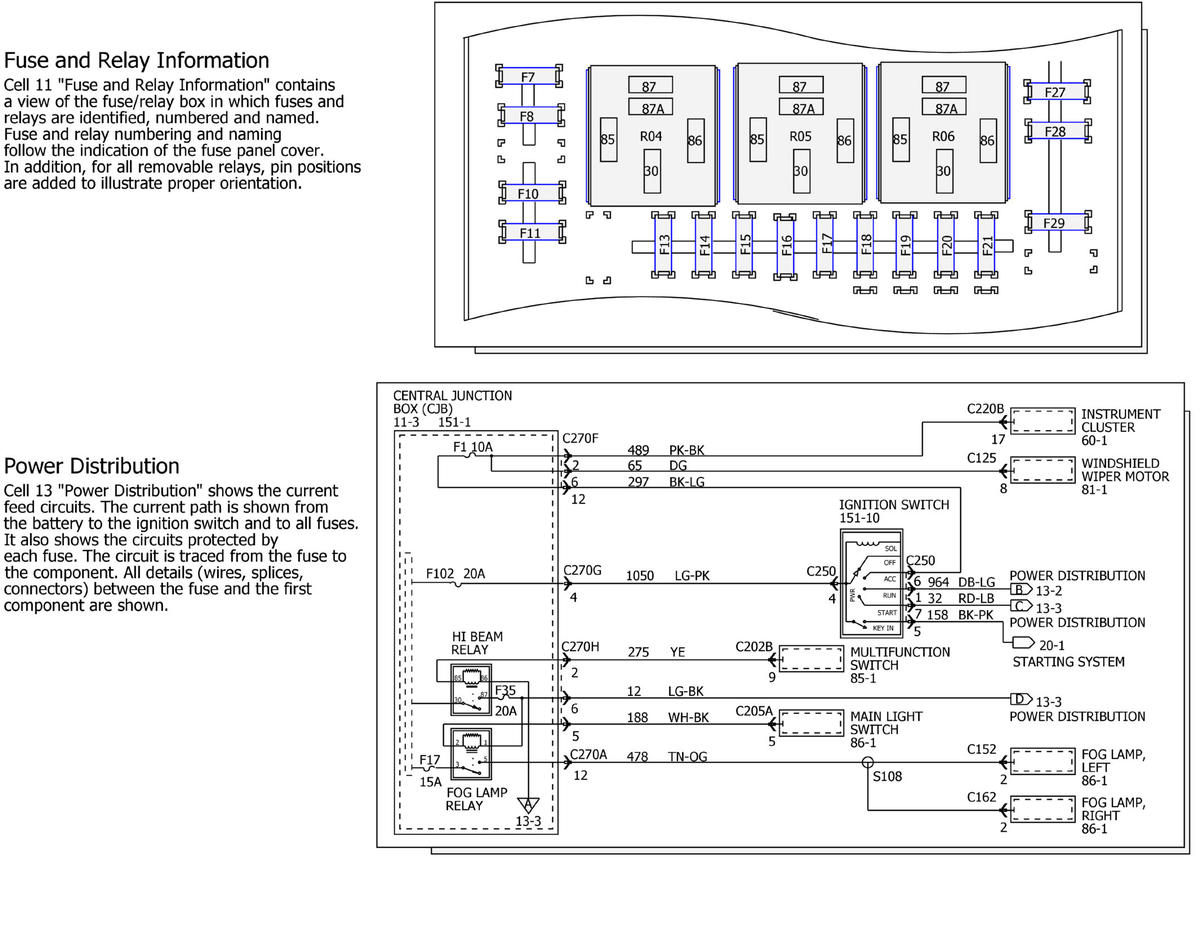

GFDWR130020Courtesy of FORD MOTOR COMPANY

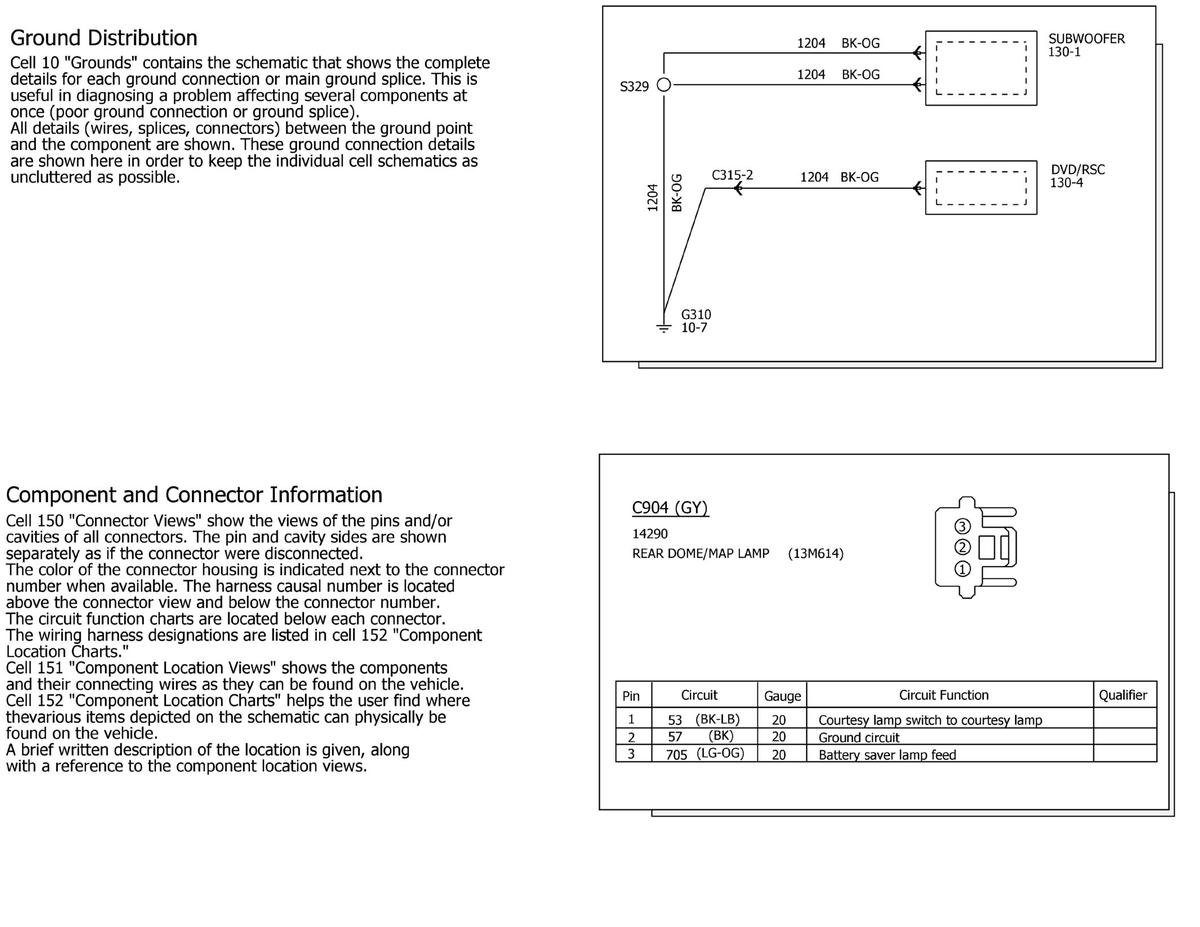

GFDWR130021Courtesy of FORD MOTOR COMPANY

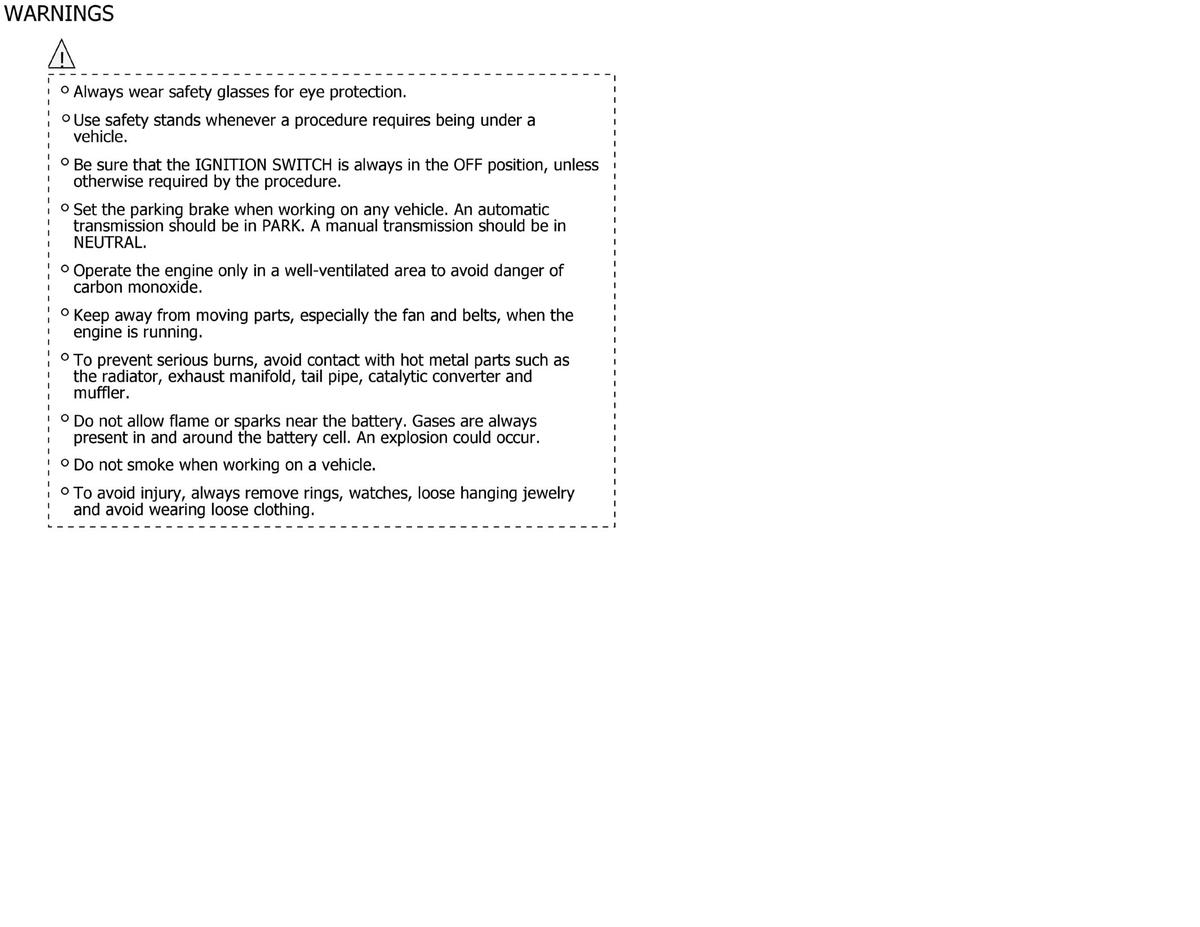

GFDWR130022Courtesy of FORD MOTOR COMPANY
