Overhead Console: Removal

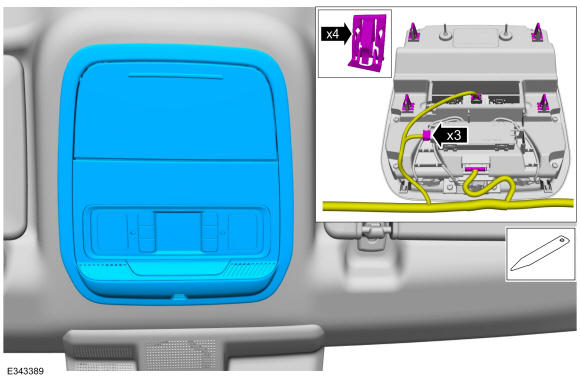

  1. Starting at the rear, release the clips and lower the overhead console.

    • Disconnect the electrical connectors and remove the overhead console. Use the General Equipment: Interior Trim Remover

GFD610768Courtesy of FORD MOTOR COMPANY
