Inverter System Controller [SOBDMC]: Installation

NOTE: Extreme cleanliness must be exercised when handling the component.

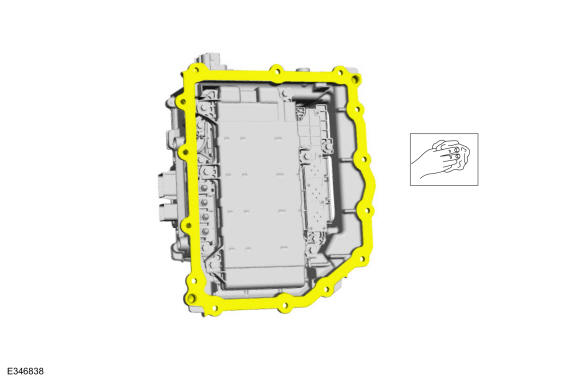

If the ISC SOBDMC is going to be reinstalled. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
NOTE: Extreme cleanliness must be exercised when handling the component.

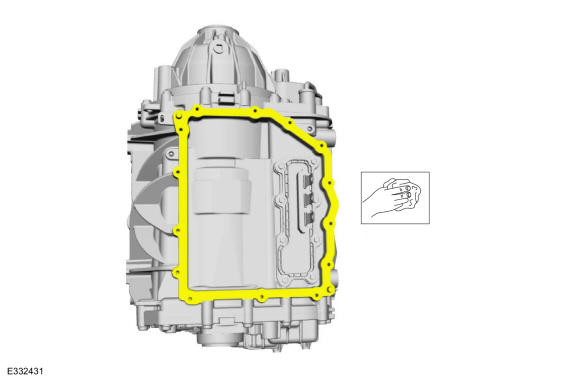

Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY

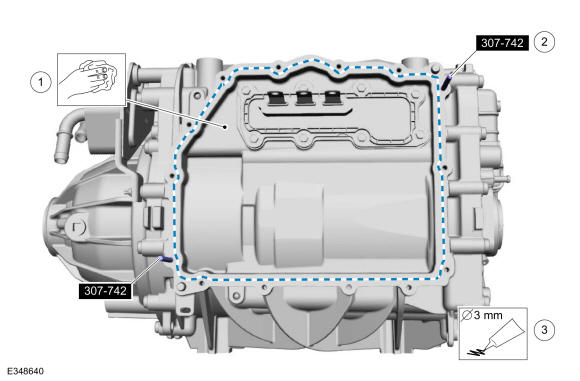

1. NOTE: Use only a lint free cloth.

  Clean the inside of the rear electric drive assembly for any debris or fluid.
2. Install the guide studs. Use Special Service Tool: 307-742 Alignment Kit, Pump Assembly.
3. Apply a 3.0 mm (0.12 in) diameter bead of Motorcraft® Ultra Silicone Sealant to the sealing surface.
  Material: Motorcraft® Ultra Silicone Sealant / TA-29 (WSS-M4G323-A8)
Courtesy of FORD MOTOR COMPANY

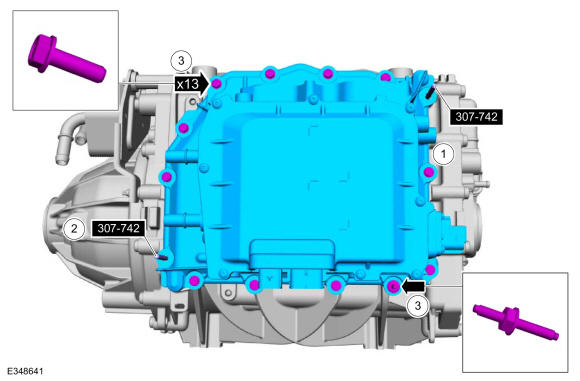

1. Install the ISC SOBDMC.
2. Remove the guide studs. Use Special Service Tool: 307-742 Alignment Kit, Pump Assembly.
3. NOTE: Only tighten the bolt finger tight at this stage.

  Install the stud bolt and the bolts.
Courtesy of FORD MOTOR COMPANY
Tighten the stud bolt and the bolts.
Torque: 97 lb.in (11 Nm)

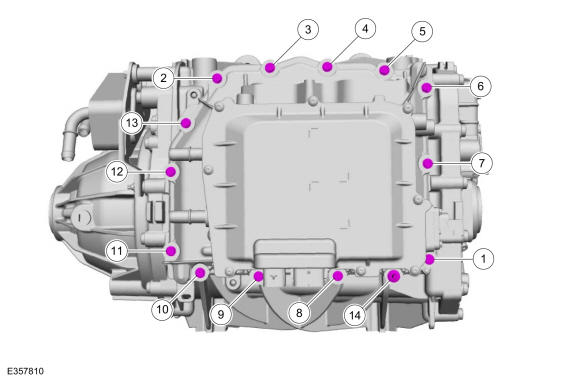

Fig 1: Inverter System Controller (ISC SOBDMC) Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the high-voltage terminal bolts for the ISC SOBDMC.
Torque: 106 lb.in (12 Nm)

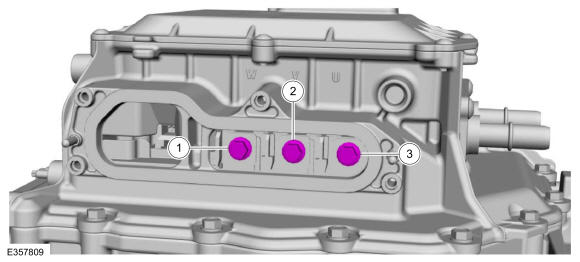

Fig 2: Inverter System Controller (ISC SOBDMC) High-Voltage Terminal Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the ISC SOBDMC side cover and the bolts.
Torque: 97 lb.in (11 Nm)

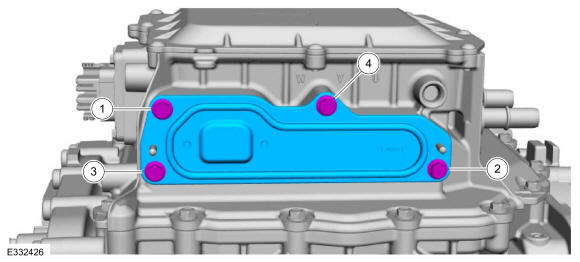

Fig 3: Inverter System Controller (ISC SOBDMC) Side Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

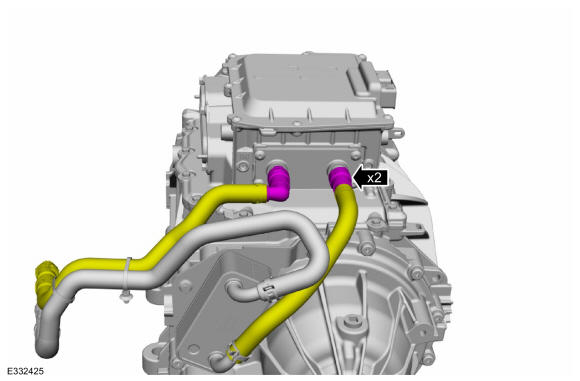

Position back and connect the ISC SOBDMC cooling hoses.

Courtesy of FORD MOTOR COMPANY

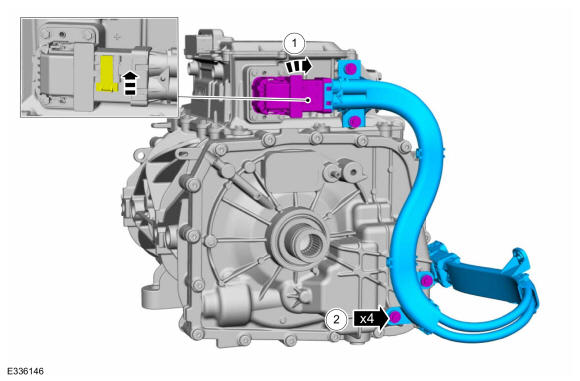

1. Connect the electrical connector and position back the lock lever. Slide the secondary lock mechanism.
2. Install the wire harness bolts.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY
Install the rear electric drive assembly. Refer to: Rear Electric Drive Assembly .
NOTE: This step is only necessary when installing a new component.

If the inverter system controller SOBDMC was replaced, upload the information from the diagnostic tool to the inverter system controller SOBDMC using the Programmable Modules Installation routine. Refer to: Module Programming .
NOTE: This step is only necessary when installing a new component.

Perform the PATS module initialization procedure. Refer to: Module Programming .
