Front Brake Disc Shield: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake disc. Refer to: Brake Disc .

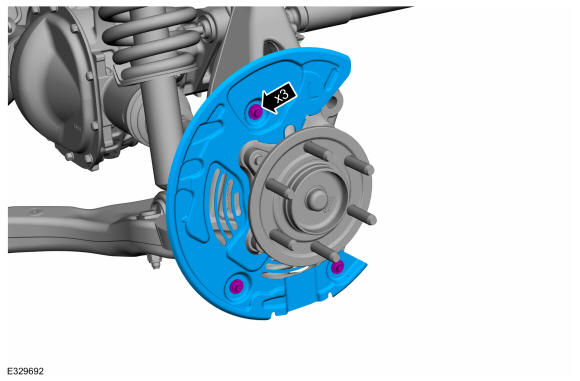

  2. Remove the bolts and the brake disc shield.

    Torque

    : 133 lb.in (15 Nm)

GFD552137Courtesy of FORD MOTOR COMPANY
