Power Distribution

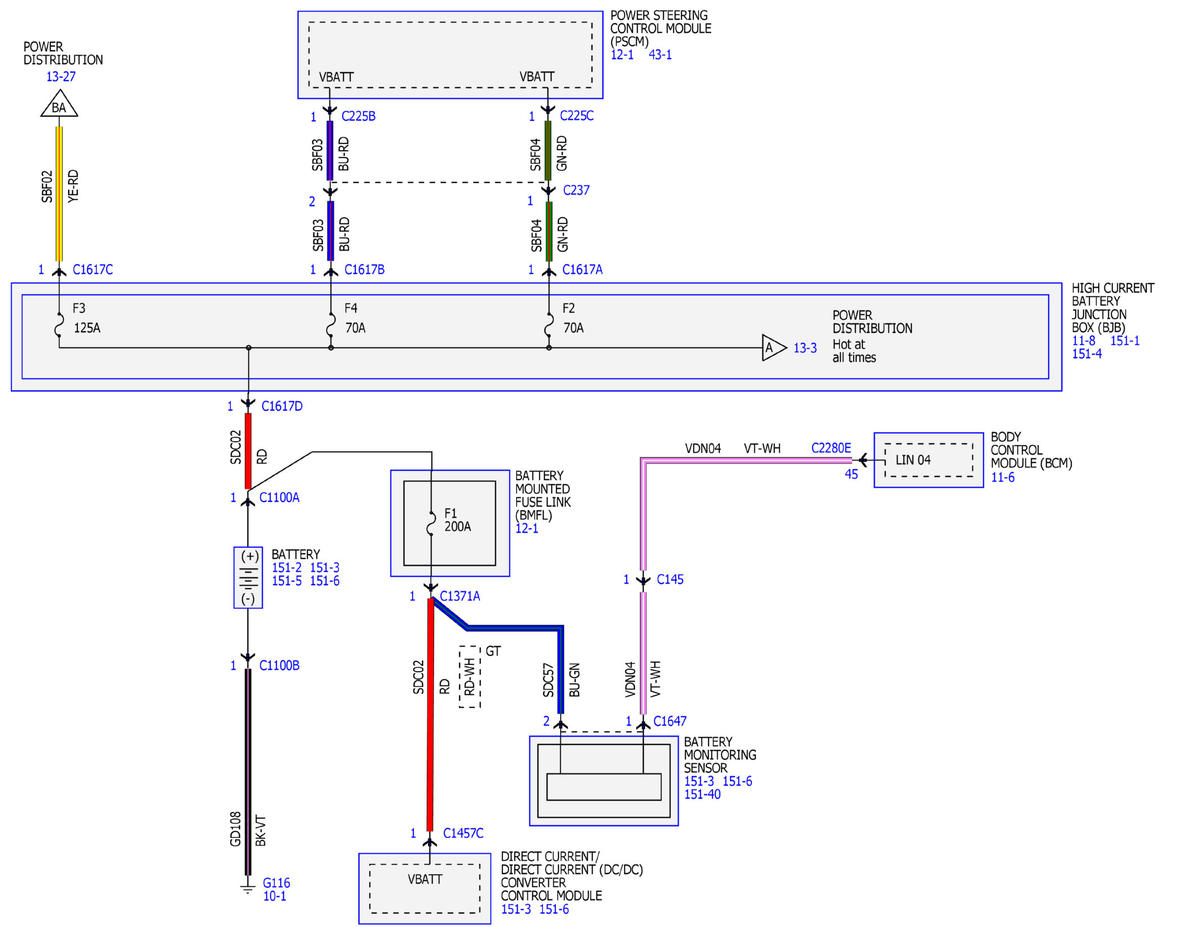

Fig 1: Power Distribution Wiring Diagrams (1 Of 54)

GFDWR145330

Courtesy of FORD MOTOR COMPANY

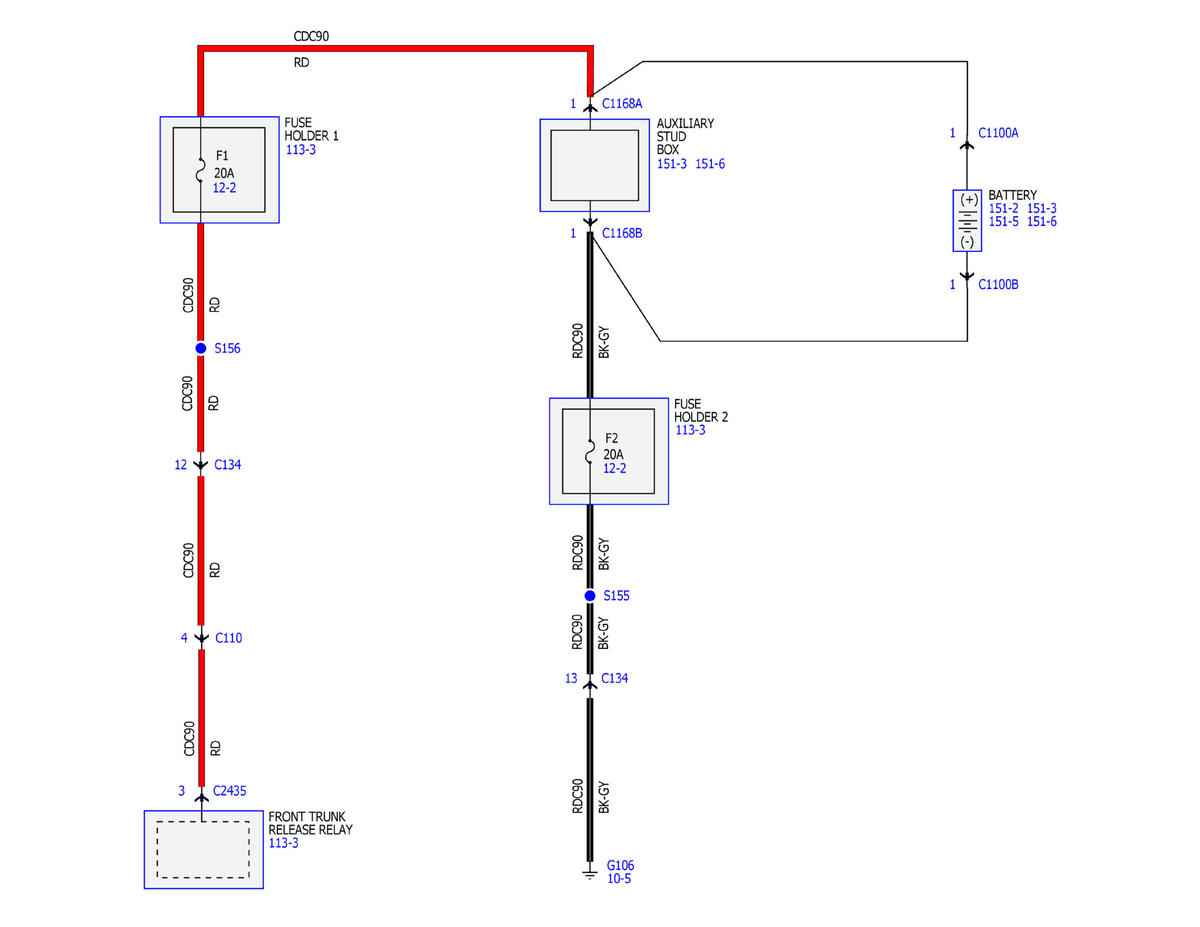

Fig 2: Power Distribution Wiring Diagrams (2 Of 54)

GFDWR145341

Courtesy of FORD MOTOR COMPANY

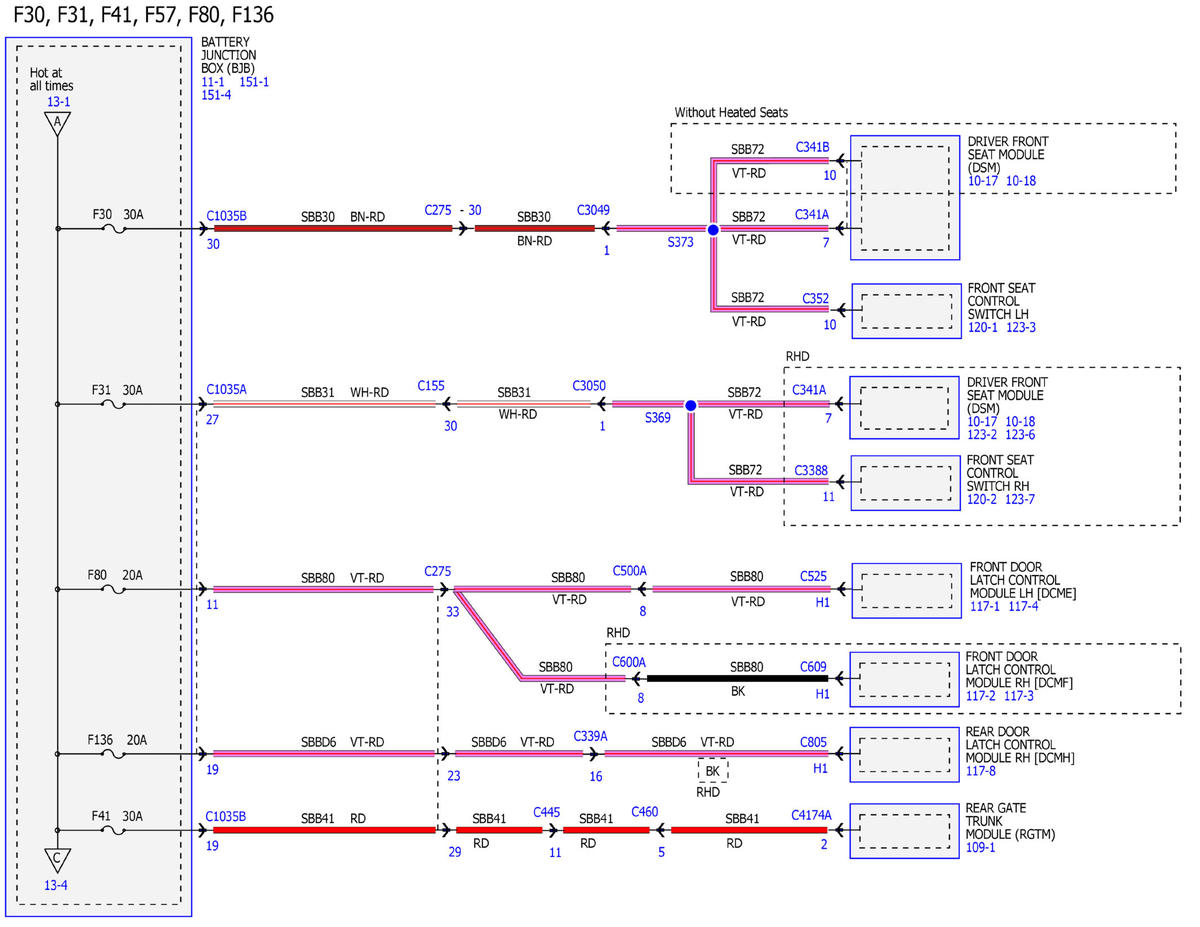

Fig 3: Power Distribution Wiring Diagrams (3 Of 54)

GFDWR145352

Courtesy of FORD MOTOR COMPANY

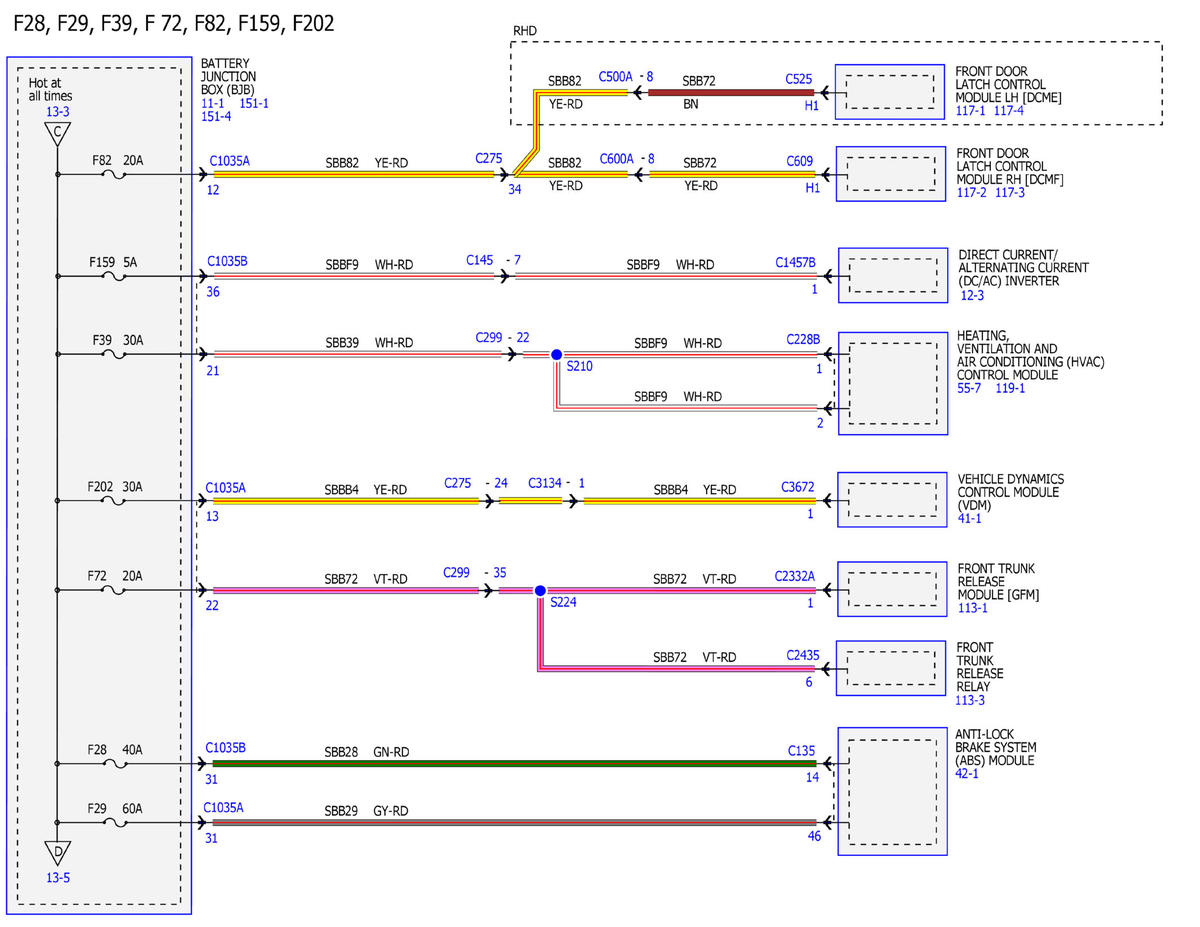

Fig 4: Power Distribution Wiring Diagrams (4 Of 54)

GFDWR145363

Courtesy of FORD MOTOR COMPANY

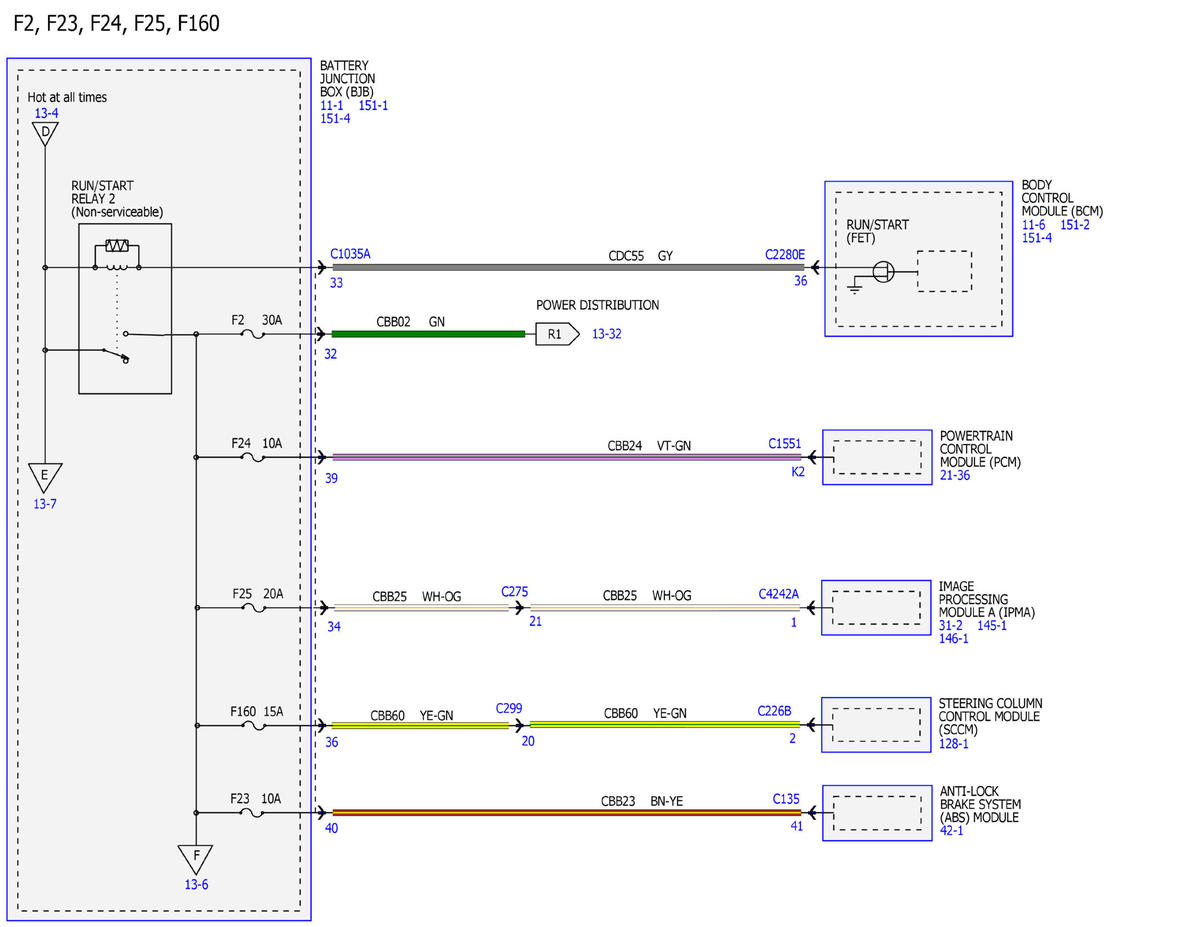

Fig 5: Power Distribution Wiring Diagrams (5 Of 54)

GFDWR145374

Courtesy of FORD MOTOR COMPANY

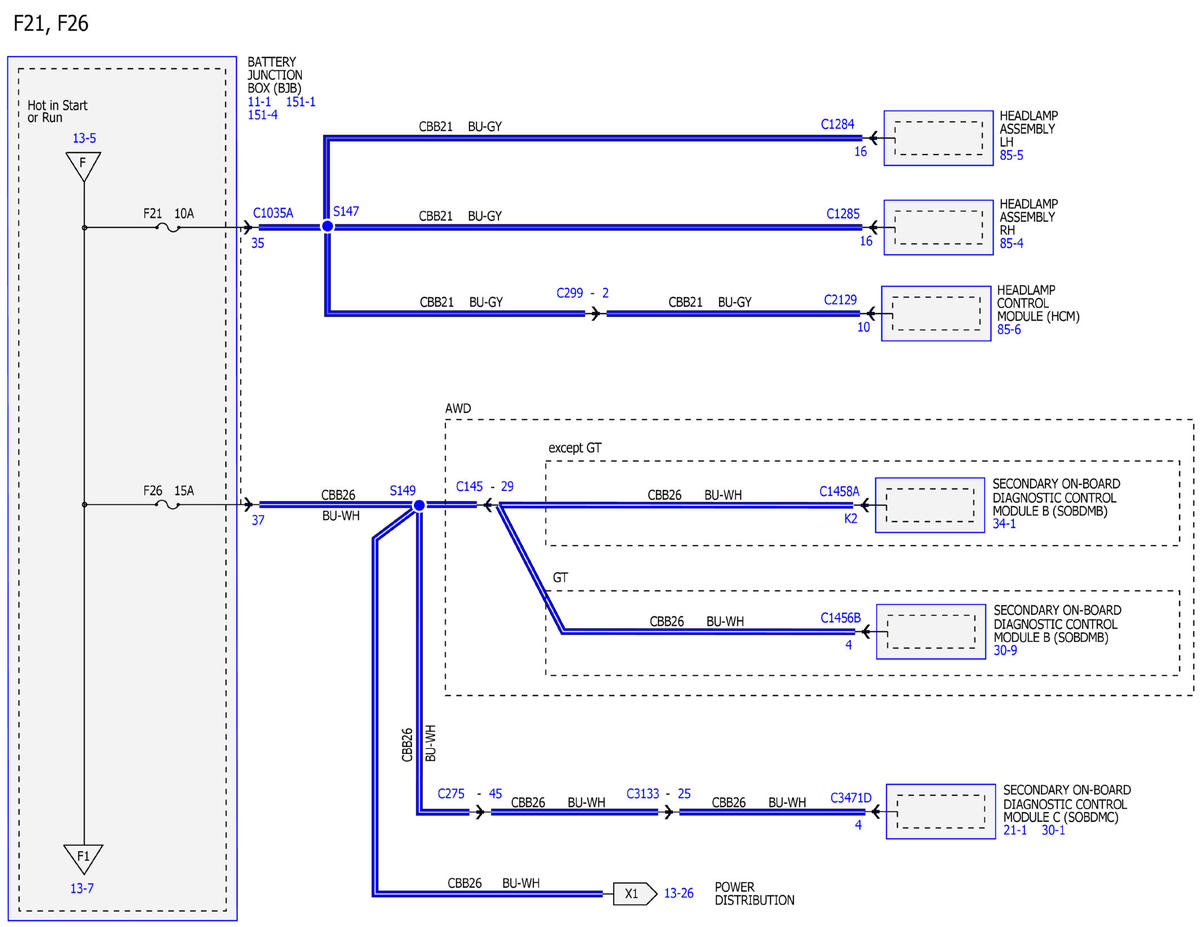

Fig 6: Power Distribution Wiring Diagrams (6 Of 54)

GFDWR145380

Courtesy of FORD MOTOR COMPANY

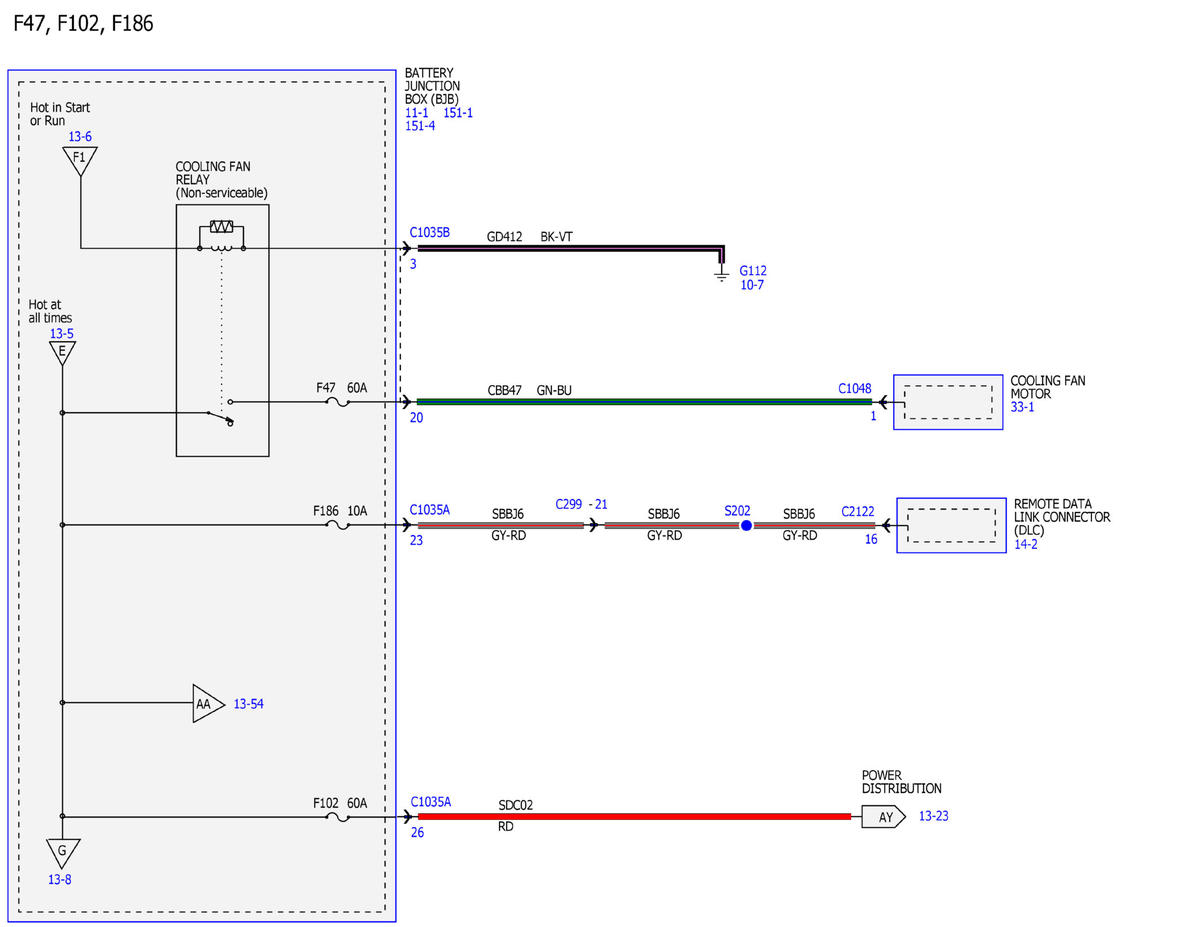

Fig 7: Power Distribution Wiring Diagrams (7 Of 54)

GFDWR145381

Courtesy of FORD MOTOR COMPANY

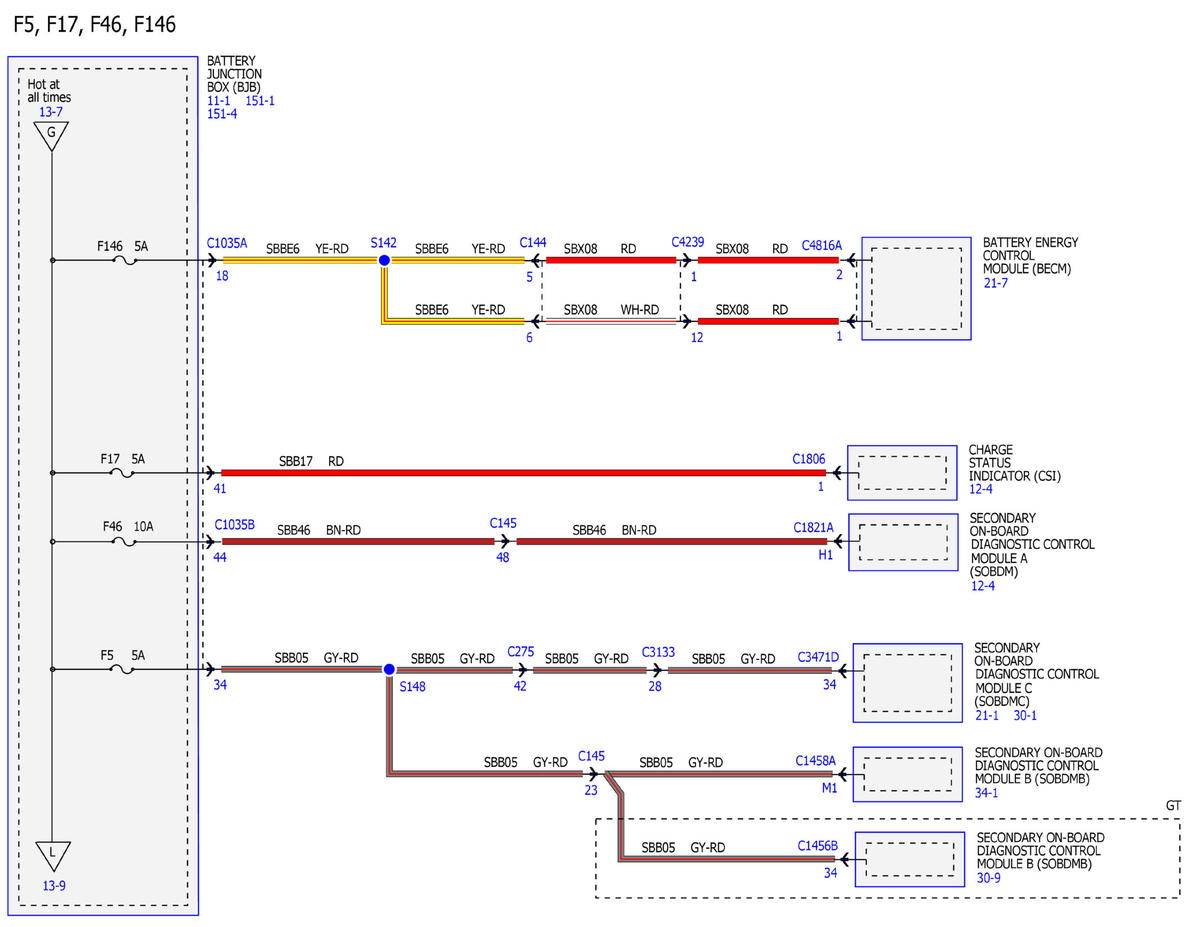

Fig 8: Power Distribution Wiring Diagrams (8 Of 54)

GFDWR145382

Courtesy of FORD MOTOR COMPANY

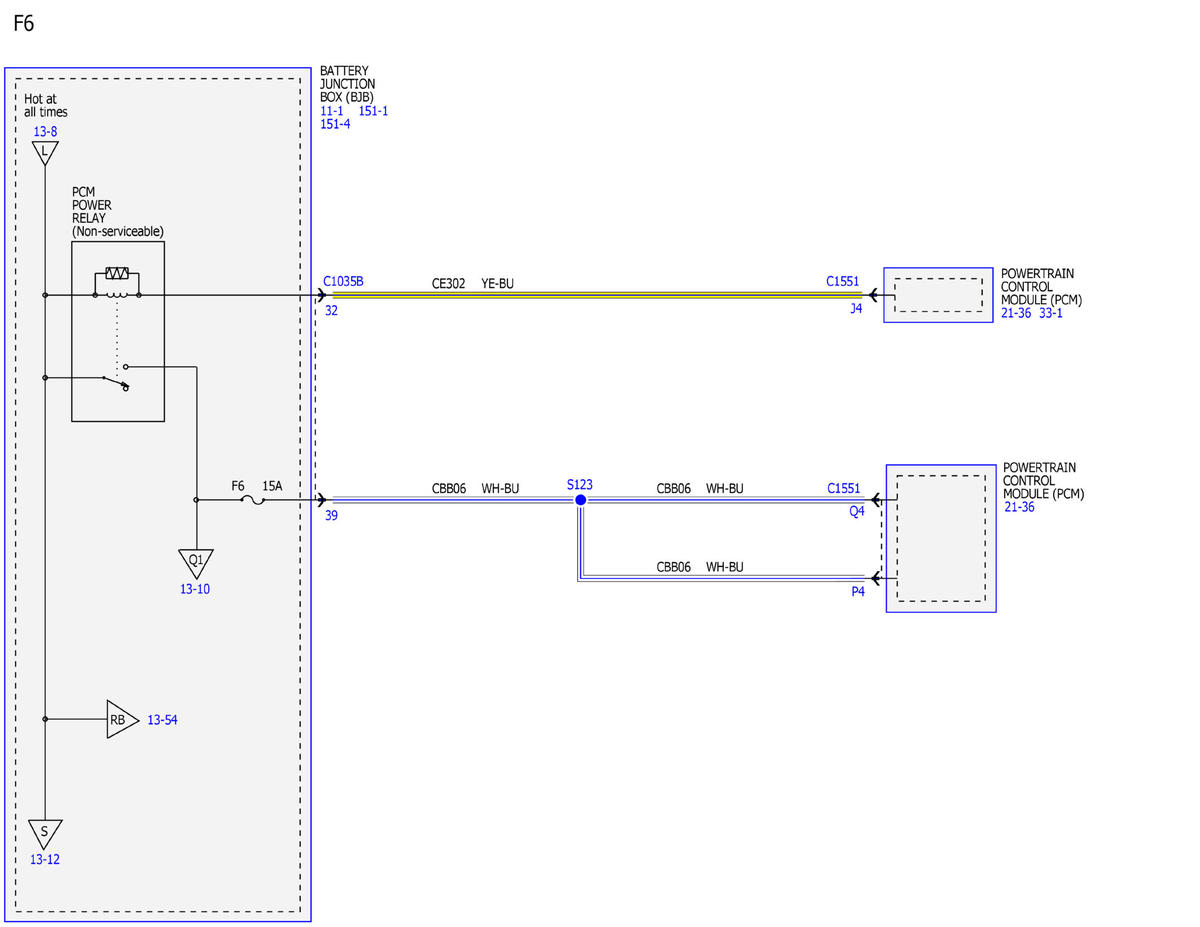

Fig 9: Power Distribution Wiring Diagrams (9 Of 54)

GFDWR145383

Courtesy of FORD MOTOR COMPANY

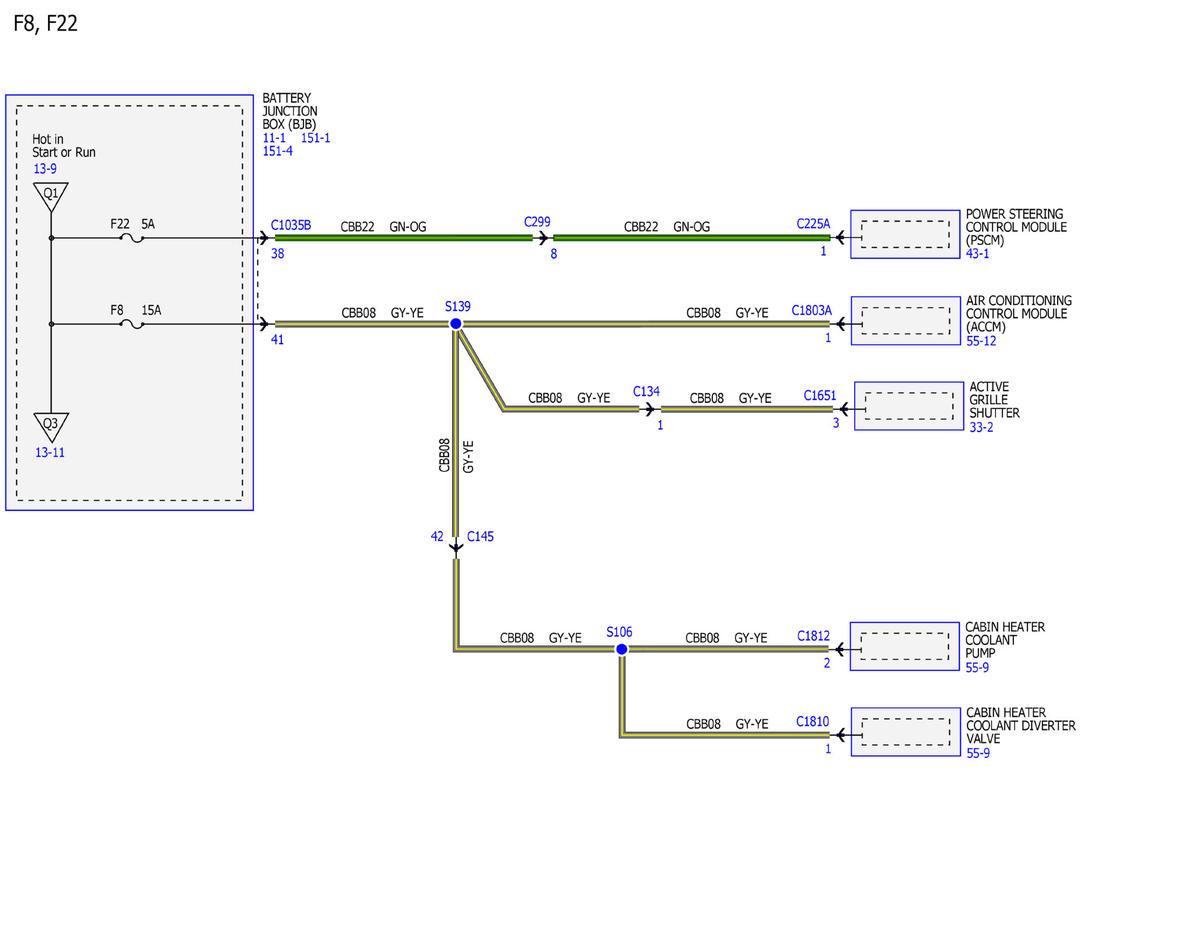

Fig 10: Power Distribution Wiring Diagrams (10 Of 54)

GFDWR145331

Courtesy of FORD MOTOR COMPANY

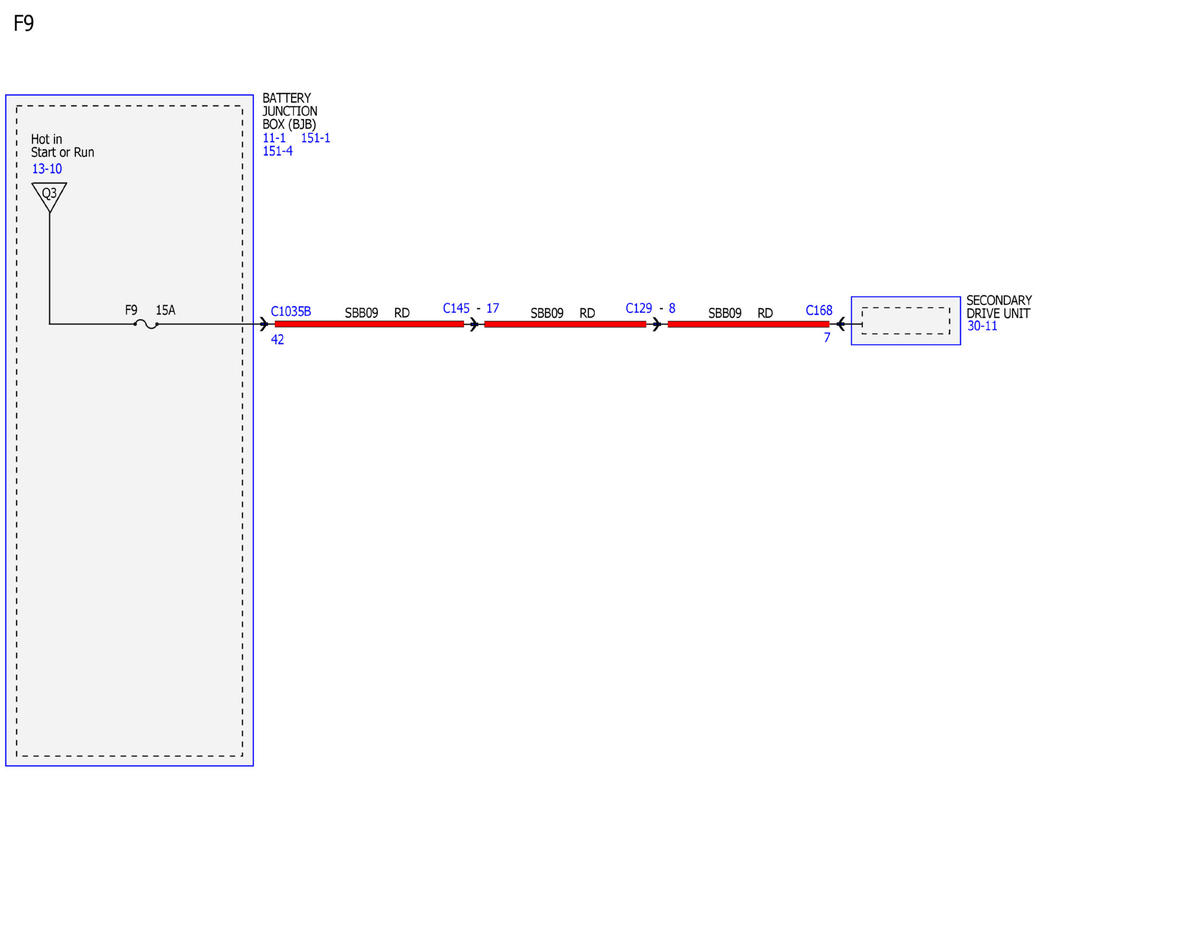

Fig 11: Power Distribution Wiring Diagrams (11 Of 54)

GFDWR145332

Courtesy of FORD MOTOR COMPANY

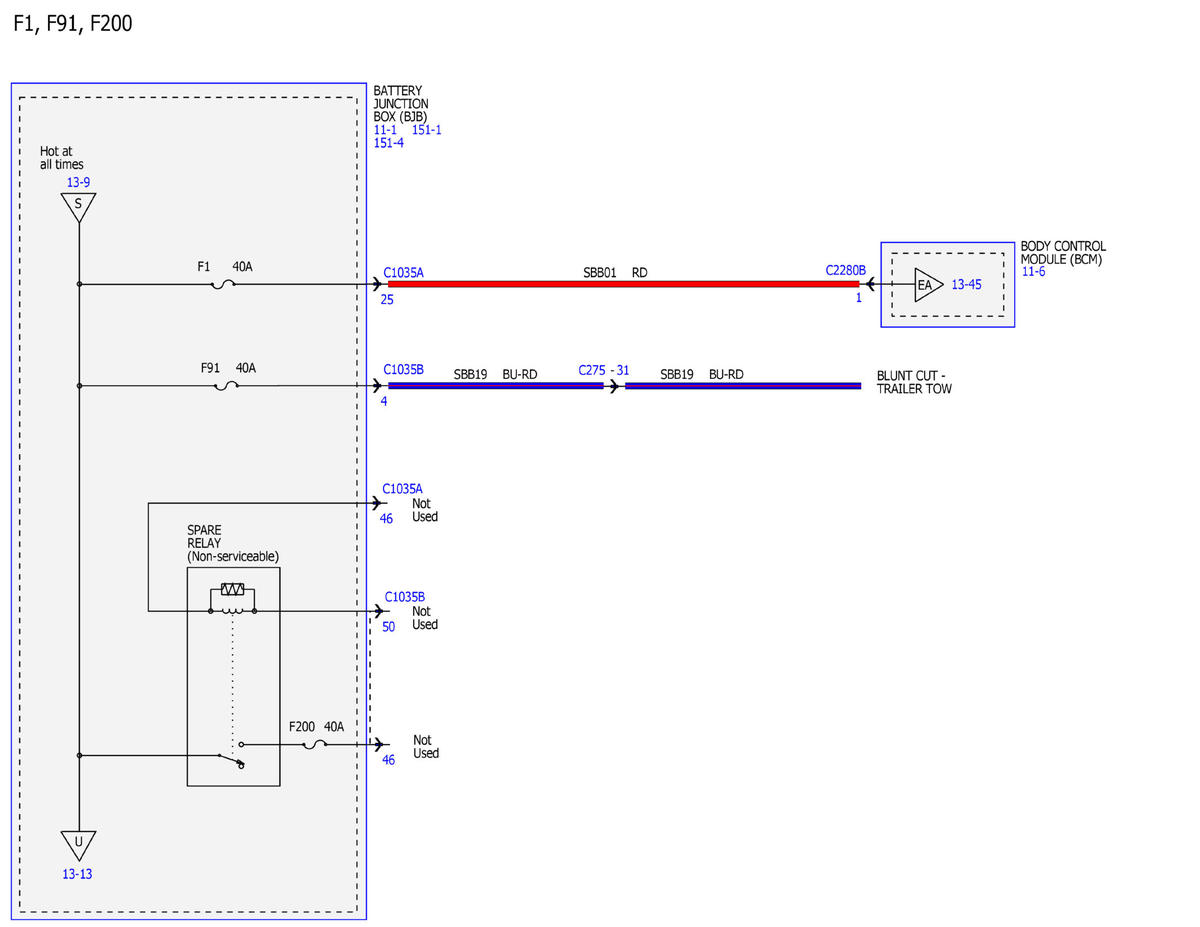

Fig 12: Power Distribution Wiring Diagrams (12 Of 54)

GFDWR145333

Courtesy of FORD MOTOR COMPANY

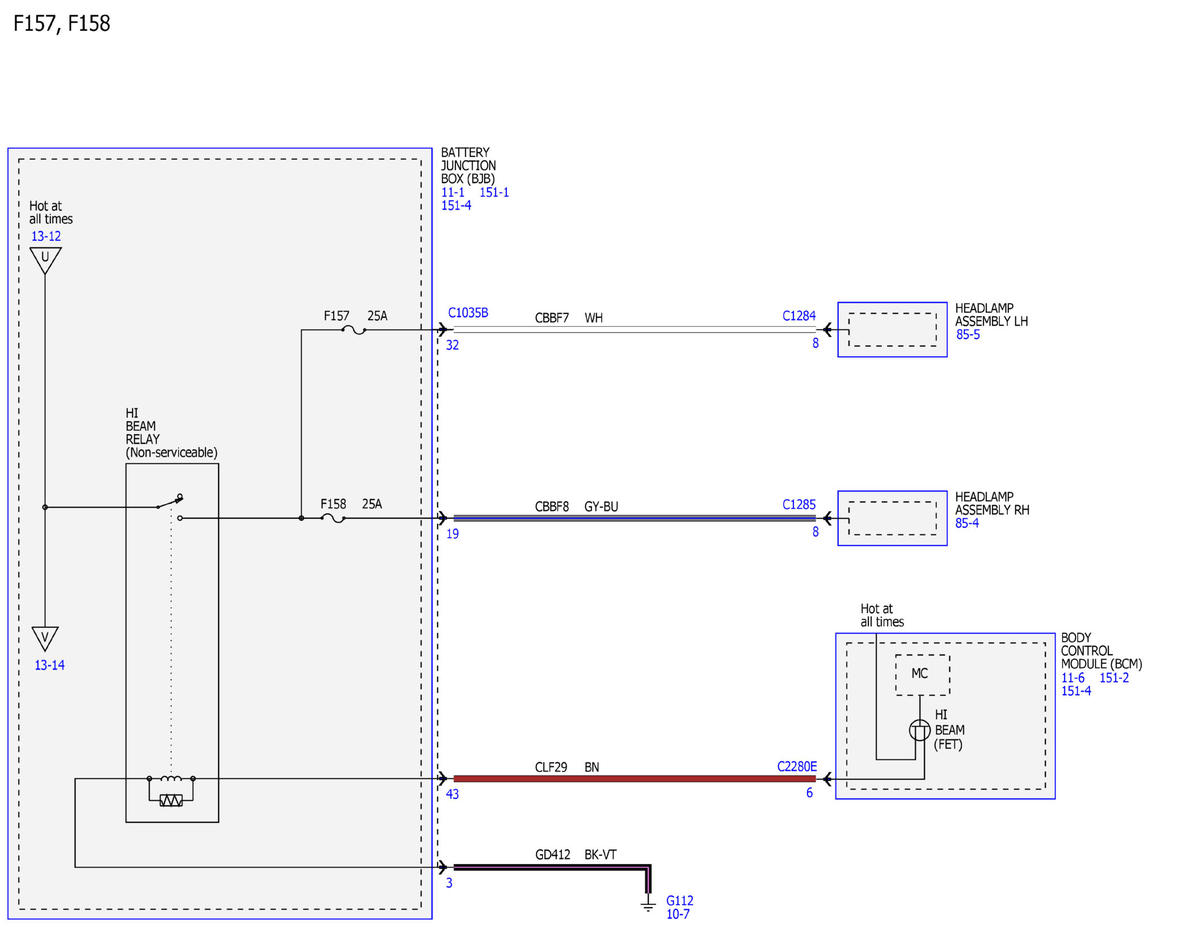

Fig 13: Power Distribution Wiring Diagrams (13Of 54)

GFDWR145334

Courtesy of FORD MOTOR COMPANY

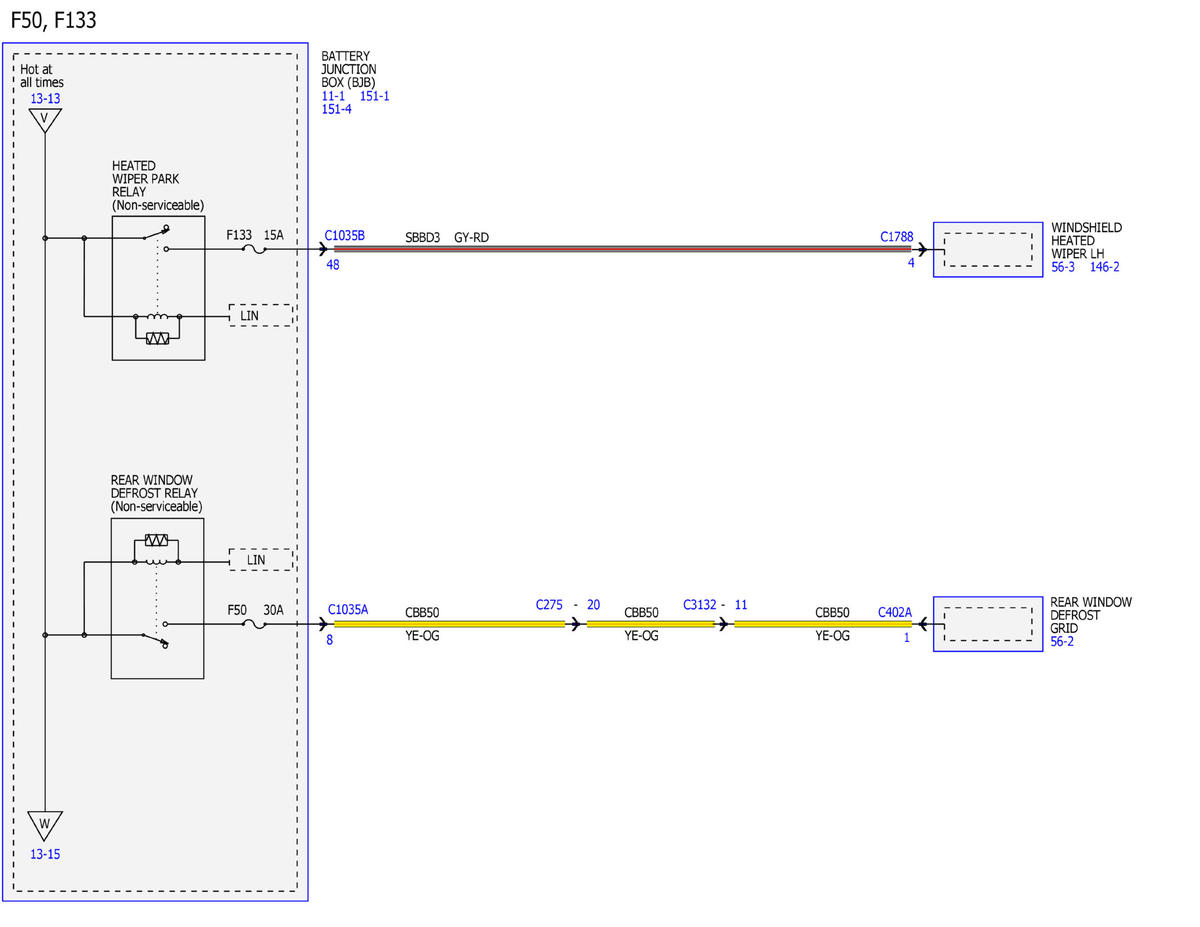

Fig 14: Power Distribution Wiring Diagrams (14 Of 54)

GFDWR145335

Courtesy of FORD MOTOR COMPANY

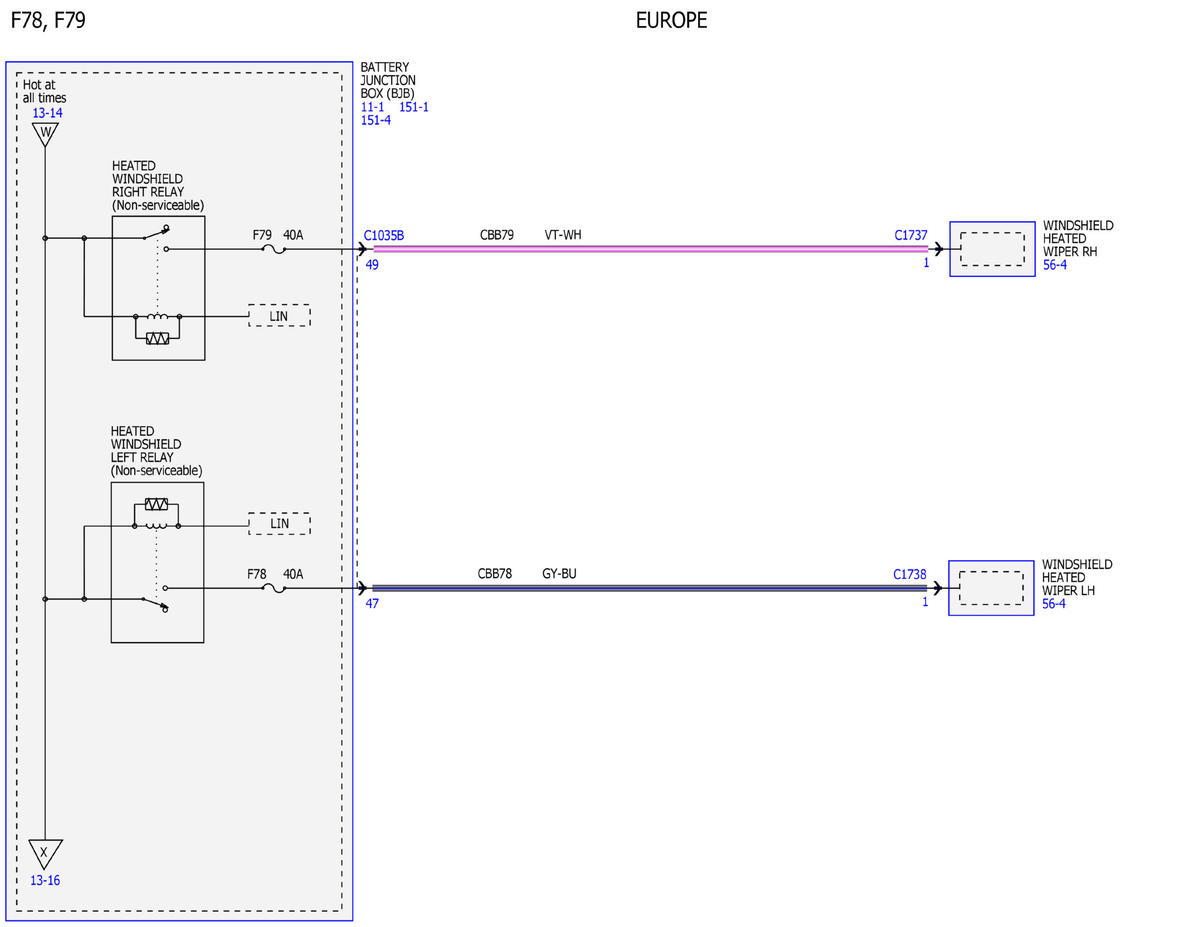

Fig 15: Power Distribution Wiring Diagrams (15 Of 54)

GFDWR145336

Courtesy of FORD MOTOR COMPANY

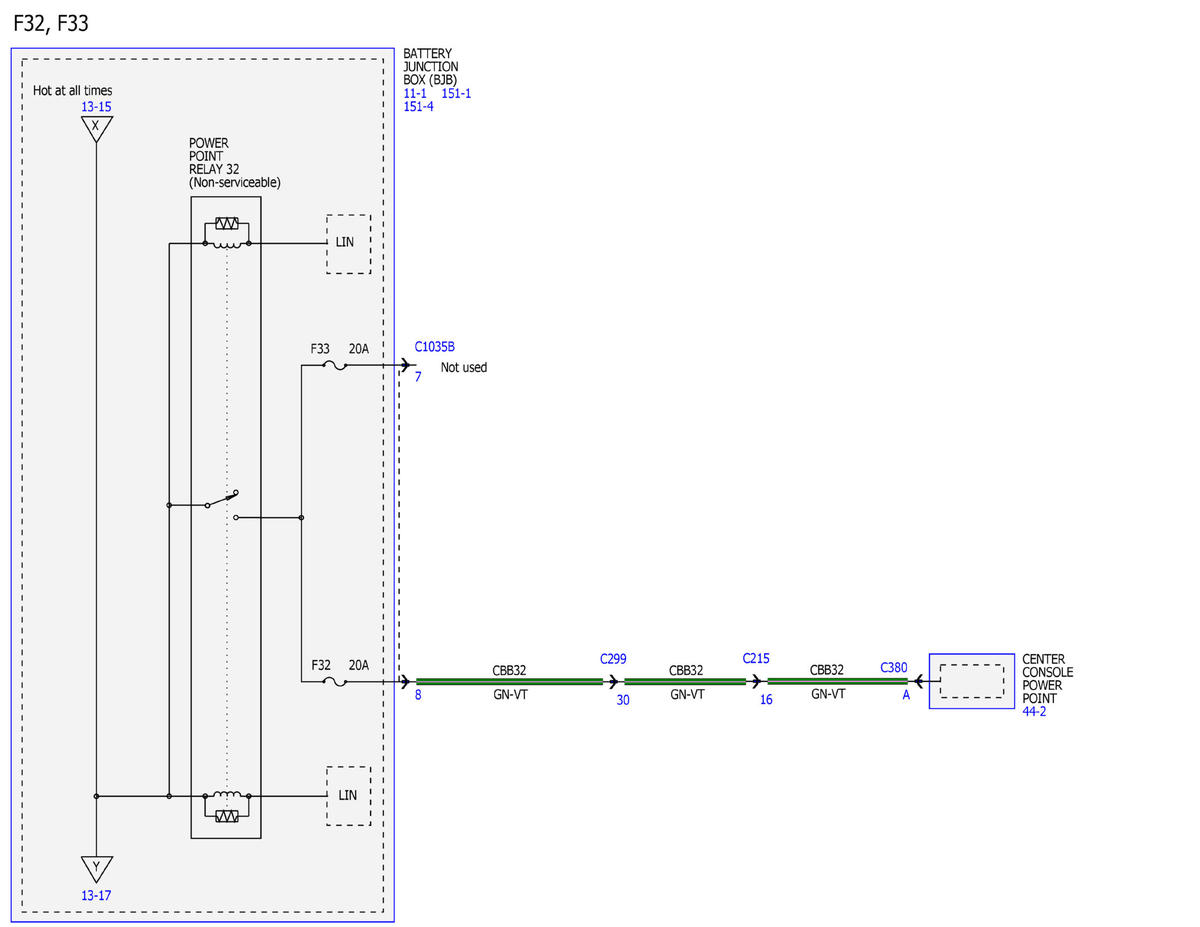

Fig 16: Power Distribution Wiring Diagrams (16 Of 54)

GFDWR145337

Courtesy of FORD MOTOR COMPANY

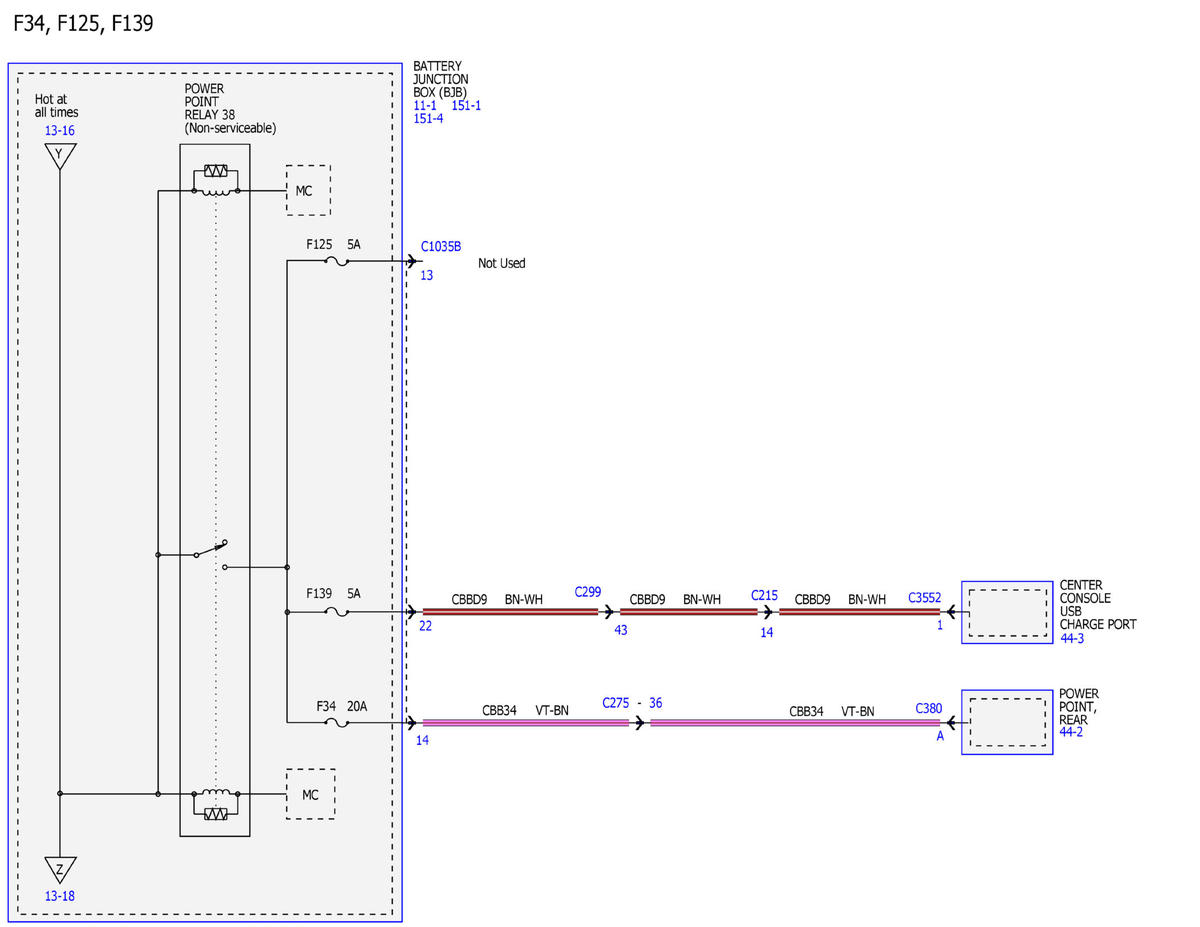

Fig 17: Power Distribution Wiring Diagrams (17 Of 54)

GFDWR145338

Courtesy of FORD MOTOR COMPANY

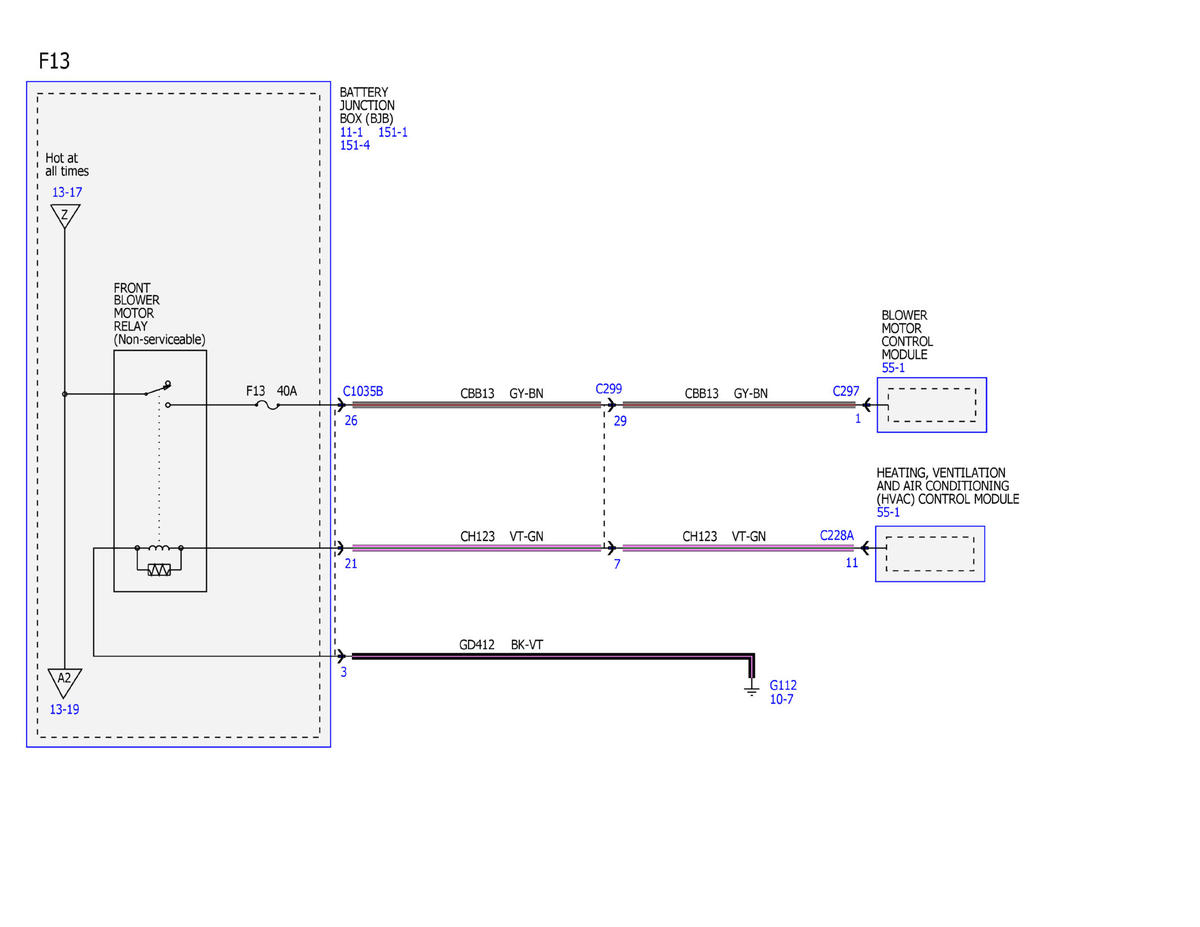

Fig 18: Power Distribution Wiring Diagrams (18 Of 54)

GFDWR145339

Courtesy of FORD MOTOR COMPANY

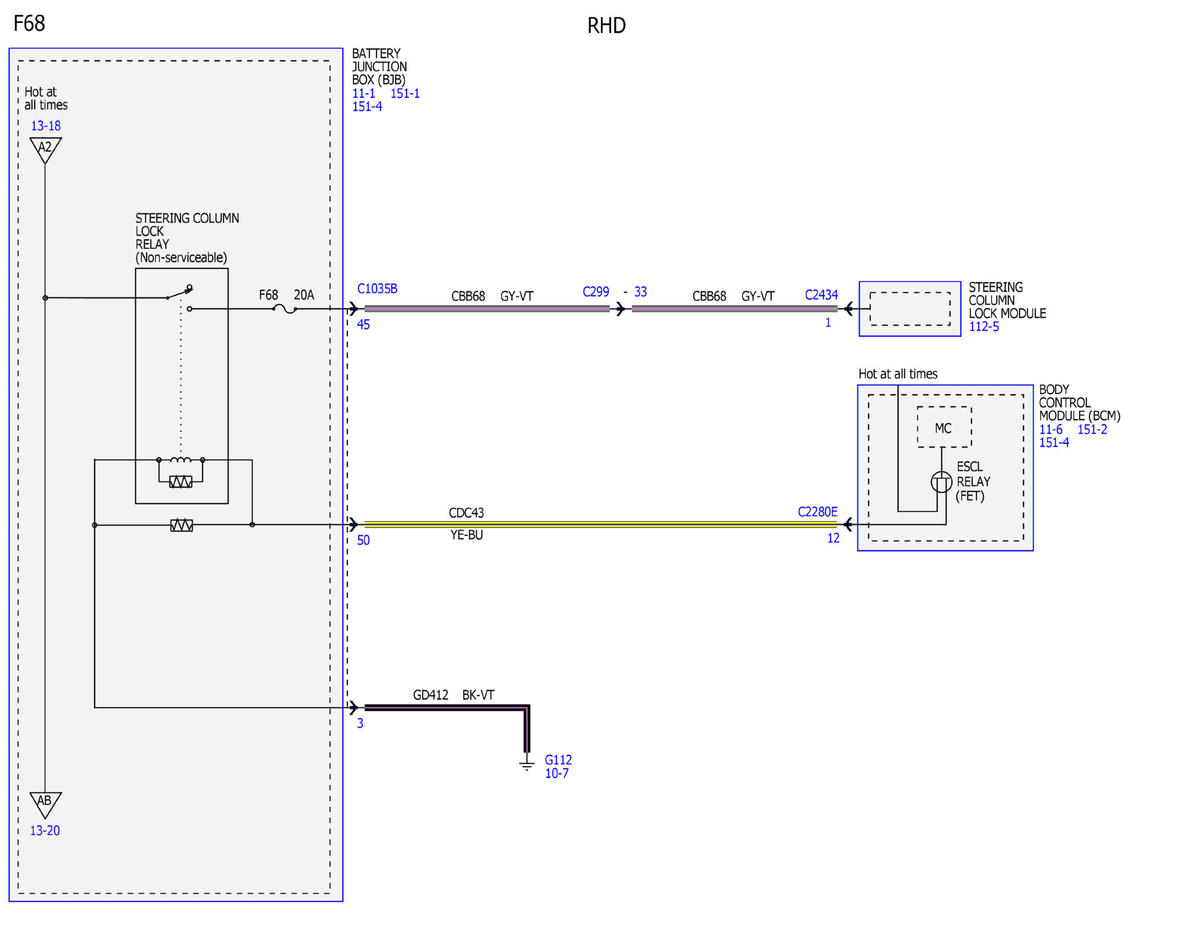

Fig 19: Power Distribution Wiring Diagrams (19 Of 54)

GFDWR145340

Courtesy of FORD MOTOR COMPANY

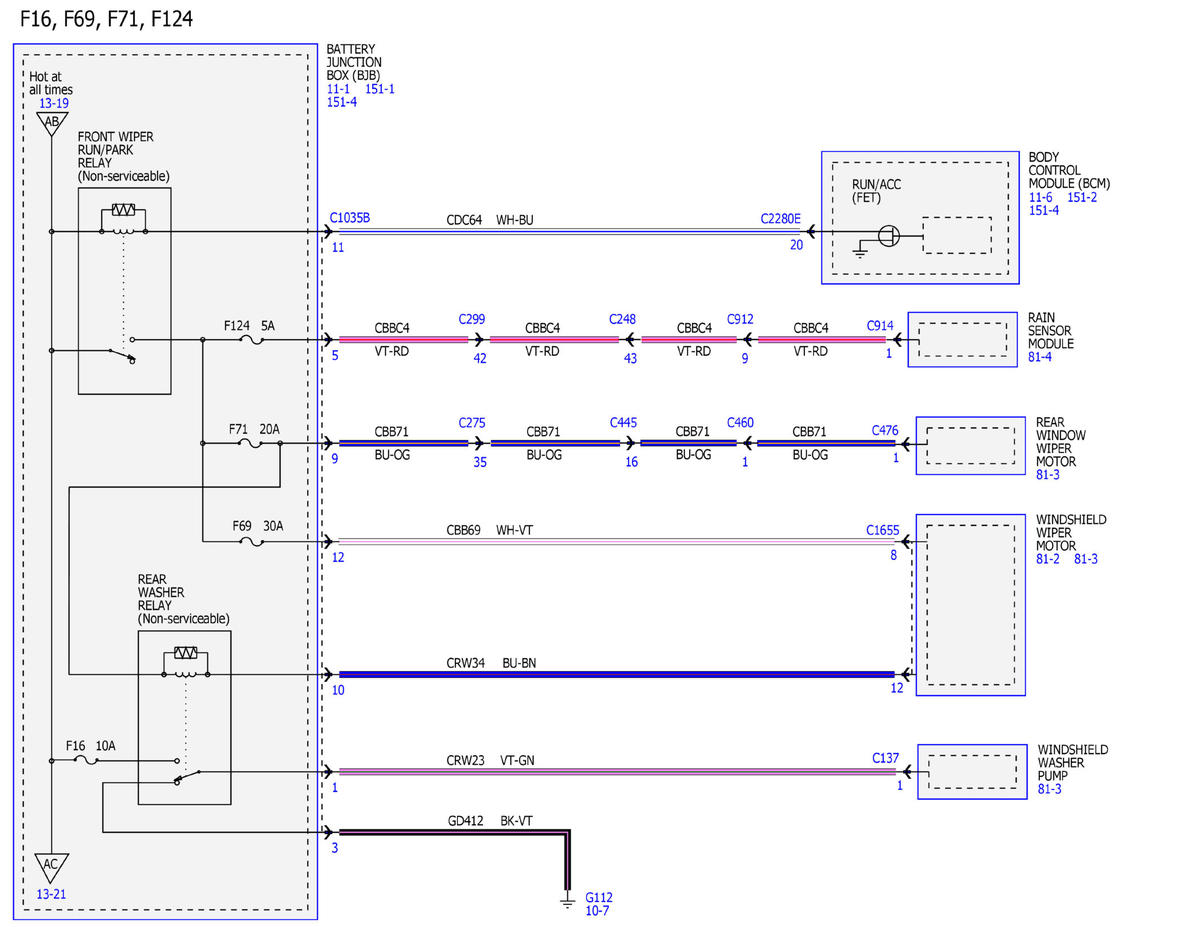

Fig 20: Power Distribution Wiring Diagrams (20 Of 54)

GFDWR145342

Courtesy of FORD MOTOR COMPANY

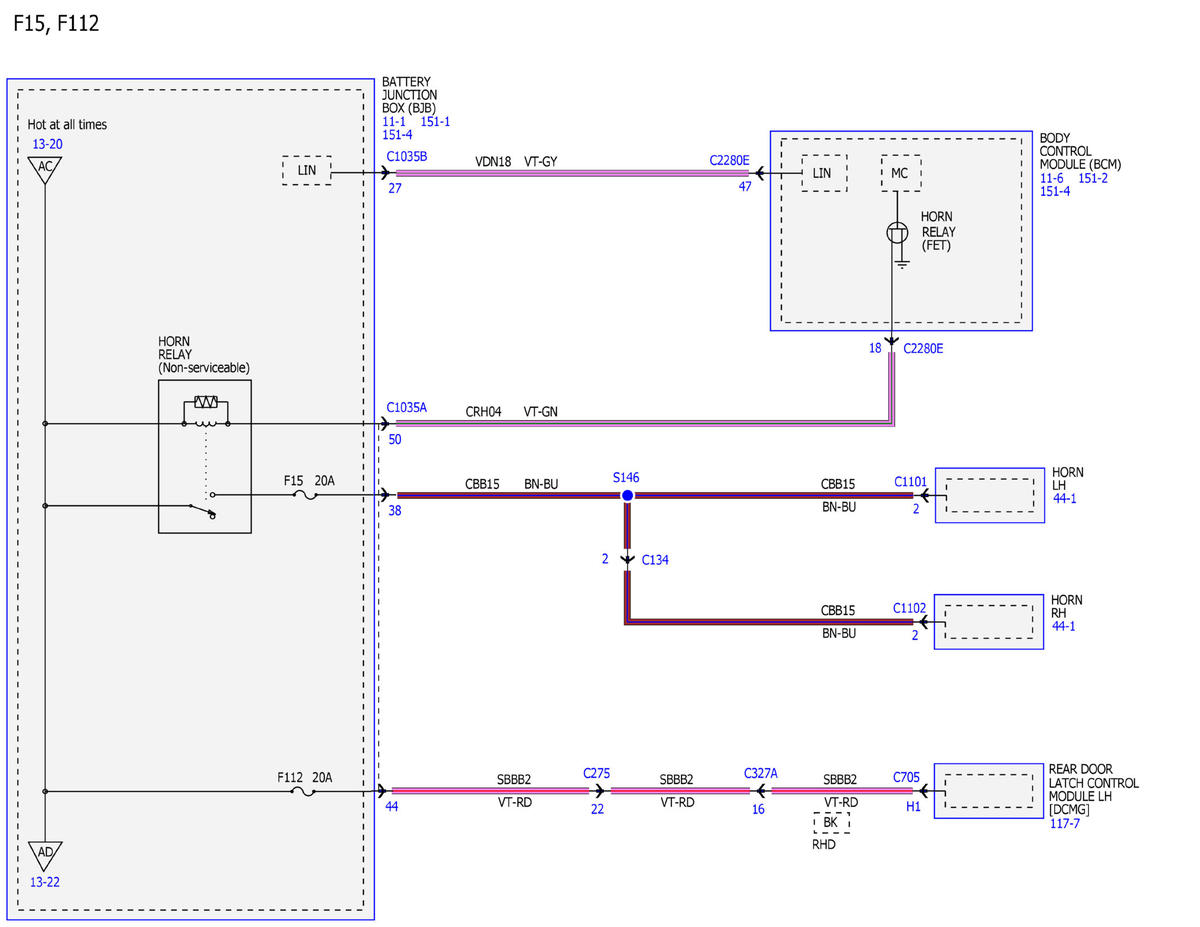

Fig 21: Power Distribution Wiring Diagrams (21 Of 54)

GFDWR145343

Courtesy of FORD MOTOR COMPANY

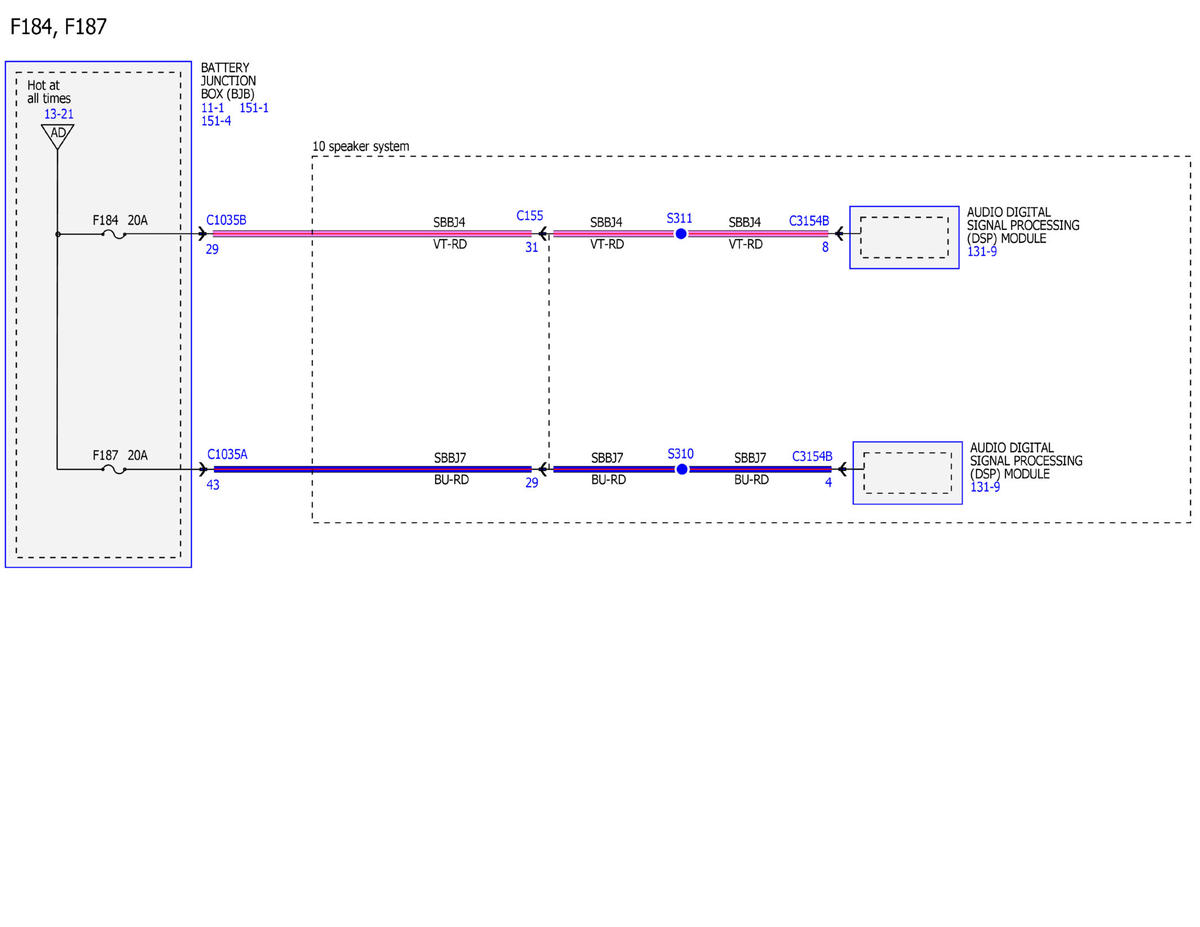

Fig 22: Power Distribution Wiring Diagrams (22 Of 54)

GFDWR145344

Courtesy of FORD MOTOR COMPANY

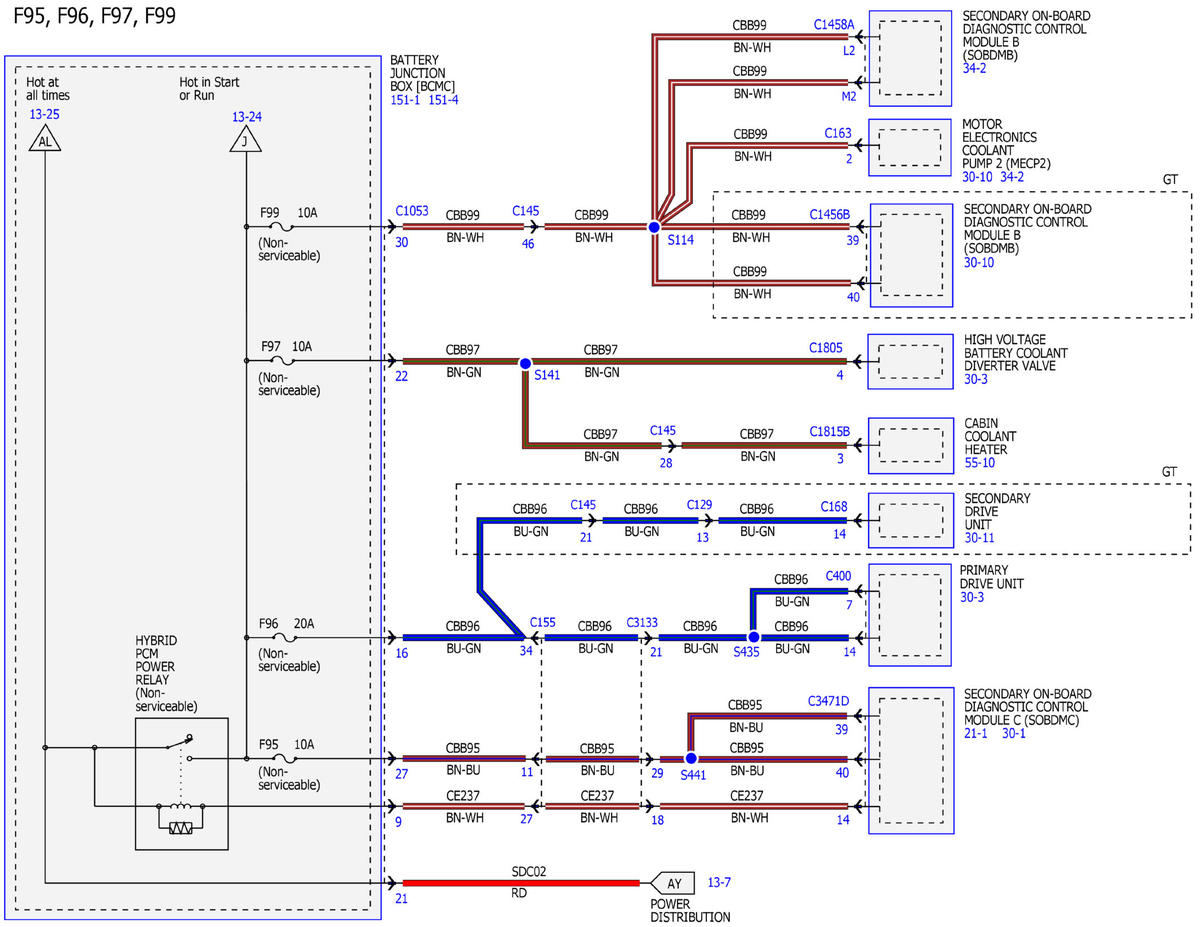

Fig 23: Power Distribution Wiring Diagrams (23 Of 54)

GFDWR145345

Courtesy of FORD MOTOR COMPANY

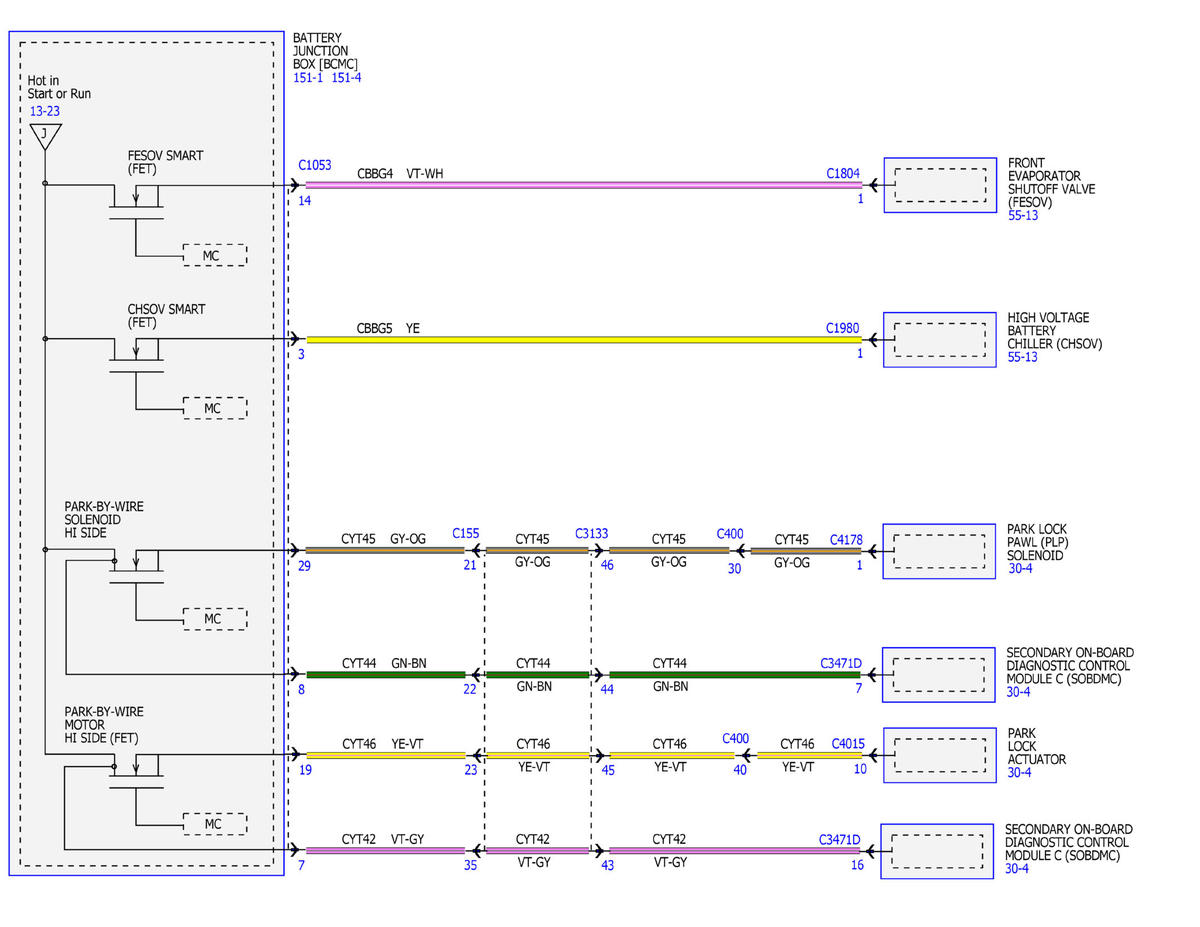

Fig 24: Power Distribution Wiring Diagrams (24 Of 54)

GFDWR145346

Courtesy of FORD MOTOR COMPANY

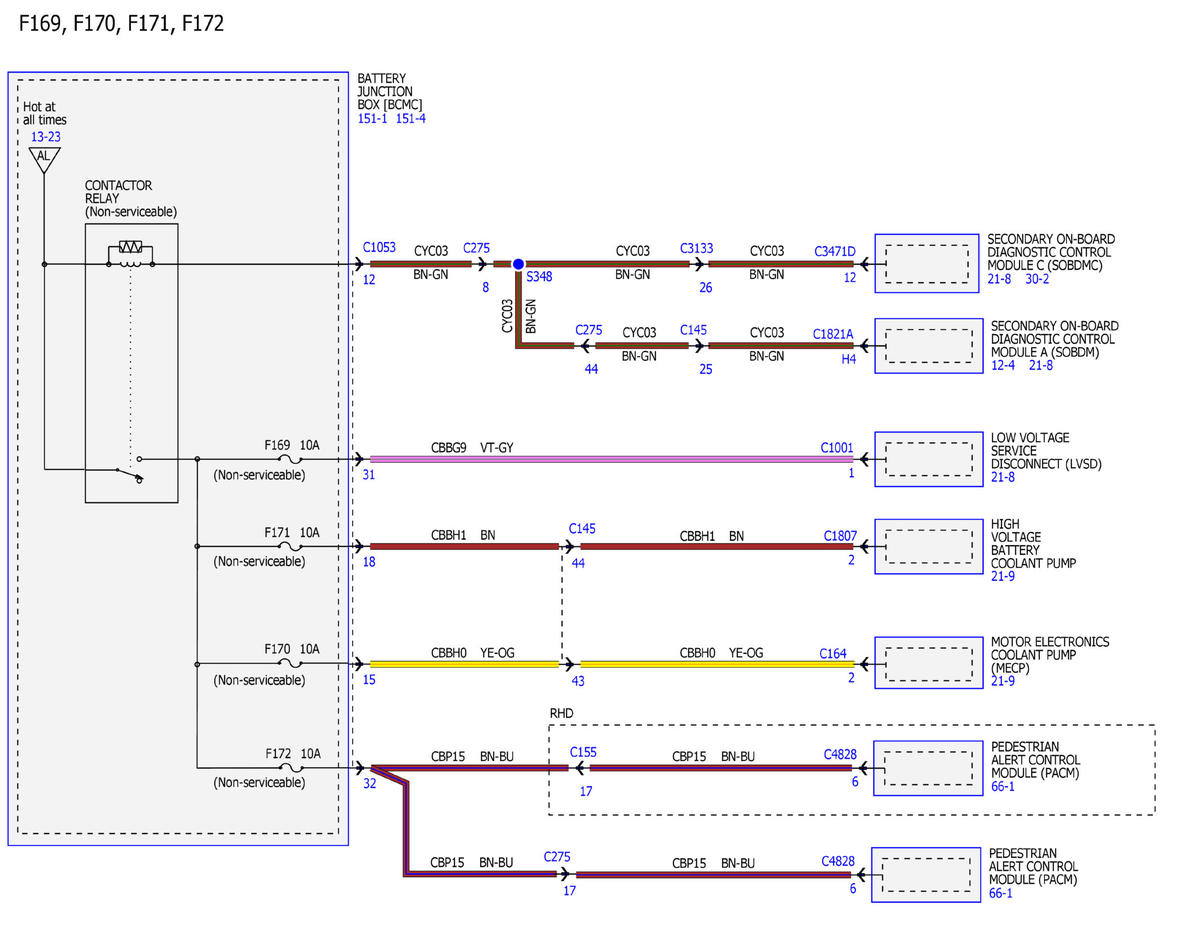

Fig 25: Power Distribution Wiring Diagrams (25 Of 54)

GFDWR145347

Courtesy of FORD MOTOR COMPANY

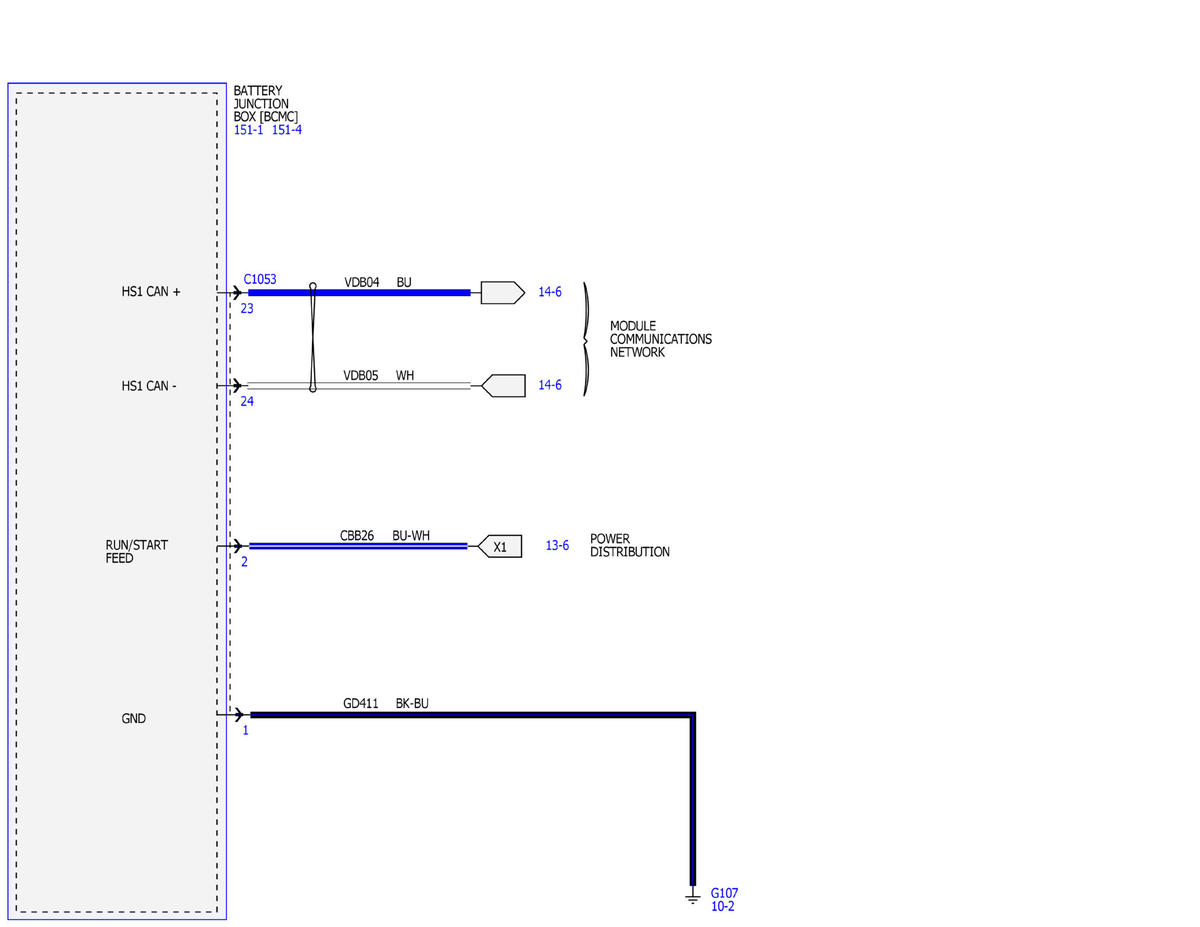

Fig 26: Power Distribution Wiring Diagrams (26 Of 54)

GFDWR145348

Courtesy of FORD MOTOR COMPANY

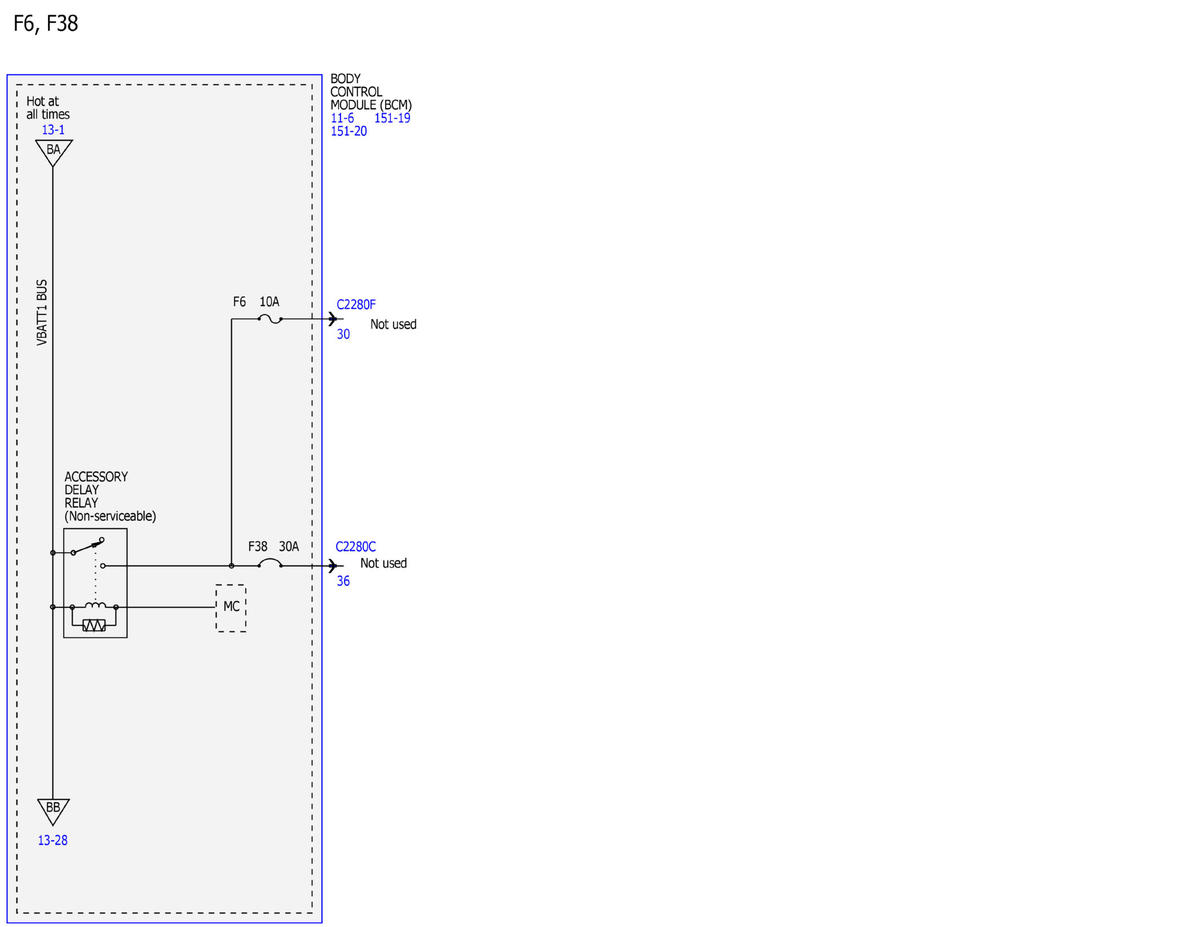

Fig 27: Power Distribution Wiring Diagrams (27 Of 54)

GFDWR145349

Courtesy of FORD MOTOR COMPANY

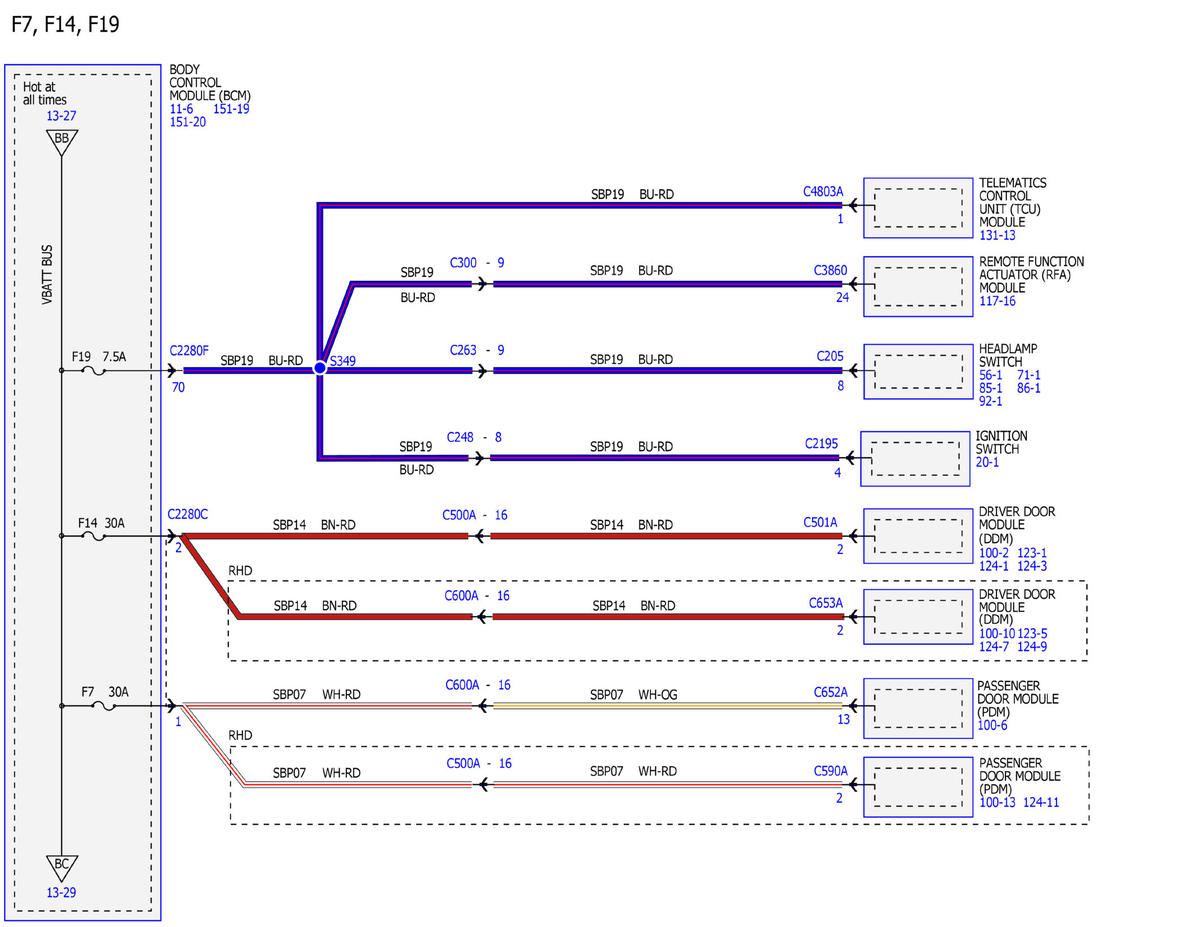

Fig 28: Power Distribution Wiring Diagrams (28 Of 54)

GFDWR145350

Courtesy of FORD MOTOR COMPANY

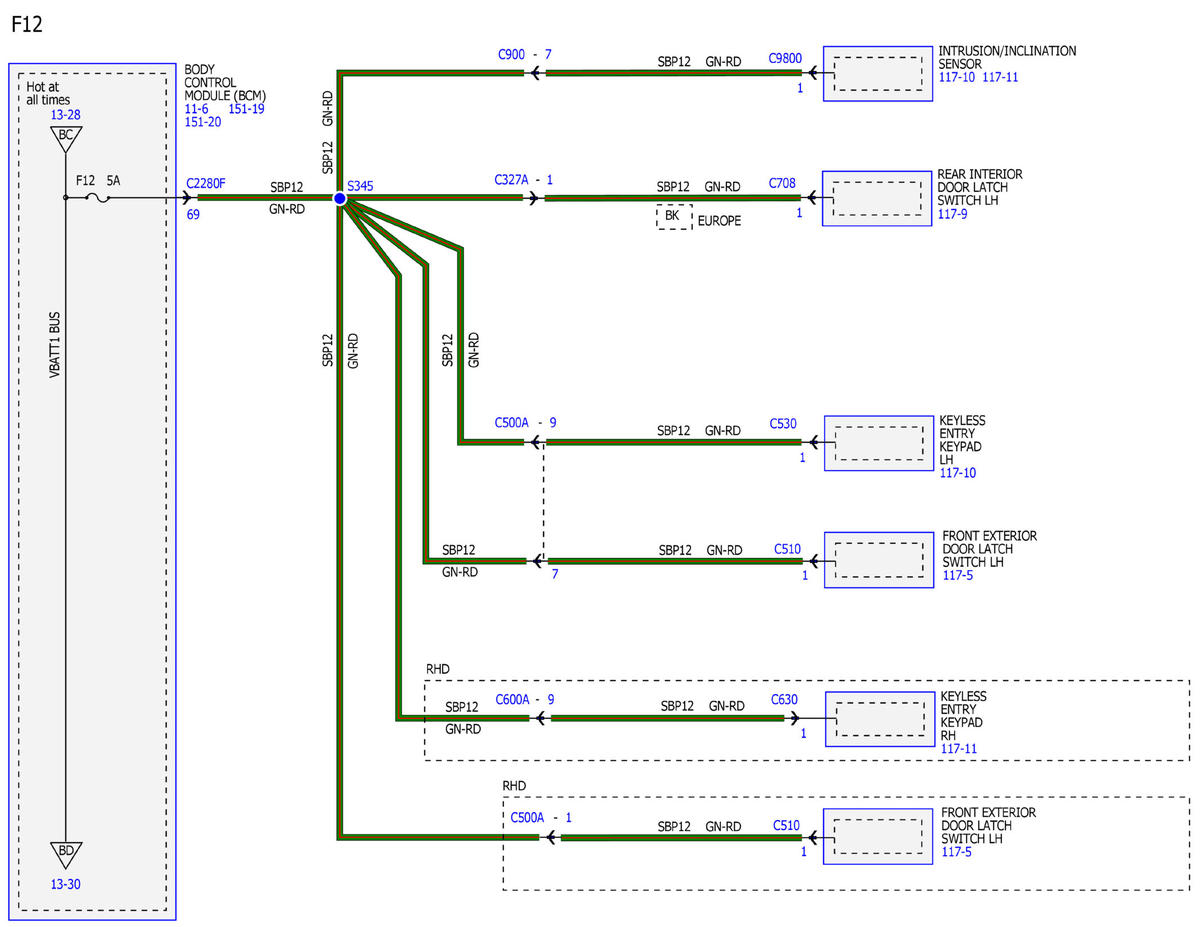

Fig 29: Power Distribution Wiring Diagrams (29 Of 54)

GFDWR145351

Courtesy of FORD MOTOR COMPANY

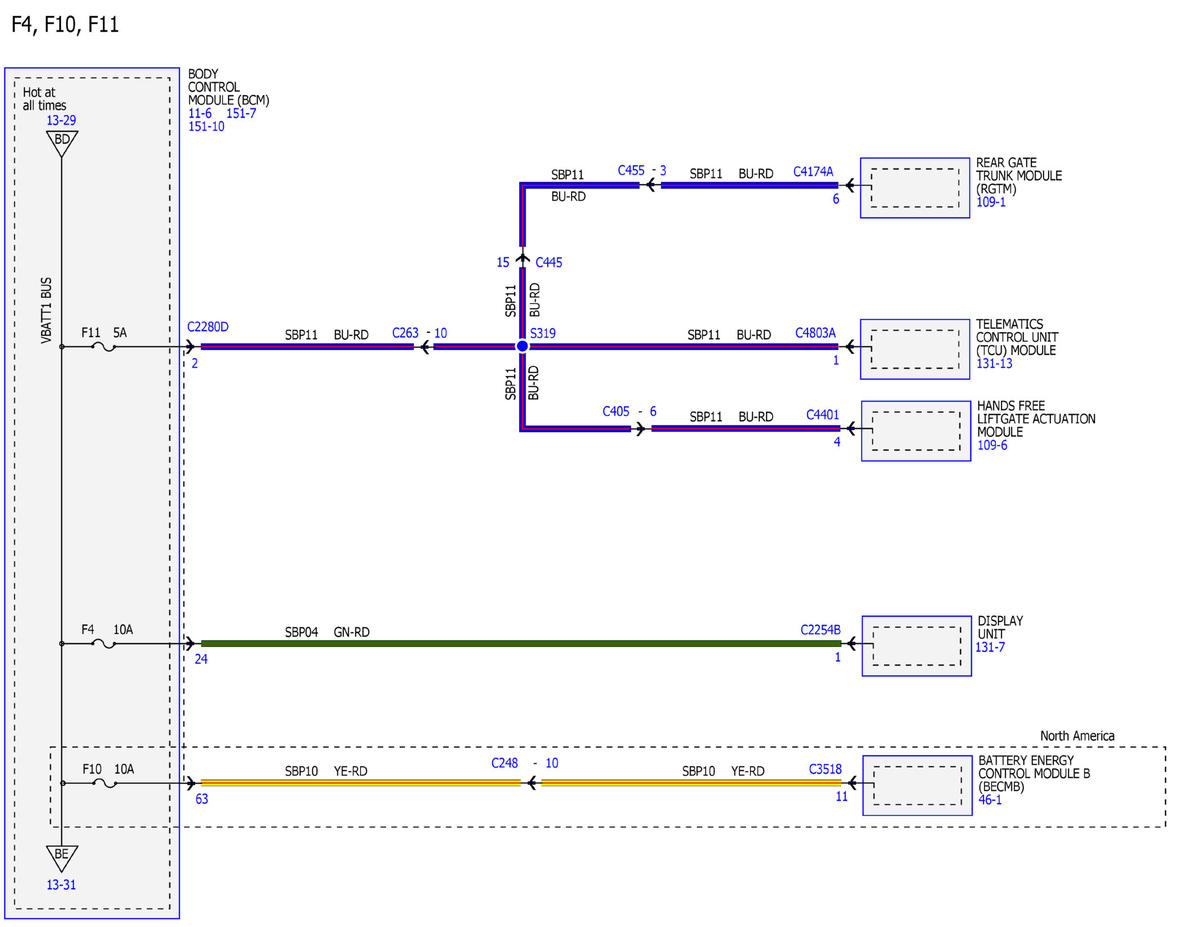

Fig 30: Power Distribution Wiring Diagrams (30 Of 54)

GFDWR145353

Courtesy of FORD MOTOR COMPANY

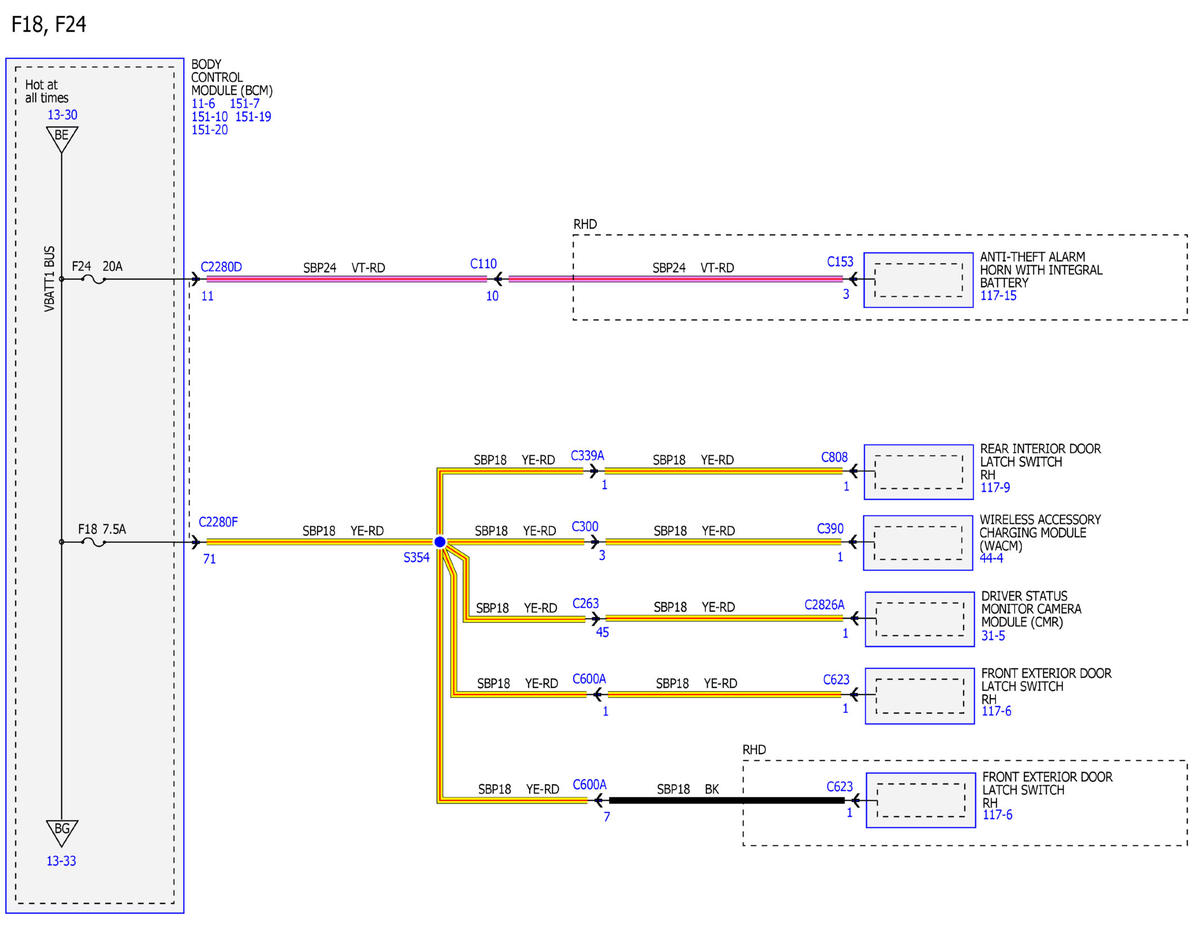

Fig 31: Power Distribution Wiring Diagrams (31 Of 54)

GFDWR145354

Courtesy of FORD MOTOR COMPANY

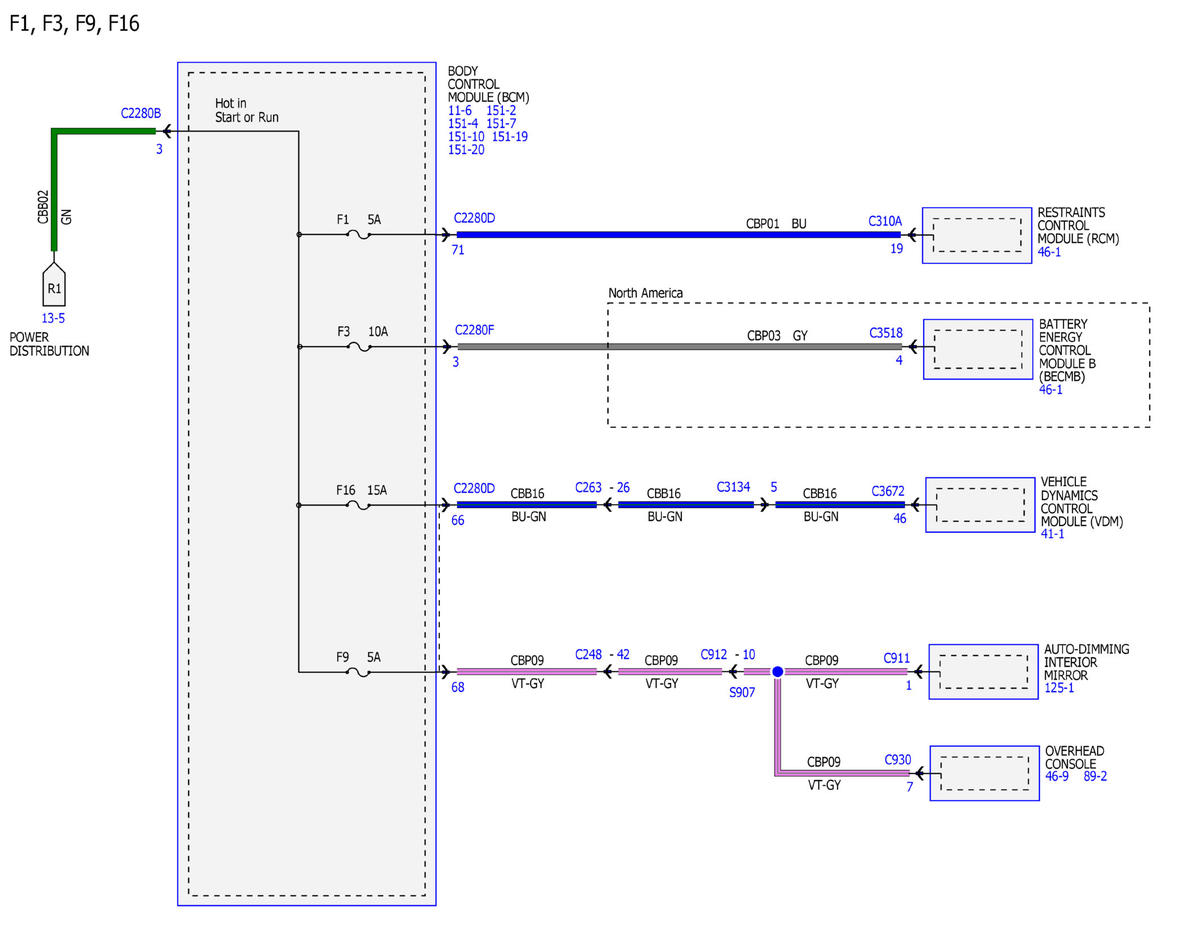

Fig 32: Power Distribution Wiring Diagrams (32 Of 54)

GFDWR145355

Courtesy of FORD MOTOR COMPANY

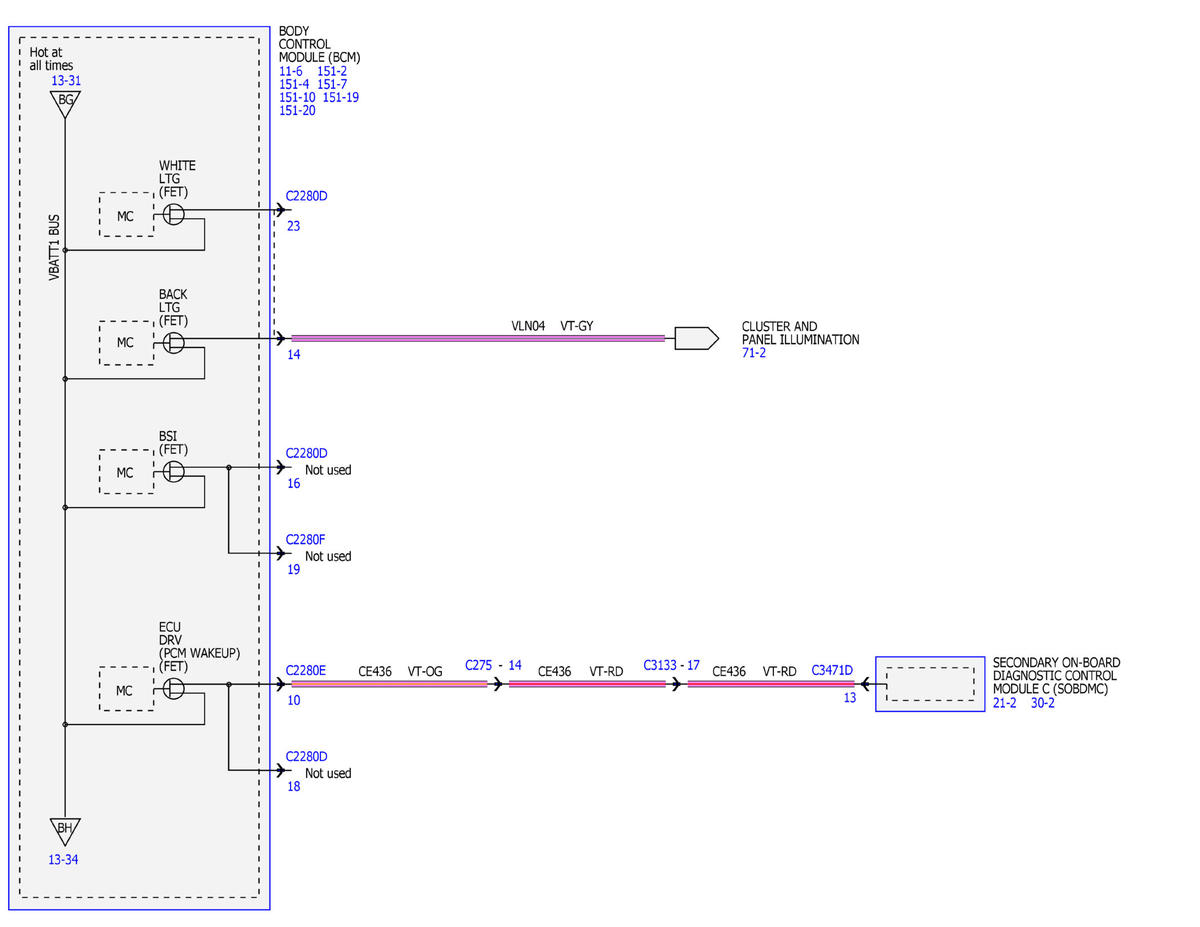

Fig 33: Power Distribution Wiring Diagrams (33Of 54)

GFDWR145356

Courtesy of FORD MOTOR COMPANY

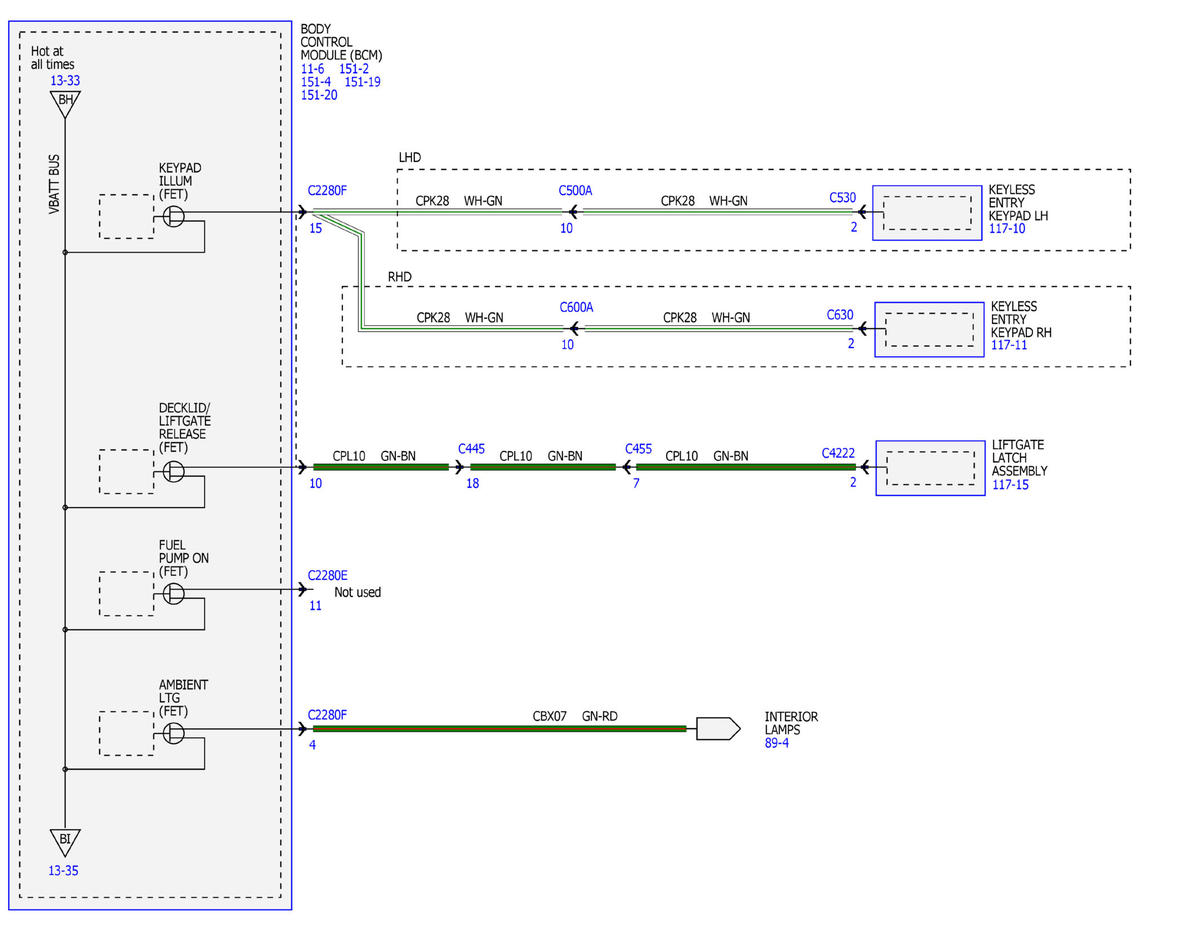

Fig 34: Power Distribution Wiring Diagrams (34 Of 54)

GFDWR145357

Courtesy of FORD MOTOR COMPANY

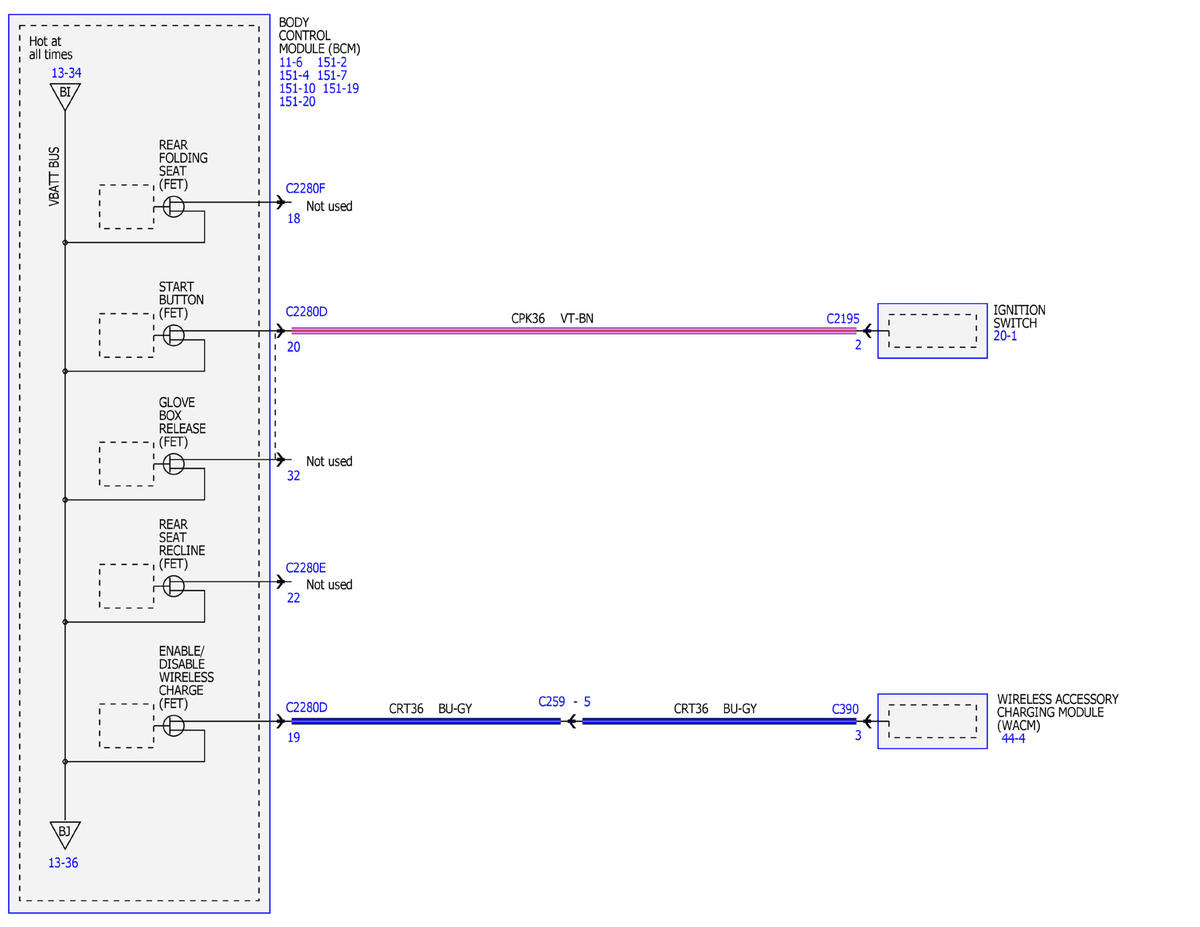

Fig 35: Power Distribution Wiring Diagrams (35 Of 54)

GFDWR145358

Courtesy of FORD MOTOR COMPANY

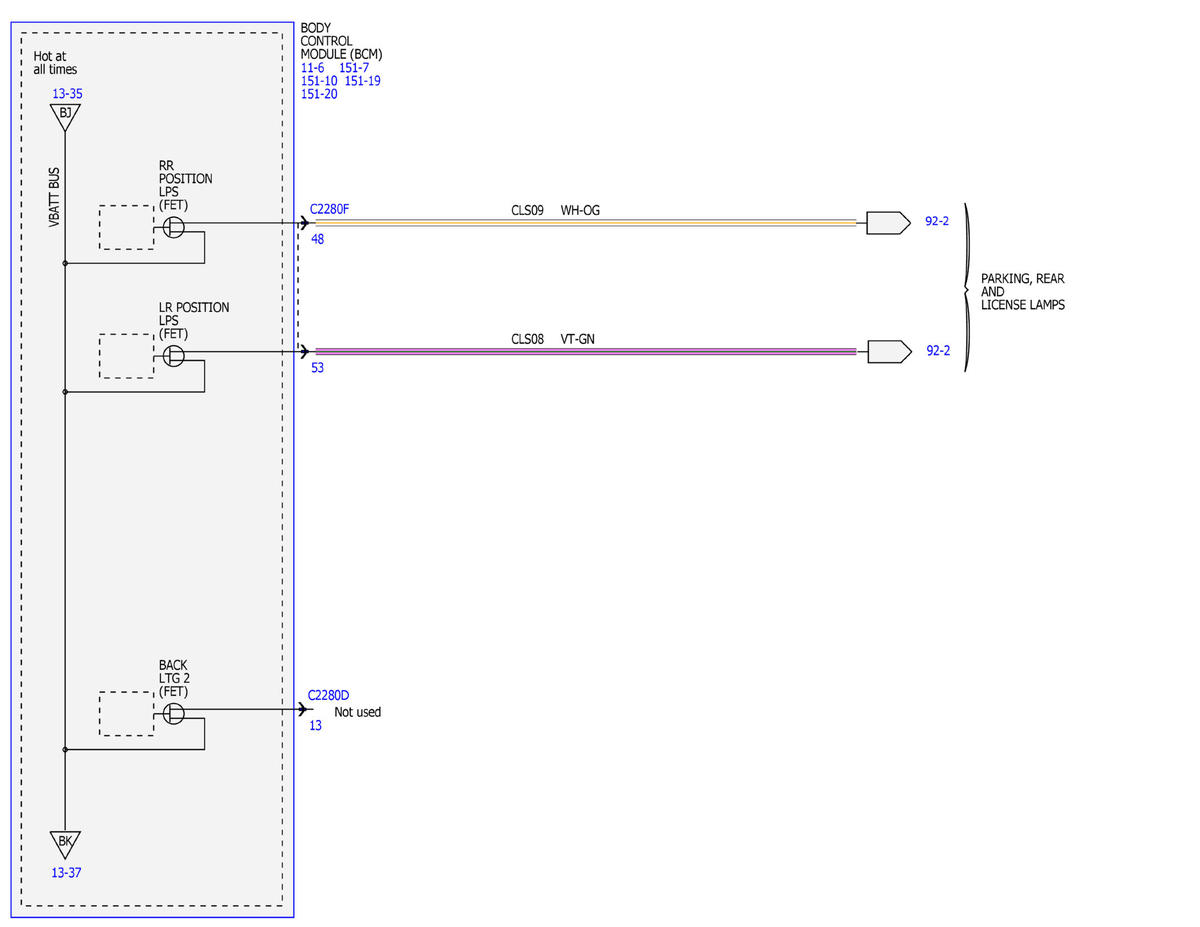

Fig 36: Power Distribution Wiring Diagrams (36 Of 54)

GFDWR145359

Courtesy of FORD MOTOR COMPANY

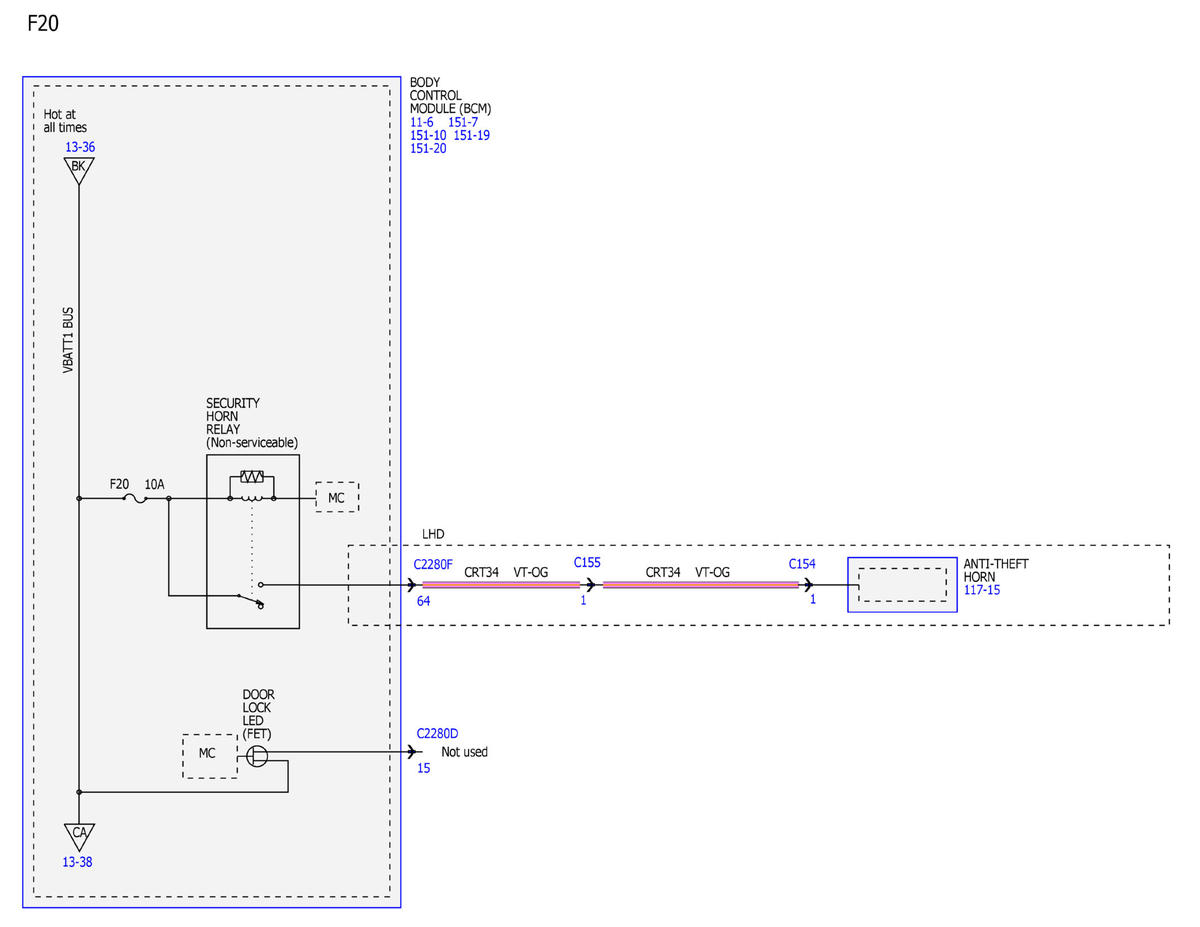

Fig 37: Power Distribution Wiring Diagrams (37 Of 54)

GFDWR145360

Courtesy of FORD MOTOR COMPANY

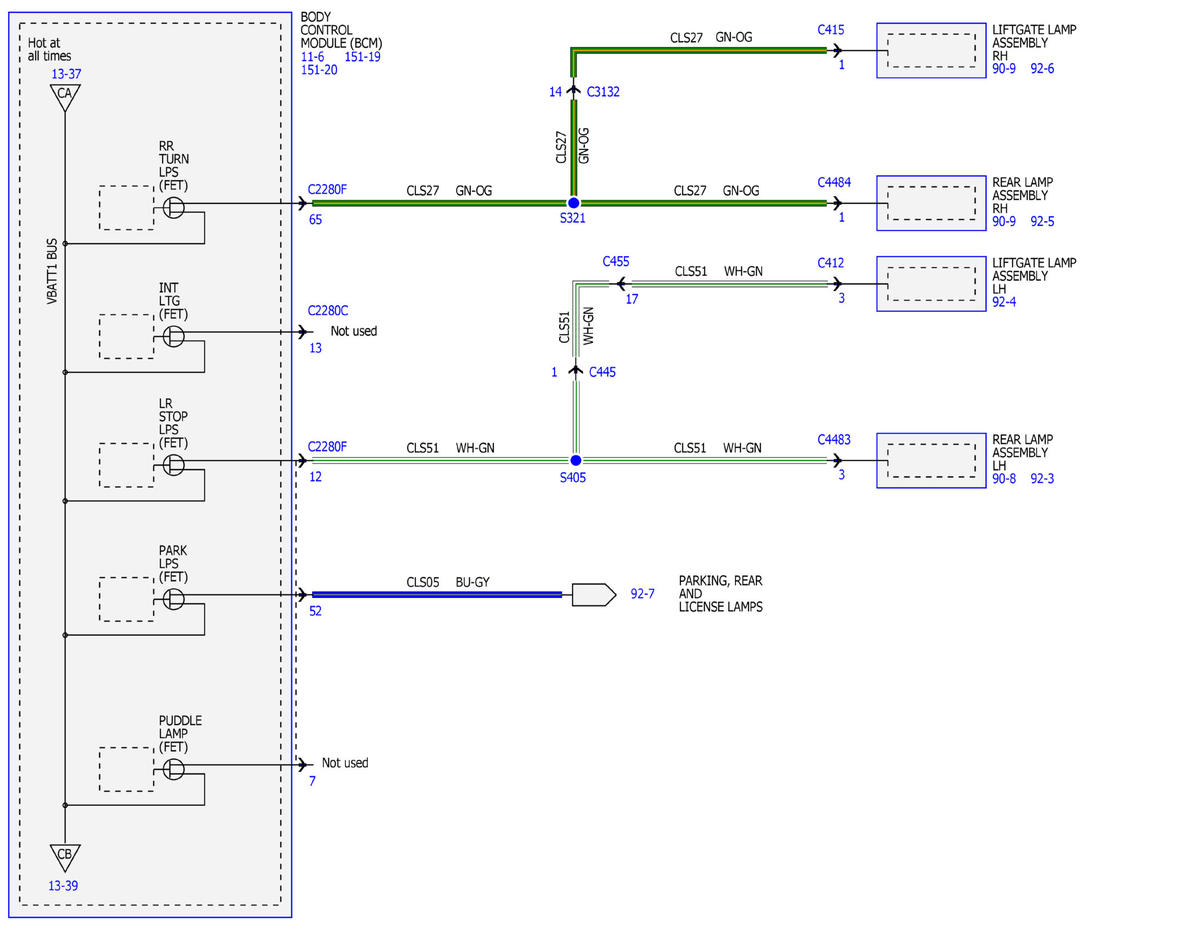

Fig 38: Power Distribution Wiring Diagrams (38 Of 54)

GFDWR145361

Courtesy of FORD MOTOR COMPANY

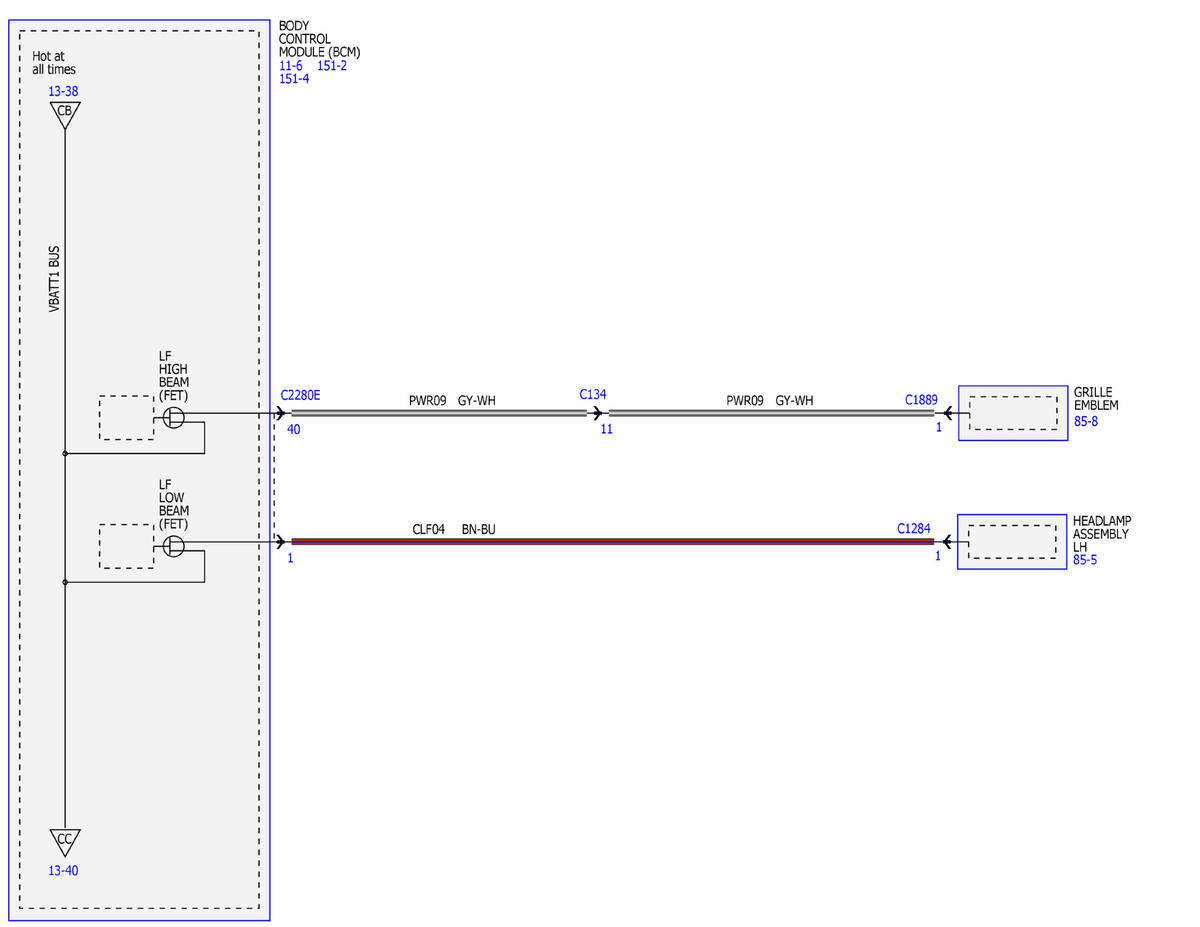

Fig 39: Power Distribution Wiring Diagrams (39 Of 54)

GFDWR145362

Courtesy of FORD MOTOR COMPANY

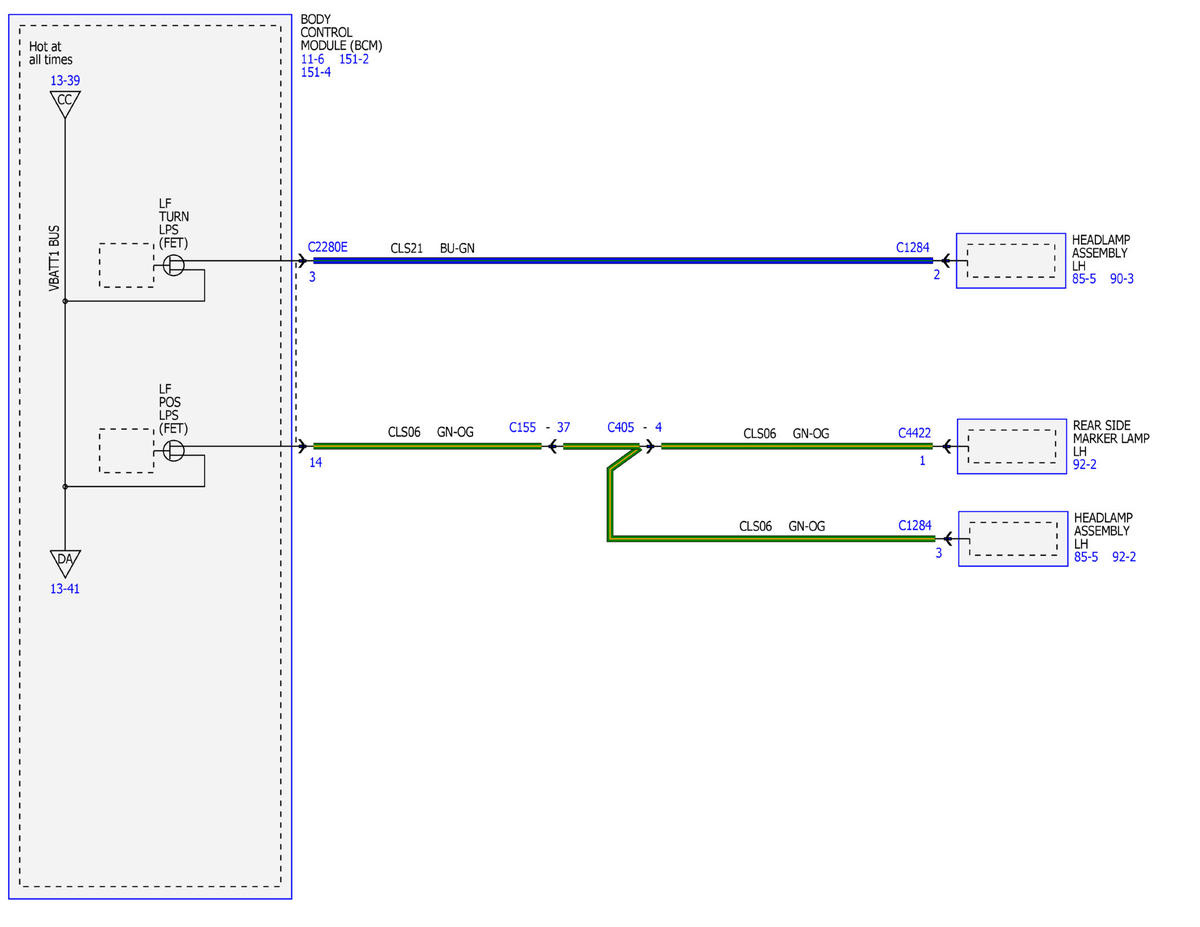

Fig 40: Power Distribution Wiring Diagrams (40 Of 54)

GFDWR145364

Courtesy of FORD MOTOR COMPANY

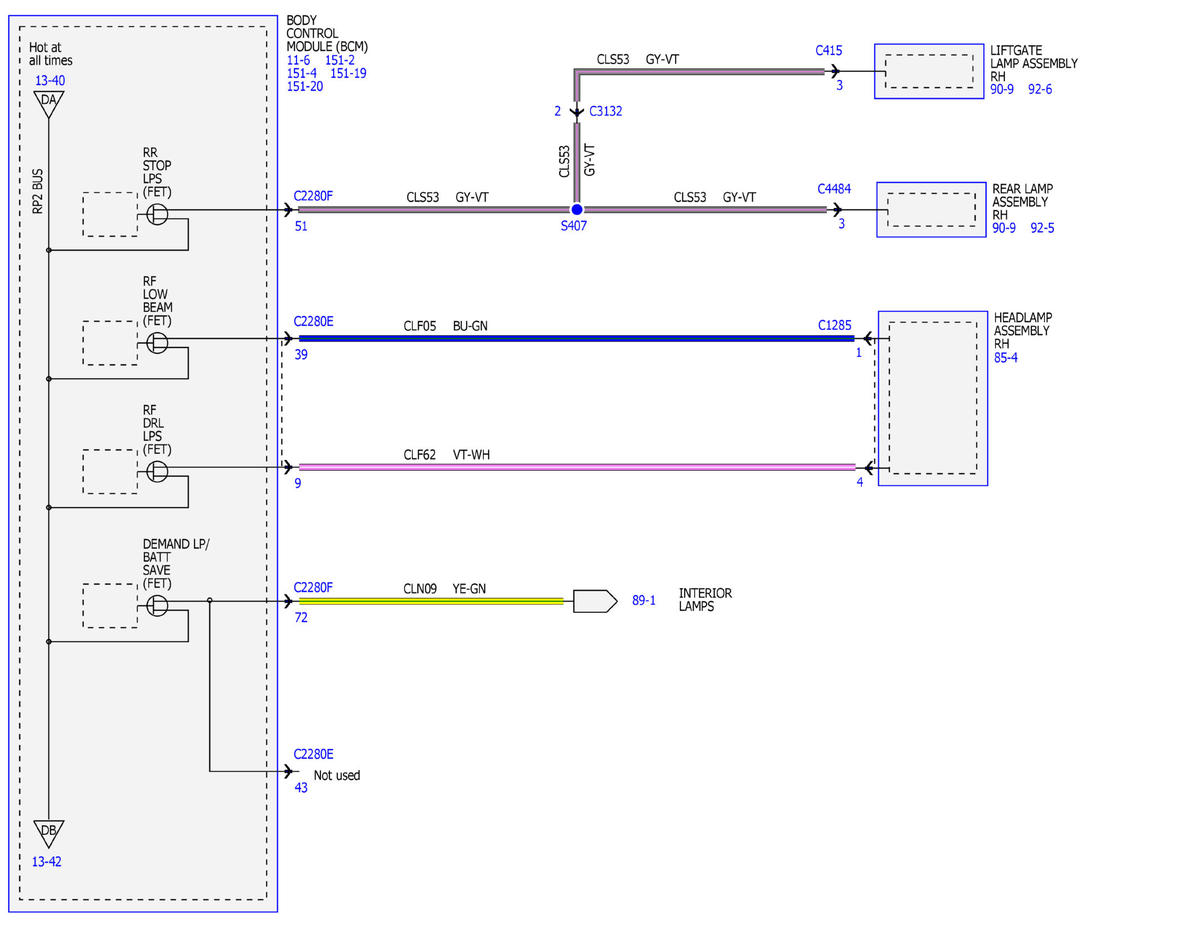

Fig 41: Power Distribution Wiring Diagrams (41 Of 54)

GFDWR145365

Courtesy of FORD MOTOR COMPANY

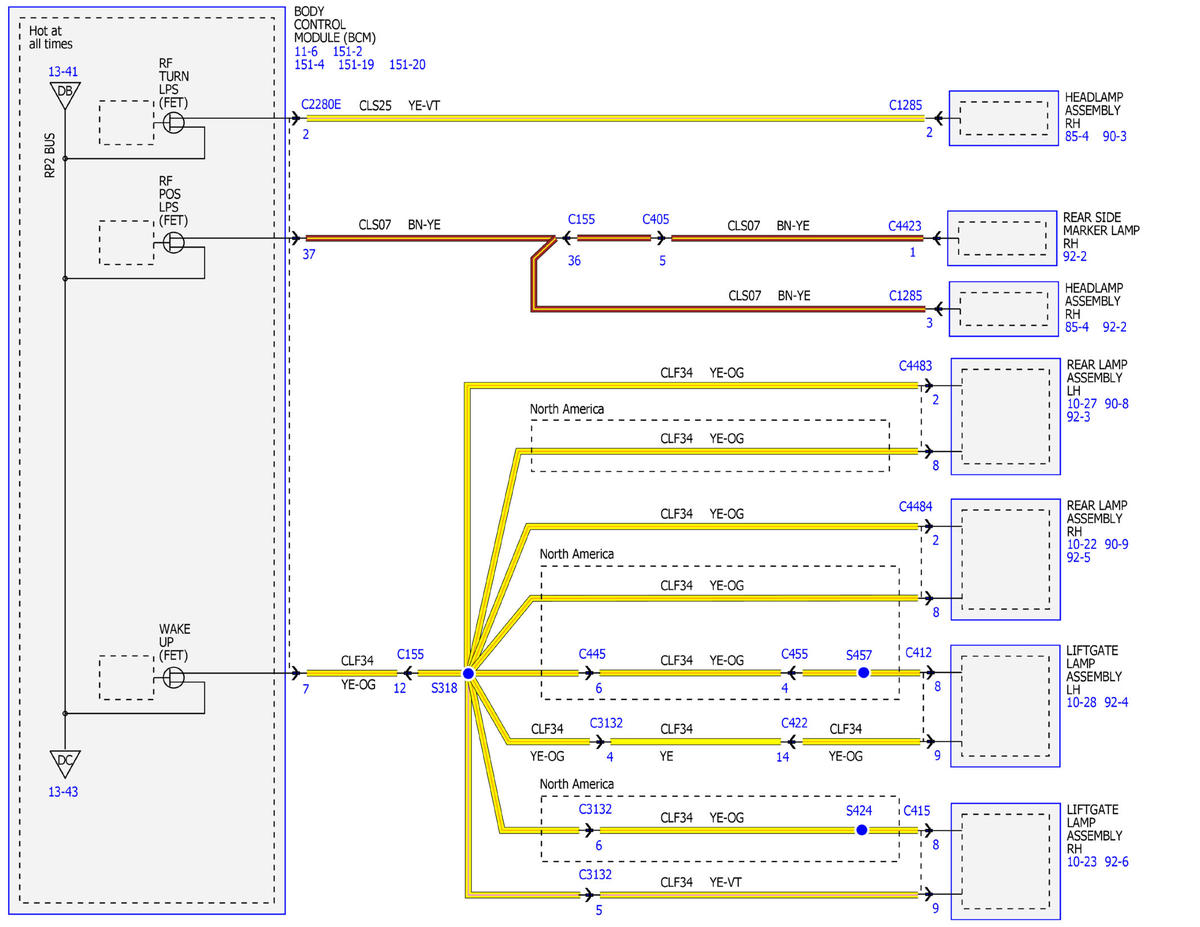

Fig 42: Power Distribution Wiring Diagrams (42 Of 54)

GFDWR145366

Courtesy of FORD MOTOR COMPANY

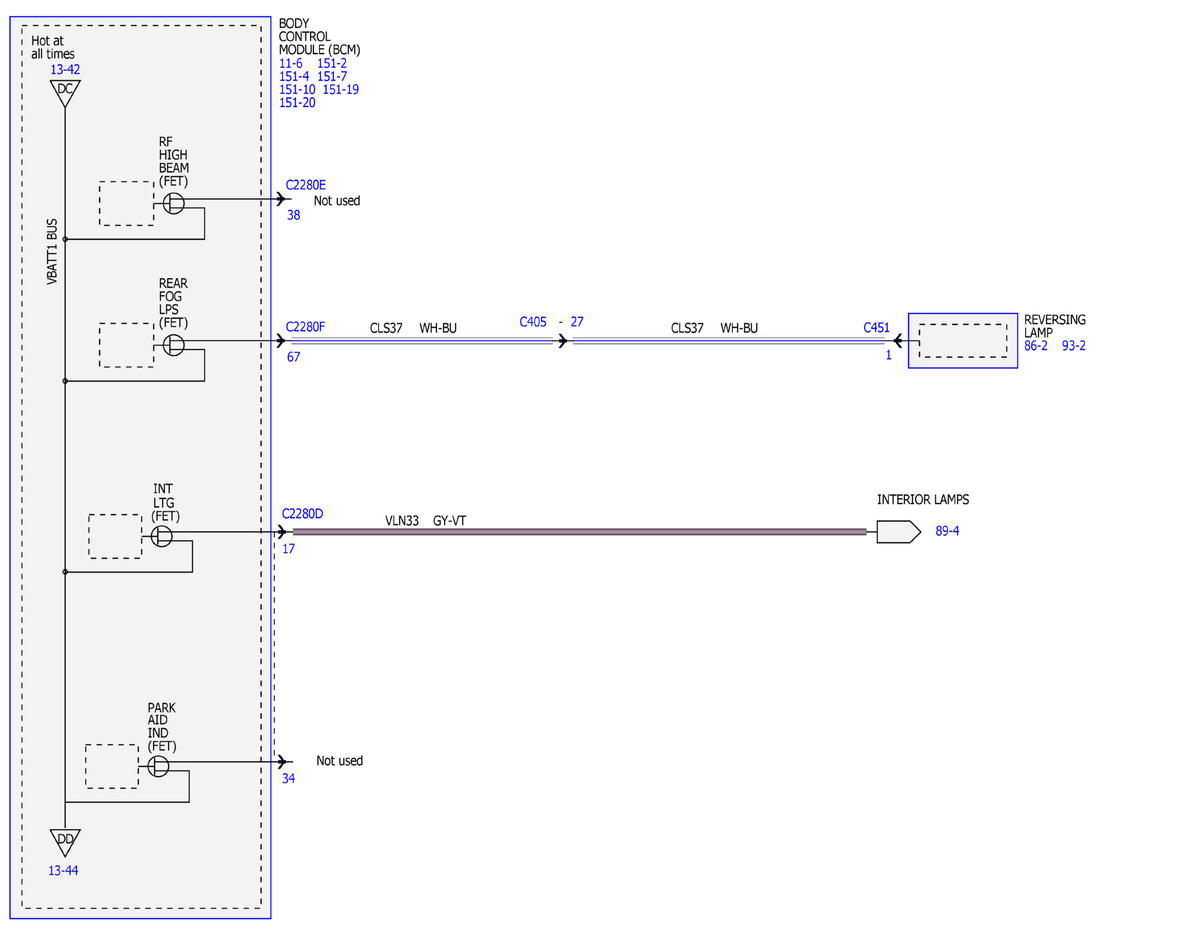

Fig 43: Power Distribution Wiring Diagrams (43 Of 54)

GFDWR145367

Courtesy of FORD MOTOR COMPANY

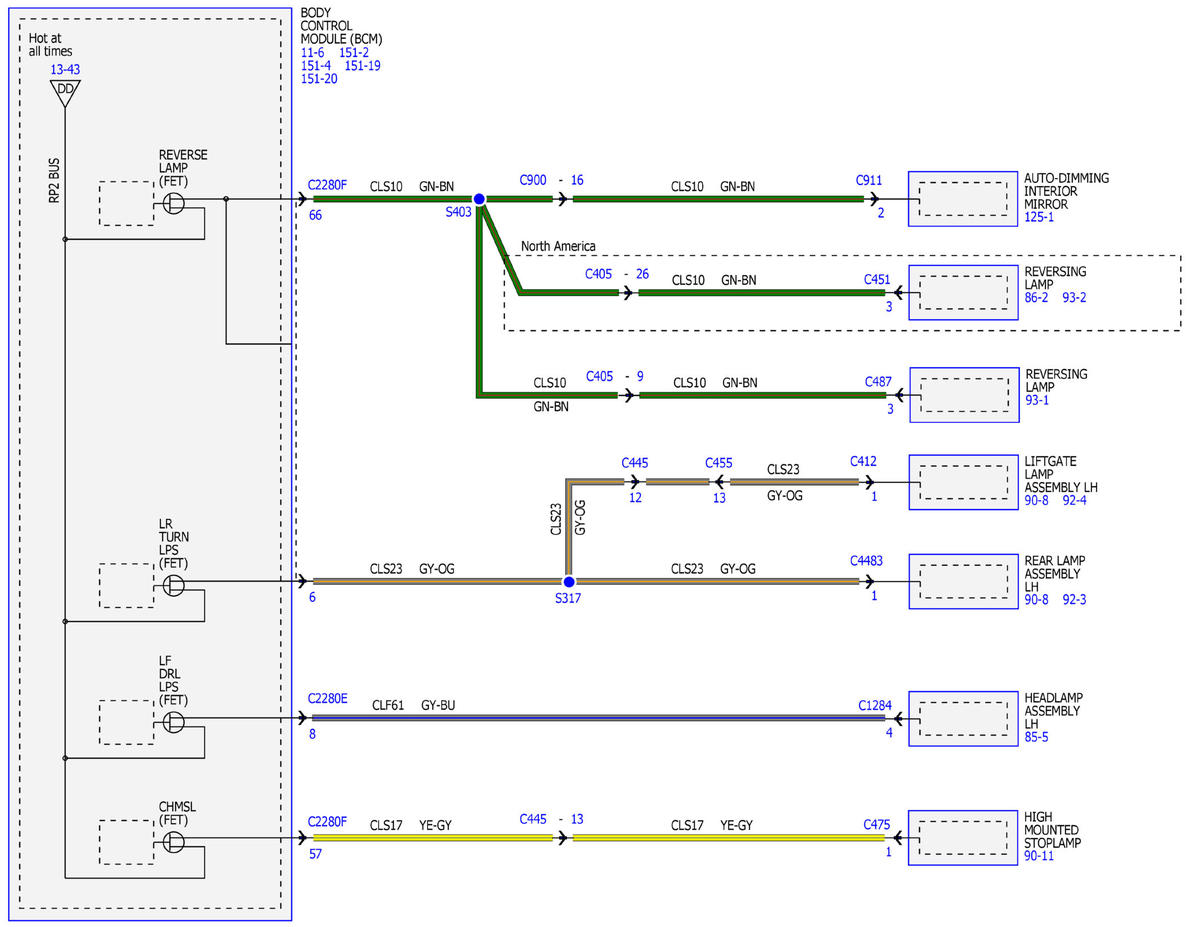

Fig 44: Power Distribution Wiring Diagrams (44 Of 54)

GFDWR145368

Courtesy of FORD MOTOR COMPANY

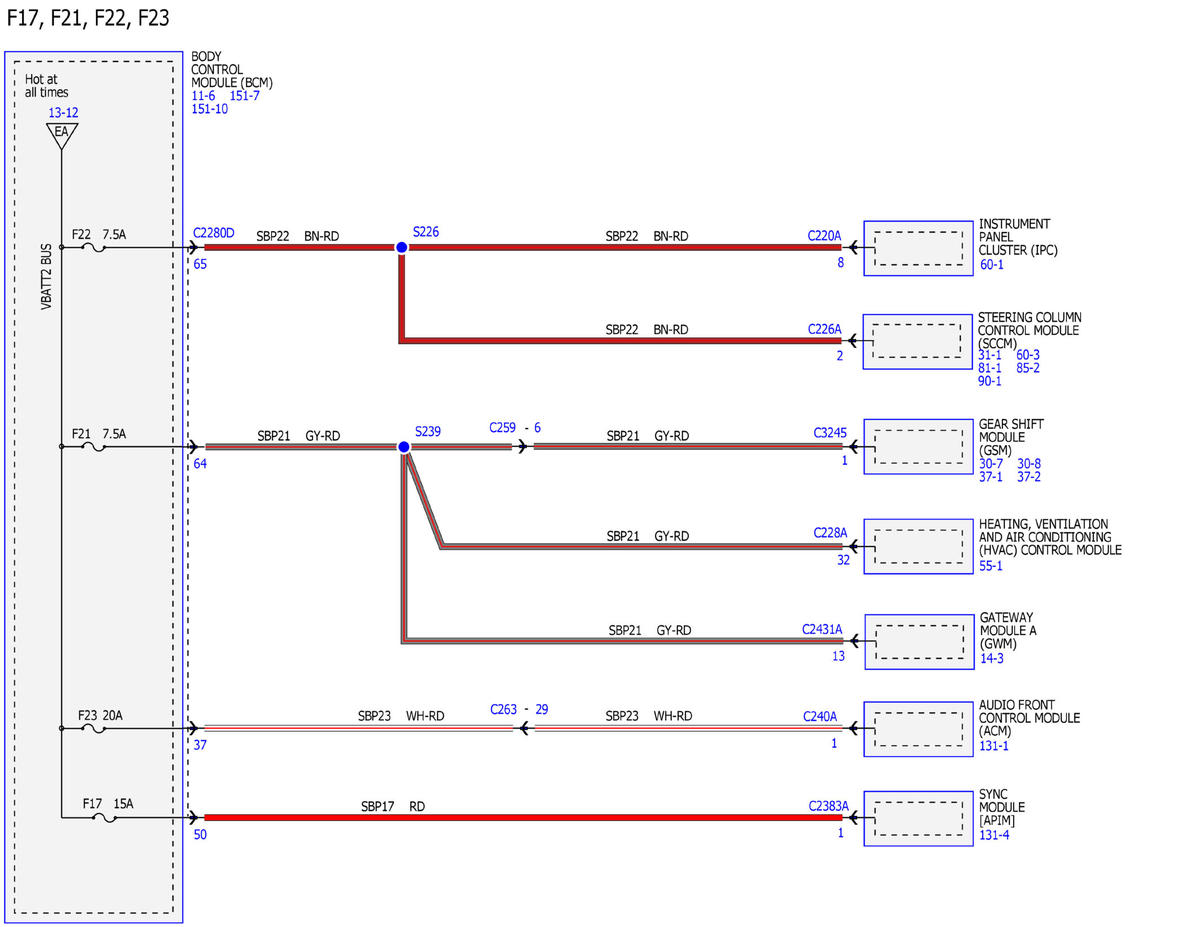

Fig 45: Power Distribution Wiring Diagrams (45 Of 54)

GFDWR145369

Courtesy of FORD MOTOR COMPANY

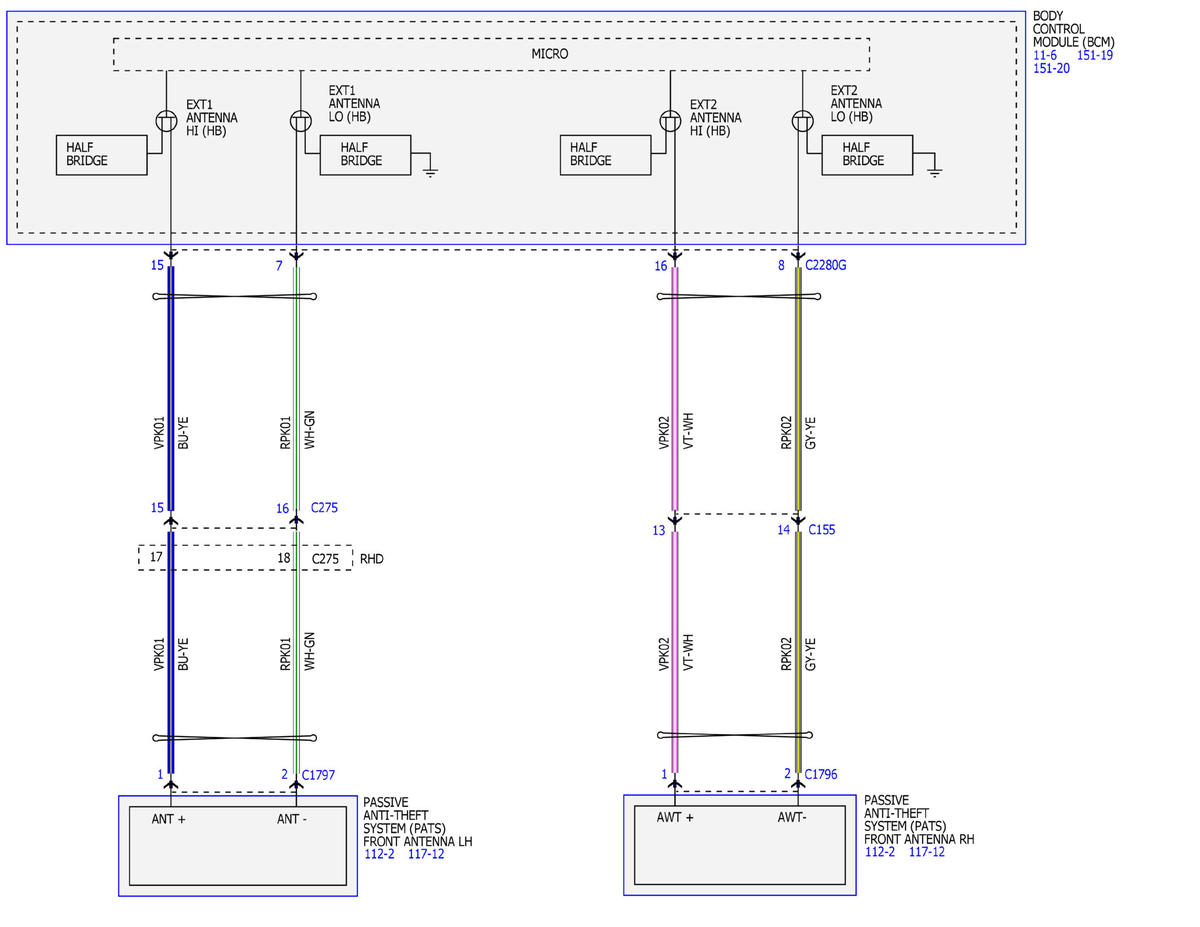

Fig 46: Power Distribution Wiring Diagrams (46 Of 54)

GFDWR145370

Courtesy of FORD MOTOR COMPANY

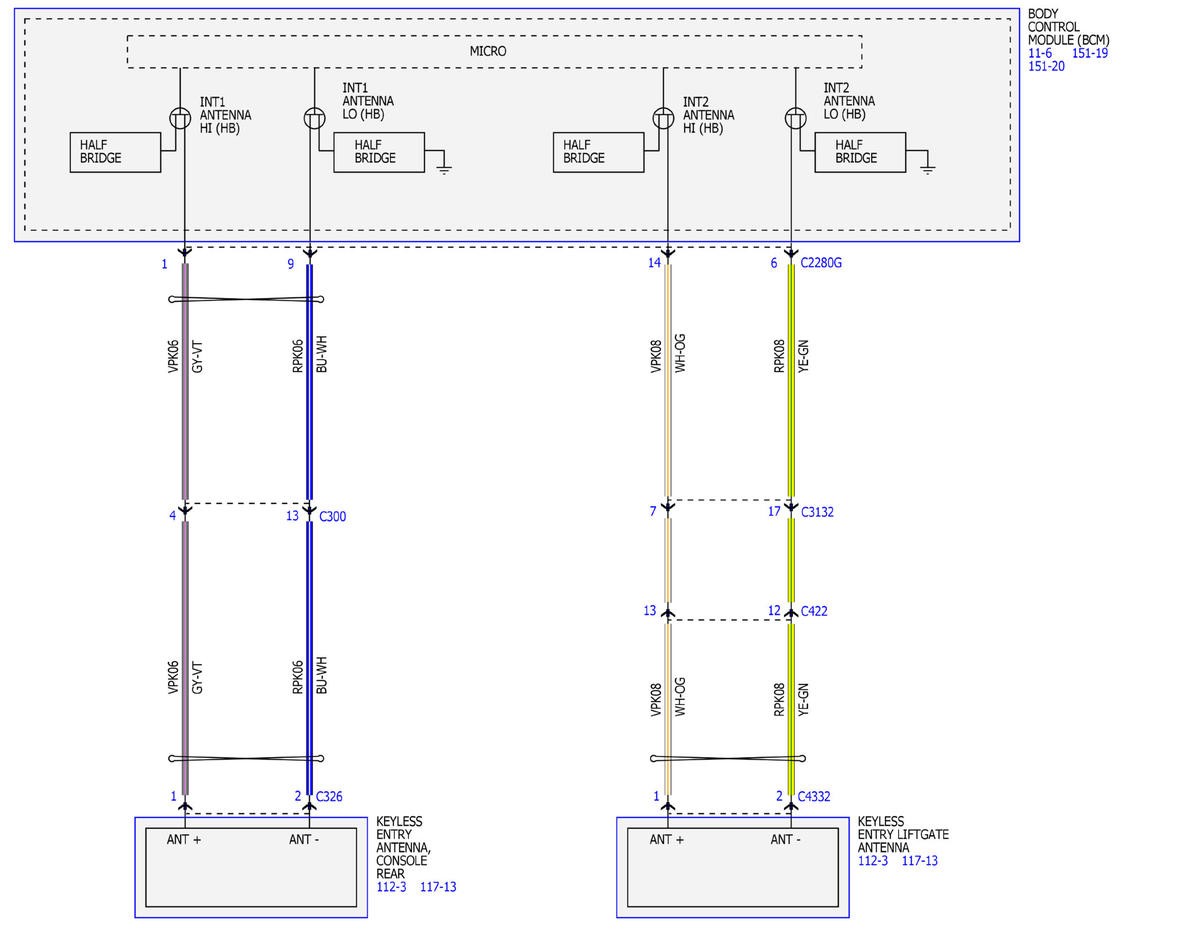

Fig 47: Power Distribution Wiring Diagrams (47 Of 54)

GFDWR145371

Courtesy of FORD MOTOR COMPANY

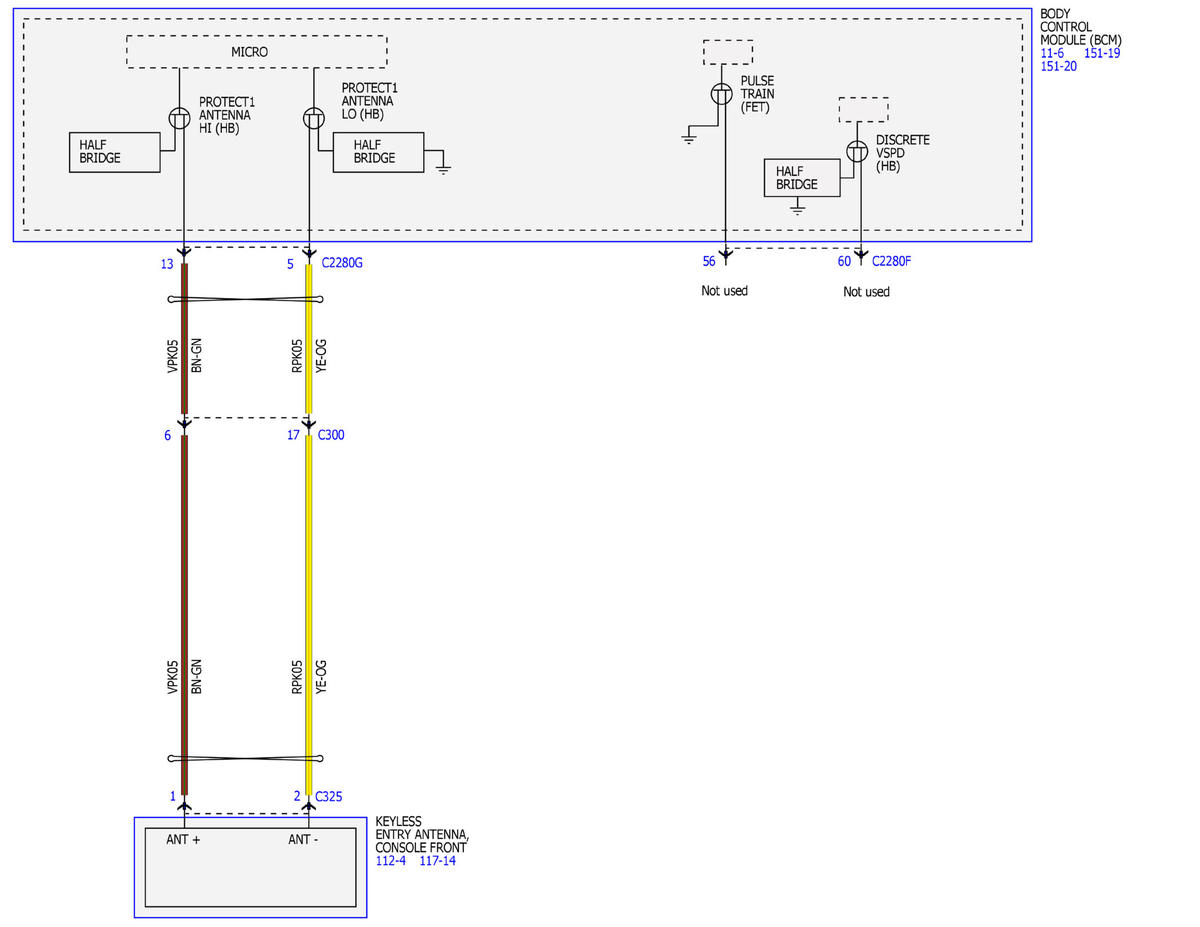

Fig 48: Power Distribution Wiring Diagrams (48 Of 54)

GFDWR145372

Courtesy of FORD MOTOR COMPANY

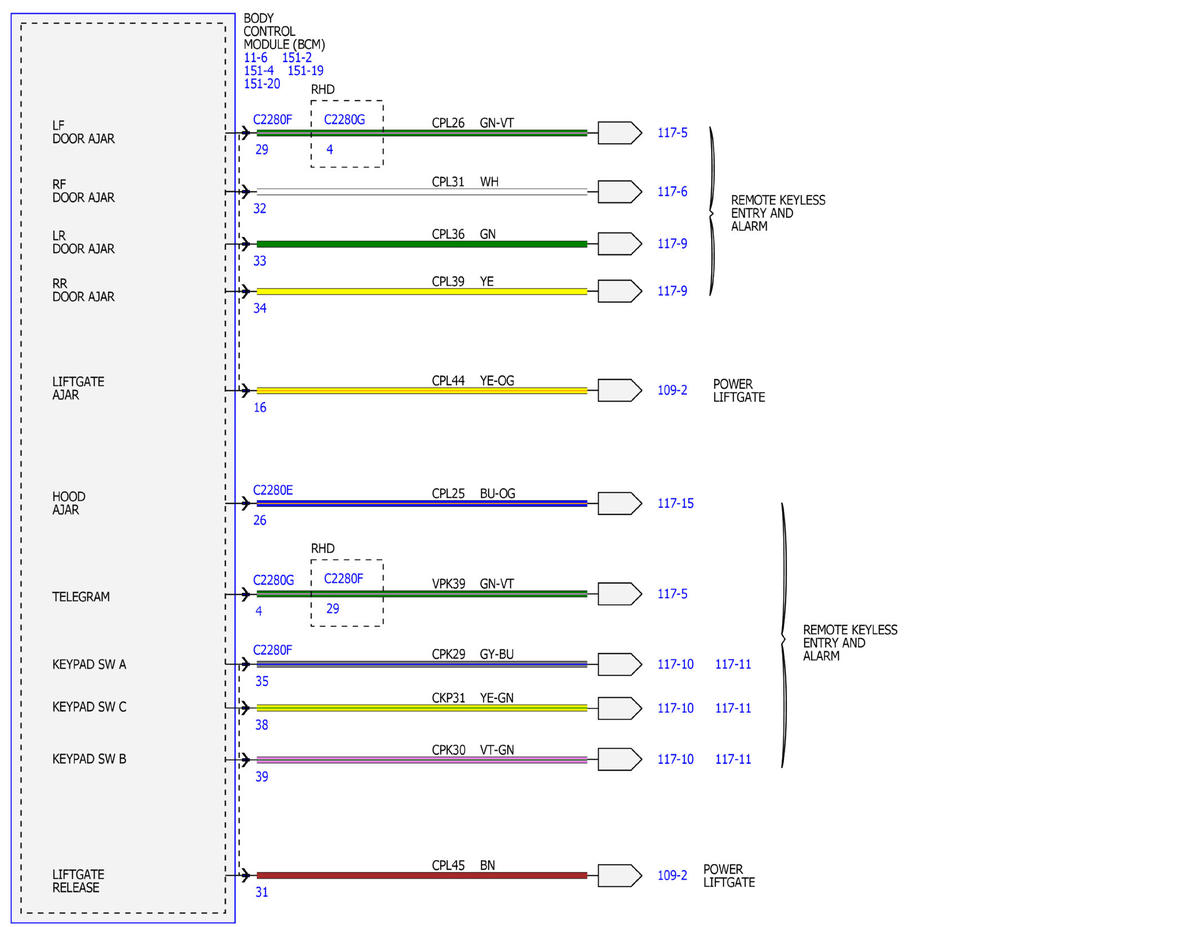

Fig 49: Power Distribution Wiring Diagrams (49 Of 54)

GFDWR145373

Courtesy of FORD MOTOR COMPANY

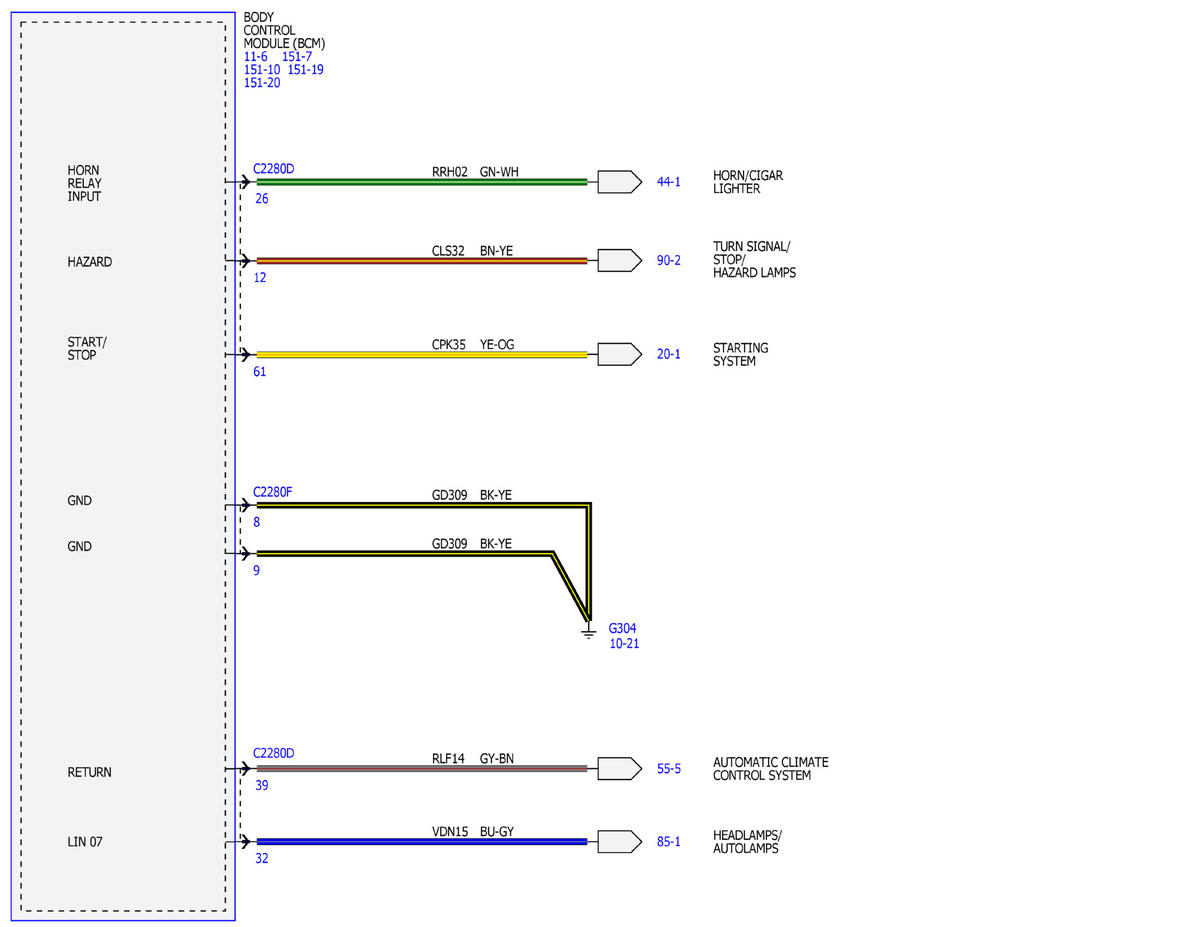

Fig 50: Power Distribution Wiring Diagrams (50 Of 54)

GFDWR145375

Courtesy of FORD MOTOR COMPANY

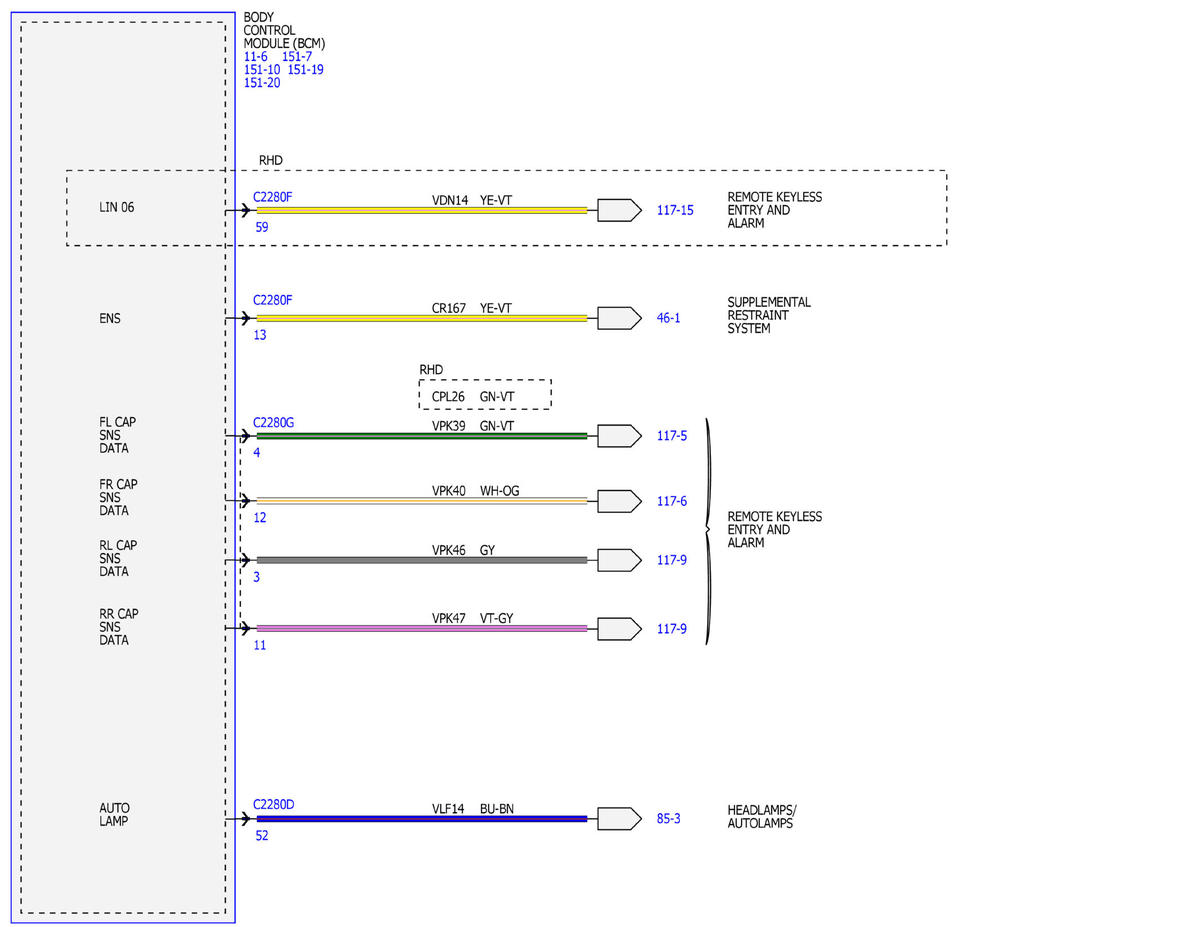

Fig 51: Power Distribution Wiring Diagrams (51 Of 54)

GFDWR145376

Courtesy of FORD MOTOR COMPANY

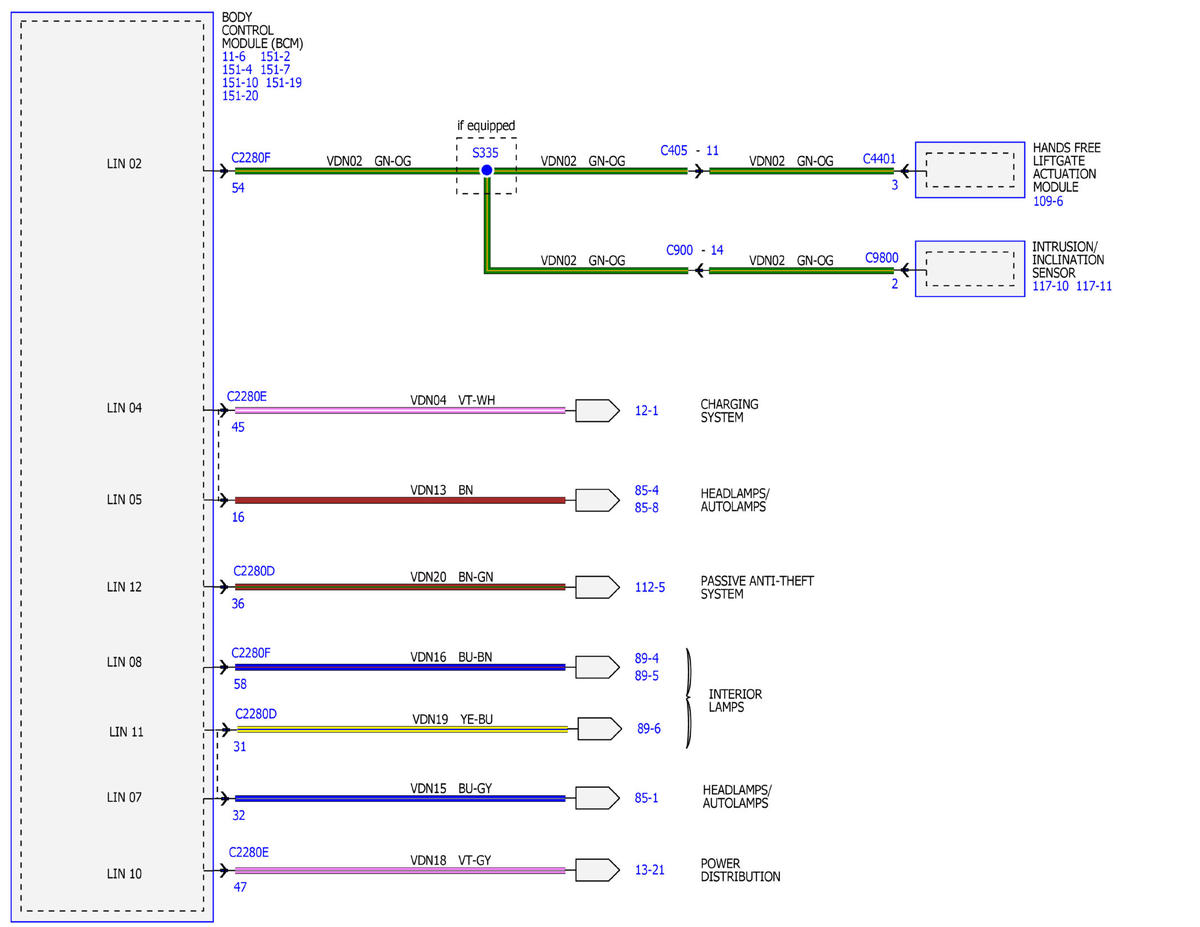

Fig 52: Power Distribution Wiring Diagrams (52 Of 54)

GFDWR145377

Courtesy of FORD MOTOR COMPANY

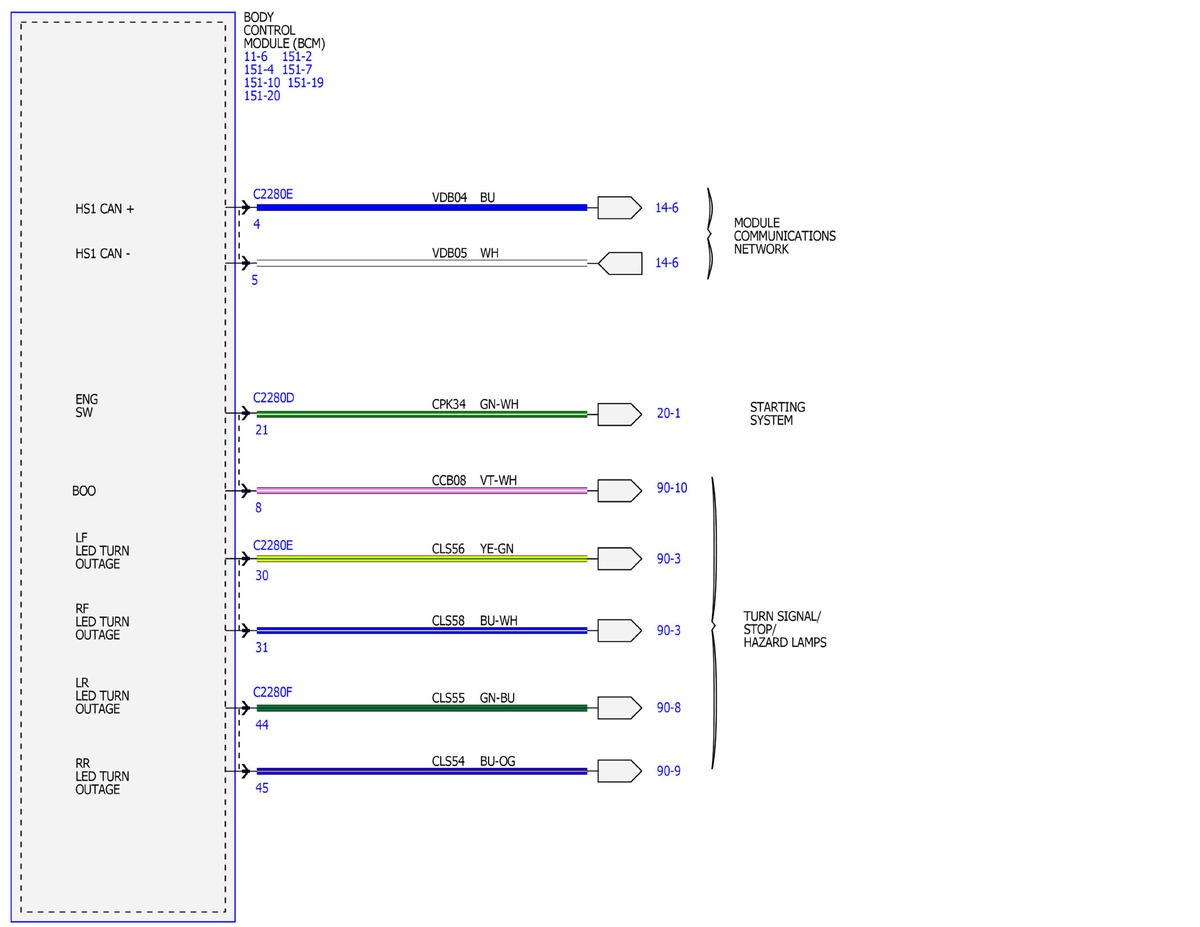

Fig 53: Power Distribution Wiring Diagrams (53 Of 54)

GFDWR145378

Courtesy of FORD MOTOR COMPANY

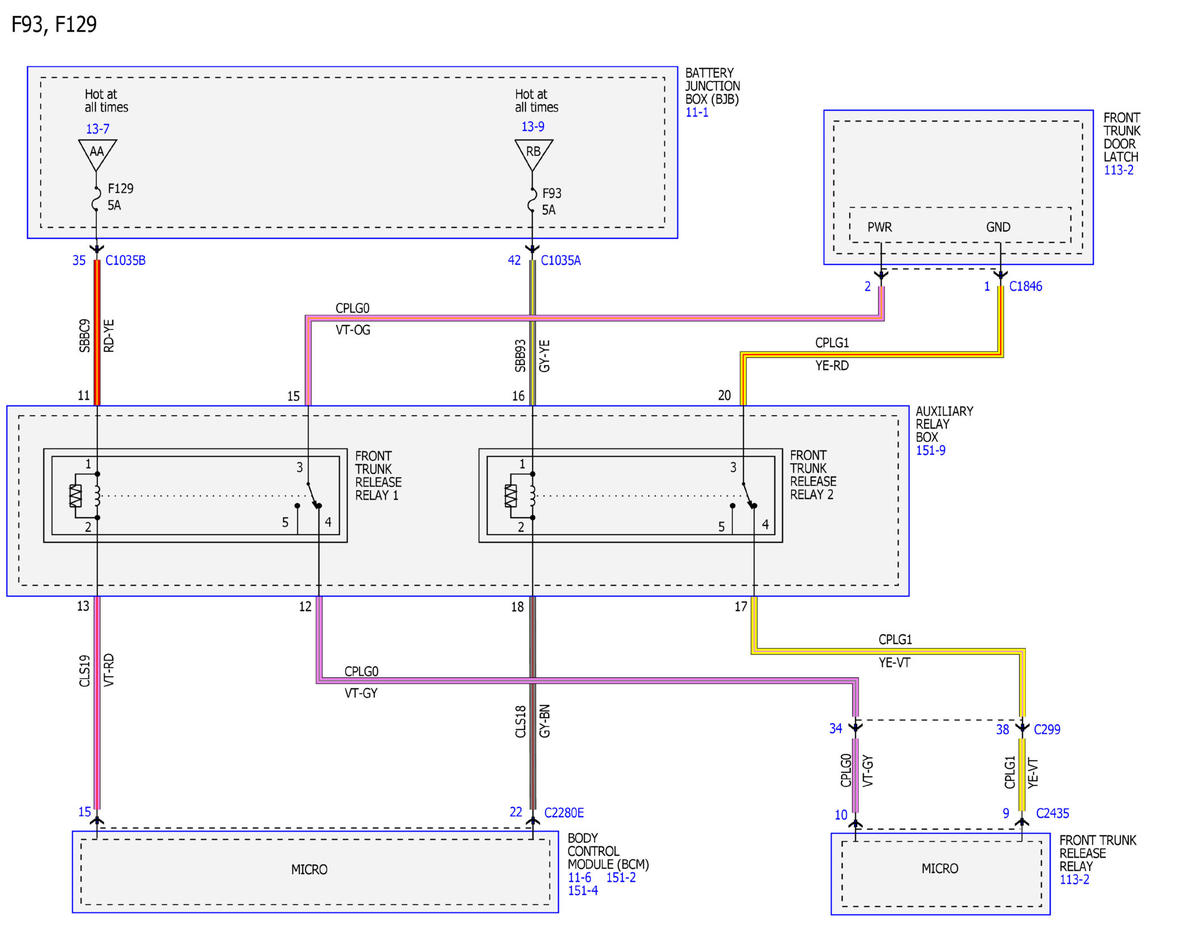

Fig 54: Power Distribution Wiring Diagrams (54 Of 54)

GFDWR145379

Courtesy of FORD MOTOR COMPANY
