Liftgate Latch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

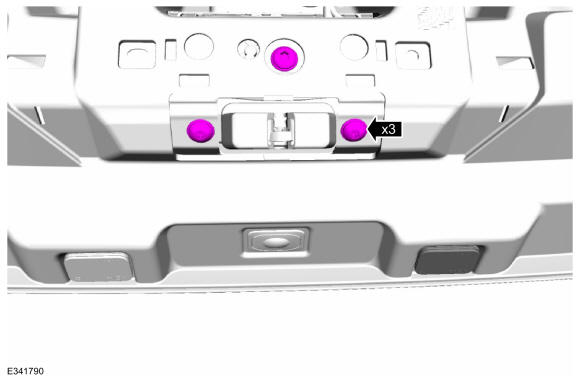

  2. Remove the liftgate latch bolts.

    Torque: 177 lb.in (20 Nm)

    GFD610811Courtesy of FORD MOTOR COMPANY

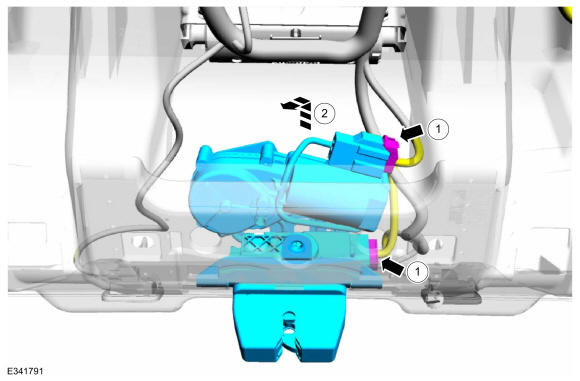

  3. NOTE: Liftgate shown transparent for clarity.

    Remove the liftgate latch.

    1. Disconnect the wiring harness electrical connector(s).
    2. Remove the liftgate latch.

GFD610812Courtesy of FORD MOTOR COMPANY
