Front Trunk Release Module [GFM]: Removal

  1. Remove the Information and Entertainment Display Unit. Refer to: Center Display Screen .

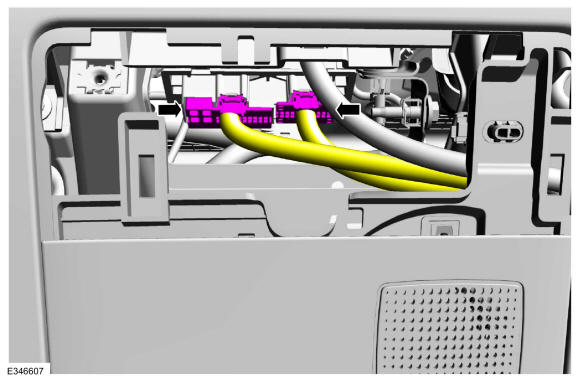

  2. Disconnect the Front Trunk Release Module [GFM] electrical connectors.
    GFD610786Courtesy of FORD MOTOR COMPANY

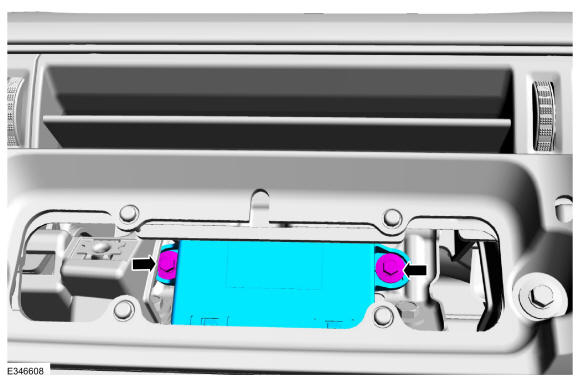

  3. Remove the bolts and the Front Trunk Release Module [GFM].
GFD610787Courtesy of FORD MOTOR COMPANY
