Liftgate Latch Manual Release
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Flat-Bladed Screwdriver |
|---|
| Interior Trim Remover |
Activation

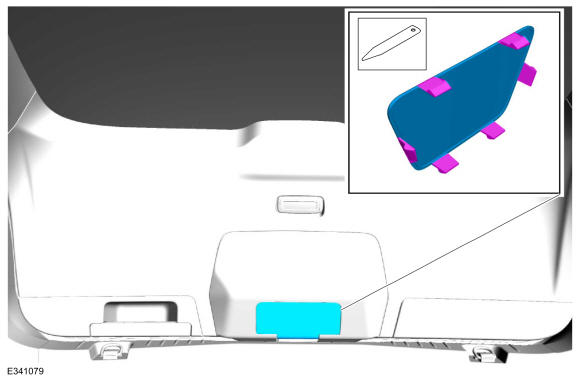

- Remove the liftgate latch access cover from the center of the liftgate trim panel. Use the General Equipment: Interior Trim Remover

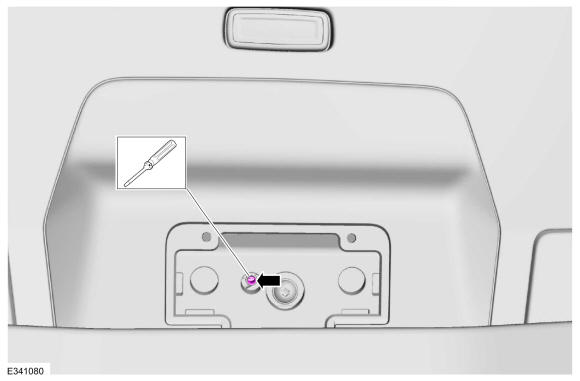

- Insert a flat-bladed screwdriver through the access cover opening and depress the cinch release button. Use the General Equipment: Flat-Bladed Screwdriver

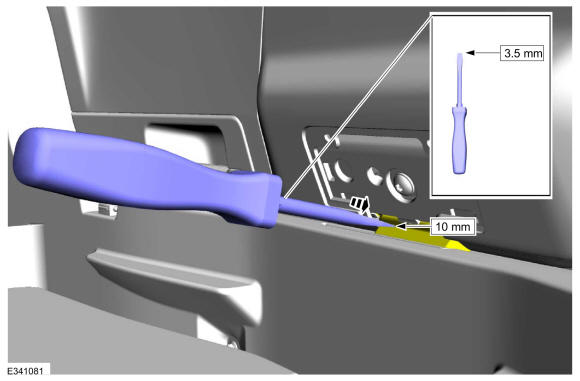

- Insert a 3.5 mm wide flat-bladed screwdriver through the access cover opening 10 mm deep into the RH side of the slot. Use the General Equipment: Flat-Bladed Screwdriver

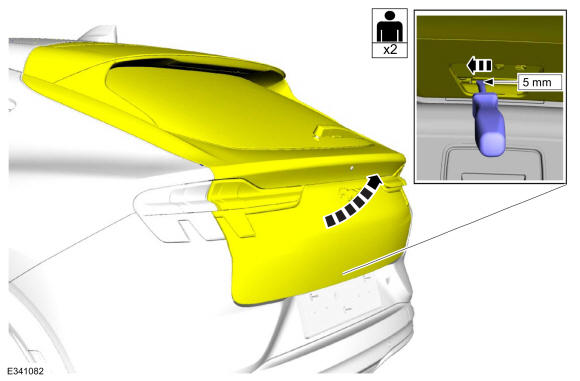

- Slide the 3.5 mm wide flat-bladed screwdriver through the access cover opening 5 mm to the LH side of the slot. Releasing the liftgate latch and opening the liftgate. Use the General Equipment: Flat-Bladed Screwdriver
