Front Toe Adjustment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Make sure that the vehicle is standing on a level surface.

NOTE: Before carrying out a toe adjustment, check the tires for the correct pressure. Inspect the tires for incorrect wear or damage. Inspect the suspension for wear or damage.

Using alignment equipment and the manufacturer's instructions, measure the front toe.

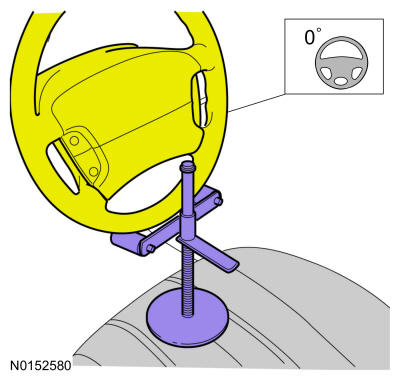

Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY
Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides. Use the General Equipment: Wheel Alignment System
NOTE: Hold the tie-rod end stationary with a wrench while loosening the nut or damage to the boot can occur.

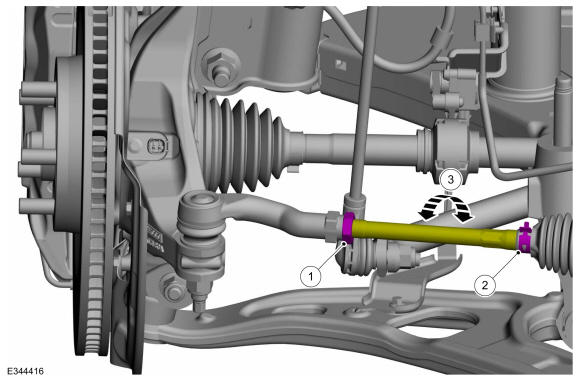

1. On both sides. Loosen the outer tie rod end jamb nut.
  Torque: 66 lb.ft (90 Nm)
2. On both sides. Position aside the steering gear boot clamp.
3. NOTE: Do not allow the steering gear bellows to twist when the inner tie rod is rotated.

  On both sides. Rotate the inner tie rods until the toe reading is within specifications.
Courtesy of FORD MOTOR COMPANY
Recheck the toe settings and adjust as necessary.
Road test the vehicle.
