Steering Column Shaft: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring.

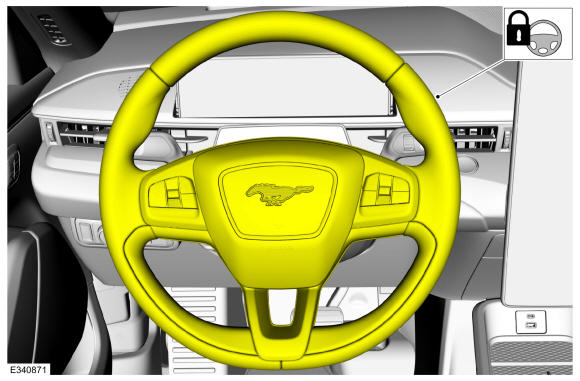

Secure the steering wheel.

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

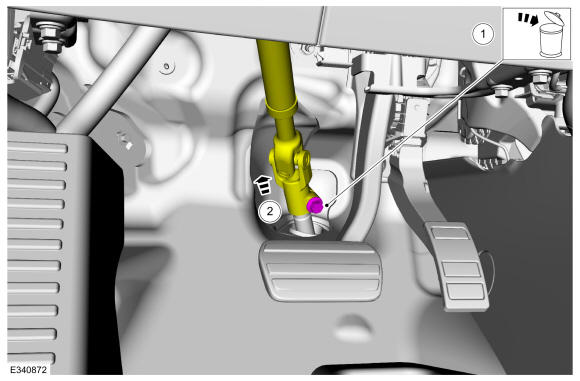

Separate the steering column shaft from the steering gear.
1. Remove and discard the steering shaft coupler retainer.
  Torque: 46 lb.ft (63 Nm)
2. Separate the steering column shaft from the steering gear.
Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

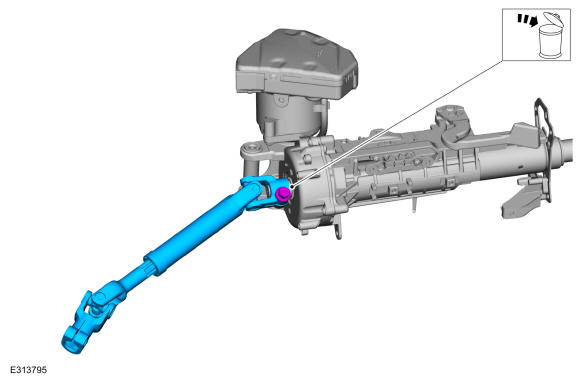

Remove and discard the steering shaft coupler retainer and remove the steering column shaft.

Torque:Stage 1: 35 lb.ft (48 Nm)Stage 2: 120°

Courtesy of FORD MOTOR COMPANY
