Tie Rod: Removal
NOTE:
If servicing the RH (right-hand) tie rod, both bellows boots must be removed.
- Remove the steering gear boot. Refer to: Steering Gear Boot .
-

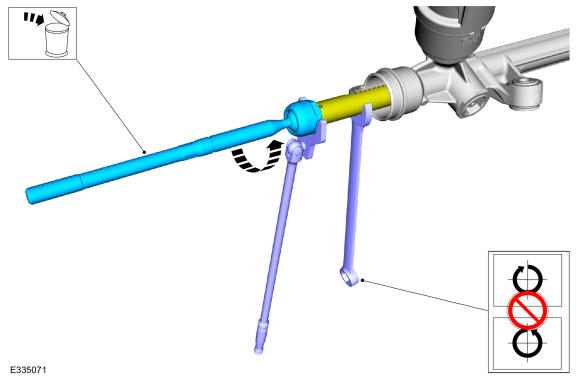

NOTE: Hold the steering gear rack while loosening the tie rod. Failure to hold the rack securely could result in steering gear damage.NOTE: It may be necessary to turn the steering wheel to (LH) Left-hand side in order to expose the steering gear rack enough to hold with a wrench.NOTE: The steering gear rack can only be held on the LH side.NOTE: LH side shown below, RH side similar.
Using an appropriate-sized wrench on the flat/teeth to hold the rack and an appropriate size crows foot wrench or open end wrench, remove and discard the tie rod.
