Component Testing

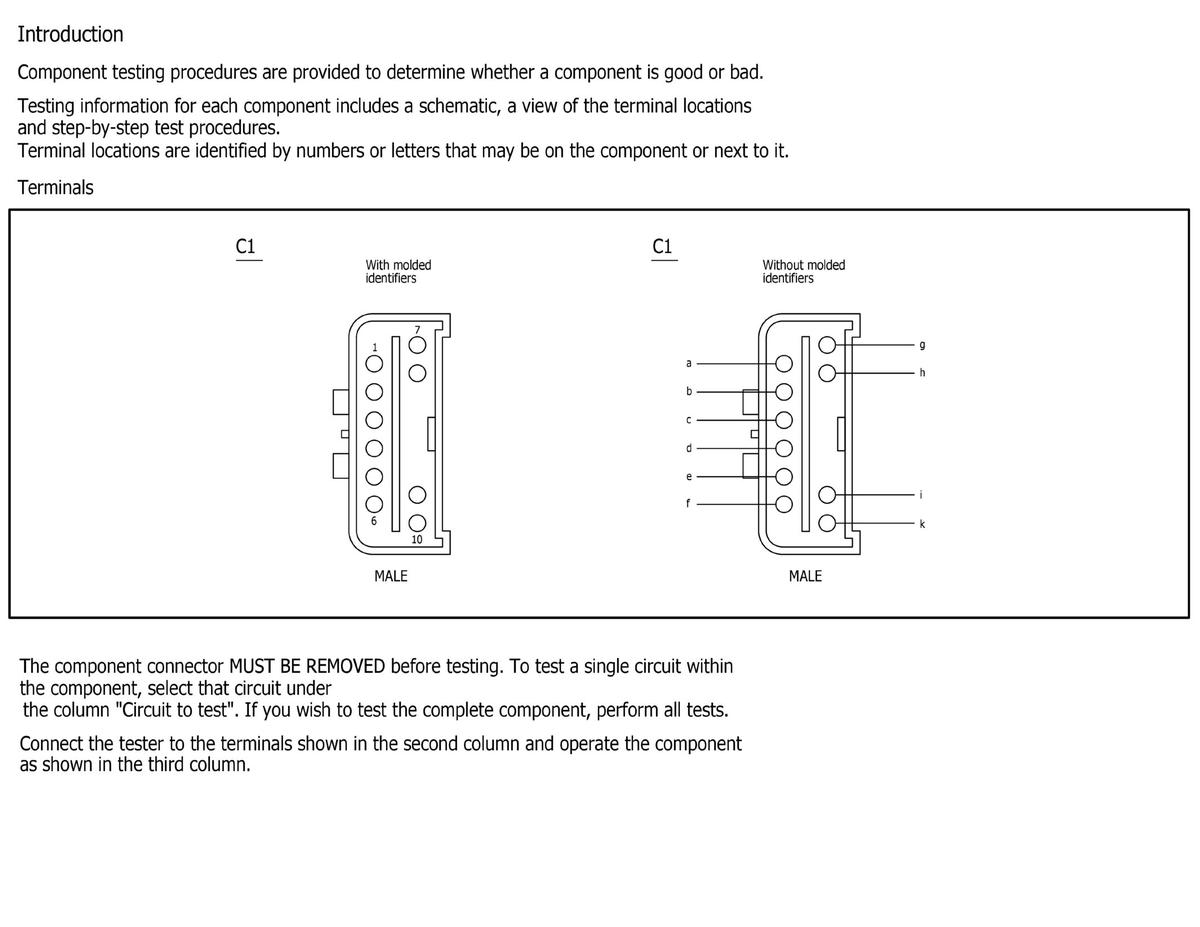

Fig 1: Component Testing Introduction
GFDWR145545Courtesy of FORD MOTOR COMPANY

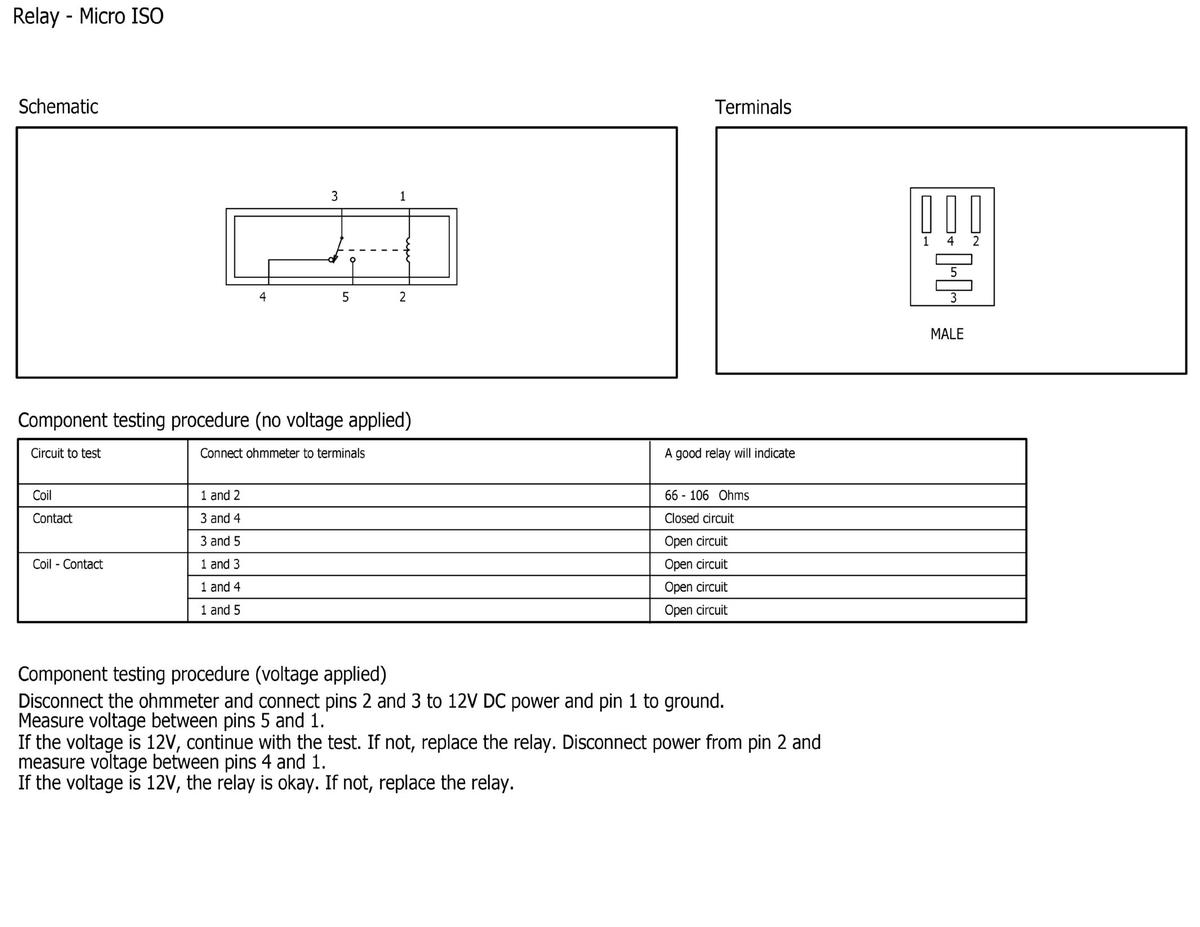

Fig 2: Relay - Micro ISO Component Testing
GFDWR145546Courtesy of FORD MOTOR COMPANY

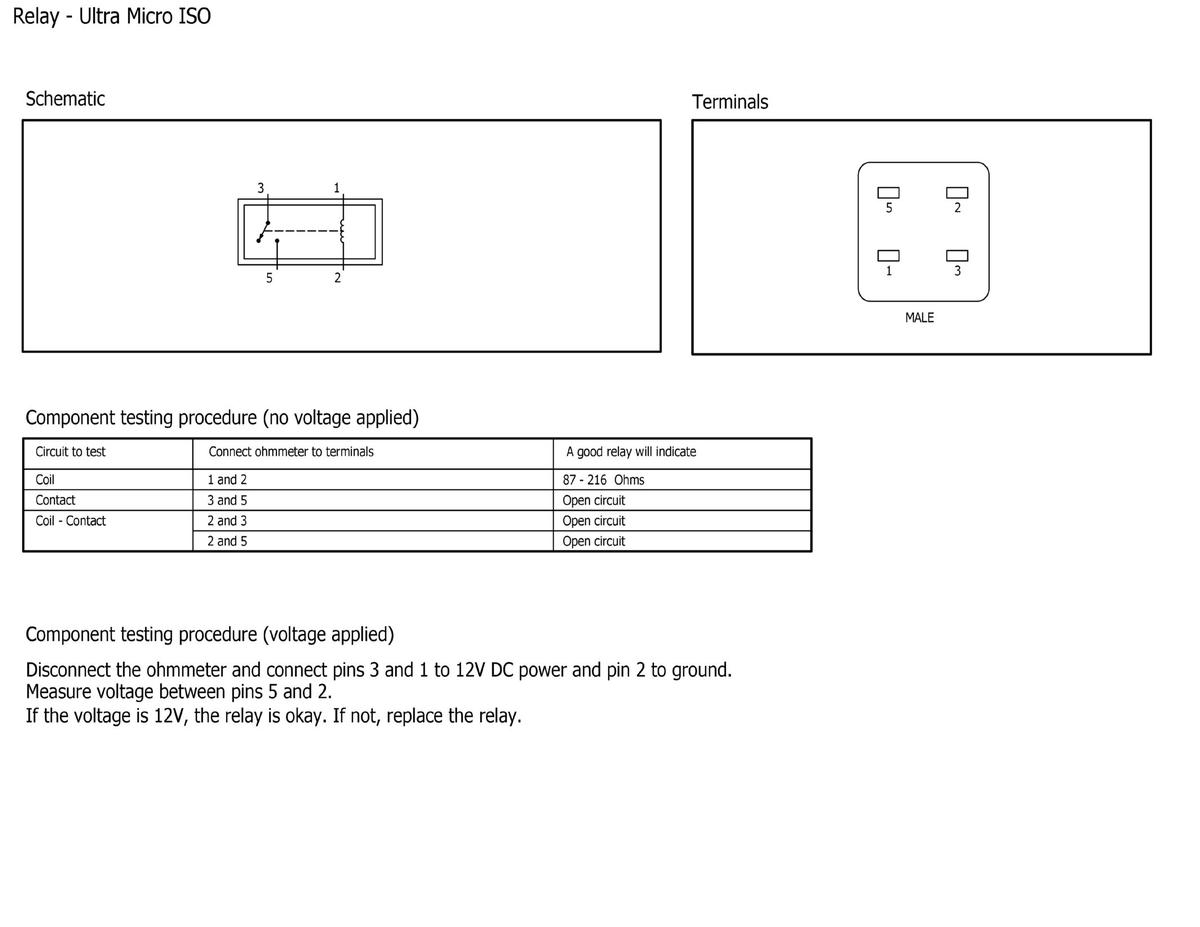

Fig 3: Relay - Ultra Micro ISO Component Testing
GFDWR145547Courtesy of FORD MOTOR COMPANY

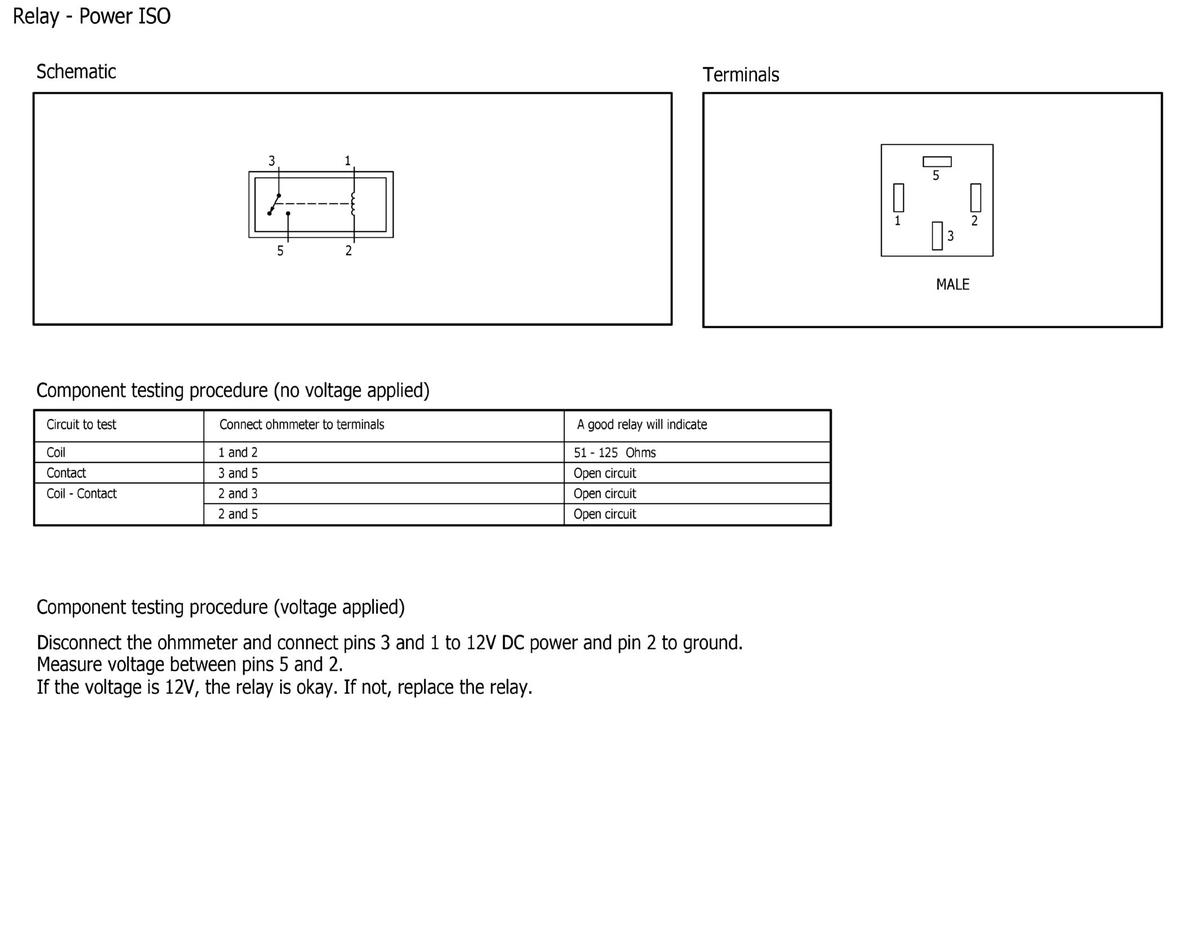

Fig 4: Relay - Power ISO Component Testing
GFDWR145548Courtesy of FORD MOTOR COMPANY
