Tie Rod: Removal

NOTE: When servicing inner tie rods, install a new bellows boot and clamps. The boots and clamps are designed to provide an airtight seal and protect the internal components of the steering gear. If the seal is not airtight, the vacuum generated during turning will draw water and contamination into the gear, causing failure of the steering gear components. Zip ties must not be used as they do not provide an airtight seal.

NOTE: The inner ball joint grease is not compatible with water contamination. Do not allow water to become trapped in the grease or degradation and failure of the joint may occur.

NOTE: If the RH inner tie rod is being serviced, remove the LH outer tie rod end and bellows boot to access and hold the steering rack when loosening and tightening the inner tie rod.

Remove the tie rod end. Refer to: Tie Rod End

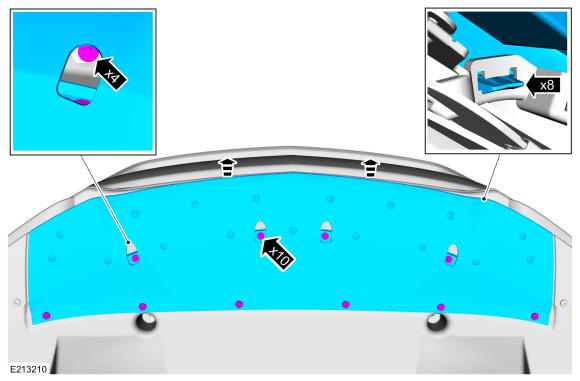

NOTE: If equipped.

Remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.
1. Remove the 2 rearward underbody shield bolts.
2. Remove the 2 remaining underbody shield bolts and remove the underbody shield.
Courtesy of FORD MOTOR COMPANY

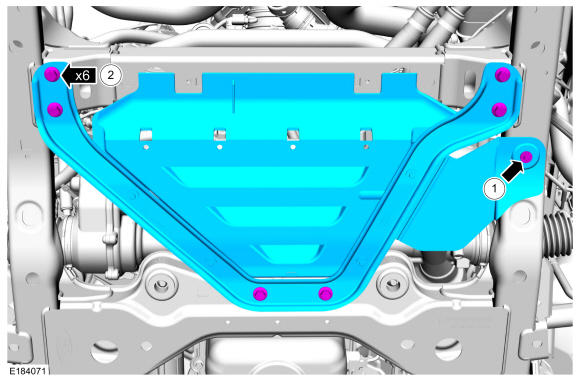

1. NOTE: If equipped.

  Remove the underbody shield bolt.
2. NOTE: It is not necessary to separate the underbody shield from the V-brace.

  Remove the 6 V-brace bolts and remove the V-brace and underbody shield.
Courtesy of FORD MOTOR COMPANY

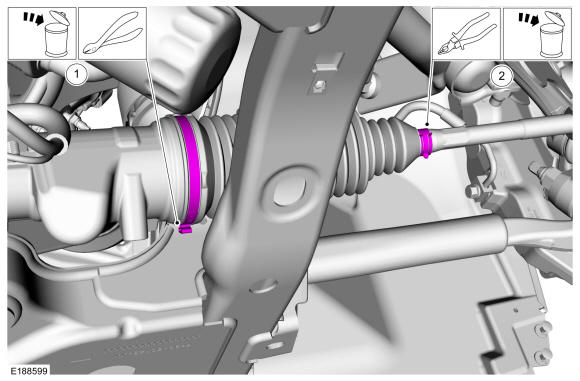

1. Remove and discard the inner bellows boot clamp.
2. Remove and discard the outer bellows boot clamp.
Courtesy of FORD MOTOR COMPANY

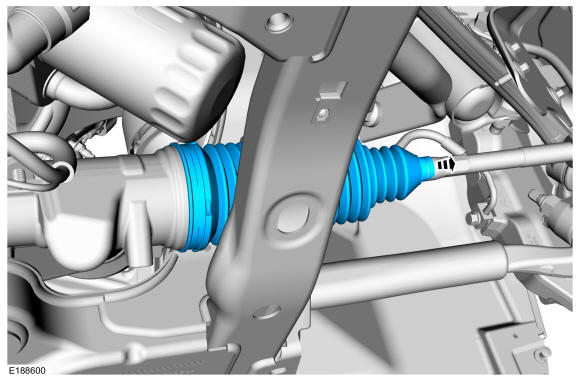

NOTE: Move the bellows boot enough to gain access to the inner tie rod nut.

Position aside the bellows boot.

Courtesy of FORD MOTOR COMPANY

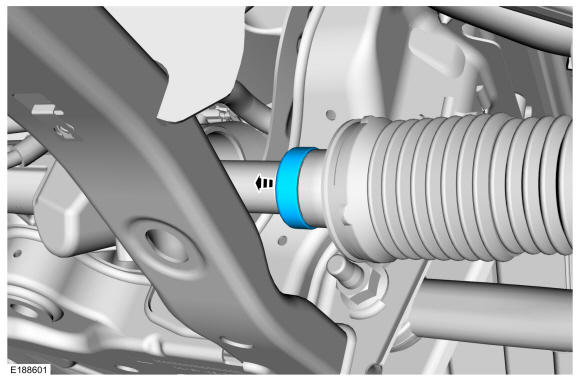

Position aside the steering stop.
- GT350R and GT500 Models, LH side only.
- All other models, On both sides.
Courtesy of FORD MOTOR COMPANY

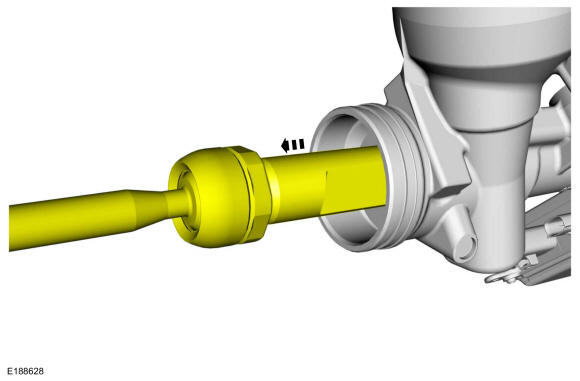

Position the steering rack completely to the left.

Courtesy of FORD MOTOR COMPANY

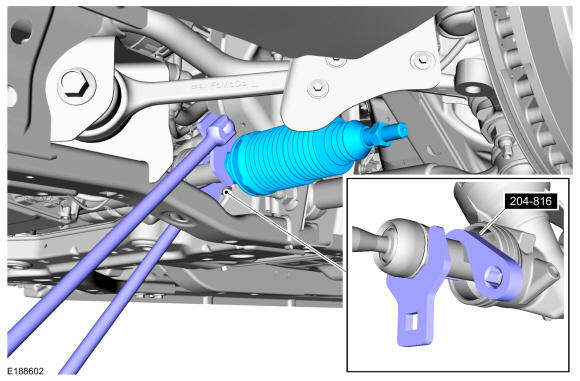

NOTE: Hold the steering gear rack while loosening the inner tie rod. Failure to hold the rack securely could result in steering gear damage.

NOTE: The steering gear rack holding tool must be reversed to remove the RH tie rod or damage to the rack and/or special tool may occur.

NOTE: The holding tool can only be used on the LH side of the steering gear.

Using the special tool to hold the rack and an appropriate size crows foot wrench or open end wrench, remove and discard the inner tie rod. Use Special Service Tool: 204-816 Rack Holding Tool.

Courtesy of FORD MOTOR COMPANY

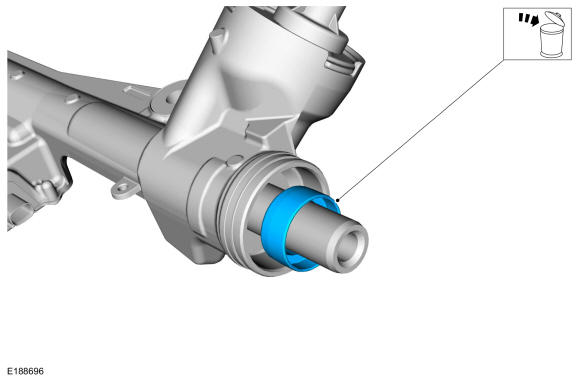

Remove and discard the steering stop.

Courtesy of FORD MOTOR COMPANY
