Overhead Console: Removal

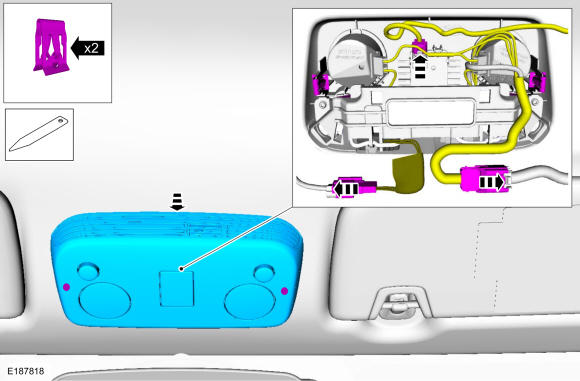

Coupe

1. Lower the headliner. Refer to: HEADLINER - LOWERING .
2. Release the clips, disconnect the electrical connectors and remove the overhead console. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

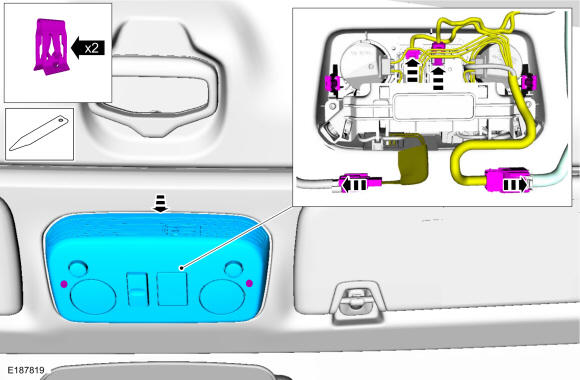

   Convertible

3. Release the clips, disconnect the electrical connectors and remove the overhead console. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
