Differential Fluid Level Check

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Materials

Check

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

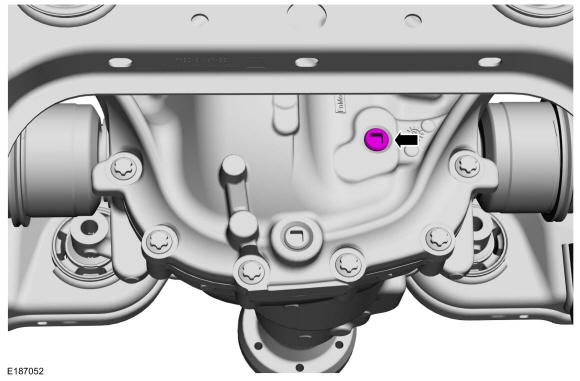

2. Remove the differential fluid fill plug.

   Courtesy of FORD MOTOR COMPANY

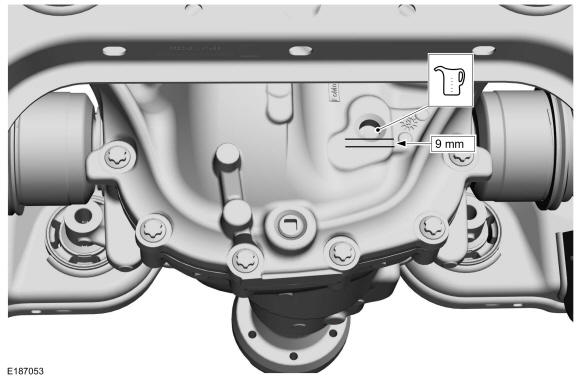

3. Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 9mm (0.354 in.) from the fluid level fill plug opening. Refer to: Specifications

   Material

   : Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

   Courtesy of FORD MOTOR COMPANY

4. Install the differential fluid fill plug.

   Torque

   : 25 lb.ft (34 Nm)

   Courtesy of FORD MOTOR COMPANY

5. If equipped with a differential cooler, operate the differential cooler pump with a scan tool for two minutes and repeat steps 1 thru 4.
