Ride Height Adjustment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Vehicle/Axle Stands

Adjustment

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Front ride height adjustment is shown. Rear ride height adjustment similar.

Remove the wheel and tire. Refer to: Wheel and Tire .

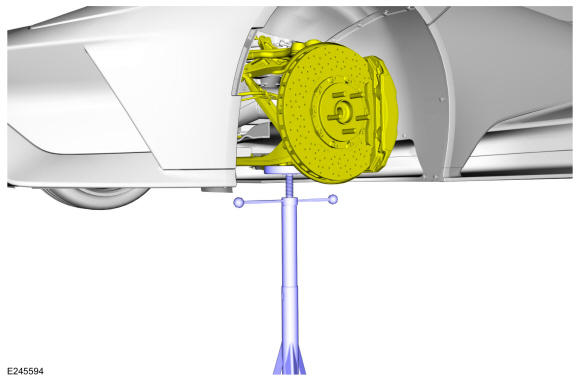

Support the suspension. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

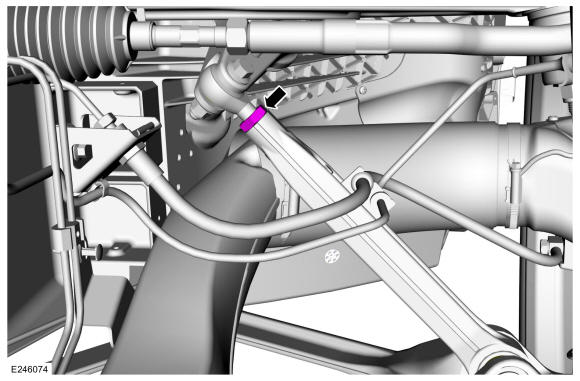

Loosen the suspension push rod adjustment jamb nut.

Courtesy of FORD MOTOR COMPANY

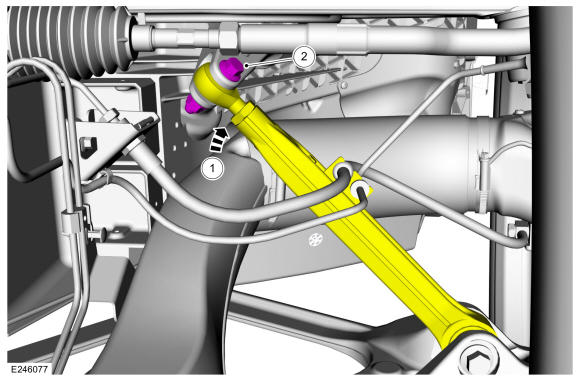

1. Remove and discard the suspension push rod-to-rocker nut and bolt.
2. Position aside the suspension push rod.
Courtesy of FORD MOTOR COMPANY
NOTE: Base ride height can be adjusted by lengthening or shortening the suspension push rod.

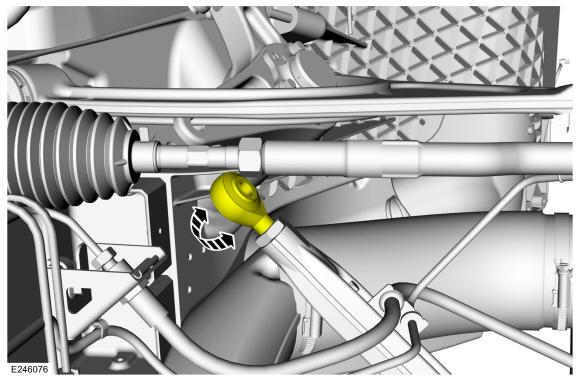

Turn the end of the suspension push rod to raise or lower ride height.

Courtesy of FORD MOTOR COMPANY

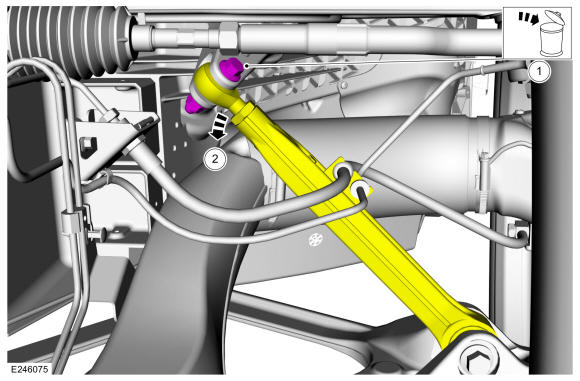

1. Position the suspension push rod.
2. Install the new suspension push rod-to-rocker nut and bolt.
  Torque: 46 lb.ft (63 Nm)
Courtesy of FORD MOTOR COMPANY
Tighten the suspension push rod adjustment jamb nut.
Torque: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Check ride height readjust as necessary. Refer to: Ride Height Measurement .
