Rear Toe Adjustment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Make sure that the vehicle is standing on a level surface.

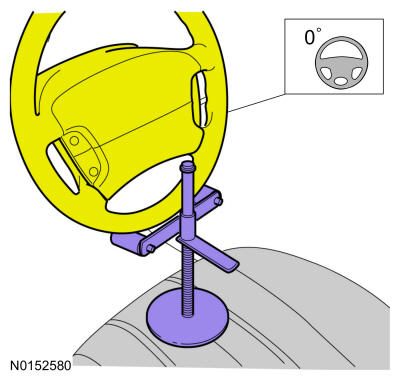

Hold the steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY
Using alignment equipment and the manufacturer's instructions, check the rear toe setting on both sides. Use the General Equipment: Wheel Alignment System
NOTE: Do not allow the adjusting rod to rotate while tightening the jam nuts.

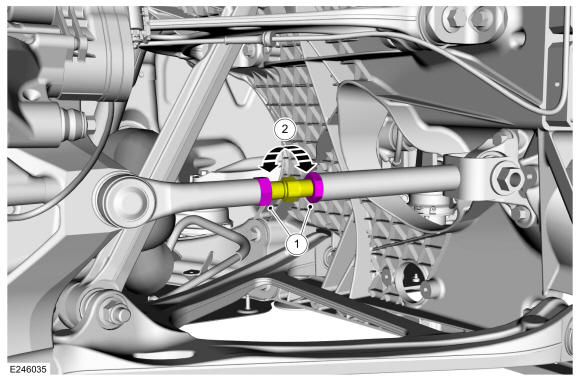

1. Loosen the toe link jam nuts.
  Torque: 76 lb.ft (103 Nm)
2. Rotate the toe link adjusting rod until the toe setting is within specifications.
Courtesy of FORD MOTOR COMPANY
Recheck the rear toe and adjust as necessary.
