Fuel Lines: Installation

To install, reverse the removal procedure.

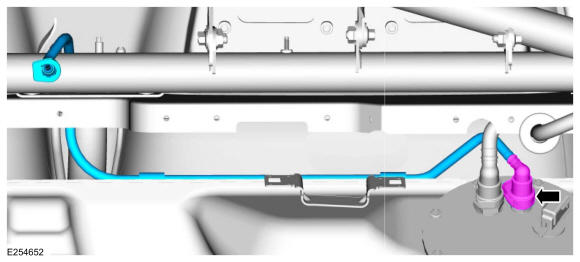

Install and connect the fuel line. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
NOTE: Apply locktite to the bolts before installation.

Install the RH access panel and the bolts.

Material: Motorcraft® Thread lock and Sealer / TA-25-B

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
- NOTE: Apply locktite to the bolts before installation.

  Position back the bracket and install the lower bolts.

  Material: Motorcraft® Thread lock and Sealer / TA-25-B

  Torque: 97 lb.in (11 Nm)
- Tighten the upper bolt.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
Install the rear frame structure and powertrain. Refer to: Rear Frame Structure and Powertrain .
