Fuel Level Sender: Removal
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
This procedure is considered a major service repair. For Ford warranty coverage, the vehicle must be returned to the Multimatic vehicle assembly and repair facility.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Remove the fuel tank. Refer to: Fuel Tank .

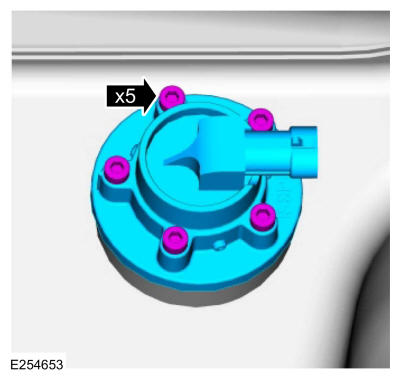

- Remove the bolts and the fuel level sender.
Torque: 18 lb.in (2 Nm)
