3.5L Eco Boost

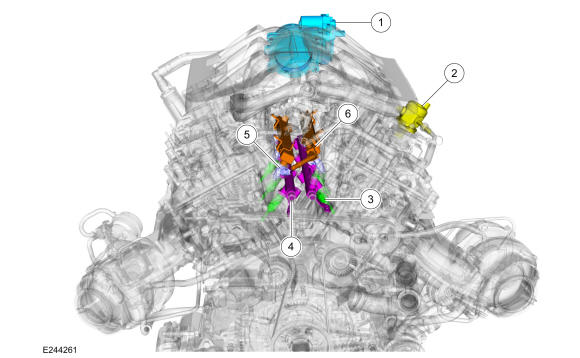

GFD345039Courtesy of FORD MOTOR COMPANY
Item Description
1 Throttle body
2 High-pressure fuel pump
3 Direct injection fuel injector
4 Direct injection fuel rail
5 Port injection fuel injector
6 Port injection fuel rail
