Oil Pan: Removal

  1. Remove the oil pump. Refer to: Oil Pump  .
  2. Detach the transmission from the engine. Refer to: Transmission - Detach from Engine .
  3. Remove the bolt and position the turbocharger oil return tube aside.
    GFD344642Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the turbocharger oil return tube O-ring seal.
    GFD344643Courtesy of FORD MOTOR COMPANY
    1. Remove the coolant tube bracket nuts.
    2. Remove the coolant tube retainer nut and bolt.
    3. Remove the nut and position the coolant tube and bracket aside.
    GFD344644Courtesy of FORD MOTOR COMPANY
  6. Remove the bolt and the coolant hose retainer bracket.
    GFD344645Courtesy of FORD MOTOR COMPANY
  7. Remove the engine front cover bolts and stud bolts.

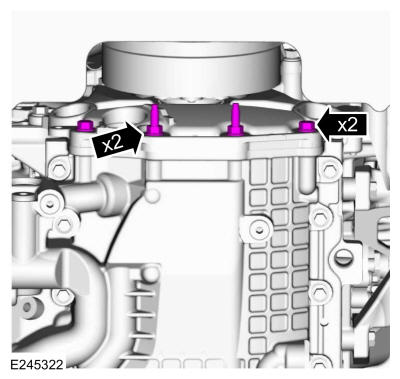

    GFD344646Courtesy of FORD MOTOR COMPANY
  8. Remove the oil pan bolts.

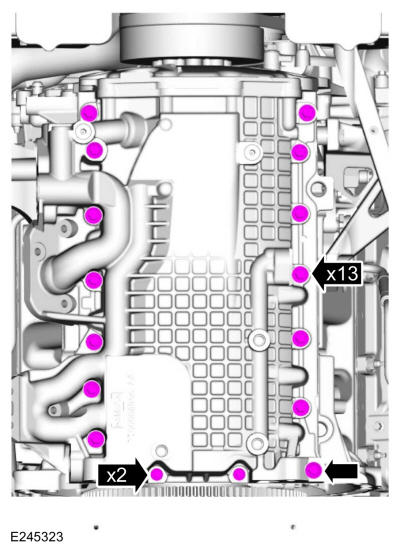

    GFD344647Courtesy of FORD MOTOR COMPANY
  9. Using a pry tool on the pry pads, release the oil pan seal.

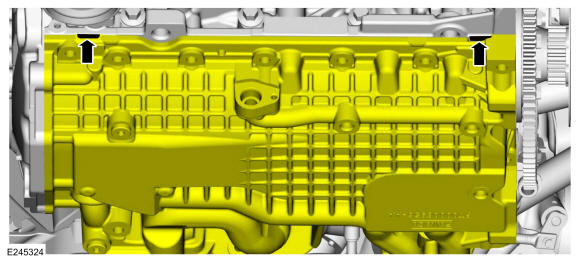

    GFD344648Courtesy of FORD MOTOR COMPANY
  10. NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

    Slide the oil pan to the side to release the oil transfer tube and filter from the oil pan and remove the oil pan.

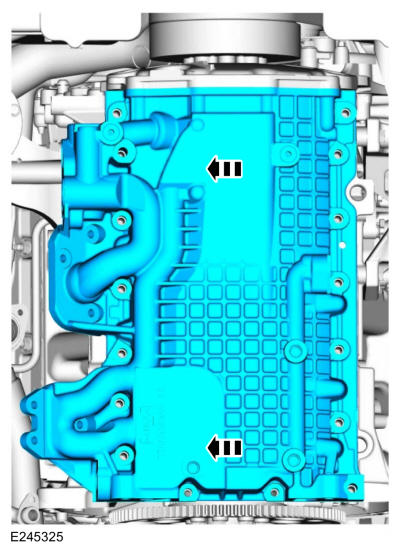

    GFD344649Courtesy of FORD MOTOR COMPANY
  11. Remove and oil transfer tube and filter.

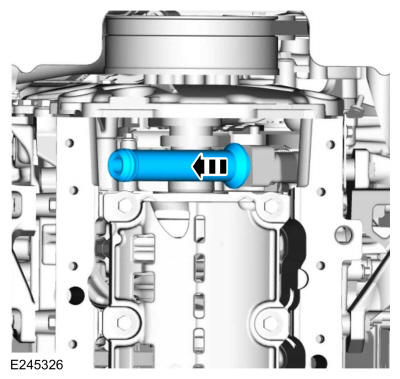

    GFD344650Courtesy of FORD MOTOR COMPANY
  12. Remove and discard the oil transfer tube and filter O-ring seals.
    GFD344651Courtesy of FORD MOTOR COMPANY
    1. Inspect the oil transfer tube and filter for debris.
    2. Clean the oil transfer tube and filter.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD344652Courtesy of FORD MOTOR COMPANY
  14. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD344653Courtesy of FORD MOTOR COMPANY
  15. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

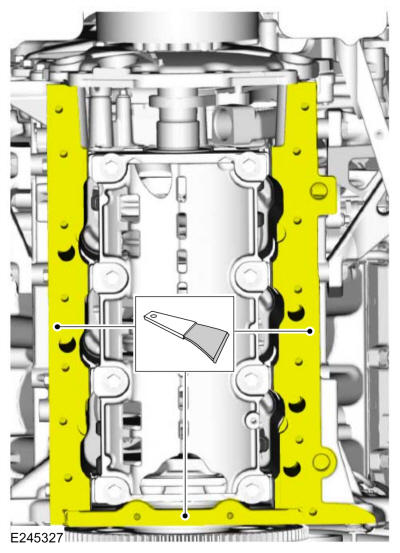

    GFD344654Courtesy of FORD MOTOR COMPANY
    1. Inspect the oil transfer tube and filter bore on the oil pan for wear.
    2. Measure the oil transfer tube and filter bore, if the bore diameter exceeds 31.80 mm (1.252 in) the oil pan must be replaced.
    GFD344655Courtesy of FORD MOTOR COMPANY

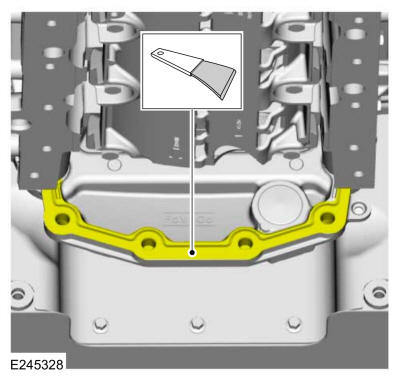

  17. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD344656Courtesy of FORD MOTOR COMPANY
