Exhaust Manifold LH: Installation

• Install new exhaust manifold studs.

  Torque: 159 lb.in (18 Nm)

• Install a new gasket.

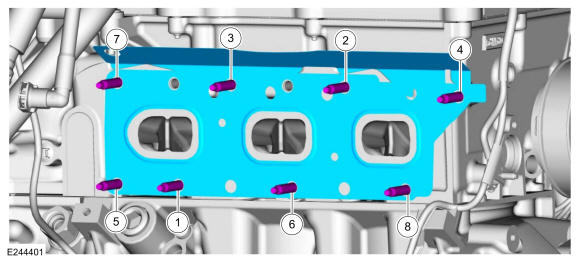

Fig 1: LH Exhaust Manifold Studs Tightening Sequence

Courtesy of FORD MOTOR COMPANY

Torque: Stage 1: 142 lb.in (16 Nm) | Stage 2: 16 lb.ft (22 Nm) | Stage 3: 16 lb.ft (22 Nm)

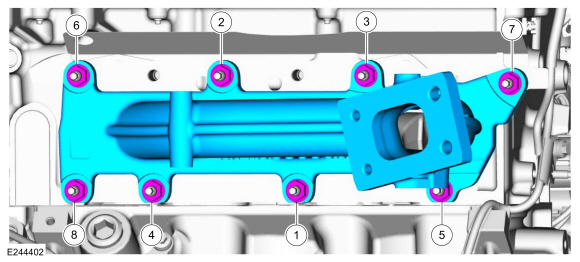

Fig 2: LH Exhaust Manifold Nuts Tightening Sequence

Courtesy of FORD MOTOR COMPANY

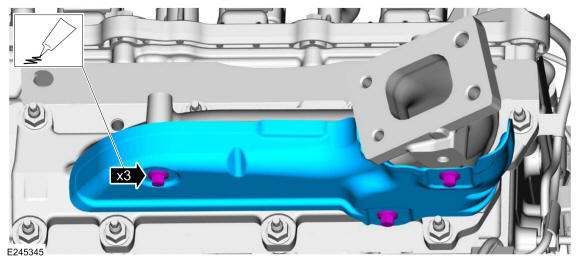

Install the bottom exhaust manifold heat shield and the bolts.

Material: Bostik Never-Seez Regular Grade (nickel free) Anti-Seize and Lubricating Compound

Torque: 97 lb.in (11 Nm)
