Cylinder Head LH: Installation

Install the LH cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
Install the LH cylinder head and the new bolts.
Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 33 lb.ft (45 Nm) | Stage 3: 90° | Stage 4: 90° | Stage 5: 90°

Fig 1: LH Cylinder Head Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the LH cylinder head M6 bolt.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new fuel rail to fuel rail high-pressure fuel tube is installed.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas.

Install the fuel rail to fuel rail high-pressure fuel tube and tighten the flare nuts finger tight and tighten the flare nuts in the following 3 stages.

Torque: Stage 1: 62 lb.in (7 Nm) | Stage 2: 89 lb.in (10 Nm) | Stage 3: 30°

Courtesy of FORD MOTOR COMPANY
Install the fuel rail to fuel rail fuel supply line. Refer to: Spring Lock Couplings .

Courtesy of FORD MOTOR COMPANY
Connect the secondary latches.

Courtesy of FORD MOTOR COMPANY

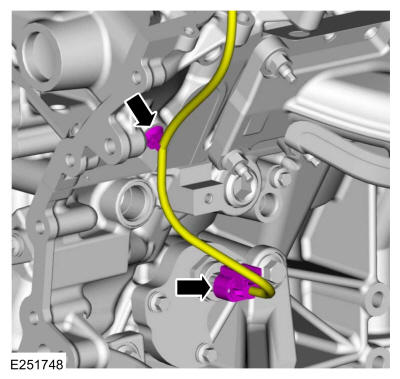

Connect the EOP sensor wiring harness electrical connector and retainer.

Courtesy of FORD MOTOR COMPANY

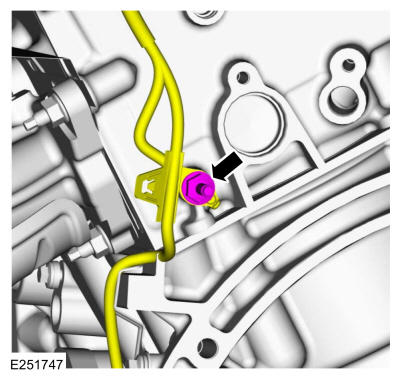

Position the ground wire and install the stud bolt.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

Courtesy of FORD MOTOR COMPANY

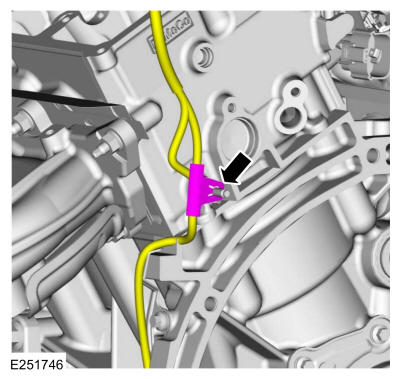

Attach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

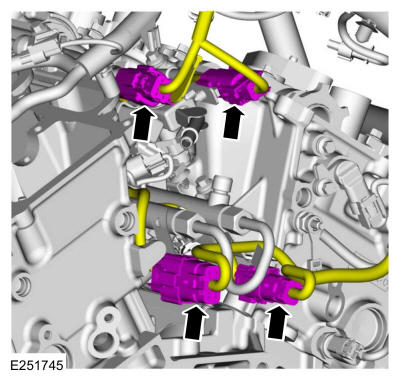

- Connect the port injector fuel rail harness electrical connectors.
- Connect the direct injector fuel rail harness electrical connectors.
Courtesy of FORD MOTOR COMPANY

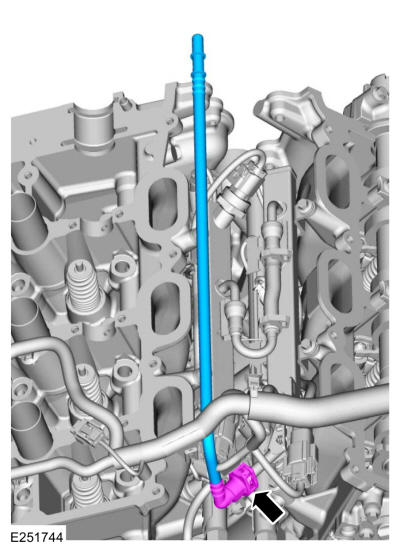

Install the fuel inlet tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Install the LH camshafts. Refer to: Camshaft LH .
