Module Communications Network

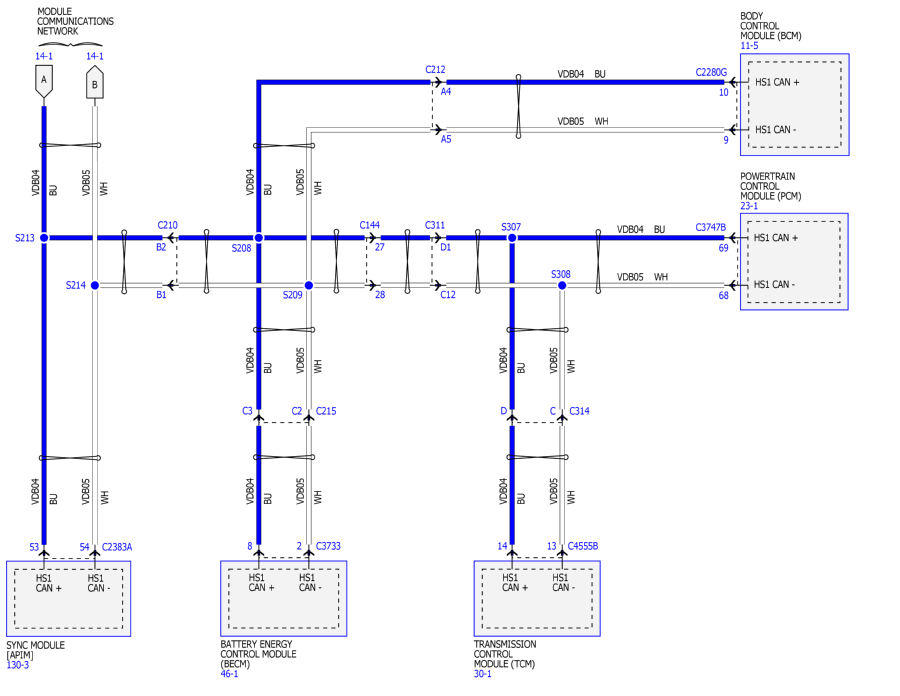

GFDWR31962Courtesy of FORD MOTOR COMPANY

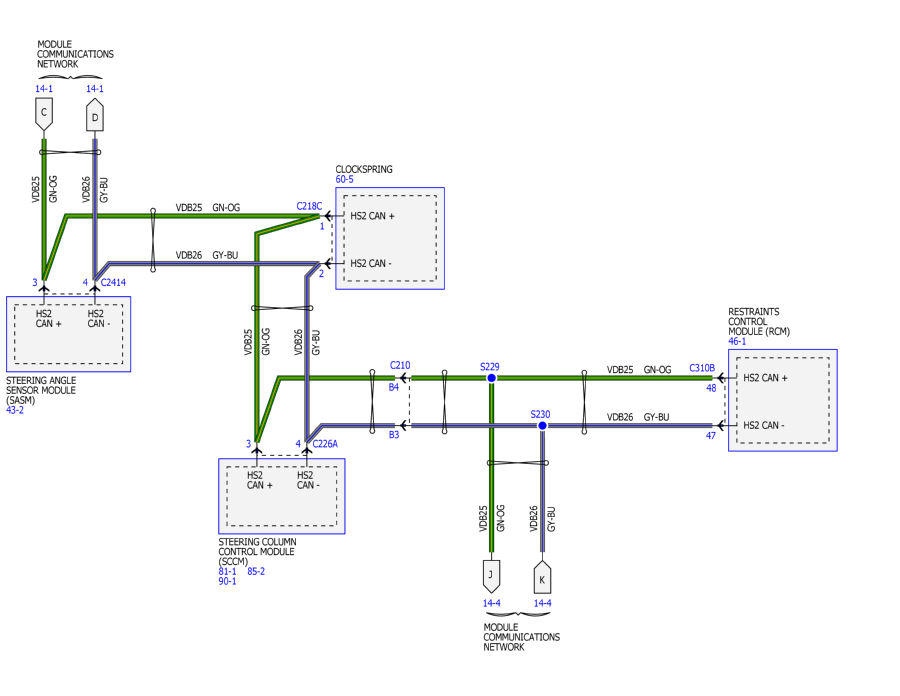

GFDWR31963Courtesy of FORD MOTOR COMPANY

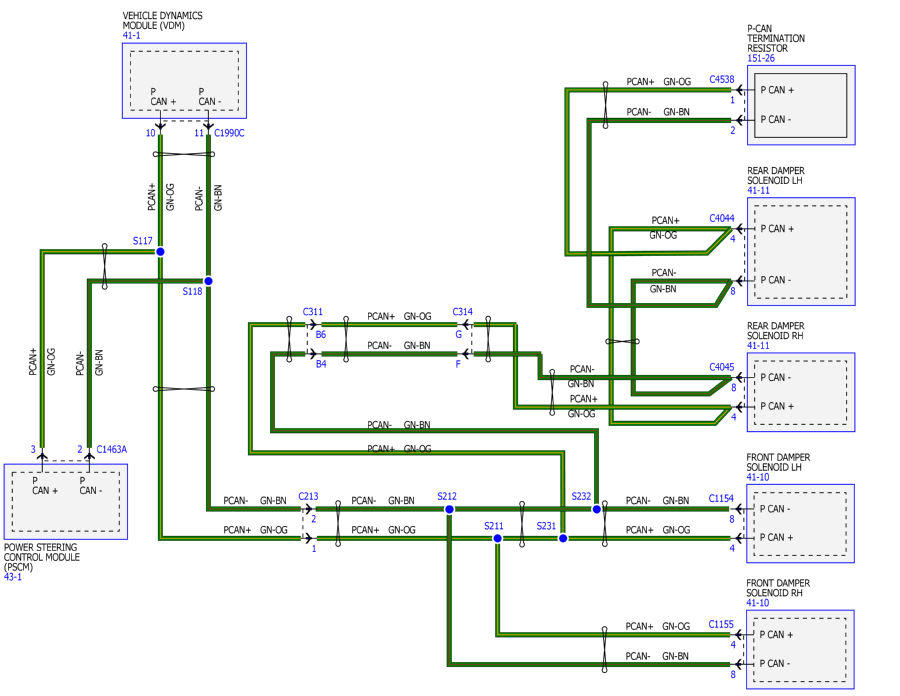

GFDWR31964Courtesy of FORD MOTOR COMPANY

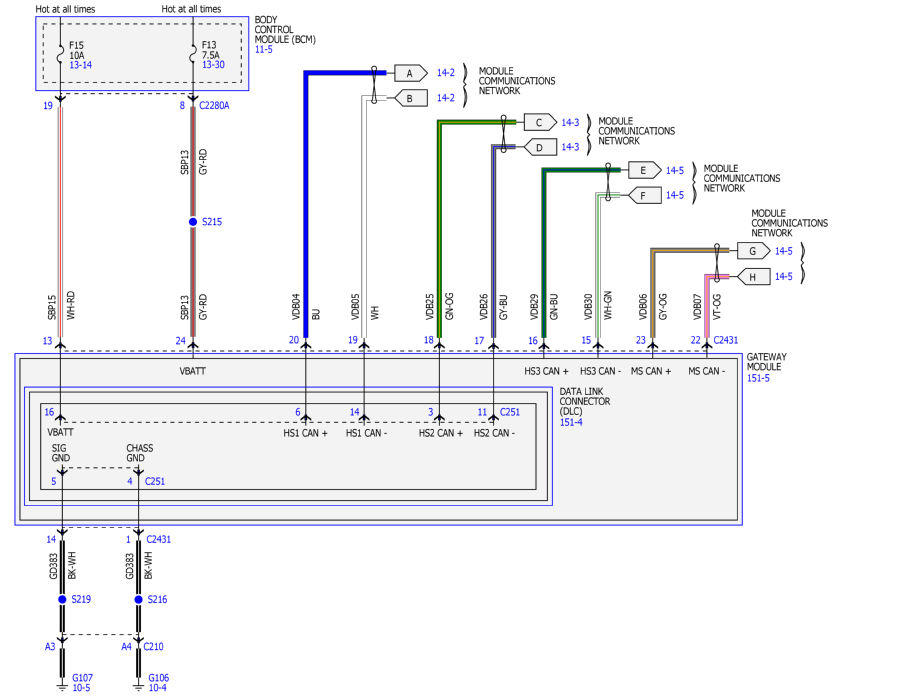

GFDWR31965Courtesy of FORD MOTOR COMPANY

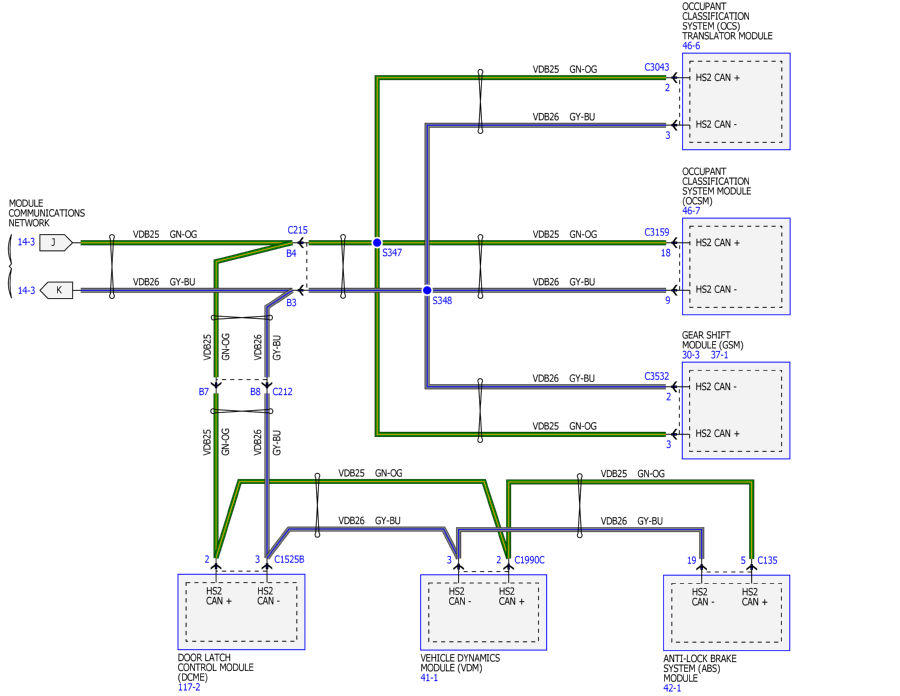

GFDWR31966Courtesy of FORD MOTOR COMPANY

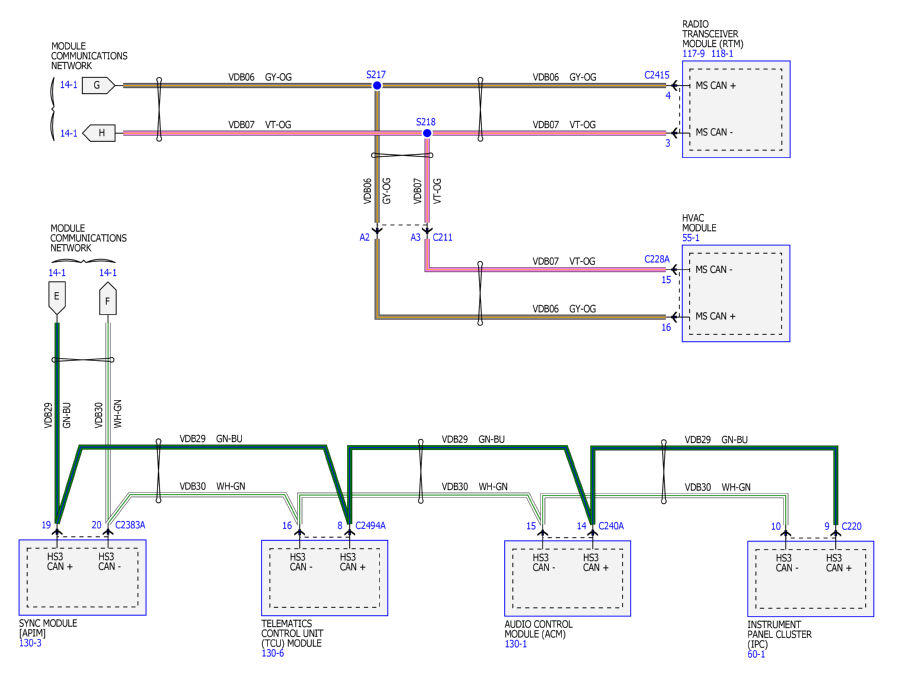

GFDWR31967Courtesy of FORD MOTOR COMPANY
