Fuse And Relay Information

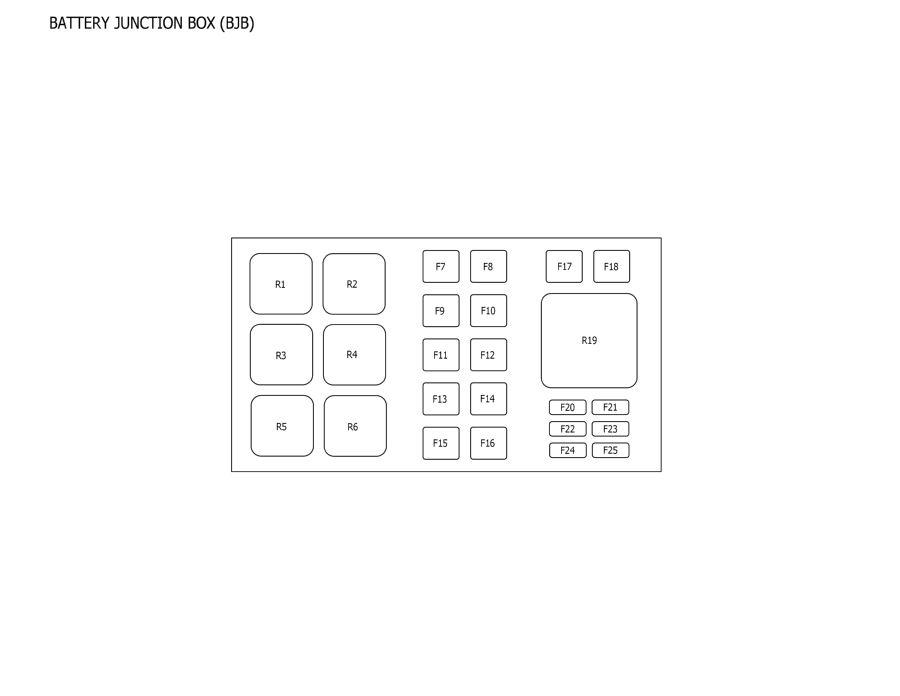

GFDWR31885Courtesy of FORD MOTOR COMPANY

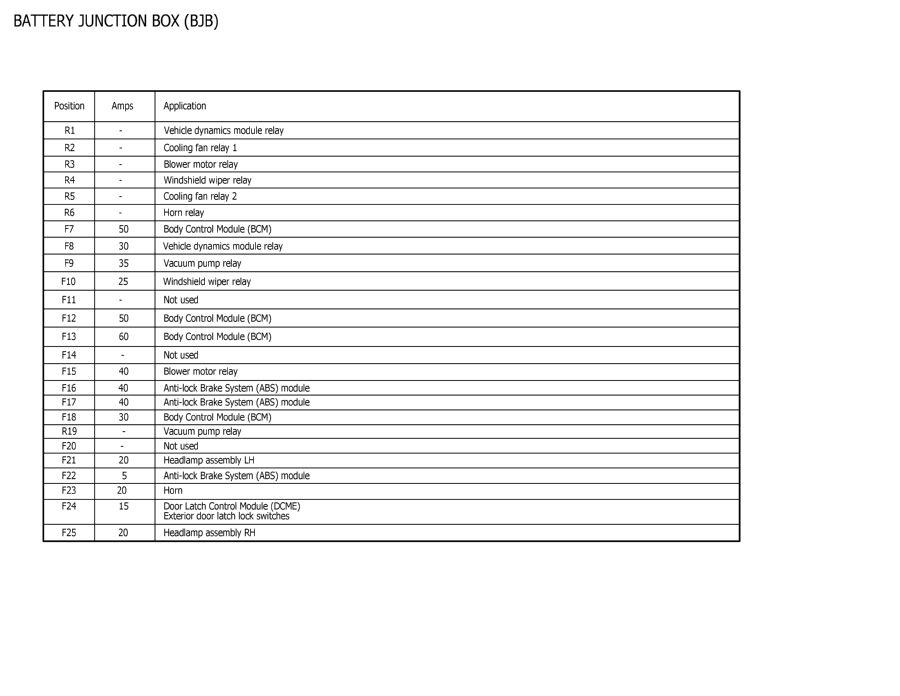

GFDWR31881Courtesy of FORD MOTOR COMPANY

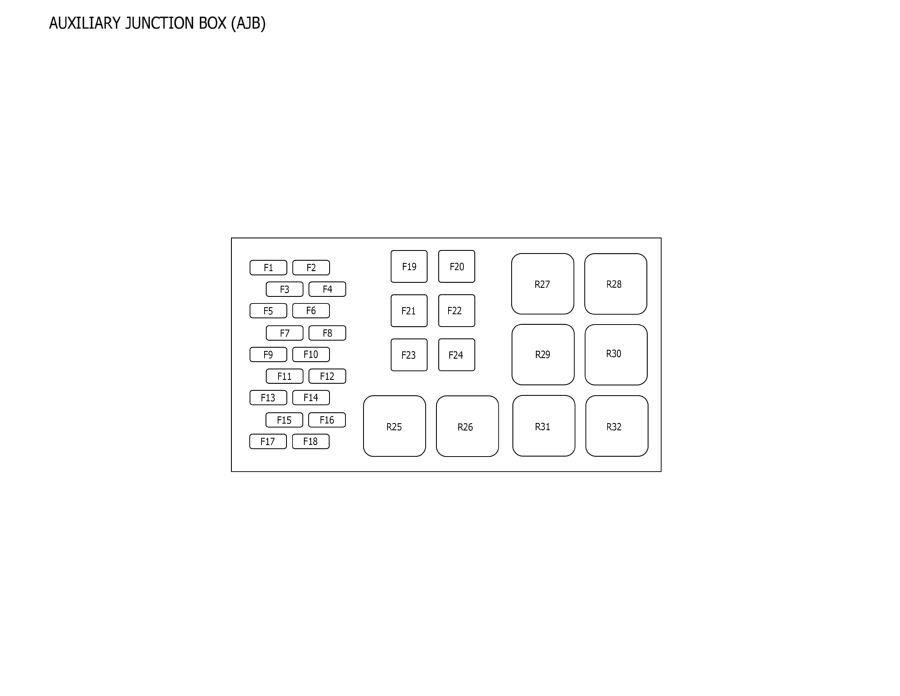

GFDWR31883Courtesy of FORD MOTOR COMPANY

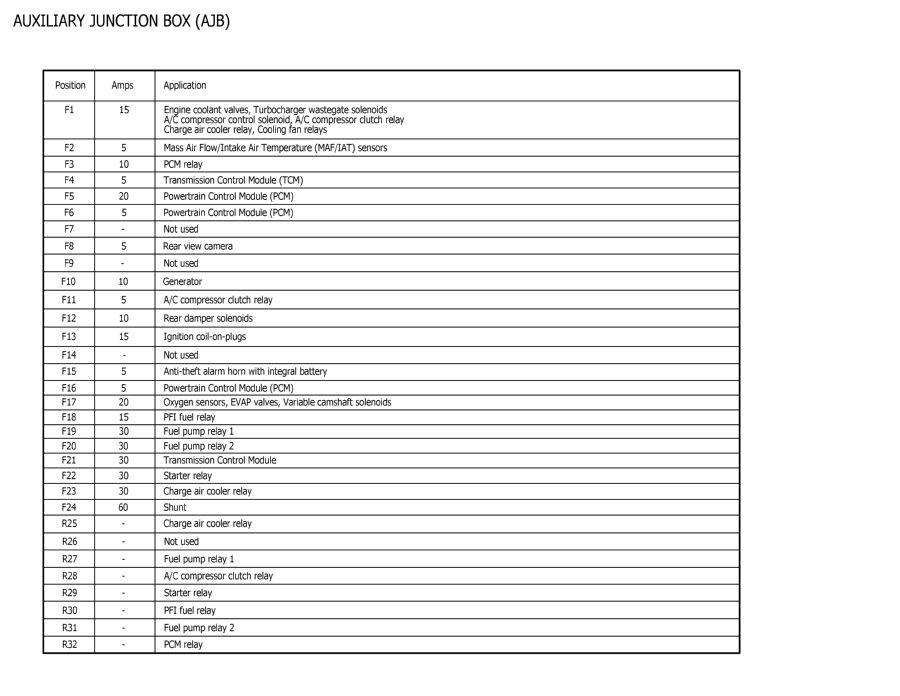

GFDWR31886Courtesy of FORD MOTOR COMPANY

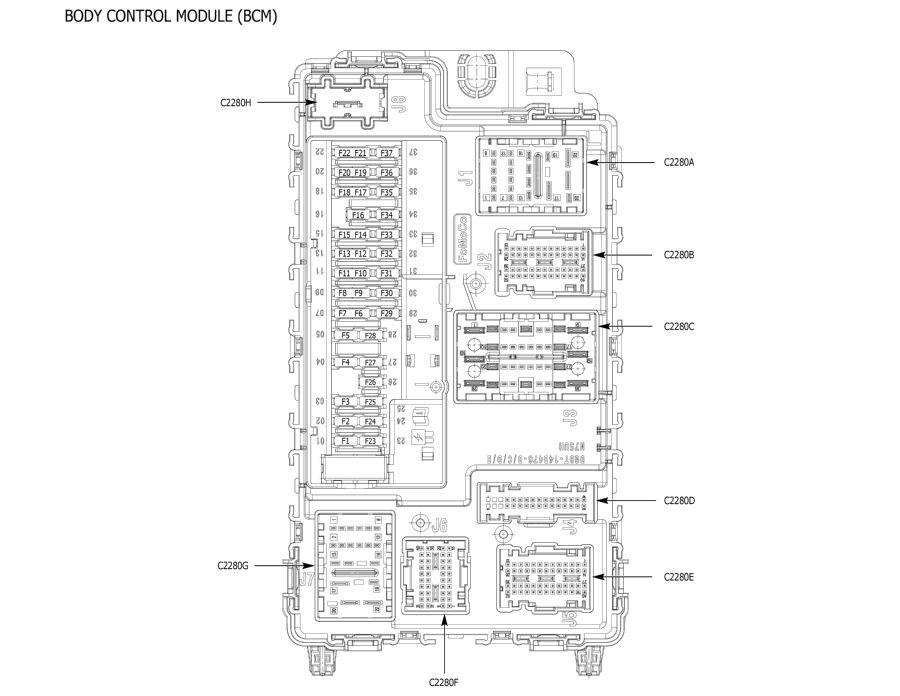

GFDWR31887Courtesy of FORD MOTOR COMPANY

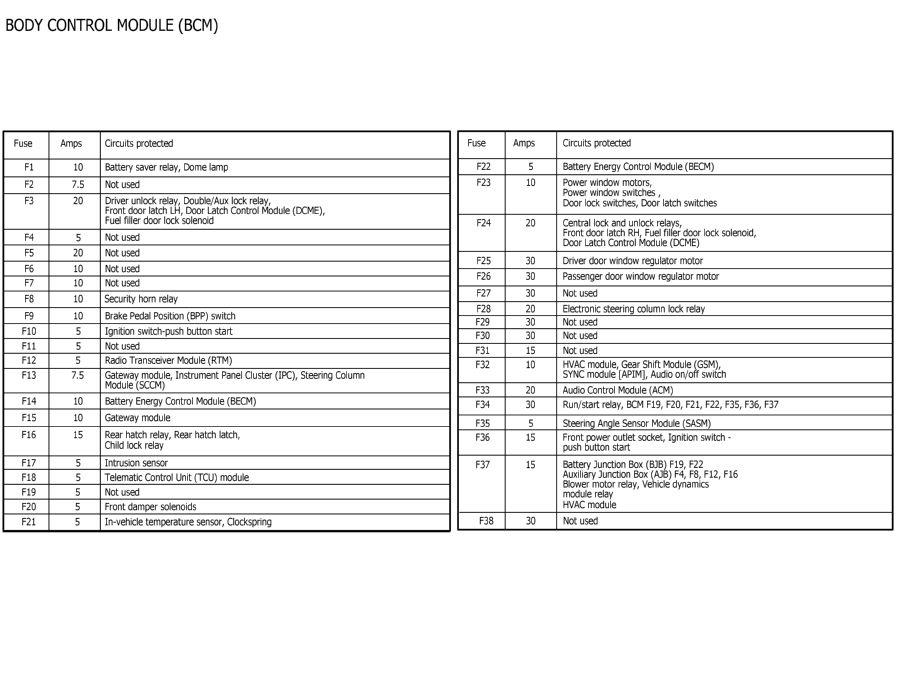

GFDWR31884Courtesy of FORD MOTOR COMPANY

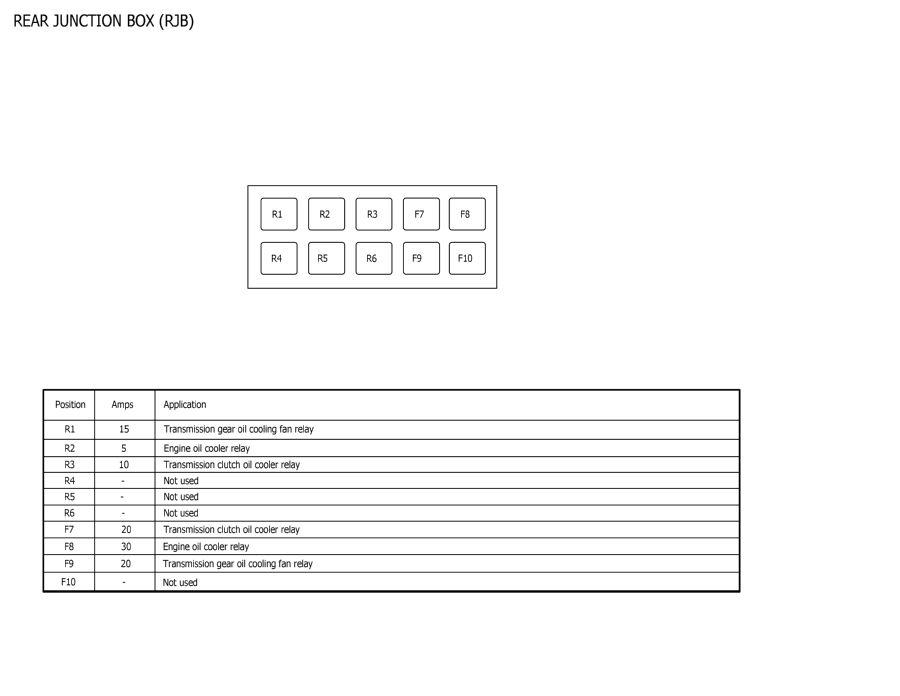

GFDWR31882Courtesy of FORD MOTOR COMPANY
