Pinpoint Tests X: Exhaust Pressure (EP) Sensor: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: EP, SIGRTN, VREF
EP sensor (9J460)
PCM (12A650)

Fig 1: Exhaust Pressure (EP) Sensor Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	EP (Exhaust Pressure)
2	SIGRTN (Signal Return)
3	VREF (Reference Voltage)

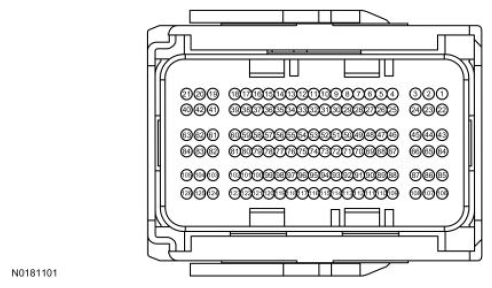

Fig 2: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
94	EP (Exhaust Pressure)
