Pinpoint Tests RE: Reductant Purge Valve: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

reductant purge valve
harness circuits: RDPGC and VPWR
reductant dosage control module (5H298)

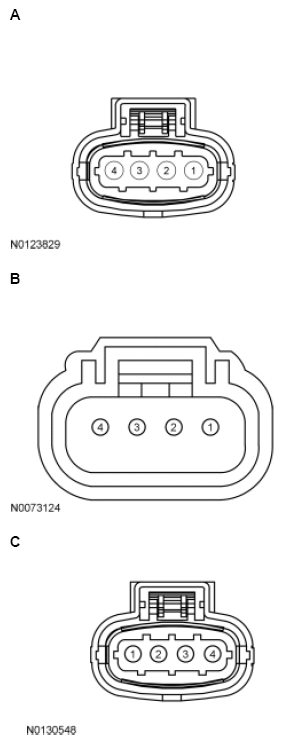

Fig 1: Reductant Purge Valve Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	VPWR (Vehicle Power)
2	RDPGC (Reductant Purge Control)

Fig 2: Reductant Dosage Control Module Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
50	RDPGC (Reductant Purge Control)

Fig 3: Reductant Pump Assembly Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	RDPGPWR (Reductant Purge Valve Power)
2	RDPGC (Reductant Purge Control)
