Ignition Coil-On-Plug: Installation
WARNING: This page is about a different variant/trim than selected.
Both sides
- Inspect the ignition coil-on-plug assembly for cracks, rips or tears. Replace any damaged coil-on-plug assemblies.
Right side

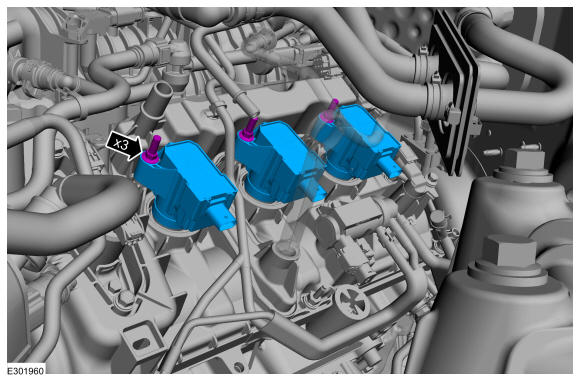

- Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug stud bolts.
Torque: 53 lb.in (6 Nm)

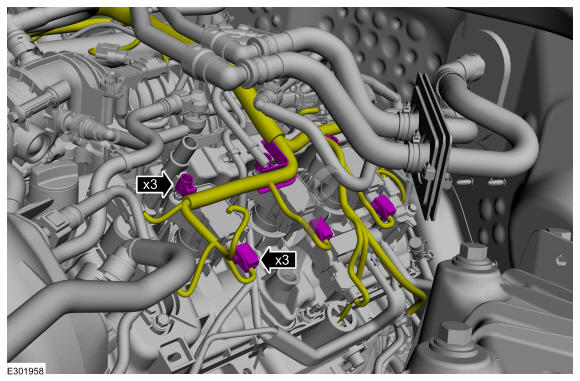

- Connect the ignition coil-on-plug electrical connectors, then attach the electrical harness retainers to the ignition coil-on-plug stud bolts.

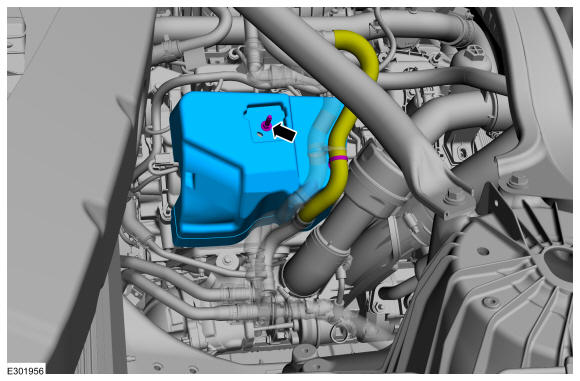

- Install the fuel pump cover, attach the hose tag, tighten the nut.
Torque: 44 lb.in (5 Nm)
Left side

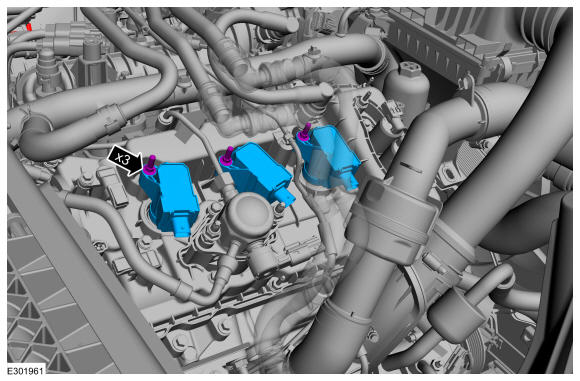

- Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug stud bolts.
Torque: 53 lb.in (6 Nm)

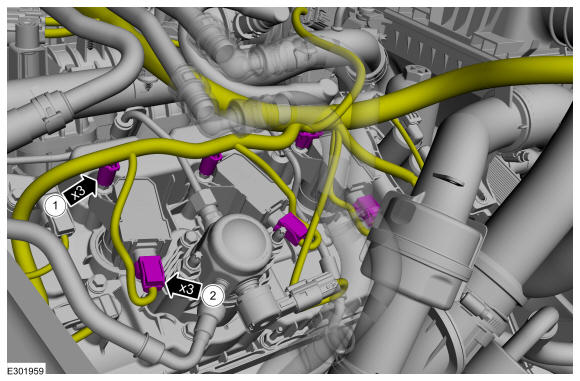

- Attach the wire harness retainers to the stud bolts, and connect the ignition coil-on-plug electrical connectors.
-

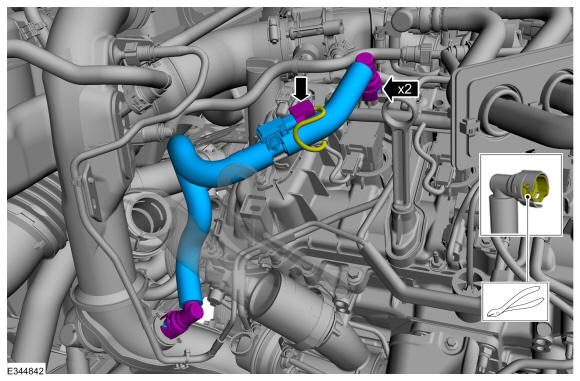

- Install the crankcase vent tube. If the crankcase vent tube was previously discarded, install a new crankcase vent tube.
- If the replacement crankcase vent tube part comes with no crankcase pressure sensor, reprogram the PCM. Refer to: Module Programming .
- If the replacement crankcase vent tube came without a crankcase pressure sensor, tape the wiring harness electrical connector back to the wiring harness.
- If the replacement crankcase vent tube comes with a crankcase pressure sensor, connect the wiring harness electrical connector.
-

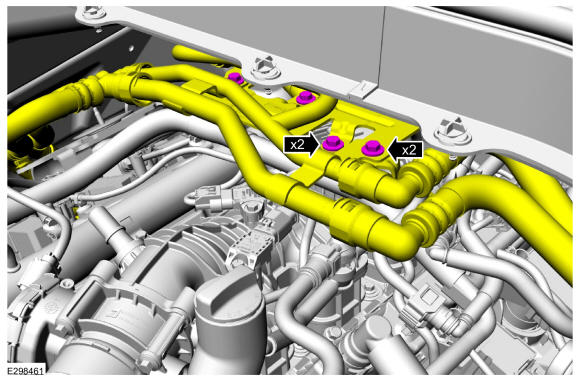

- Install the coolant pipe bracket retaining bolts.
Torque: 97 lb.in (11 Nm)
- Install the intake manifold bracket retaining bolts.
Torque: 97 lb.in (11 Nm)
- Install the coolant pipe bracket retaining bolts.

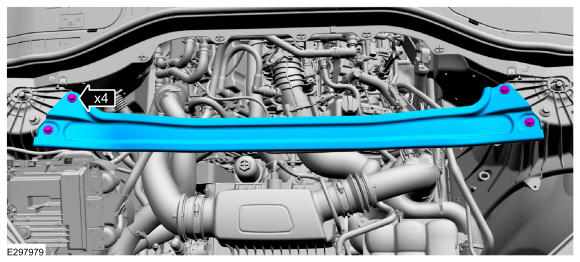

- Install the suspension support bar and the bolts.
Torque: 22 lb.ft (30 Nm)

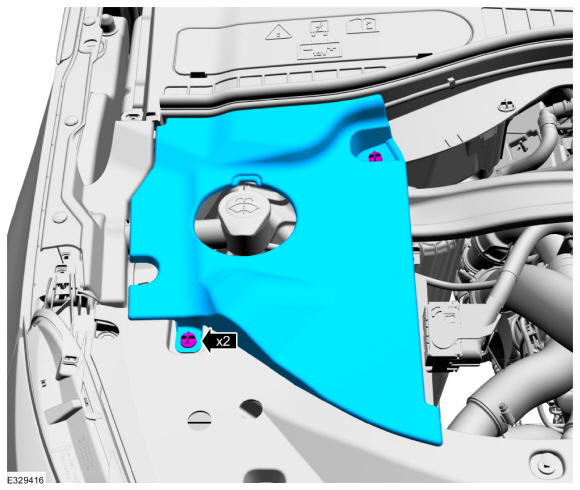

- Install the retainers and the LH side engine compartment cover.

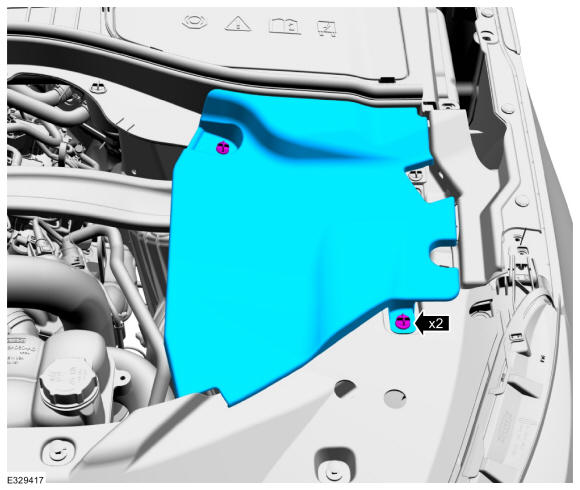

- Install the retainers and the RH side engine compartment cover.
