Engine Mount RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Using a holding device, hold the steering wheel.
    GFD510539Courtesy of FORD MOTOR COMPANY
  3. Remove the retainers and the upper radiator panel.
    GFD510541Courtesy of FORD MOTOR COMPANY
  4. Remove the bolts and the suspension support bar.
    GFD511268Courtesy of FORD MOTOR COMPANY
  5. Remove the following items:

    1. Cowl panel. Refer to: Cowl Panel .
    2. Air cleaner. Refer to: Air cleaner .
    3. Charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .

    • Remove the coolant pipe bracket retaining bolts.

    • Remove the intake manifold bracket retaining bolts.

    • Remove the intake manifold bracket.

    GFD511269Courtesy of FORD MOTOR COMPANY
    • Detach the wiring harness retainers.

    • Remove the coolant pipe bolts.

    • Position the coolant pipe aside.

    GFD511270Courtesy of FORD MOTOR COMPANY
  8. Detach the hose retainers, remove the bolt and separate the CAC intake pipe from the bracket.
    GFD511271Courtesy of FORD MOTOR COMPANY
  9. Remove the bolts and the bracket.
    GFD511272Courtesy of FORD MOTOR COMPANY
    • Remove the bolt and disconnect the steering shaft.

    • Discard the bolt.

    GFD511273Courtesy of FORD MOTOR COMPANY
  11. Remove the throttle body. Refer to: Throttle Body .
  12. Remove the engine front cover bolts.
    GFD511274Courtesy of FORD MOTOR COMPANY
  13. Using two M8 x 1.25 bolts with a length between 55 and 65 mm, install the special tools to the engine. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD511275Courtesy of FORD MOTOR COMPANY
  14. Install Special Service Tool: 303-F072 Support Bar, Engine.
    GFD511258Courtesy of FORD MOTOR COMPANY
  15. Remove the following items:

    1. Front wheels and tires. Refer to: Wheel and Tire .
    2. LH and RH exhaust flexible pipes. Refer to: Exhaust Flexible Pipe .

  16. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the LH sway bar link aside.

    GFD510547Courtesy of FORD MOTOR COMPANY
  17. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    GFD510548Courtesy of FORD MOTOR COMPANY
  18. Remove the pin-type retainer, bolts and the rear underbody shield.
    GFD510498Courtesy of FORD MOTOR COMPANY
  19. Remove the steering shield pin-type retainers from the RH subframe.
    GFD510552Courtesy of FORD MOTOR COMPANY
  20. Remove the splash shield pin-type retainer from the RH subframe.
    GFD511276Courtesy of FORD MOTOR COMPANY
    • Disconnect the catalyst monitor sensor electrical connector.

    • Detach the wiring harness retainers.

    GFD511294Courtesy of FORD MOTOR COMPANY
  22. Remove the steering shield pin-type retainers from the LH subframe.
    GFD510555Courtesy of FORD MOTOR COMPANY
  23. Remove the splash shield pin-type retainer from the LH subframe and position aside.
    GFD511278Courtesy of FORD MOTOR COMPANY
  24. Detach the wiring harness retainers from the LH subframe.
    GFD511295Courtesy of FORD MOTOR COMPANY
  25. Remove the front radiator support bar and panel bolts.
    GFD510559Courtesy of FORD MOTOR COMPANY
  26. Remove the bolt and position the coolant tubes aside.
    GFD511282Courtesy of FORD MOTOR COMPANY
  27. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

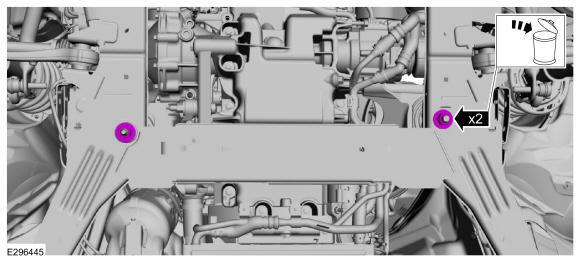

    • Remove the LH and RH engine mount nuts.

    • Discard the engine mount nuts.

    GFD511283Courtesy of FORD MOTOR COMPANY
  28. Remove the bolt and position the RH underbody shield aside.
    GFD510561Courtesy of FORD MOTOR COMPANY
  29. Remove the bolt and position the LH underbody shield aside.
    GFD510562Courtesy of FORD MOTOR COMPANY
  30. Mark the front subframe location.
    GFD510563Courtesy of FORD MOTOR COMPANY
  31. Mark the rear subframe location.
    GFD510564Courtesy of FORD MOTOR COMPANY
  32. Support the front and rear of the subframe with adjustable jack stands.
    GFD510565Courtesy of FORD MOTOR COMPANY
    • Remove the rear subframe bolts.

    • Discard the bolts.

    GFD511228Courtesy of FORD MOTOR COMPANY
    • Remove the middle subframe bolts.

    • Discard the bolts.

    GFD511229Courtesy of FORD MOTOR COMPANY
    • Remove the front subframe bolts.

    • Discard the bolts.

    GFD511230Courtesy of FORD MOTOR COMPANY
  36. With the aid of an assistant, lower the front jack stand 127 mm (5.0 in) and the rear jack stand 152.4 mm (6.0 in) evenly or until engine mount stud clears the subframe.
    GFD511231Courtesy of FORD MOTOR COMPANY
  37. If equipped.

    • Remove the transmission cooler hose bracket nut.

    GFD511284Courtesy of FORD MOTOR COMPANY
  38. Remove the fasteners and the exhaust crossmember.
    GFD511129Courtesy of FORD MOTOR COMPANY
  39. Position an adjustable jack stand under the transmission crossmember.
    GFD511257Courtesy of FORD MOTOR COMPANY
  40. Remove and discard the transmission crossmember bolts.
    GFD511266Courtesy of FORD MOTOR COMPANY
  41. Lower the jack stand 32 mm (1.25 in).
    GFD511267Courtesy of FORD MOTOR COMPANY
    • Disconnect the HO2S electrical connector.

    • Detach the wiring harness retainers.

    GFD511142Courtesy of FORD MOTOR COMPANY
  43. NOTE: Body of vehicle removed from graphic for clarity.

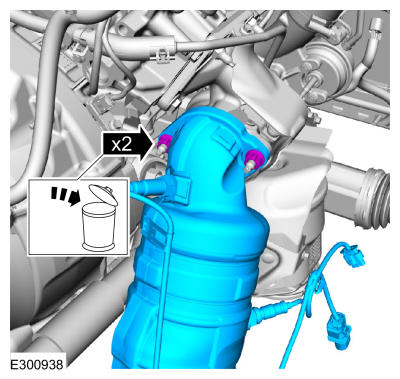

    • Remove the nuts and the RH catalytic converter.

    • Discard the nuts.

    GFD511144Courtesy of FORD MOTOR COMPANY
    • Remove and discard the gasket.

    • If damaged, remove and discard the studs.

    GFD511145Courtesy of FORD MOTOR COMPANY

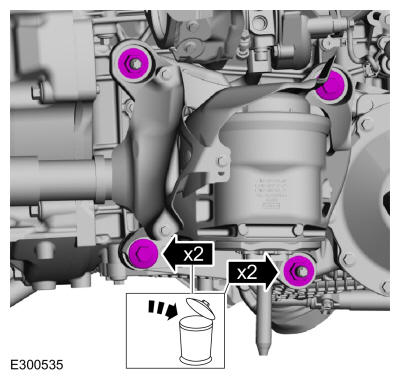

  45. Remove and discard the nuts and bolts.
    GFD511235Courtesy of FORD MOTOR COMPANY

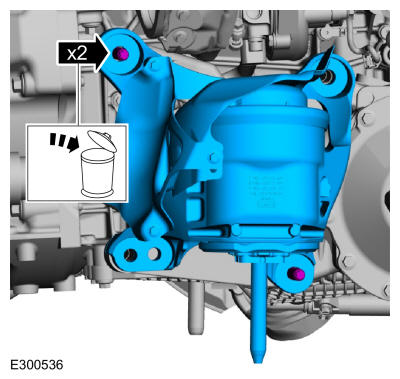

    • Remove the studs and the RH engine mount.

    • Discard the studs.

GFD511236Courtesy of FORD MOTOR COMPANY
