Trough Assembly: Installation
- To install, reverse the removal procedure.
-

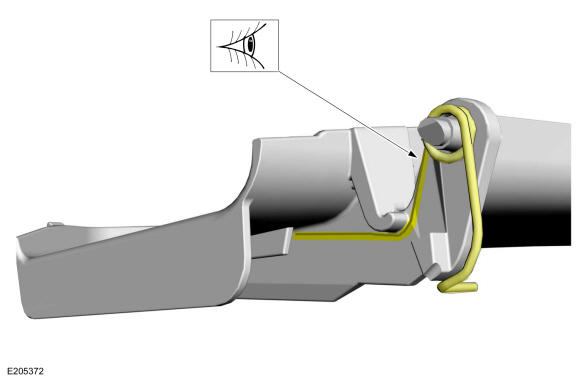

NOTE: Spring position before installing the trough.
On both sides. If installing a new drain trough, the spring will need to be transferred to the new drain trough.

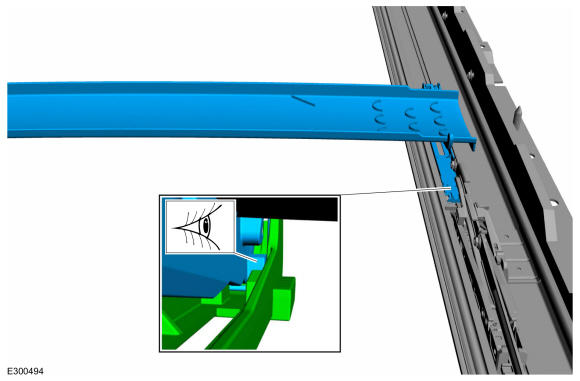

- On both sides. The tab on the trough must be positioned behind the tab on the bracket when installing.
