Warning Devices
Warning Devices

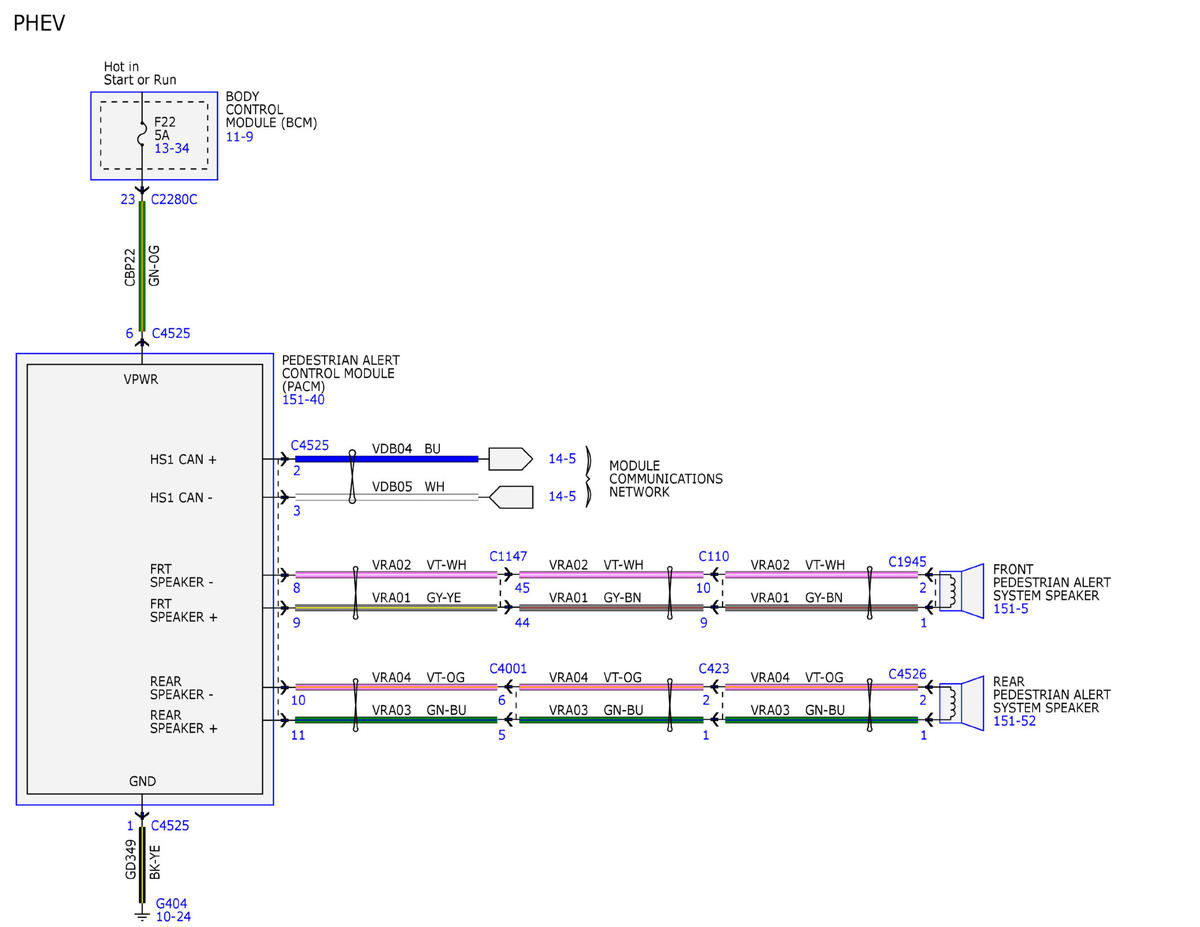

Fig 1: Warning Devices System Wiring Diagrams
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
