Heated Window

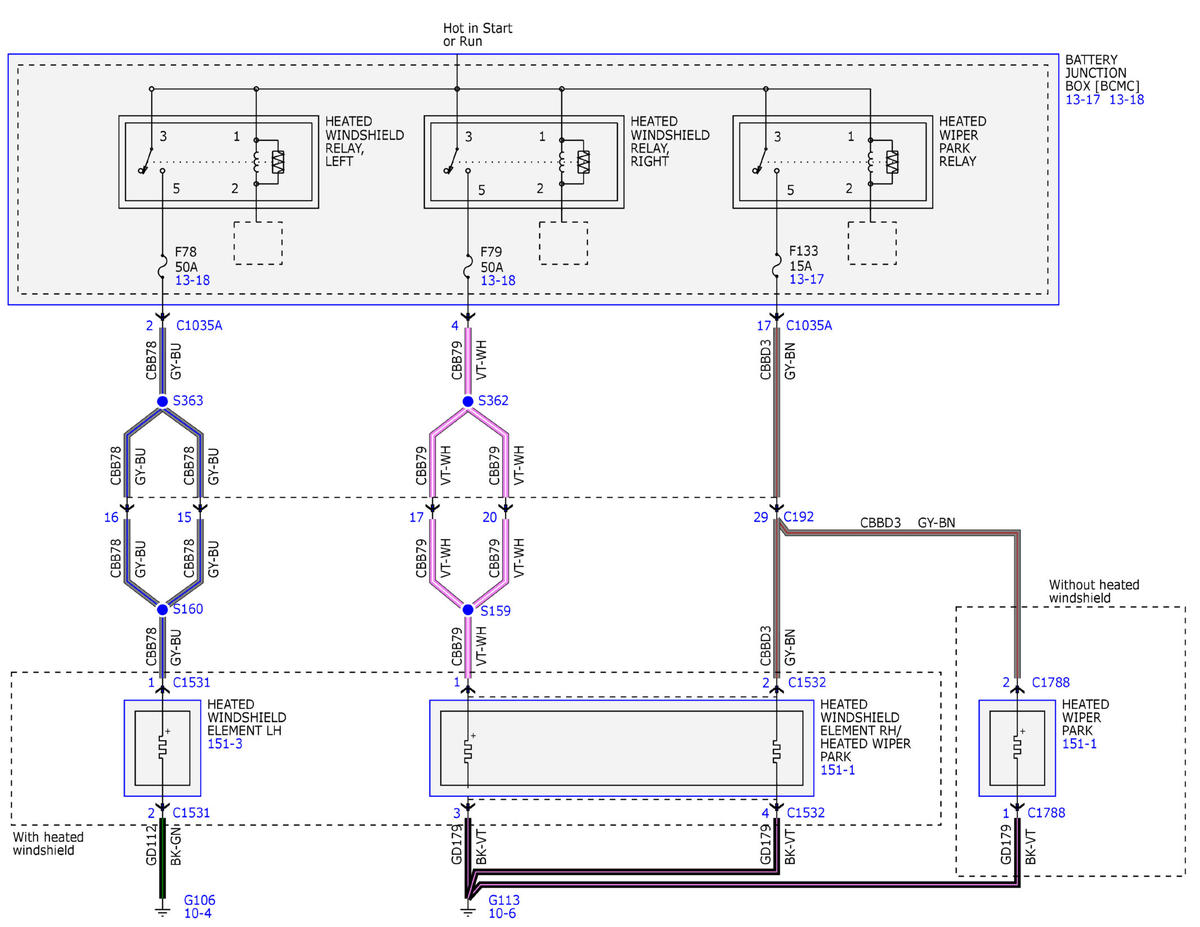

Fig 1: Heated Window System Wiring Diagrams (1 Of 4)
GFDWR94509Courtesy of FORD MOTOR COMPANY

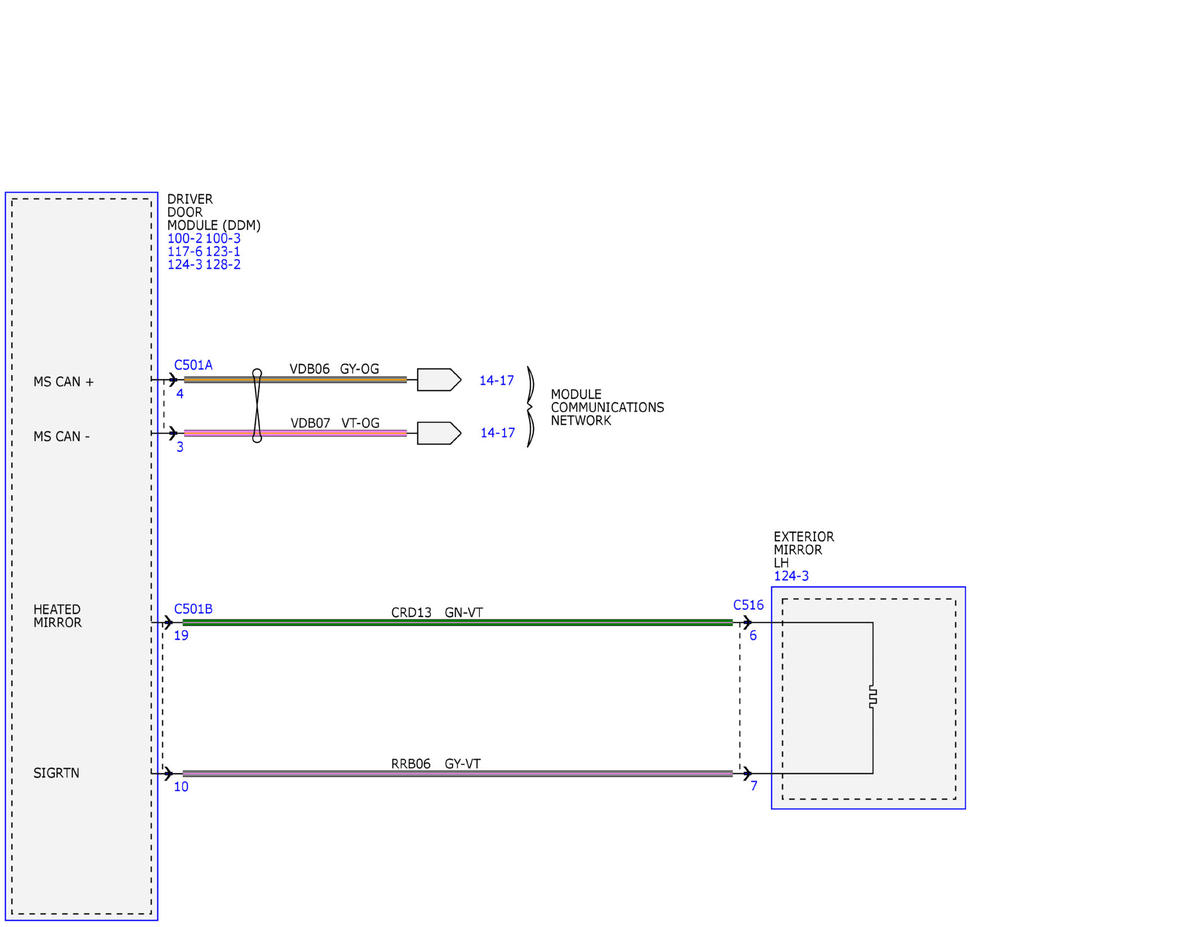

Fig 2: Heated Window System Wiring Diagrams (2 Of 4)
GFDWR94510Courtesy of FORD MOTOR COMPANY

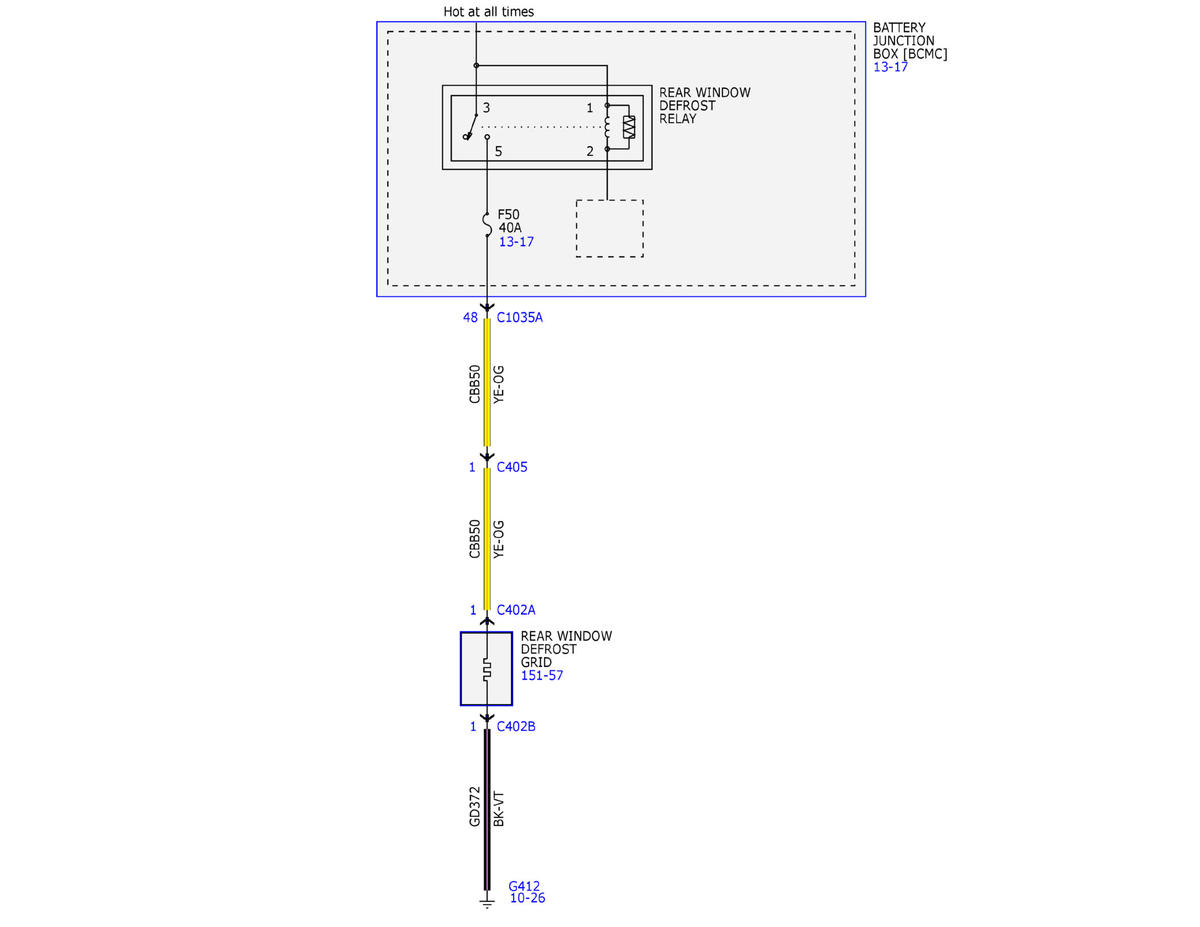

Fig 3: Heated Window System Wiring Diagrams (3 Of 4)
GFDWR94511Courtesy of FORD MOTOR COMPANY

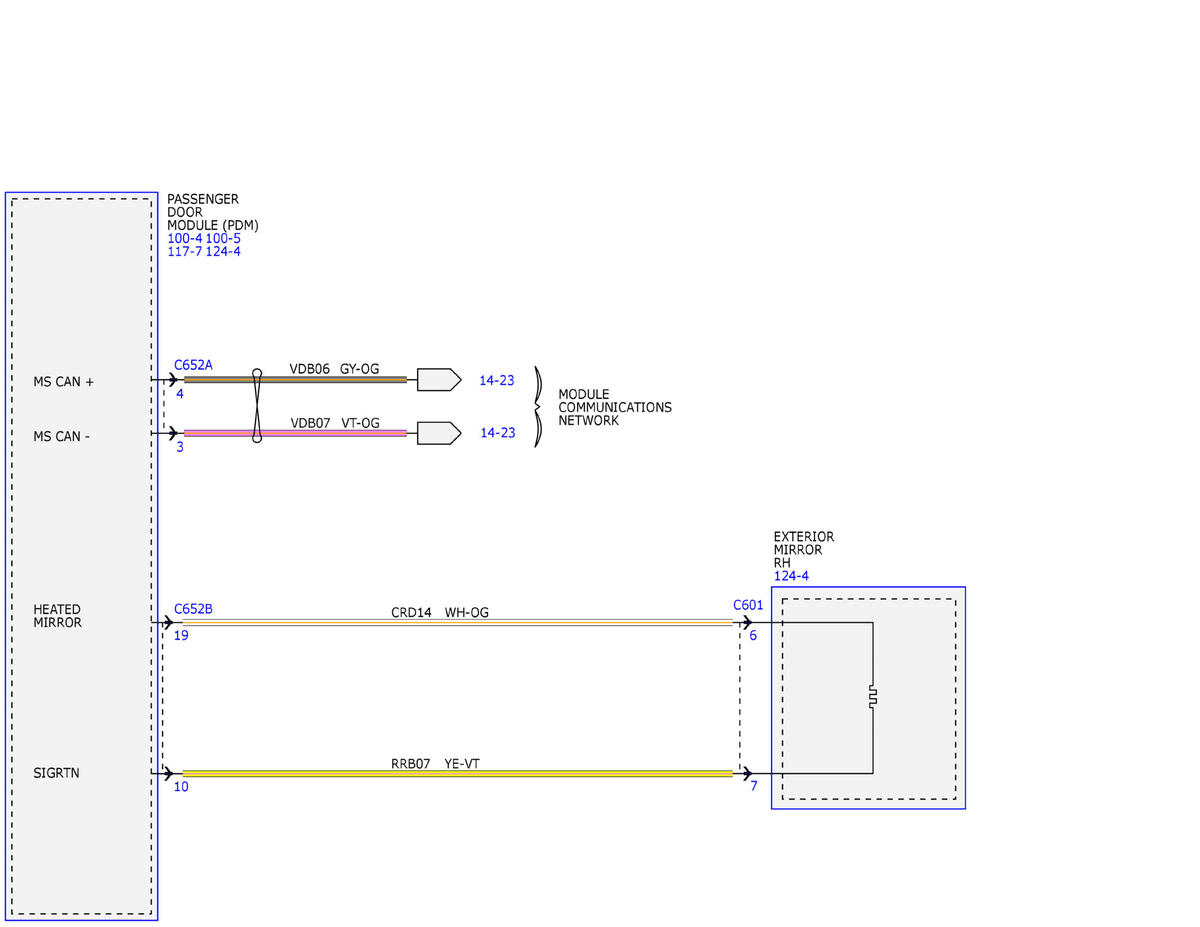

Fig 4: Heated Window System Wiring Diagrams (4 Of 4)
GFDWR94512Courtesy of FORD MOTOR COMPANY
