Explorer ST
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Audio System/Navigation
Audio System/Navigation

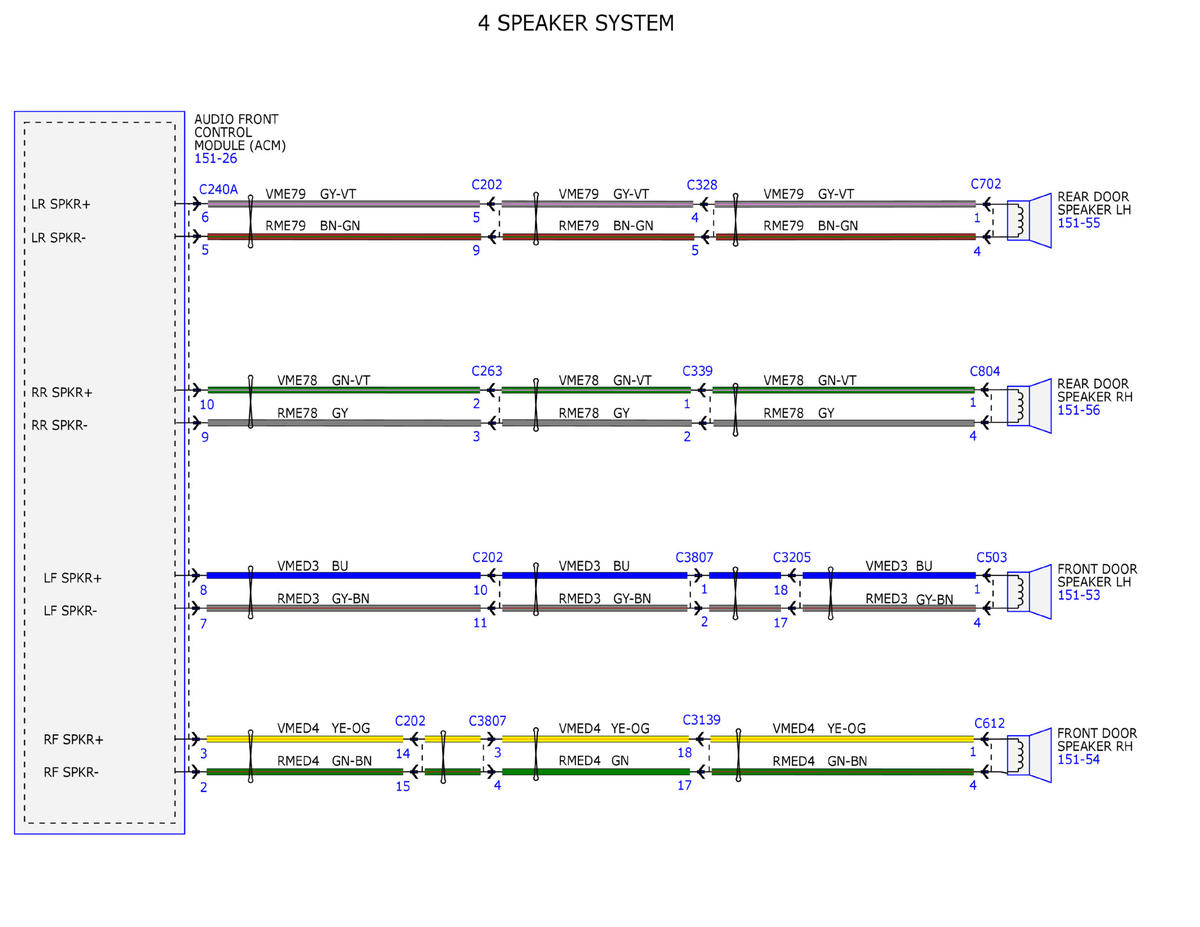

Fig 1: Audio System/Navigation System Wiring Diagrams (1 Of 5)
Courtesy of FORD MOTOR COMPANY

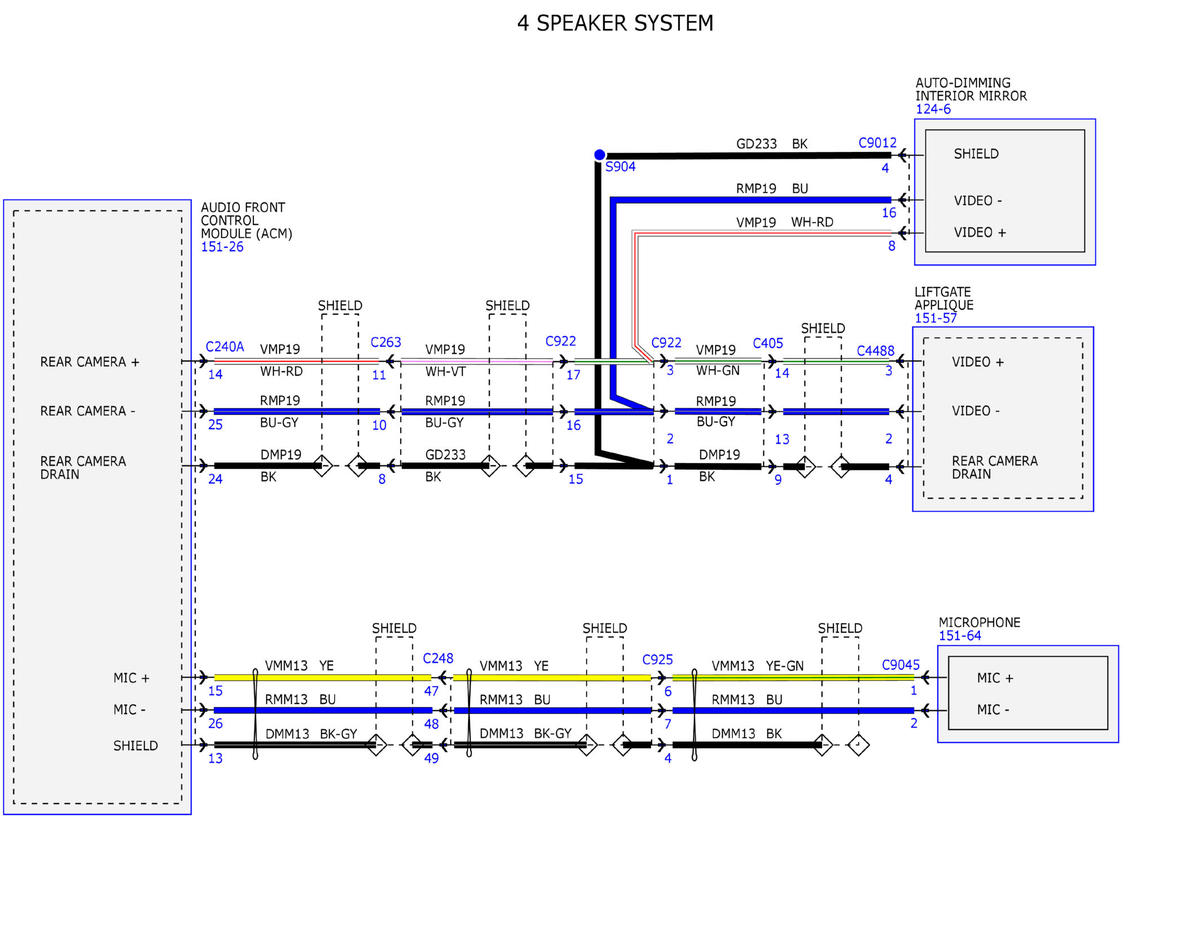

Fig 2: Audio System/Navigation System Wiring Diagrams (2 Of 5)
Courtesy of FORD MOTOR COMPANY

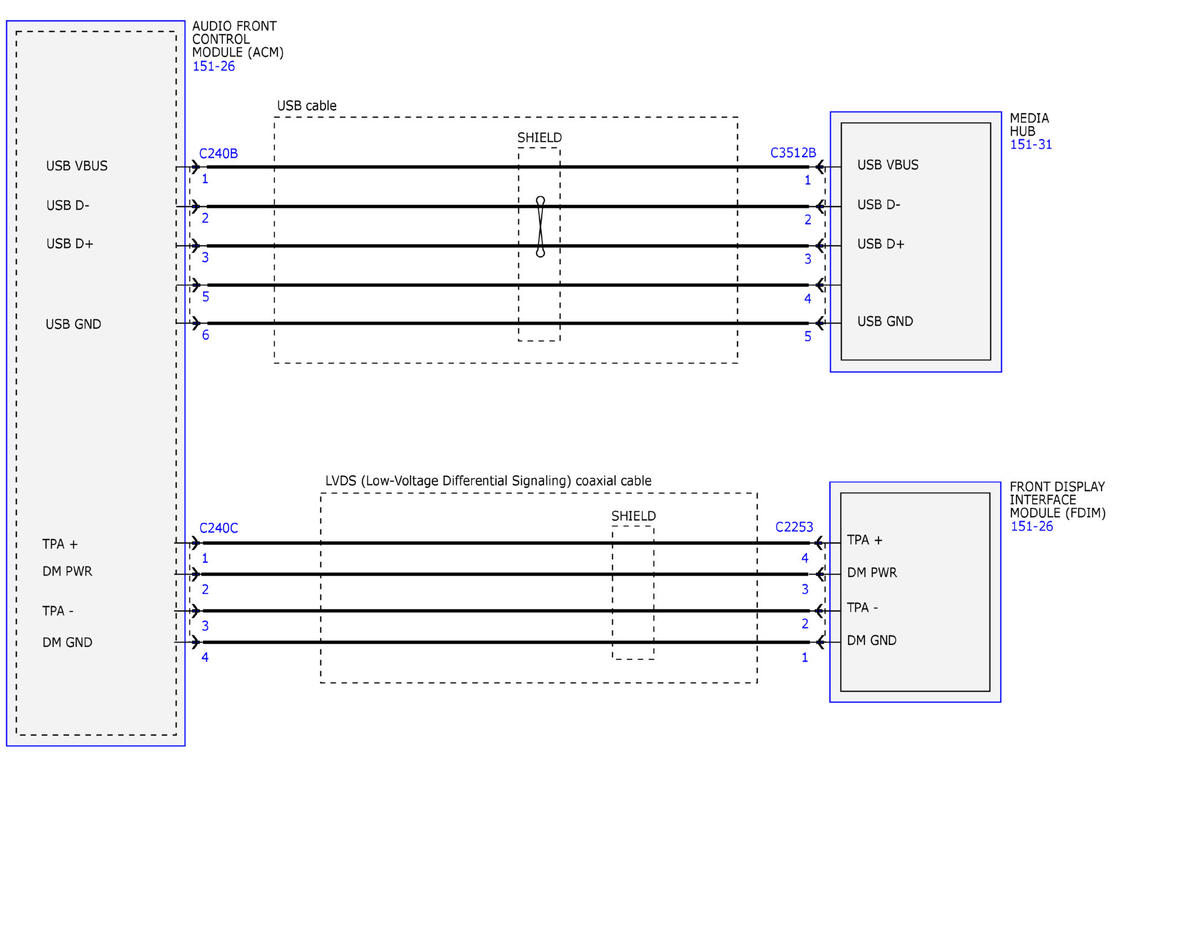

Fig 3: Audio System/Navigation System Wiring Diagrams (3 Of 5)
Courtesy of FORD MOTOR COMPANY

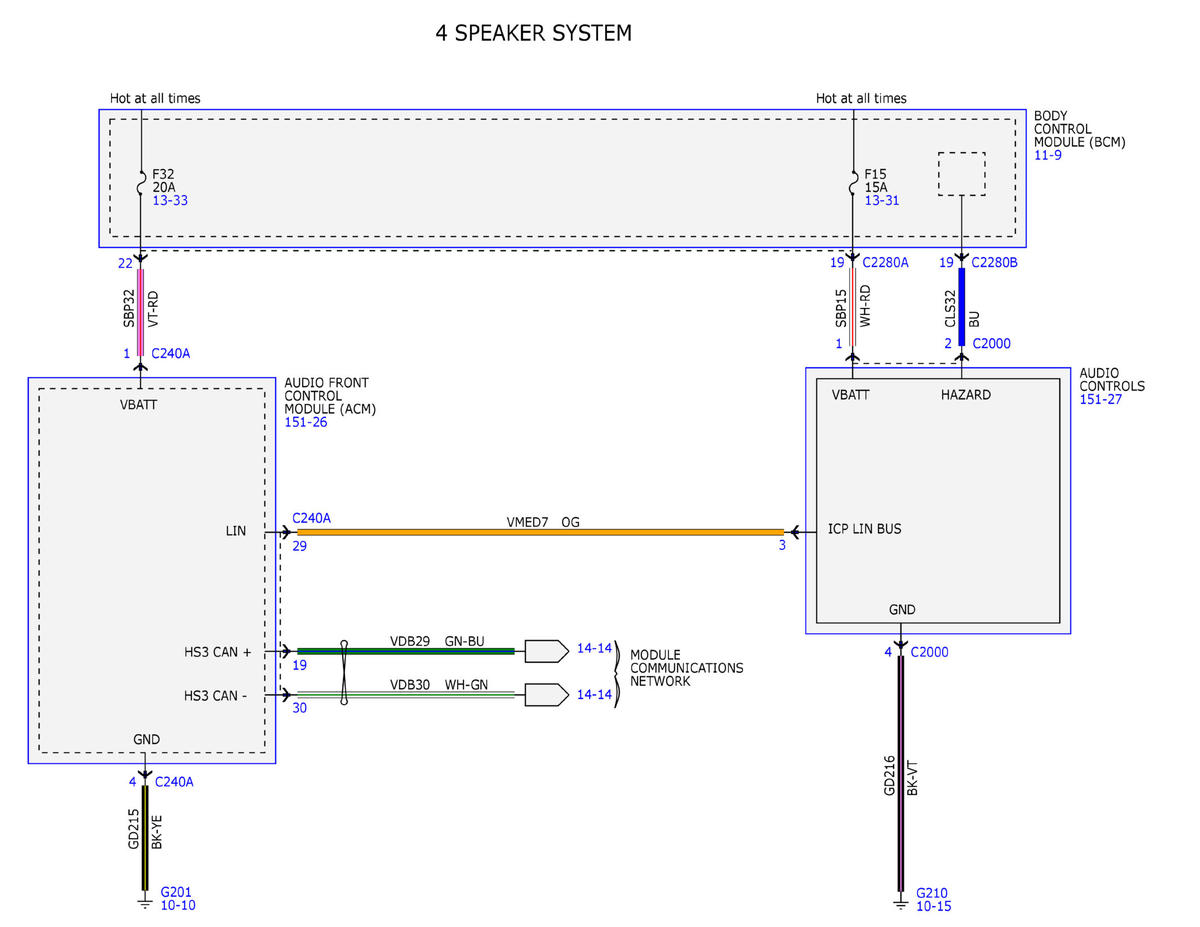

Fig 4: Audio System/Navigation System Wiring Diagrams (4 Of 5)
Courtesy of FORD MOTOR COMPANY

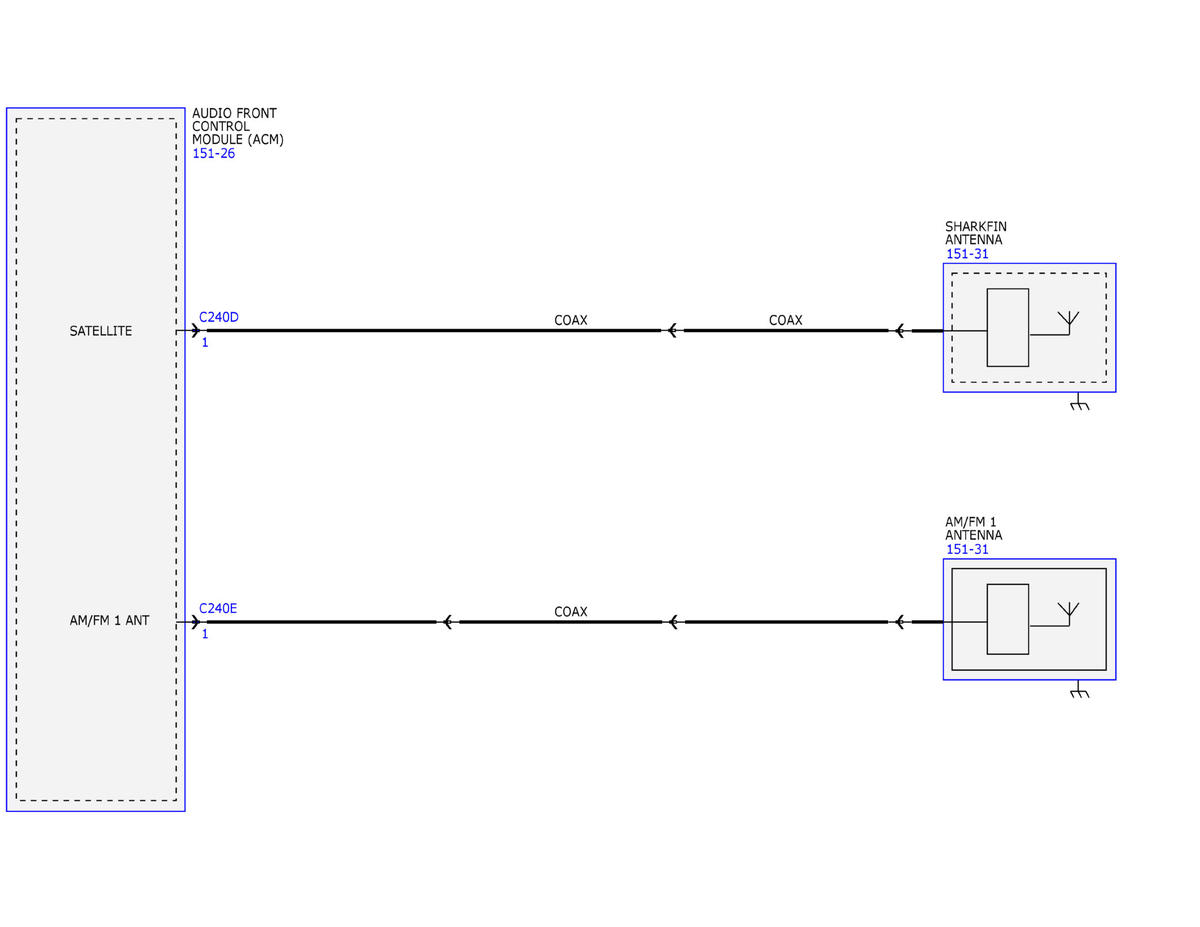

Fig 5: Audio System/Navigation System Wiring Diagrams (5 Of 5)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
