Adjustable Steering Column
Adjustable Steering Column

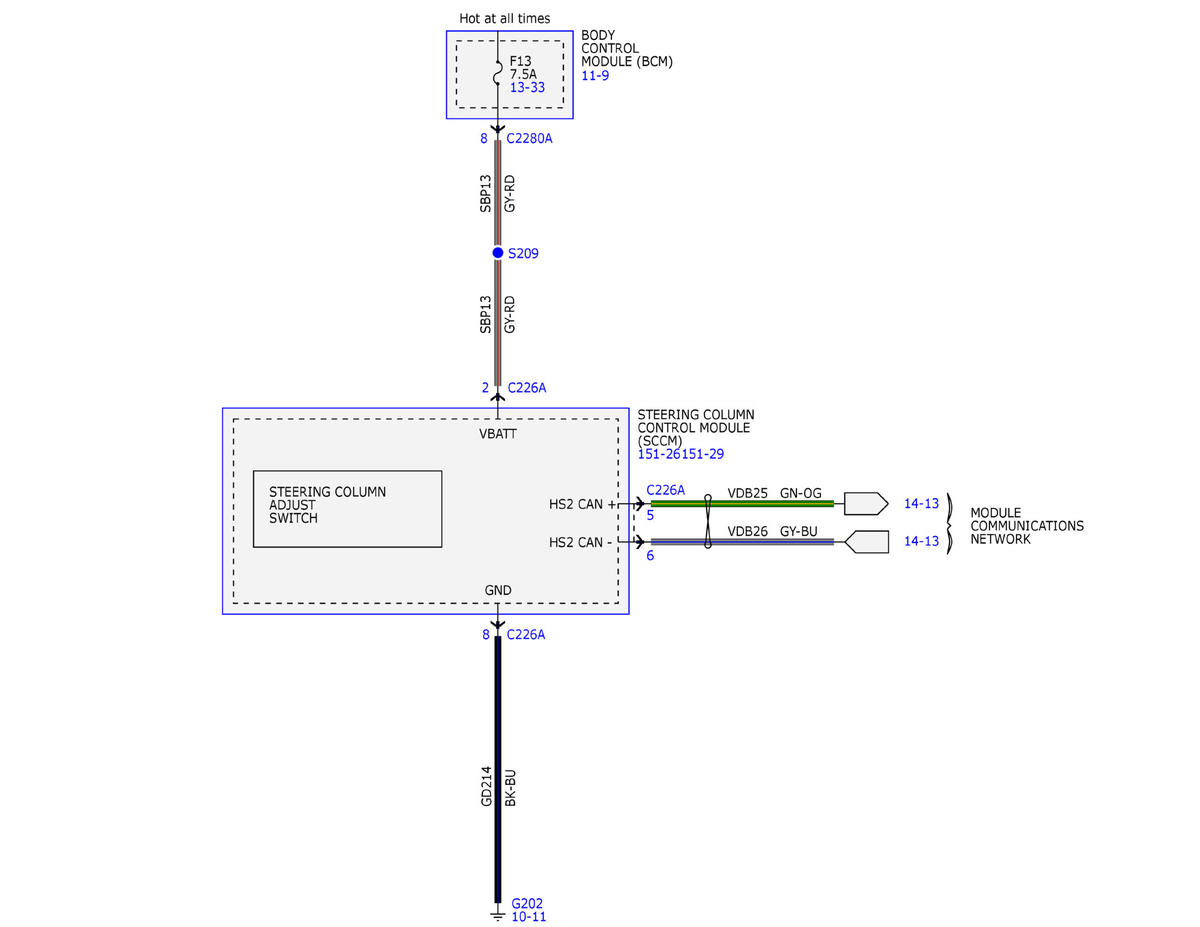

Fig 1: Adjustable Steering Column System Wiring Diagrams (1 Of 4)
Courtesy of FORD MOTOR COMPANY
Fig 2: Adjustable Steering Column System Wiring Diagrams (2 Of 4)
Courtesy of FORD MOTOR COMPANY

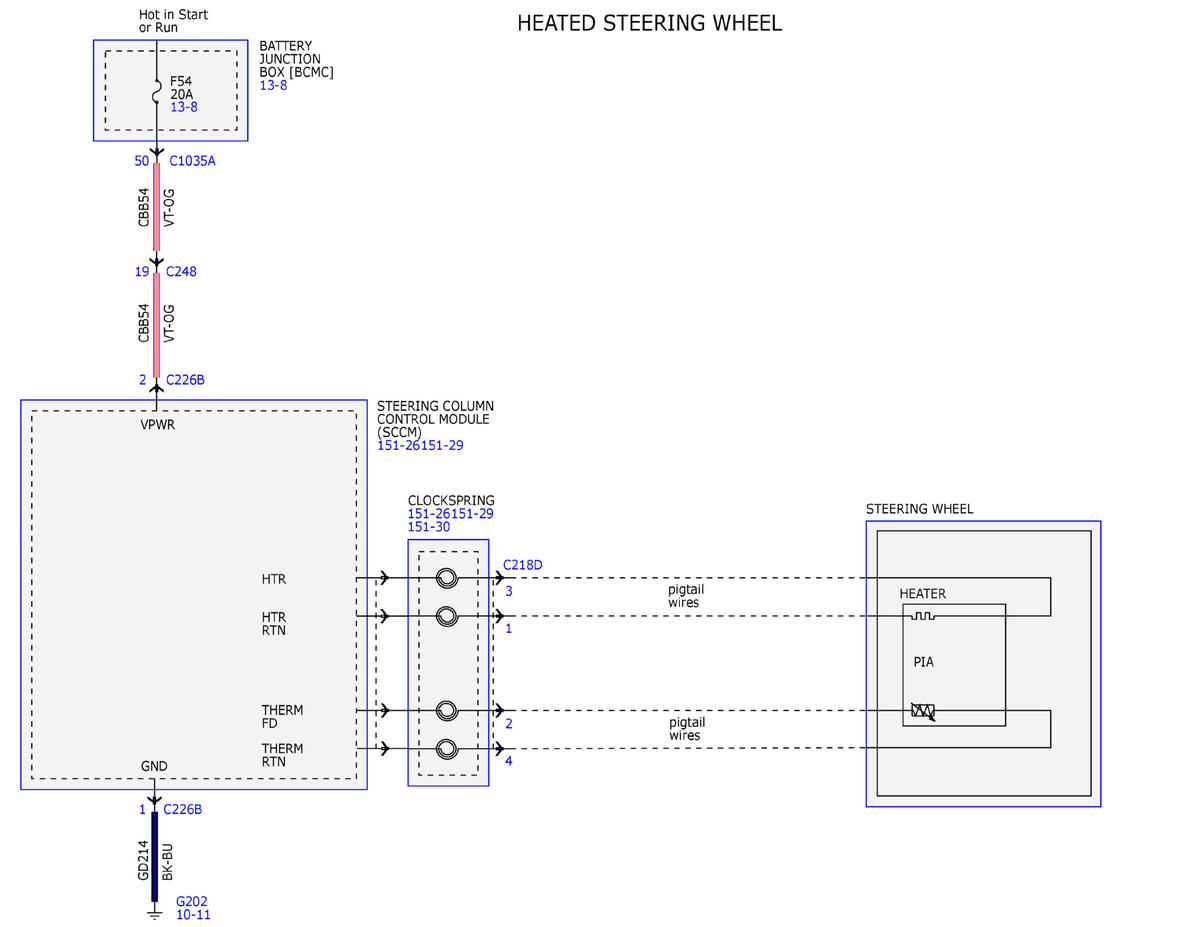

Fig 3: Adjustable Steering Column System Wiring Diagrams (3 Of 4)
Courtesy of FORD MOTOR COMPANY

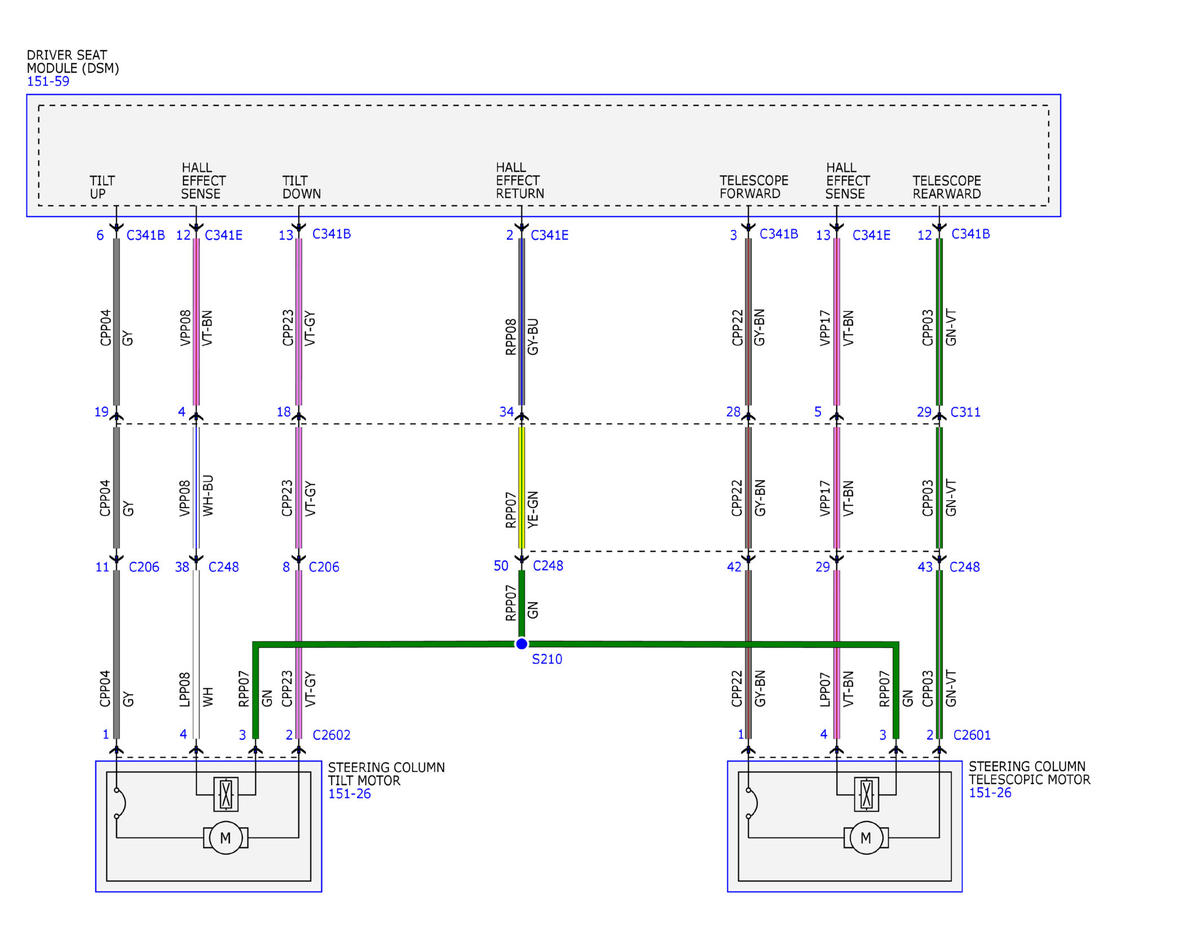

Fig 4: Adjustable Steering Column System Wiring Diagrams (4 Of 4)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
