Fuse And Relay Location

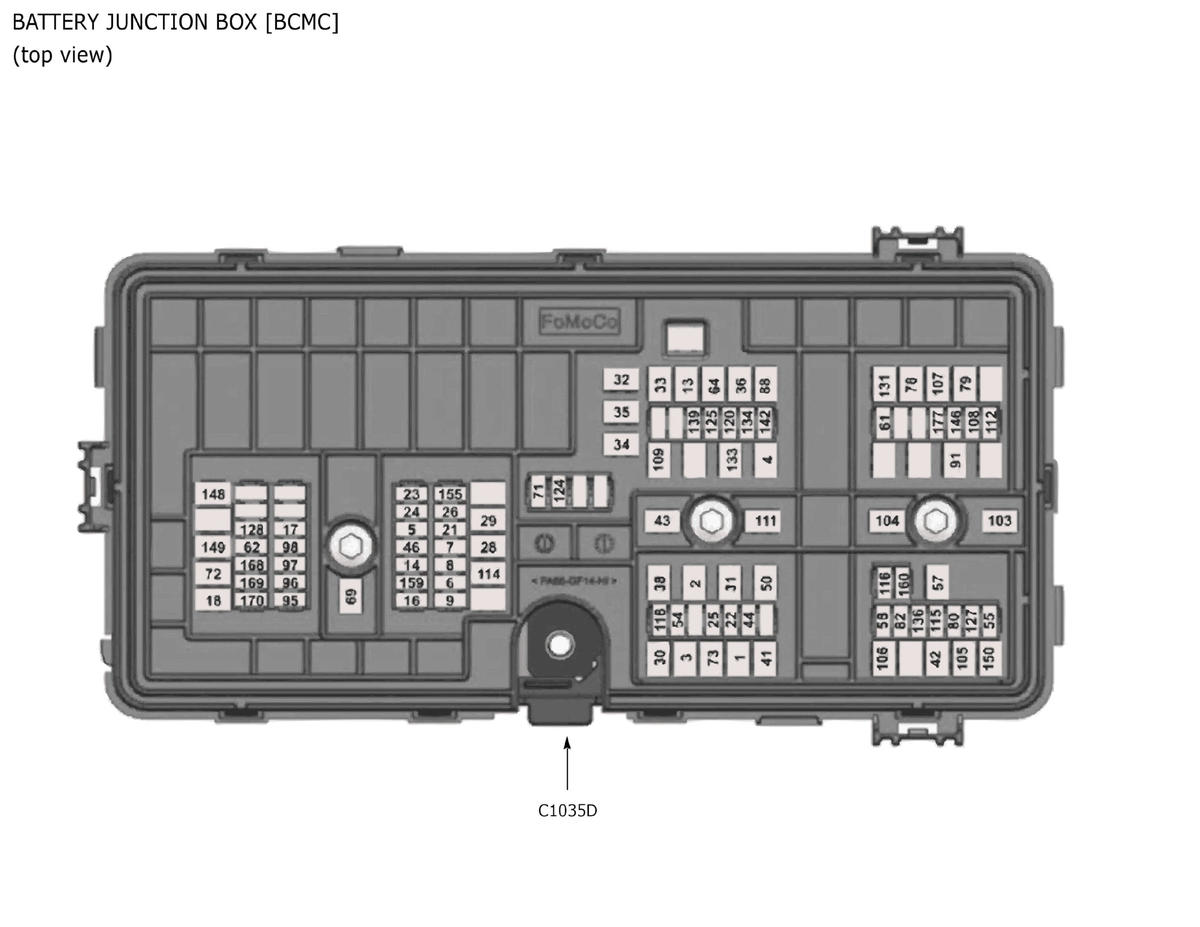

Fig 1: Battery Junction Box (BCMC) (Top View) Components Location

Courtesy of FORD MOTOR COMPANY

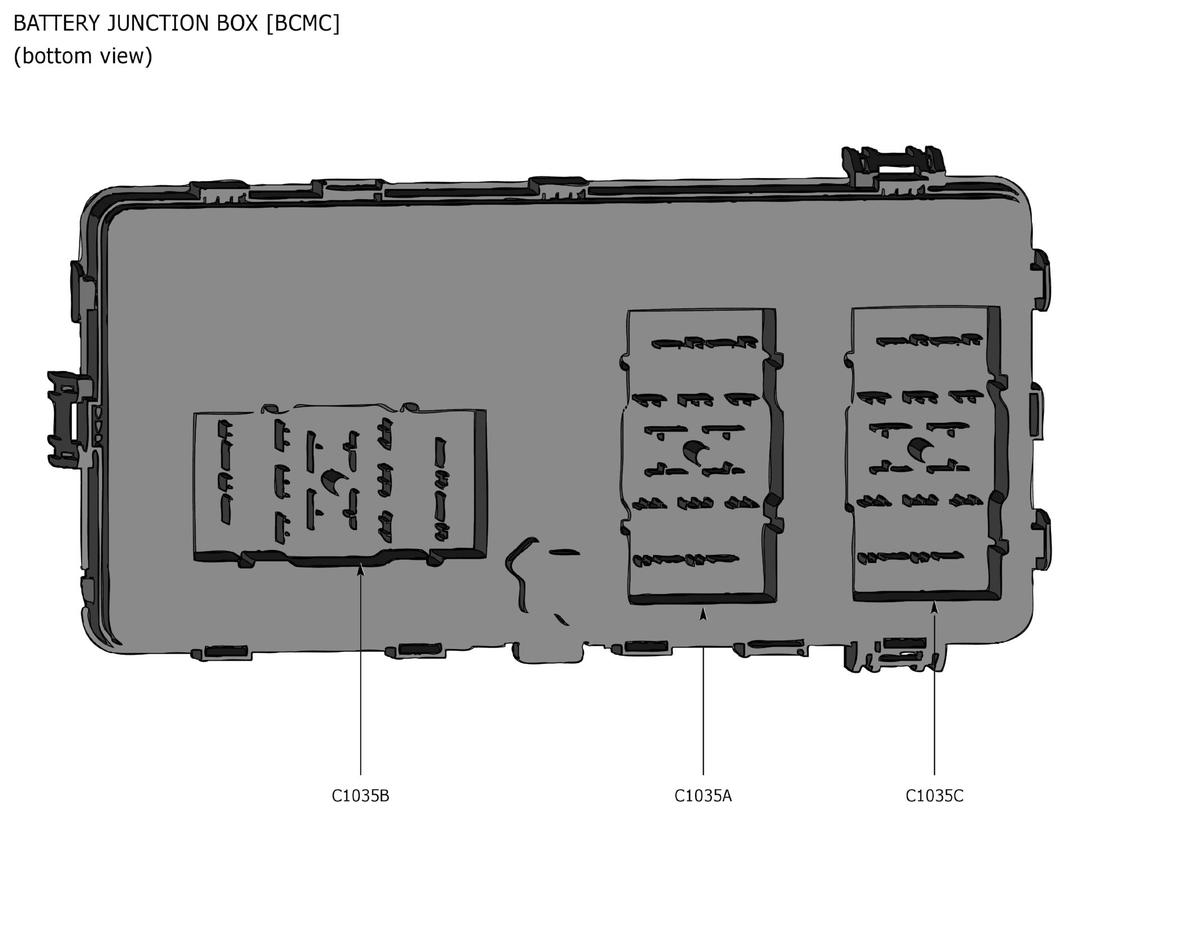

Fig 2: Battery Junction Box (BCMC) (Bottom View) Components Location

Courtesy of FORD MOTOR COMPANY

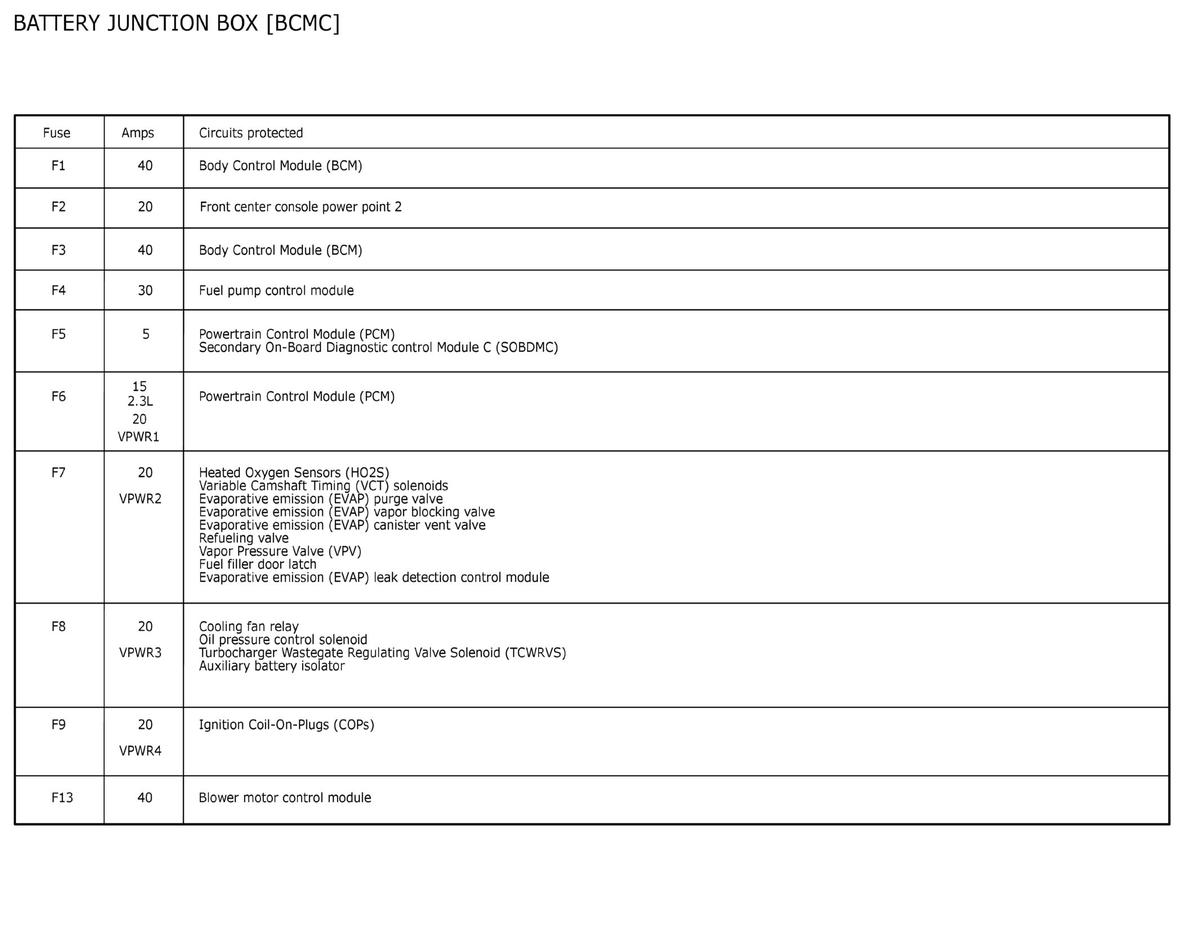

Fig 3: Battery Junction Box (BCMC) Components Location Legend (F1-F13)

Courtesy of FORD MOTOR COMPANY

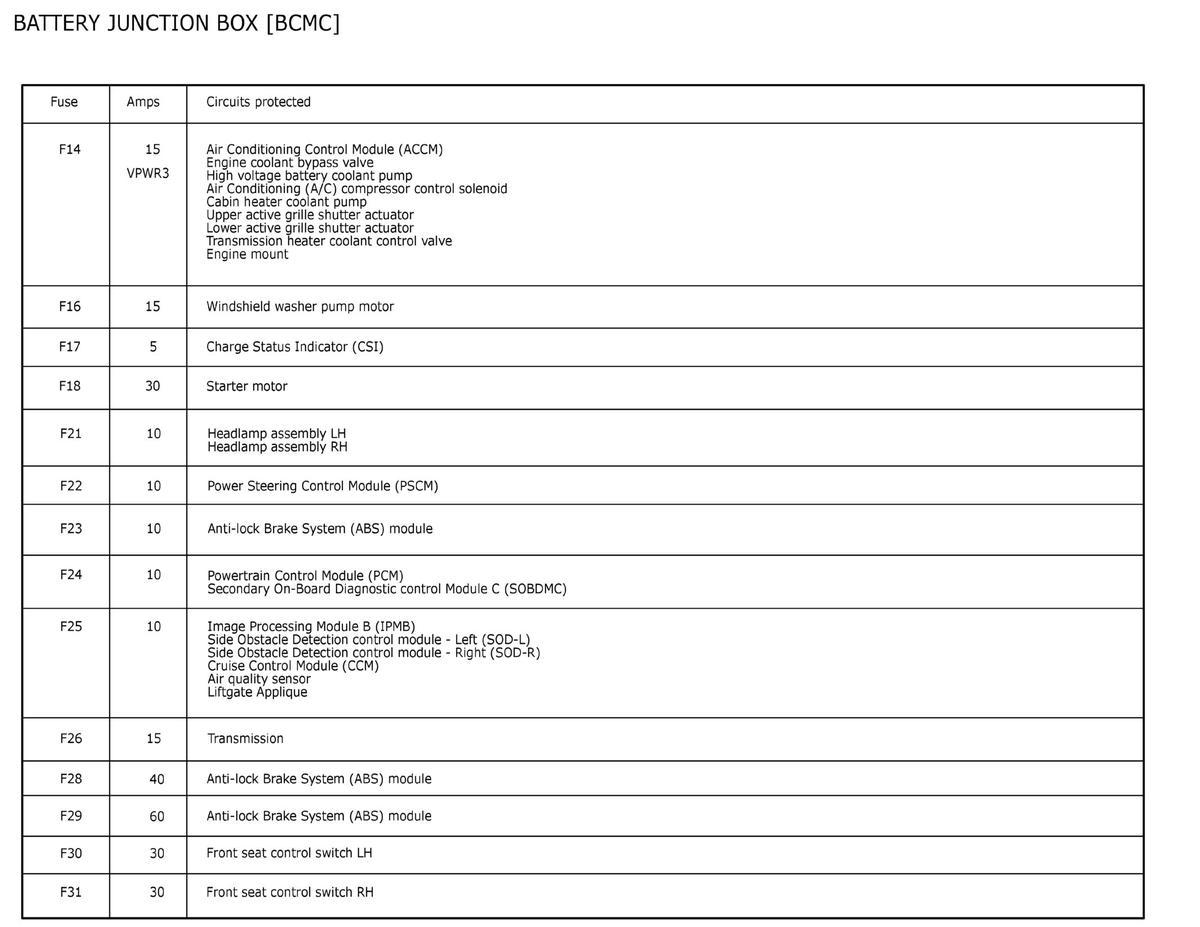

Fig 4: Battery Junction Box (BCMC) Components Location Legend (F14-F31)

Courtesy of FORD MOTOR COMPANY

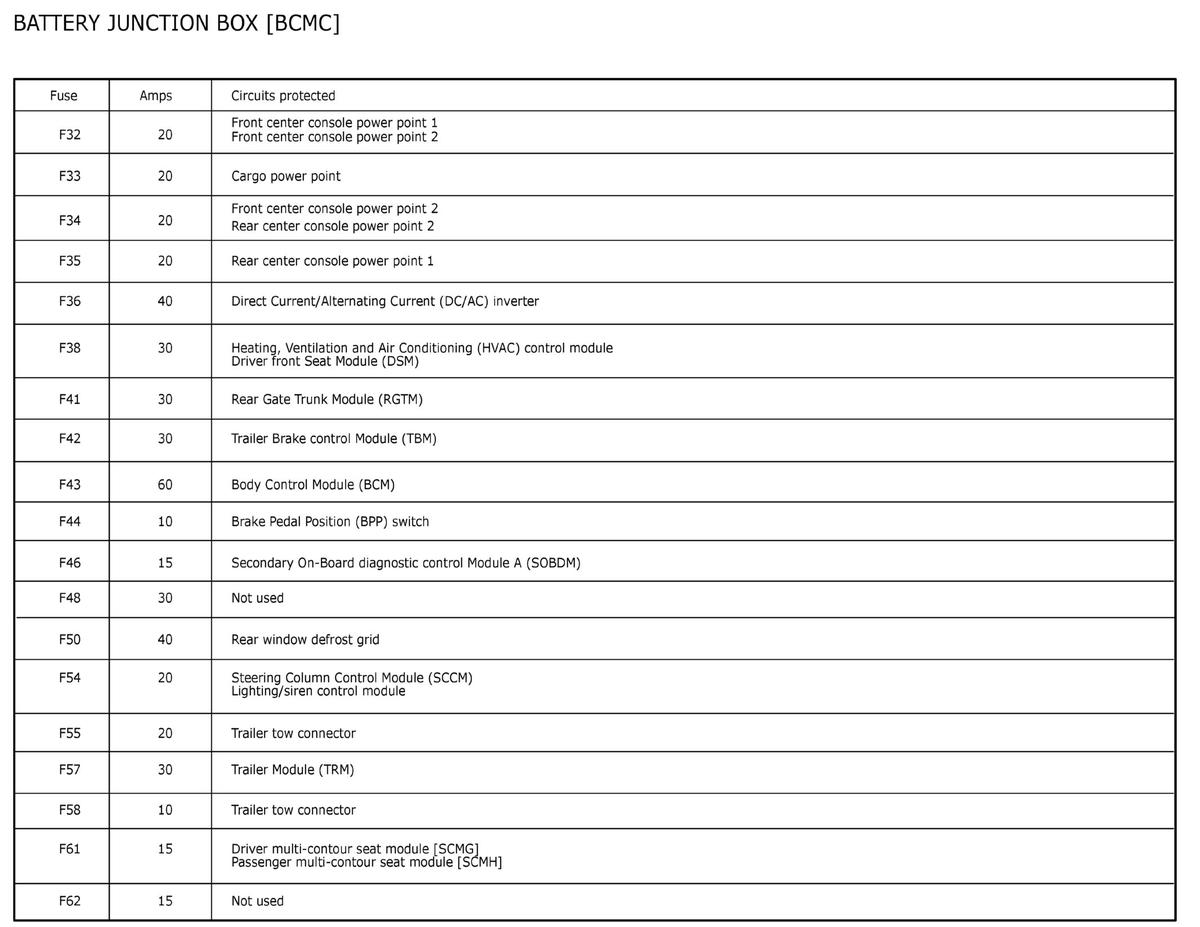

Fig 5: Battery Junction Box (BCMC) Components Location Legend (F32-F62)

Courtesy of FORD MOTOR COMPANY

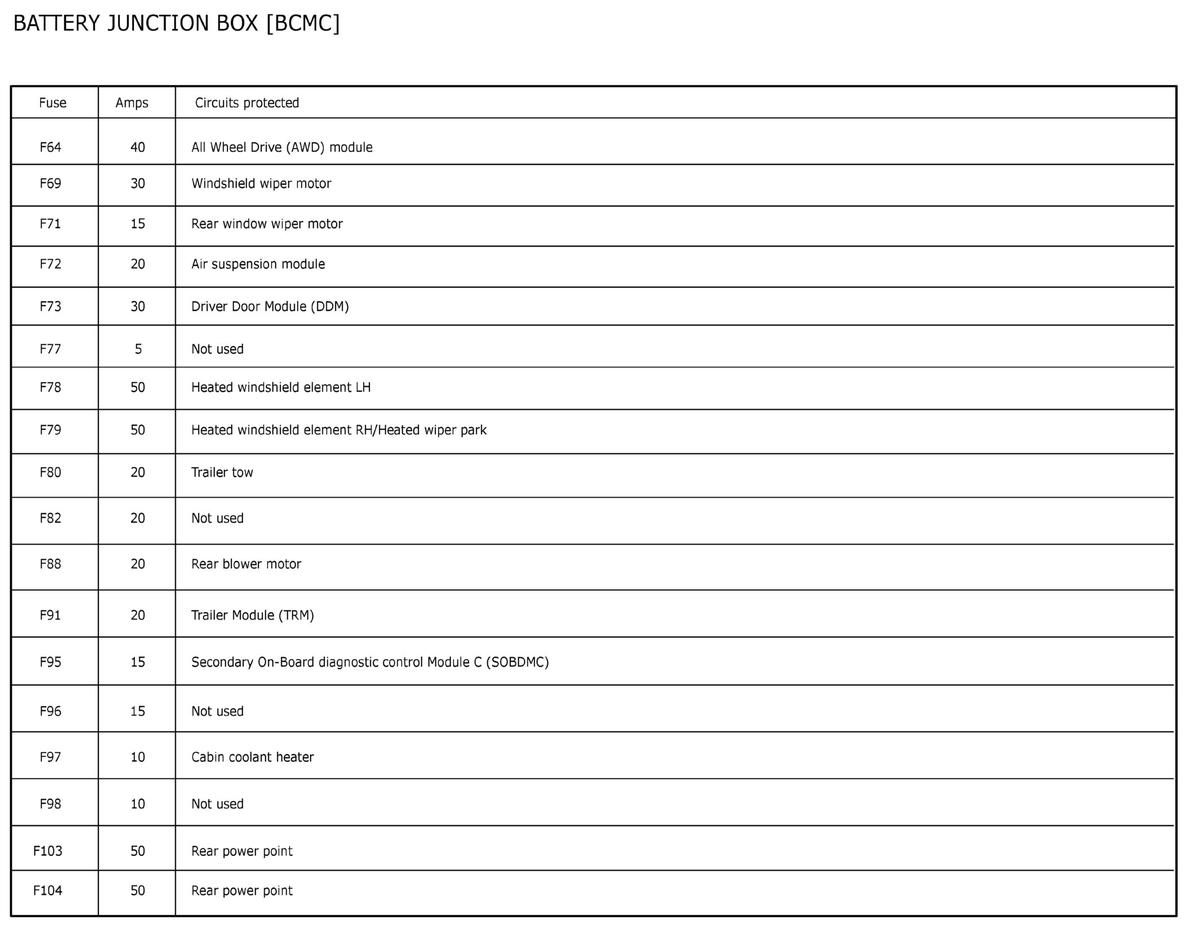

Fig 6: Battery Junction Box (BCMC) Components Location Legend (F64-F104)

Courtesy of FORD MOTOR COMPANY

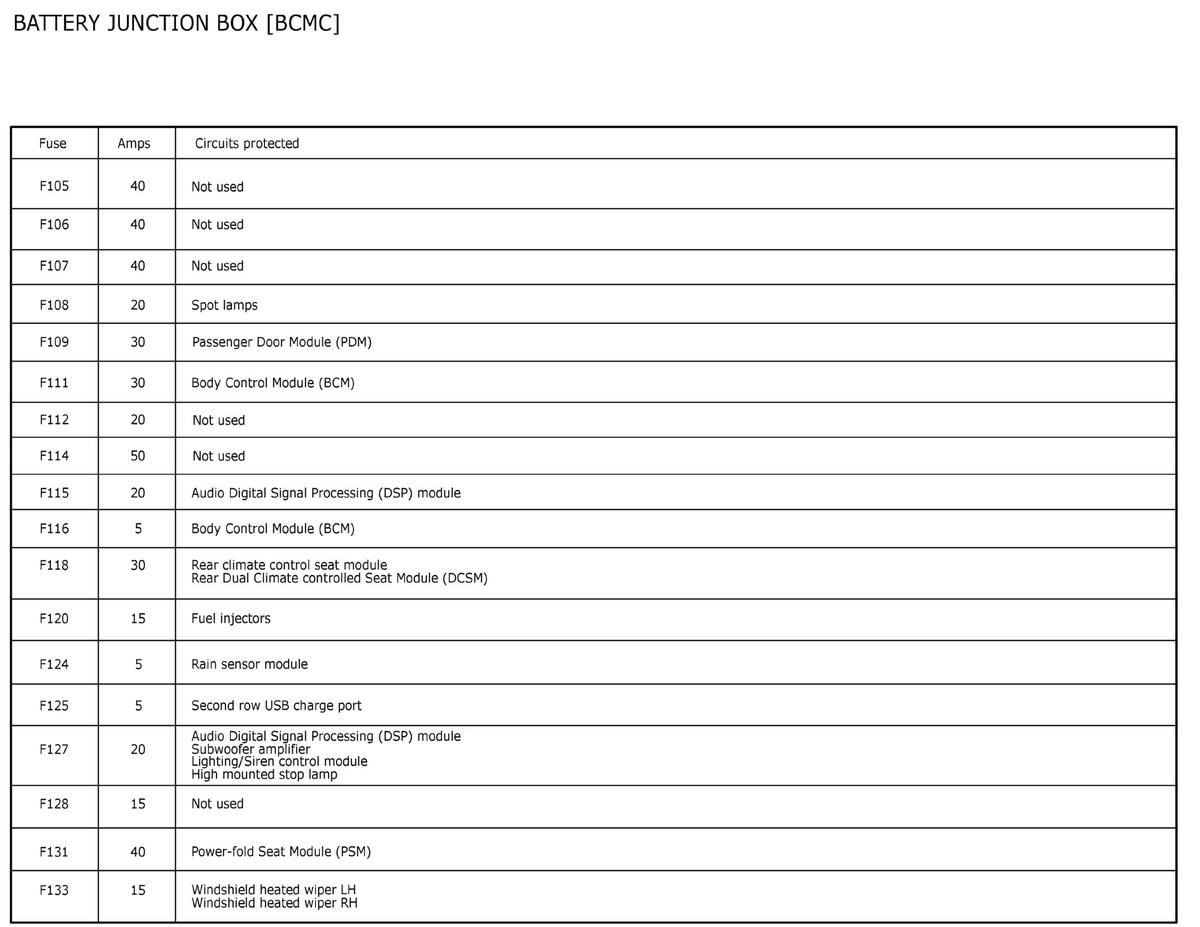

Fig 7: Battery Junction Box (BCMC) Components Location Legend (F105-F133)

Courtesy of FORD MOTOR COMPANY

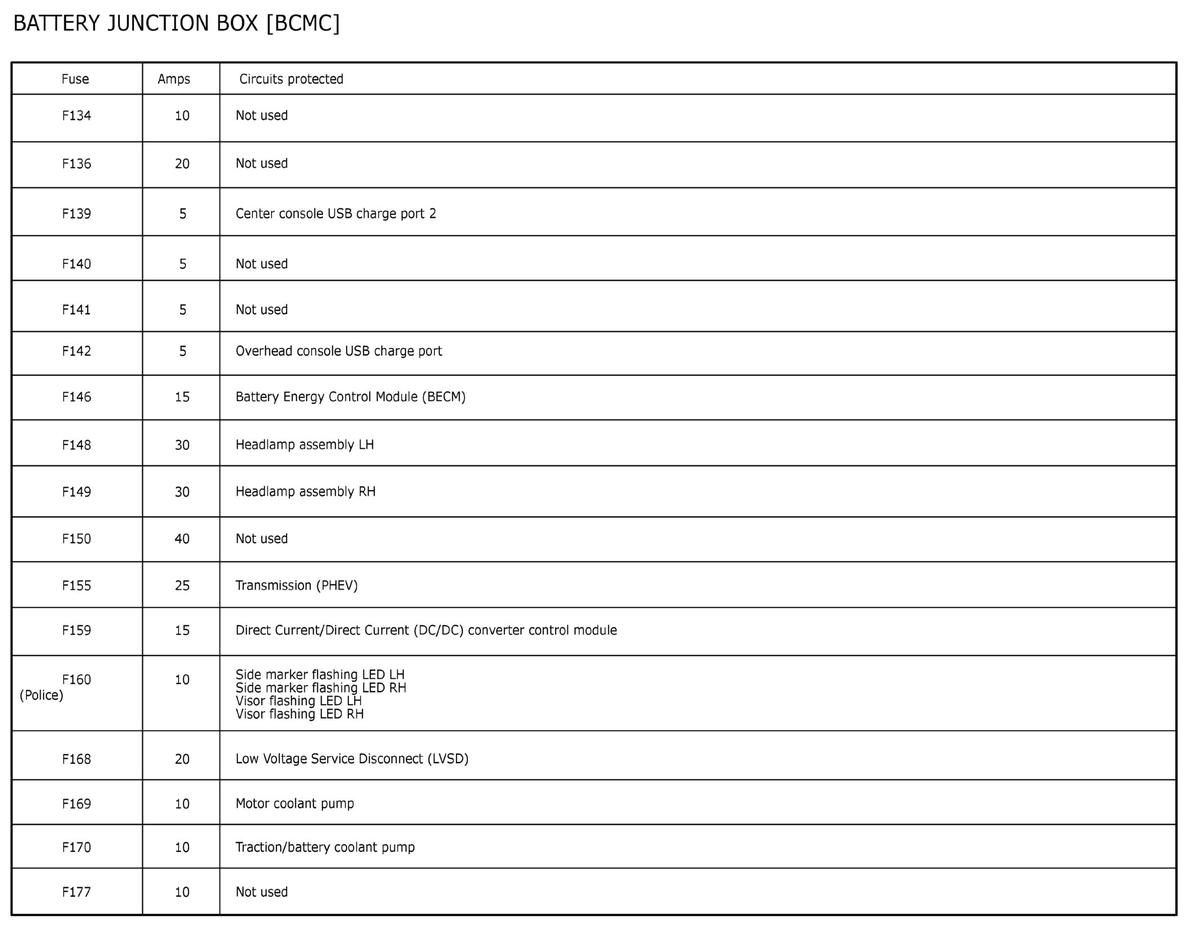

Fig 8: Battery Junction Box (BCMC) Components Location Legend (F134-F177)

Courtesy of FORD MOTOR COMPANY

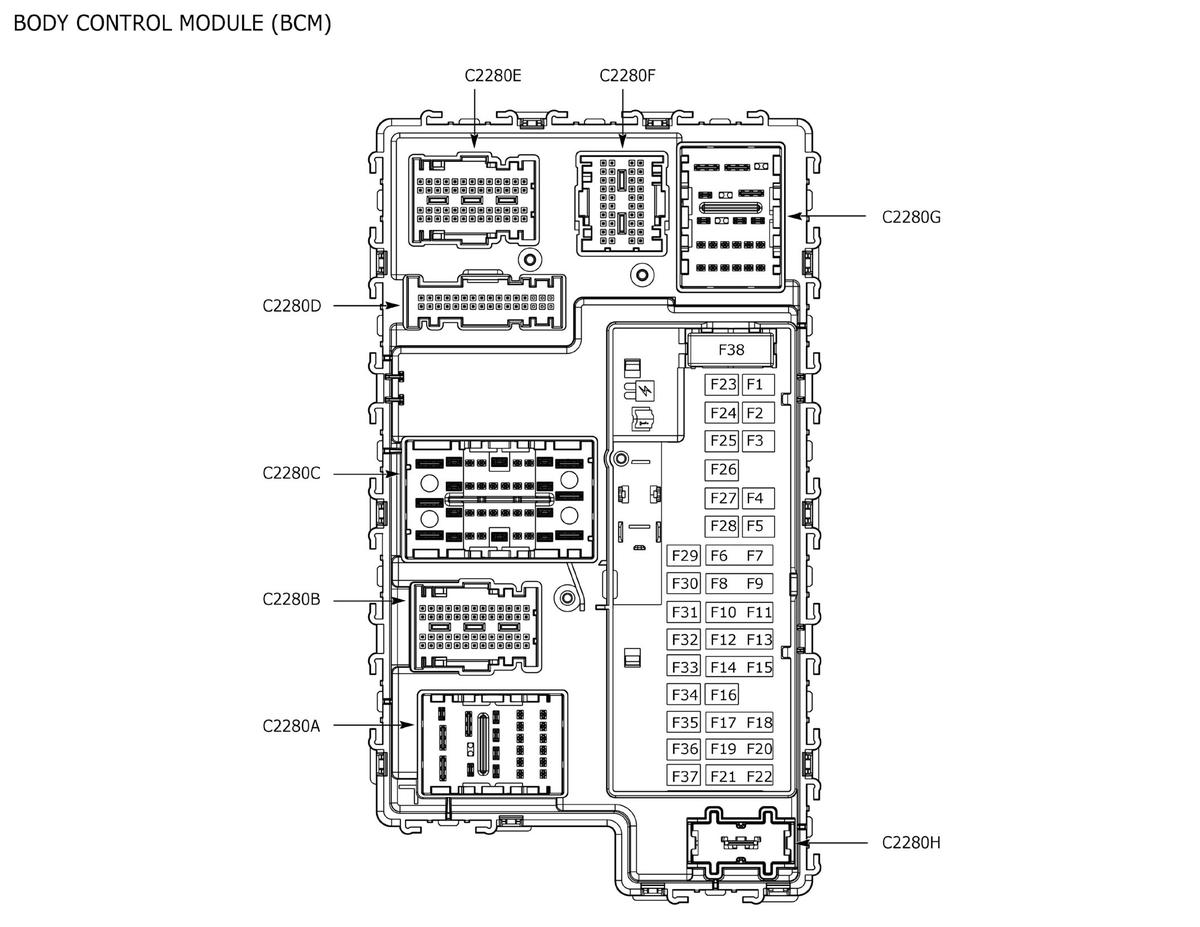

Fig 9: Body Control Module (BCM) Components Location

Courtesy of FORD MOTOR COMPANY

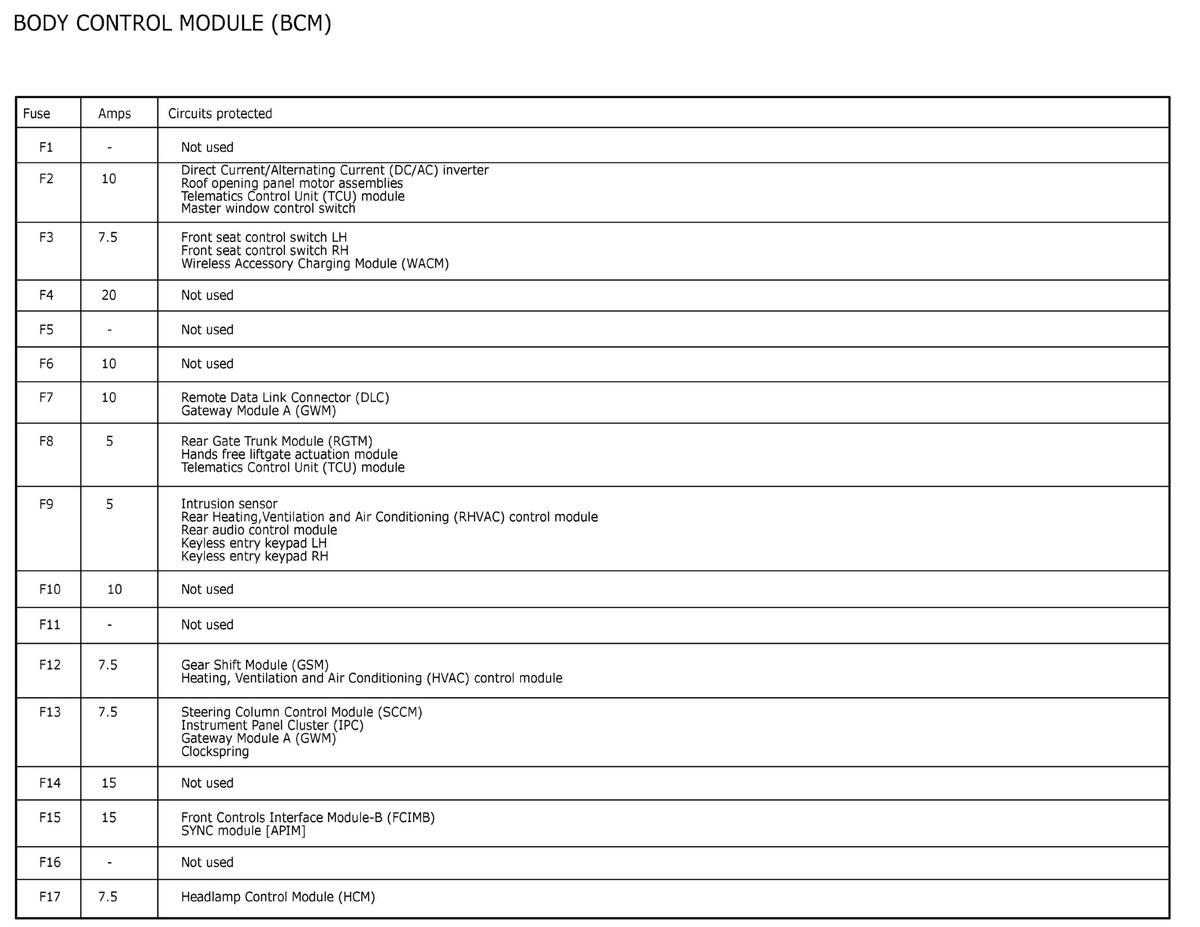

Fig 10: Body Control Module (BCM) Components Location Legend (F1-F17)

Courtesy of FORD MOTOR COMPANY

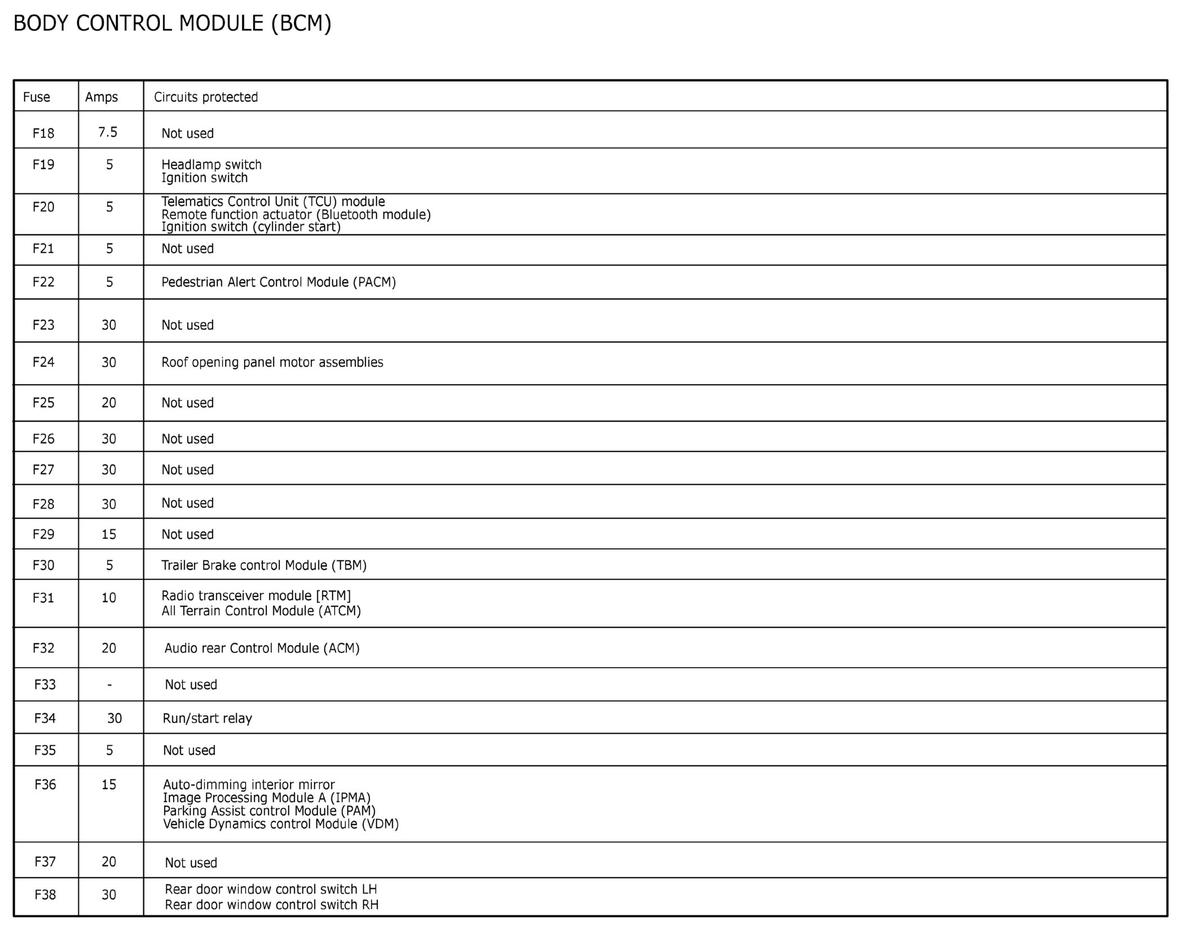

Fig 11: Body Control Module (BCM) Components Location Legend (F18-F38)

Courtesy of FORD MOTOR COMPANY

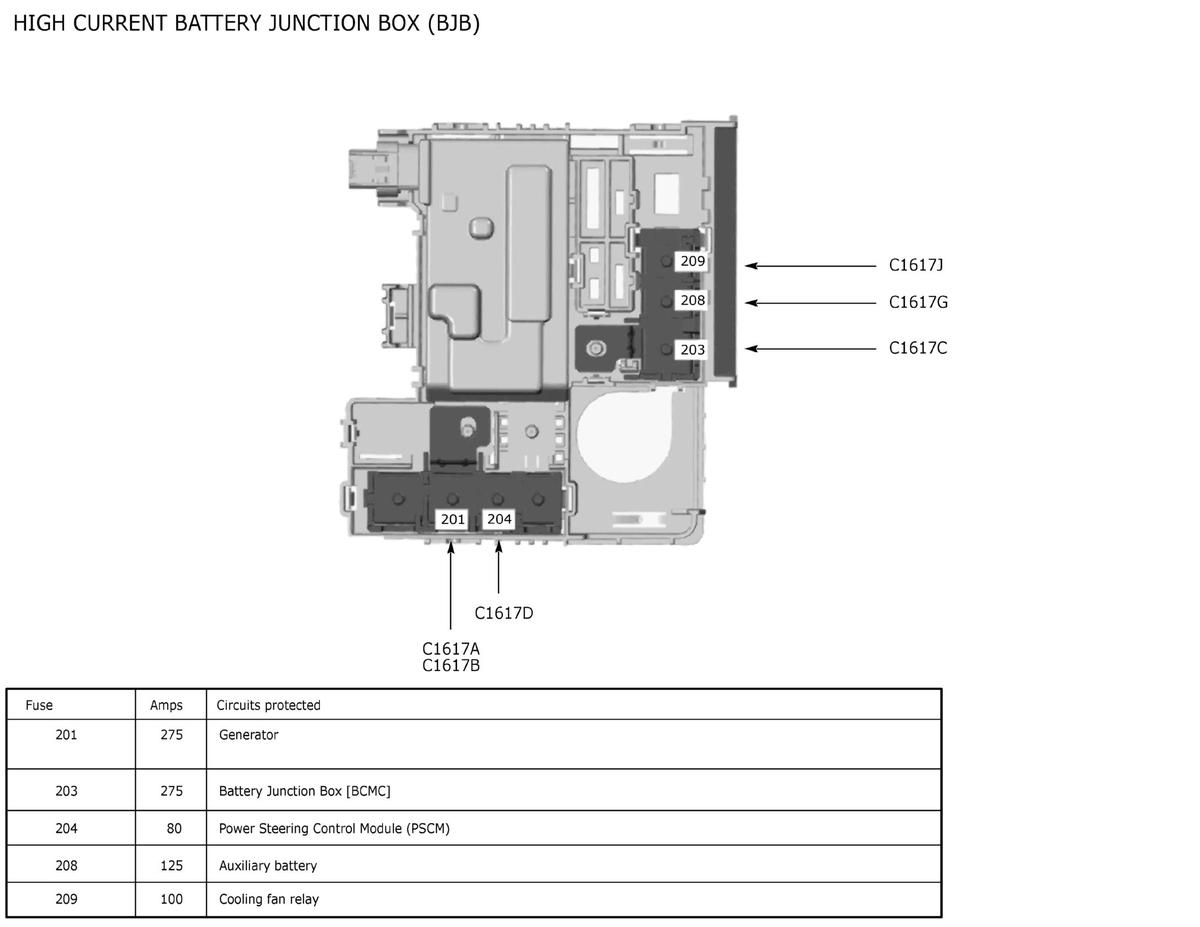

Fig 12: High Current Battery Junction Box (BJB) Components Location & Legend

Courtesy of FORD MOTOR COMPANY
