Power Distribution

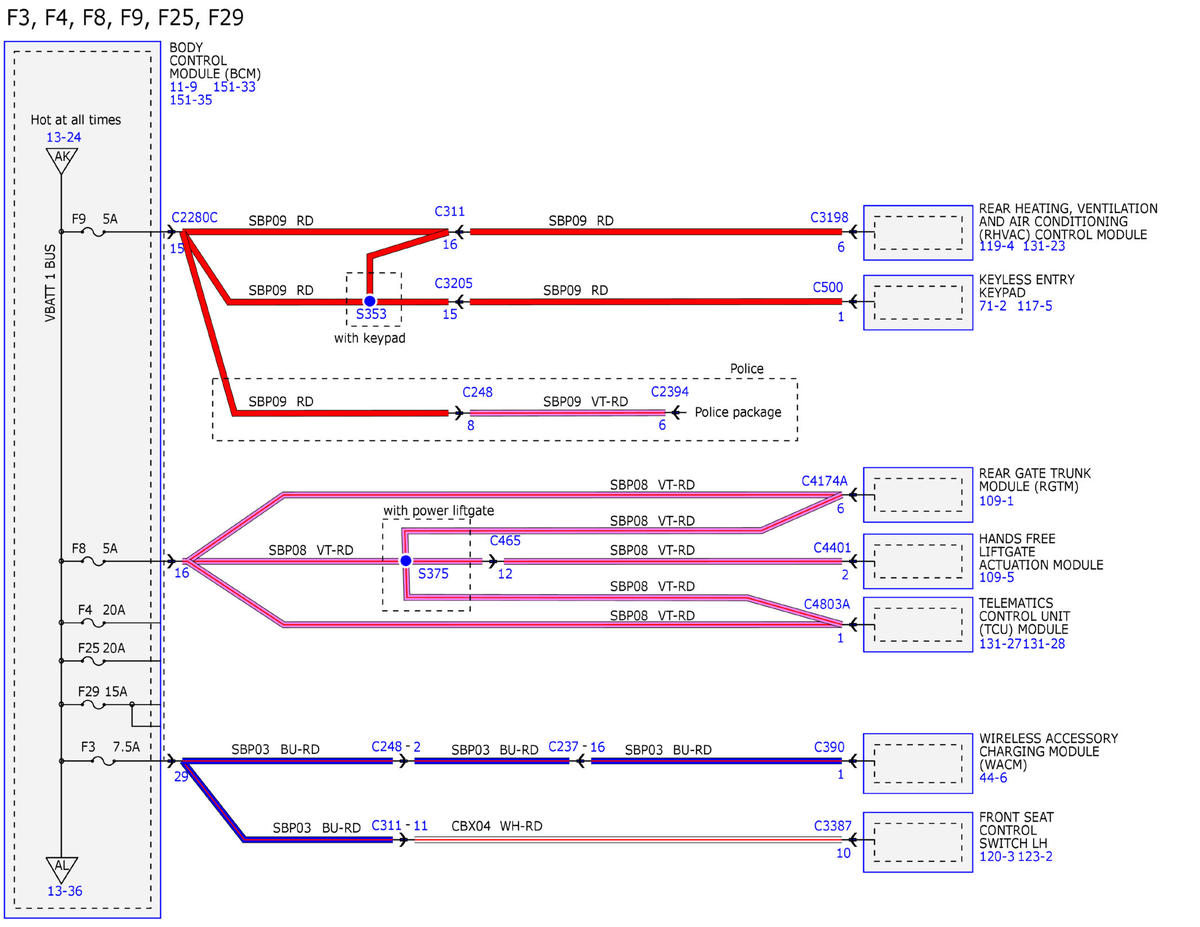

Fig 1: Power Distribution System Wiring Diagrams (1 Of 54)

GFDWR94597

Courtesy of FORD MOTOR COMPANY

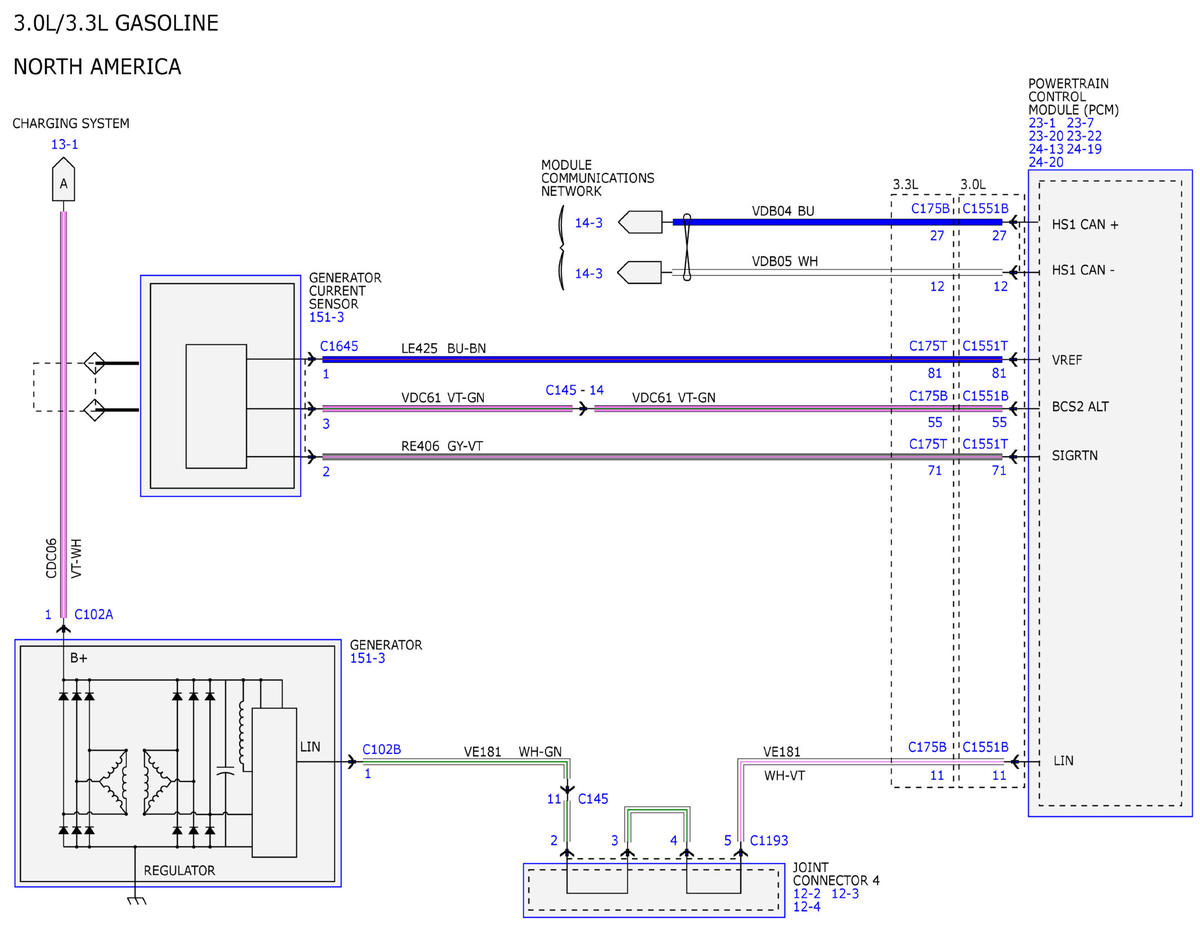

Fig 2: Power Distribution System Wiring Diagrams (2 Of 54)

GFDWR94598

Courtesy of FORD MOTOR COMPANY

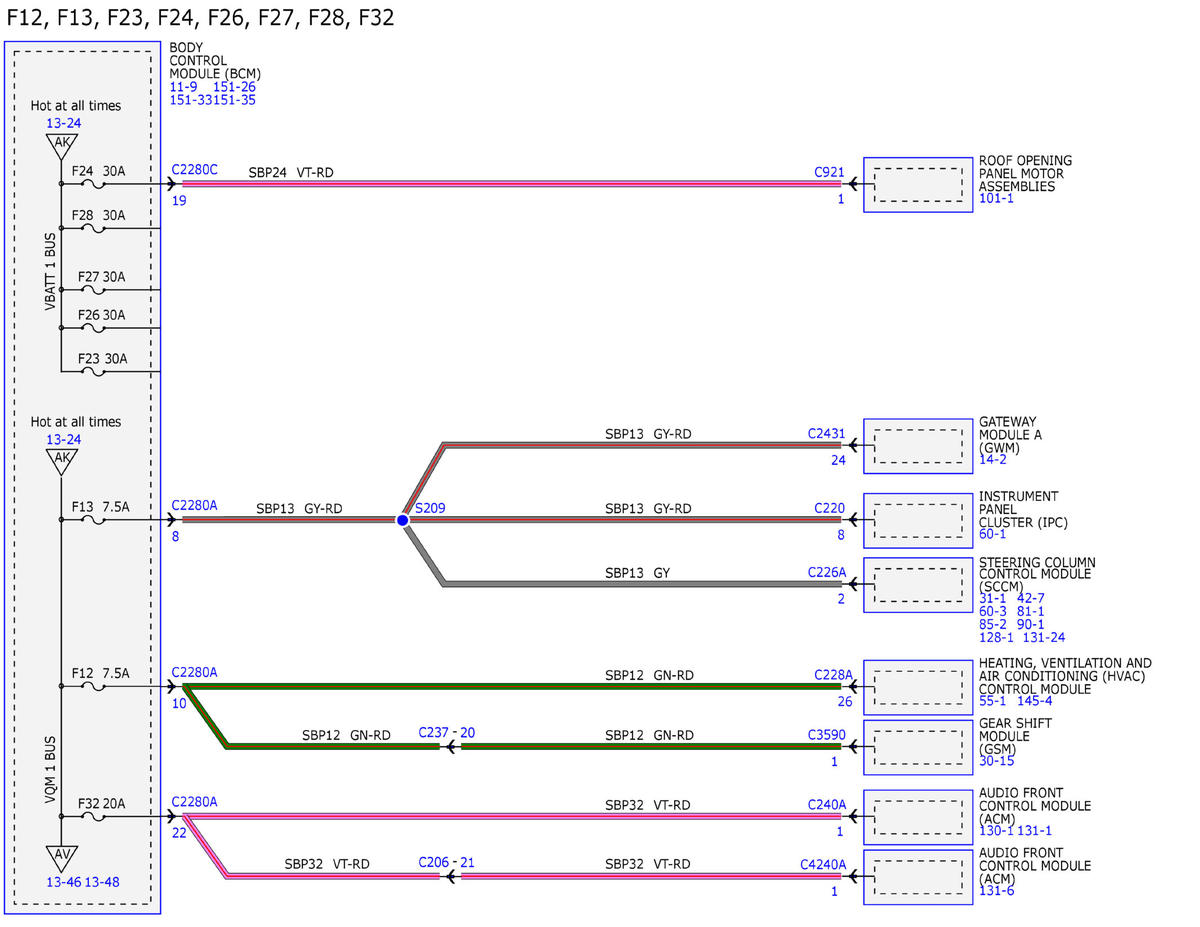

Fig 3: Power Distribution System Wiring Diagrams (3 Of 54)

GFDWR94599

Courtesy of FORD MOTOR COMPANY

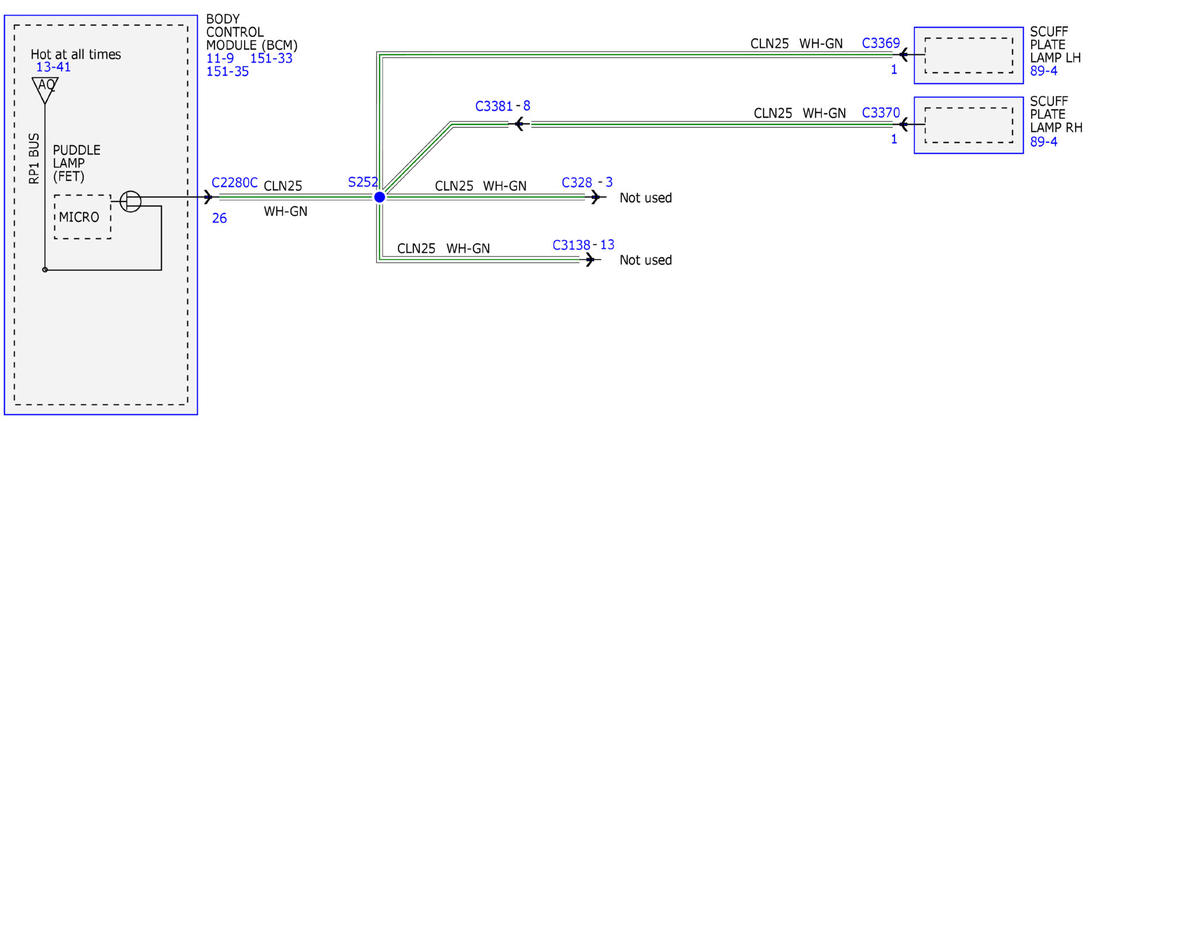

Fig 4: Power Distribution System Wiring Diagrams (4 Of 54)

GFDWR94600

Courtesy of FORD MOTOR COMPANY

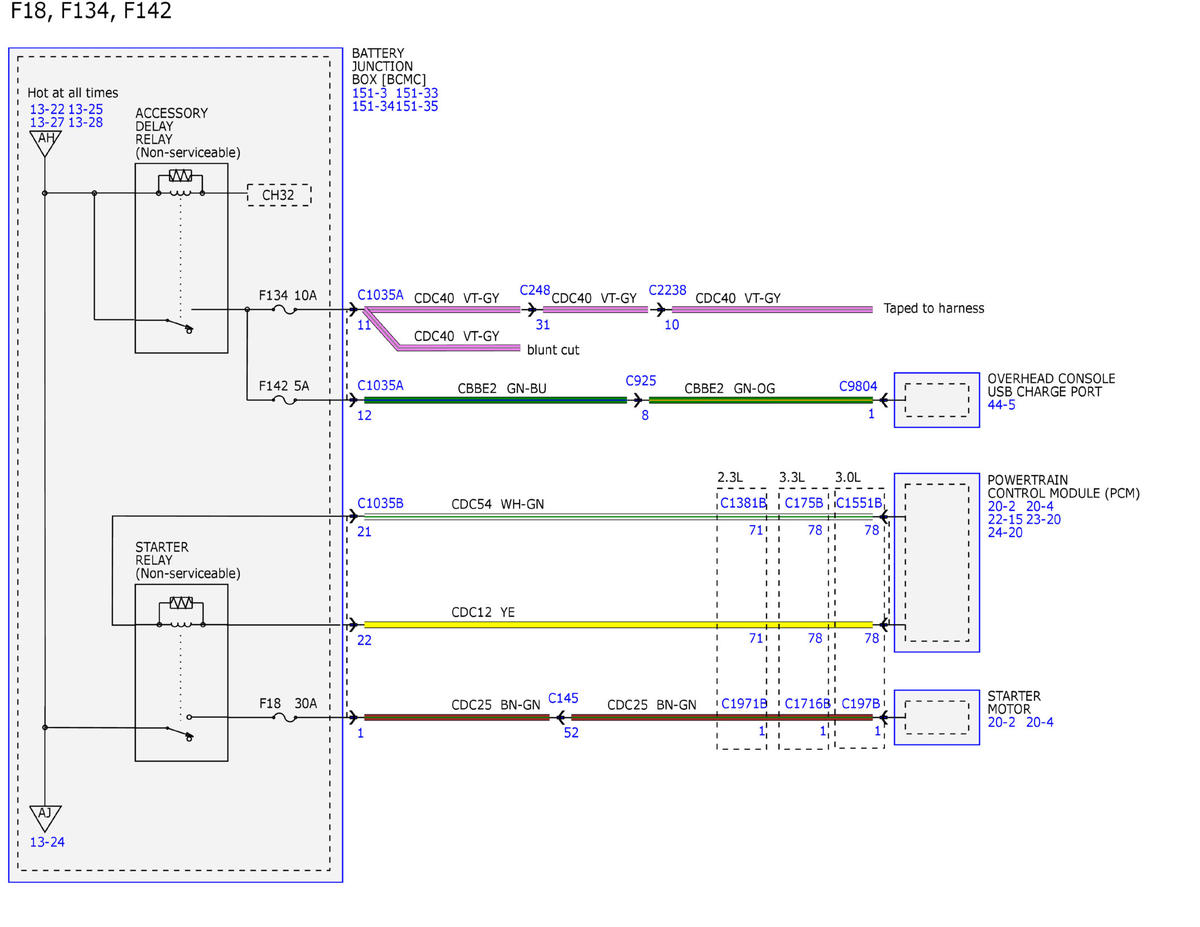

Fig 5: Power Distribution System Wiring Diagrams (5 Of 54)

GFDWR94601

Courtesy of FORD MOTOR COMPANY

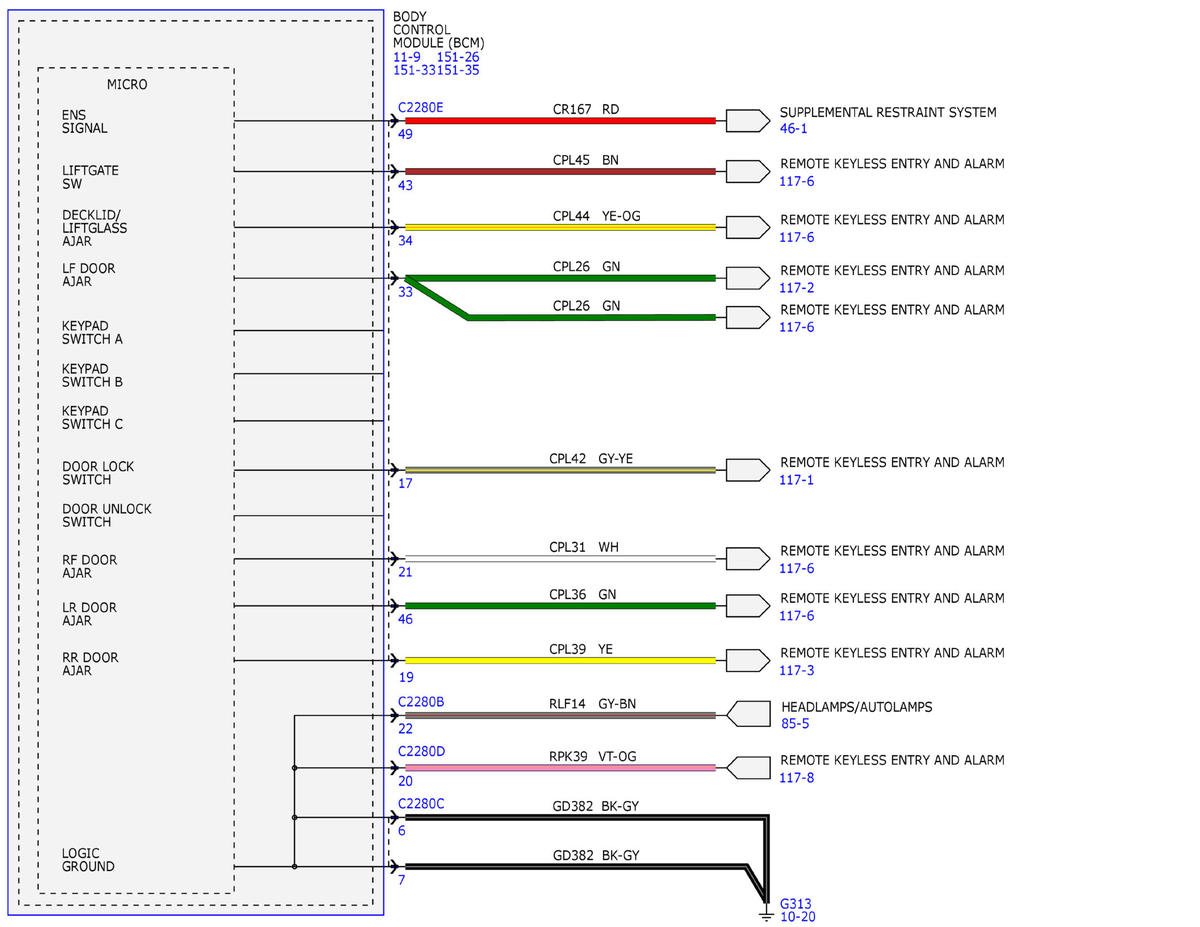

Fig 6: Power Distribution System Wiring Diagrams (6 Of 54)

GFDWR94602

Courtesy of FORD MOTOR COMPANY

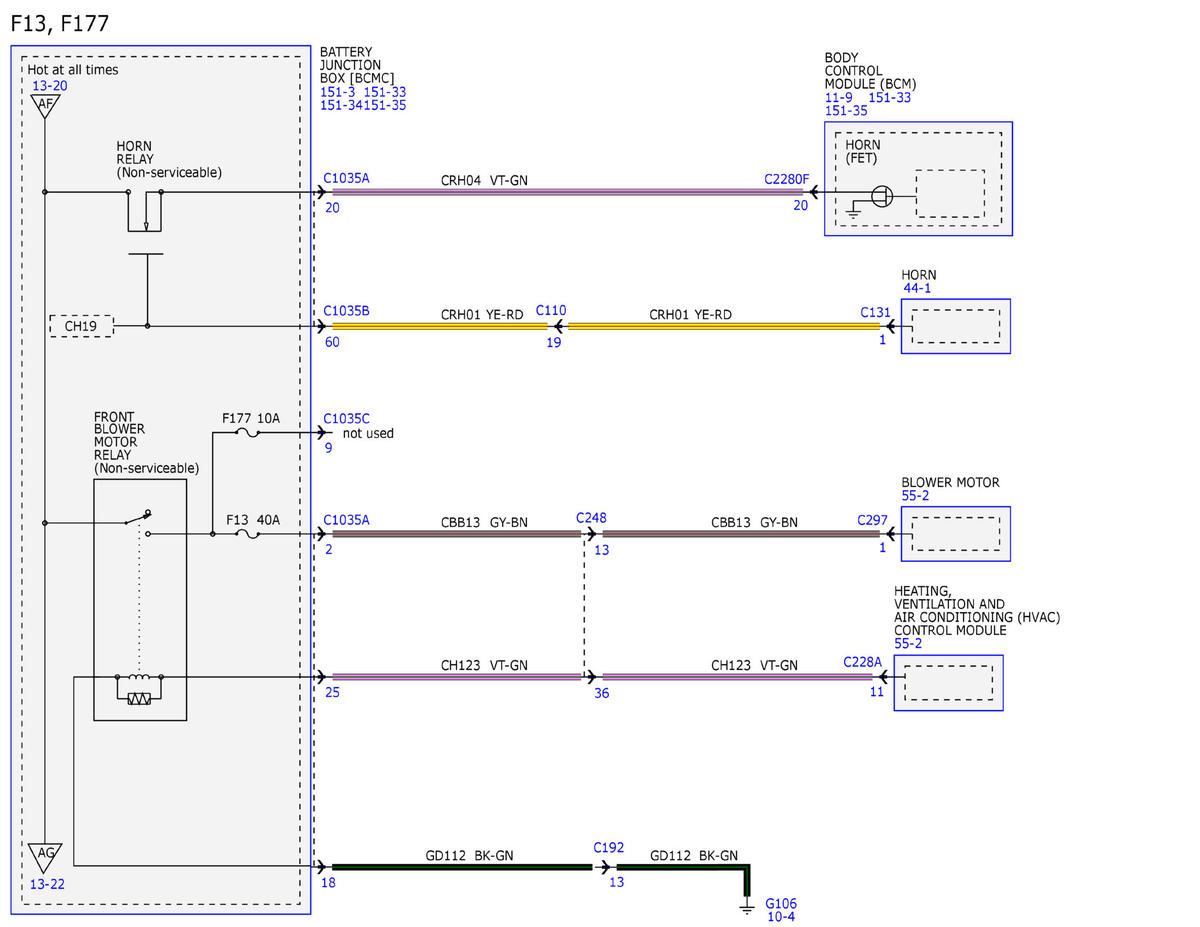

Fig 7: Power Distribution System Wiring Diagrams (7 Of 54)

GFDWR94603

Courtesy of FORD MOTOR COMPANY

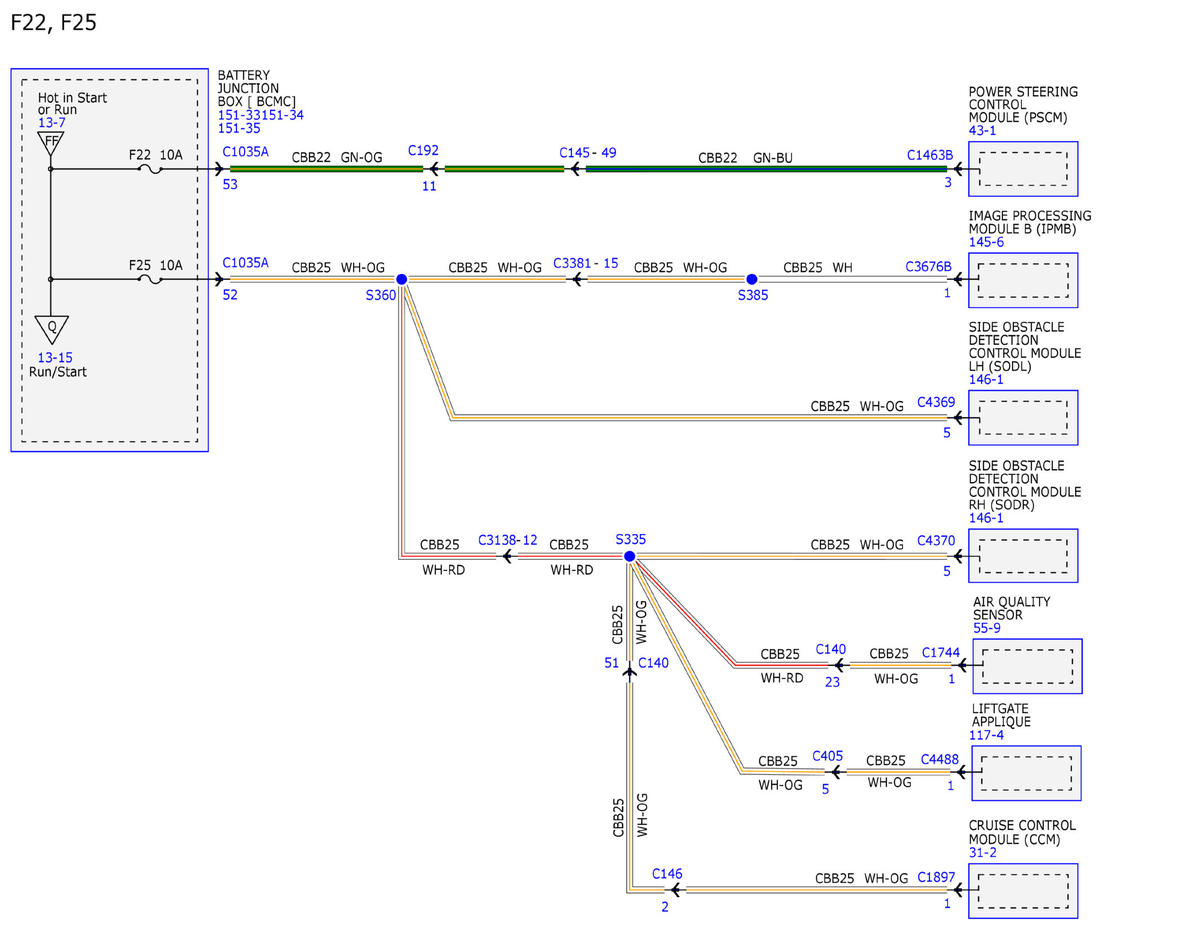

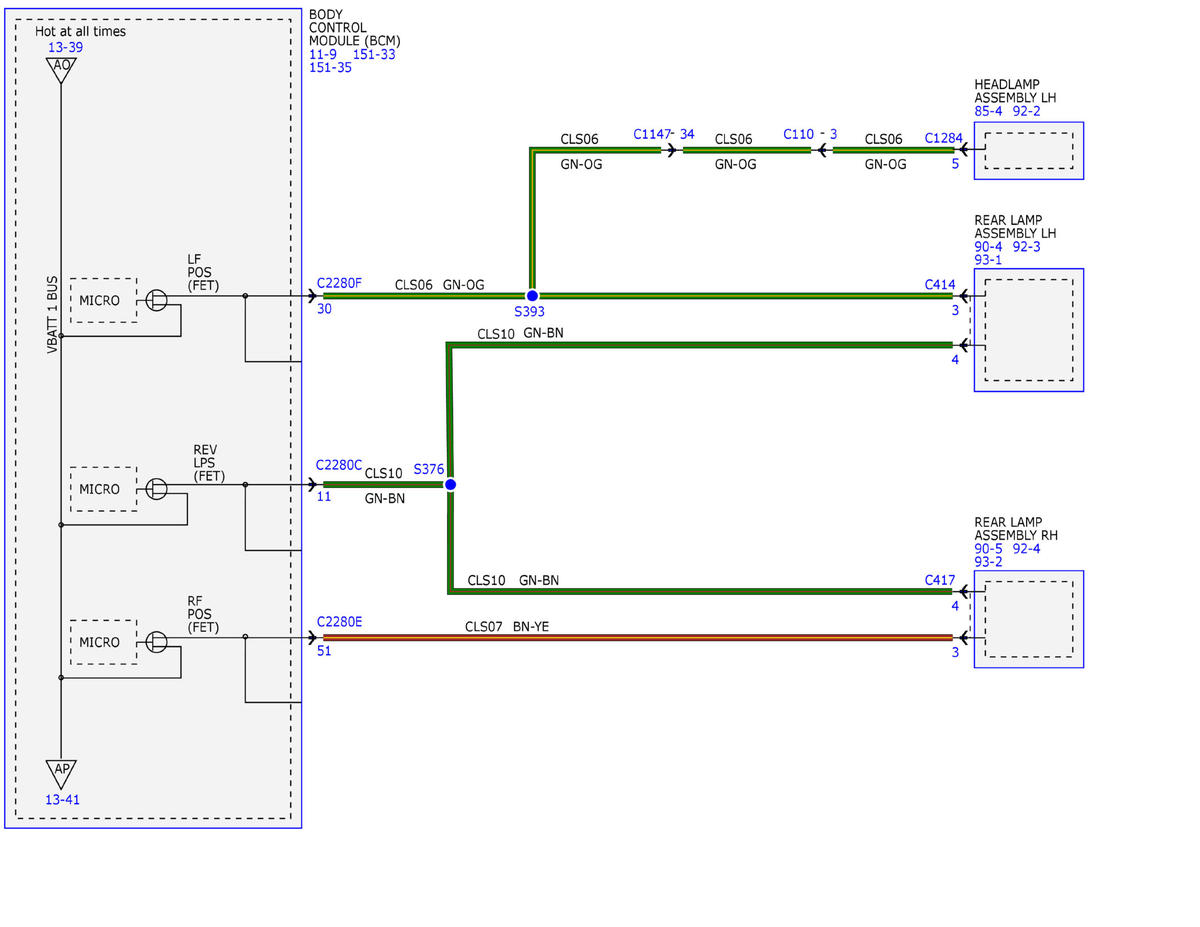

Fig 8: Power Distribution System Wiring Diagrams (8 Of 54)

GFDWR94604

Courtesy of FORD MOTOR COMPANY

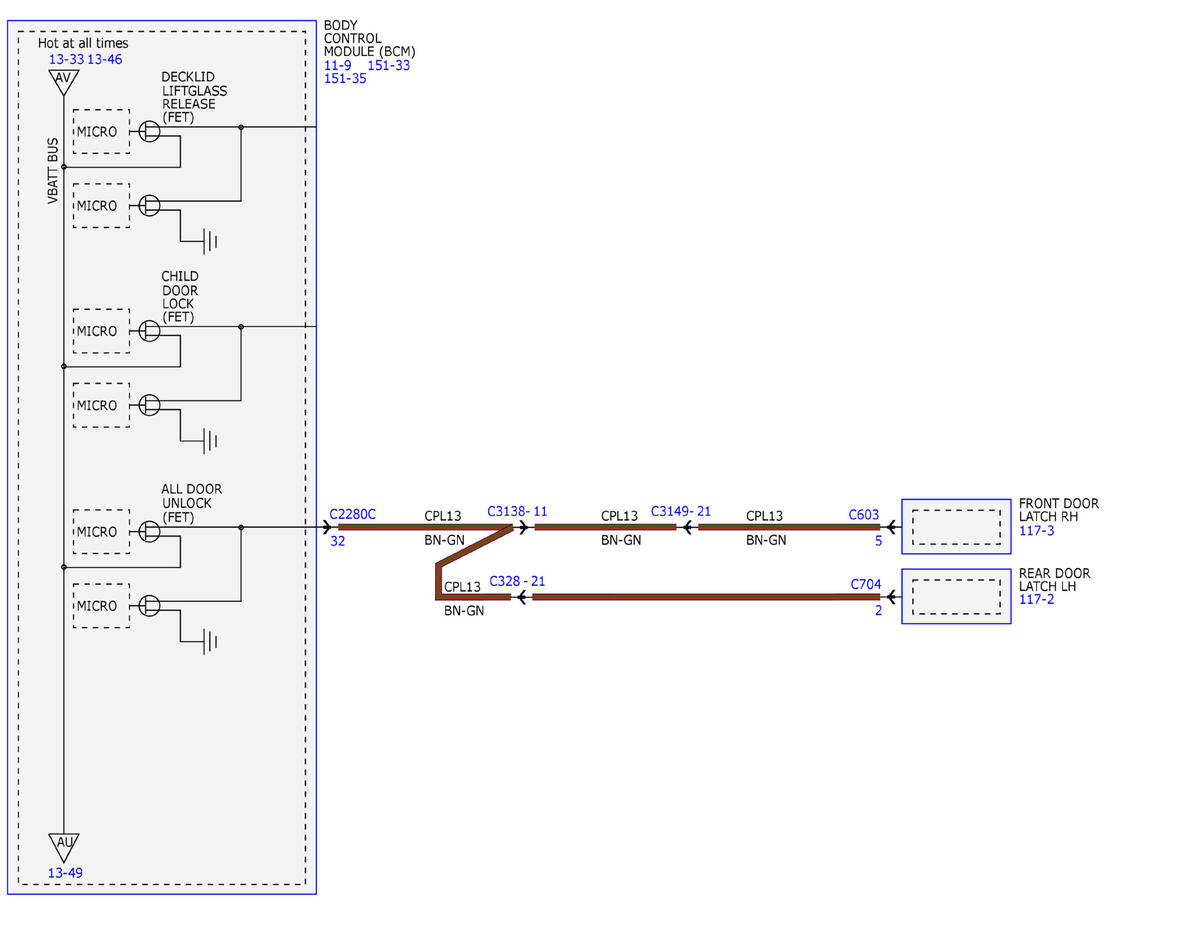

Fig 9: Power Distribution System Wiring Diagrams (9 Of 54)

GFDWR94605

Courtesy of FORD MOTOR COMPANY

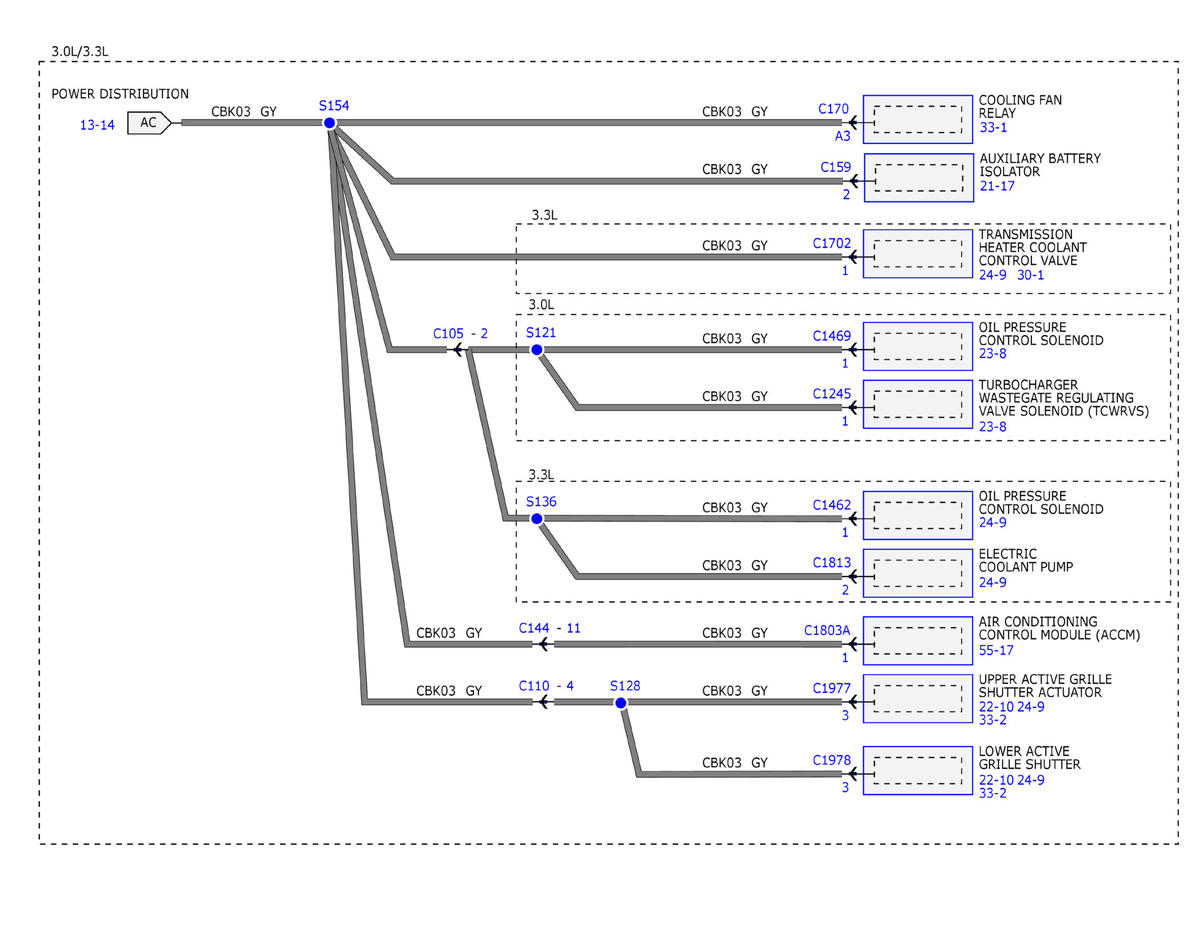

Fig 10: Power Distribution System Wiring Diagrams (10 Of 54)

GFDWR94606

Courtesy of FORD MOTOR COMPANY

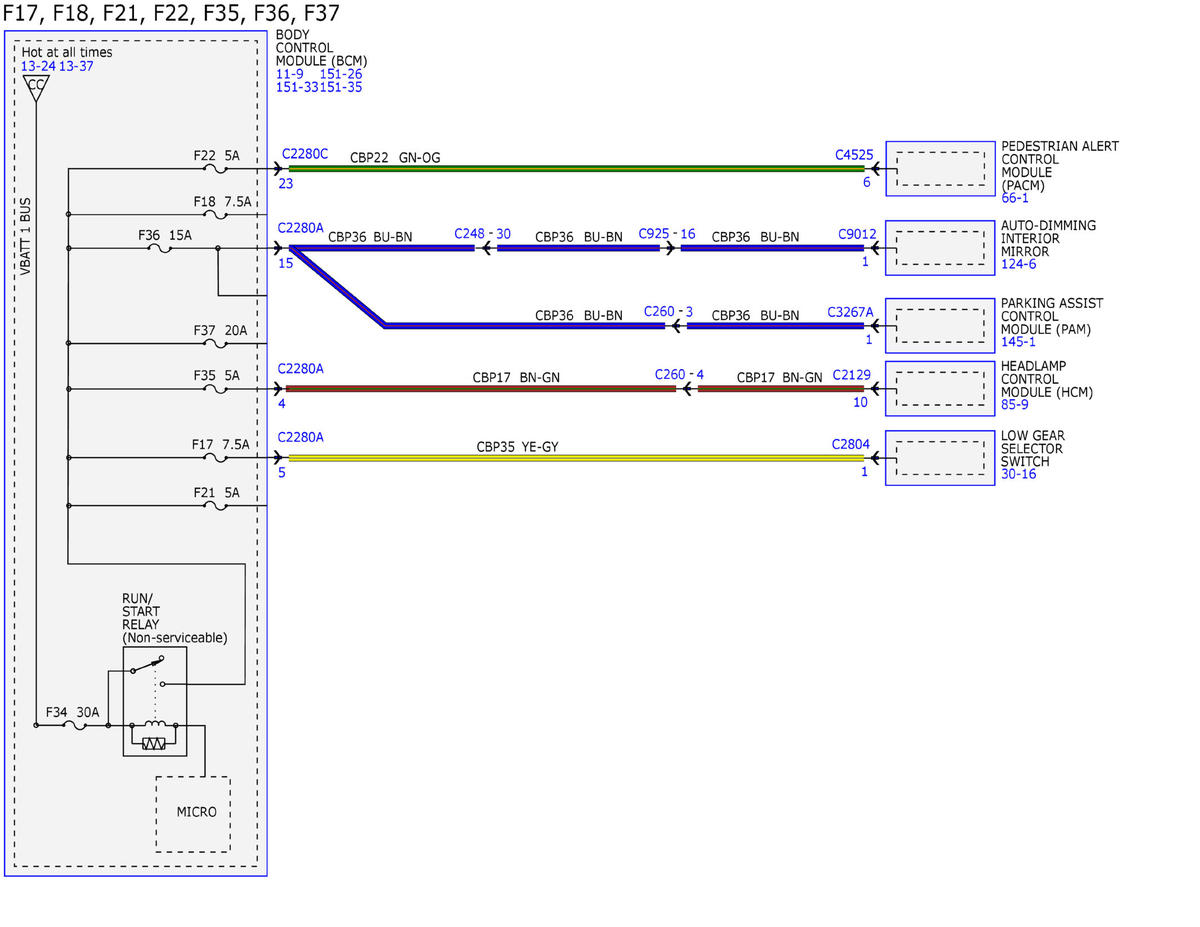

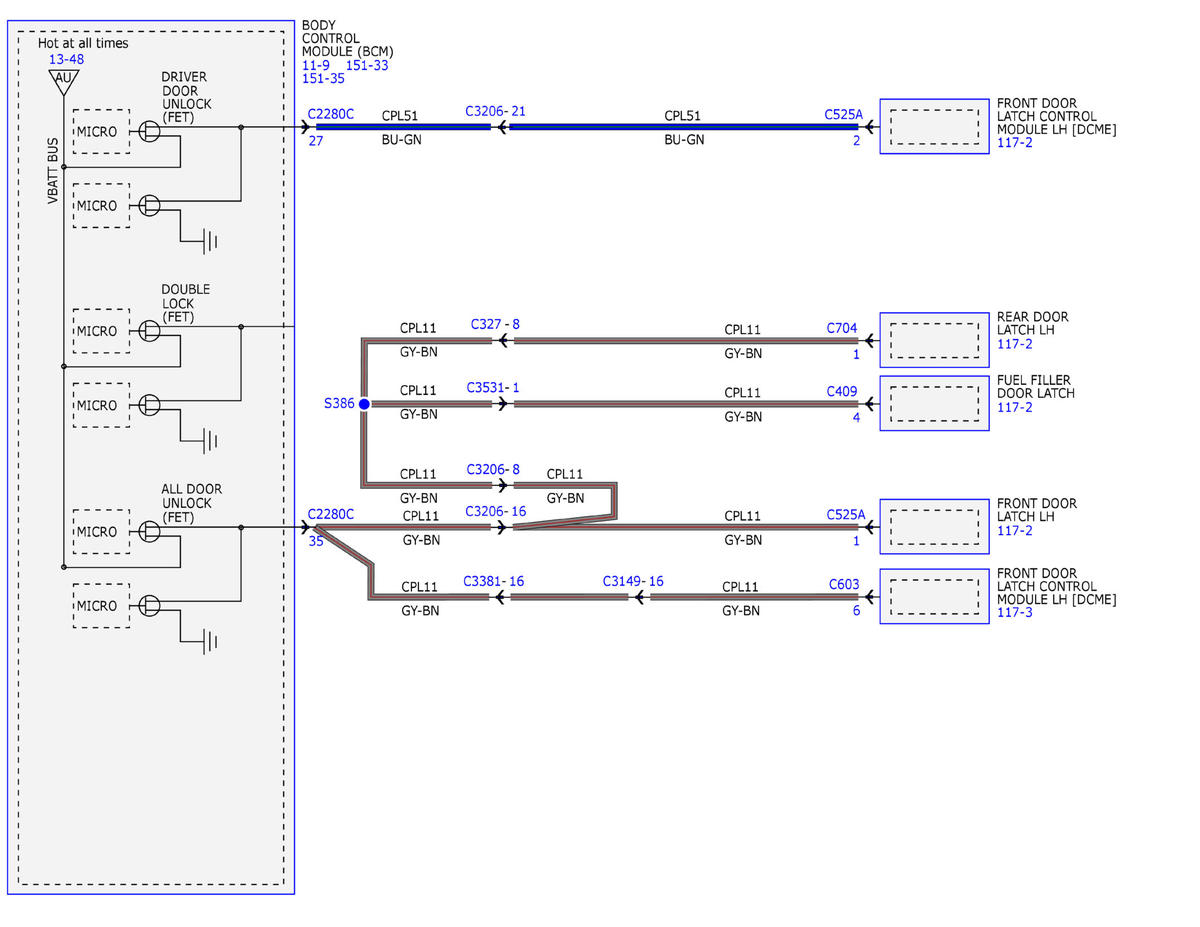

Fig 11: Power Distribution System Wiring Diagrams (11 Of 54)

GFDWR94607

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Distribution System Wiring Diagrams (12 Of 54)

GFDWR94608

Courtesy of FORD MOTOR COMPANY

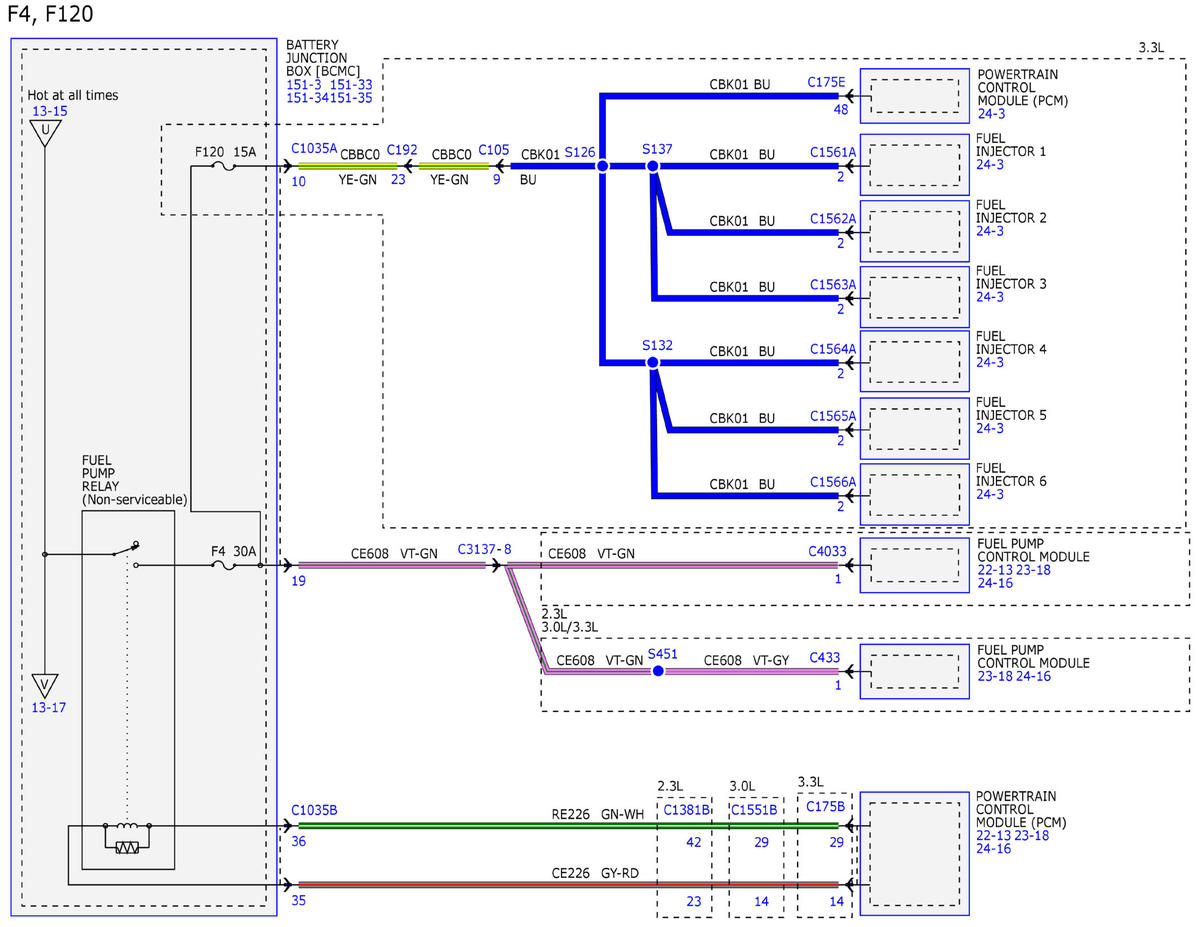

Fig 13: Power Distribution System Wiring Diagrams (13 Of 54)

GFDWR94609

Courtesy of FORD MOTOR COMPANY

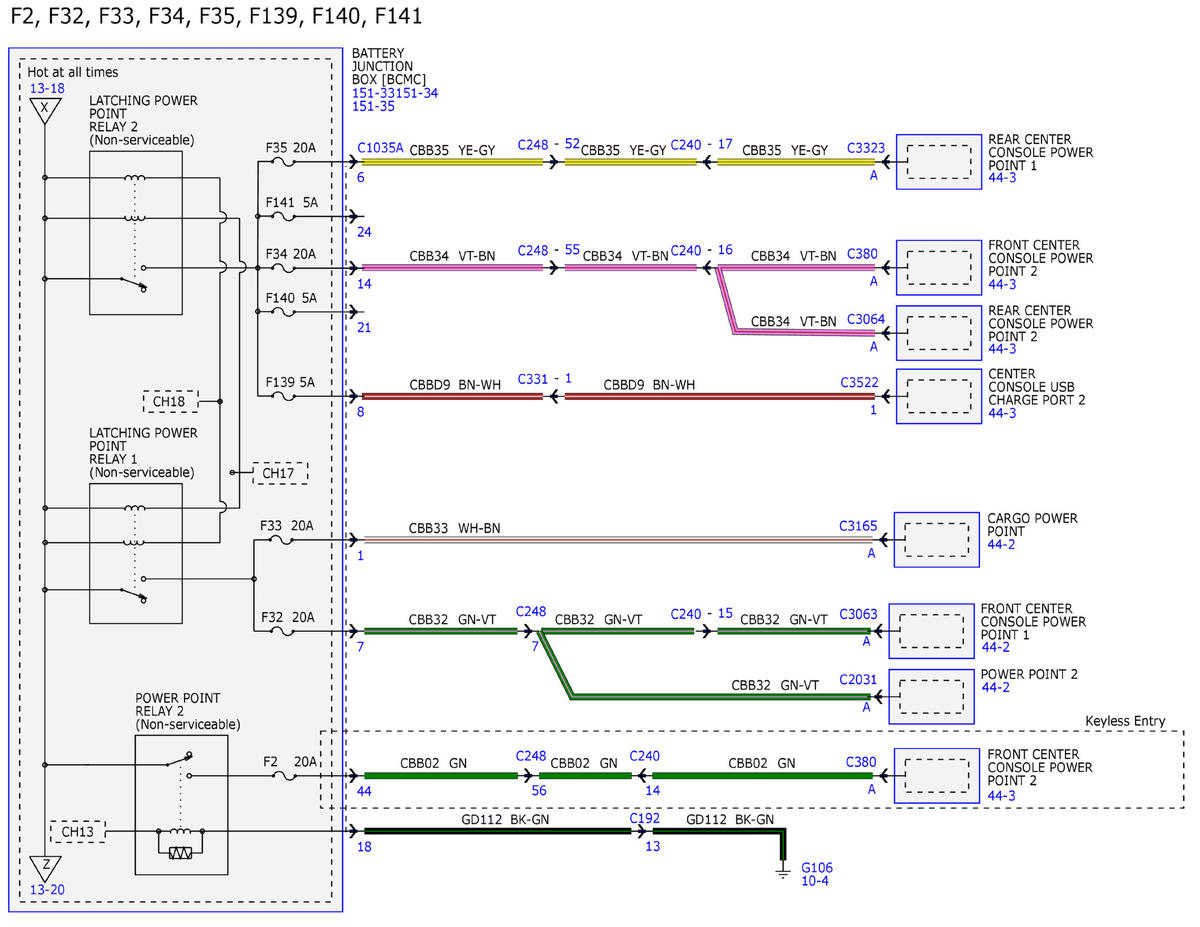

Fig 14: Power Distribution System Wiring Diagrams (14 Of 54)

GFDWR94610

Courtesy of FORD MOTOR COMPANY

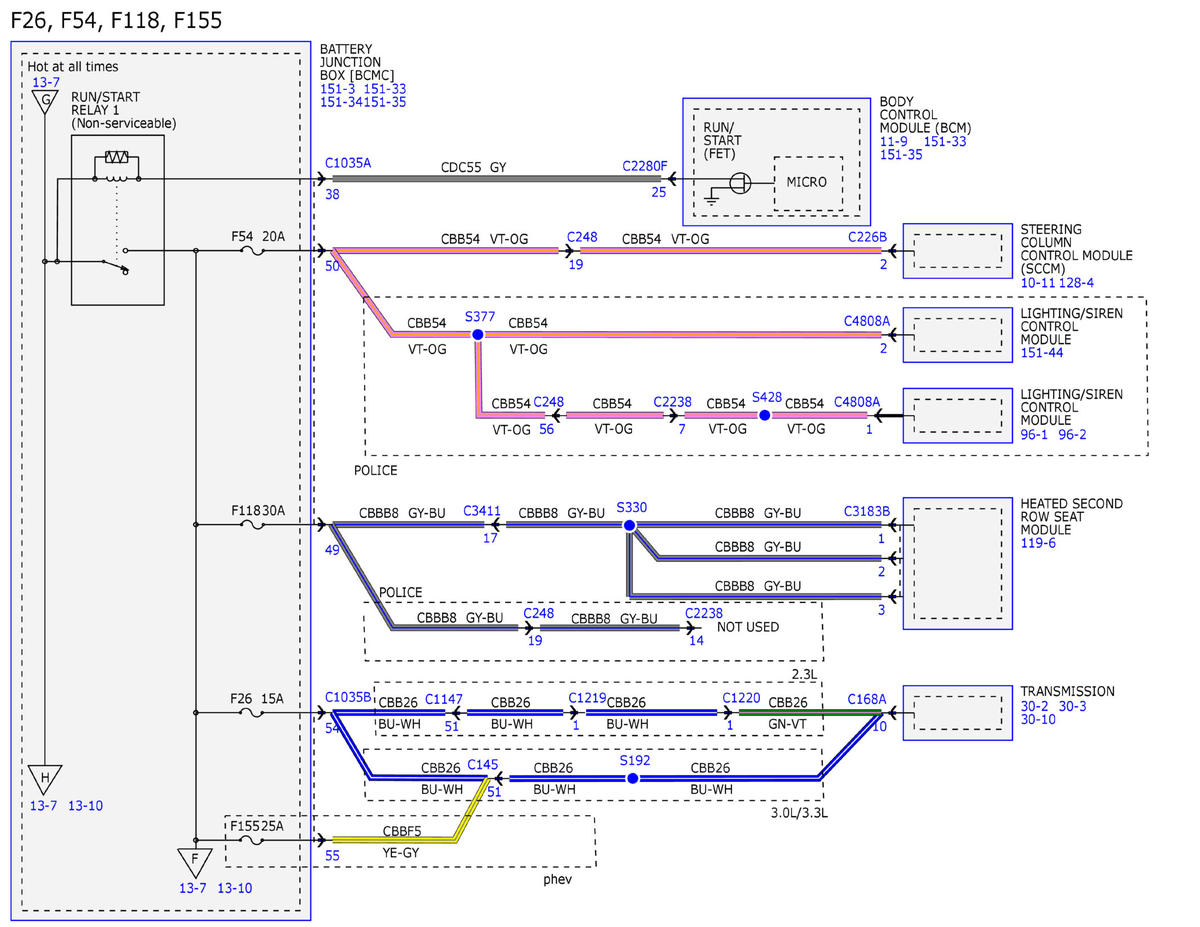

Fig 15: Power Distribution System Wiring Diagrams (15 Of 54)

GFDWR94611

Courtesy of FORD MOTOR COMPANY

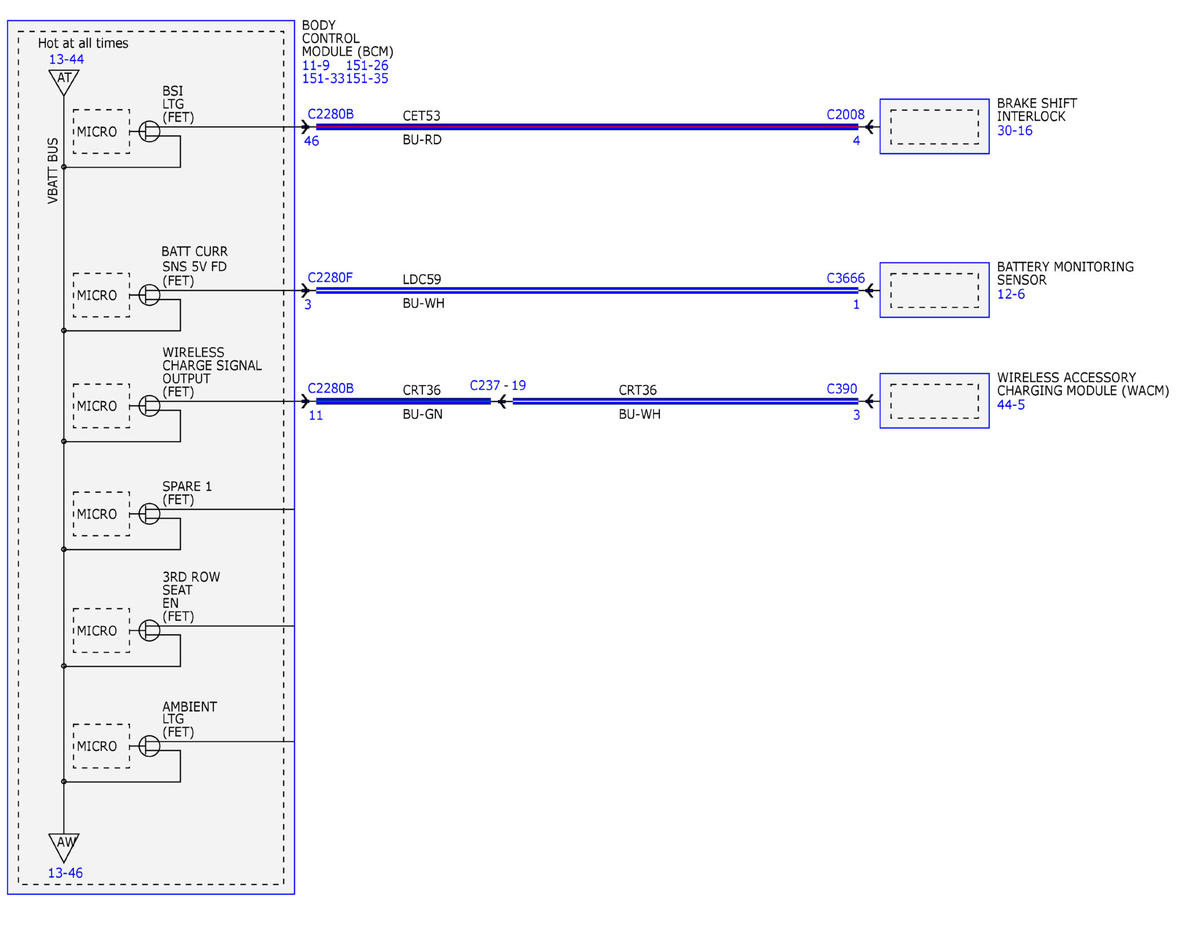

Fig 16: Power Distribution System Wiring Diagrams (16 Of 54)

GFDWR94612

Courtesy of FORD MOTOR COMPANY

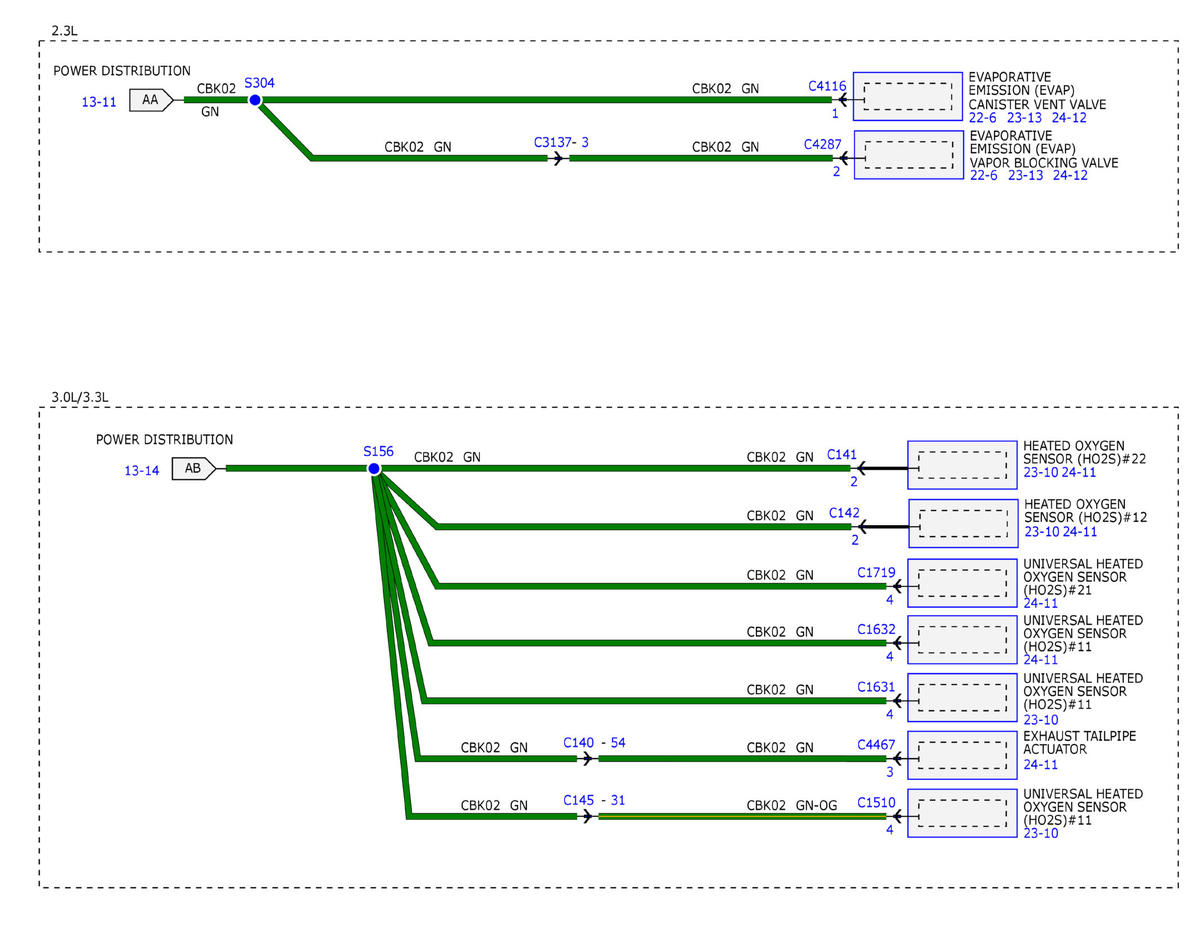

Fig 17: Power Distribution System Wiring Diagrams (17 Of 54)

GFDWR94613

Courtesy of FORD MOTOR COMPANY

Fig 18: Power Distribution System Wiring Diagrams (18 Of 54)

GFDWR94614

Courtesy of FORD MOTOR COMPANY

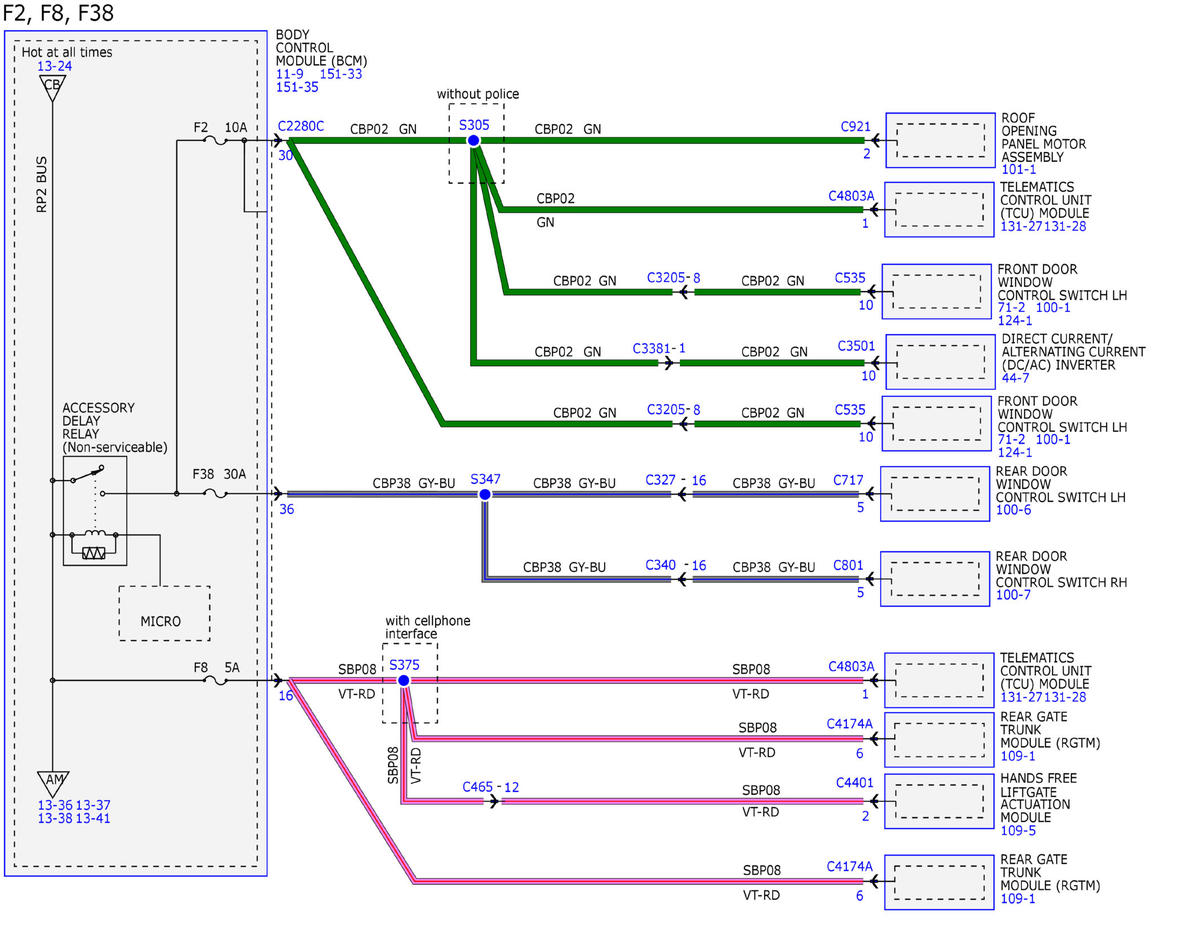

Fig 19: Power Distribution System Wiring Diagrams (19 Of 54)

GFDWR94615

Courtesy of FORD MOTOR COMPANY

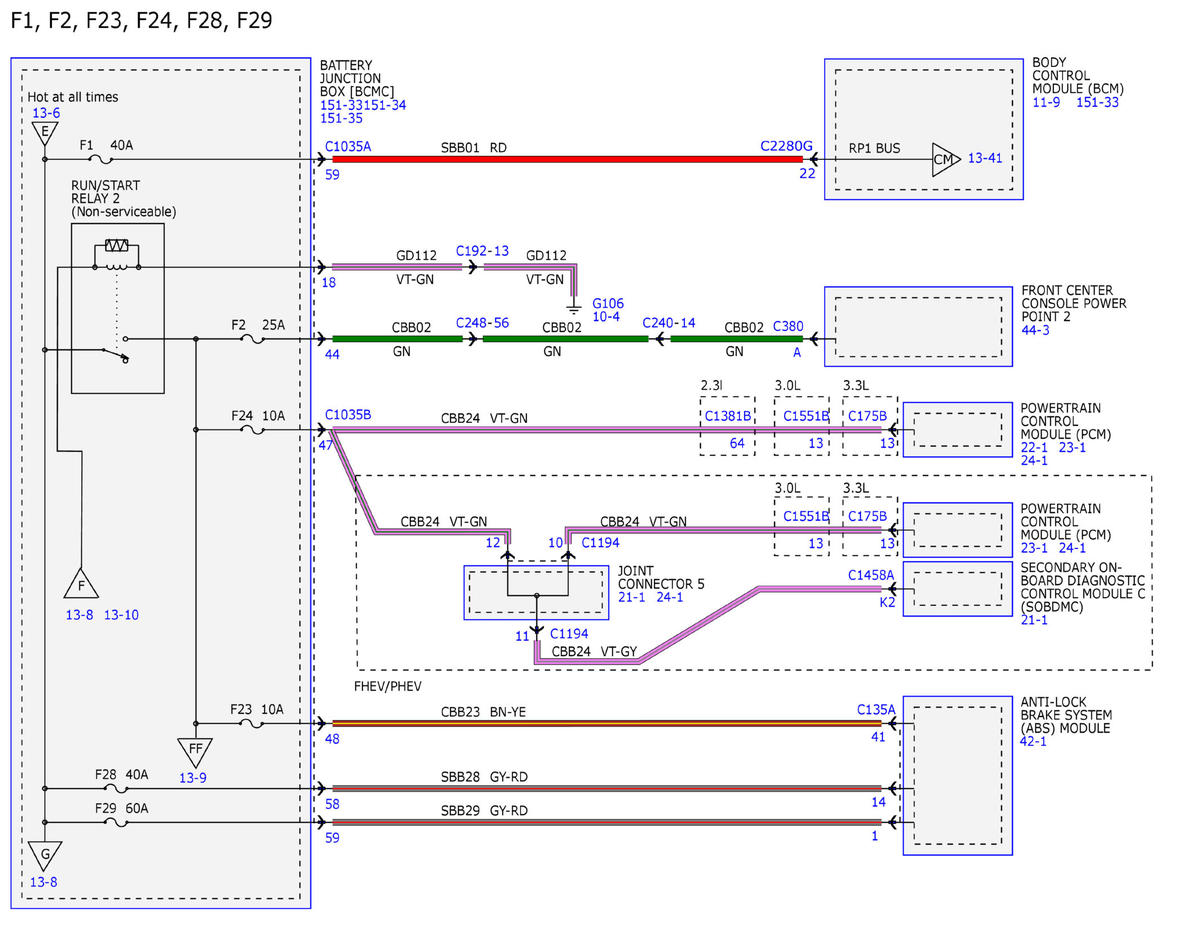

Fig 20: Power Distribution System Wiring Diagrams (20 Of 54)

GFDWR94616

Courtesy of FORD MOTOR COMPANY

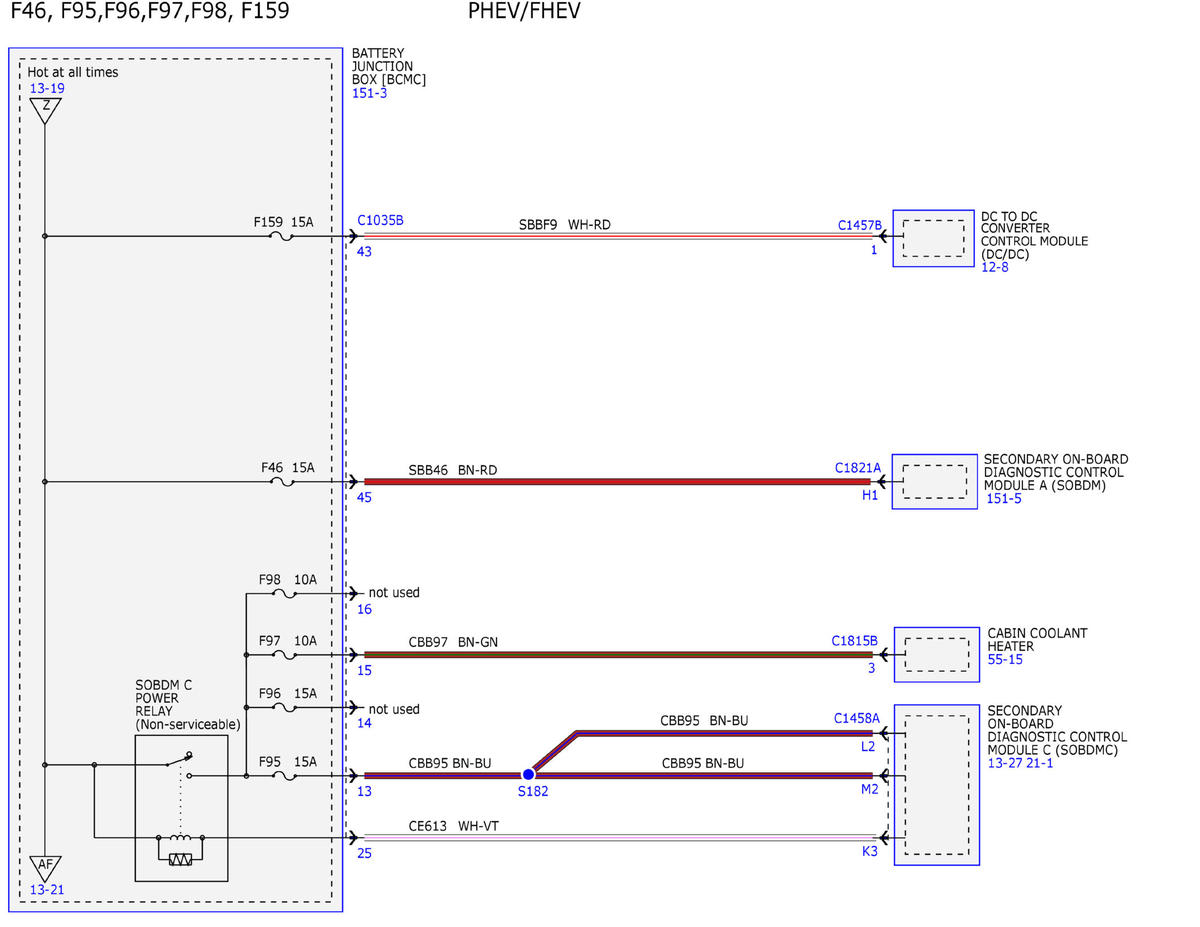

Fig 21: Power Distribution System Wiring Diagrams (21 Of 54)

GFDWR94617

Courtesy of FORD MOTOR COMPANY

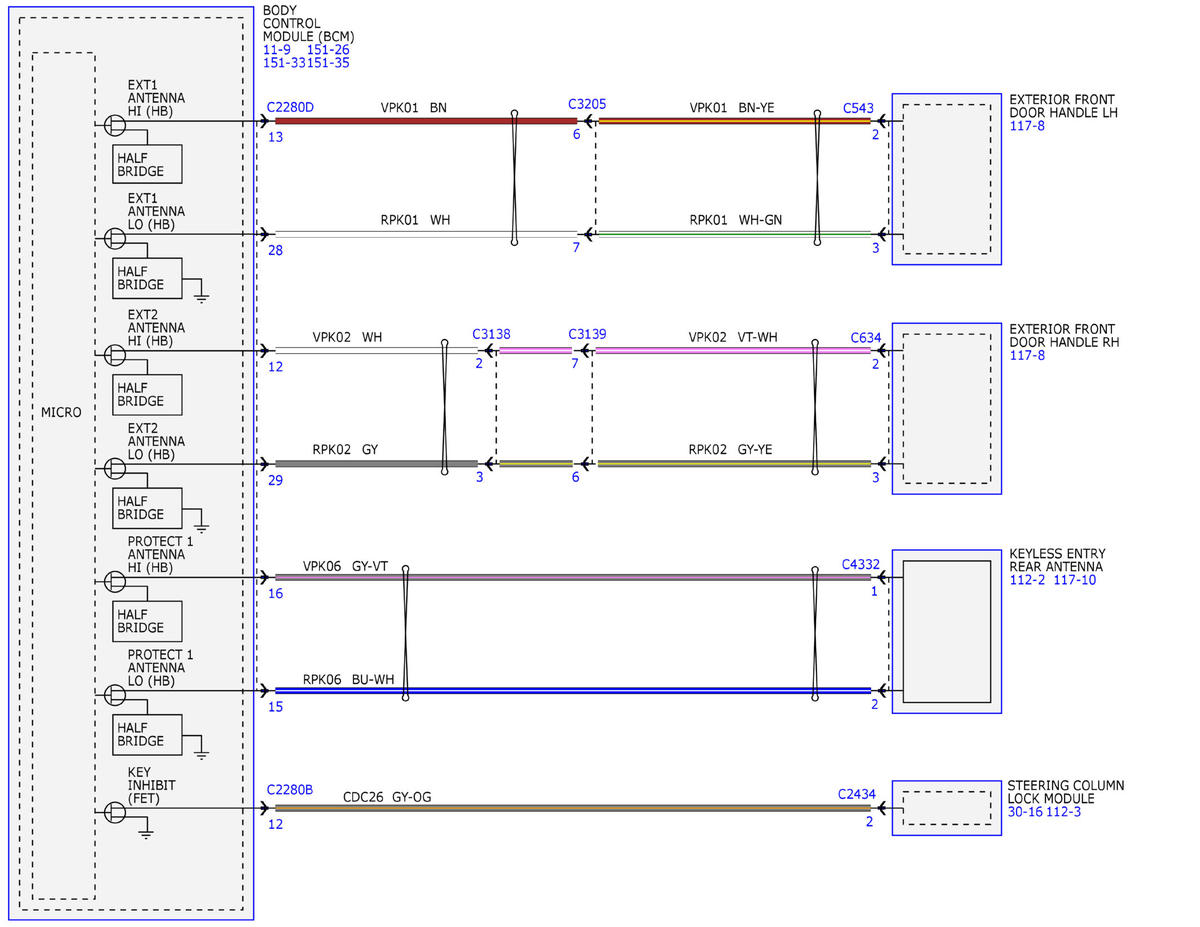

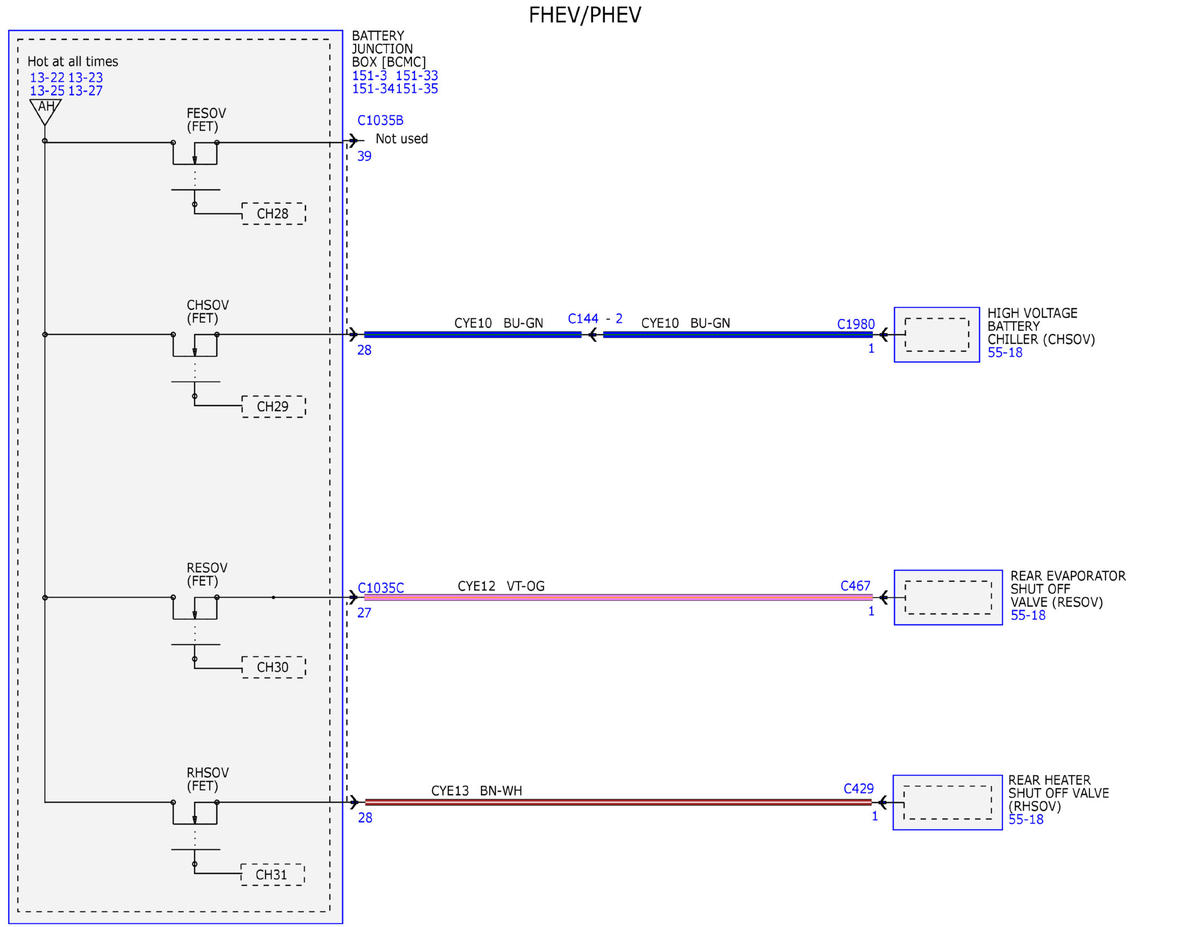

Fig 22: Power Distribution System Wiring Diagrams (22 Of 54)

GFDWR94618

Courtesy of FORD MOTOR COMPANY

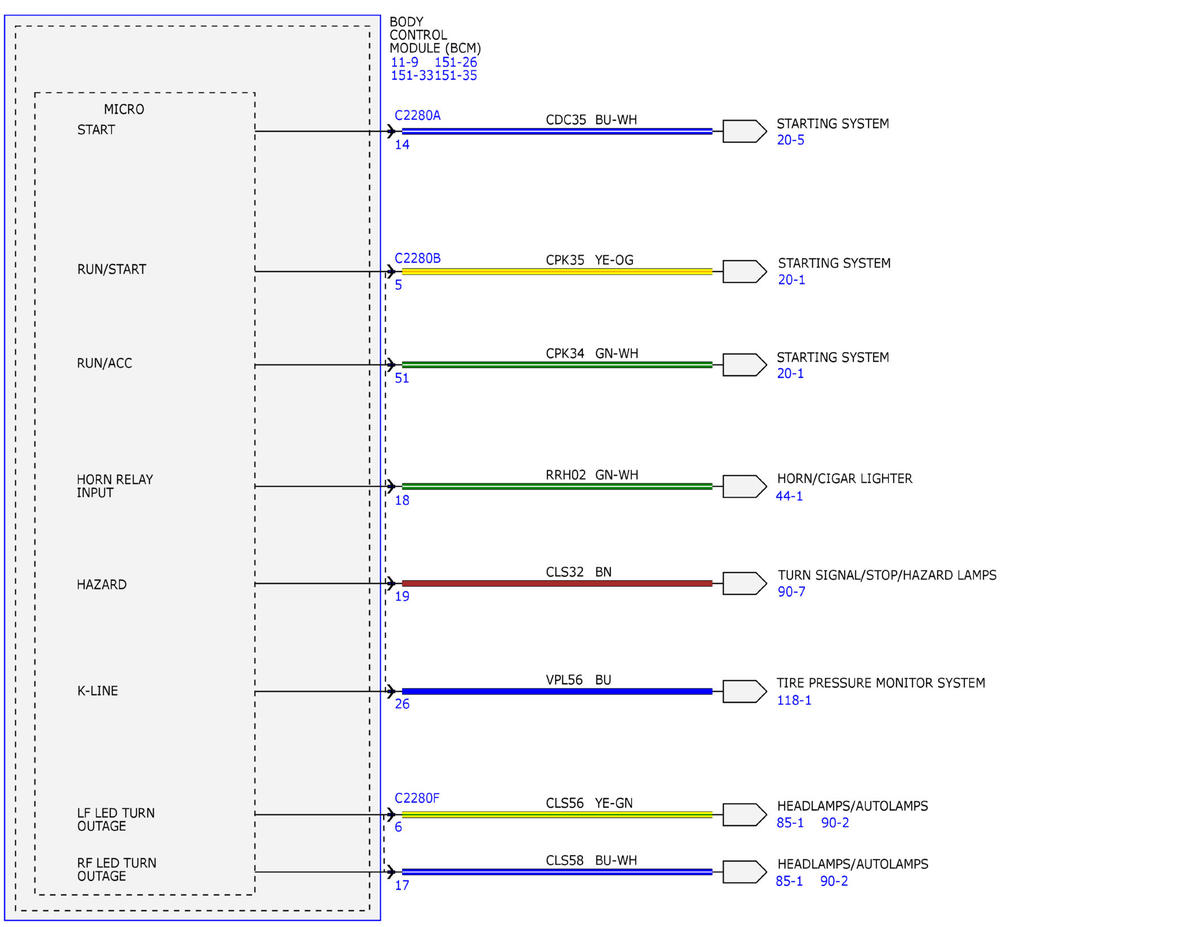

Fig 23: Power Distribution System Wiring Diagrams (23 Of 54)

GFDWR94619

Courtesy of FORD MOTOR COMPANY

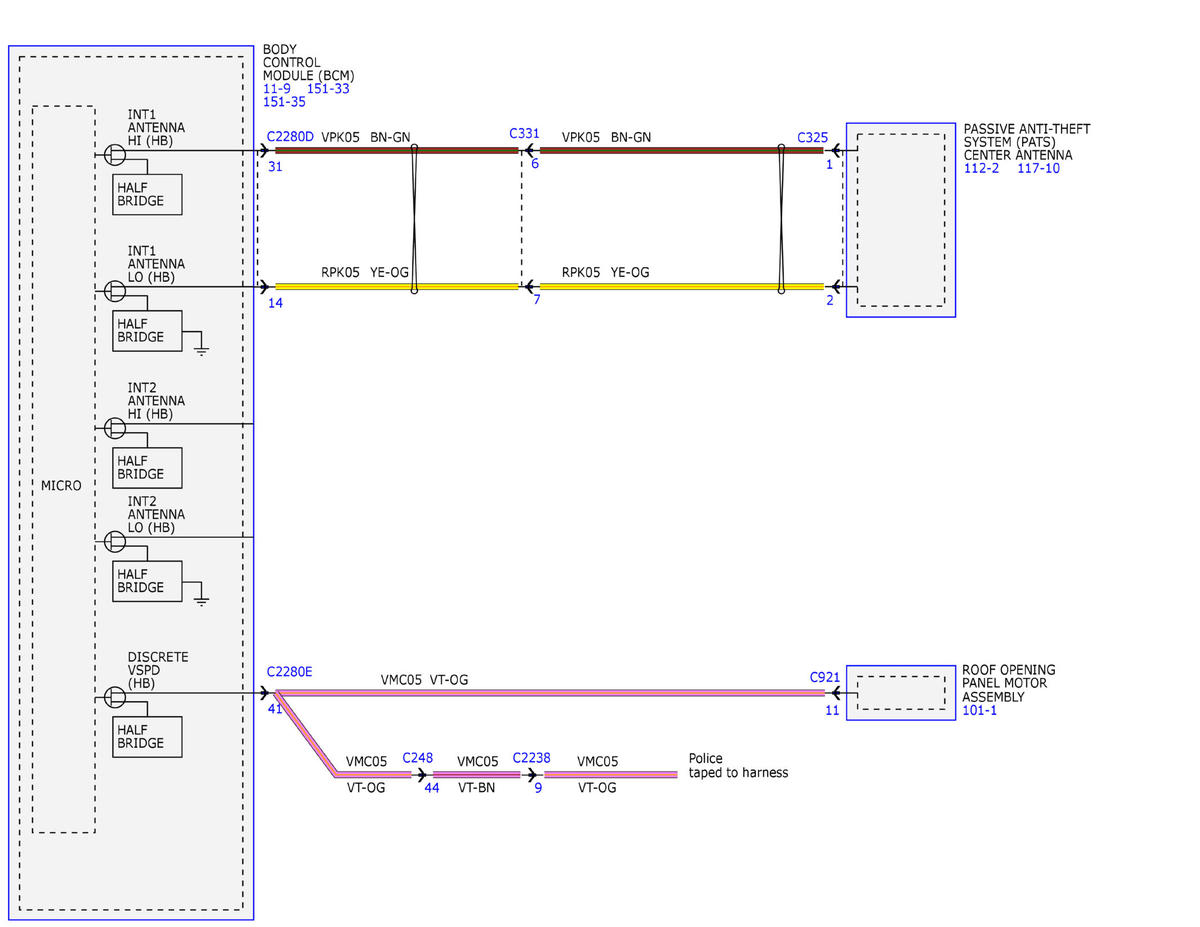

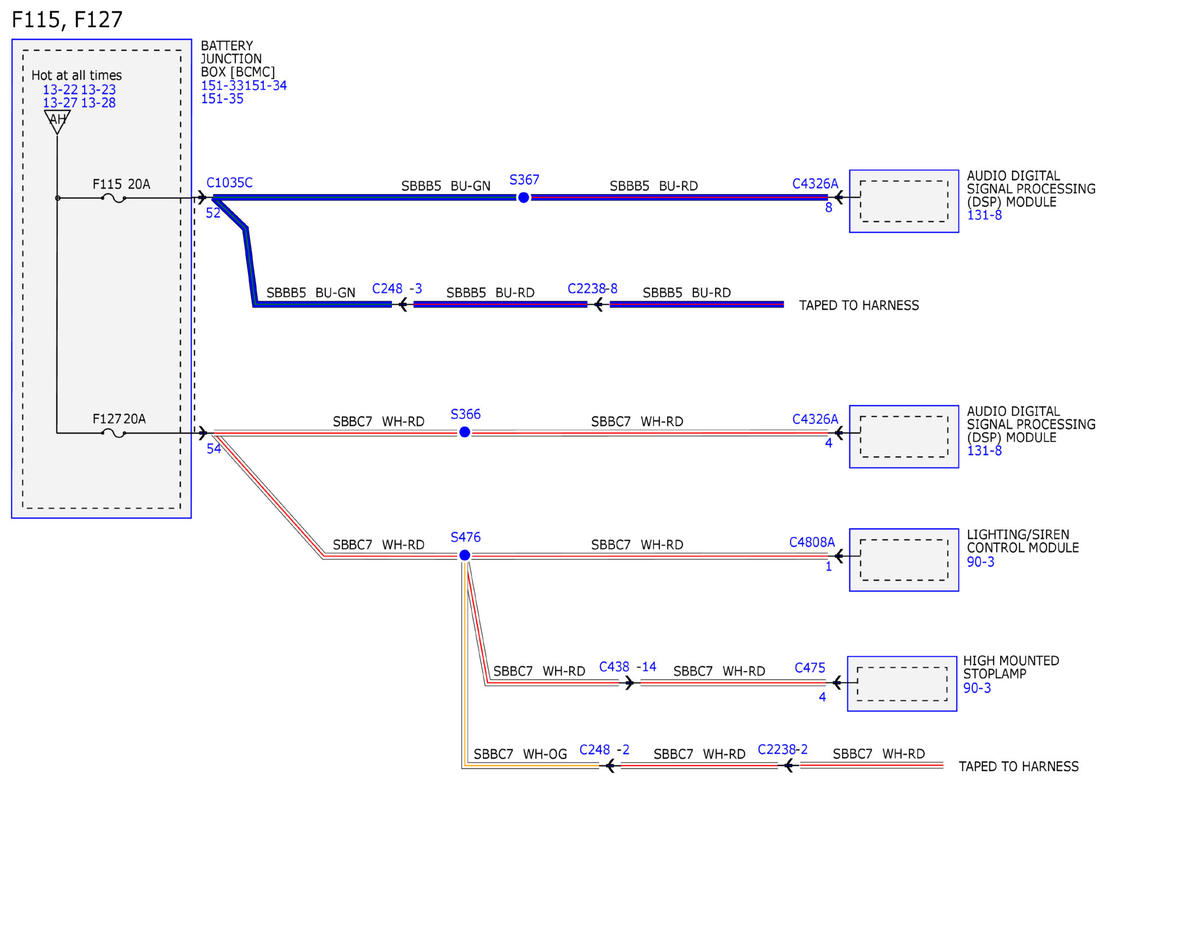

Fig 24: Power Distribution System Wiring Diagrams (24 Of 54)

GFDWR94620

Courtesy of FORD MOTOR COMPANY

Fig 25: Power Distribution System Wiring Diagrams (25 Of 54)

GFDWR94621

Courtesy of FORD MOTOR COMPANY

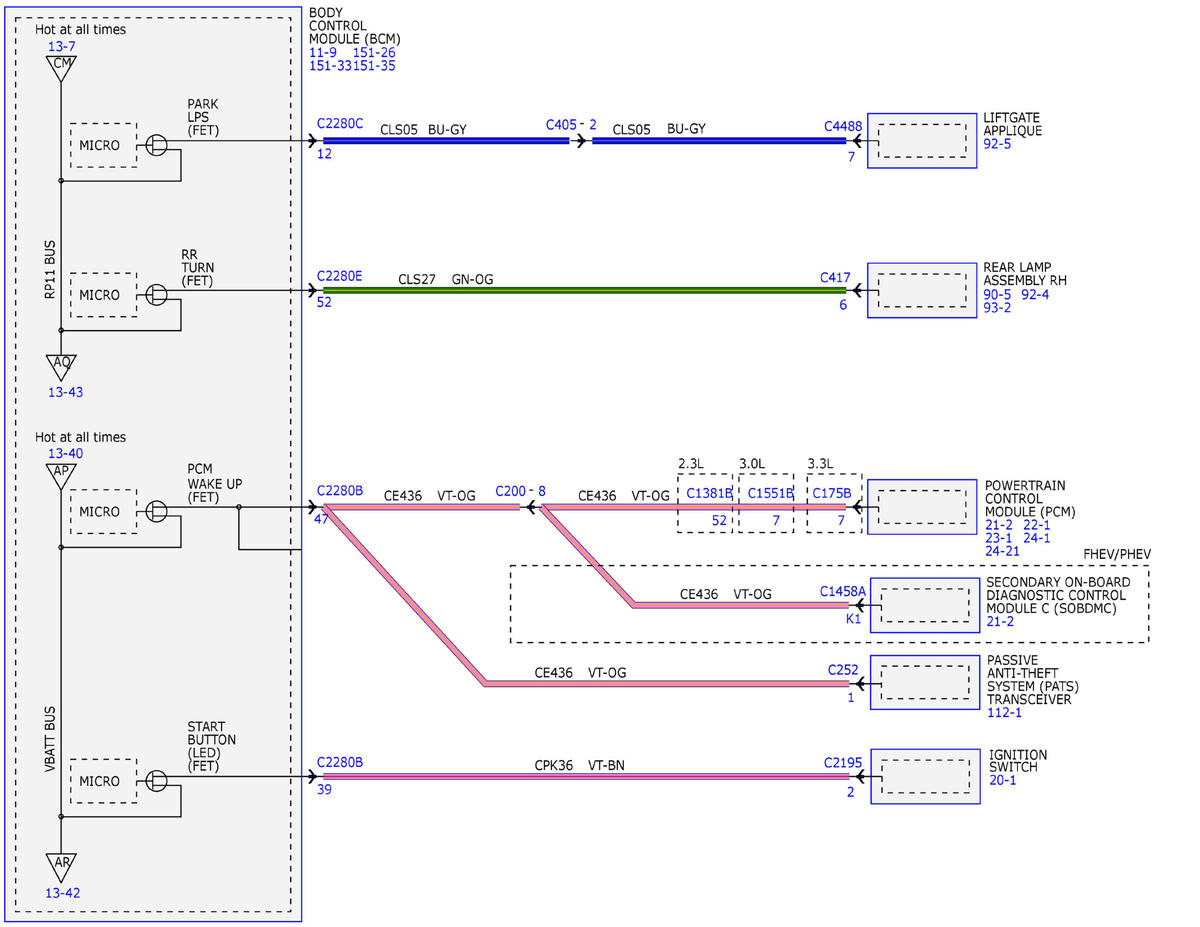

Fig 26: Power Distribution System Wiring Diagrams (26 Of 54)

GFDWR94622

Courtesy of FORD MOTOR COMPANY

Fig 27: Power Distribution System Wiring Diagrams (27 Of 54)

GFDWR94623

Courtesy of FORD MOTOR COMPANY

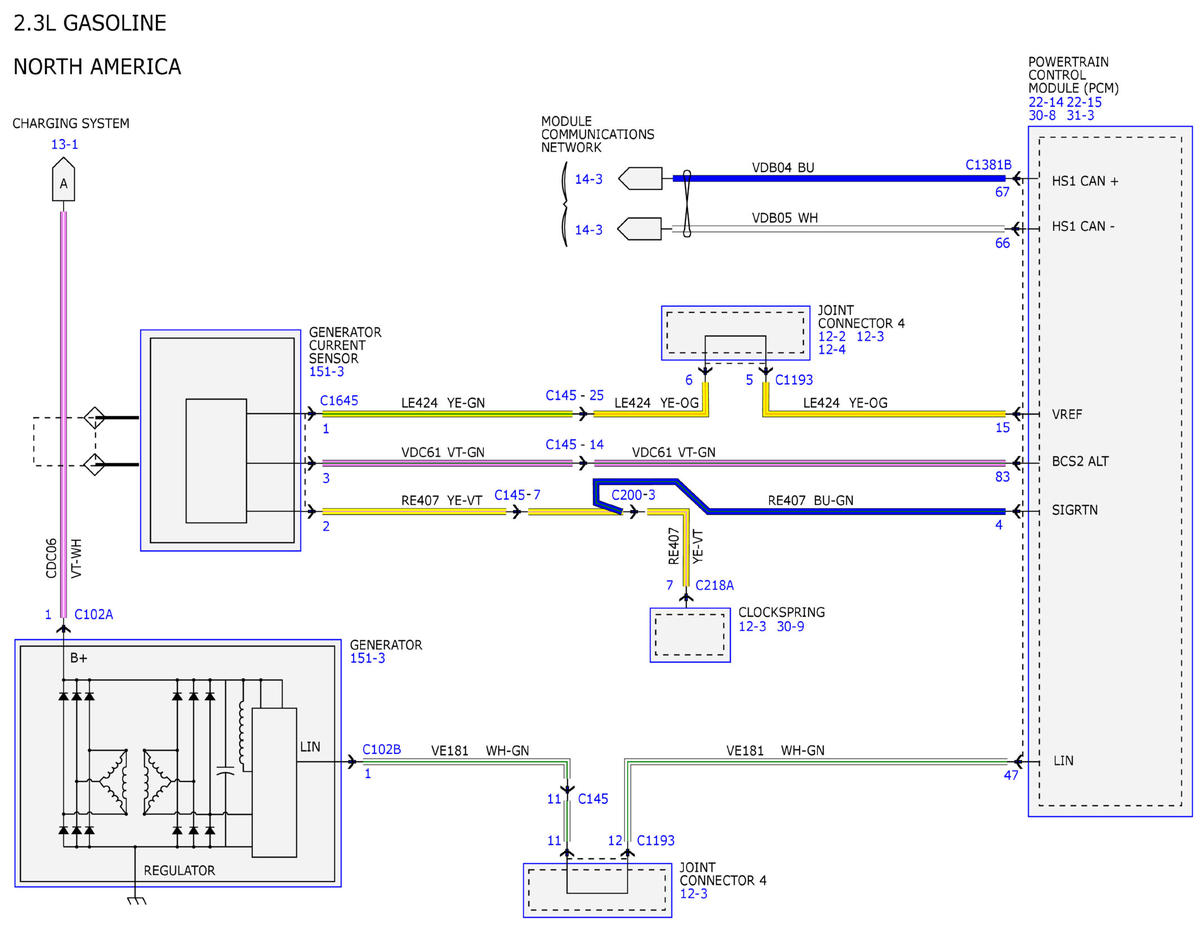

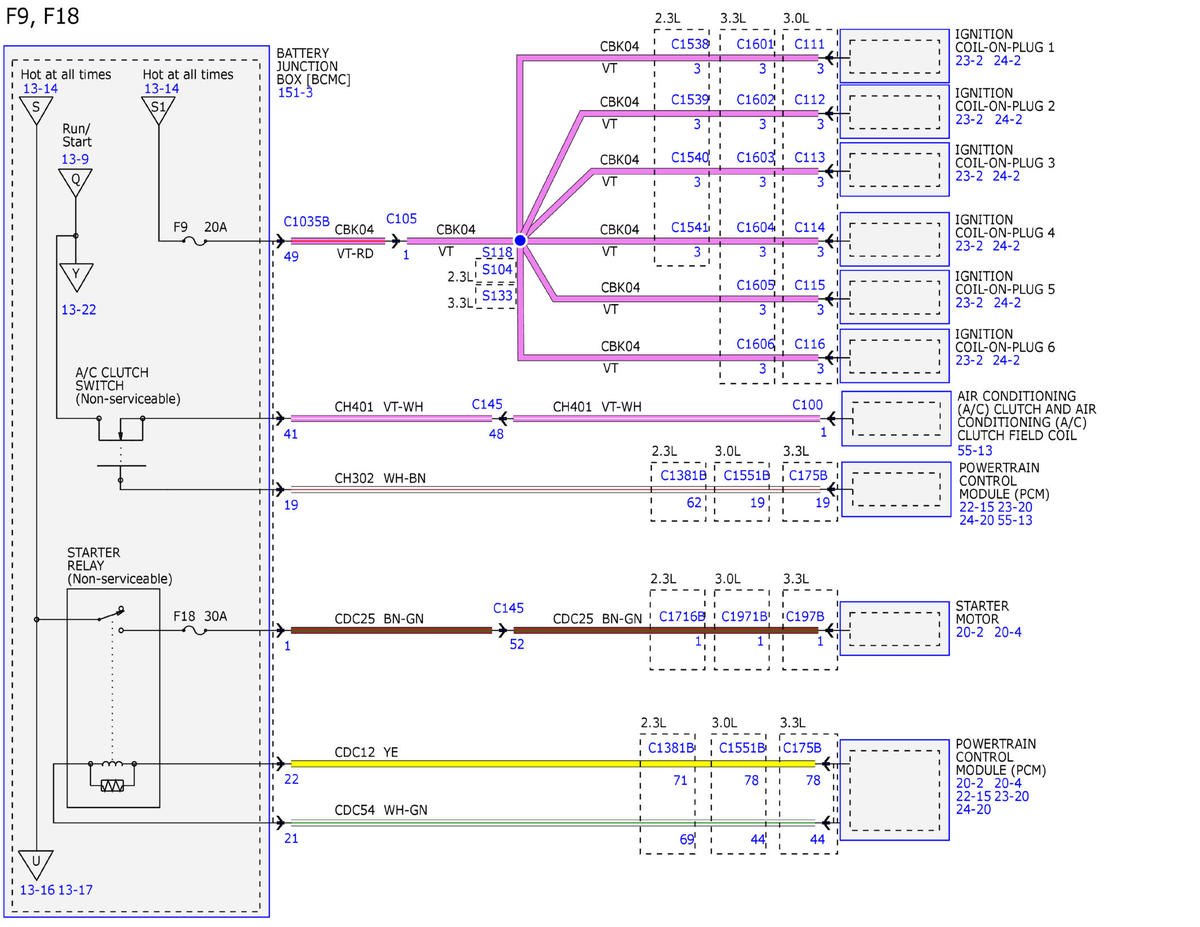

Fig 28: Power Distribution System Wiring Diagrams (28 Of 54)

GFDWR94624

Courtesy of FORD MOTOR COMPANY

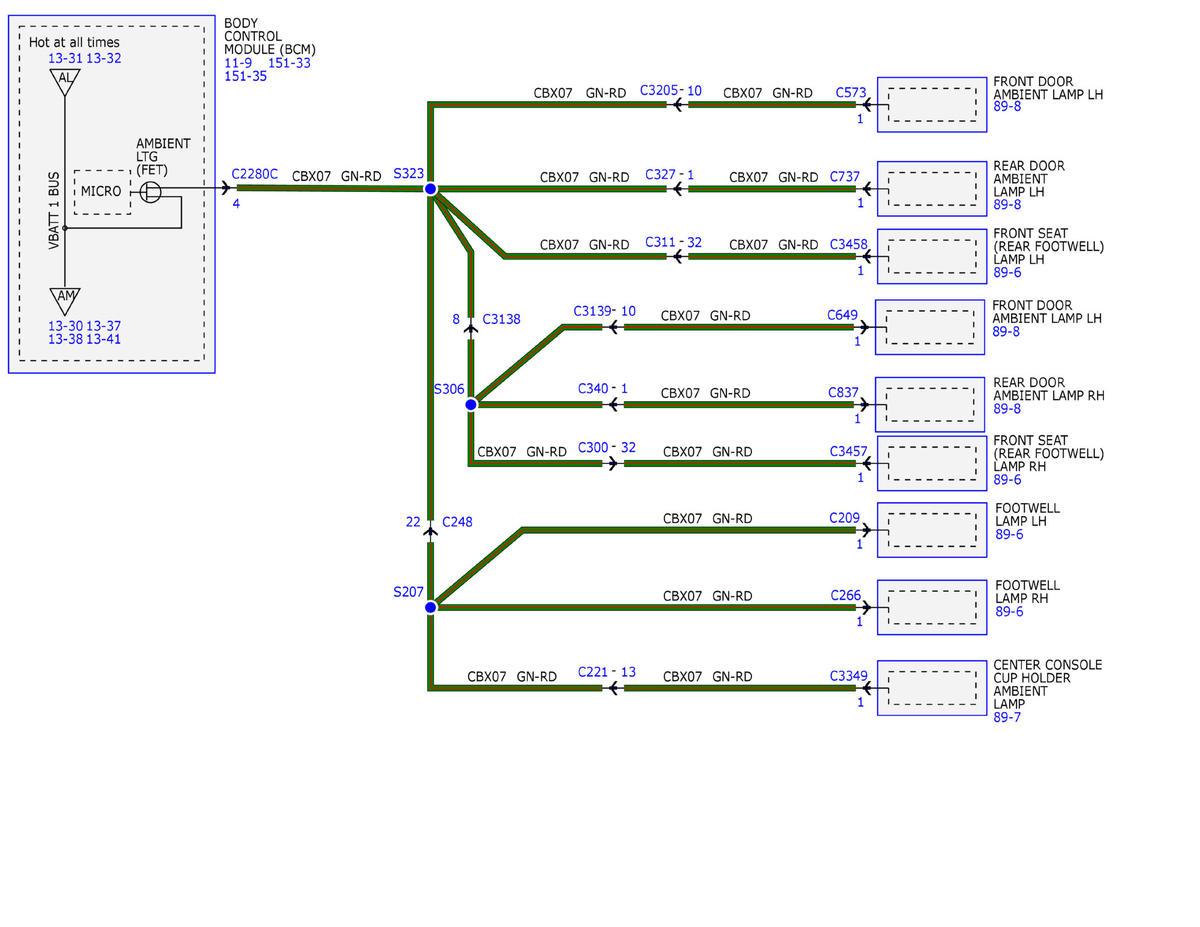

Fig 29: Power Distribution System Wiring Diagrams (29 Of 54)

GFDWR94625

Courtesy of FORD MOTOR COMPANY

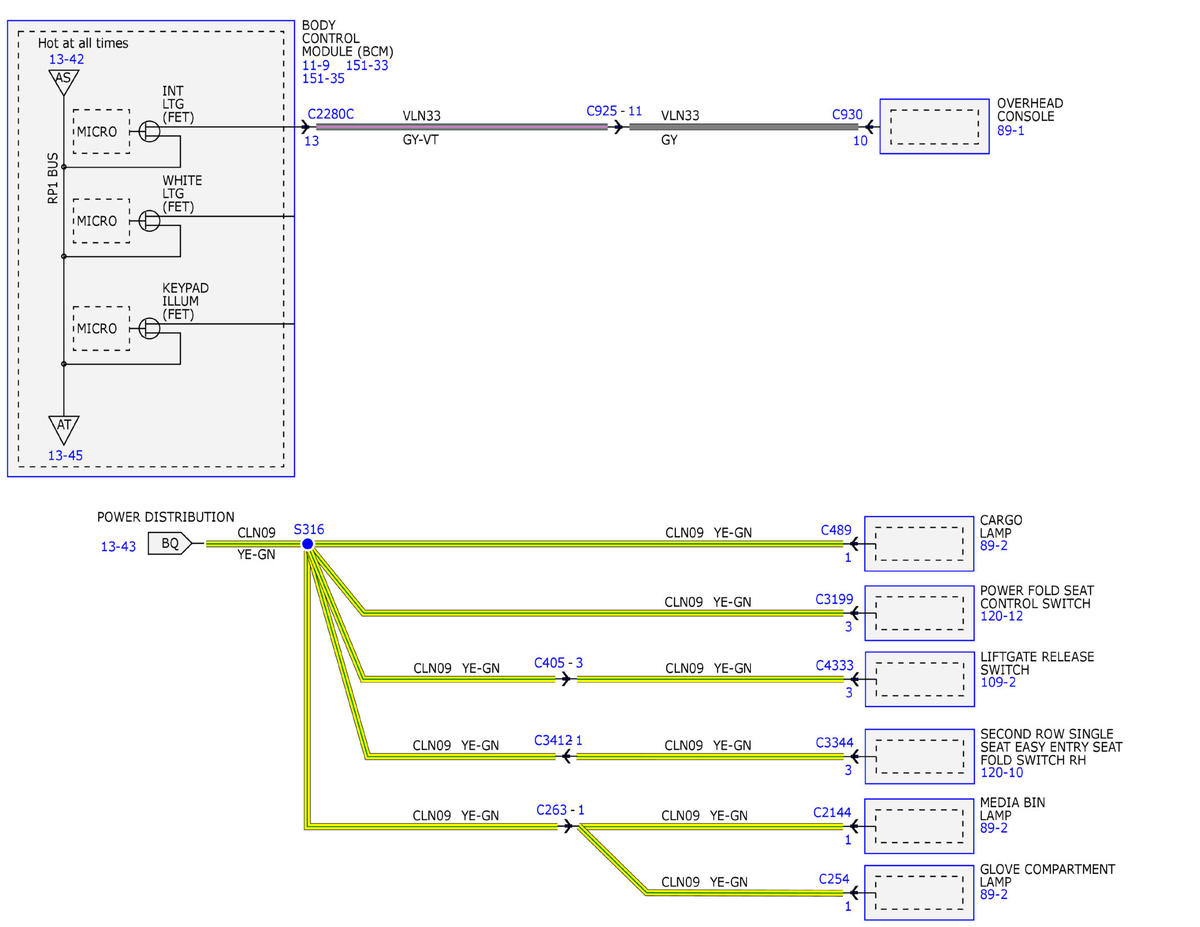

Fig 30: Power Distribution System Wiring Diagrams (30 Of 54)

GFDWR94626

Courtesy of FORD MOTOR COMPANY

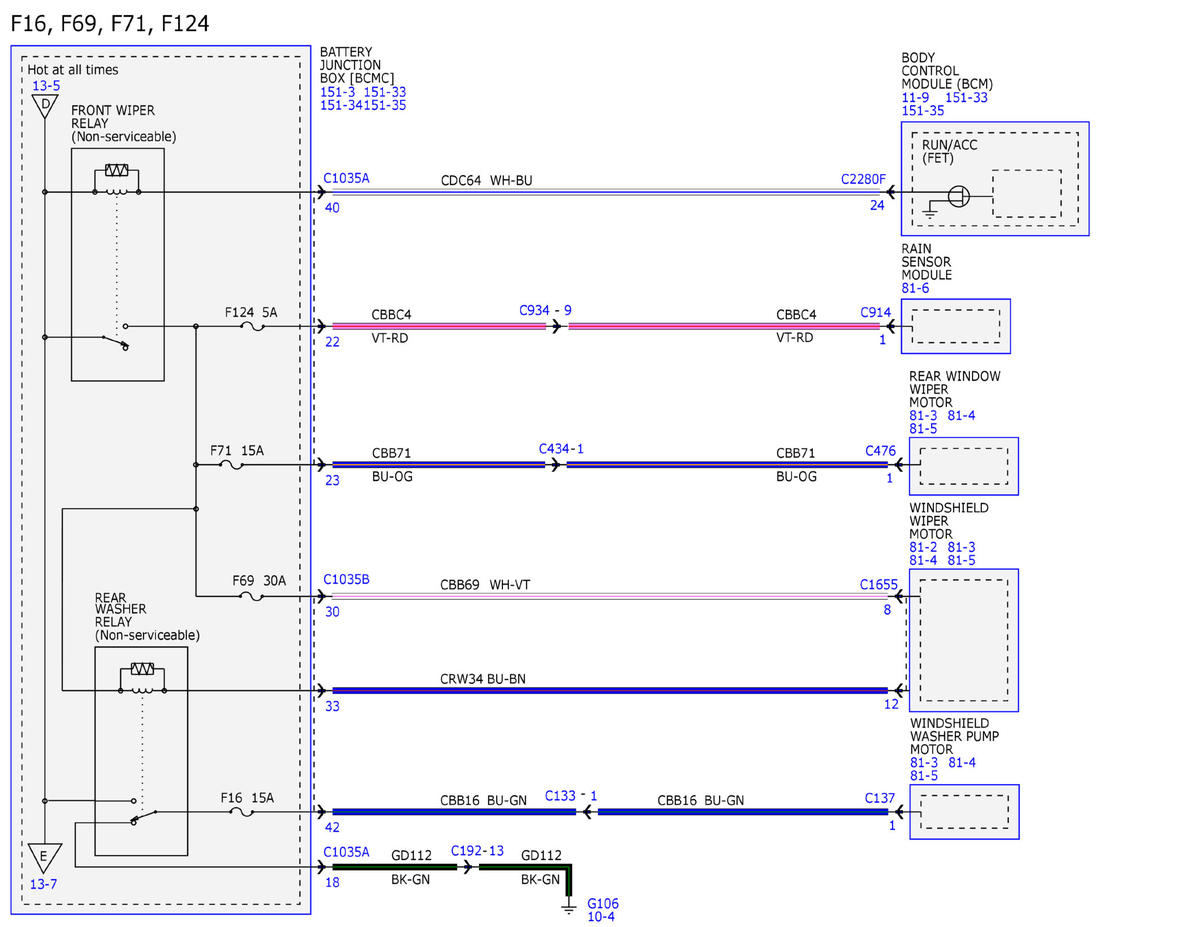

Fig 31: Power Distribution System Wiring Diagrams (31 Of 54)

GFDWR94627

Courtesy of FORD MOTOR COMPANY

Fig 32: Power Distribution System Wiring Diagrams (32 Of 54)

GFDWR94628

Courtesy of FORD MOTOR COMPANY

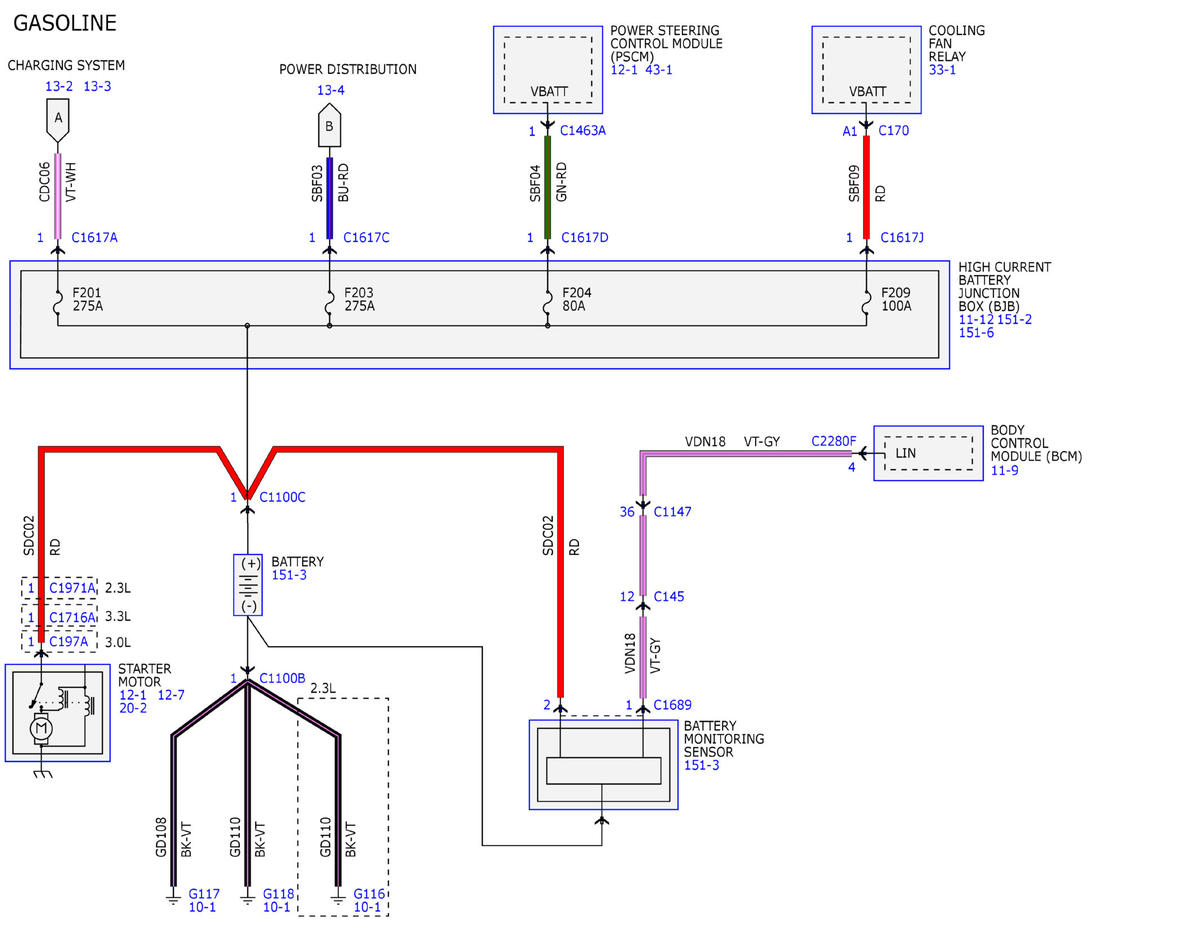

Fig 33: Power Distribution System Wiring Diagrams (33 Of 54)

GFDWR94629

Courtesy of FORD MOTOR COMPANY

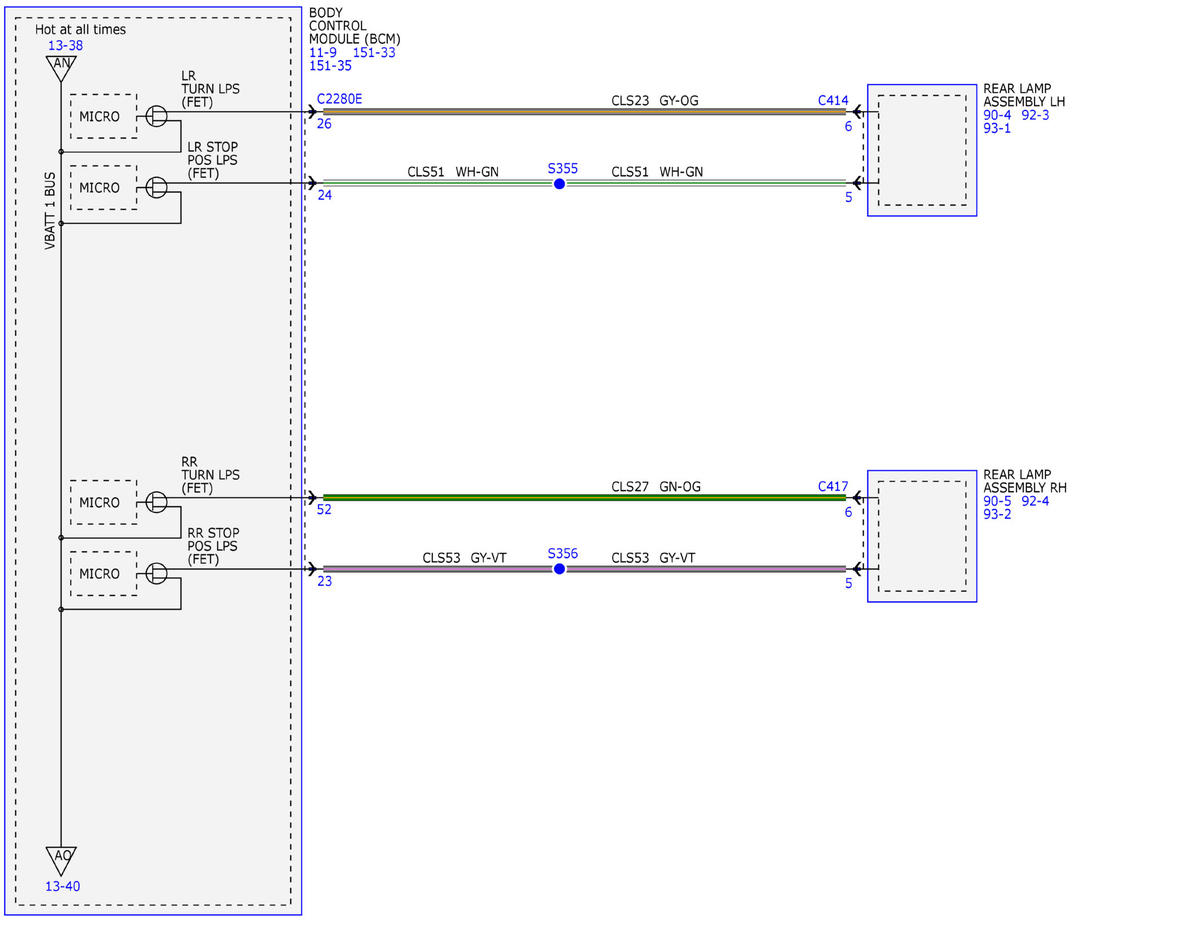

Fig 34: Power Distribution System Wiring Diagrams (34 Of 54)

GFDWR94630

Courtesy of FORD MOTOR COMPANY

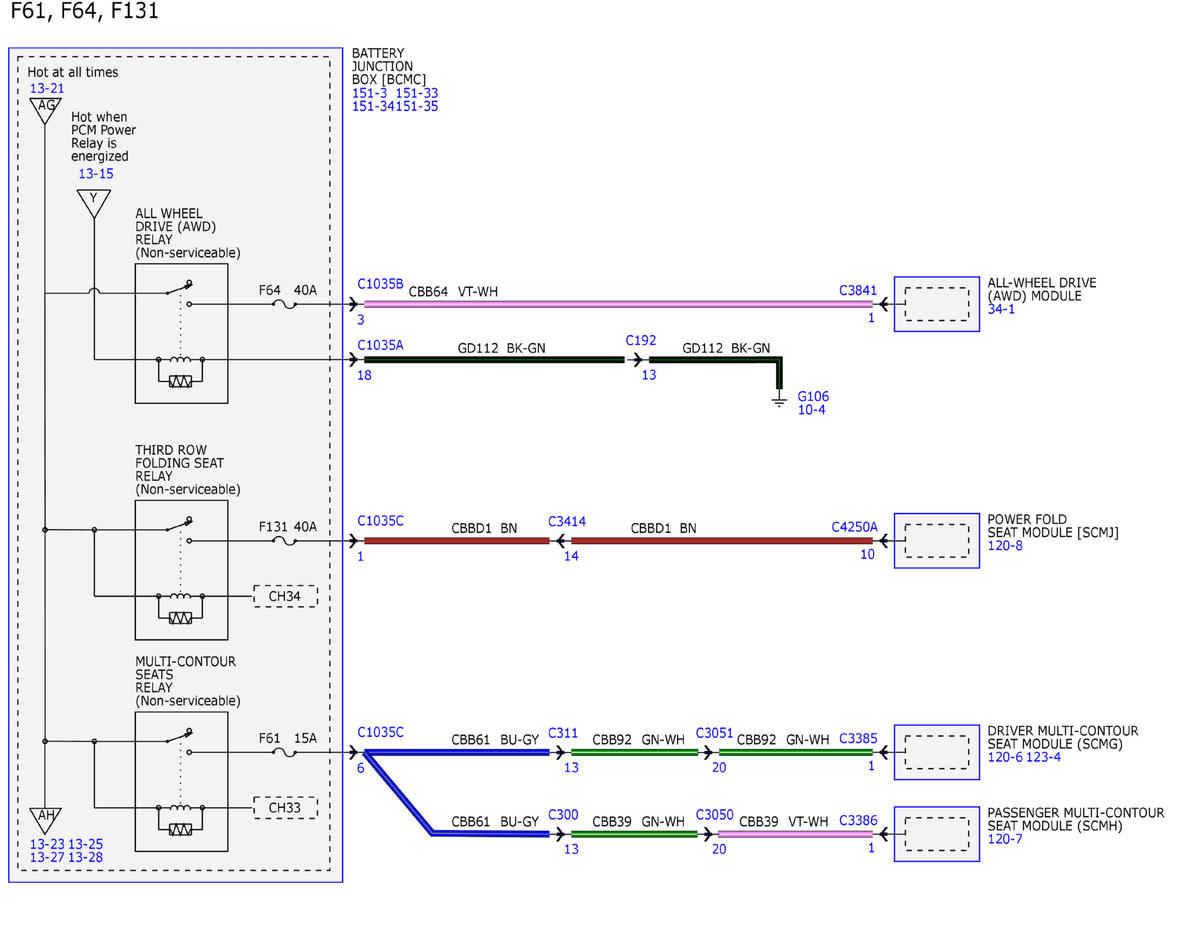

Fig 35: Power Distribution System Wiring Diagrams (35 Of 54)

GFDWR94631

Courtesy of FORD MOTOR COMPANY

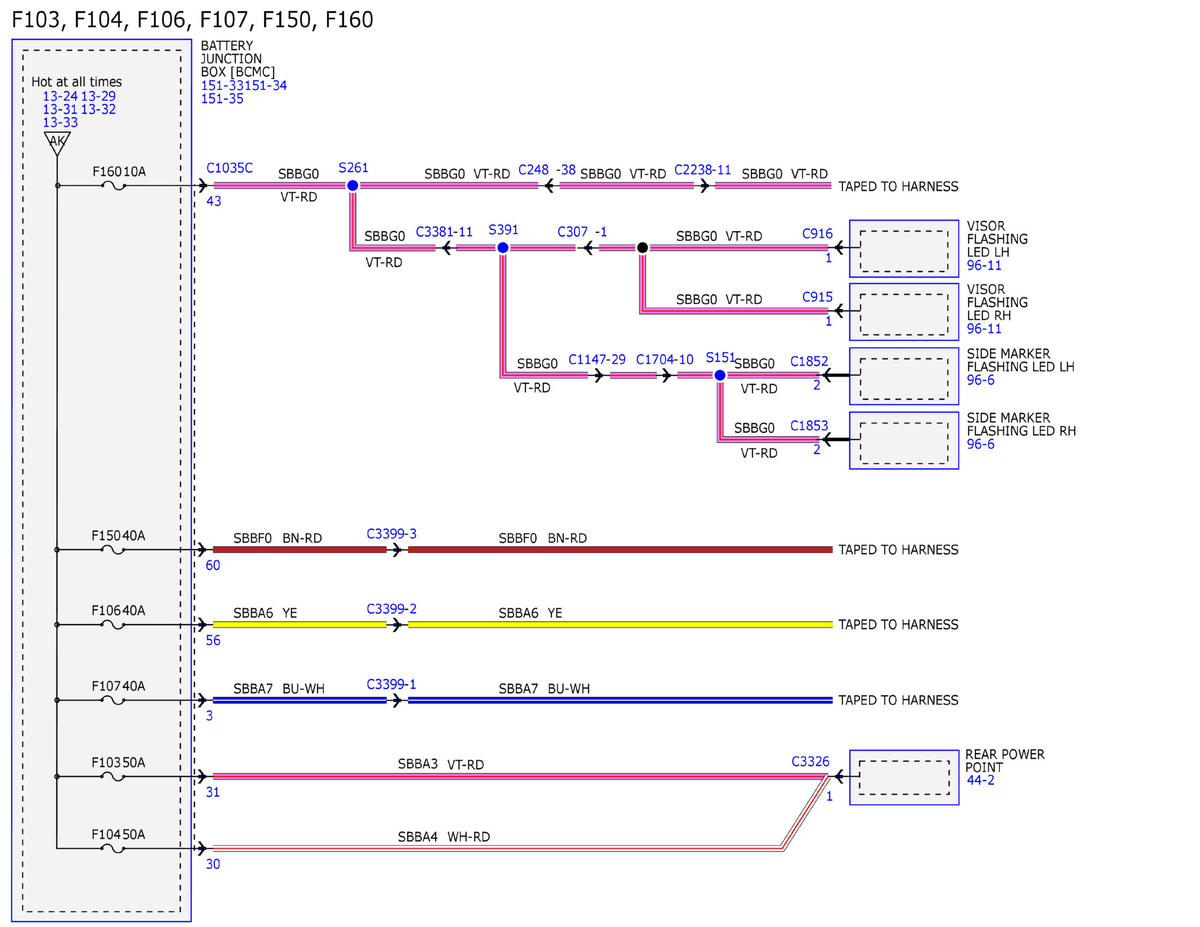

Fig 36: Power Distribution System Wiring Diagrams (36 Of 54)

GFDWR94632

Courtesy of FORD MOTOR COMPANY

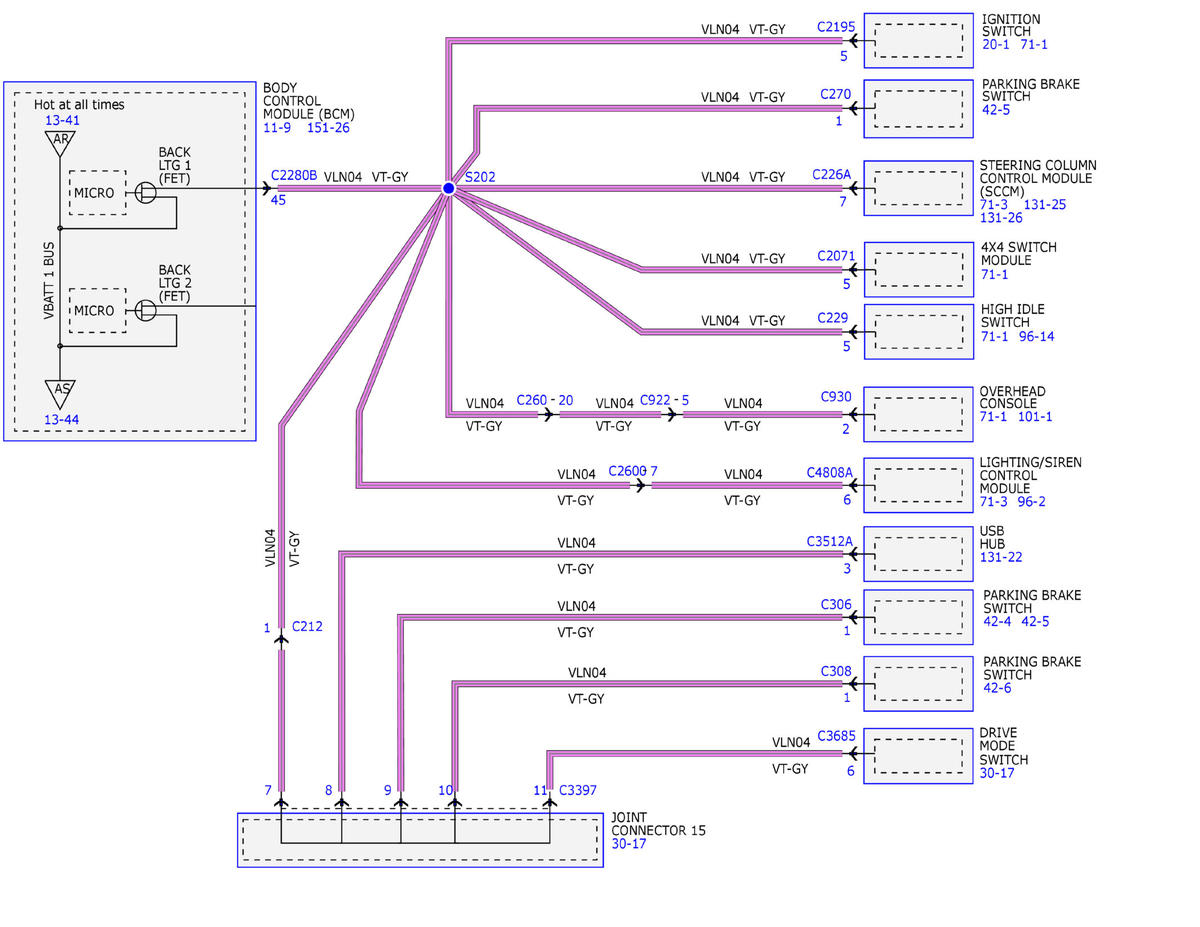

Fig 37: Power Distribution System Wiring Diagrams (37 Of 54)

GFDWR94633

Courtesy of FORD MOTOR COMPANY

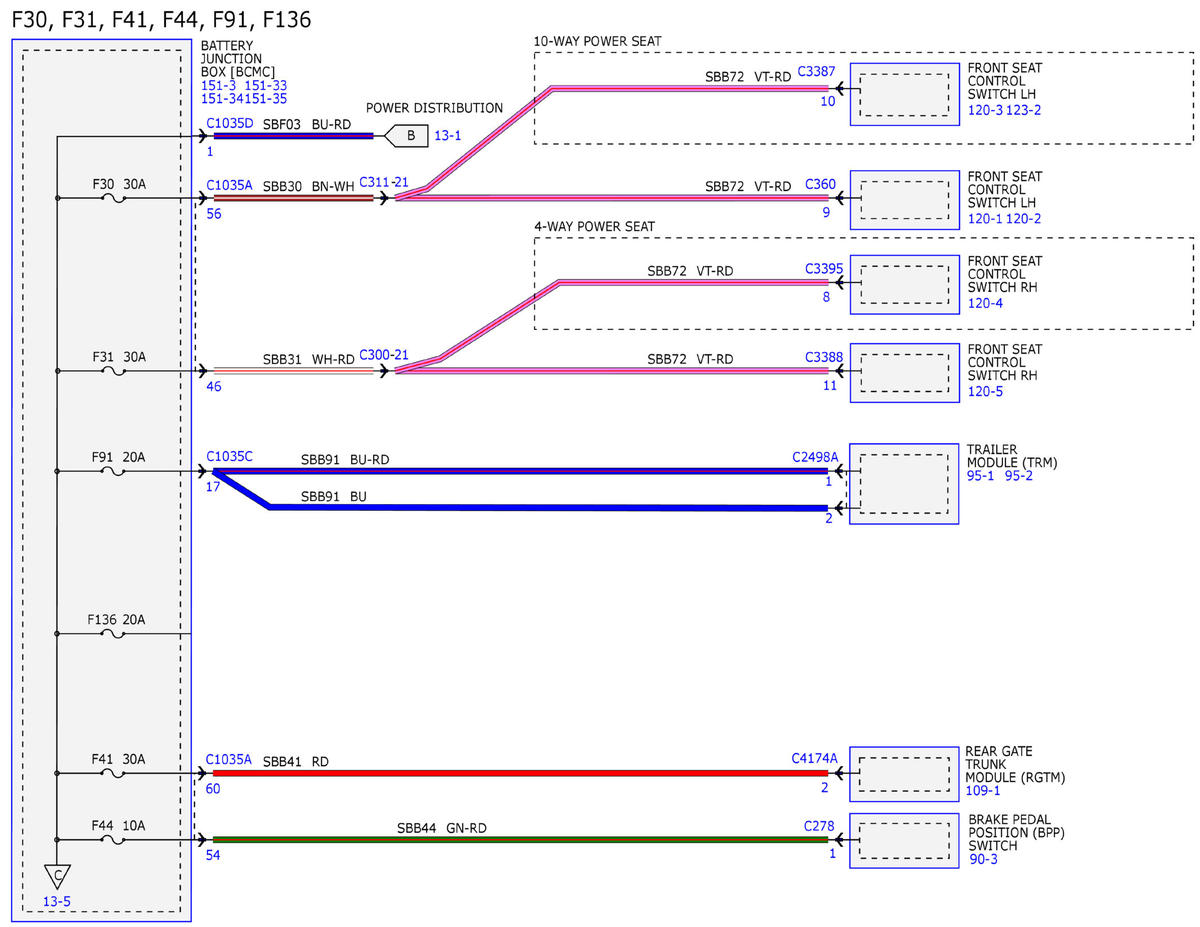

Fig 38: Power Distribution System Wiring Diagrams (38 Of 54)

GFDWR94634

Courtesy of FORD MOTOR COMPANY

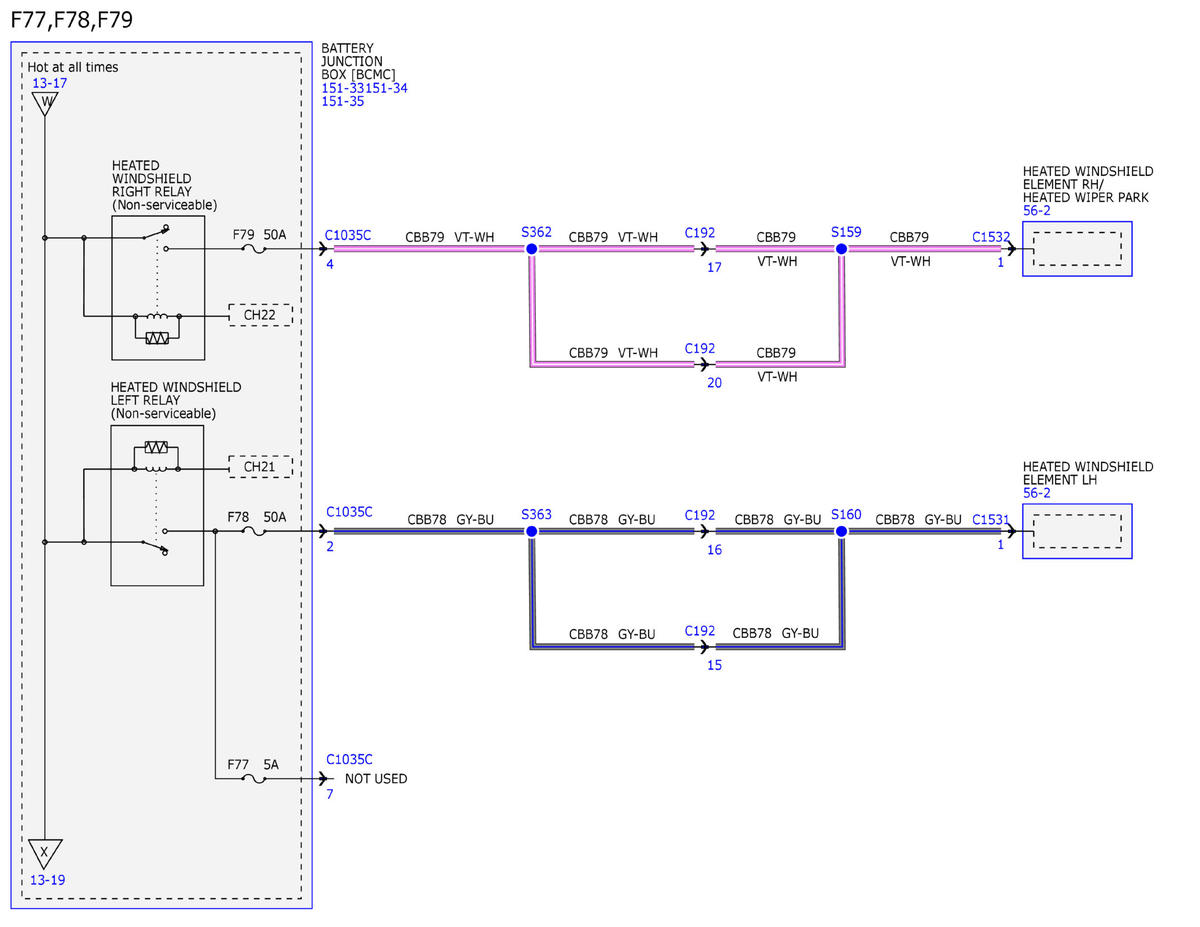

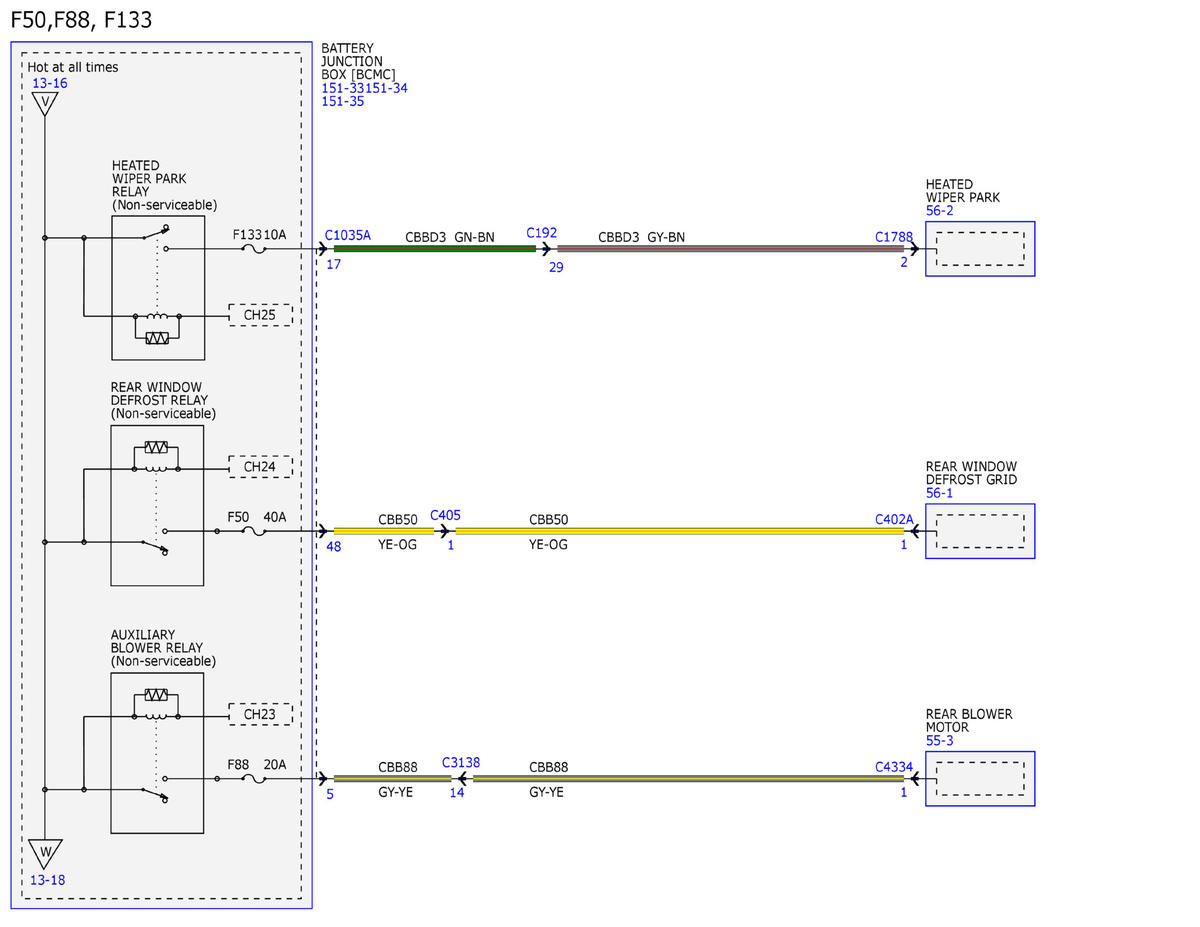

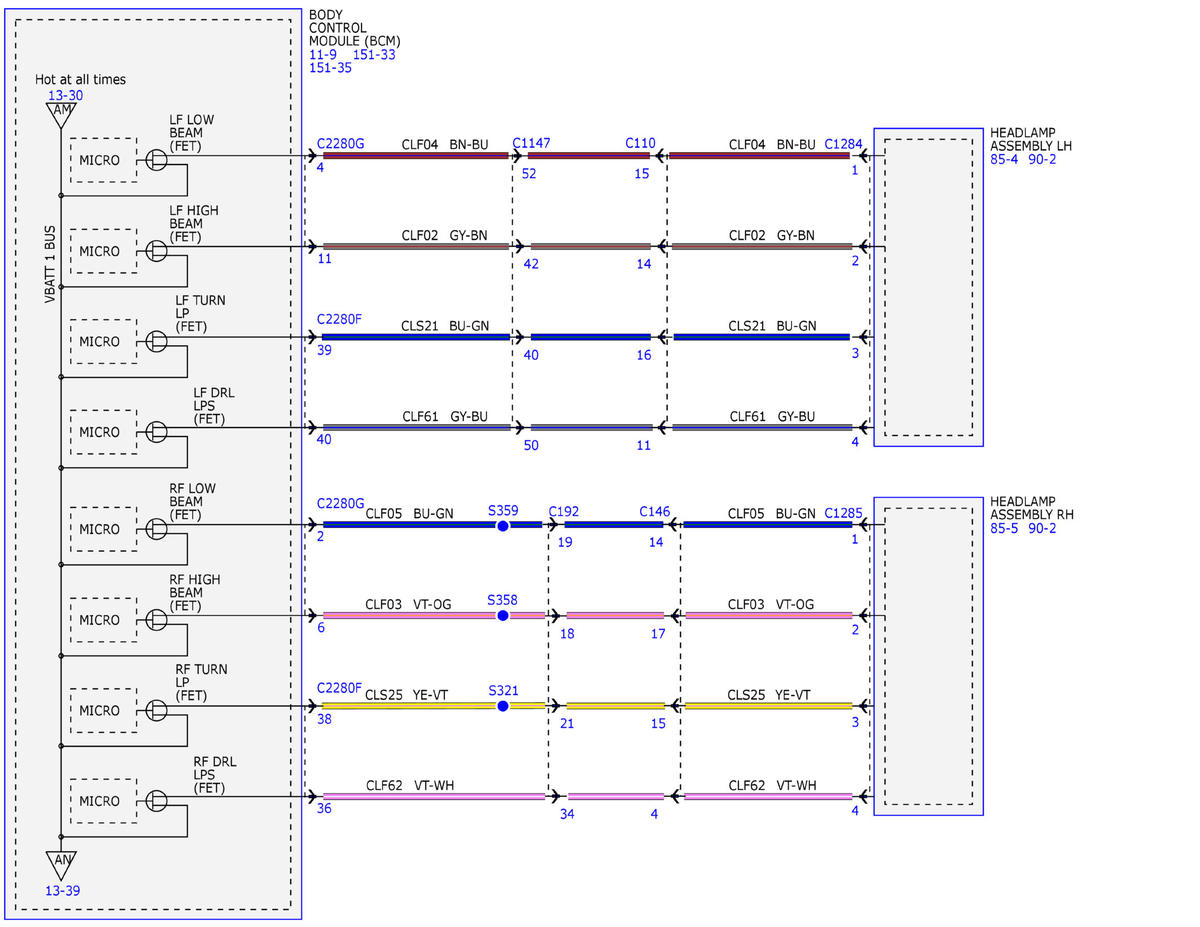

Fig 39: Power Distribution System Wiring Diagrams (39 Of 54)

GFDWR94635

Courtesy of FORD MOTOR COMPANY

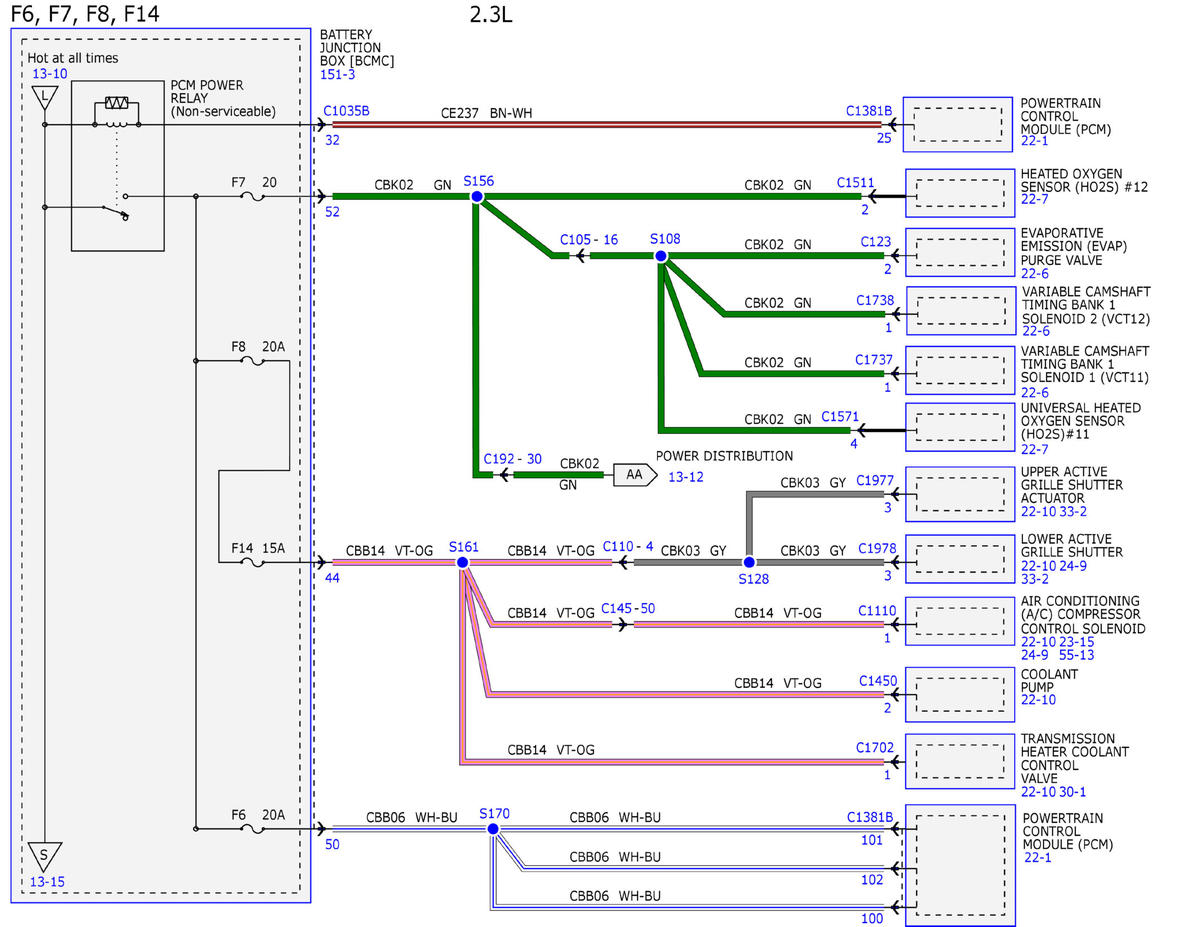

Fig 40: Power Distribution System Wiring Diagrams (40 Of 54)

GFDWR94636

Courtesy of FORD MOTOR COMPANY

Fig 41: Power Distribution System Wiring Diagrams (41 Of 54)

GFDWR94637

Courtesy of FORD MOTOR COMPANY

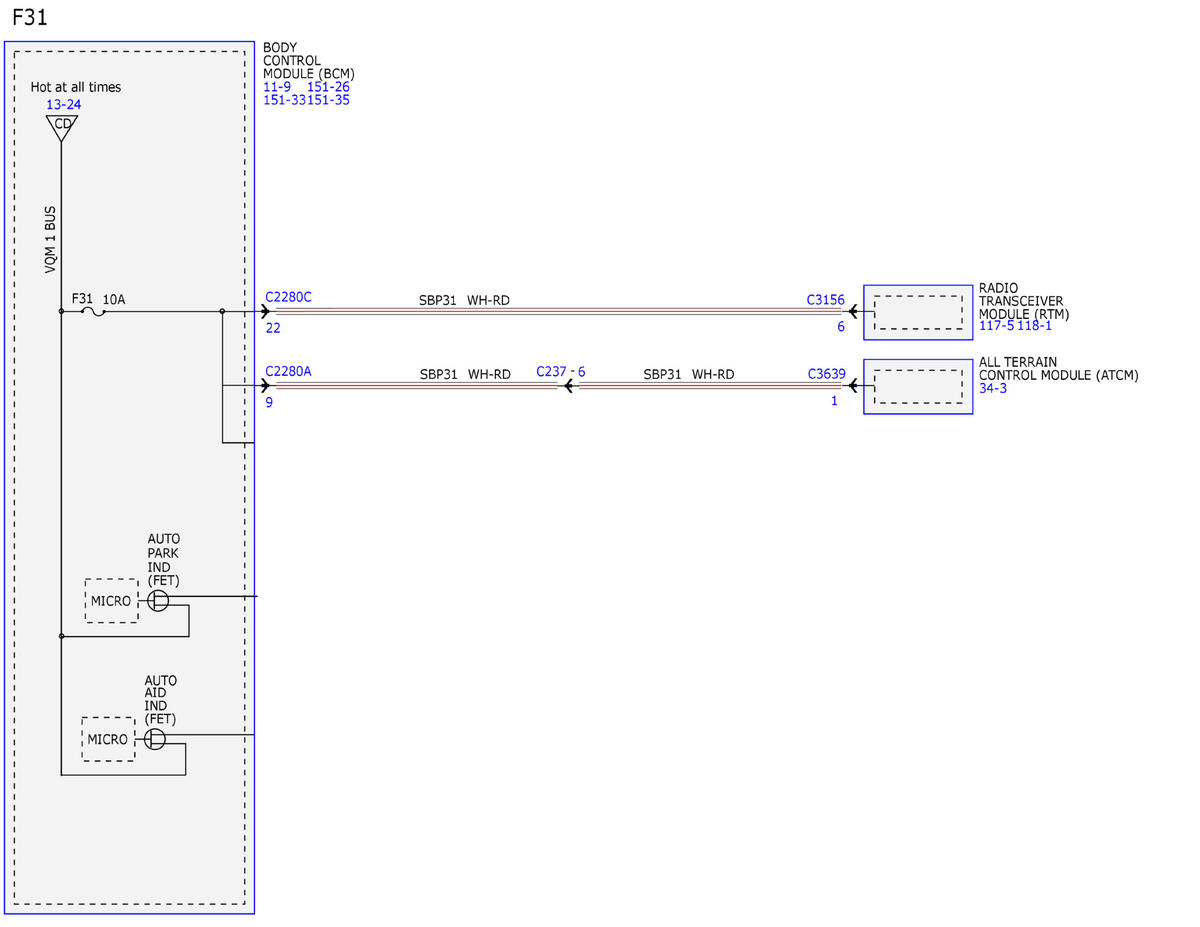

Fig 42: Power Distribution System Wiring Diagrams (42 Of 54)

GFDWR94638

Courtesy of FORD MOTOR COMPANY

Fig 43: Power Distribution System Wiring Diagrams (43 Of 54)

GFDWR94639

Courtesy of FORD MOTOR COMPANY

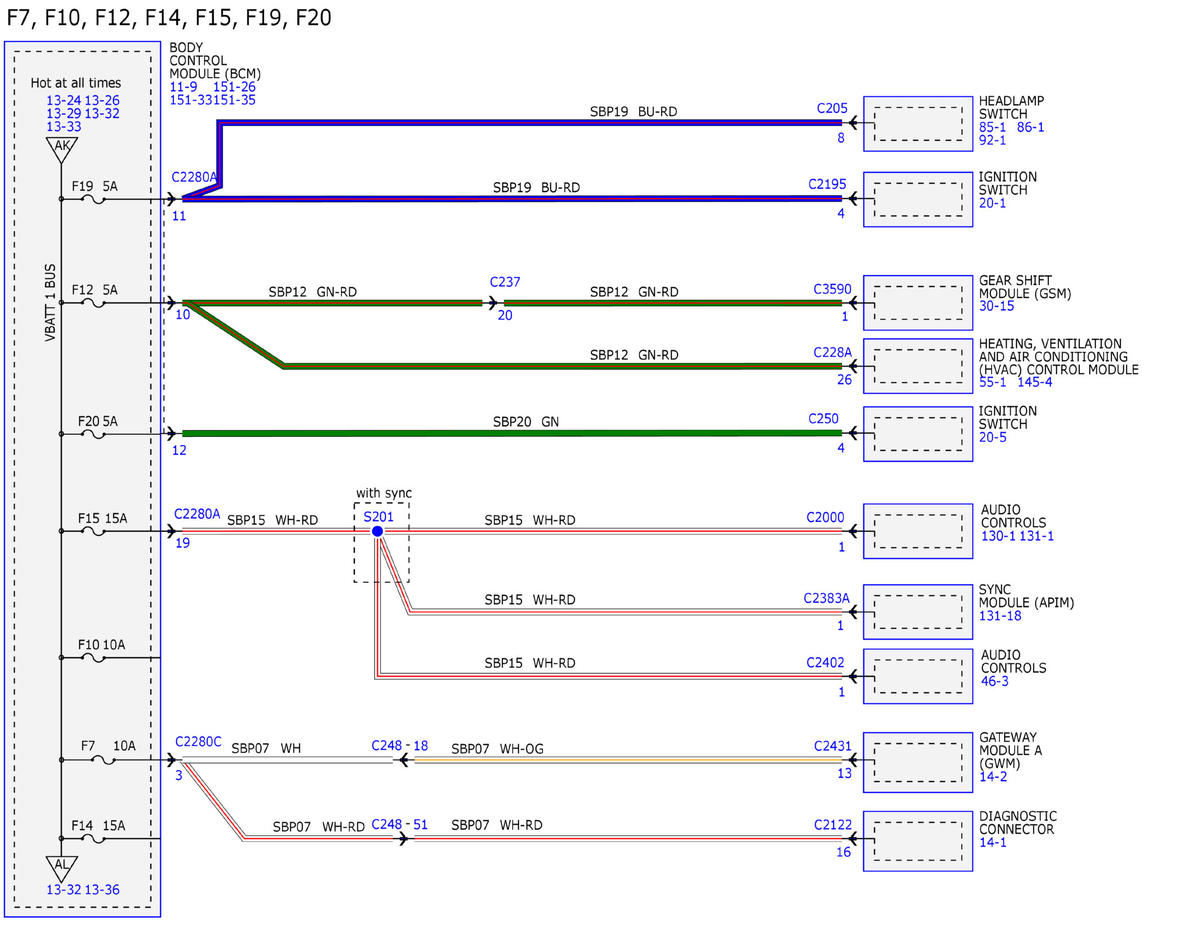

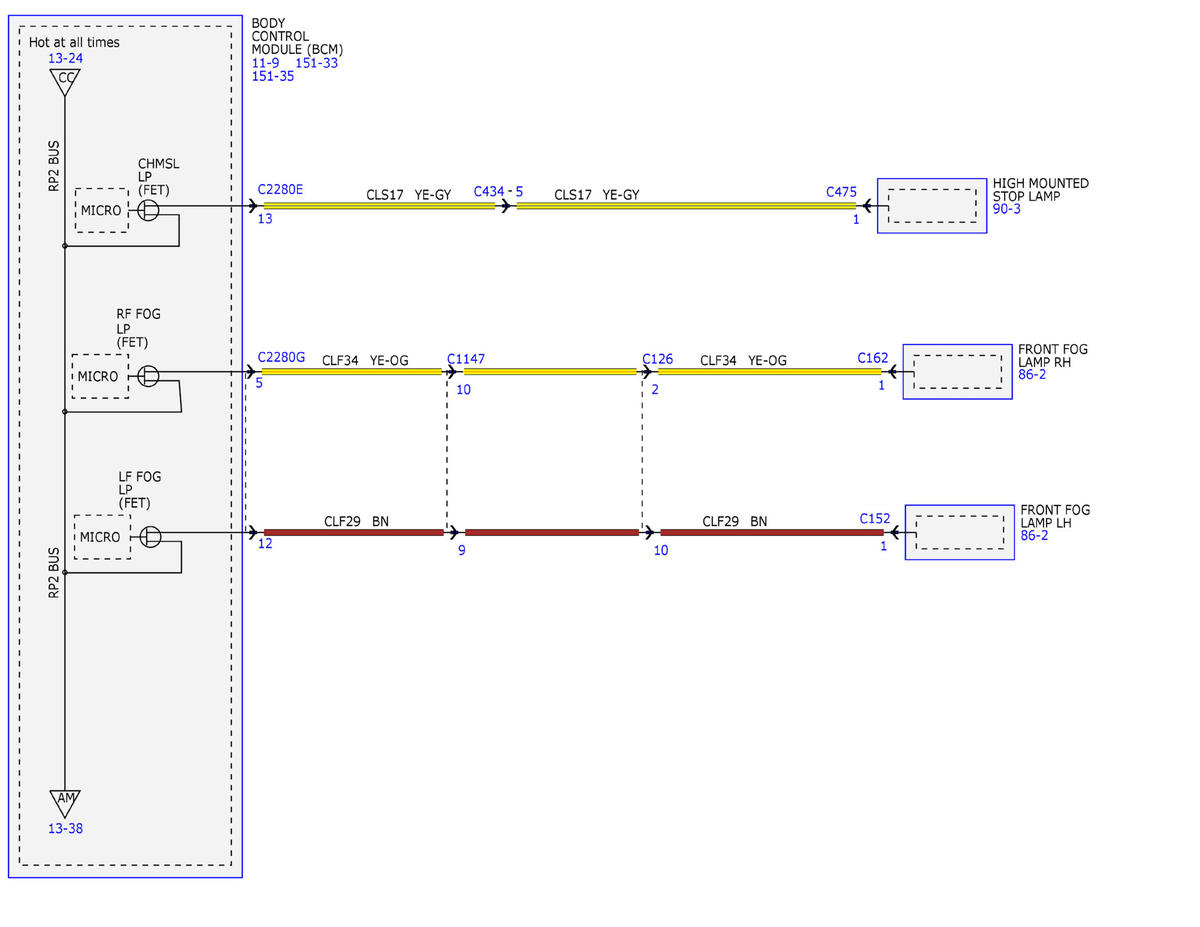

Fig 44: Power Distribution System Wiring Diagrams (44 Of 54)

GFDWR94640

Courtesy of FORD MOTOR COMPANY

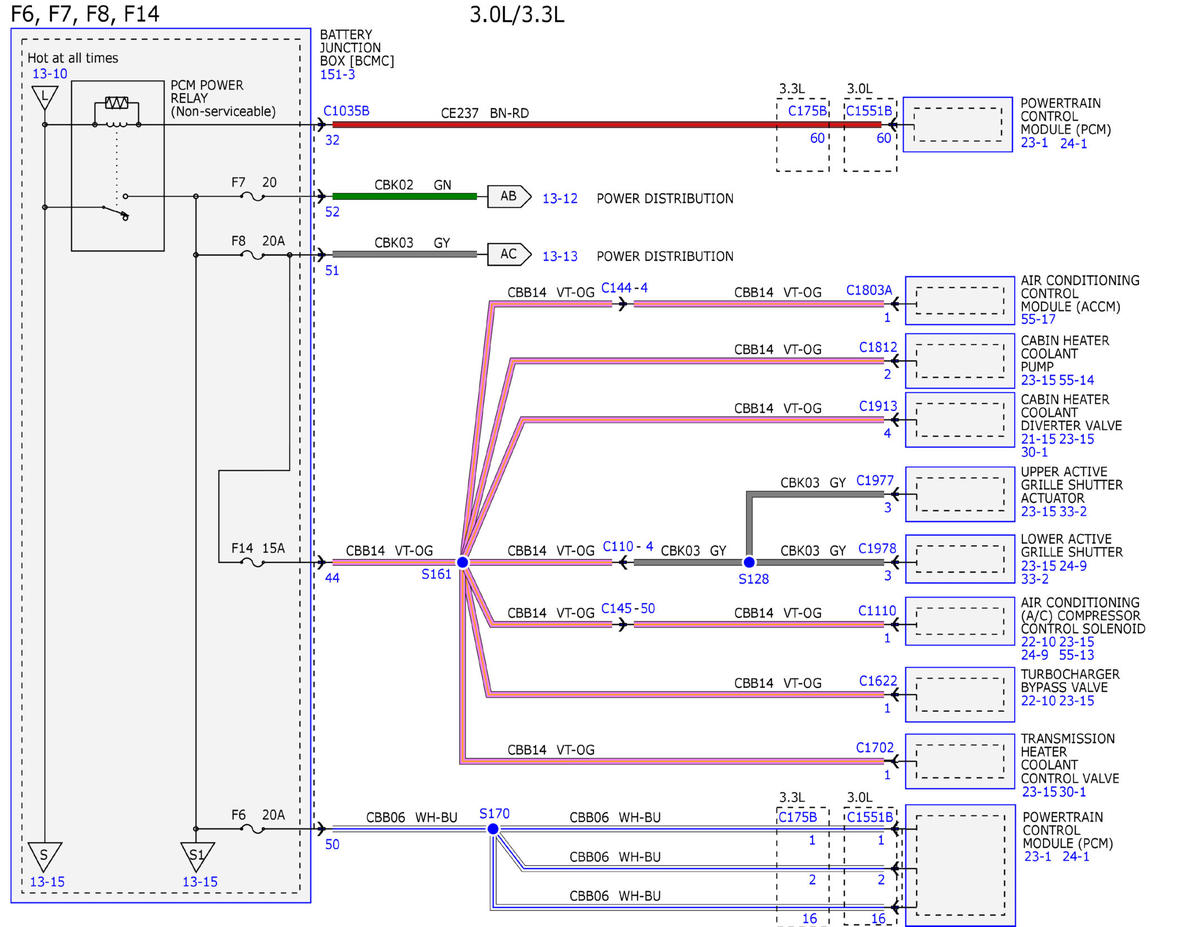

Fig 45: Power Distribution System Wiring Diagrams (45 Of 54)

GFDWR94641

Courtesy of FORD MOTOR COMPANY

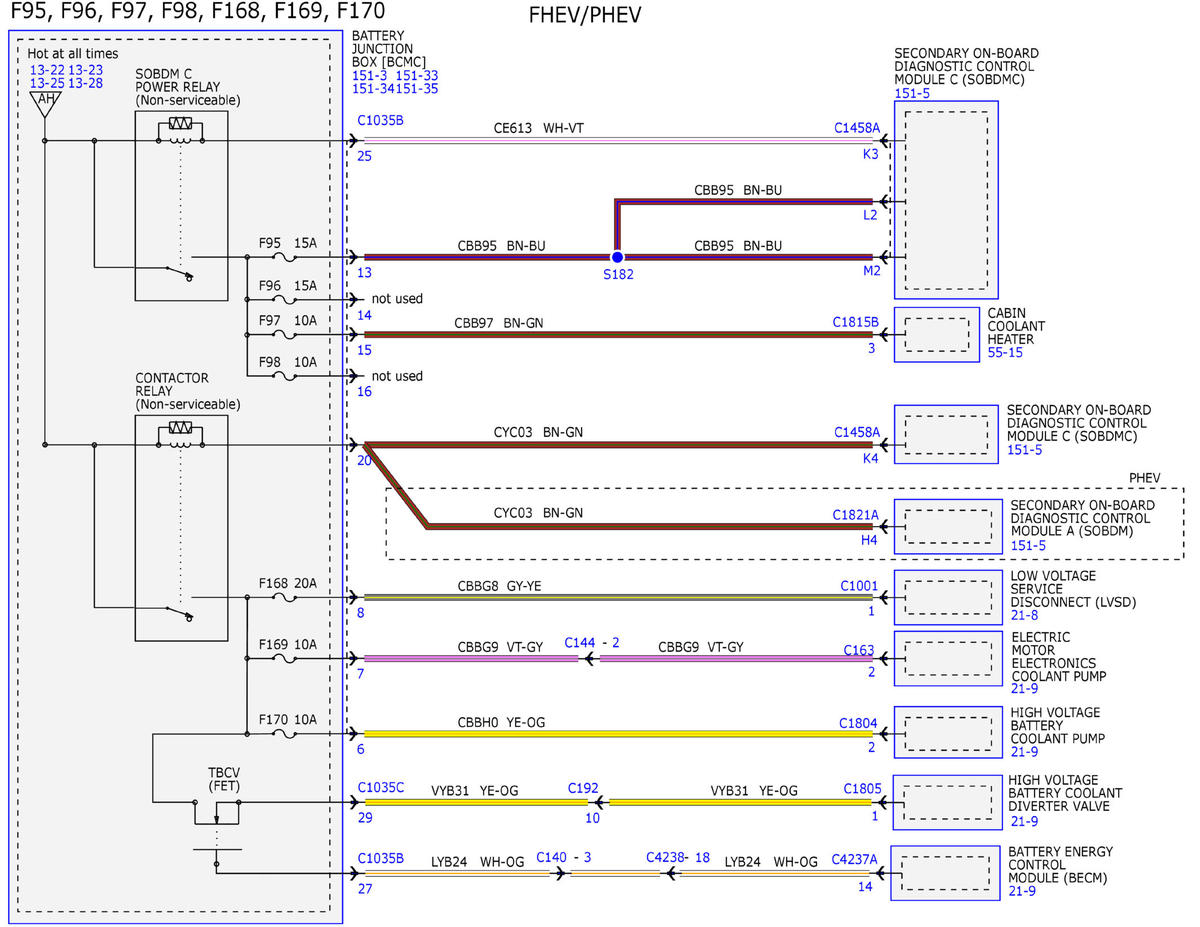

Fig 46: Power Distribution System Wiring Diagrams (46 Of 54)

GFDWR94642

Courtesy of FORD MOTOR COMPANY

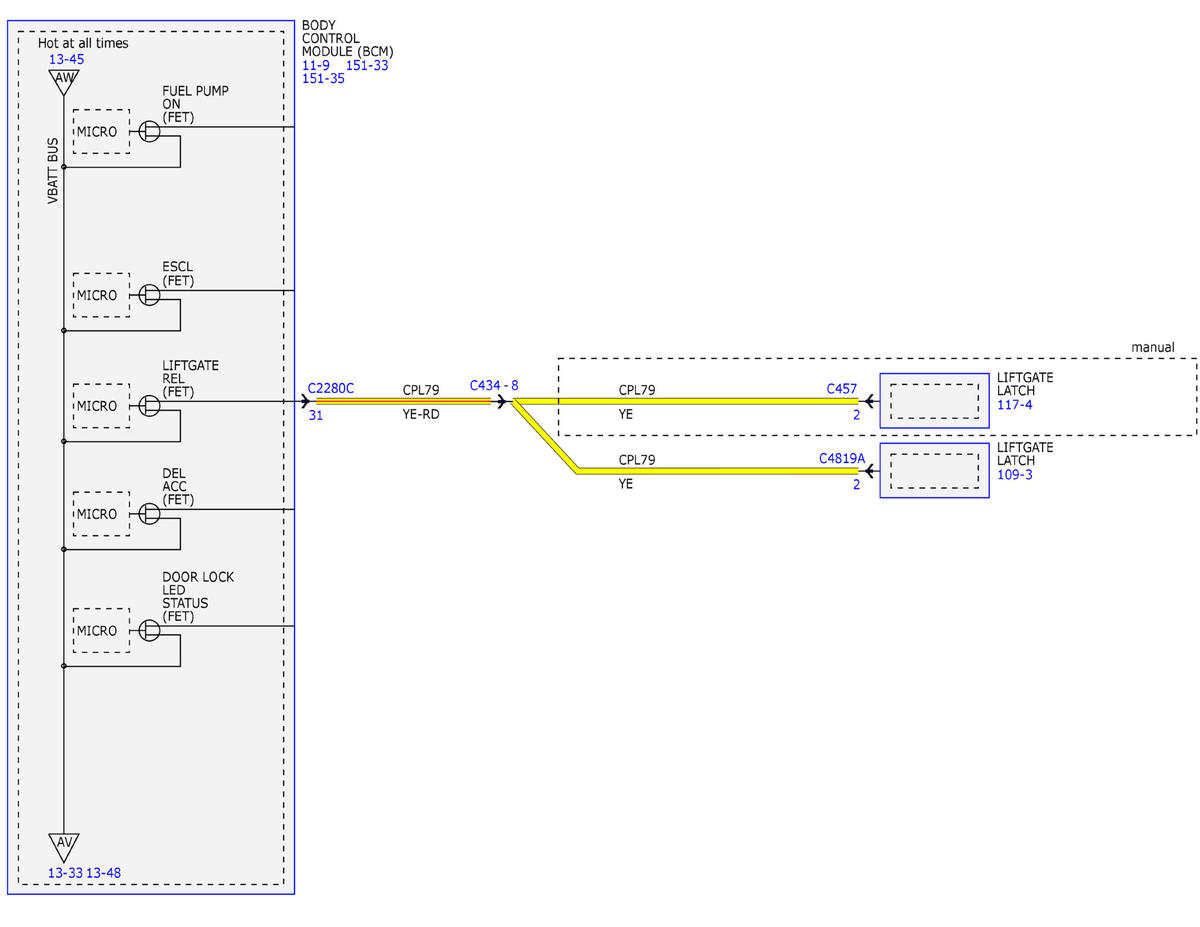

Fig 47: Power Distribution System Wiring Diagrams (47 Of 54)

GFDWR94643

Courtesy of FORD MOTOR COMPANY

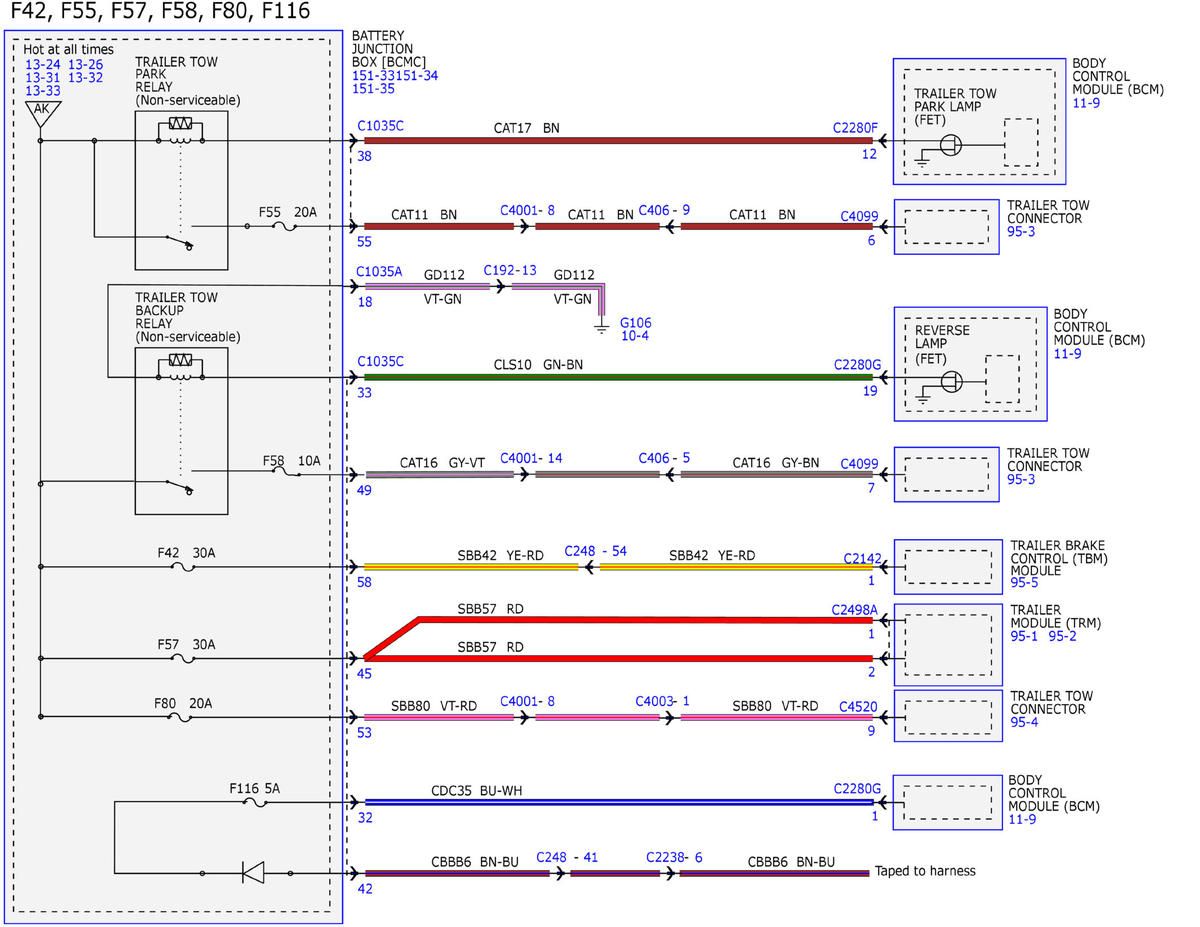

Fig 48: Power Distribution System Wiring Diagrams (48 Of 54)

GFDWR94644

Courtesy of FORD MOTOR COMPANY

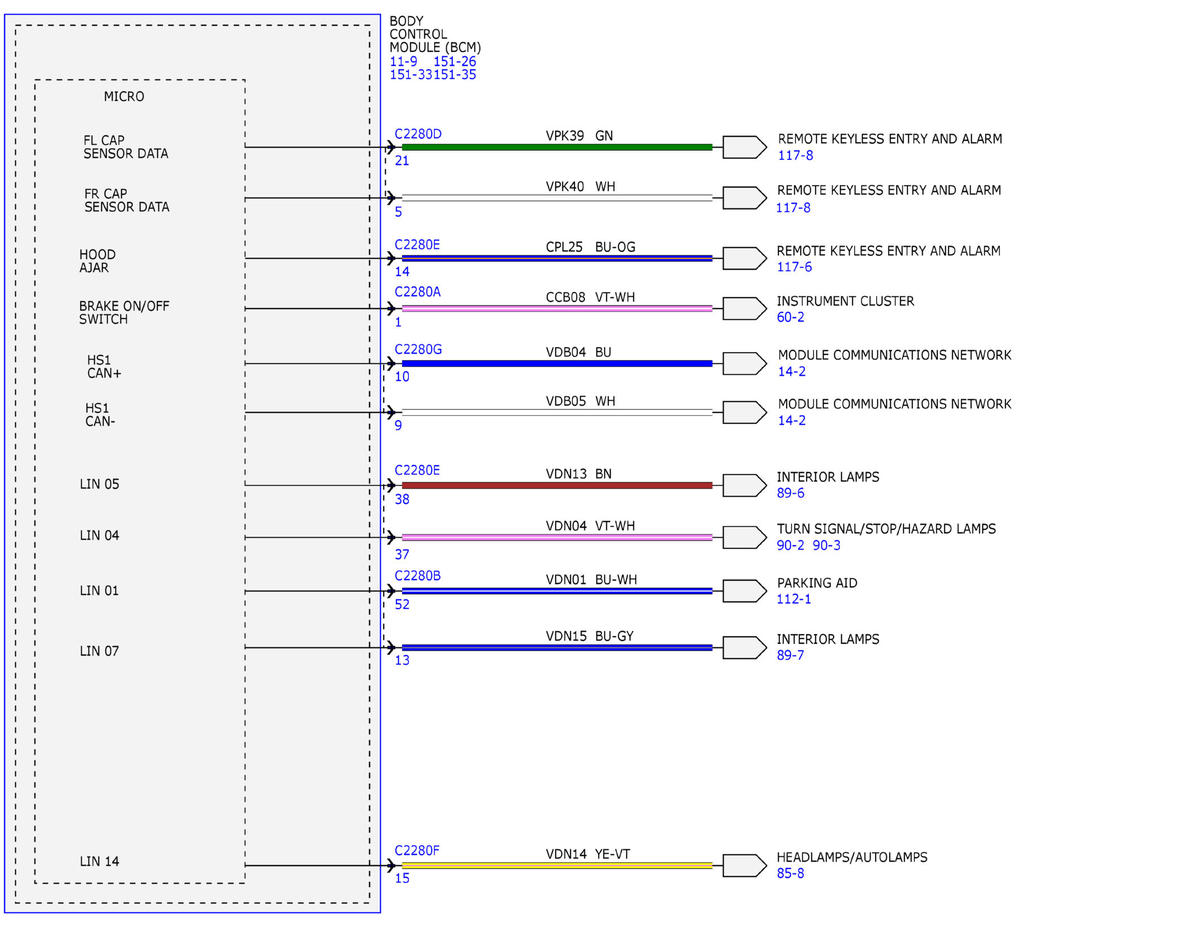

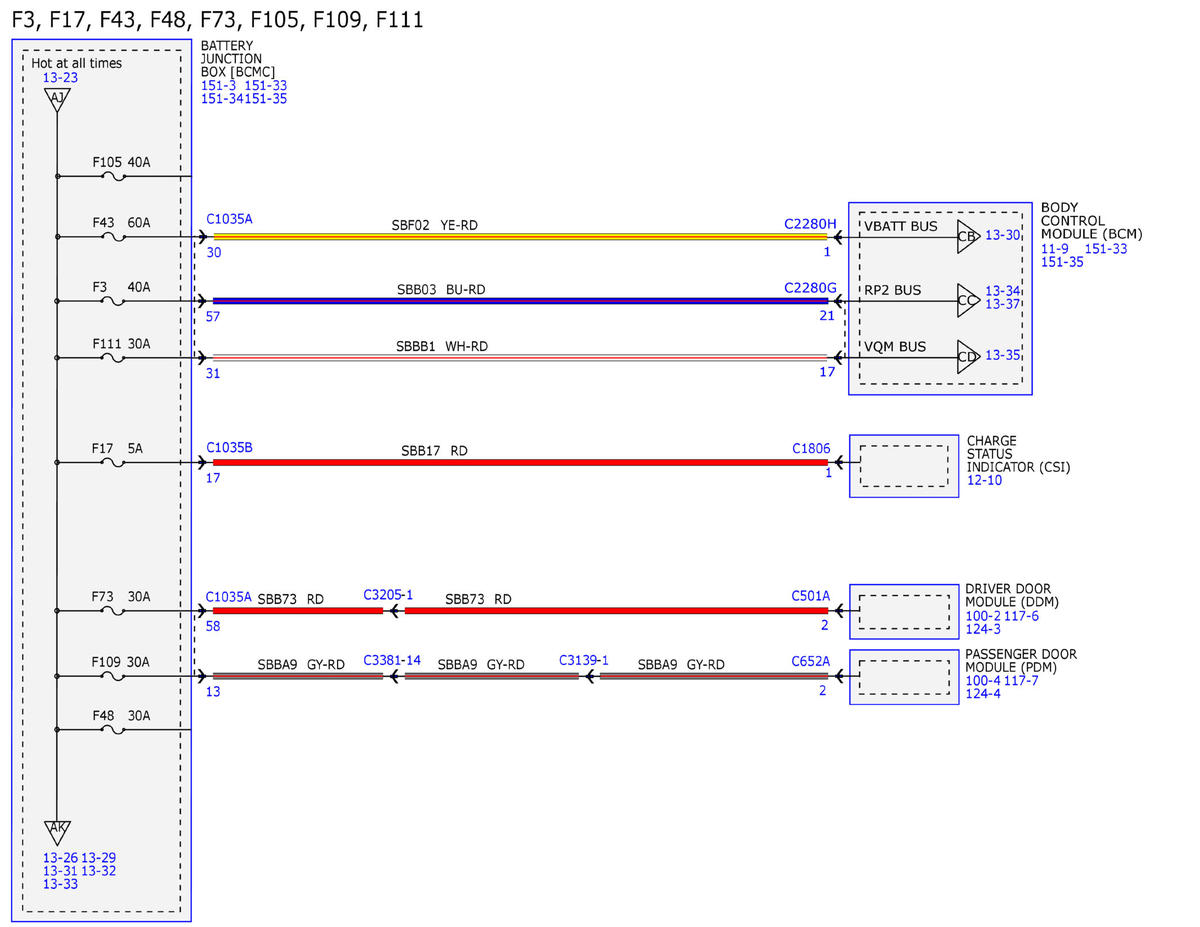

Fig 49: Power Distribution System Wiring Diagrams (49 Of 54)

GFDWR94645

Courtesy of FORD MOTOR COMPANY

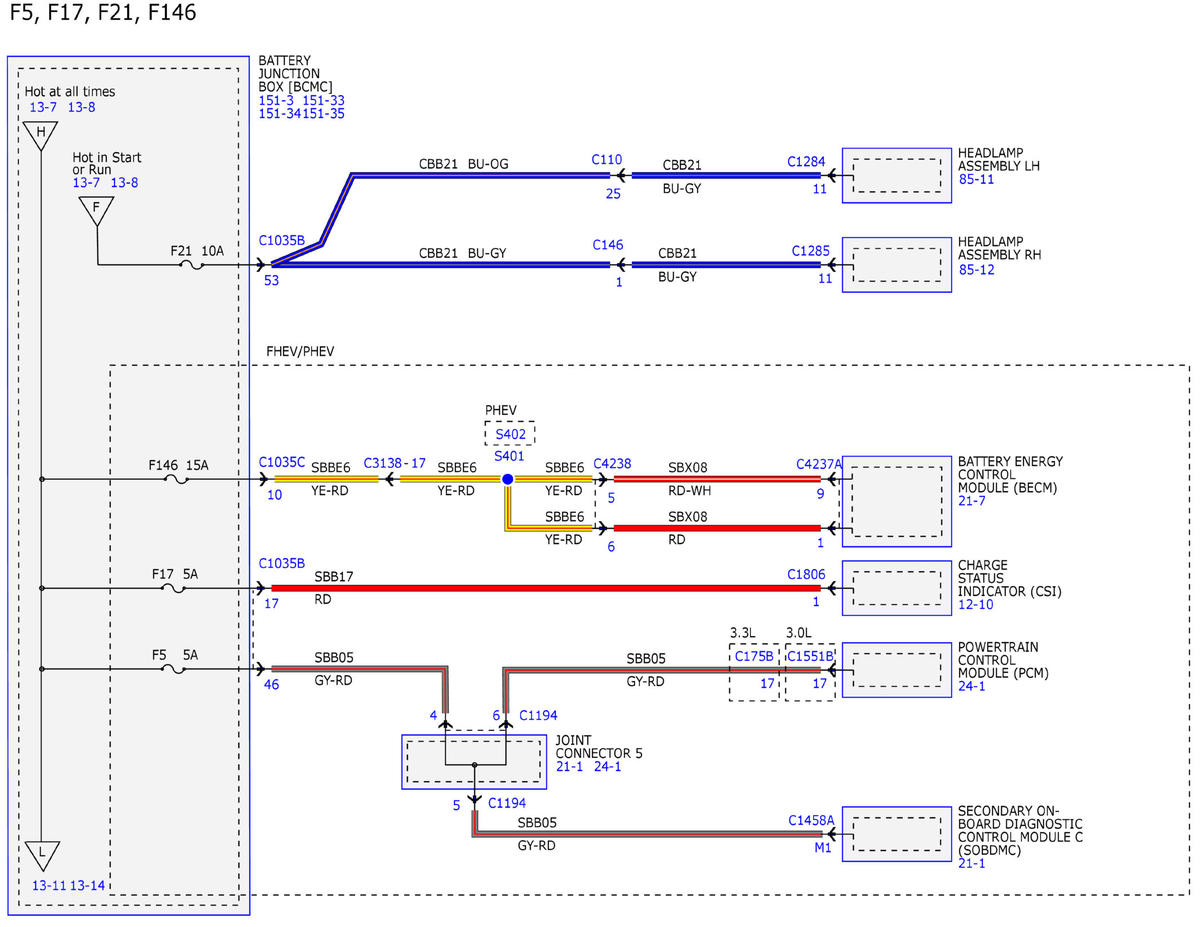

Fig 50: Power Distribution System Wiring Diagrams (50 Of 54)

GFDWR94646

Courtesy of FORD MOTOR COMPANY

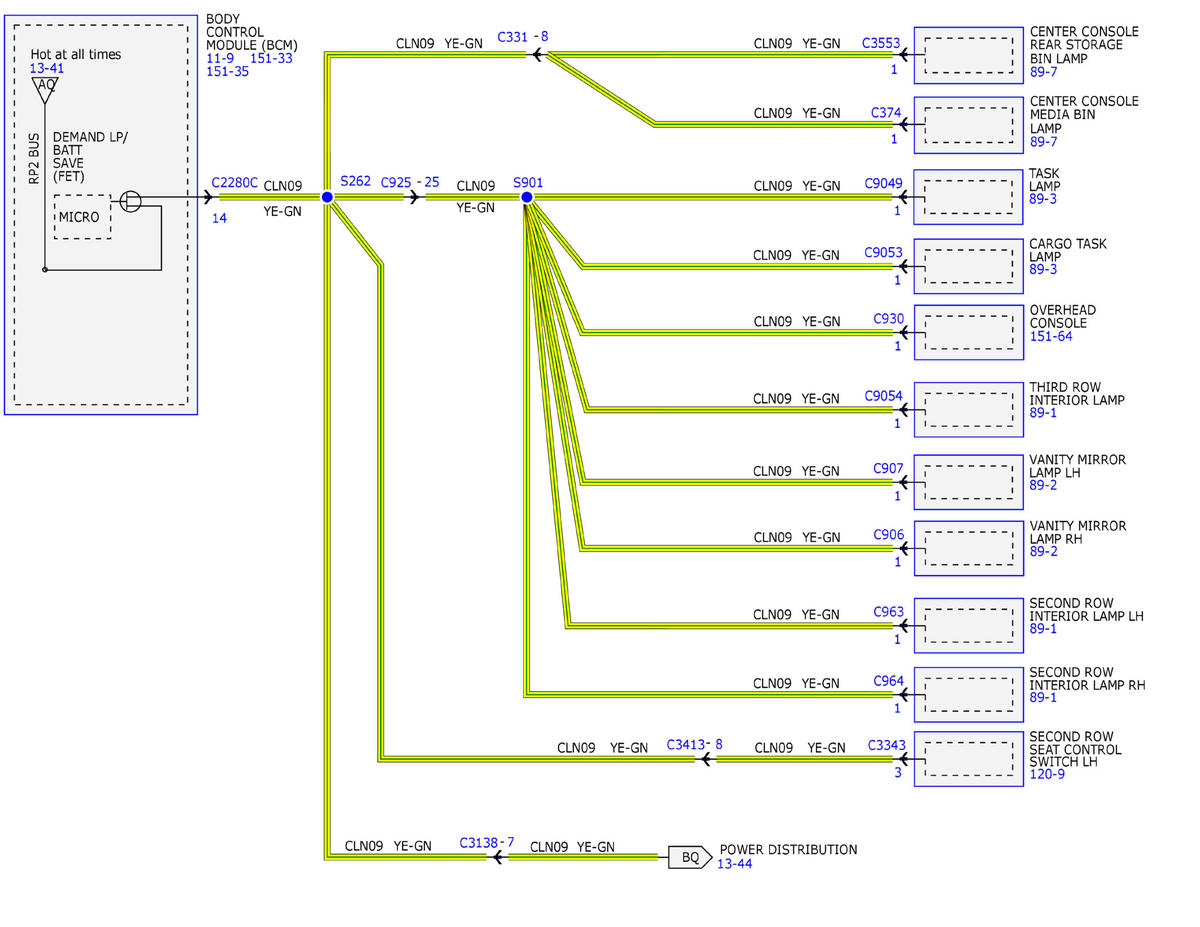

Fig 51: Power Distribution System Wiring Diagrams (51 Of 54)

GFDWR94647

Courtesy of FORD MOTOR COMPANY

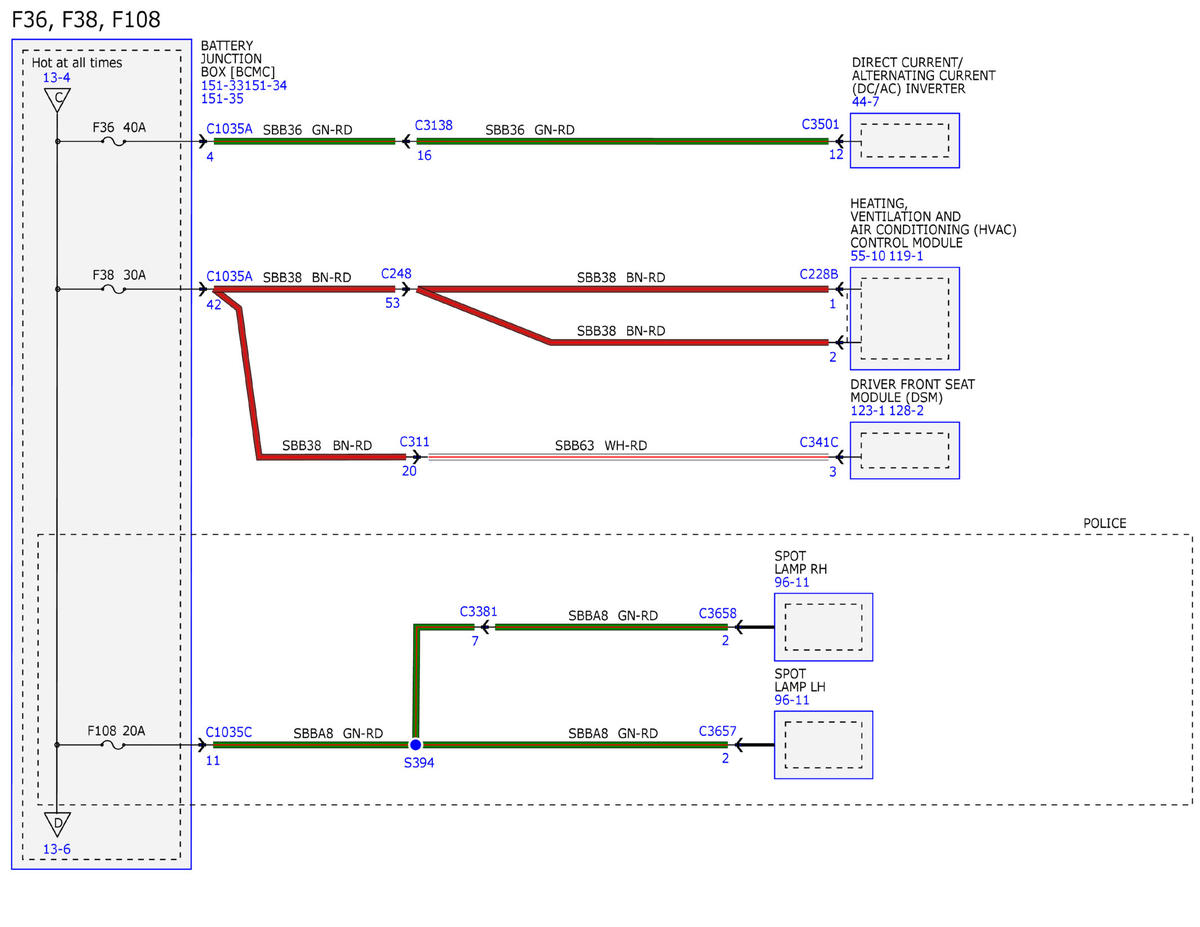

Fig 52: Power Distribution System Wiring Diagrams (52 Of 54)

GFDWR94648

Courtesy of FORD MOTOR COMPANY

Fig 53: Power Distribution System Wiring Diagrams (53 Of 54)

GFDWR94649

Courtesy of FORD MOTOR COMPANY

Fig 54: Power Distribution System Wiring Diagrams (54 Of 54)

GFDWR94650

Courtesy of FORD MOTOR COMPANY
