Driveshaft Alignment Bushing: Disassembly

1. Remove the rear driveshaft. Refer to: Rear Driveshaft .
2. Remove the driveshaft flexible coupling. Refer to: Driveshaft Flexible Coupling .

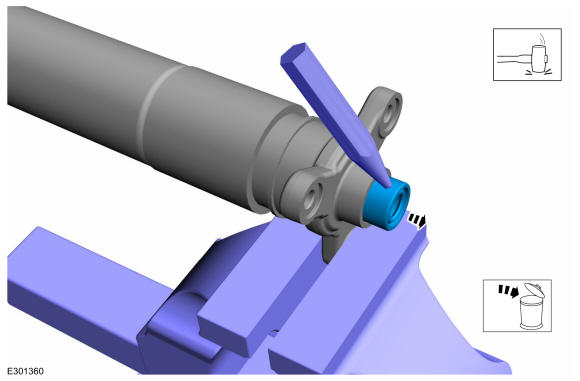

3. Using the general equipments, remove and discard the driveshaft alignment bushing. Use the General Equipment: Vise. Use the General Equipment: Copper Hammer. Use the General Equipment: Punch
