Axle Assembly: Removal

All vehicles

1. Drain the rear differential fluid. Refer to: Differential Draining and Filling .
2. Remove the rear halfshafts. Refer to: Rear Halfshaft .
3. Remove the rear driveshaft. Refer to: Rear Driveshaft .

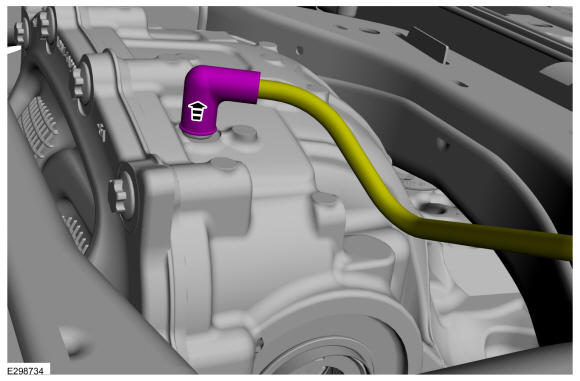

4. Disconnect and position the axle assembly vent hose aside.

   Courtesy of FORD MOTOR COMPANY

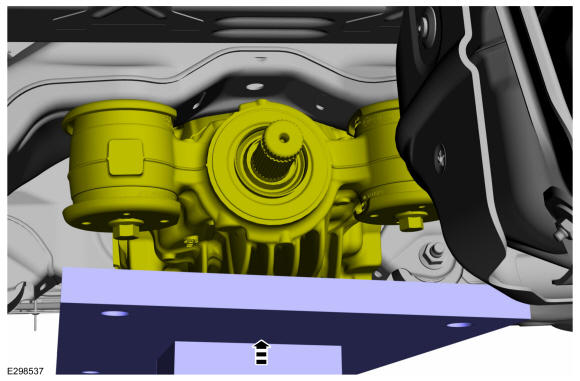

5. Using the transmission jack support the rear axle assembly. Use the General Equipment: Transmission Jack

   Courtesy of FORD MOTOR COMPANY

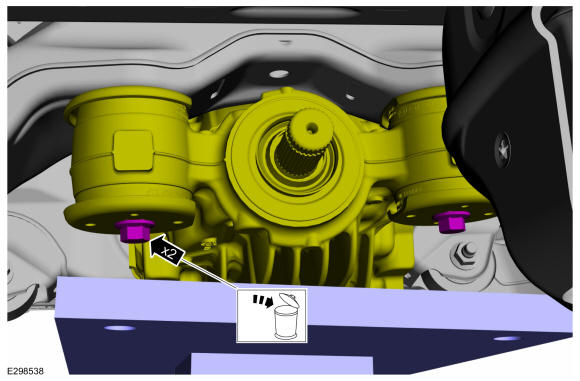

6. Remove and discard the rear axle housing support front bolts.

   Torque: 129 lb.ft (175 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles equipped with 8.1-Inch Ring Gear

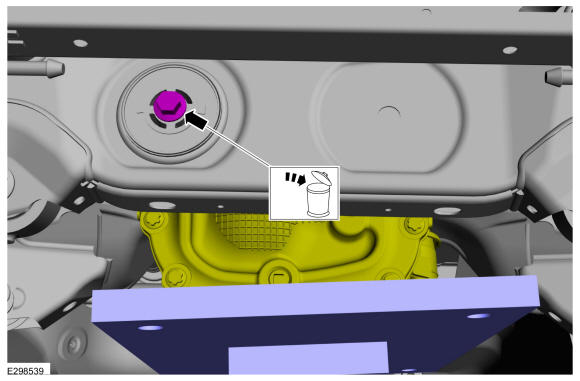

7. Remove and discard the rear axle housing support rear bolt.

   Torque: 148 lb.ft (200 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles equipped with 8.8-Inch Ring Gear

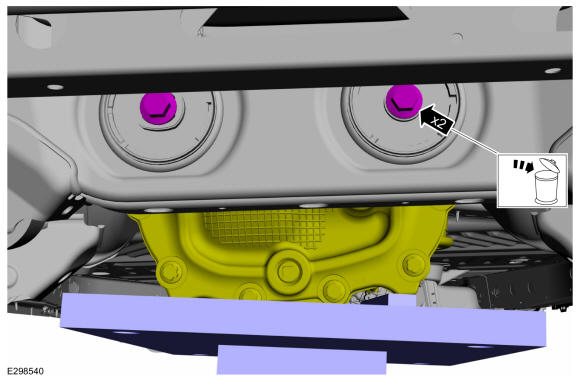

8. Remove and discard the rear axle housing support rear bolts.

   Torque: 148 lb.ft (200 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

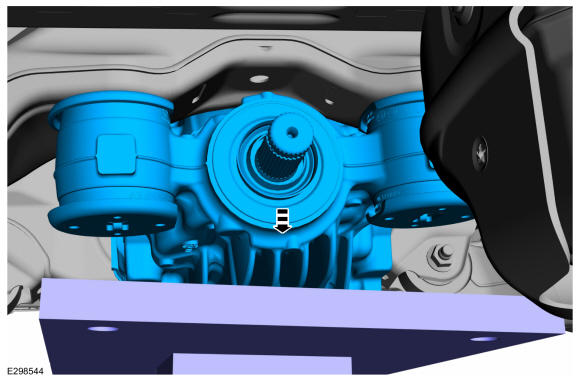

9. Gently down the transmission jack and remove the rear axle assembly. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
