Differential Carrier: Assembly

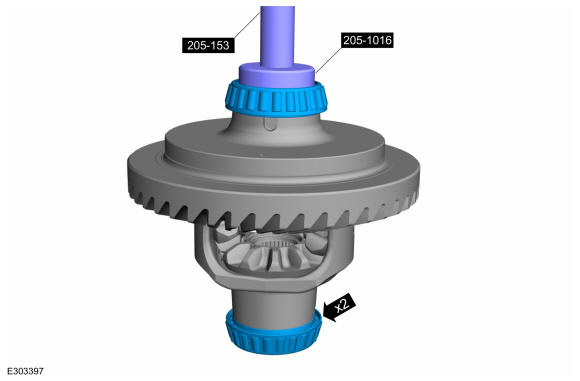

  1. Both side. Using the special tool, install the new differential bearings. Use Special Service Tool: 205-1016 Installer, Differential Bearing, 205-153 (T80T-4000-W) Handle.
    GFD510080Courtesy of FORD MOTOR COMPANY
  2. Check the differential ring gear backlash. Refer to: Ring Gear Backlash Adjustment .
  3. Install the differential carrier. Refer to: Differential Carrier .
