Roof Opening Panel Frame: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- If replacing the roof opening panel frame, remove the air deflector. Refer to: Air Deflector .
- Remove the roof opening glass. Refer to: Roof Opening Panel Glass .
- Remove the headliner. Refer to: Headliner .

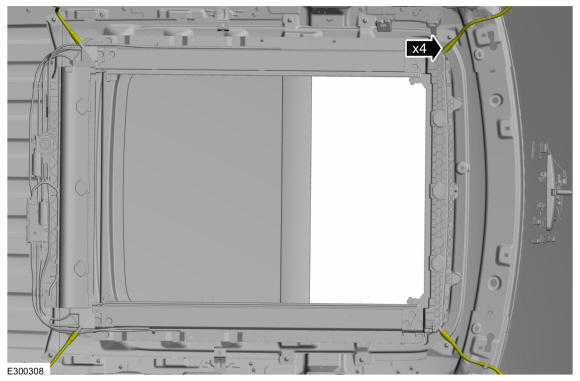

- Disconnect the drain hoses.

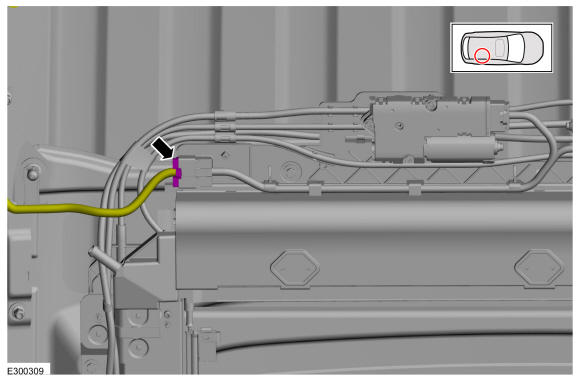

- Disconnect the electrical connector.

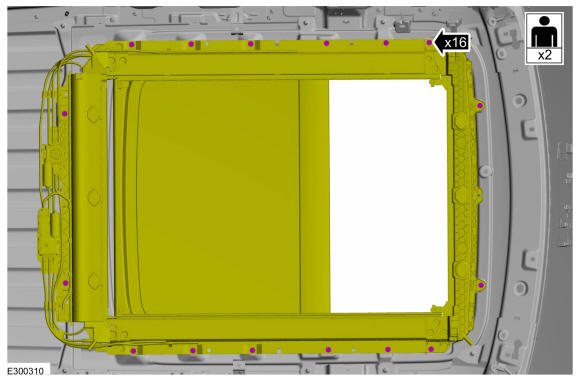

- With the help of assistant. Remove the bolts and lower the roof opening panel frame.
Torque: 97 lb.in (11 Nm)

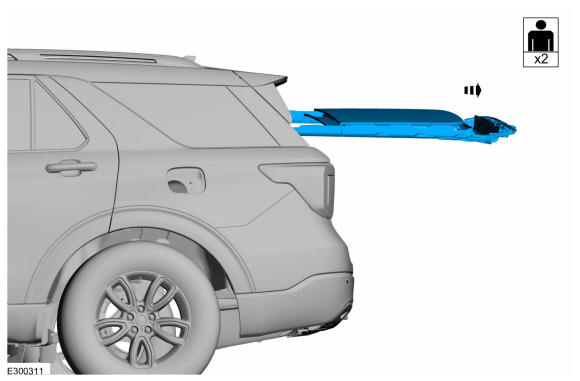

- With the help of assistant. Remove the roof opening panel frame out the rear of the vehicle.
