Rear Door Alignment
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Inspection
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.

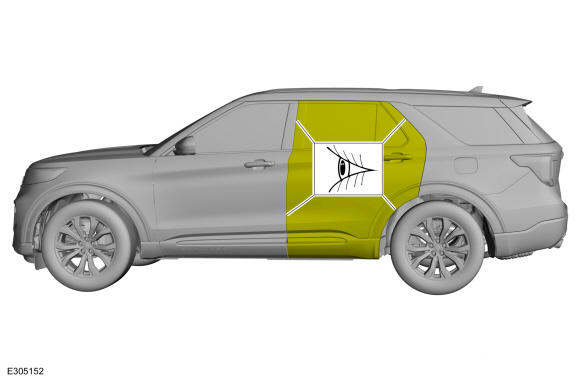

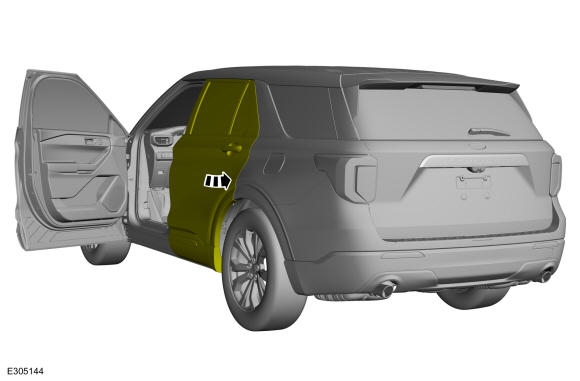

- Inspect the rear door-to-body dimensions.
Adjustment
All alignments

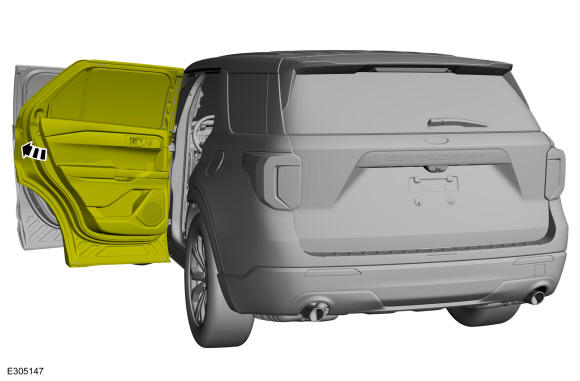

- Open the rear door.

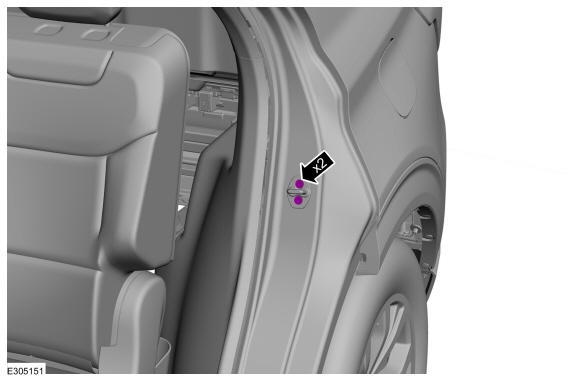

- Remove the bolts and the striker assembly.
Torque: 18 lb.ft (25 Nm)

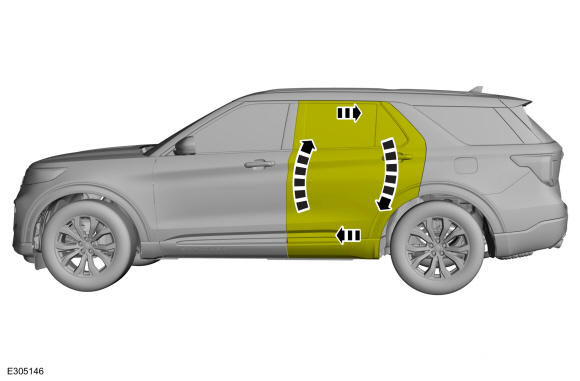

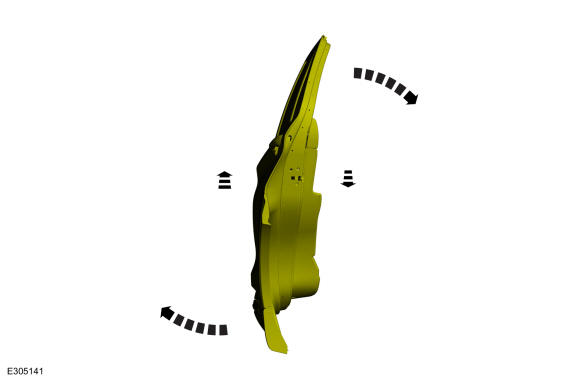

Rear door in and out, up and down alignment

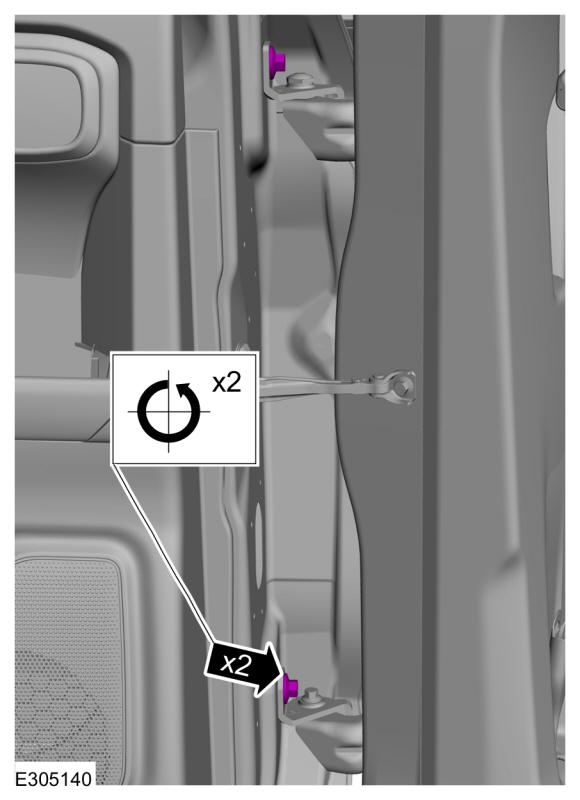

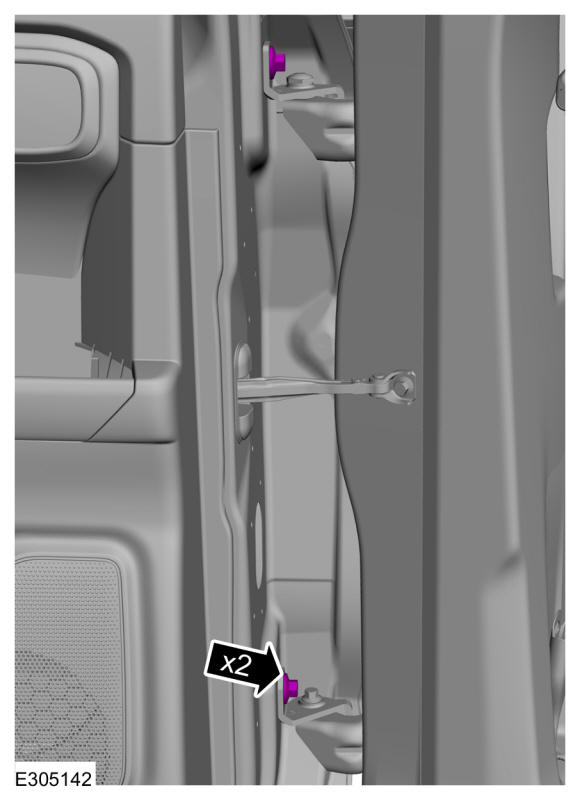

- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Adjust the door as required.
- Tighten the bolts.
Torque: 35 lb.ft (48 Nm)
Rear door fore, aft and tilt alignment
- Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Remove the front seatbelt retractor and pretensioner. Refer to: Front Seatbelt Retractor and Pretensioner .
- Open the front door.

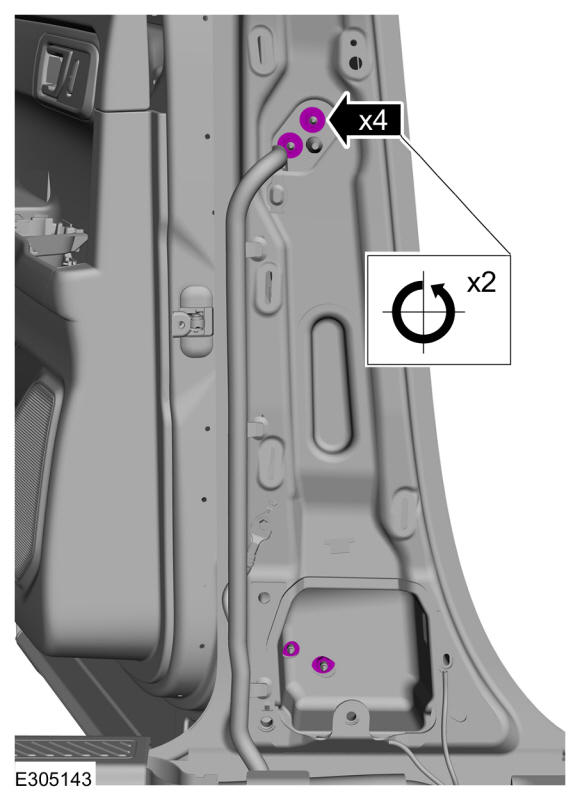

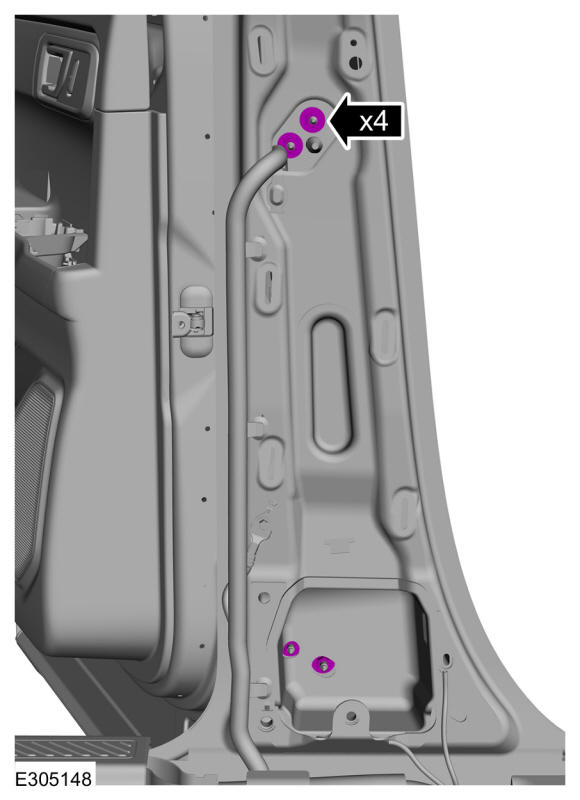

- Loosen the nuts to permit movement of the door. Loosen: : 2 turn(s)
- Carefully close the rear door.

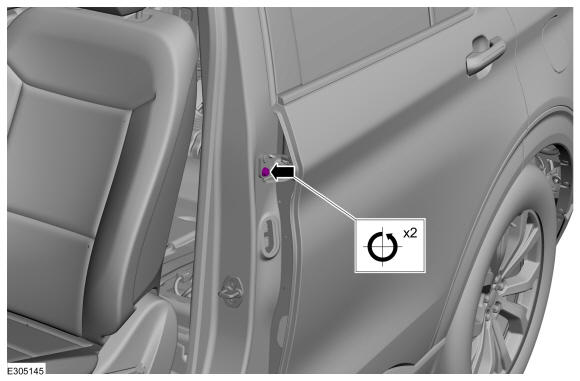

- Loosen the bolt to permit movement of the door. Loosen: : 2 turn(s)
- Carefully close the front door.
- Adjust the door as required.
- Carefully open the front door.

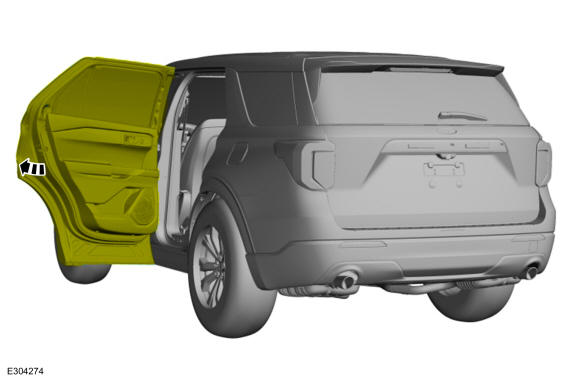

- Carefully open the rear door.
- Tighten the nuts.
Torque: 26 lb.ft (35 Nm)

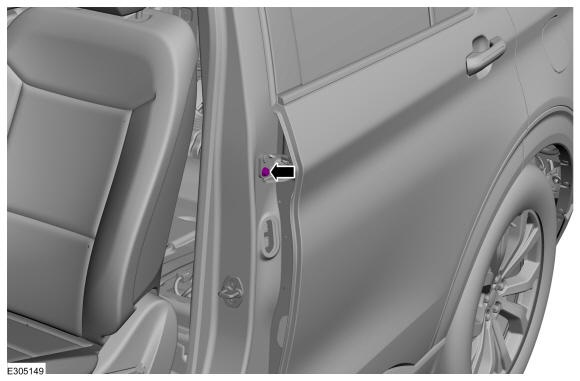

- Tighten the bolt.
Torque: 89 lb.in (10 Nm)
- Install the front seatbelt retractor and pretensioner. Refer to: Front Seatbelt Retractor and Pretensioner .
- Install the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
- Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
- Check the active restraint system for correct operation. Refer to: Seatbelt Systems
.
All alignments

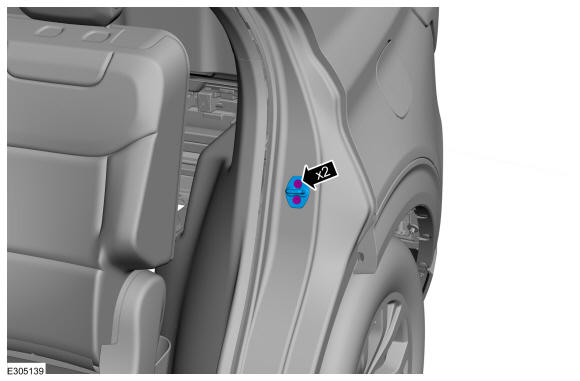

- Install the striker assembly.
Torque: 18 lb.ft (25 Nm)

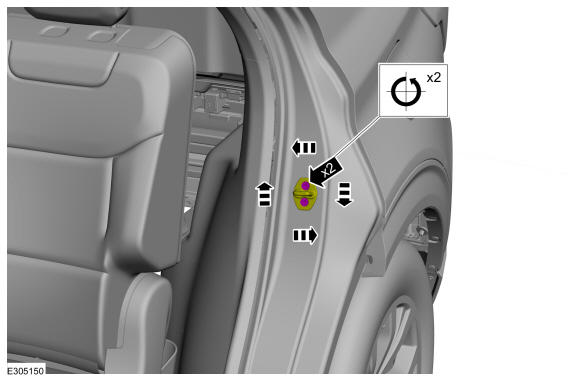

- Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)
- Tighten the bolts.
Torque: 18 lb.ft (25 Nm)
- Inspect the body-to-rear door dimensions.
