Steering Gear: Installation

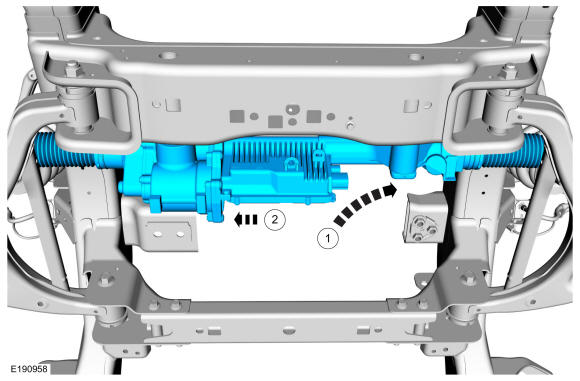

1. Position the steering gear.
2. Shift the steering towards the passenger side of the vehicle.

Courtesy of FORD MOTOR COMPANY

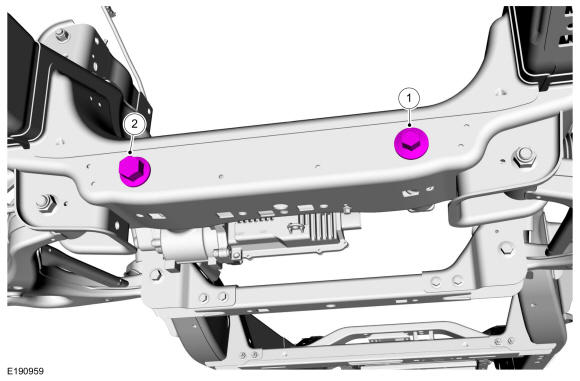

Install the 2 new steering gear mounting bolts.

Torque

: 184 lb.ft (250 Nm)

Fig 1: Steering Gear Mounting Bolts Tightening Sequence

Courtesy of FORD MOTOR COMPANY

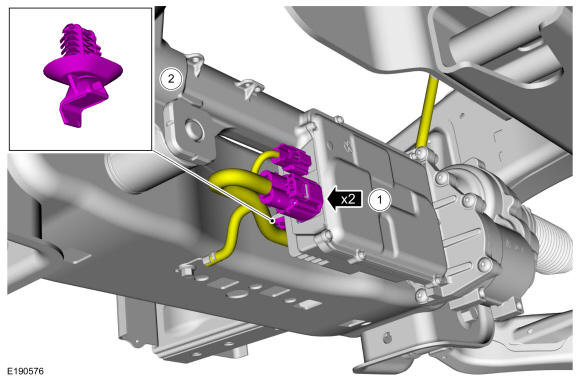

1. Connect the 2 EPAS gear electrical connectors.
2. Position the steering gear wire harness and install the retaining clip.

Courtesy of FORD MOTOR COMPANY

1. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

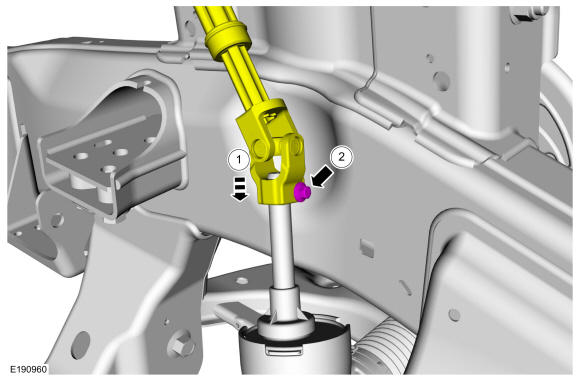

   Connect the steering column shaft u-joint to the steering gear.

2. Install the new steering column shaft bolt.

   Torque

   : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

Install the underbody shield and the underbody shield bolts.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

Install the underbody shield and install the 2 underbody shield bolts.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

Install the underbody shield and install the 4 underbody shield bolts.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

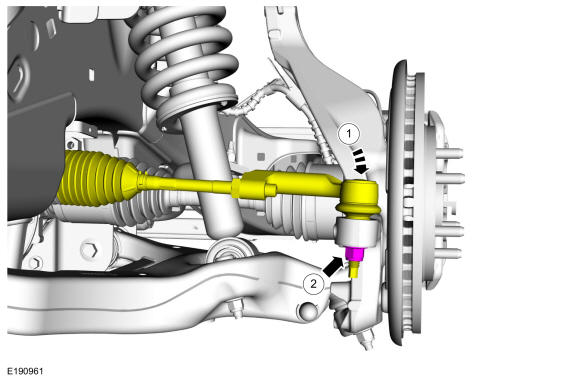

1. Connect the outer tie rod end to the wheel knuckle.
2. NOTE: Use the hex-holding feature to prevent the stud from turning while installing the nut.

   Install the new outer tie rod end nut.

   Torque

   : 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
