Front Door Alignment

WARNING: This page is about a different car, the 2019 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

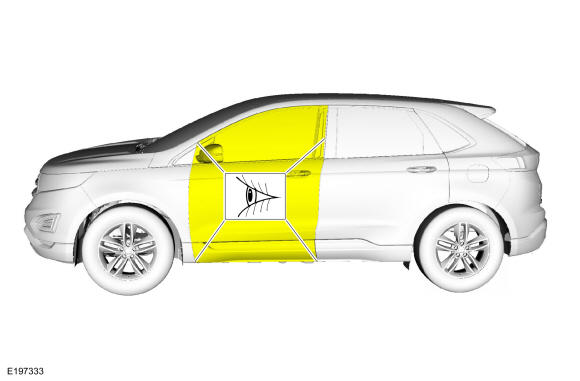

Inspect the front door-to-body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

Open the door.

Courtesy of FORD MOTOR COMPANY

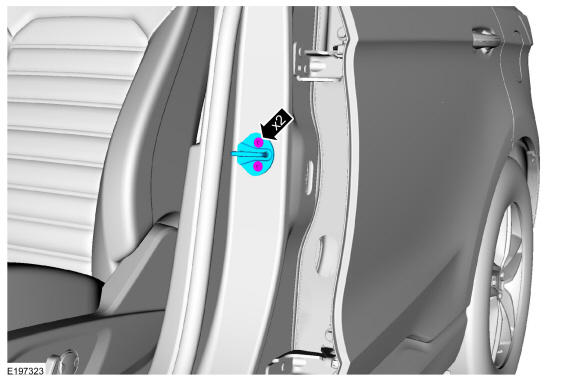

Remove the bolts and the striker assembly.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

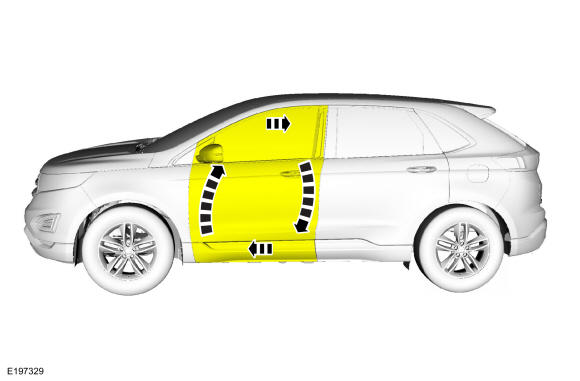

Front door in and out, up and down alignment

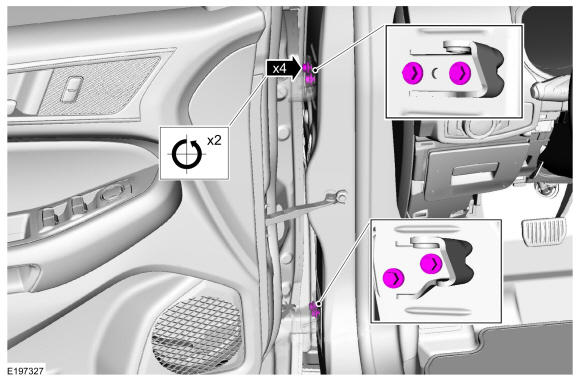

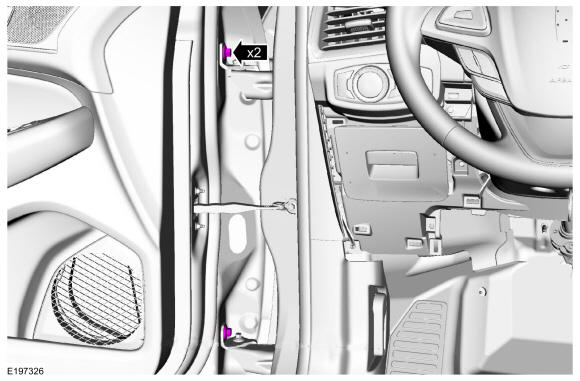

Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

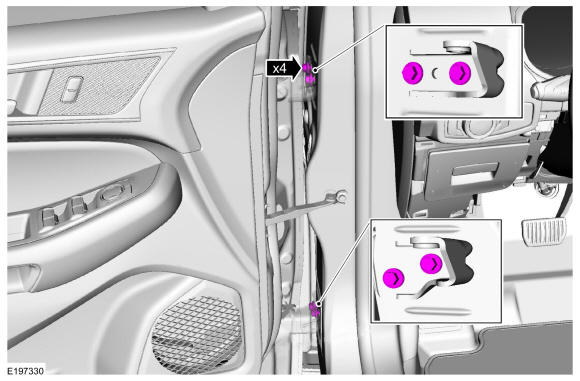

Tighten the bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

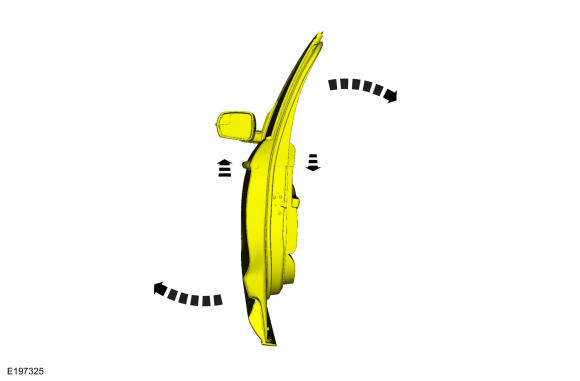

Front door fore, aft and tilt alignment

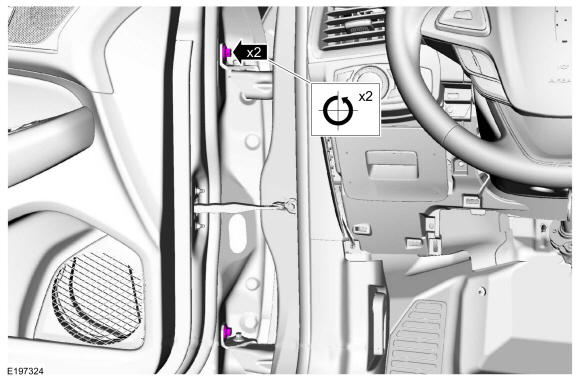

Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

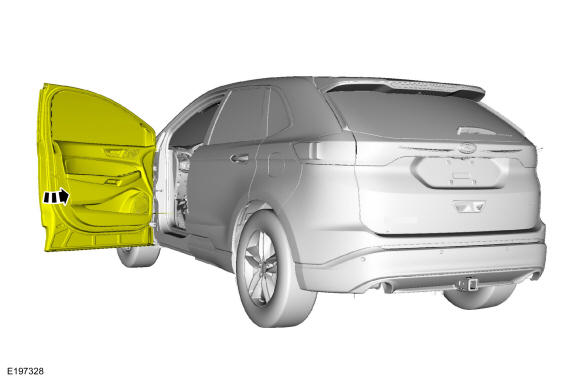

Carefully close the door.

Courtesy of FORD MOTOR COMPANY
Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Carefully open the door.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the body-to-front door dimensions. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
