Steering Gear Boot: Removal

  1. Remove the tie-rod end. Refer to: Tie Rod End  .
  2. NOTE: Count and record the number of turns required to remove the outer tie-rod end jamb nut for reference during installation.

    Remove the tie-rod end jamb nut.

    GFD581129Courtesy of FORD MOTOR COMPANY
  3. NOTE: If equipped.

    Remove the 4 underbody shield bolts and remove the underbody shield.

    GFD581118Courtesy of FORD MOTOR COMPANY
  4. NOTE: If equipped.

    Remove the 2 underbody shield bolts and remove the underbody shield.

    GFD581119Courtesy of FORD MOTOR COMPANY
  5. NOTE: If equipped.
    NOTE: 4WD shown in illustration, RWD similar.

    Remove the underbody shield bolts and the underbody shield.

    GFD581120Courtesy of FORD MOTOR COMPANY

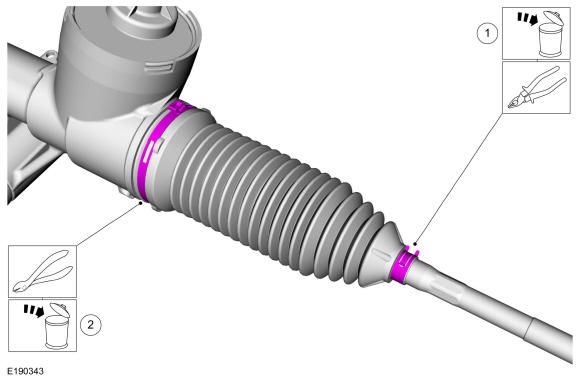

    1. Remove and discard the outer steering gear boot clamp.
    2. Remove and discard the inner steering gear boot clamp.
    GFD581130Courtesy of FORD MOTOR COMPANY

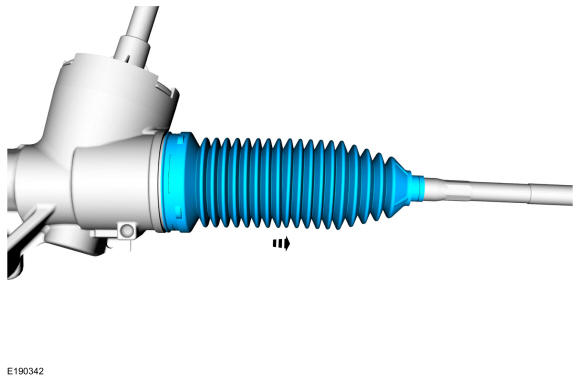

  7. Remove the steering gear boot.
GFD581131Courtesy of FORD MOTOR COMPANY
