Power Distribution

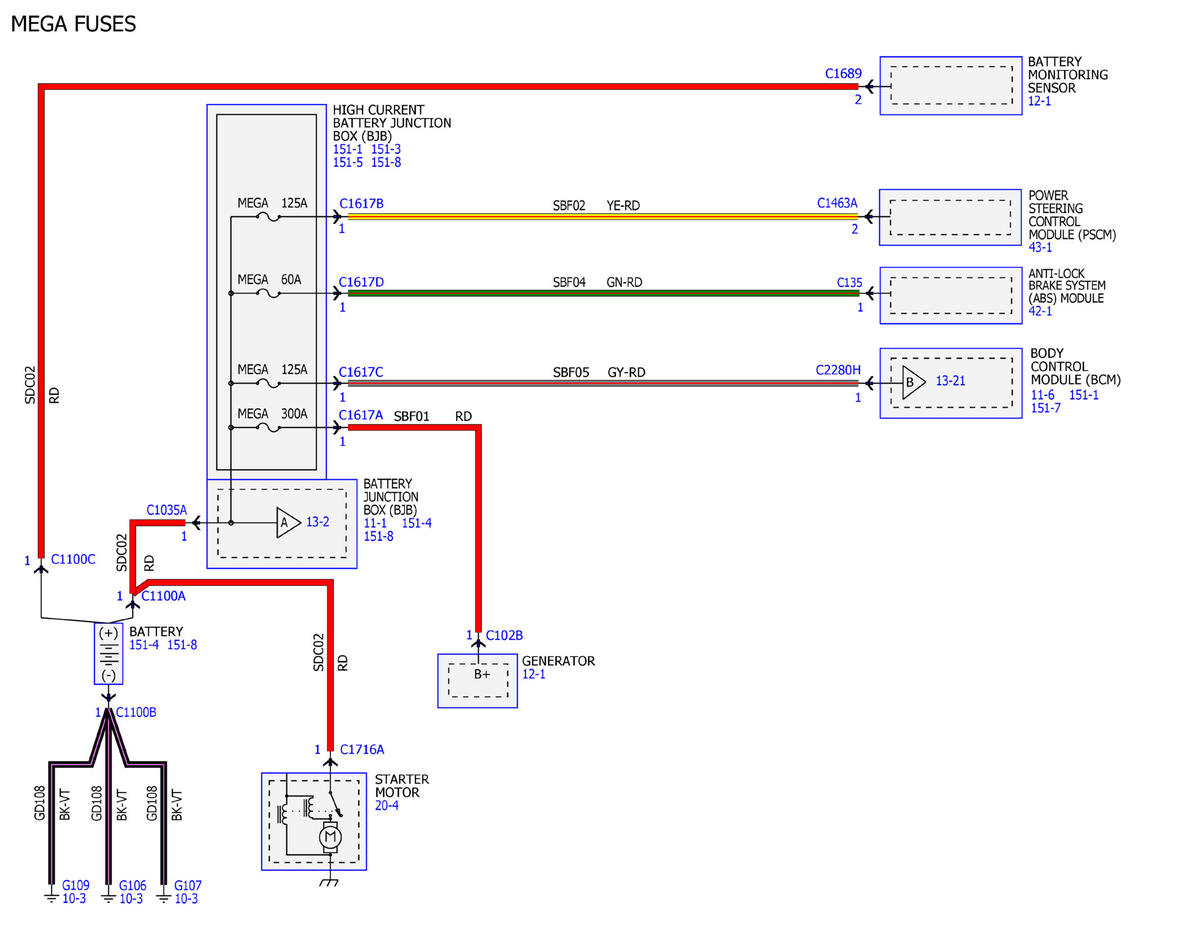

Fig 1: Power Distribution Wiring Diagrams (1 Of 53)

GFDWR135041

Courtesy of FORD MOTOR COMPANY

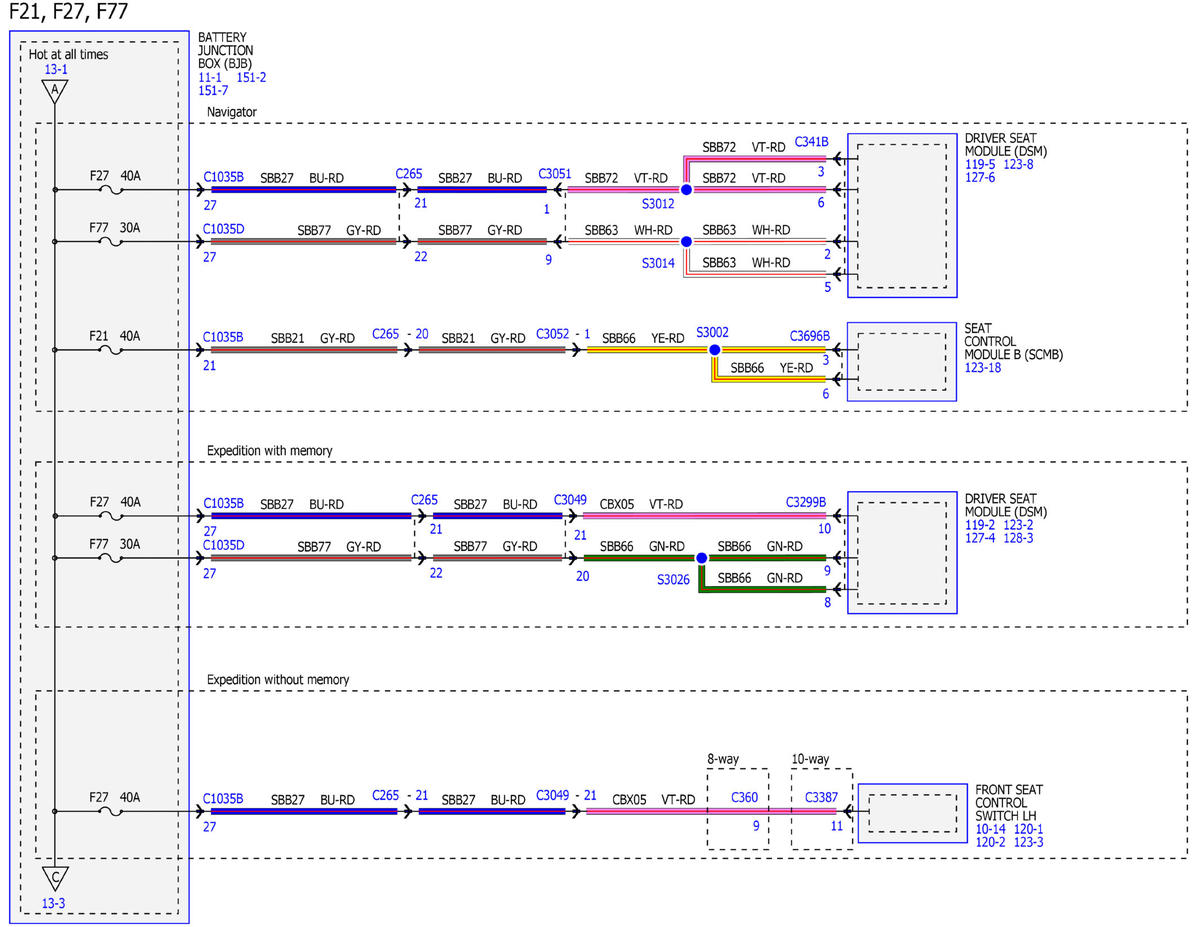

Fig 2: Power Distribution Wiring Diagrams (2 Of 53)

GFDWR135052

Courtesy of FORD MOTOR COMPANY

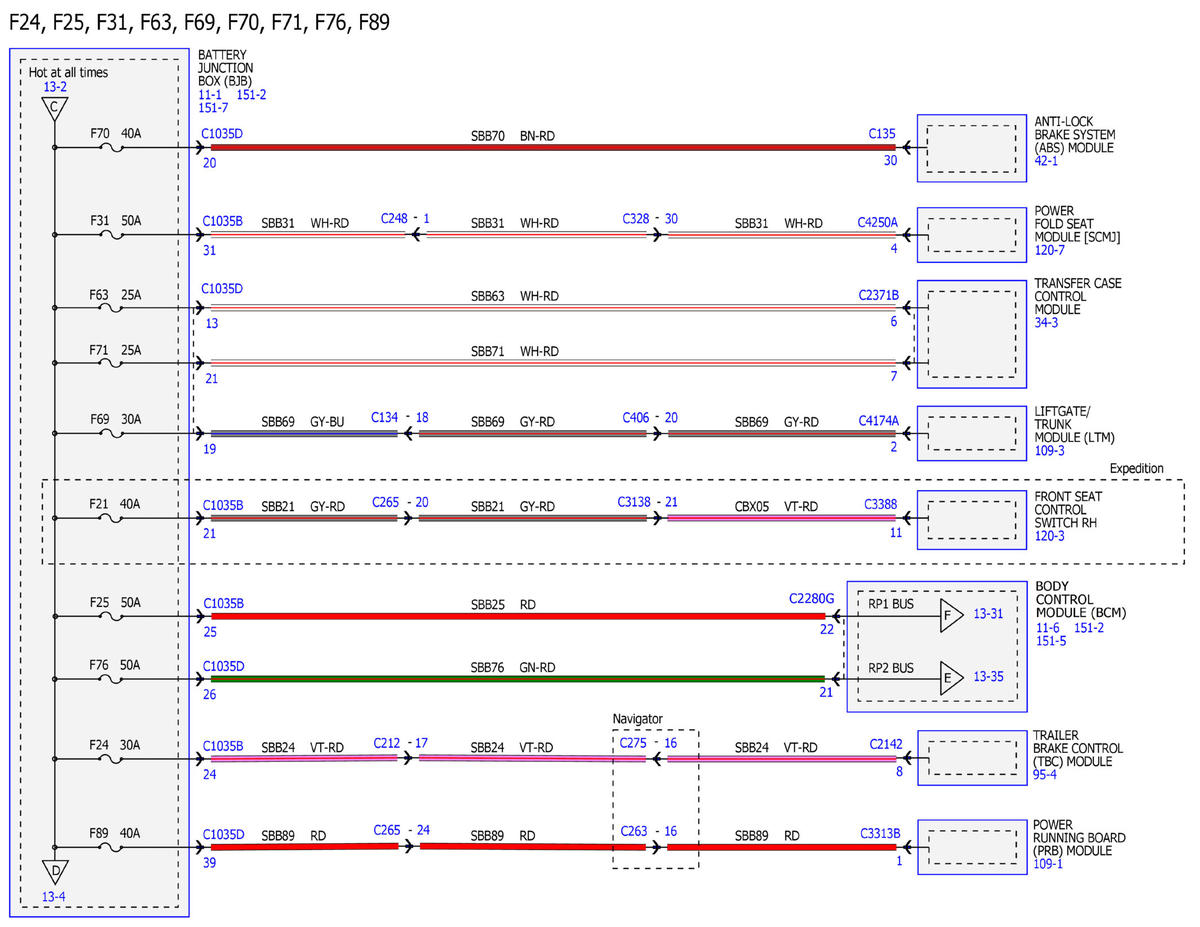

Fig 3: Power Distribution Wiring Diagrams (3 Of 53)

GFDWR135063

Courtesy of FORD MOTOR COMPANY

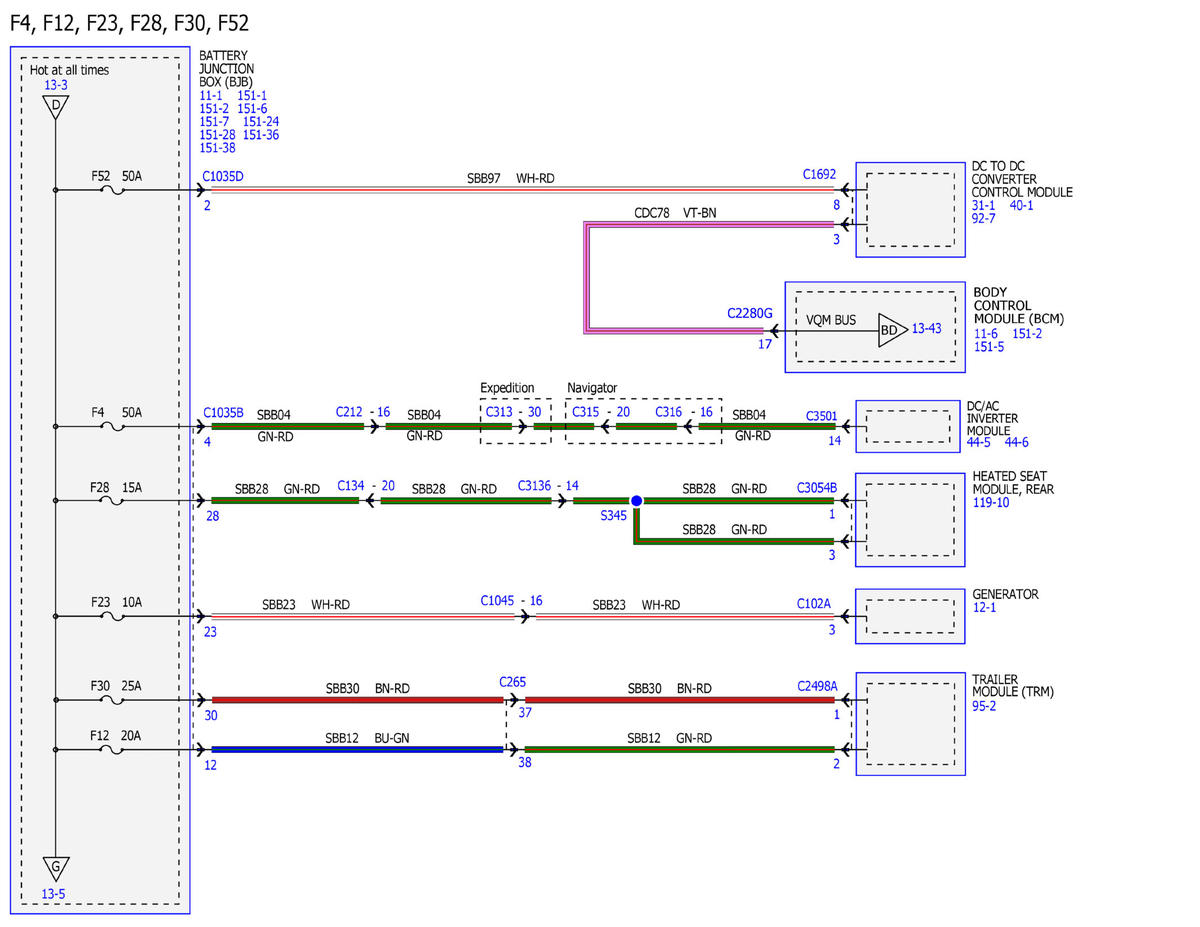

Fig 4: Power Distribution Wiring Diagrams (4 Of 53)

GFDWR135074

Courtesy of FORD MOTOR COMPANY

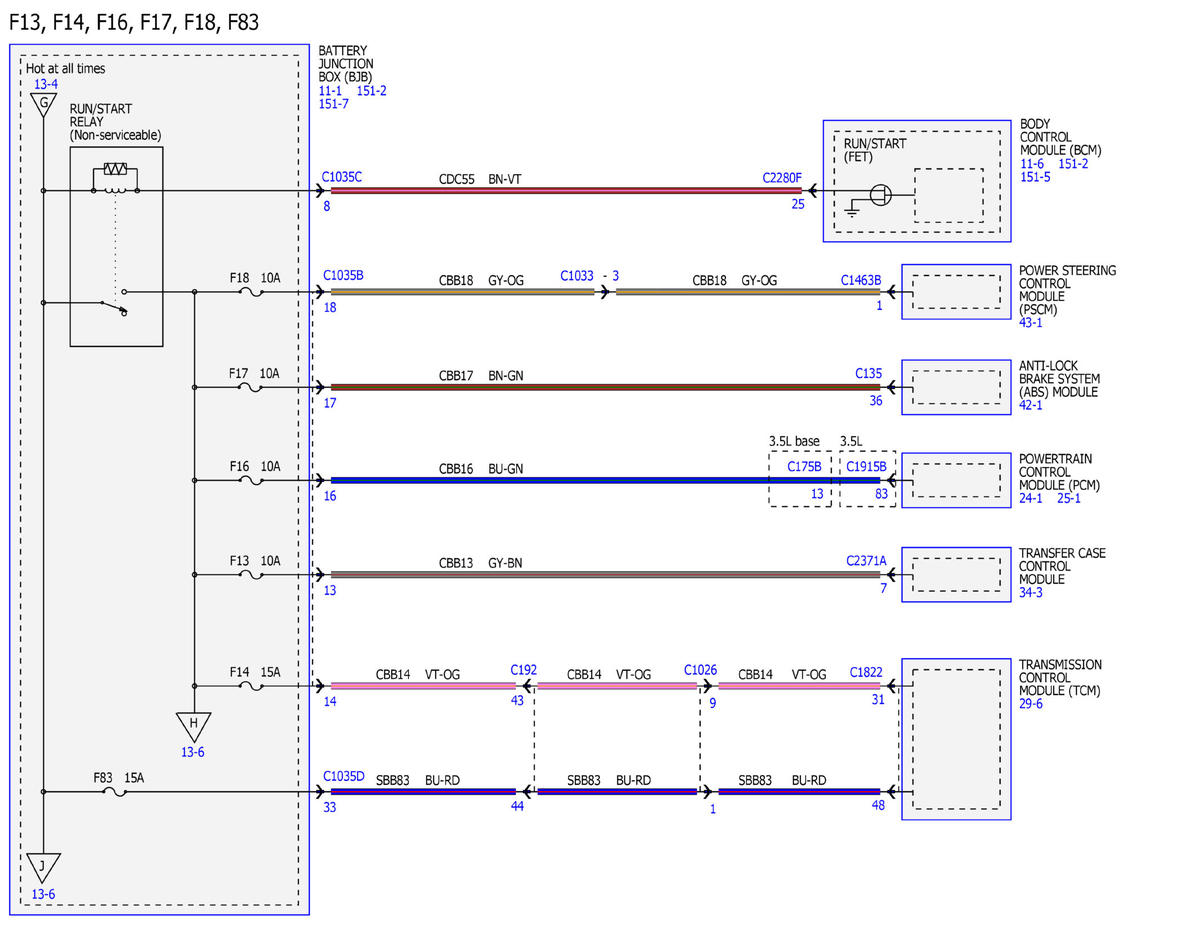

Fig 5: Power Distribution Wiring Diagrams (5 Of 53)

GFDWR135085

Courtesy of FORD MOTOR COMPANY

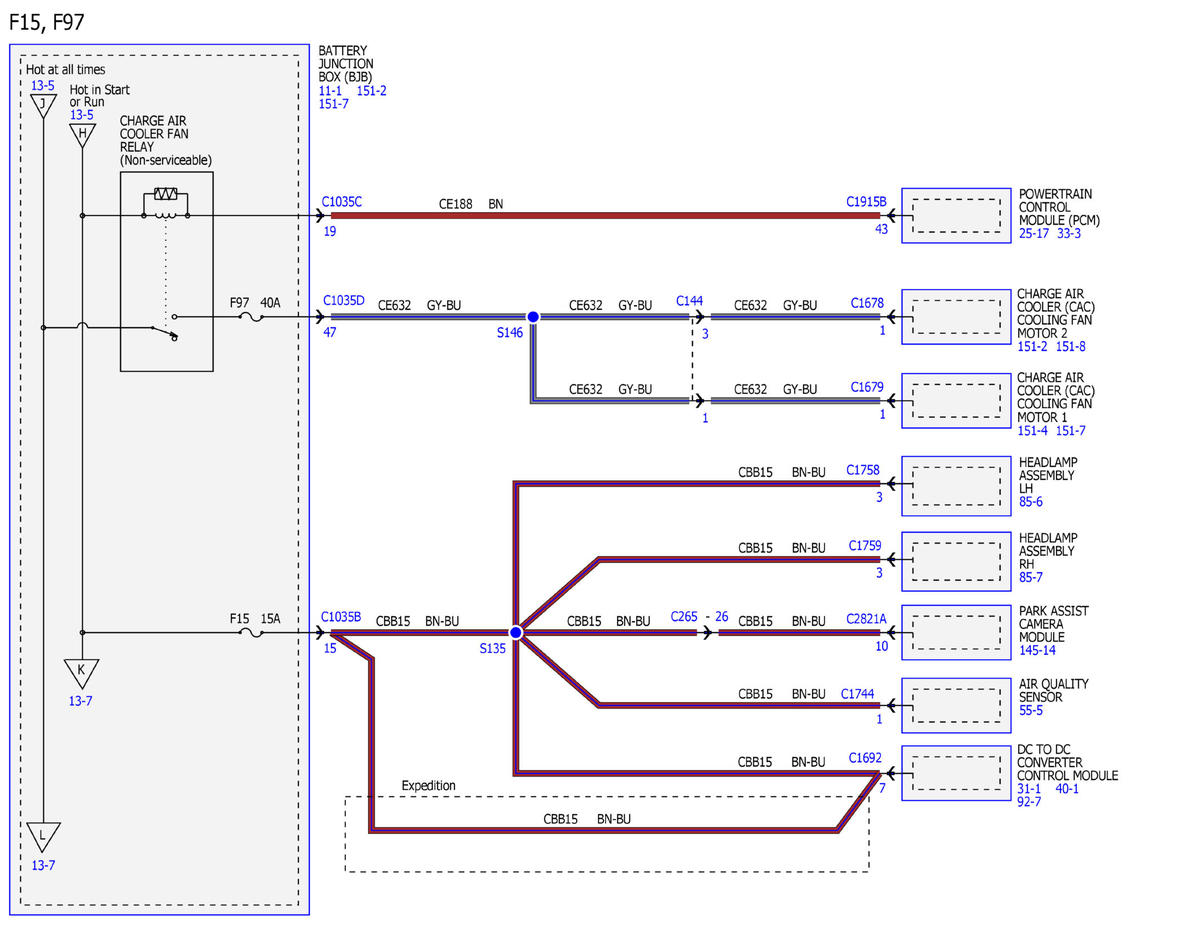

Fig 6: Power Distribution Wiring Diagrams (6 Of 53)

GFDWR135090

Courtesy of FORD MOTOR COMPANY

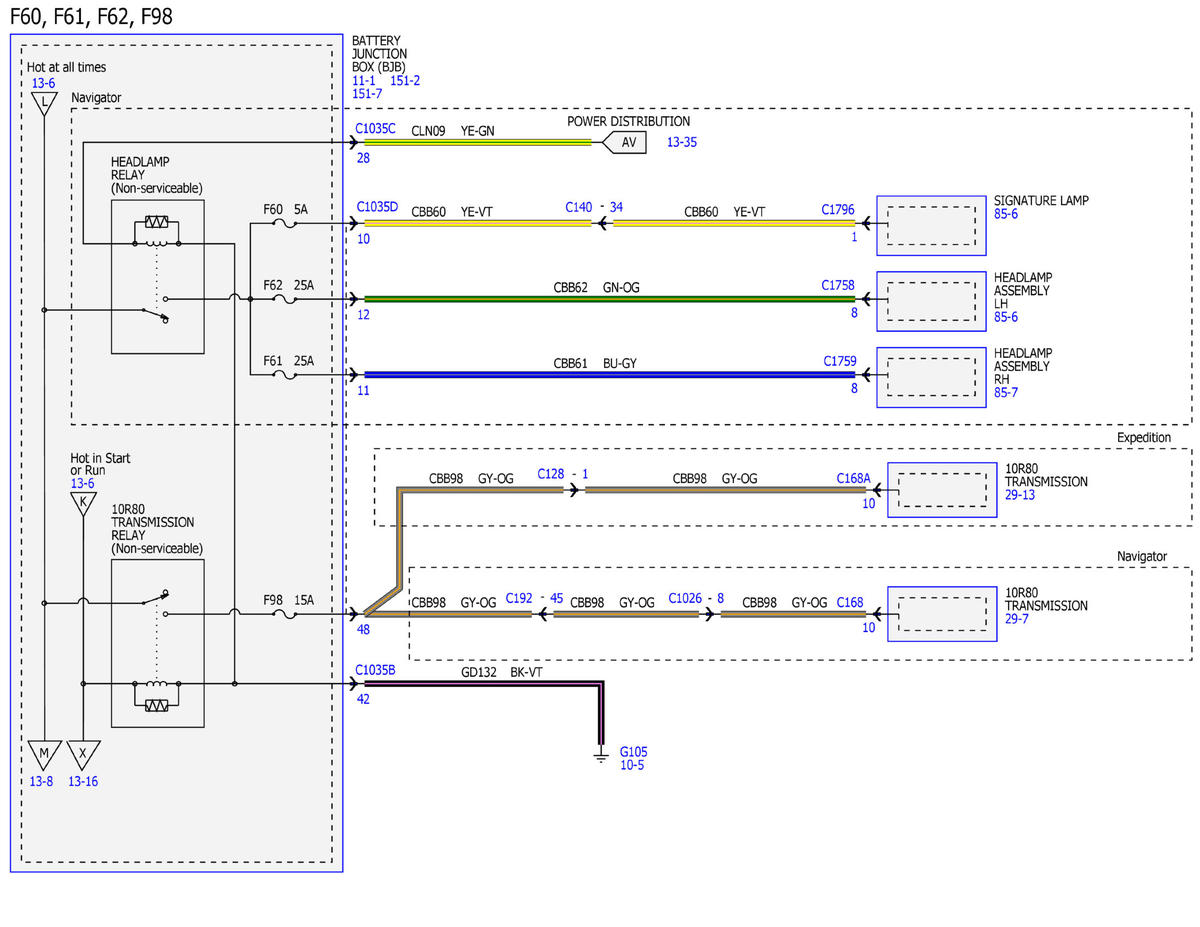

Fig 7: Power Distribution Wiring Diagrams (7 Of 53)

GFDWR135091

Courtesy of FORD MOTOR COMPANY

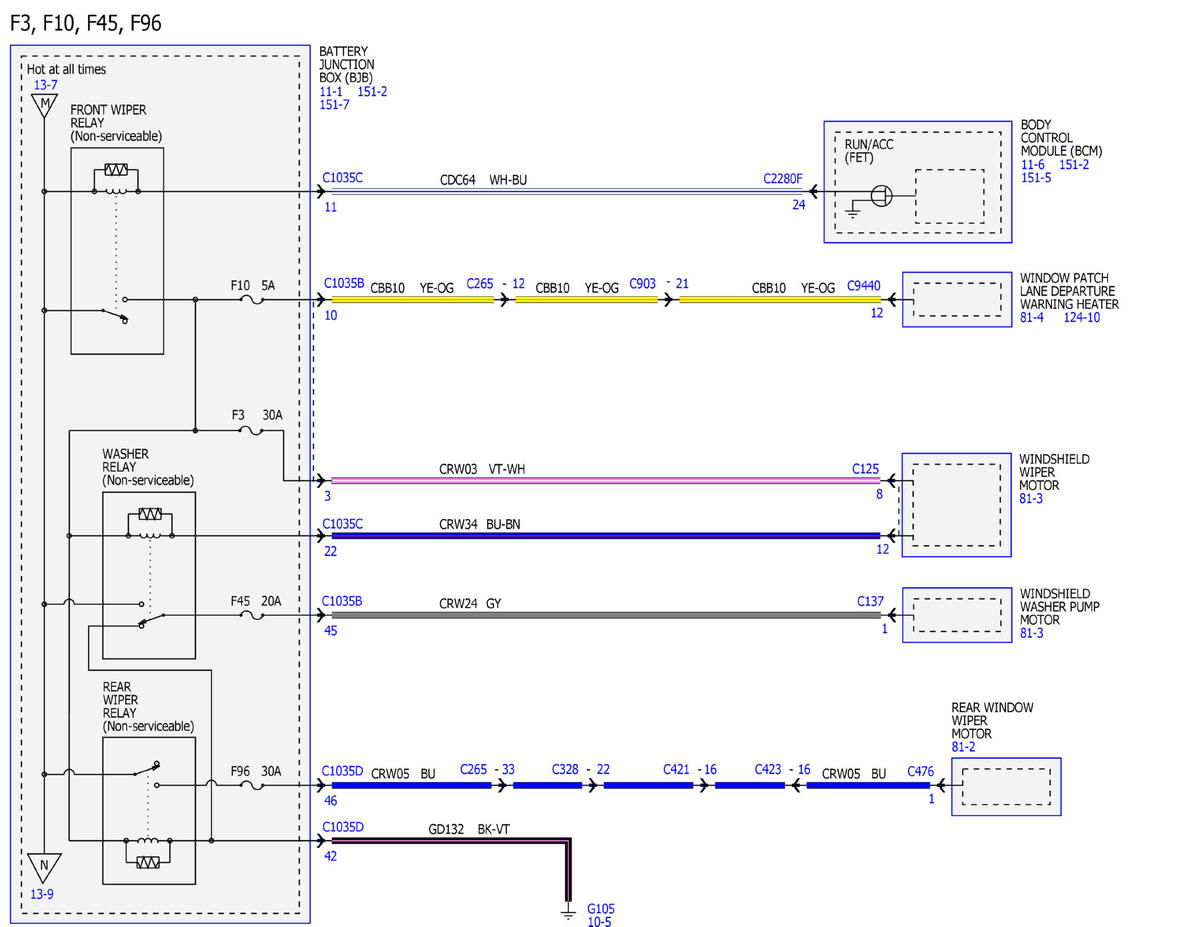

Fig 8: Power Distribution Wiring Diagrams (8 Of 53)

GFDWR135092

Courtesy of FORD MOTOR COMPANY

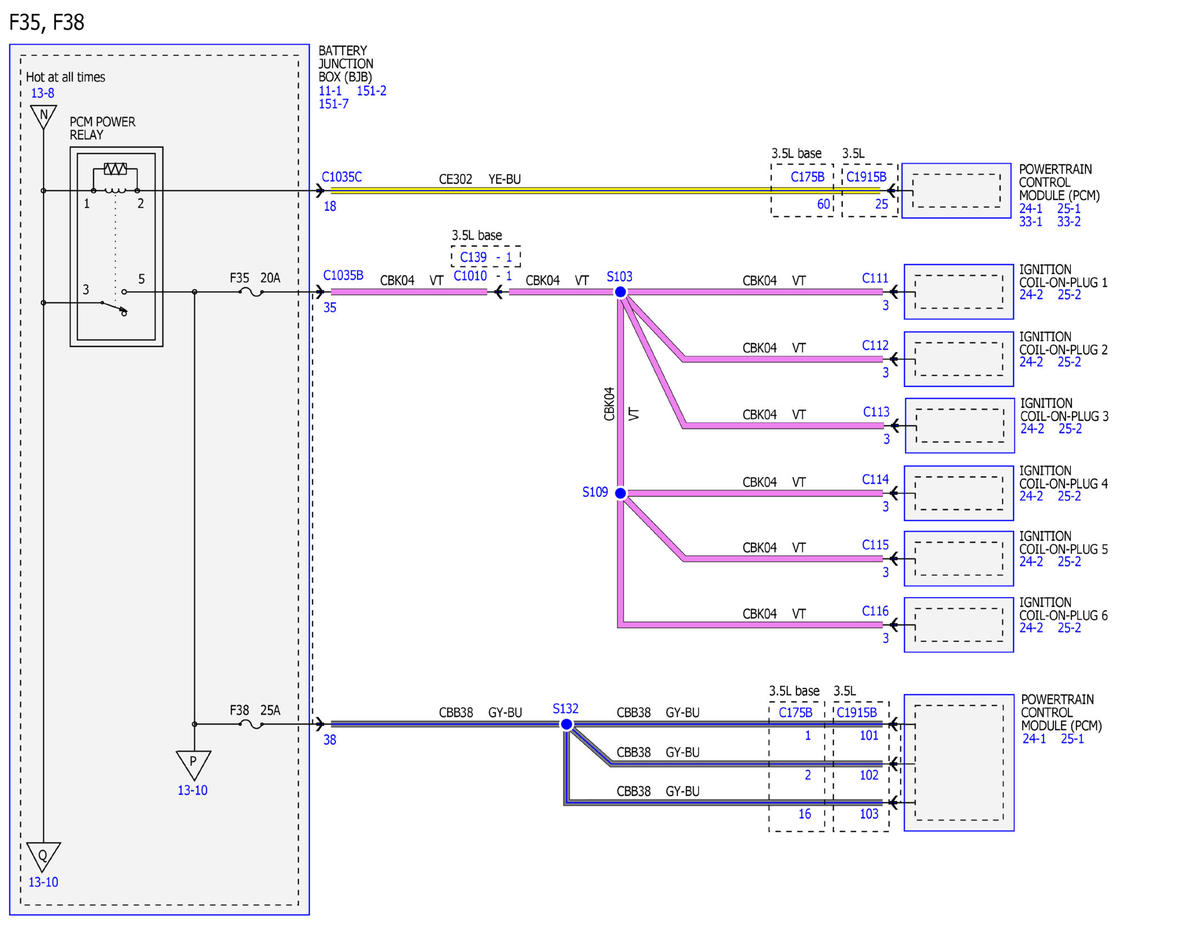

Fig 9: Power Distribution Wiring Diagrams (9 Of 53)

GFDWR135093

Courtesy of FORD MOTOR COMPANY

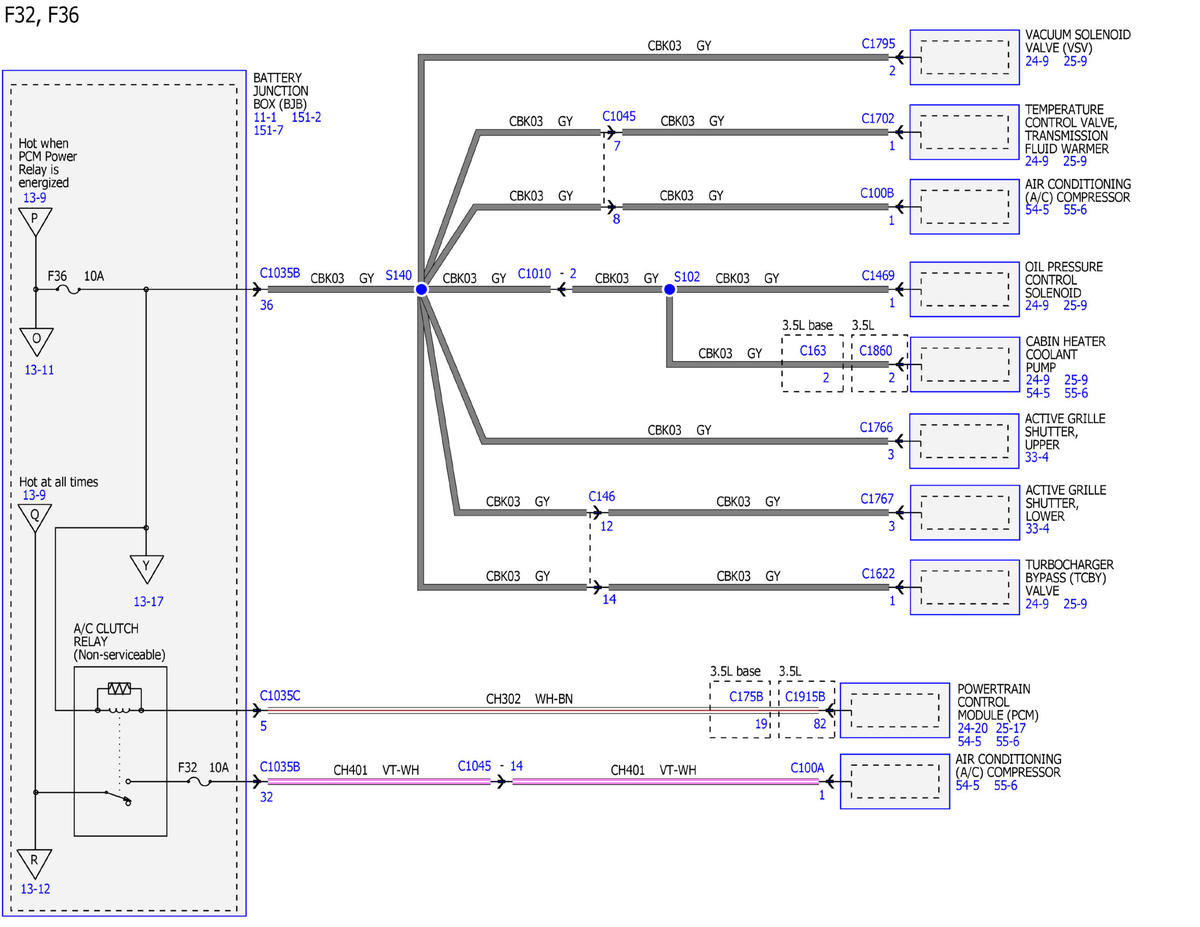

Fig 10: Power Distribution Wiring Diagrams (10 Of 53)

GFDWR135042

Courtesy of FORD MOTOR COMPANY

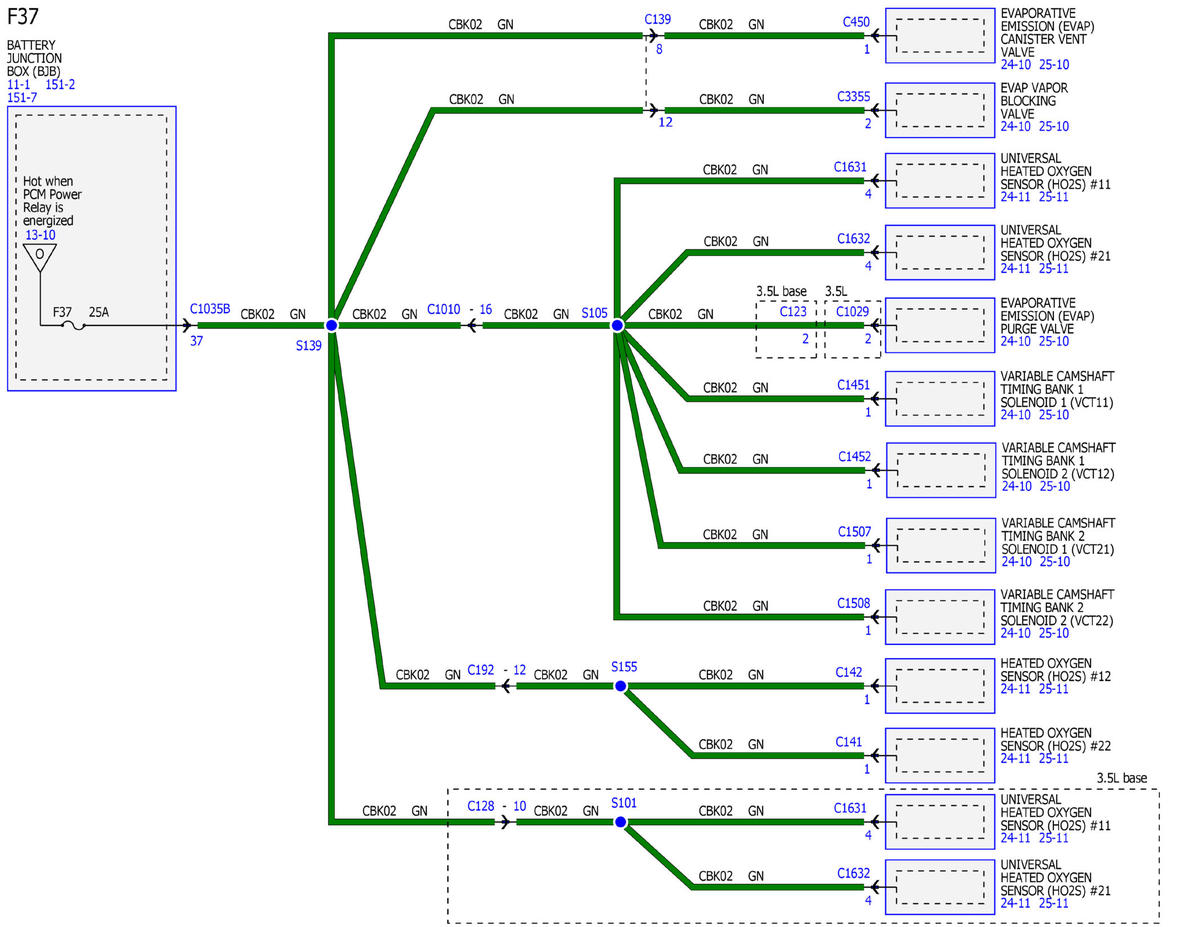

Fig 11: Power Distribution Wiring Diagrams (11 Of 53)

GFDWR135043

Courtesy of FORD MOTOR COMPANY

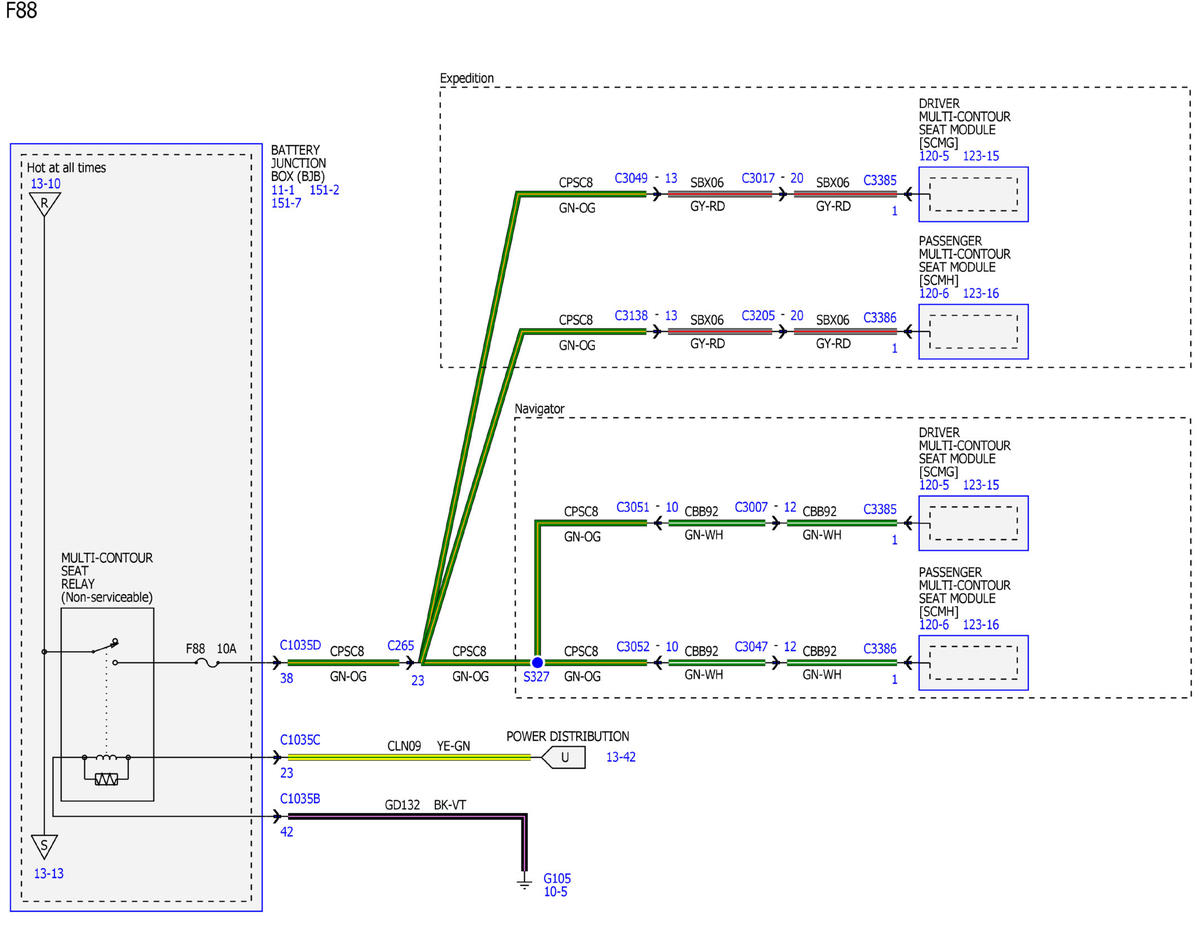

Fig 12: Power Distribution Wiring Diagrams (12 Of 53)

GFDWR135044

Courtesy of FORD MOTOR COMPANY

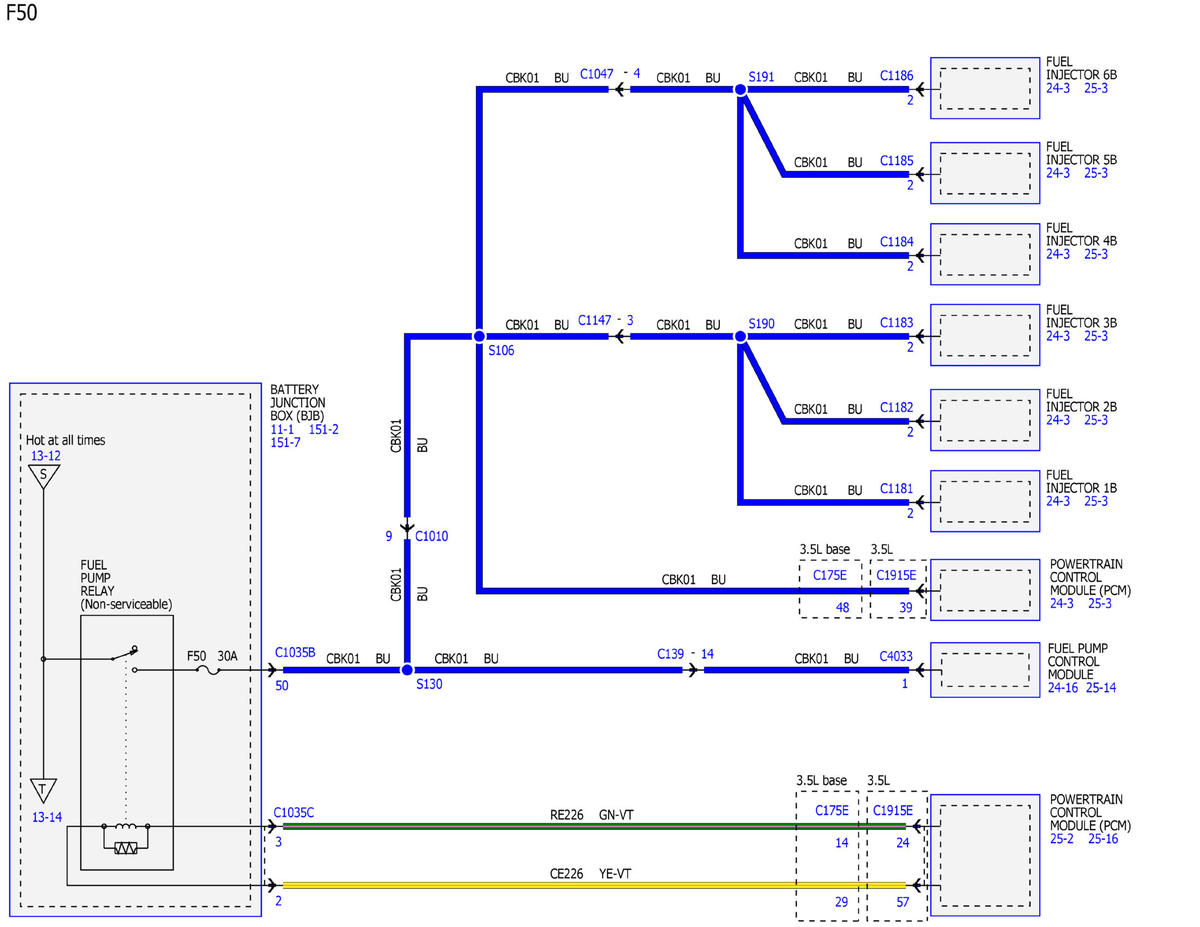

Fig 13: Power Distribution Wiring Diagrams (13 Of 53)

GFDWR135045

Courtesy of FORD MOTOR COMPANY

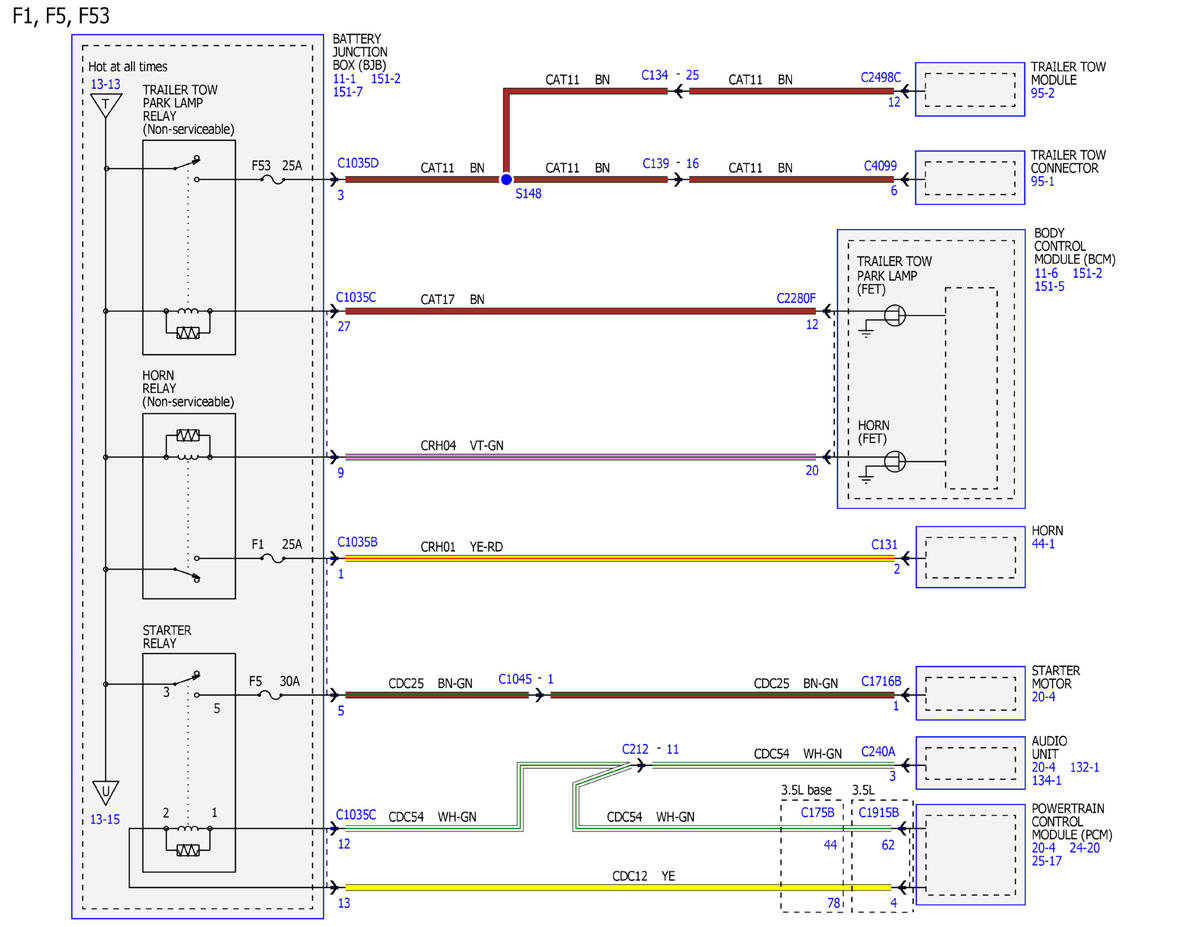

Fig 14: Power Distribution Wiring Diagrams (14 Of 53)

GFDWR135046

Courtesy of FORD MOTOR COMPANY

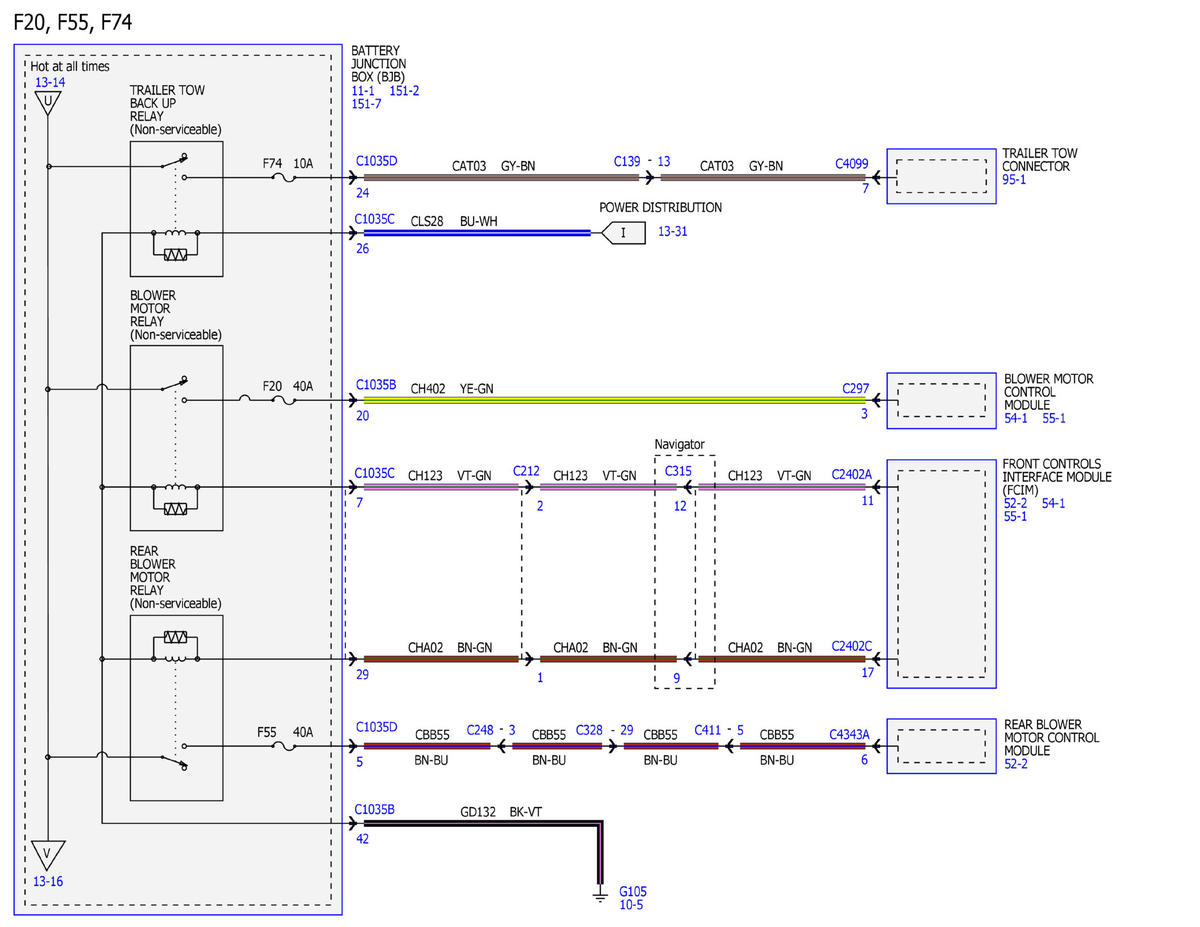

Fig 15: Power Distribution Wiring Diagrams (15 Of 53)

GFDWR135047

Courtesy of FORD MOTOR COMPANY

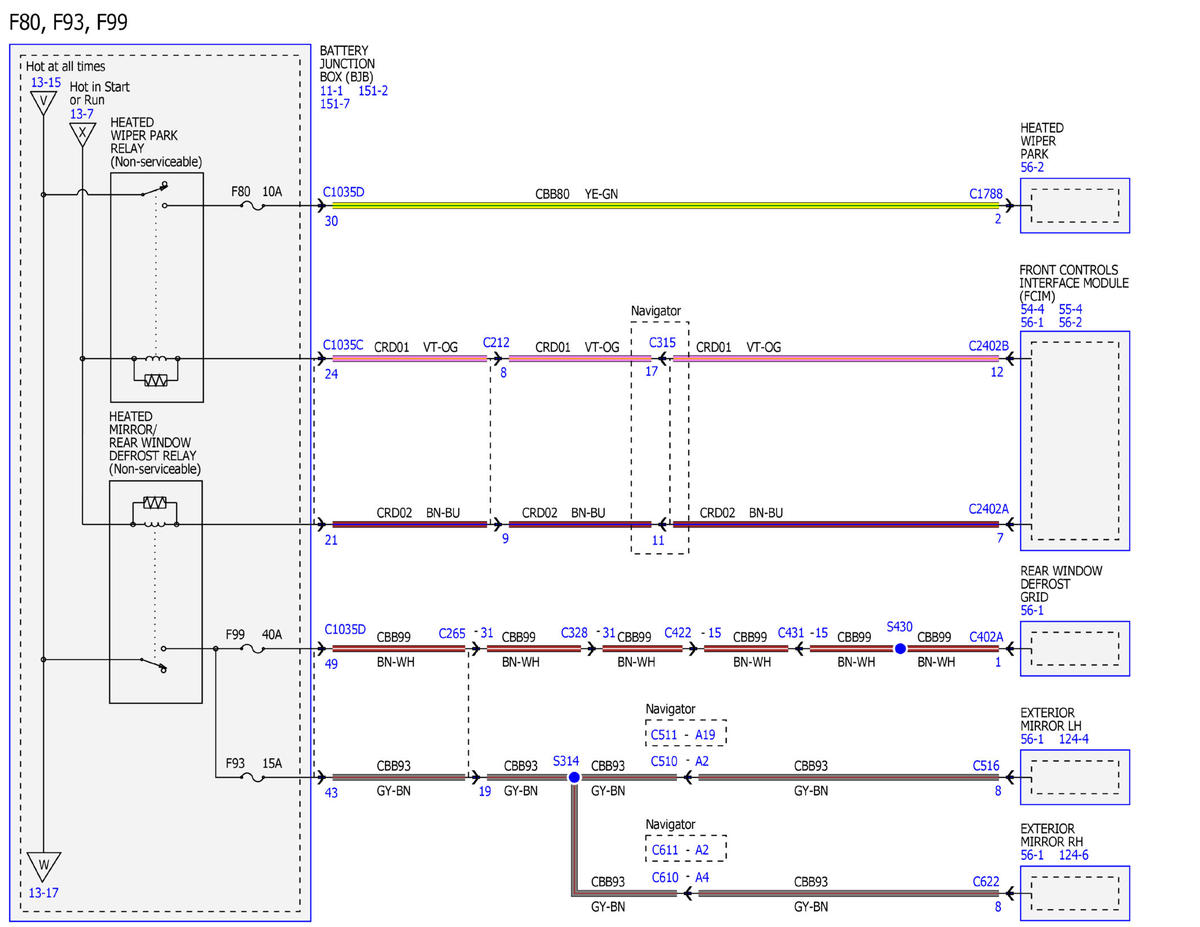

Fig 16: Power Distribution Wiring Diagrams (16 Of 53)

GFDWR135048

Courtesy of FORD MOTOR COMPANY

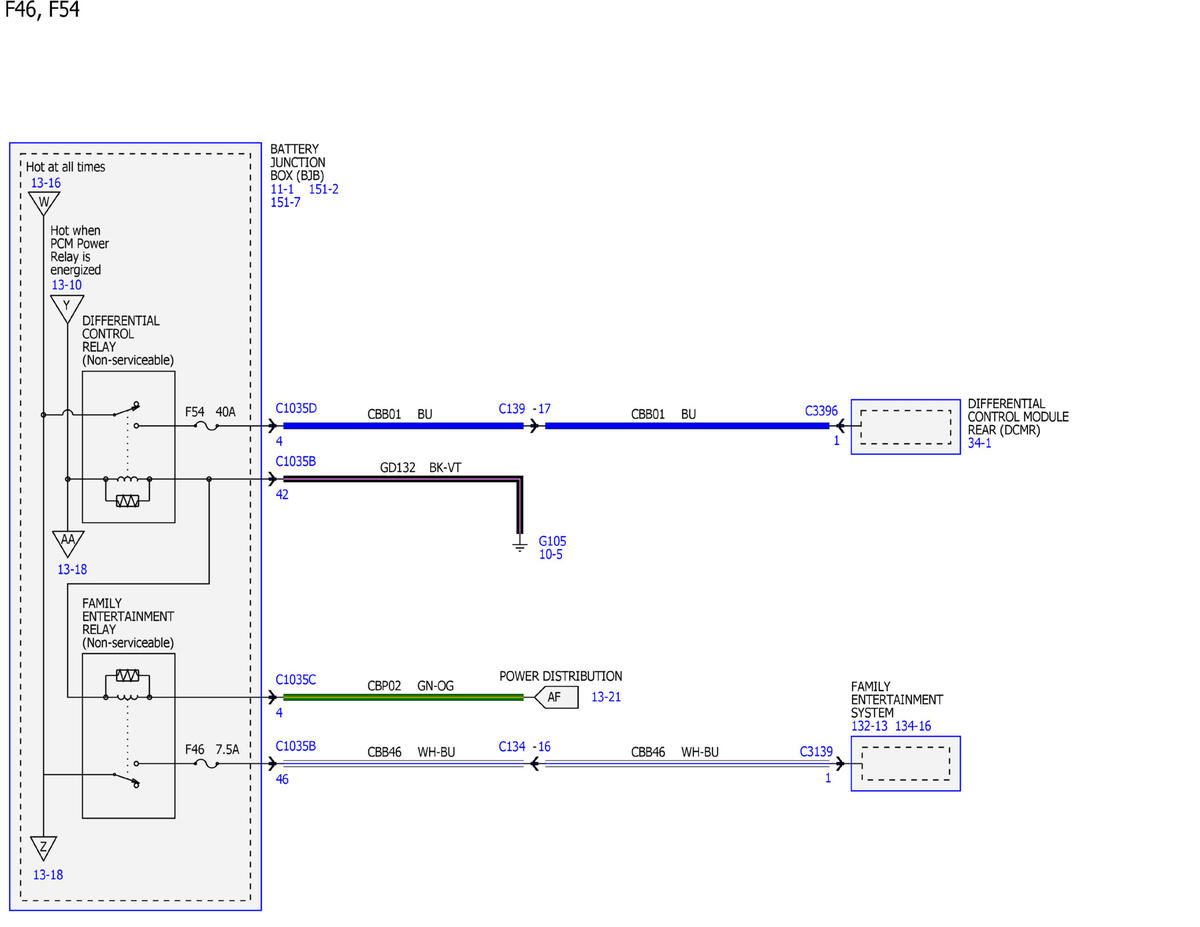

Fig 17: Power Distribution Wiring Diagrams (17 Of 53)

GFDWR135049

Courtesy of FORD MOTOR COMPANY

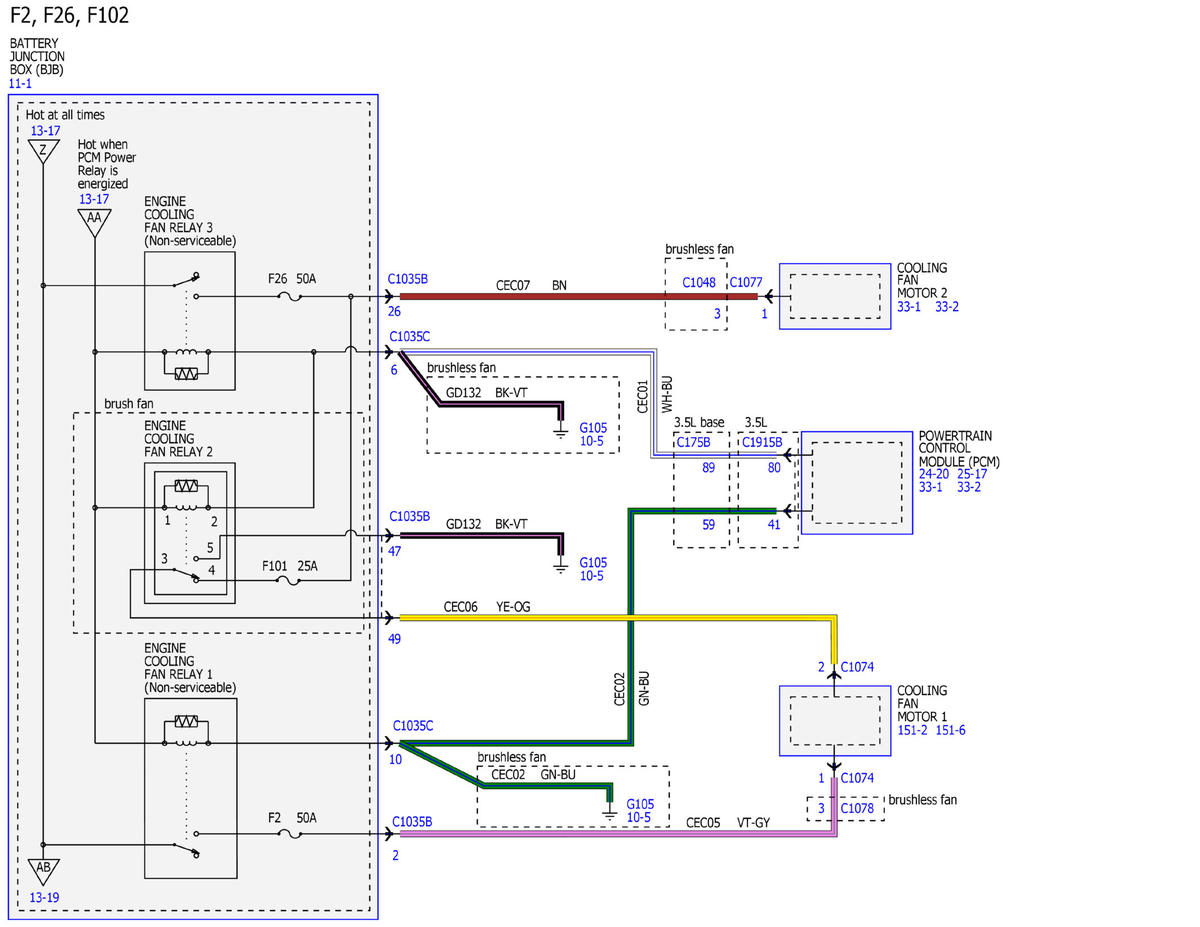

Fig 18: Power Distribution Wiring Diagrams (18 Of 53)

GFDWR135050

Courtesy of FORD MOTOR COMPANY

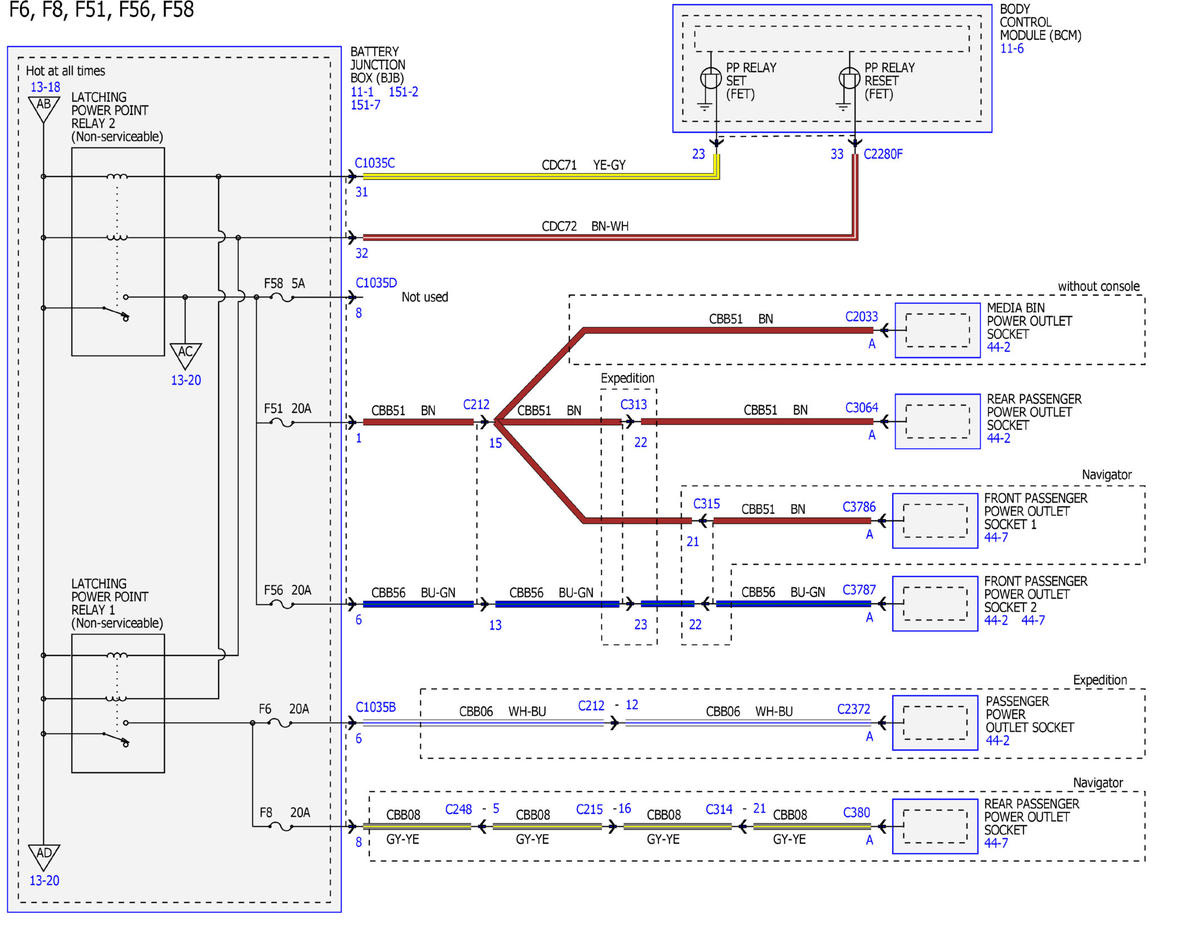

Fig 19: Power Distribution Wiring Diagrams (19 Of 53)

GFDWR135051

Courtesy of FORD MOTOR COMPANY

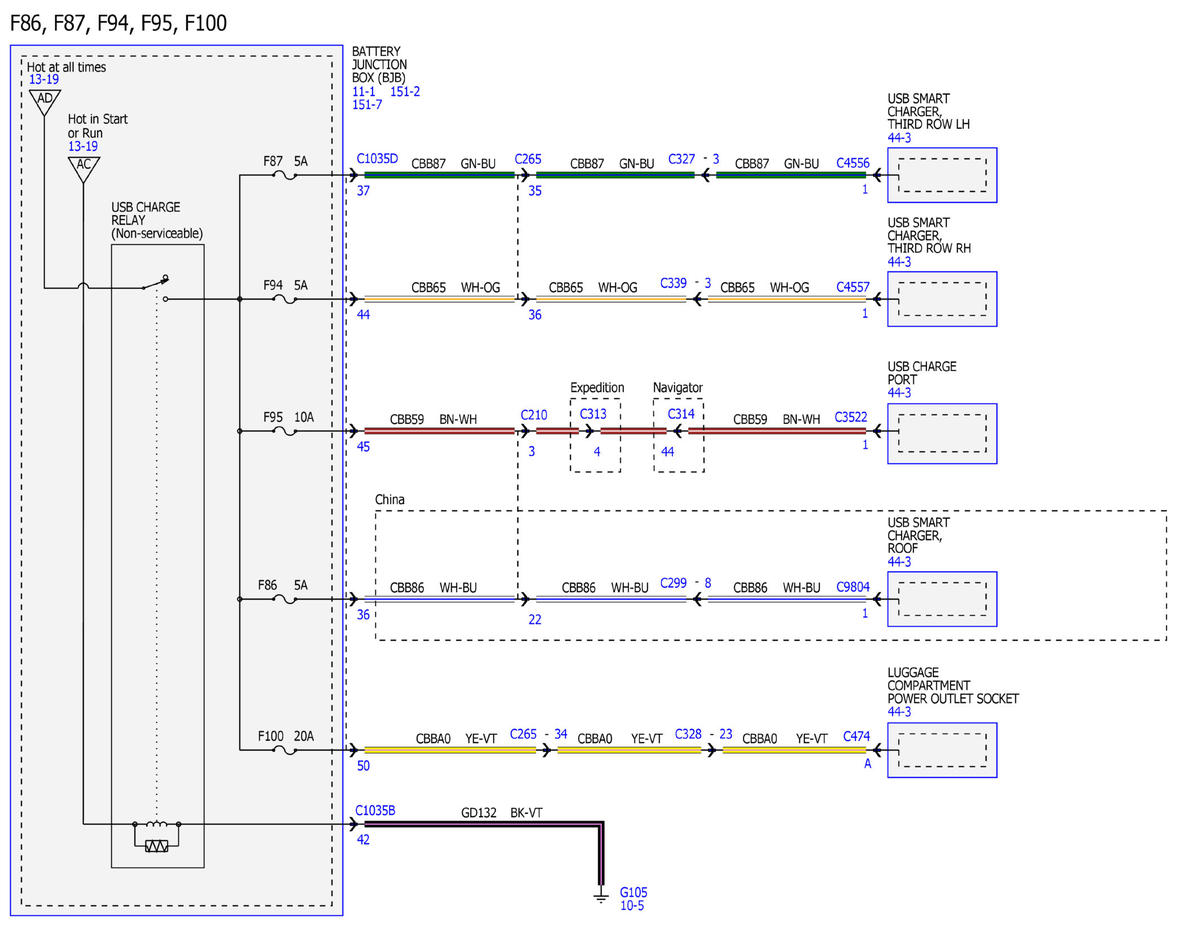

Fig 20: Power Distribution Wiring Diagrams (20 Of 53)

GFDWR135053

Courtesy of FORD MOTOR COMPANY

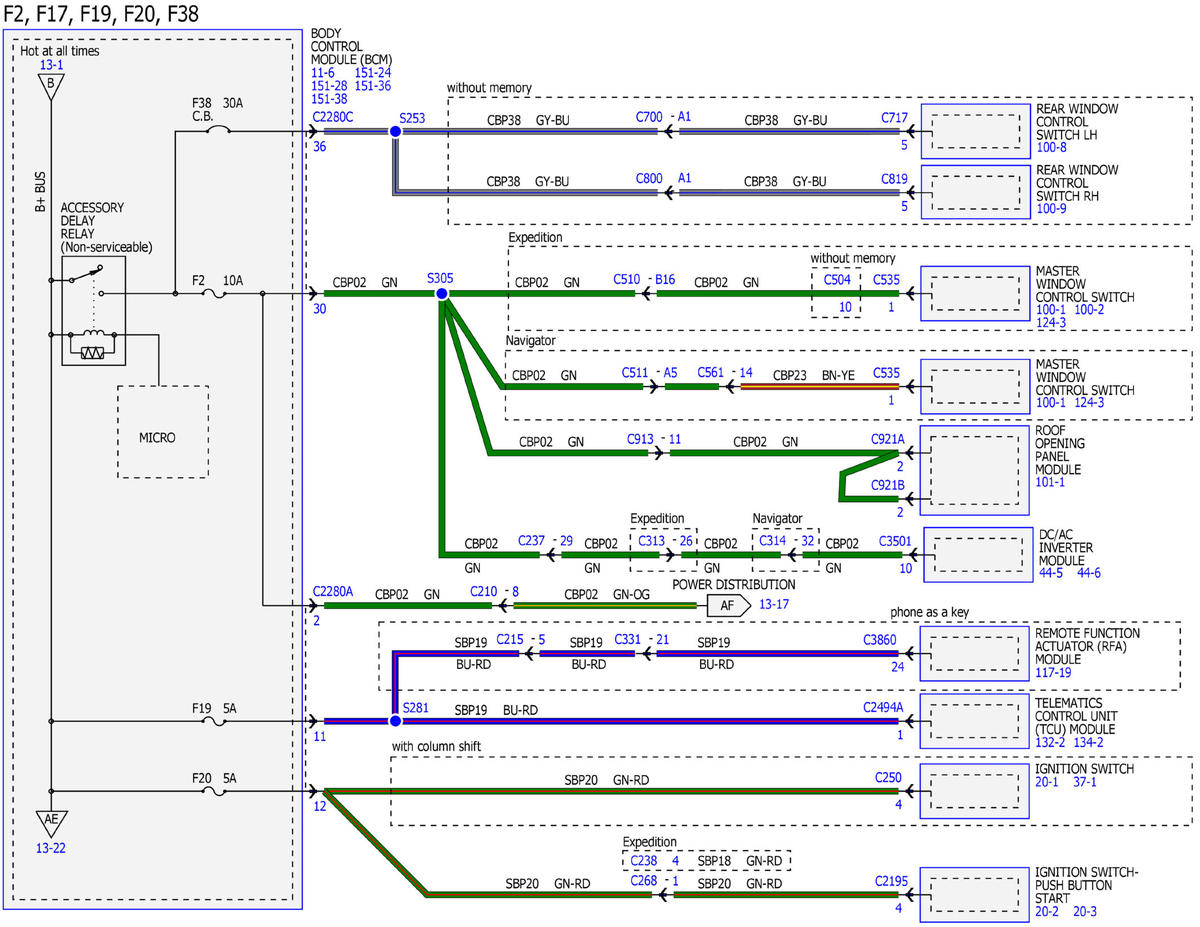

Fig 21: Power Distribution Wiring Diagrams (21 Of 53)

GFDWR135054

Courtesy of FORD MOTOR COMPANY

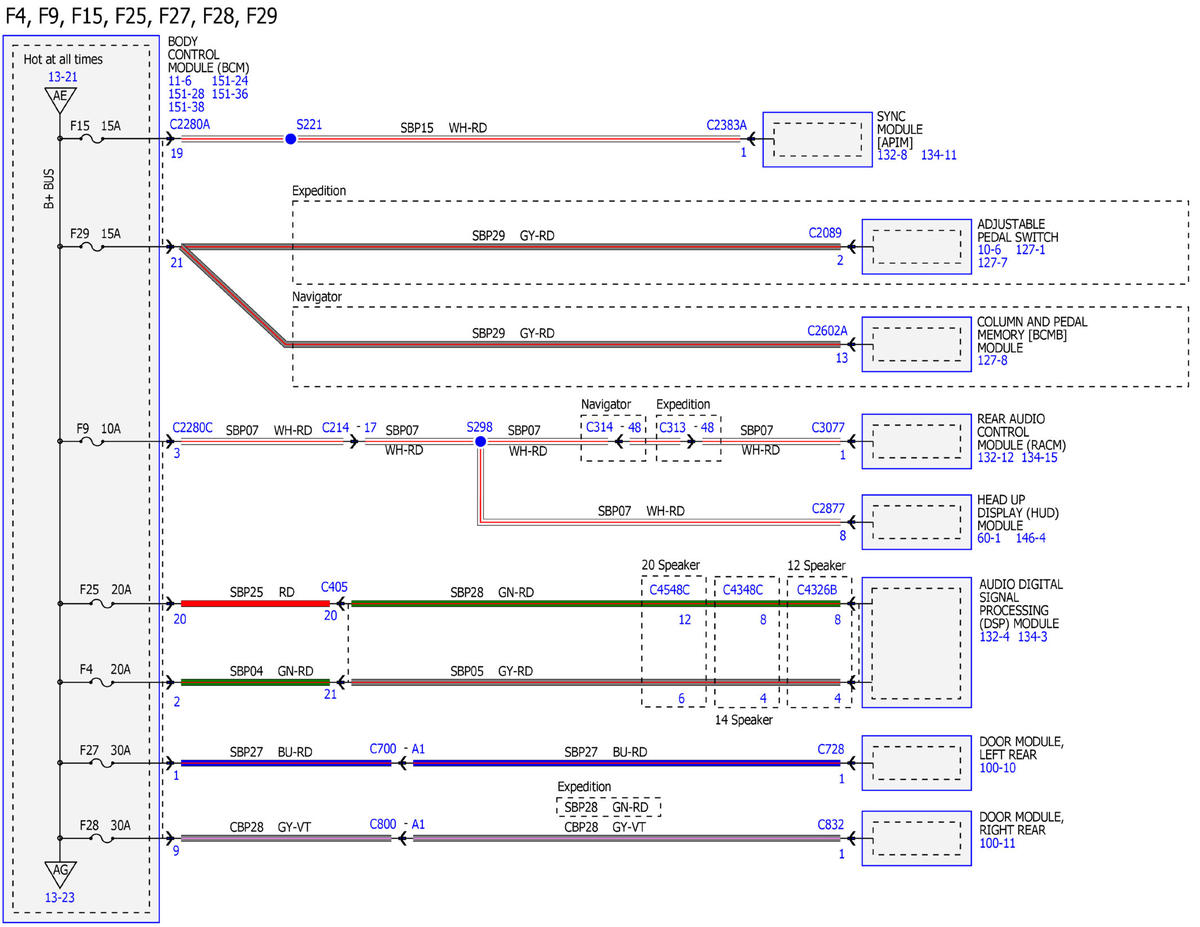

Fig 22: Power Distribution Wiring Diagrams (22 Of 53)

GFDWR135055

Courtesy of FORD MOTOR COMPANY

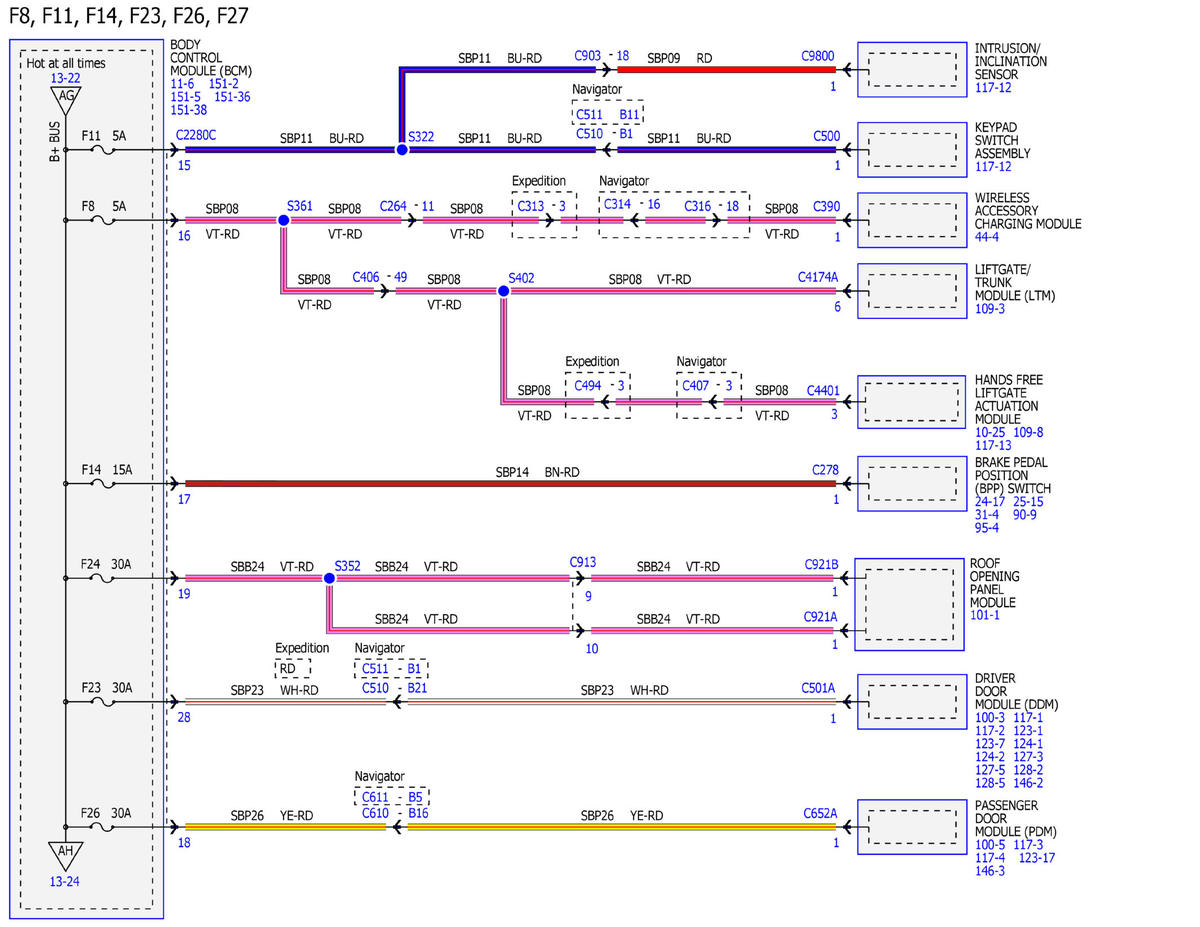

Fig 23: Power Distribution Wiring Diagrams (23 Of 53)

GFDWR135056

Courtesy of FORD MOTOR COMPANY

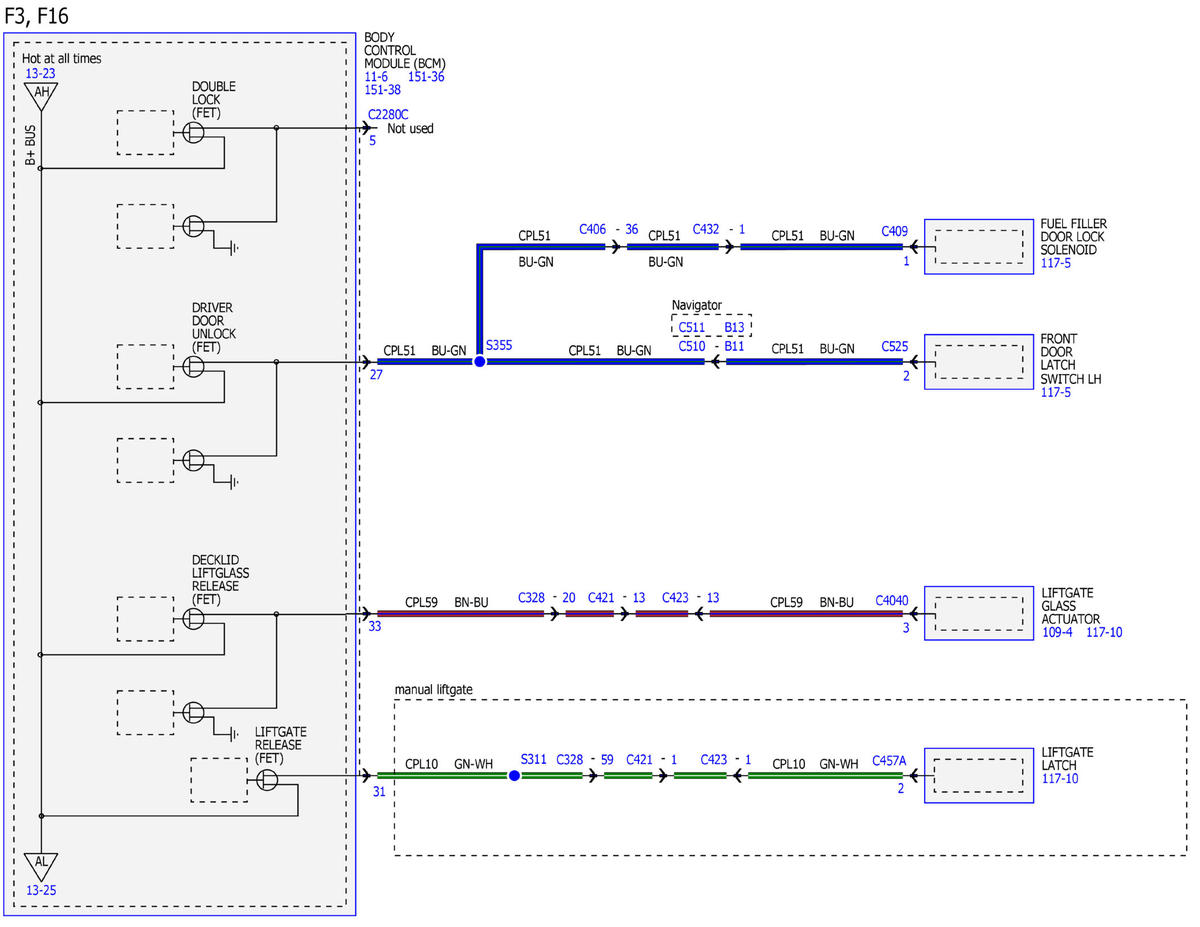

Fig 24: Power Distribution Wiring Diagrams (24 Of 53)

GFDWR135057

Courtesy of FORD MOTOR COMPANY

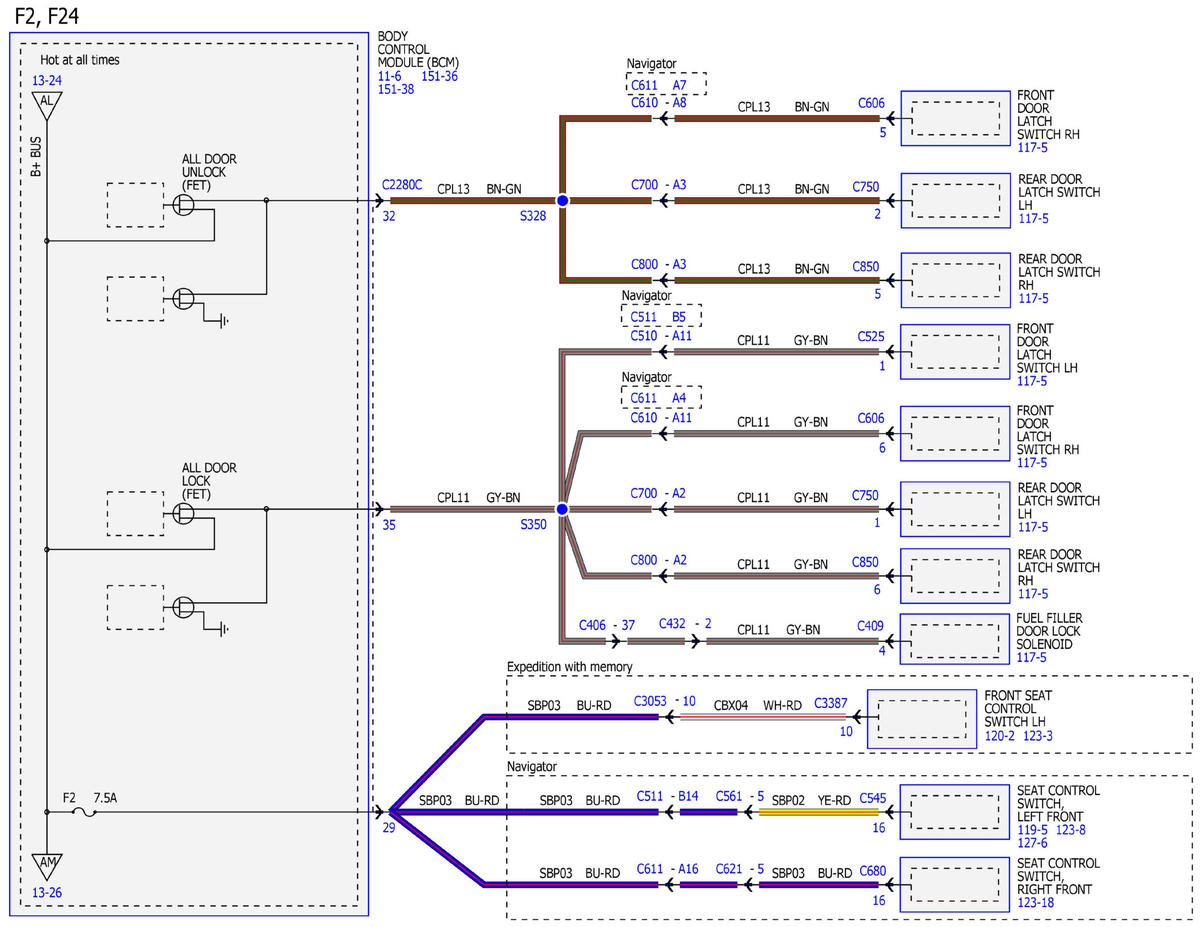

Fig 25: Power Distribution Wiring Diagrams (25 Of 53)

GFDWR135058

Courtesy of FORD MOTOR COMPANY

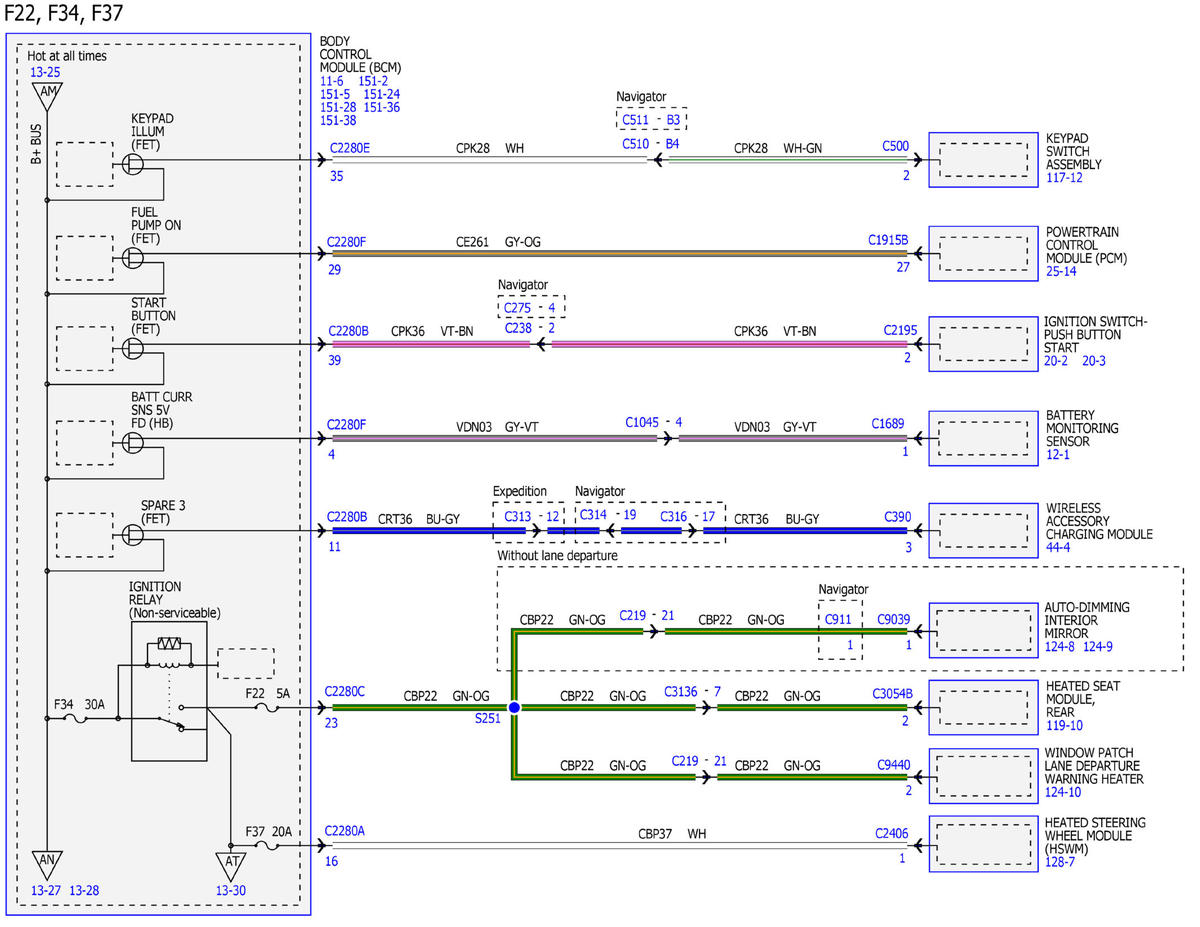

Fig 26: Power Distribution Wiring Diagrams (26 Of 53)

GFDWR135059

Courtesy of FORD MOTOR COMPANY

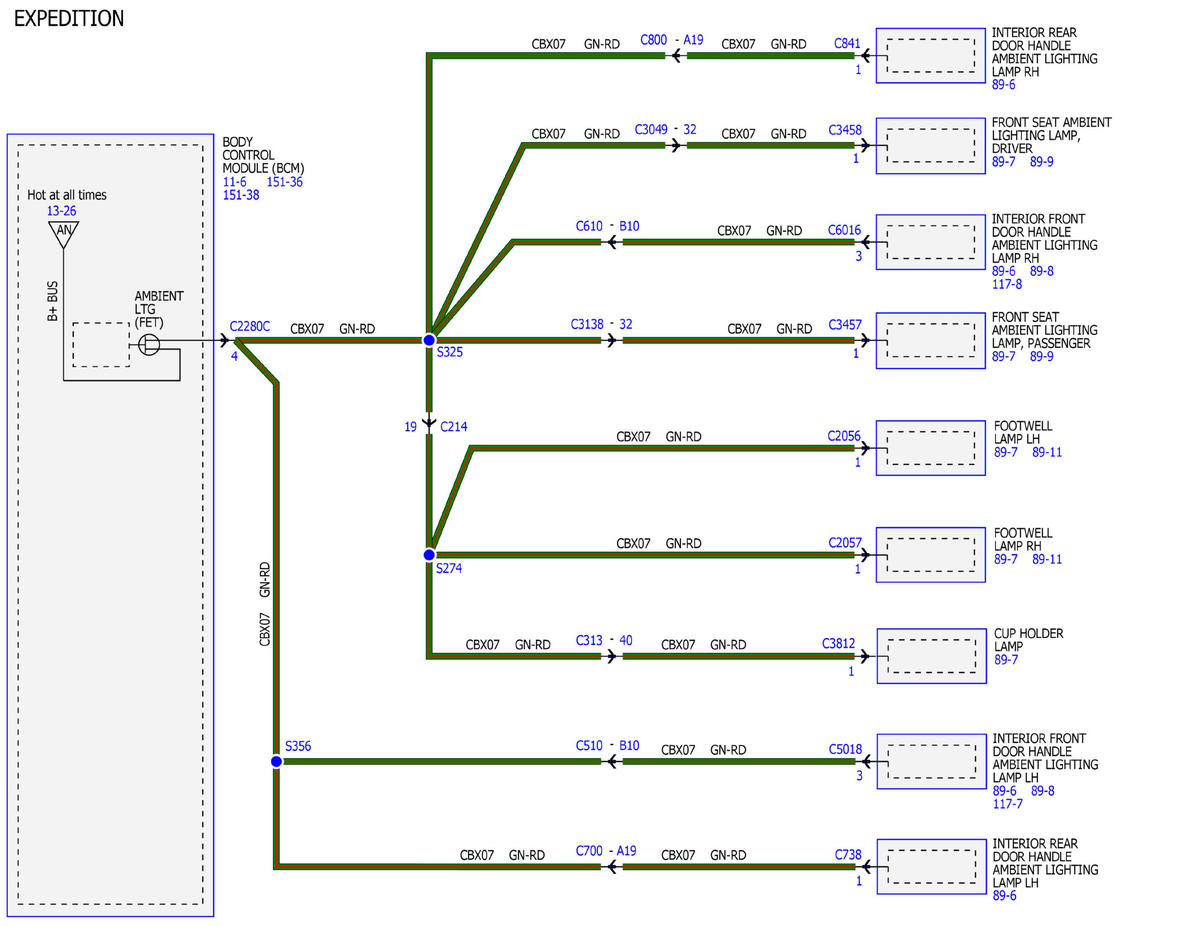

Fig 27: Power Distribution Wiring Diagrams (27 Of 53)

GFDWR135060

Courtesy of FORD MOTOR COMPANY

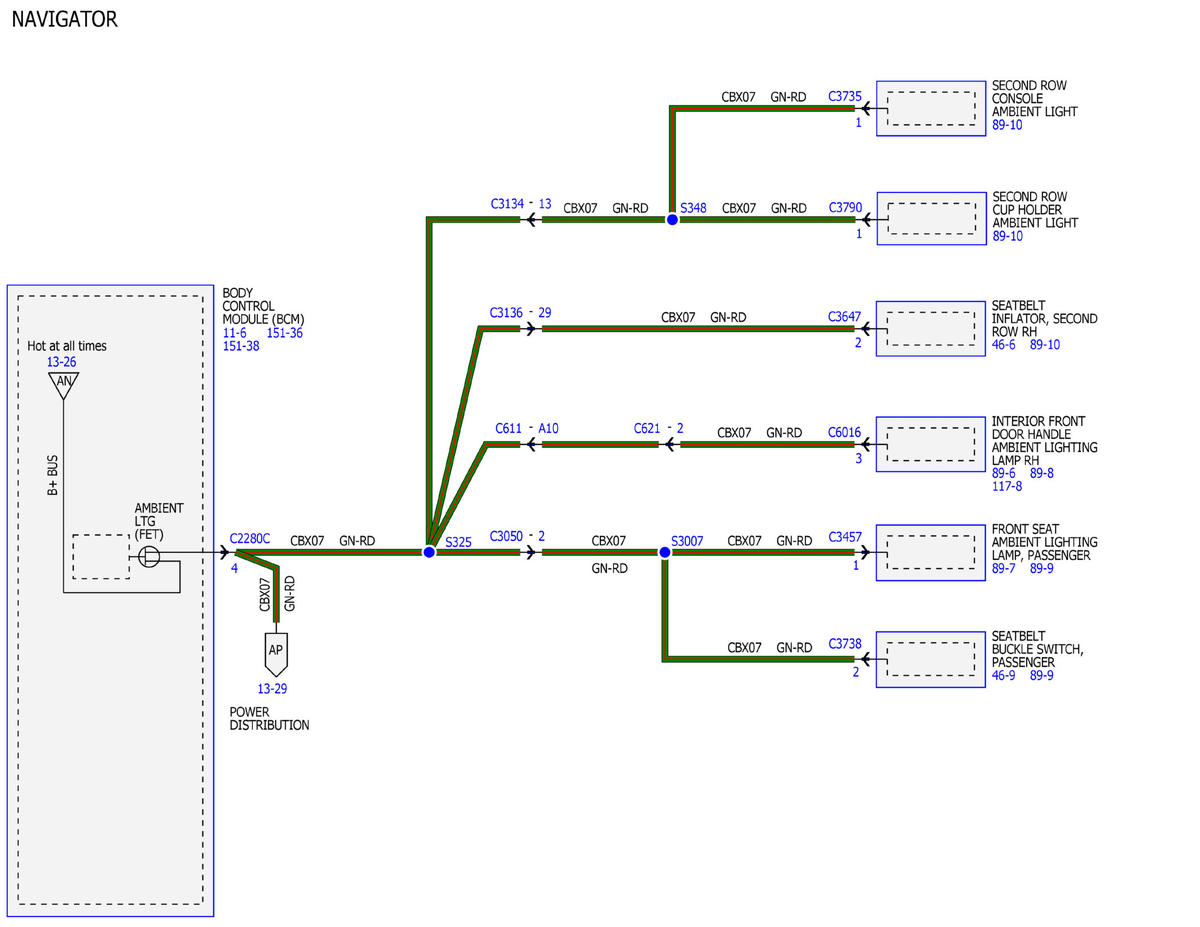

Fig 28: Power Distribution Wiring Diagrams (28 Of 53)

GFDWR135061

Courtesy of FORD MOTOR COMPANY

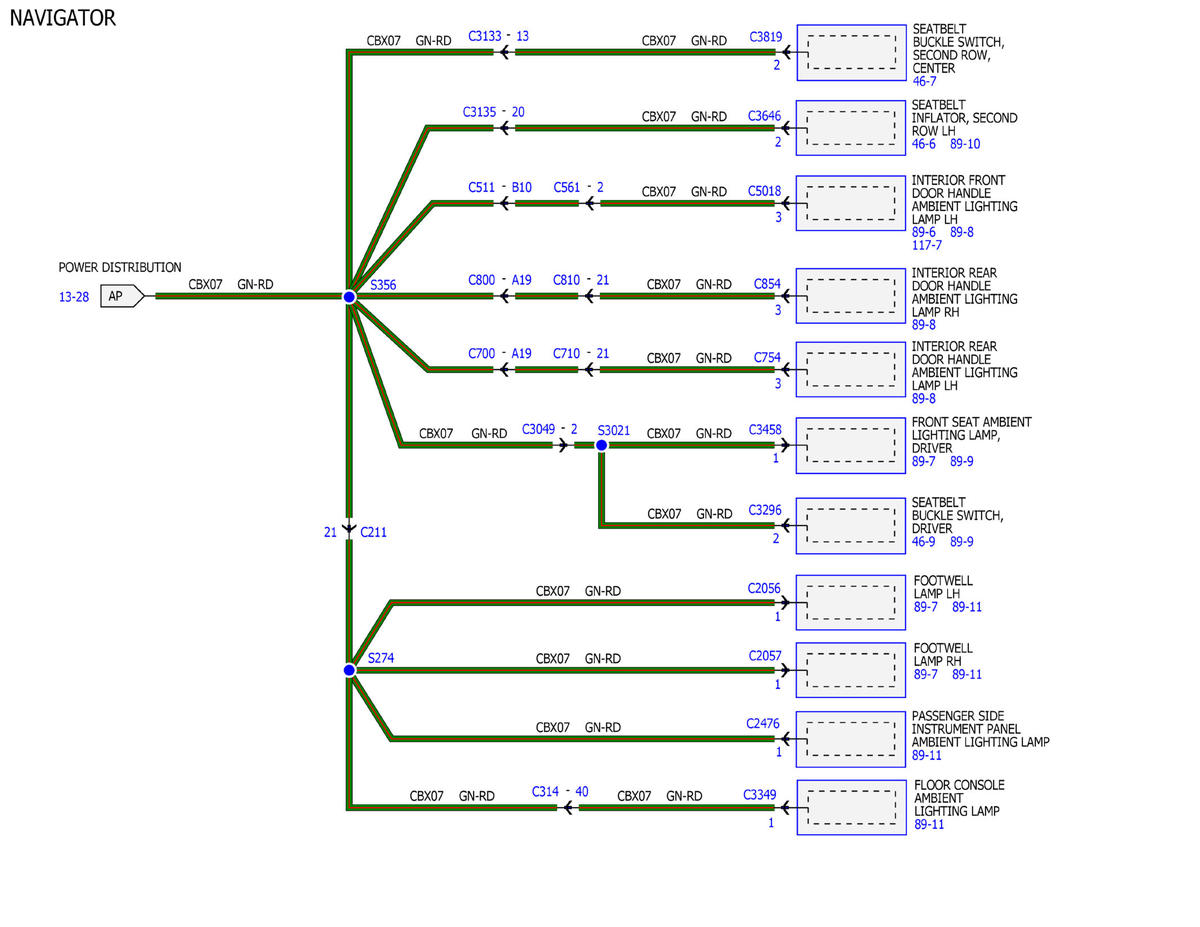

Fig 29: Power Distribution Wiring Diagrams (29 Of 53)

GFDWR135062

Courtesy of FORD MOTOR COMPANY

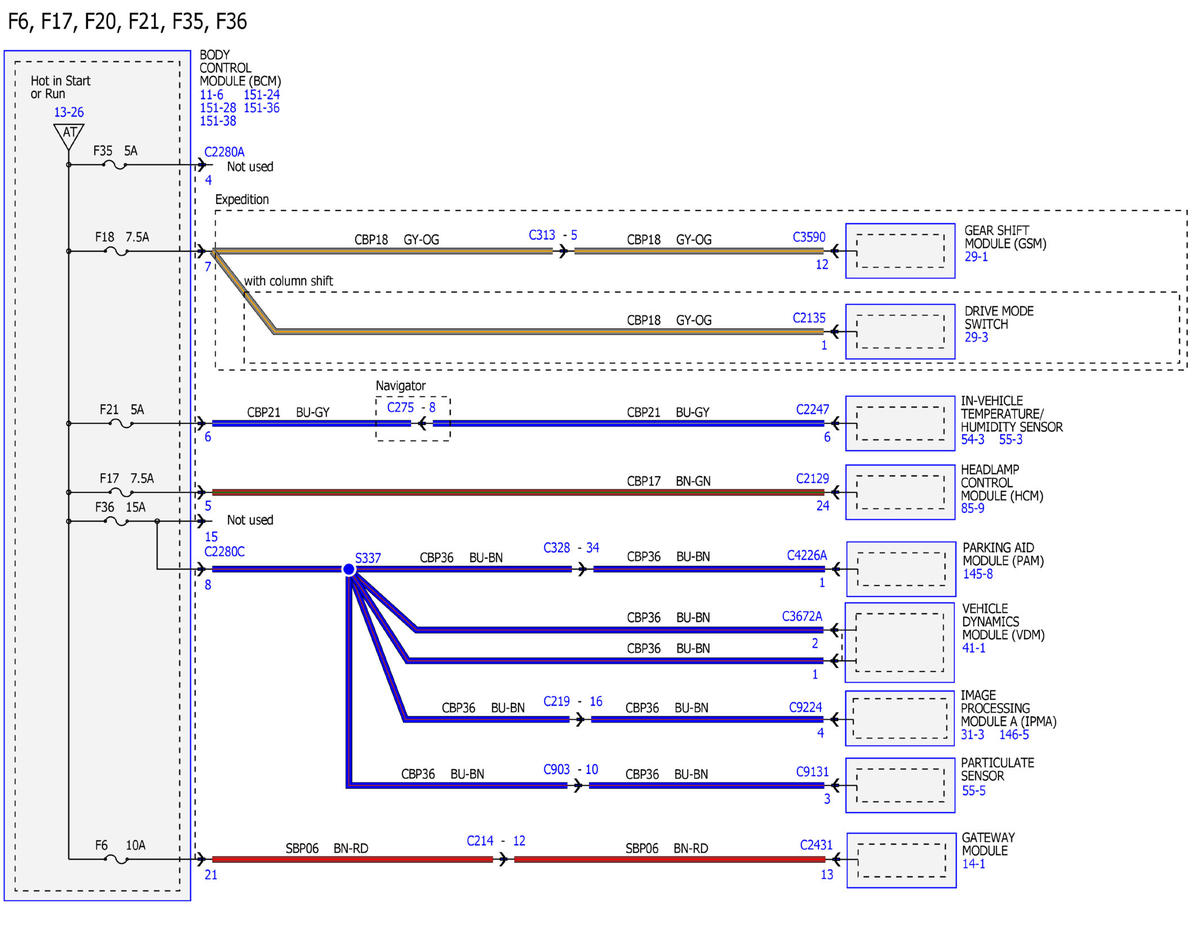

Fig 30: Power Distribution Wiring Diagrams (30 Of 53)

GFDWR135064

Courtesy of FORD MOTOR COMPANY

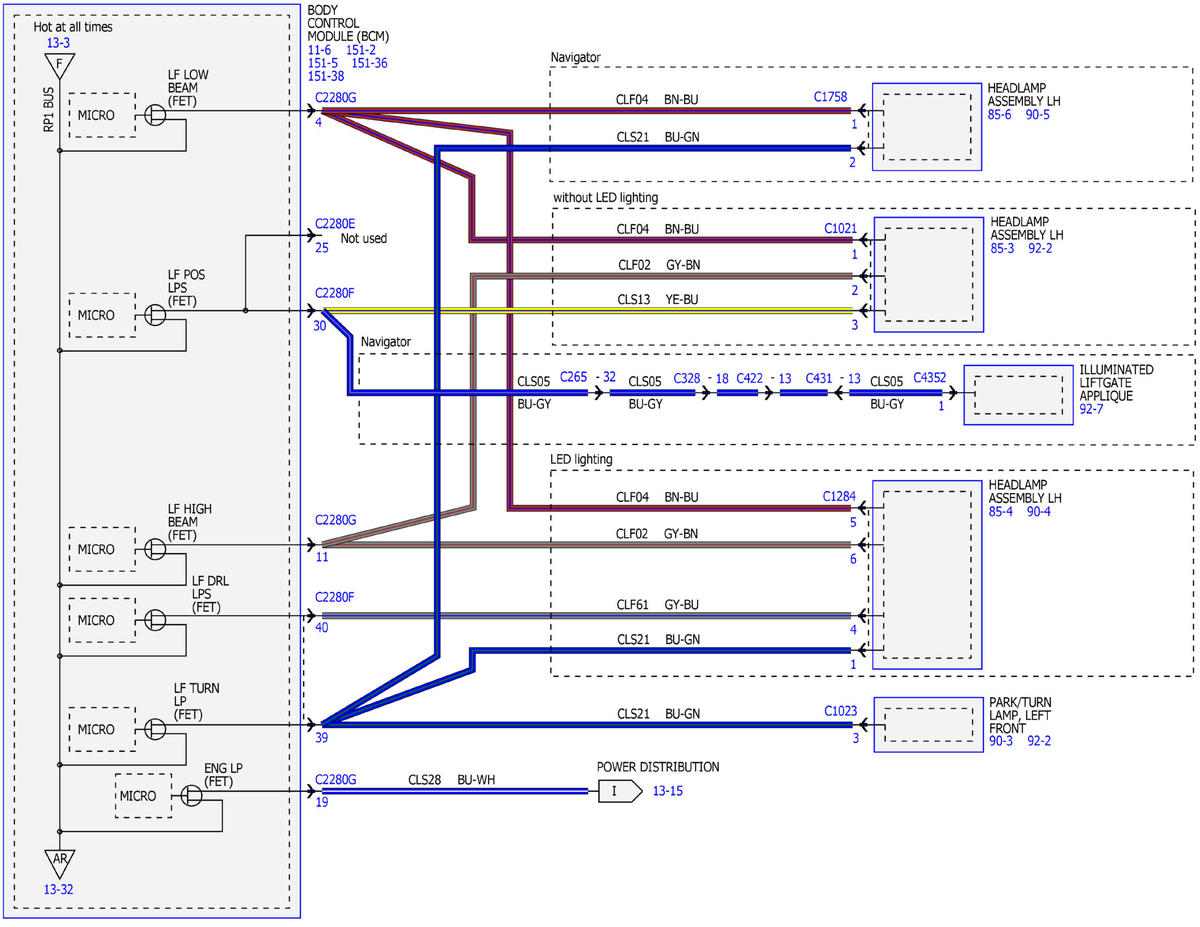

Fig 31: Power Distribution Wiring Diagrams (31 Of 53)

GFDWR135065

Courtesy of FORD MOTOR COMPANY

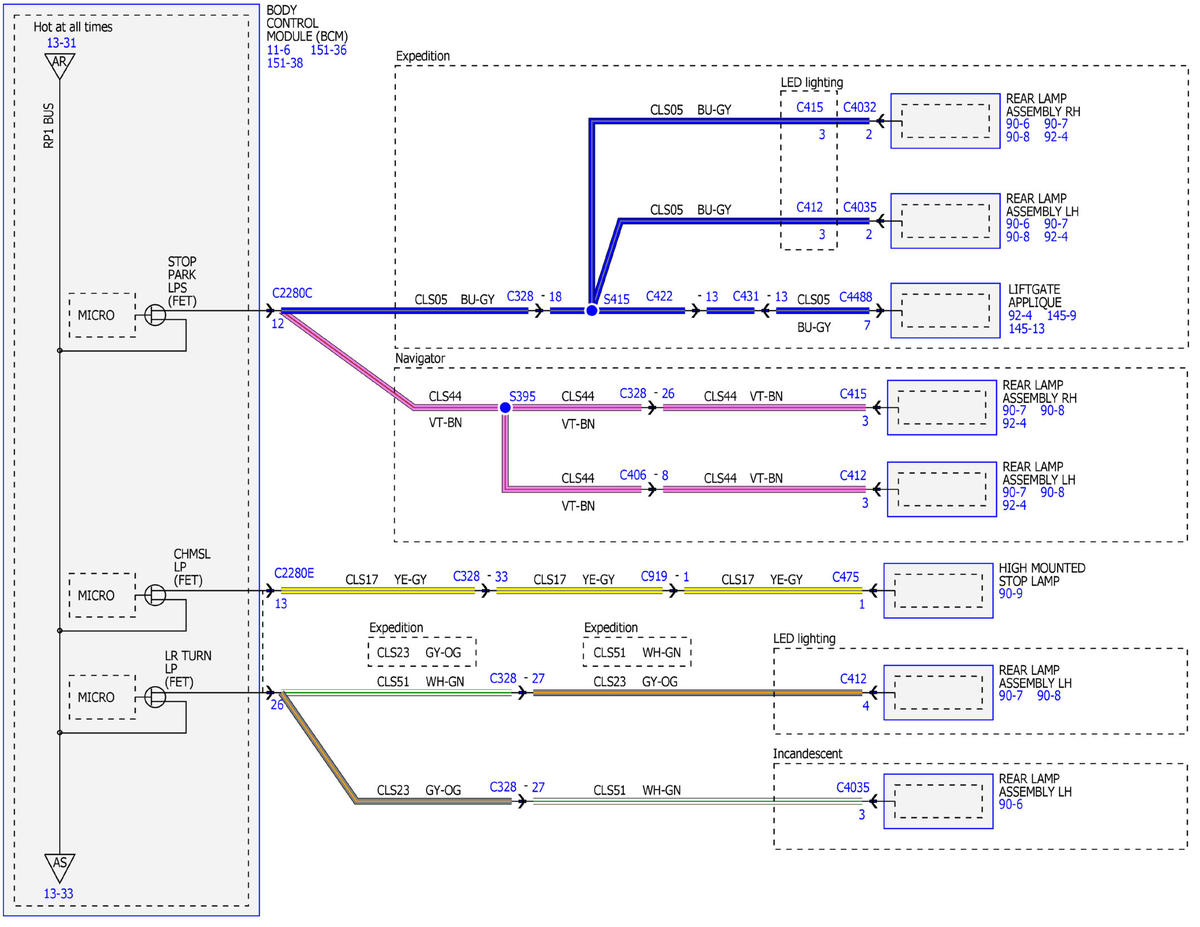

Fig 32: Power Distribution Wiring Diagrams (32 Of 53)

GFDWR135066

Courtesy of FORD MOTOR COMPANY

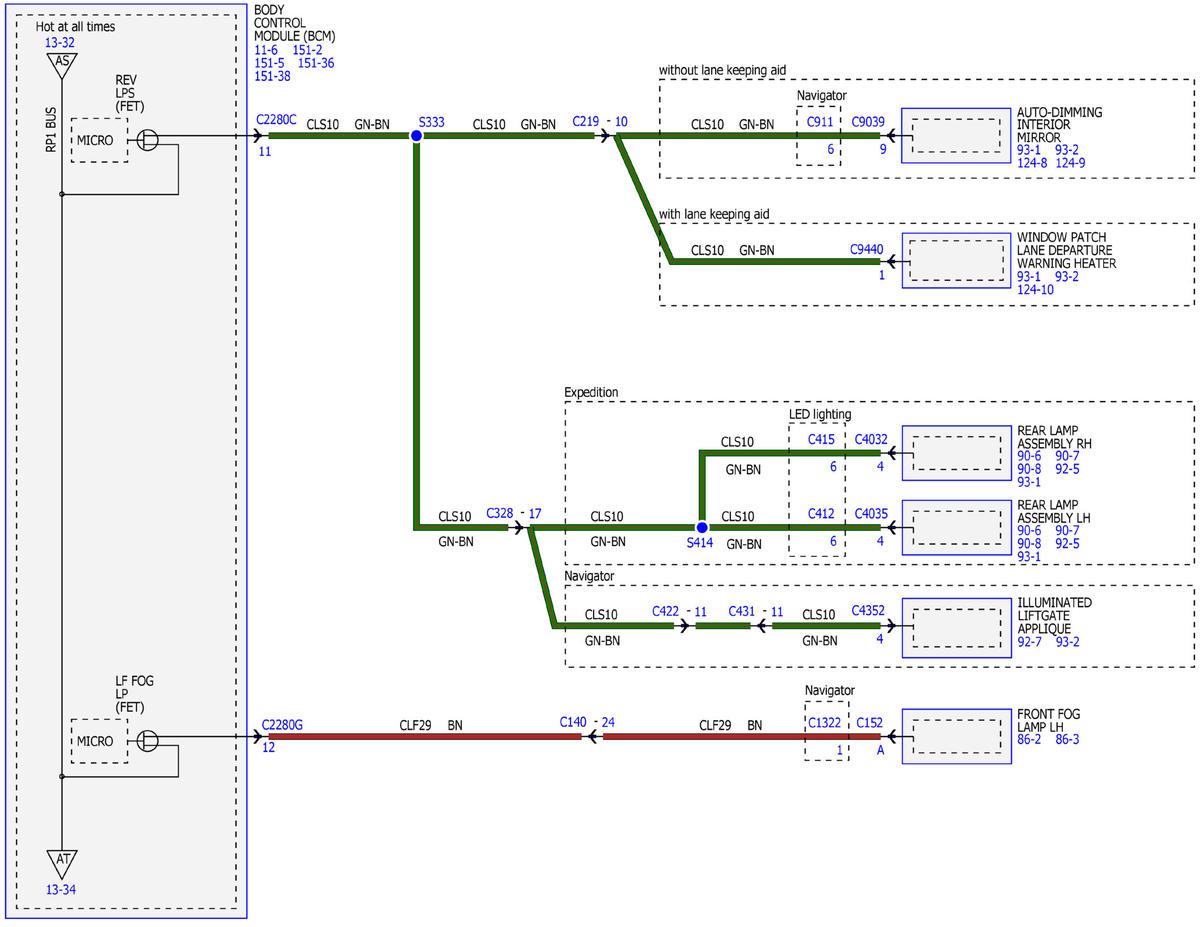

Fig 33: Power Distribution Wiring Diagrams (33 Of 53)

GFDWR135067

Courtesy of FORD MOTOR COMPANY

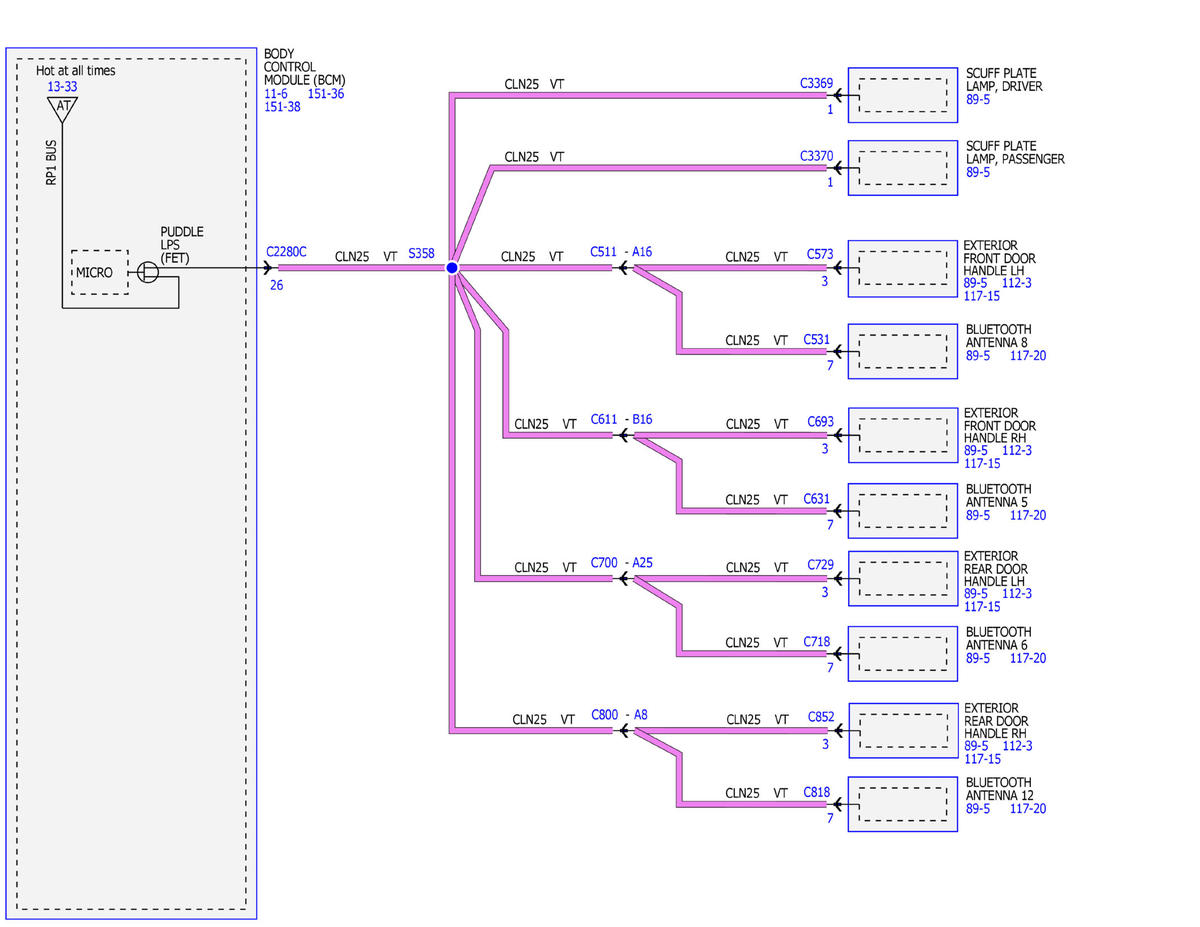

Fig 34: Power Distribution Wiring Diagrams (34 Of 53)

GFDWR135068

Courtesy of FORD MOTOR COMPANY

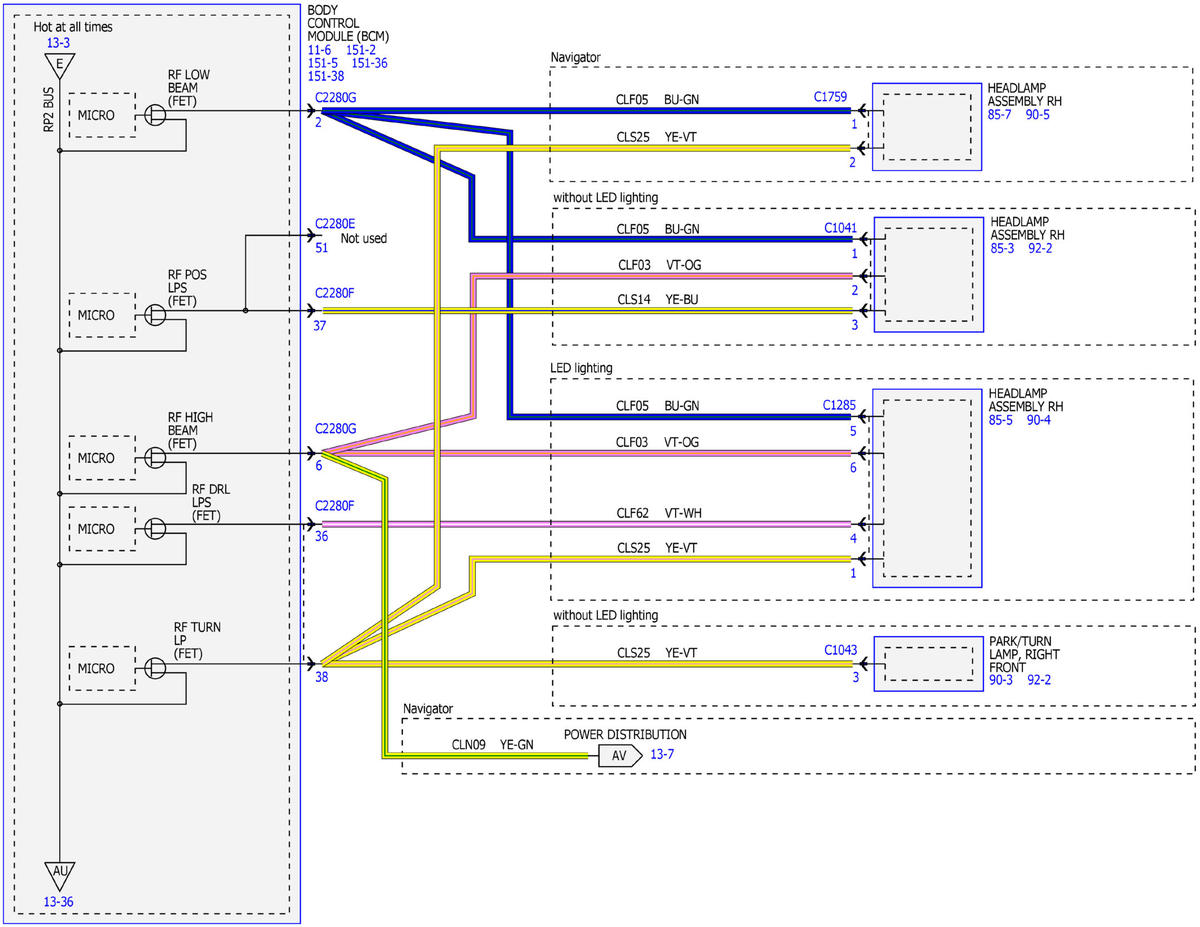

Fig 35: Power Distribution Wiring Diagrams (35 Of 53)

GFDWR135069

Courtesy of FORD MOTOR COMPANY

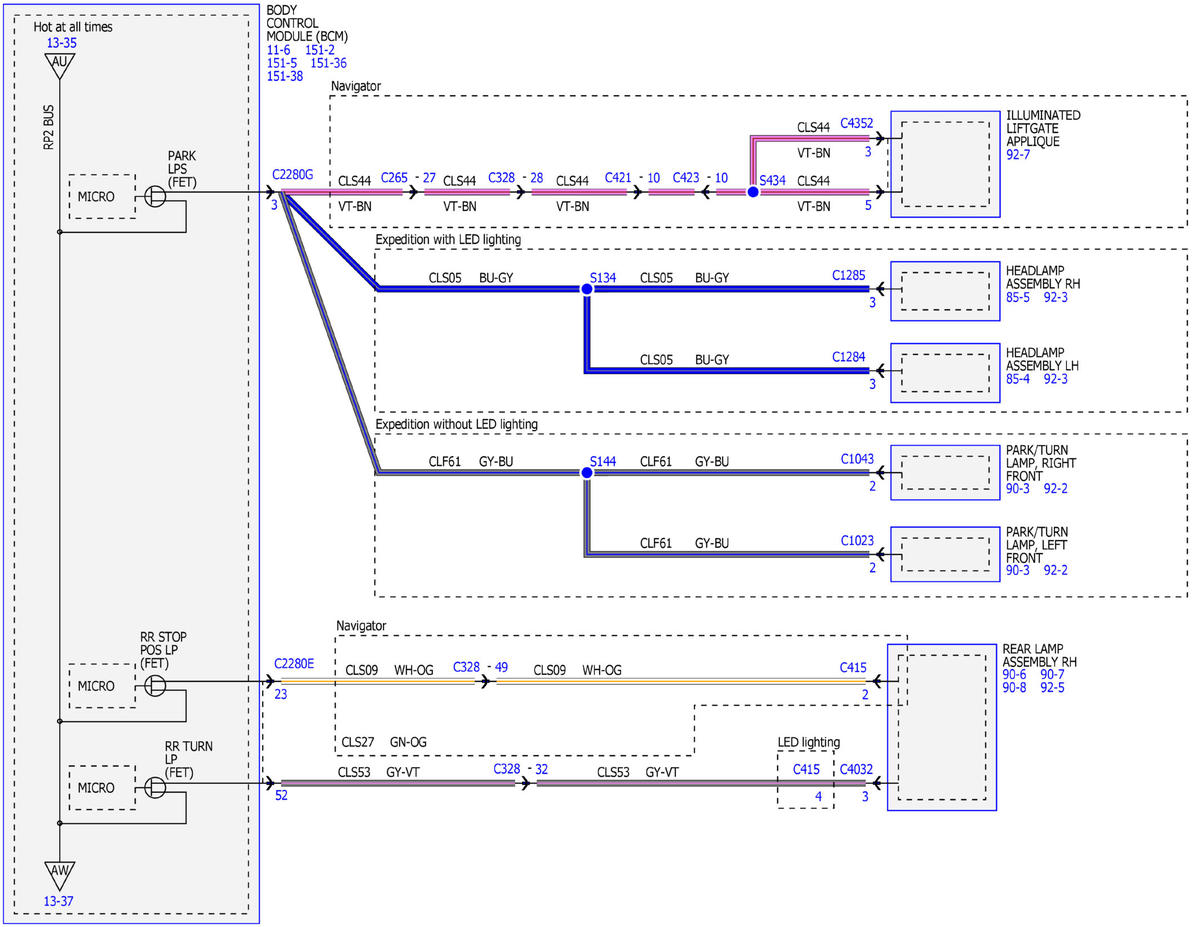

Fig 36: Power Distribution Wiring Diagrams (36 Of 53)

GFDWR135070

Courtesy of FORD MOTOR COMPANY

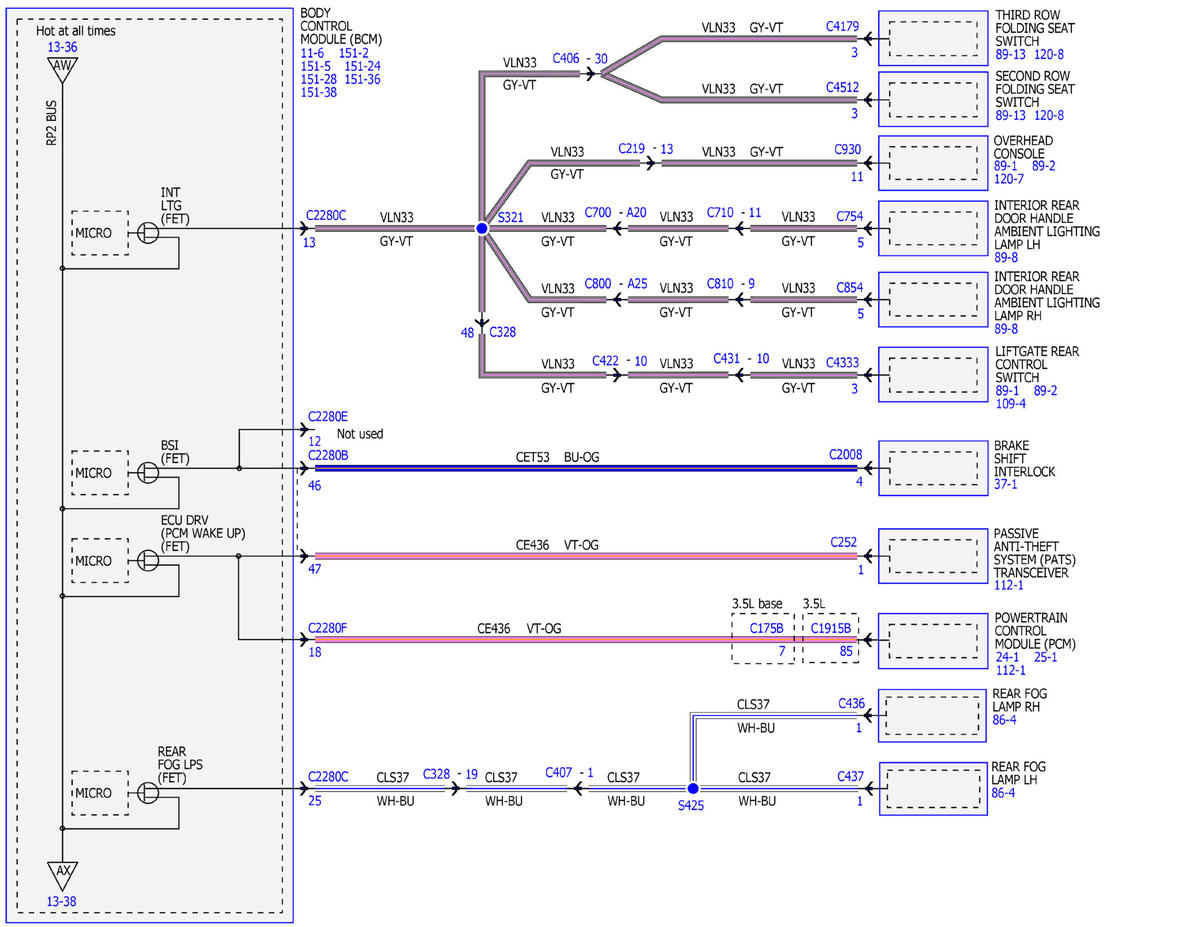

Fig 37: Power Distribution Wiring Diagrams (37 Of 53)

GFDWR135071

Courtesy of FORD MOTOR COMPANY

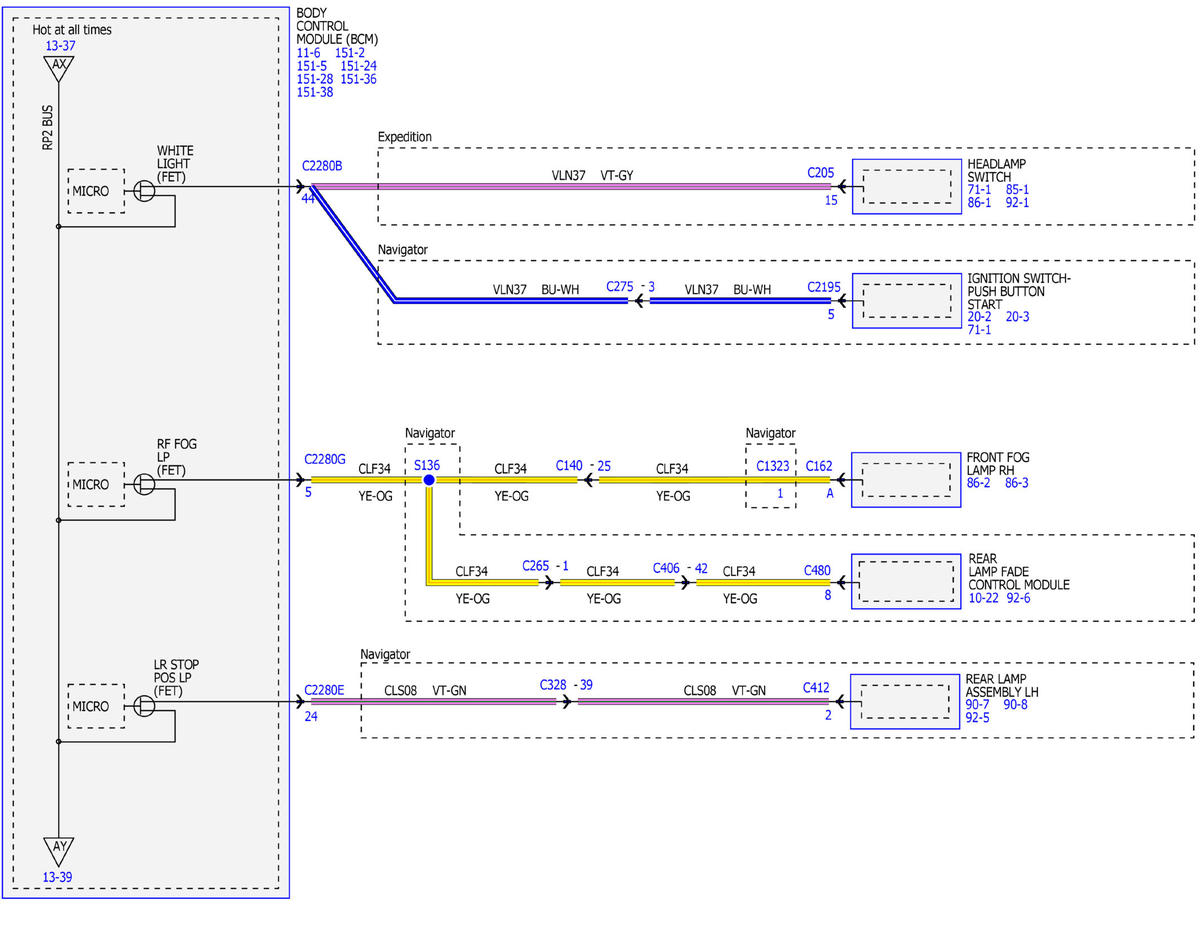

Fig 38: Power Distribution Wiring Diagrams (38 Of 53)

GFDWR135072

Courtesy of FORD MOTOR COMPANY

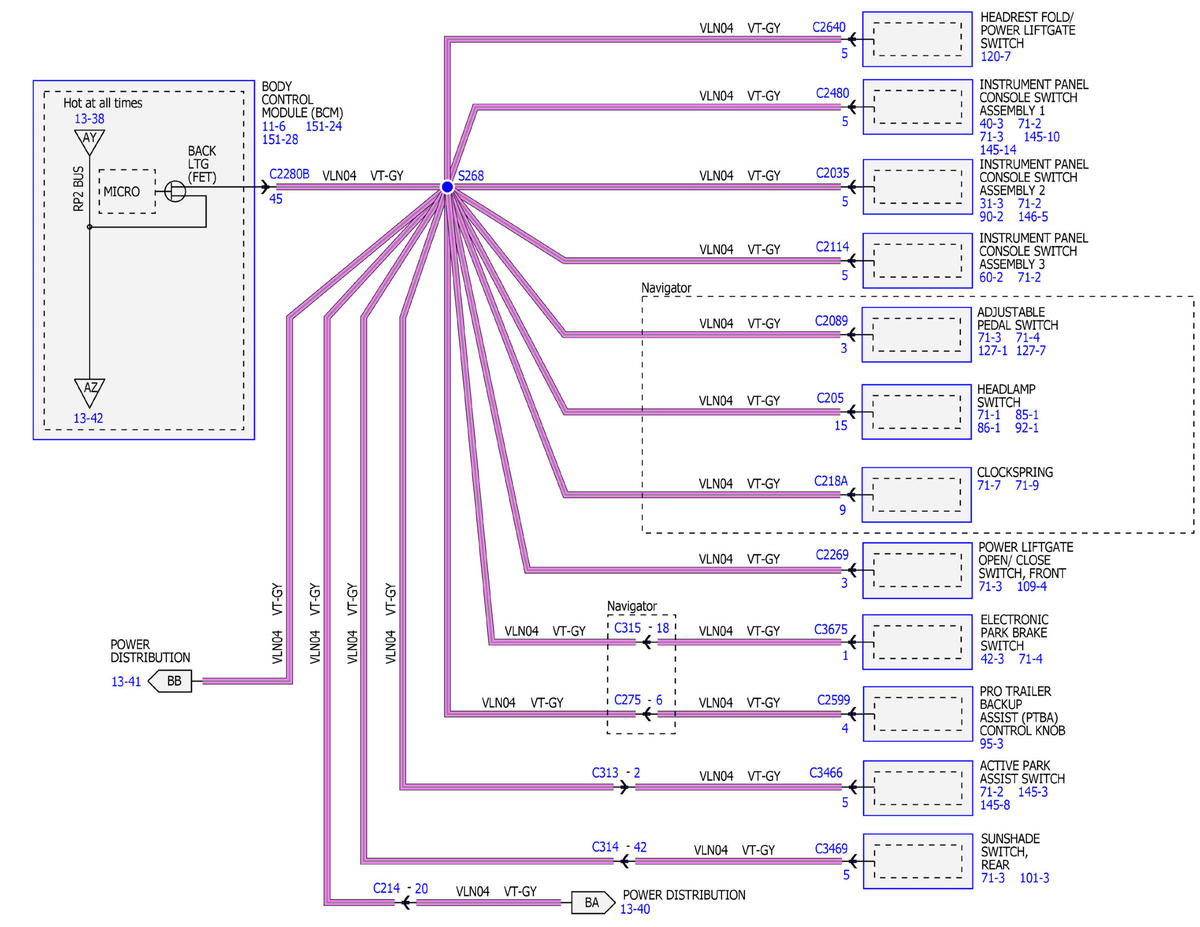

Fig 39: Power Distribution Wiring Diagrams (39 Of 53)

GFDWR135073

Courtesy of FORD MOTOR COMPANY

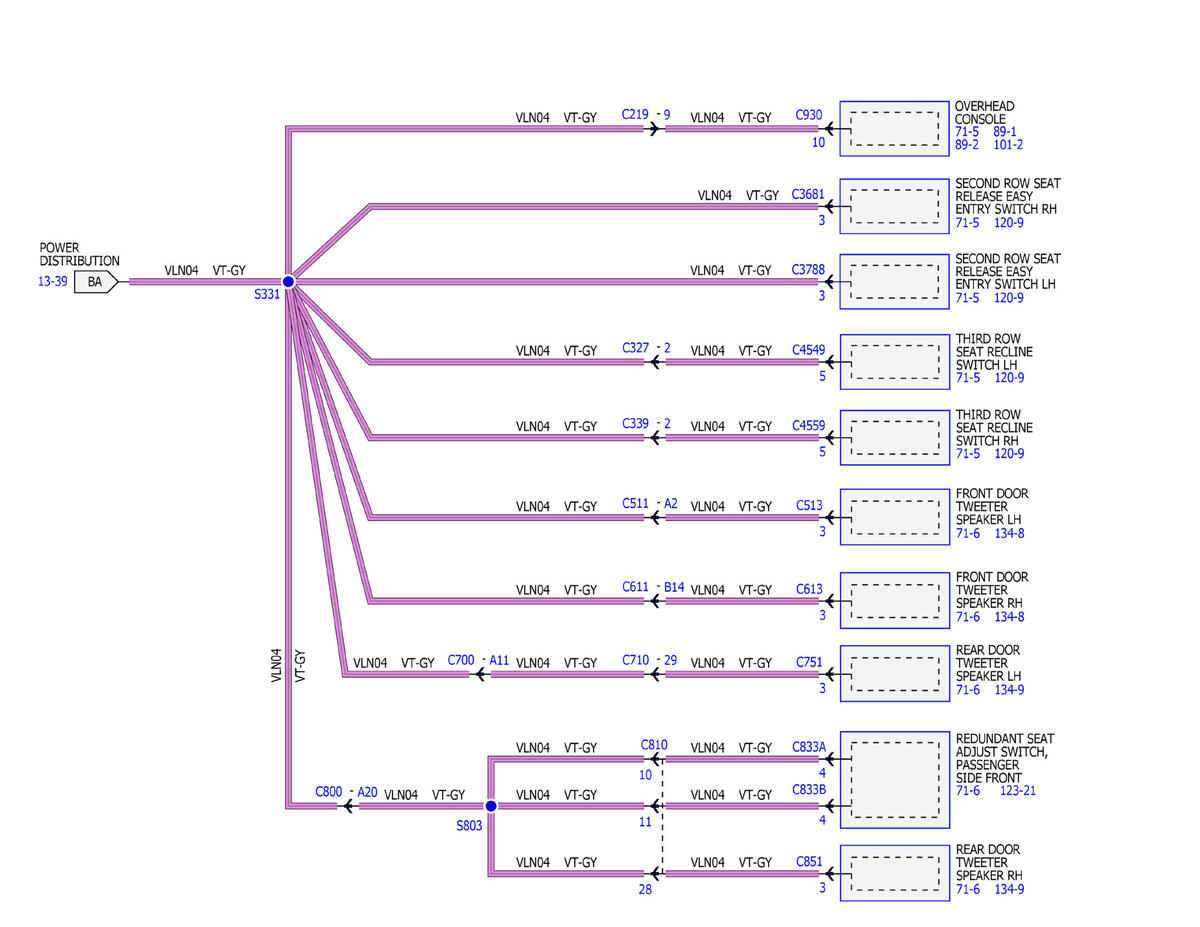

Fig 40: Power Distribution Wiring Diagrams (40 Of 53)

GFDWR135075

Courtesy of FORD MOTOR COMPANY

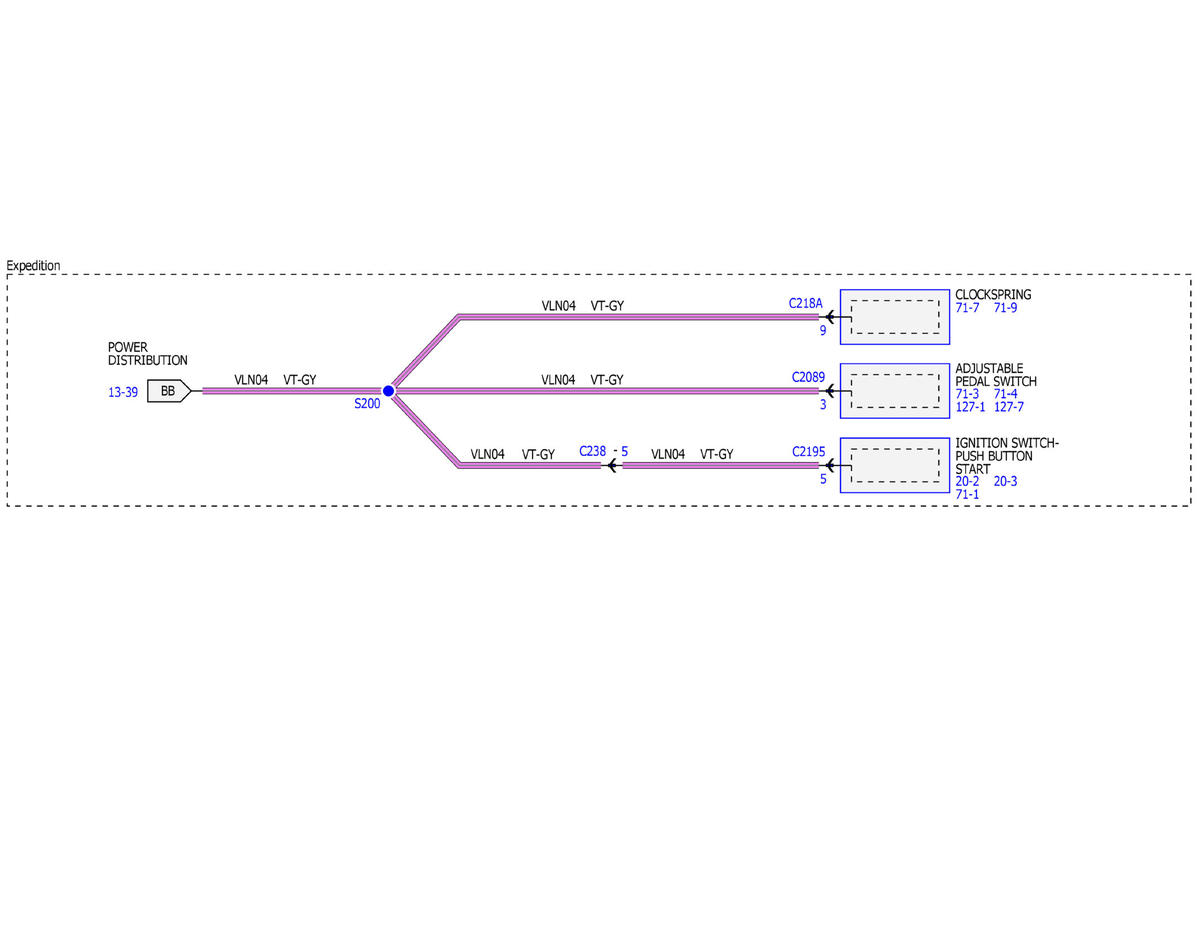

Fig 41: Power Distribution Wiring Diagrams (41 Of 53)

GFDWR135076

Courtesy of FORD MOTOR COMPANY

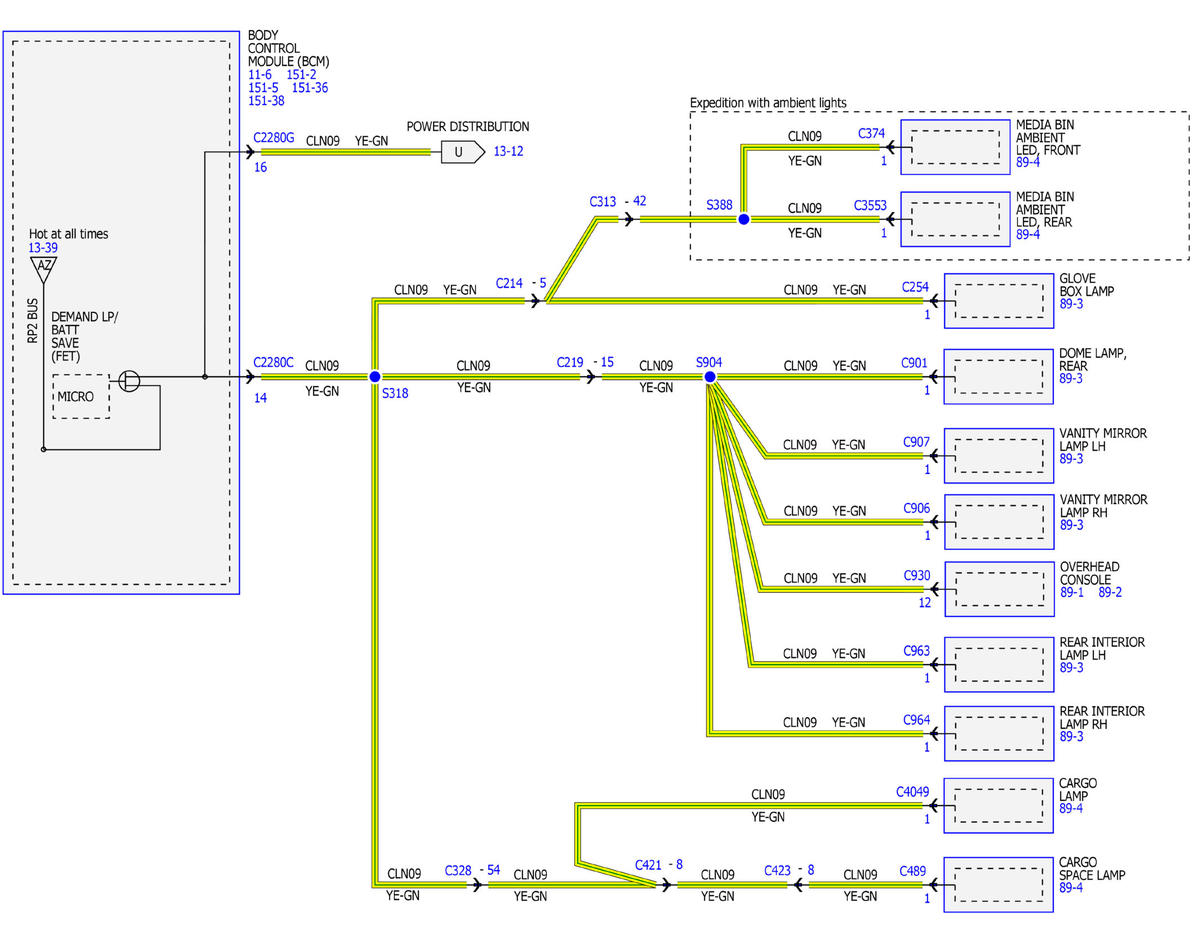

Fig 42: Power Distribution Wiring Diagrams (42 Of 53)

GFDWR135077

Courtesy of FORD MOTOR COMPANY

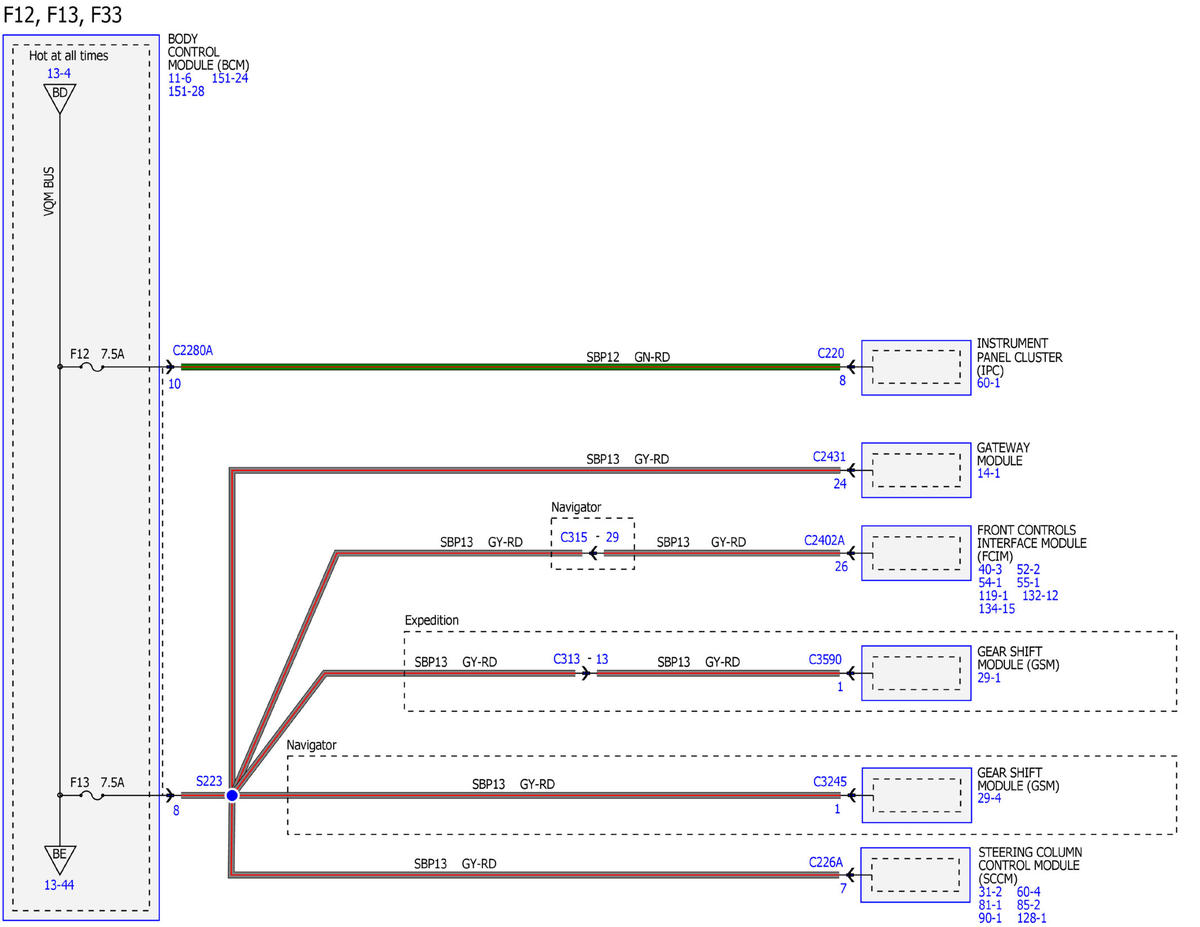

Fig 43: Power Distribution Wiring Diagrams (43 Of 53)

GFDWR135078

Courtesy of FORD MOTOR COMPANY

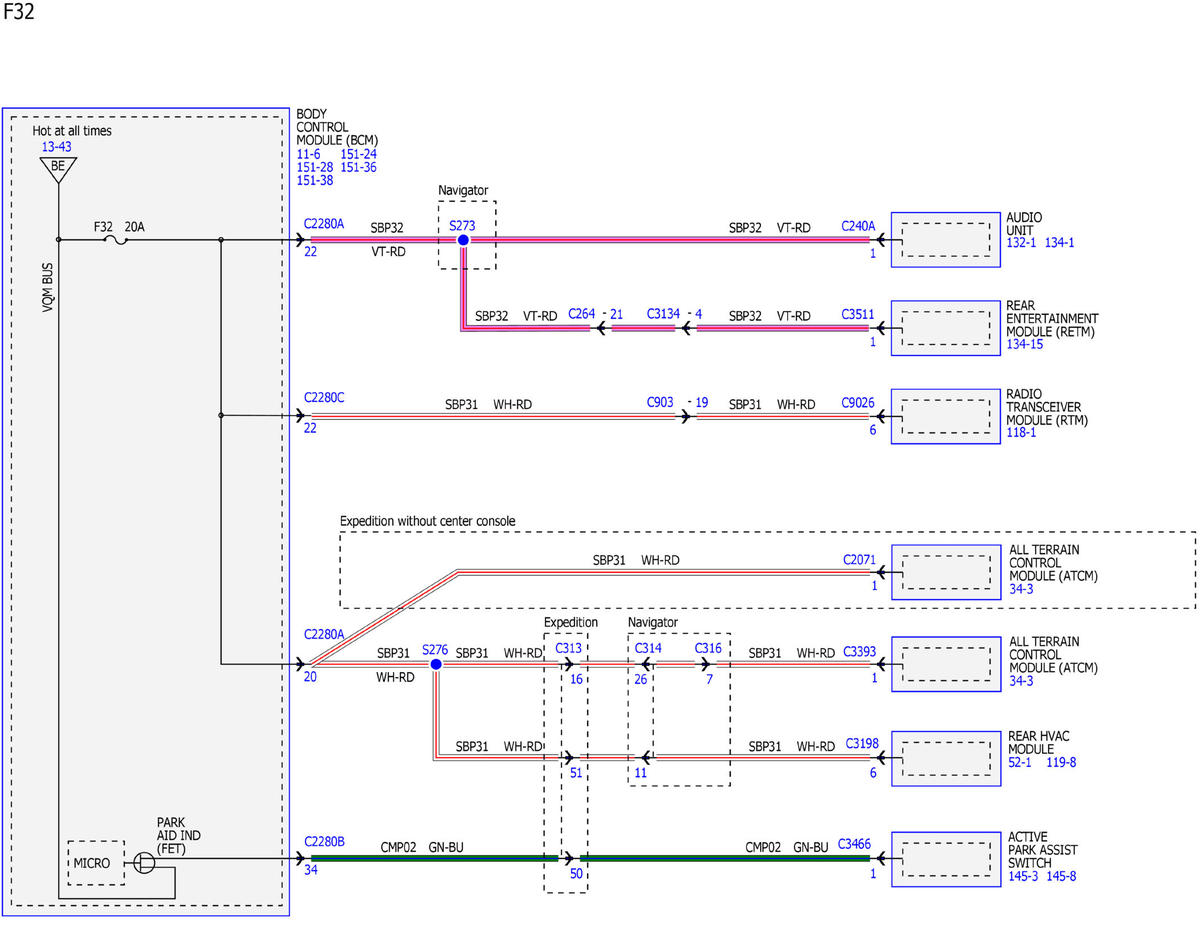

Fig 44: Power Distribution Wiring Diagrams (44 Of 53)

GFDWR135079

Courtesy of FORD MOTOR COMPANY

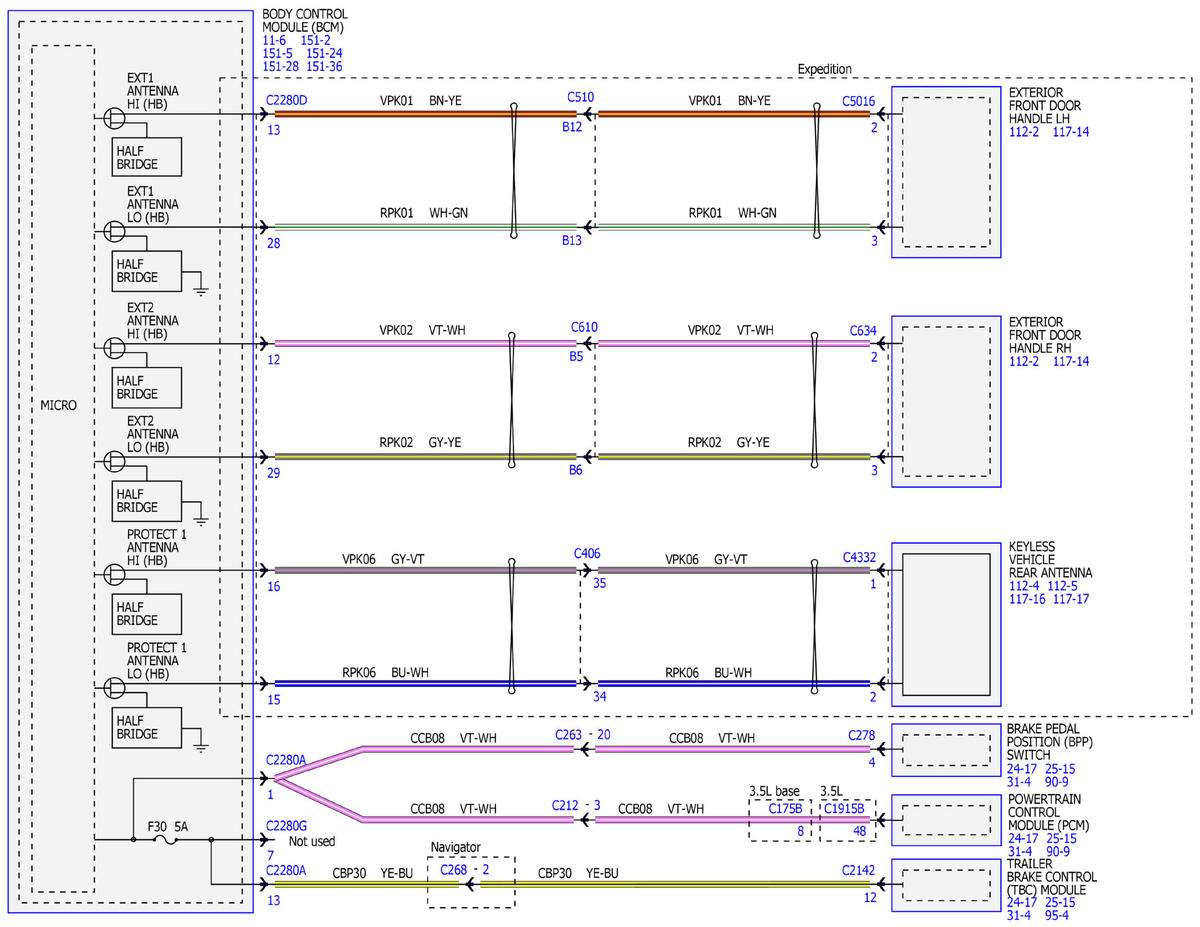

Fig 45: Power Distribution Wiring Diagrams (45 Of 53)

GFDWR135080

Courtesy of FORD MOTOR COMPANY

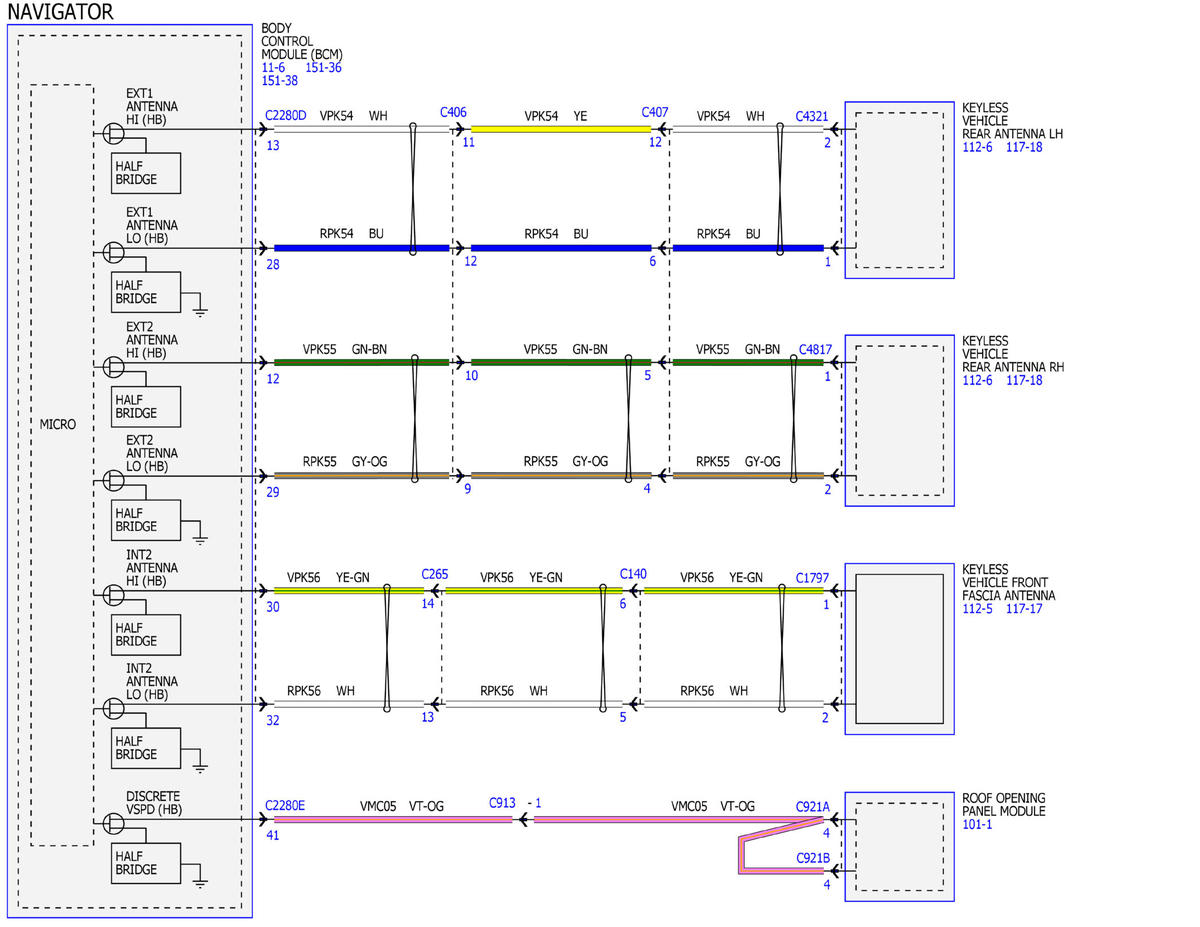

Fig 46: Power Distribution Wiring Diagrams (46 Of 53)

GFDWR135081

Courtesy of FORD MOTOR COMPANY

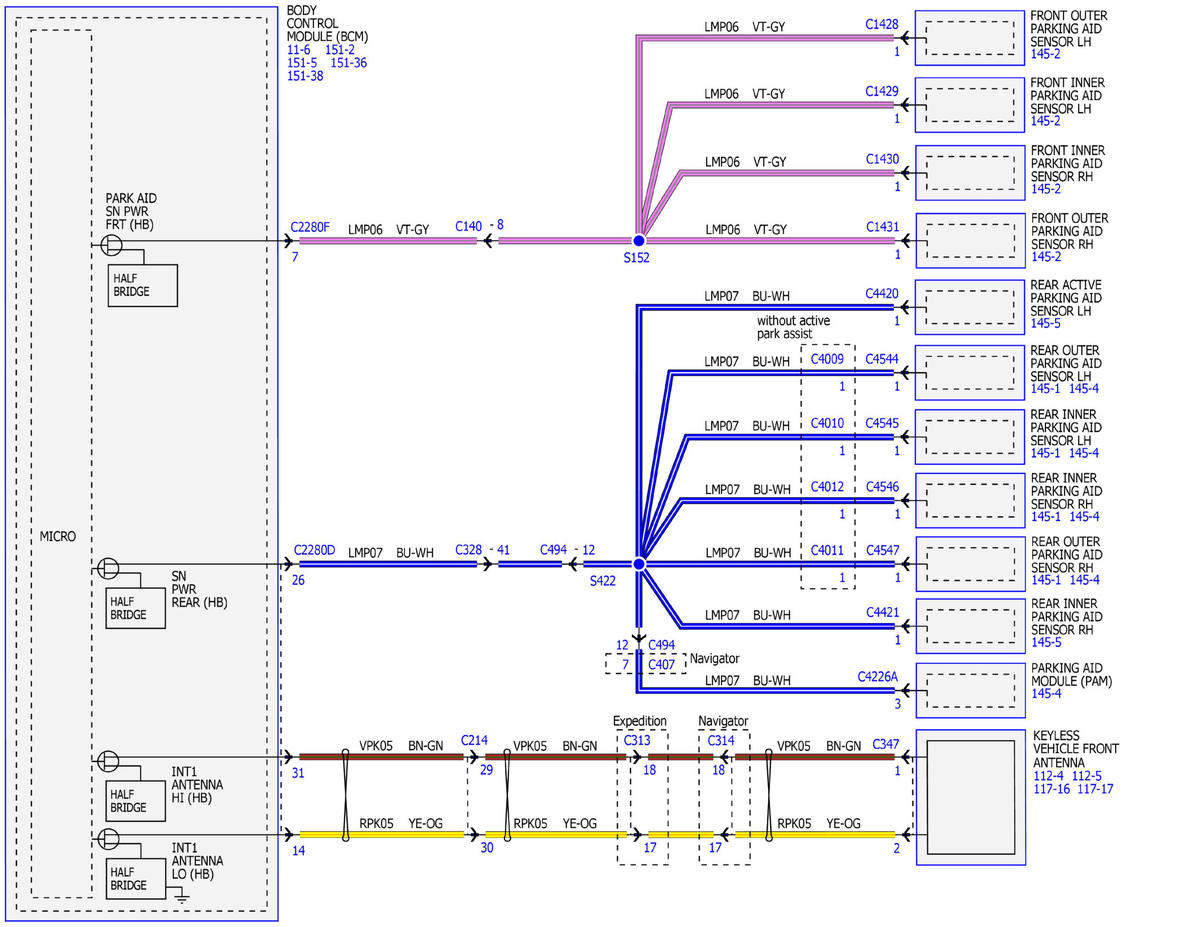

Fig 47: Power Distribution Wiring Diagrams (47 Of 53)

GFDWR135082

Courtesy of FORD MOTOR COMPANY

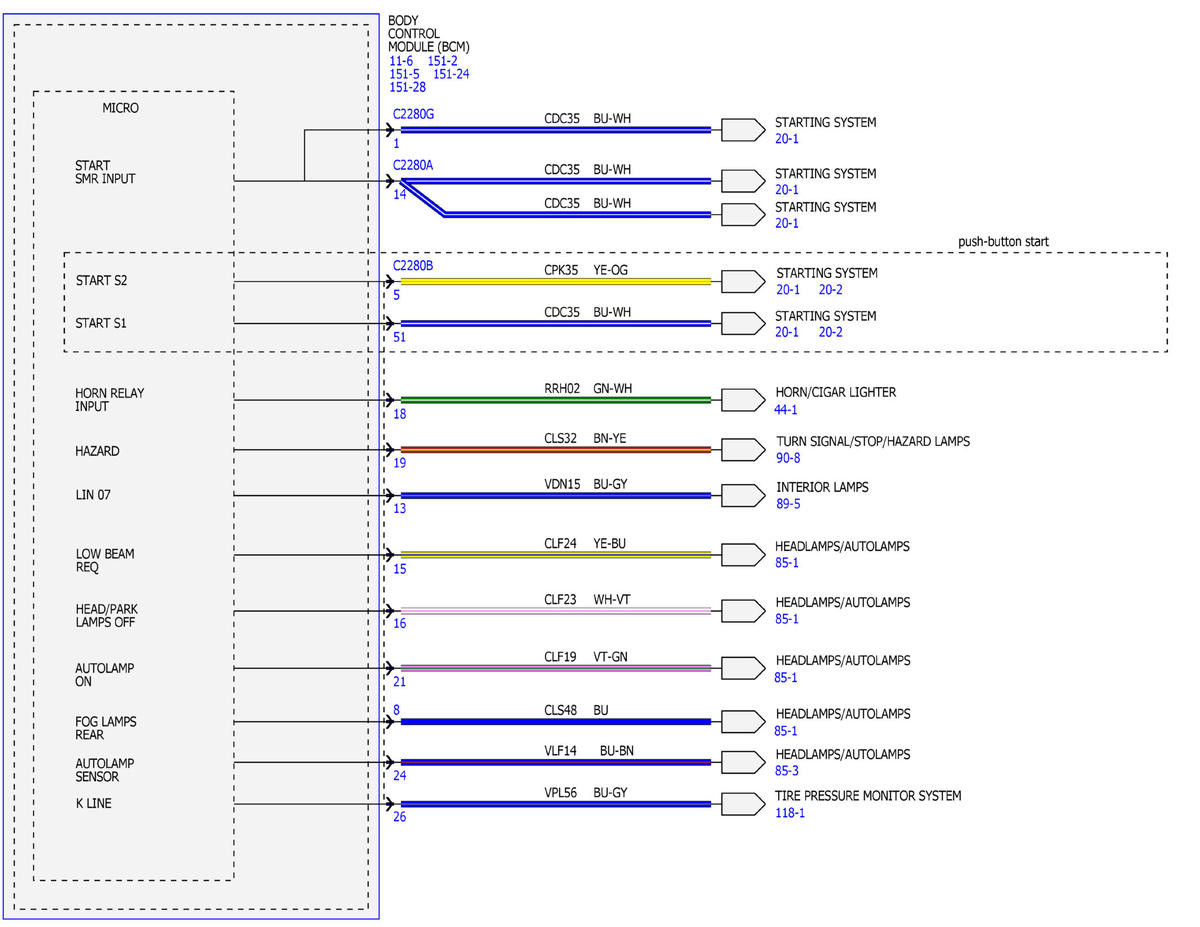

Fig 48: Power Distribution Wiring Diagrams (48 Of 53)

GFDWR135083

Courtesy of FORD MOTOR COMPANY

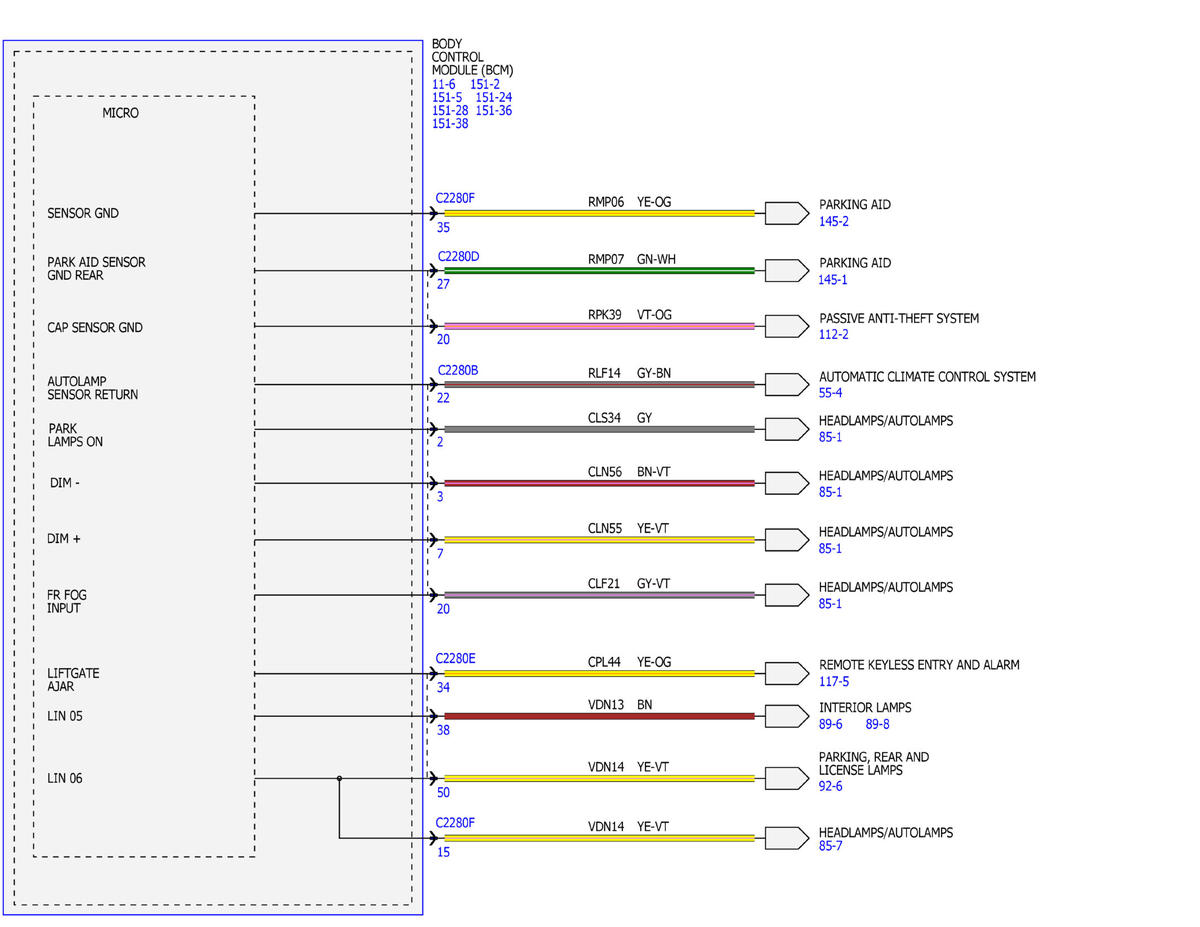

Fig 49: Power Distribution Wiring Diagrams (49 Of 53)

GFDWR135084

Courtesy of FORD MOTOR COMPANY

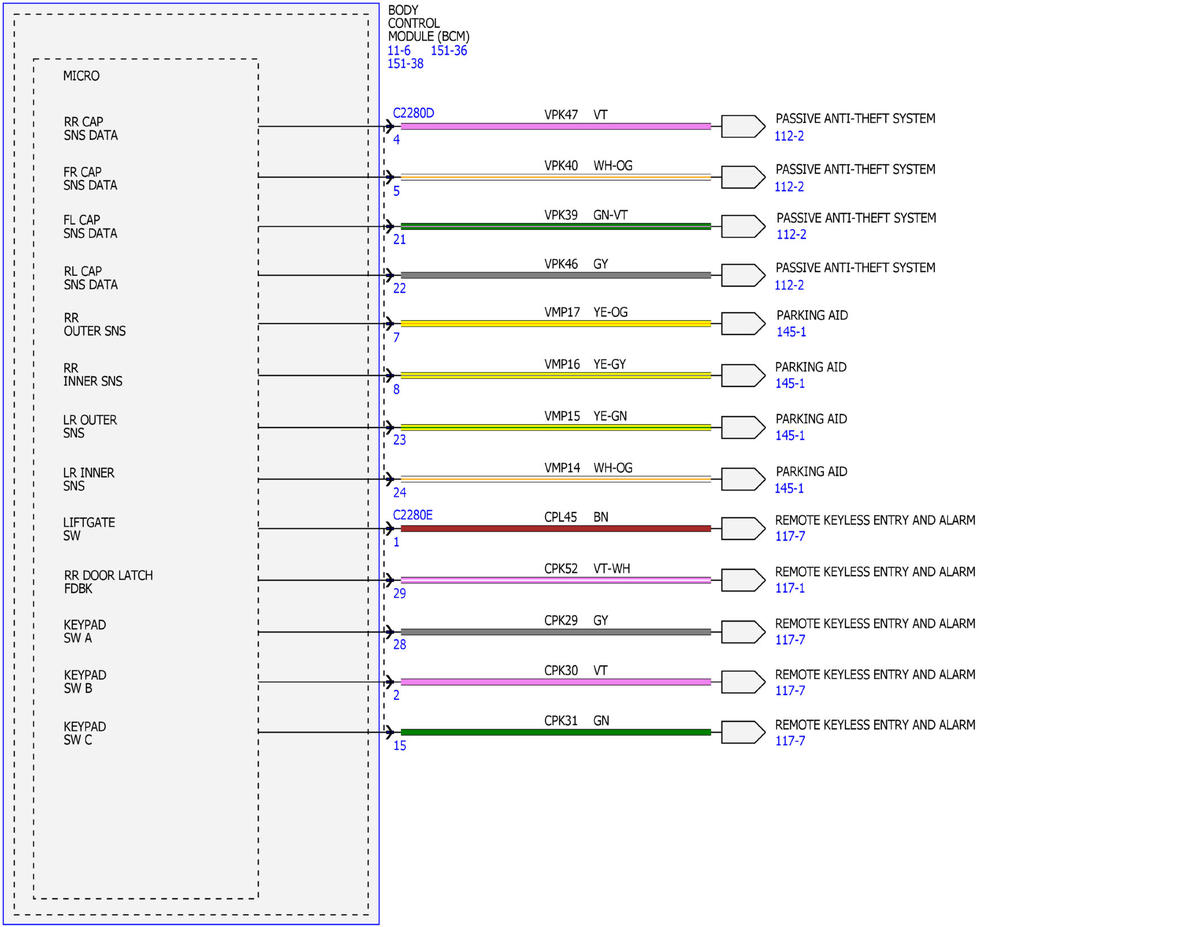

Fig 50: Power Distribution Wiring Diagrams (50 Of 53)

GFDWR135086

Courtesy of FORD MOTOR COMPANY

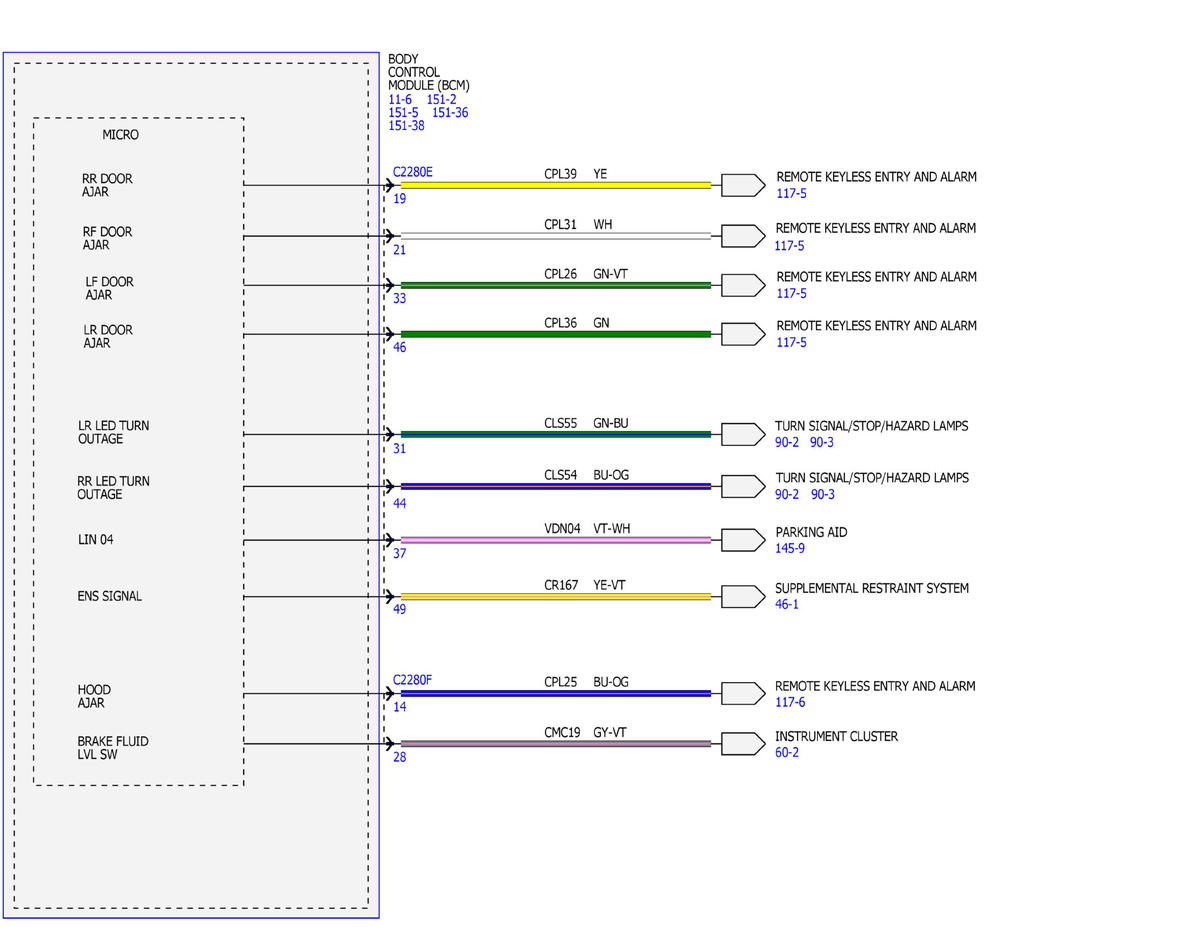

Fig 51: Power Distribution Wiring Diagrams (51 Of 53)

GFDWR135087

Courtesy of FORD MOTOR COMPANY

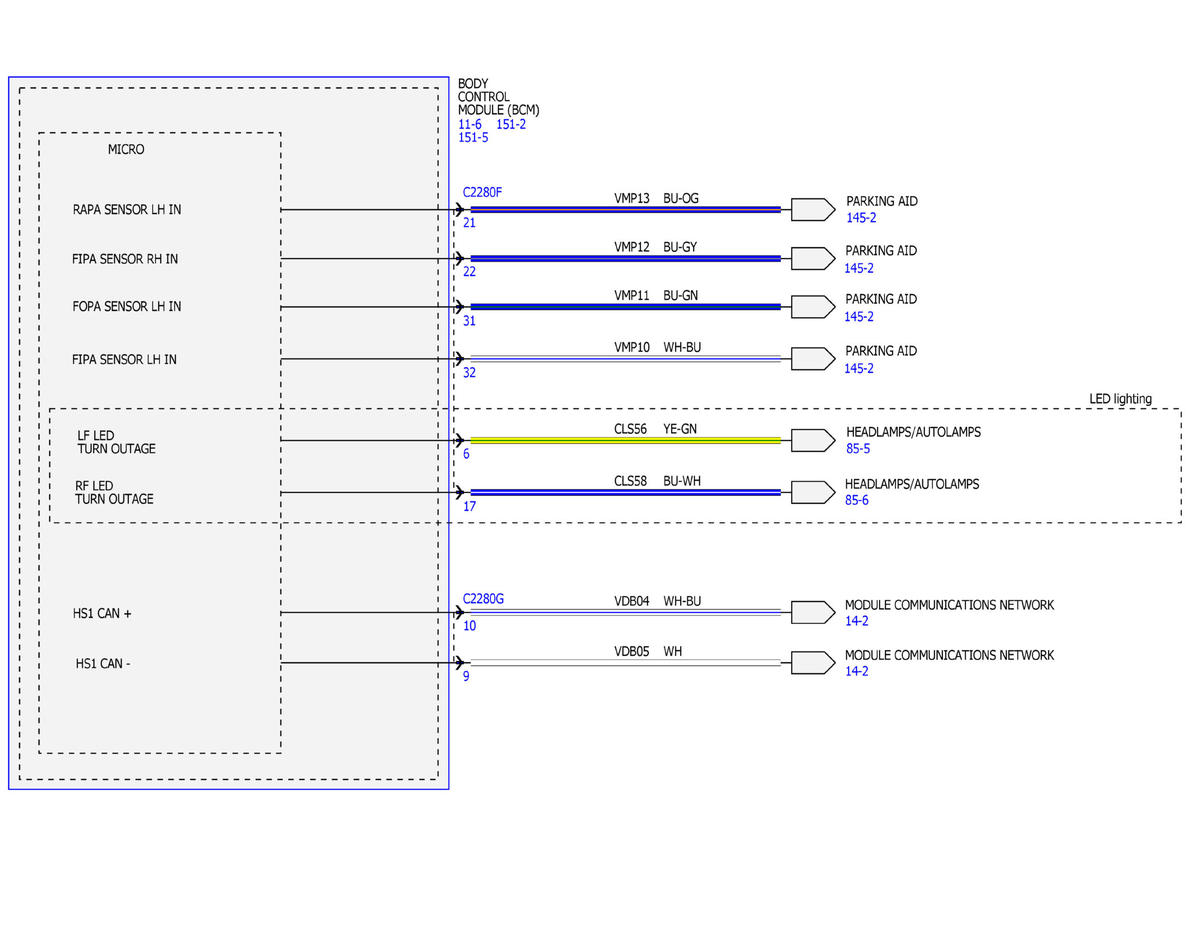

Fig 52: Power Distribution Wiring Diagrams (52 Of 53)

GFDWR135088

Courtesy of FORD MOTOR COMPANY

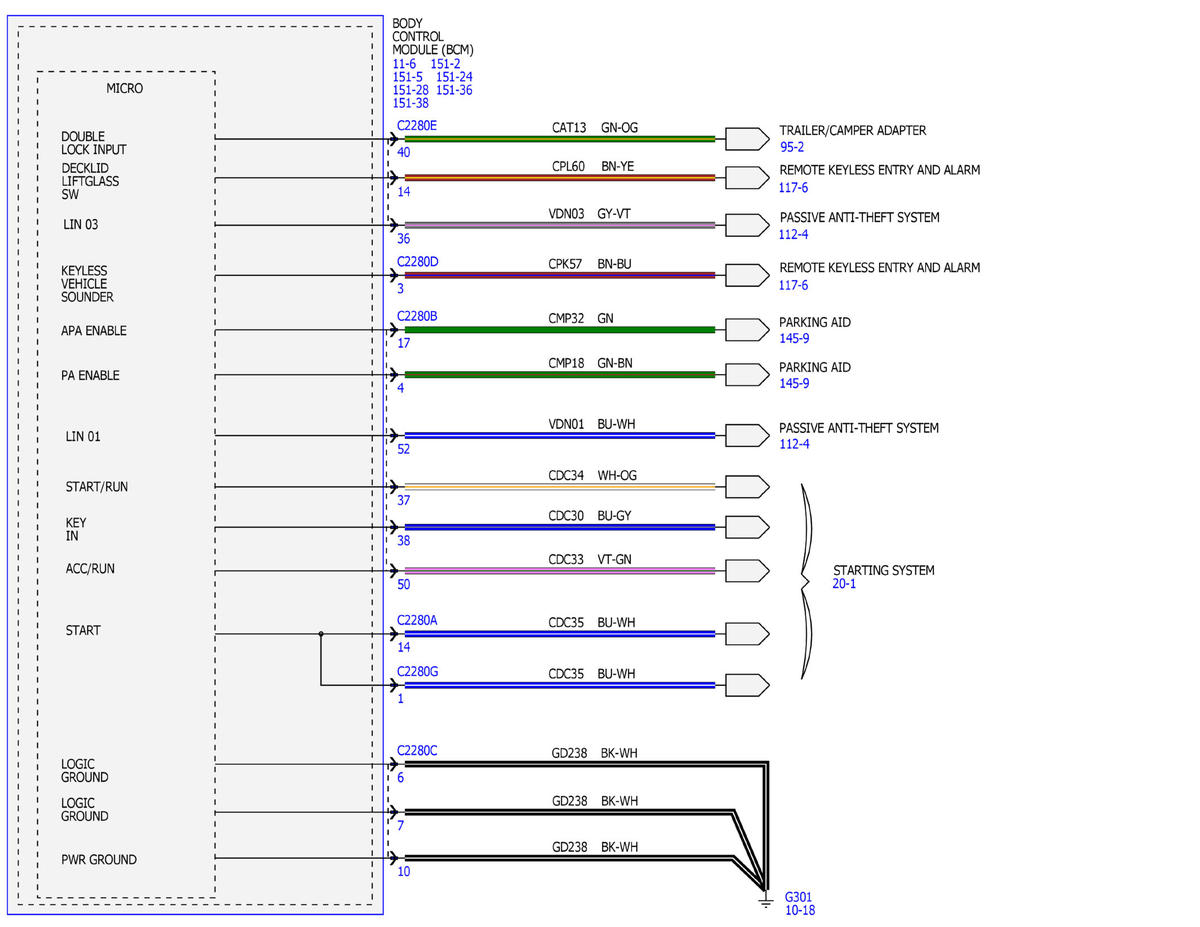

Fig 53: Power Distribution Wiring Diagrams (53 Of 53)

GFDWR135089

Courtesy of FORD MOTOR COMPANY
