Liftgate Window Glass: Removal

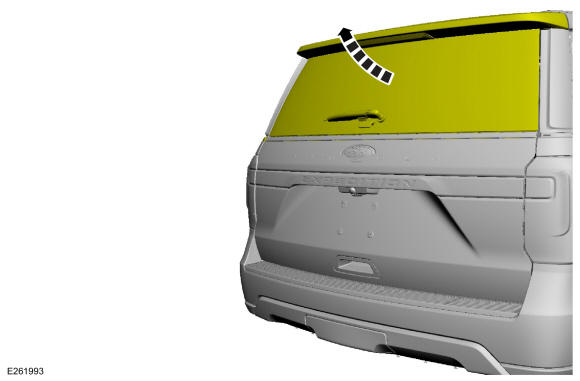

Open the liftgate window glass.

Courtesy of FORD MOTOR COMPANY
NOTE: Liftgate shown in illustration closed for clarity.

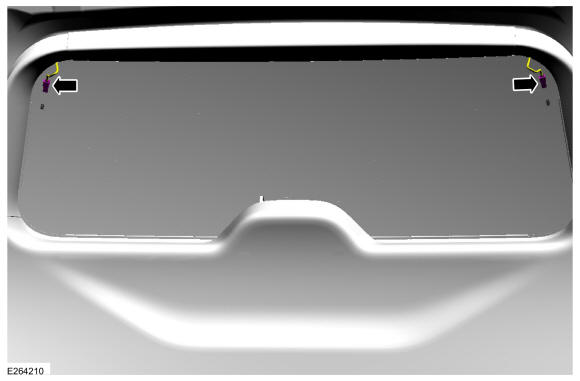

Disconnect the heated rear window element electrical connectors.

Courtesy of FORD MOTOR COMPANY
Remove the rear spoiler. Refer to: Rear Spoiler .

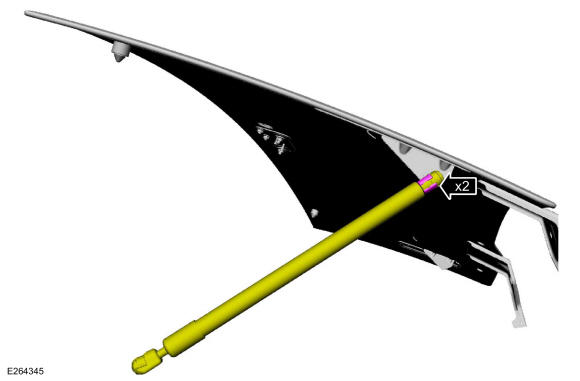

Release the clips and disconnect the rear window glass lift struts.

Courtesy of FORD MOTOR COMPANY

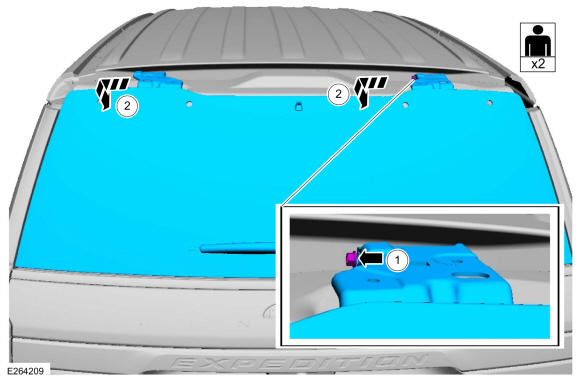

Remove the liftgate window glass.
1. Remove the liftgate window glass hinge nut.
  Torque

  : 106 lb.in (12 Nm)
2. Slide the liftgate window glass off the pivot pins and remove the liftgate window glass.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the rear window wiper pivot arm Refer to: Rear Window Wiper Pivot Arm .
NOTE: This step is only necessary when installing a new component.

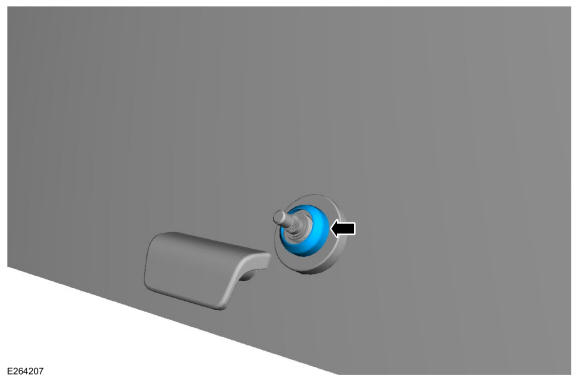

Remove the wiper pivot shaft nut cover.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

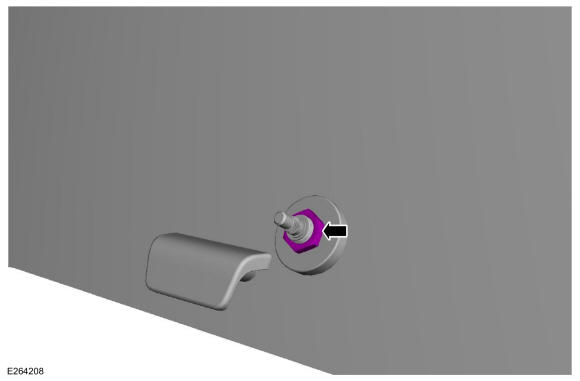

Remove the wiper pivot shaft nut.

Torque

: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

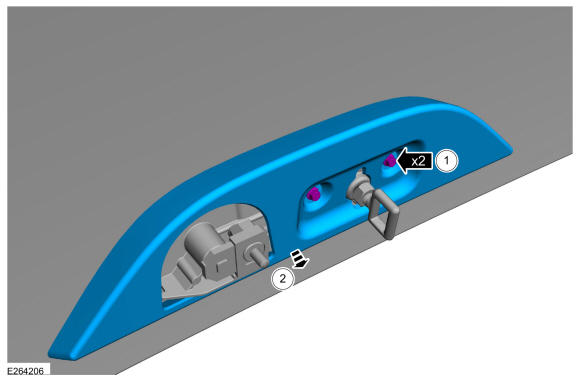

Remove the wiper pivot shaft trim cover.
1. Remove the wiper pivot shaft trim cover bolts.
  Torque

  : 28 lb.in (3.2 Nm)
2. Remove the wiper pivot shaft trim cover.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

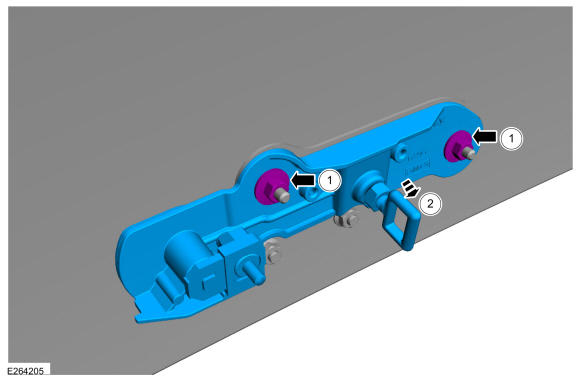

Remove the wiper mounting arm and pivot shaft.
1. Remove the wiper mounting arm and pivot shaft nuts.
  Torque

  : 55 lb.in (6.2 Nm)
2. Remove the wiper mounting arm and pivot shaft.

Courtesy of FORD MOTOR COMPANY
