Connector Repair Procedures

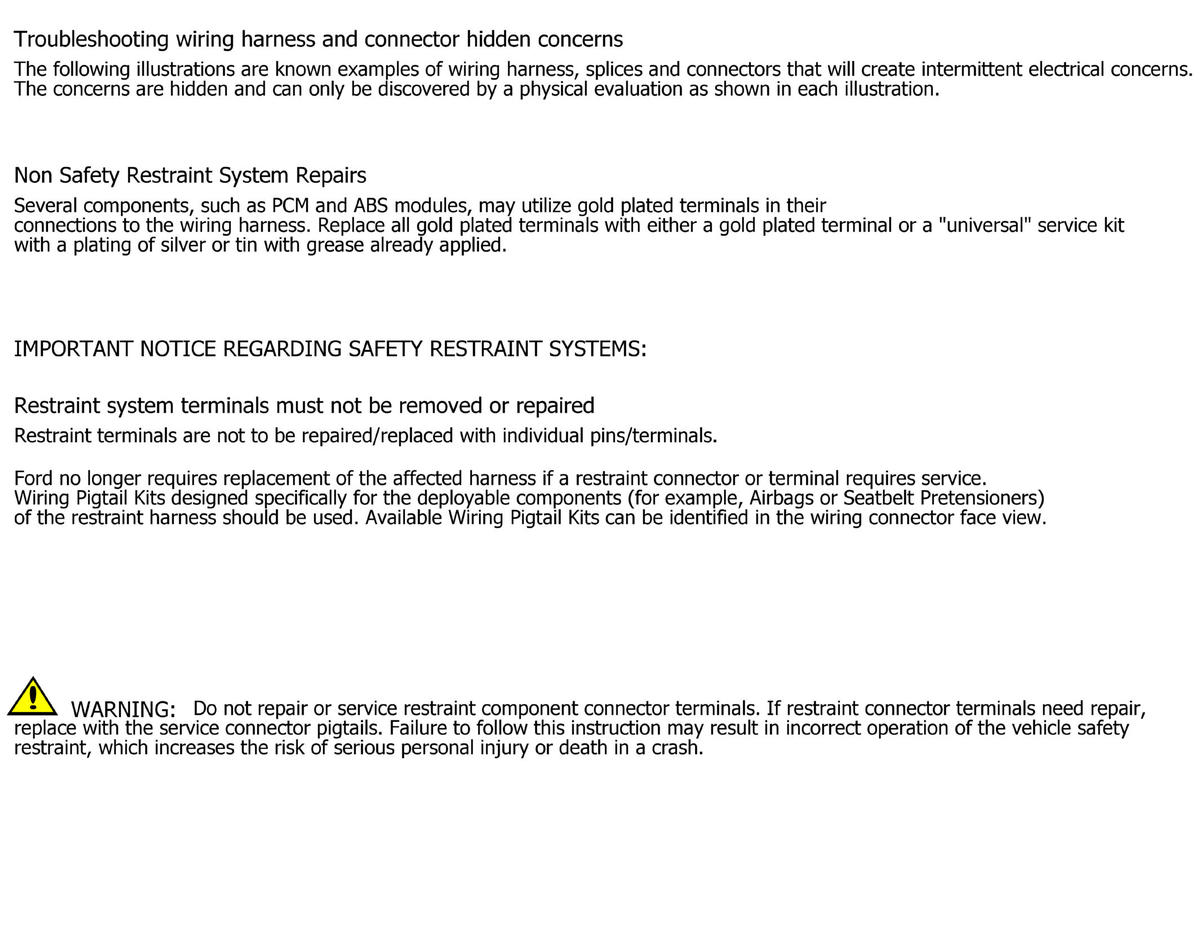

GFDWR134743Courtesy of FORD MOTOR COMPANY

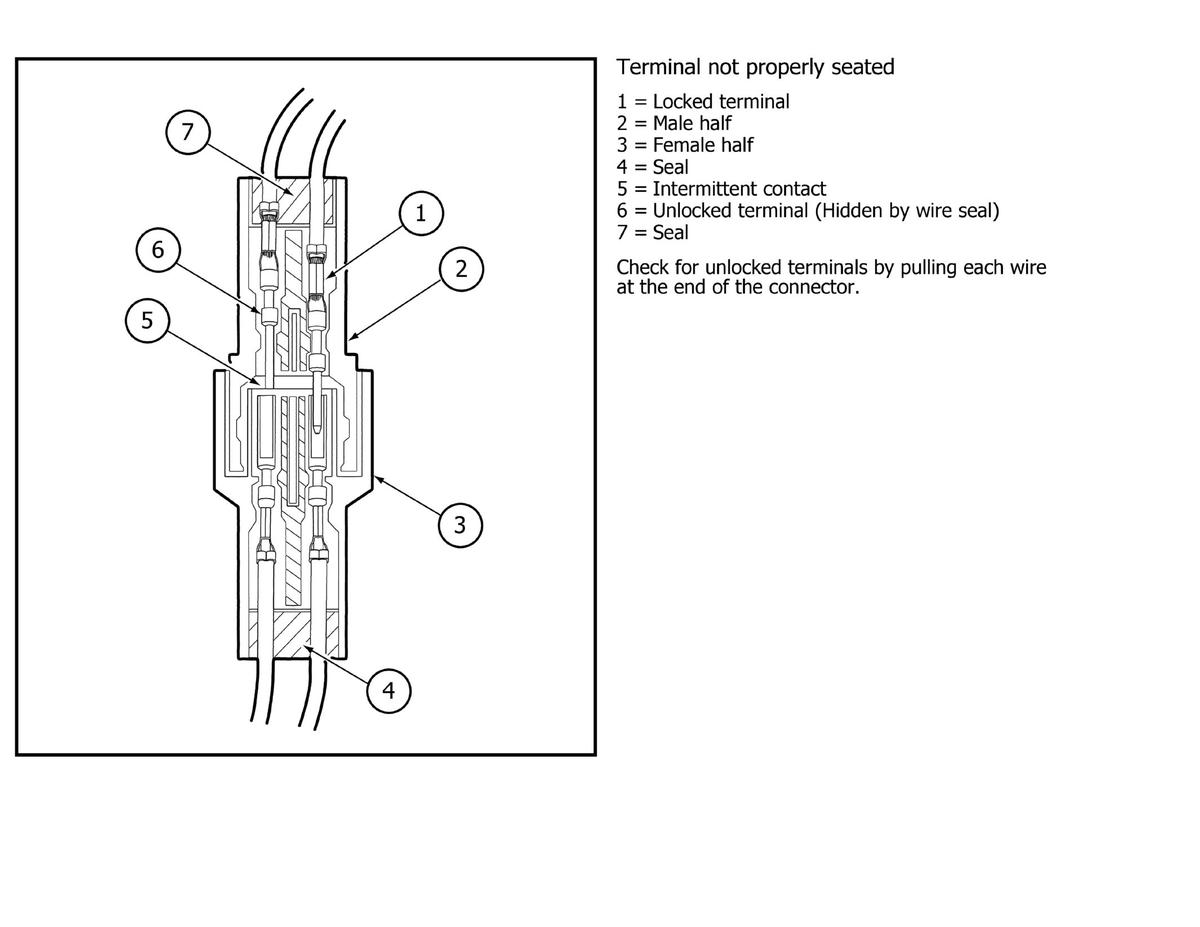

GFDWR134744Courtesy of FORD MOTOR COMPANY

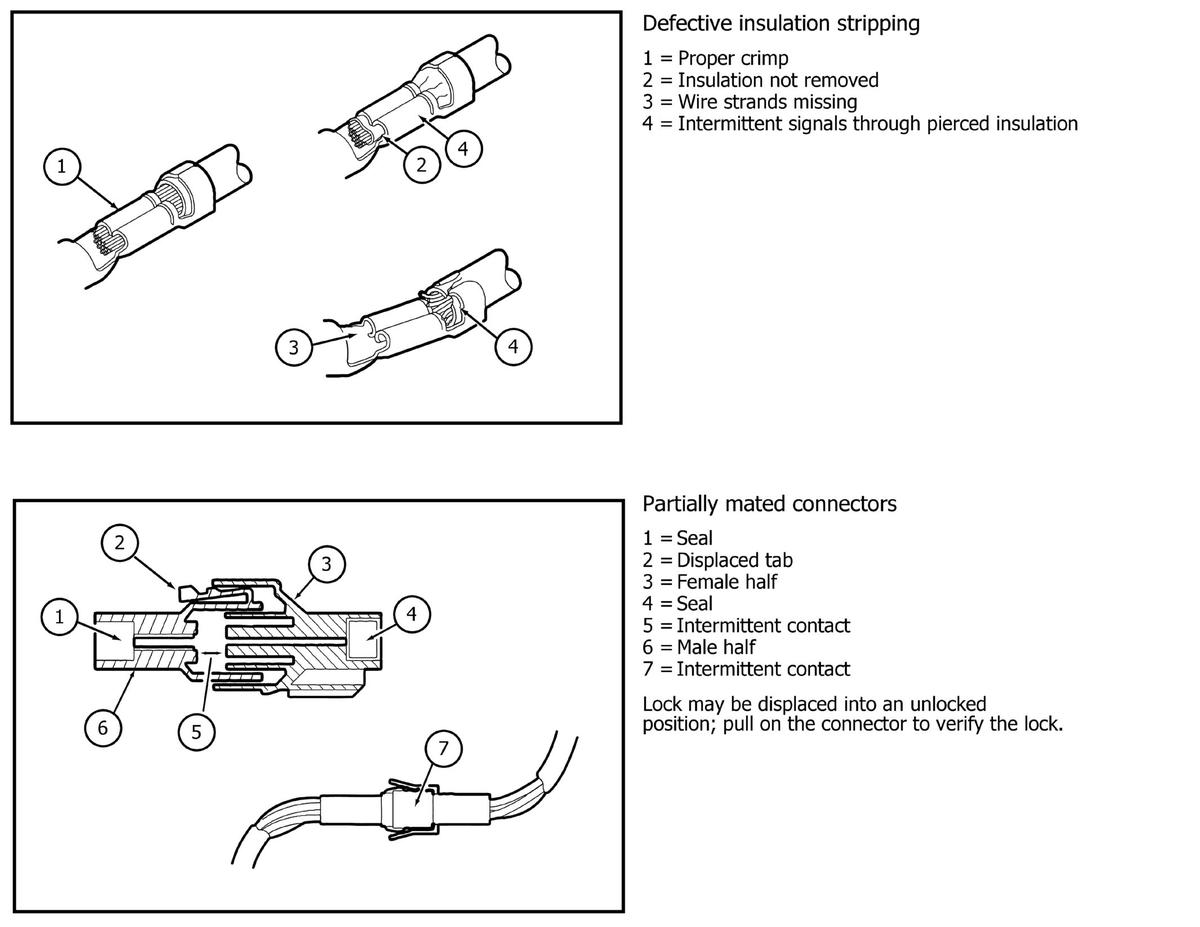

GFDWR134745Courtesy of FORD MOTOR COMPANY

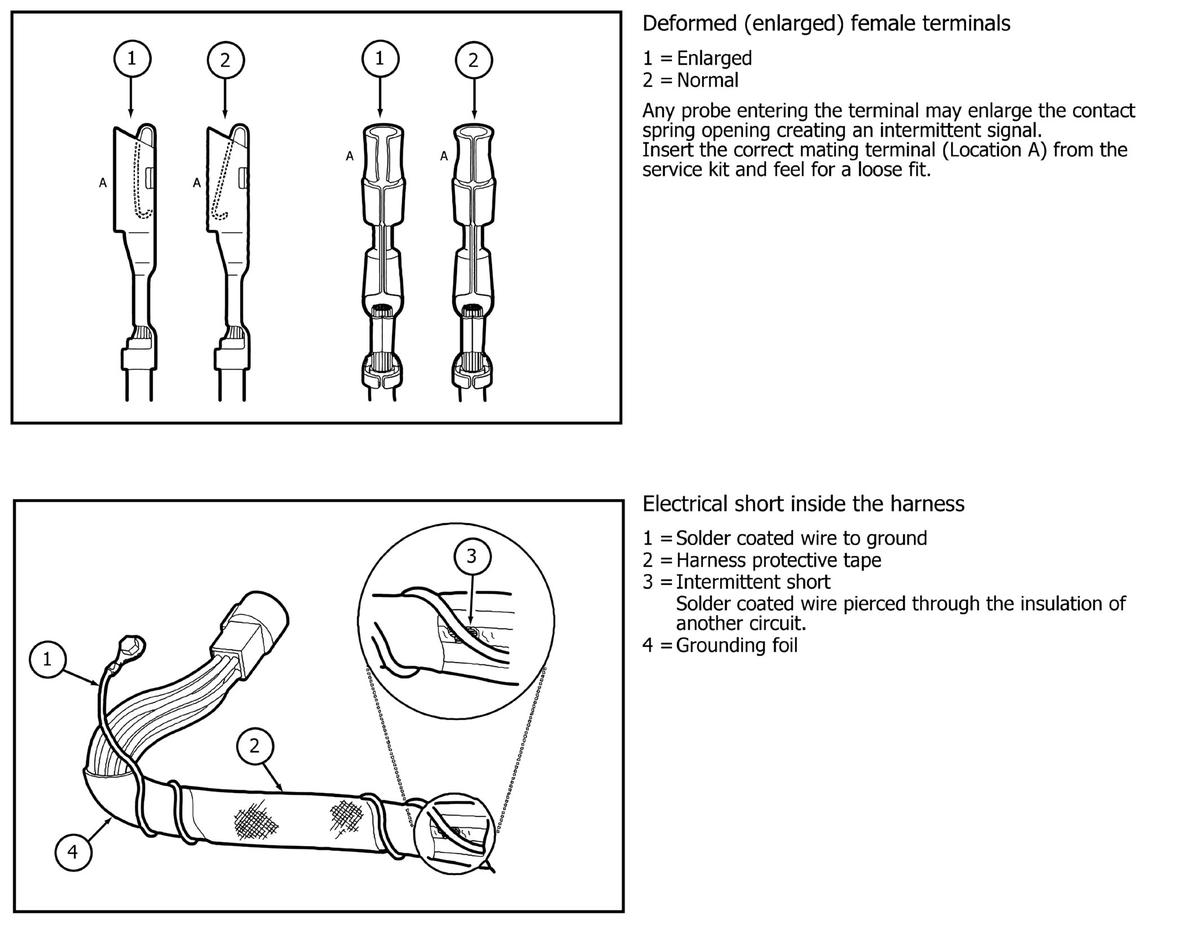

GFDWR134746Courtesy of FORD MOTOR COMPANY

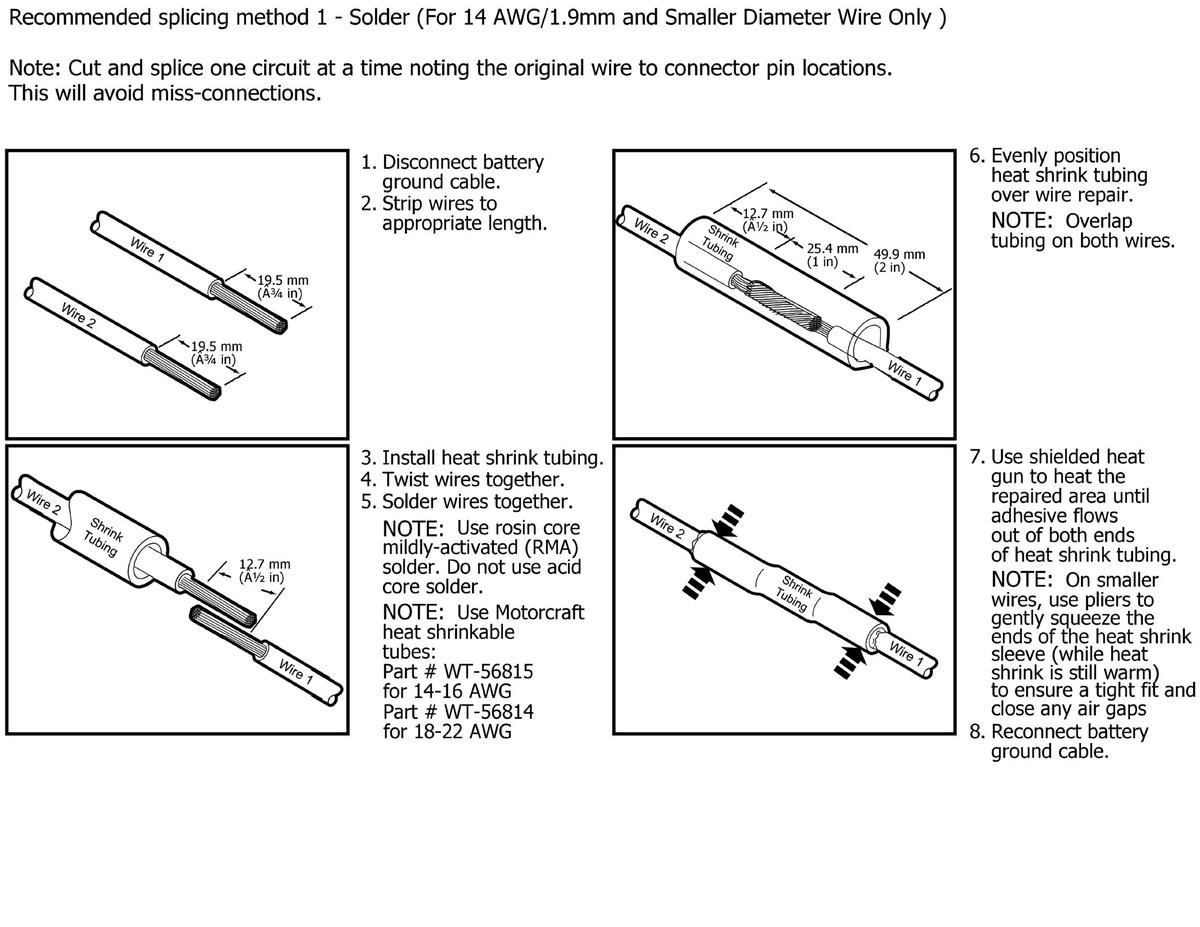

GFDWR134747Courtesy of FORD MOTOR COMPANY

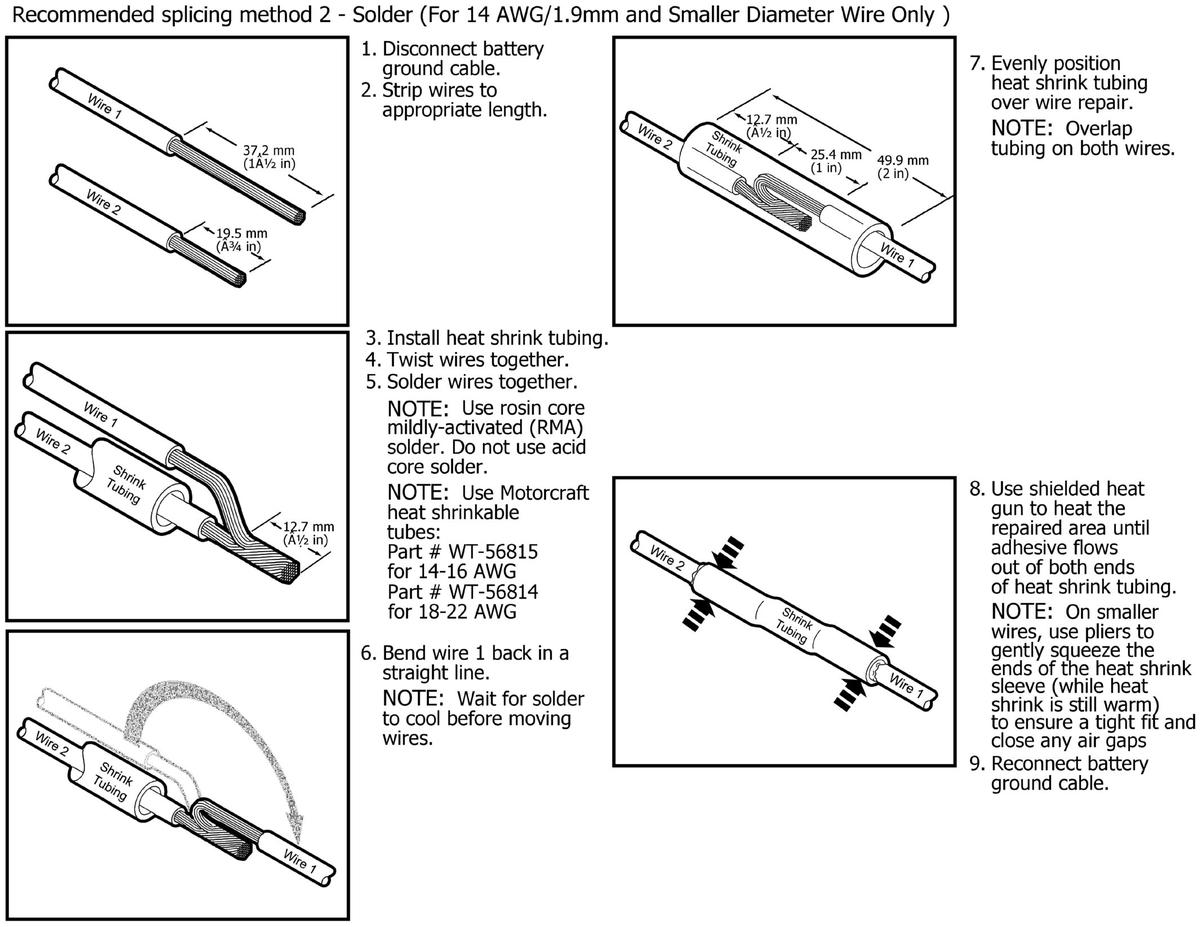

GFDWR134748Courtesy of FORD MOTOR COMPANY

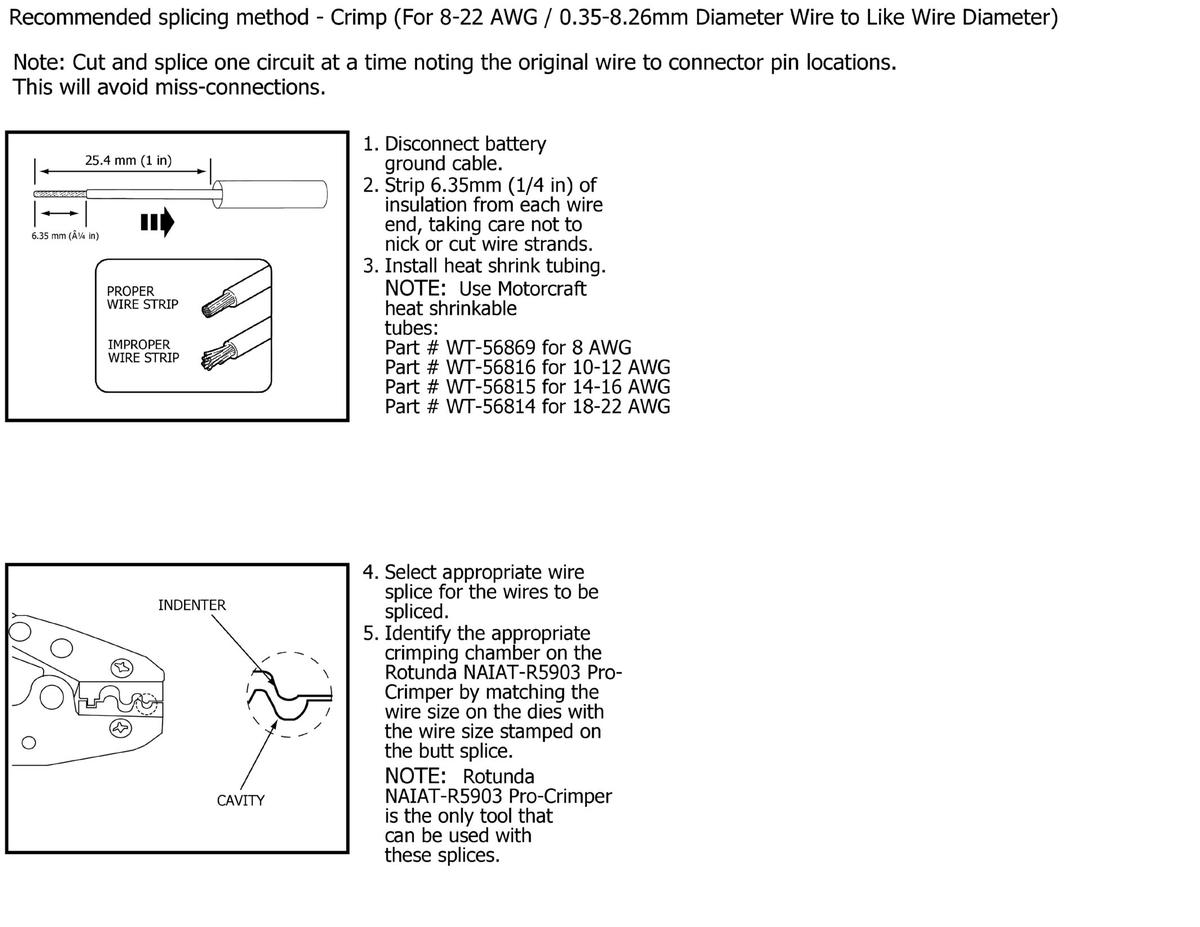

GFDWR134749Courtesy of FORD MOTOR COMPANY

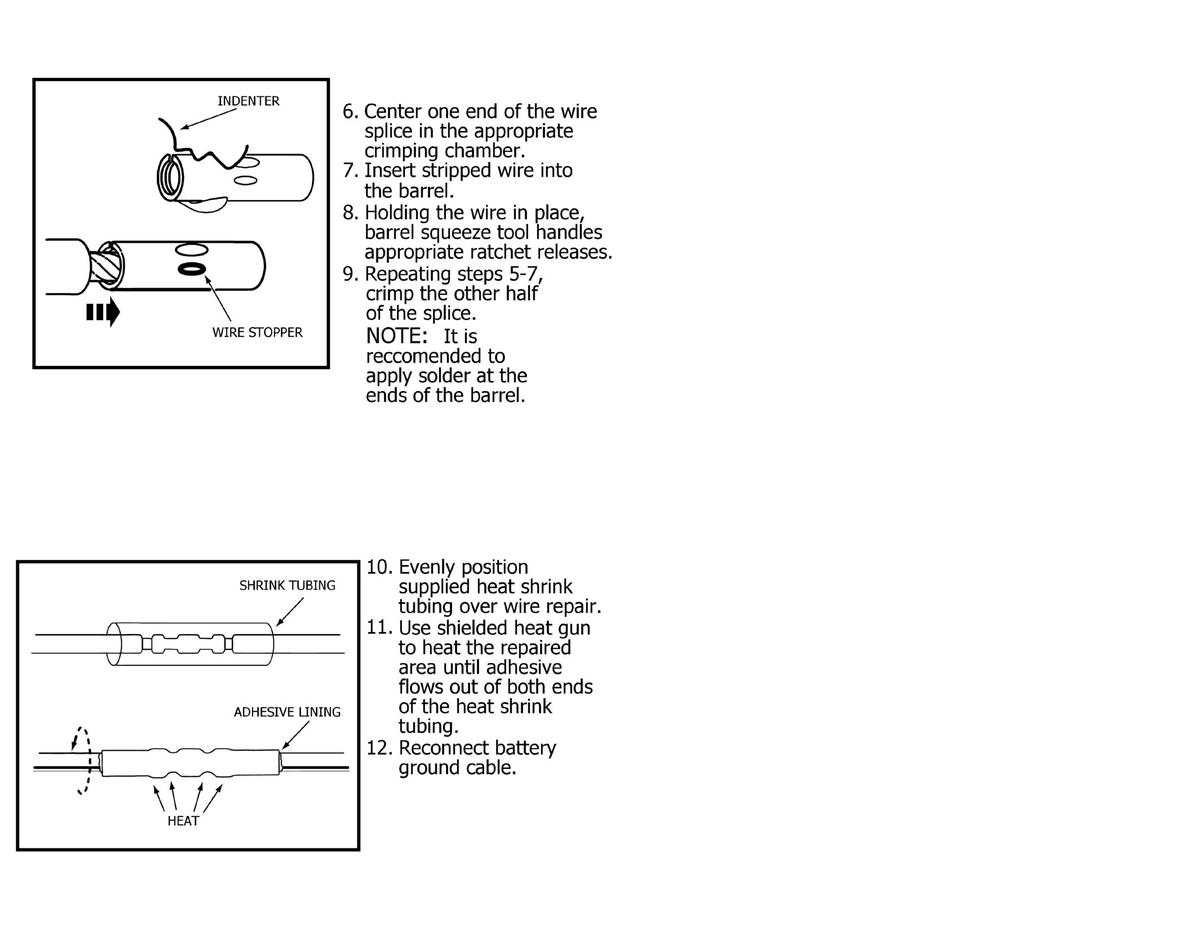

GFDWR134750Courtesy of FORD MOTOR COMPANY

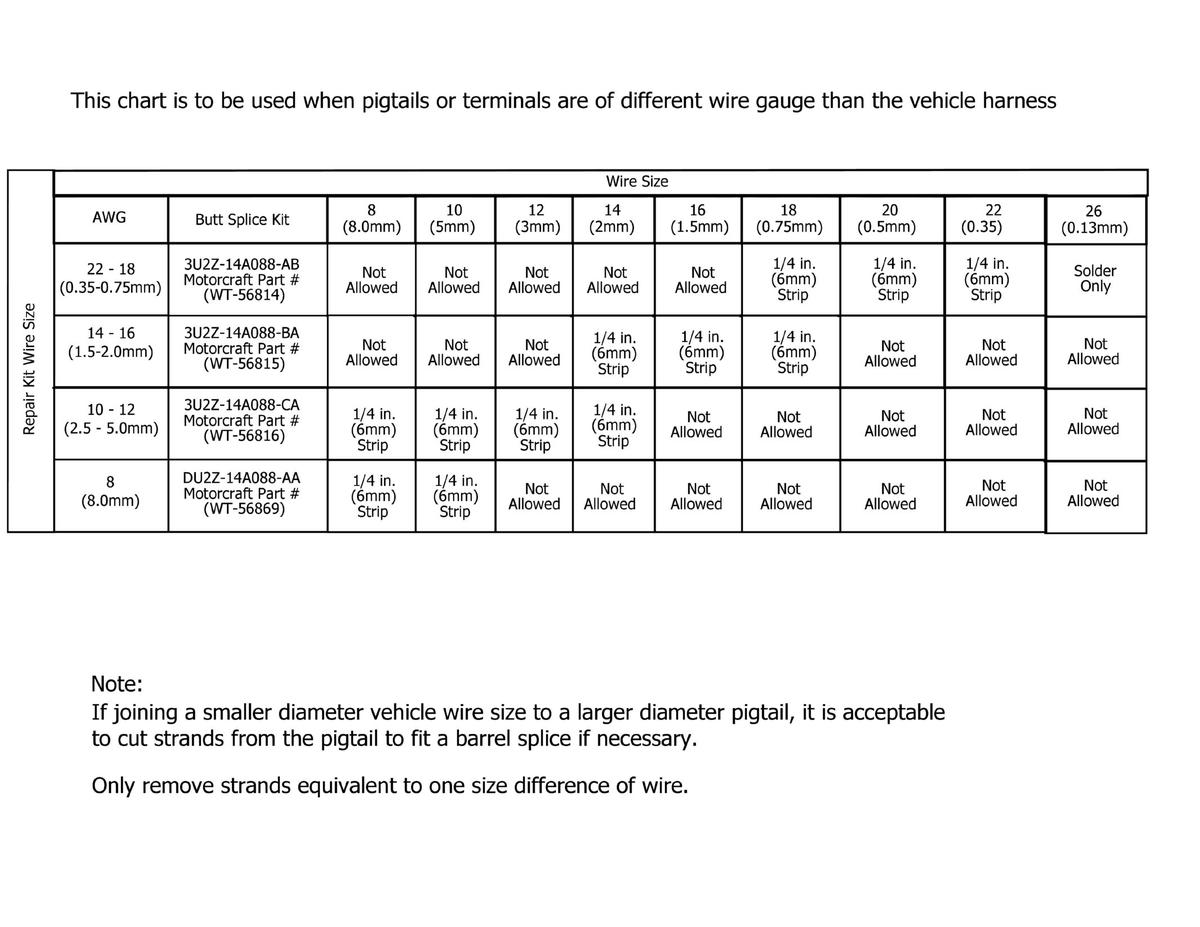

GFDWR134751Courtesy of FORD MOTOR COMPANY
