WARNING: This page is about a different car, the 2019 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

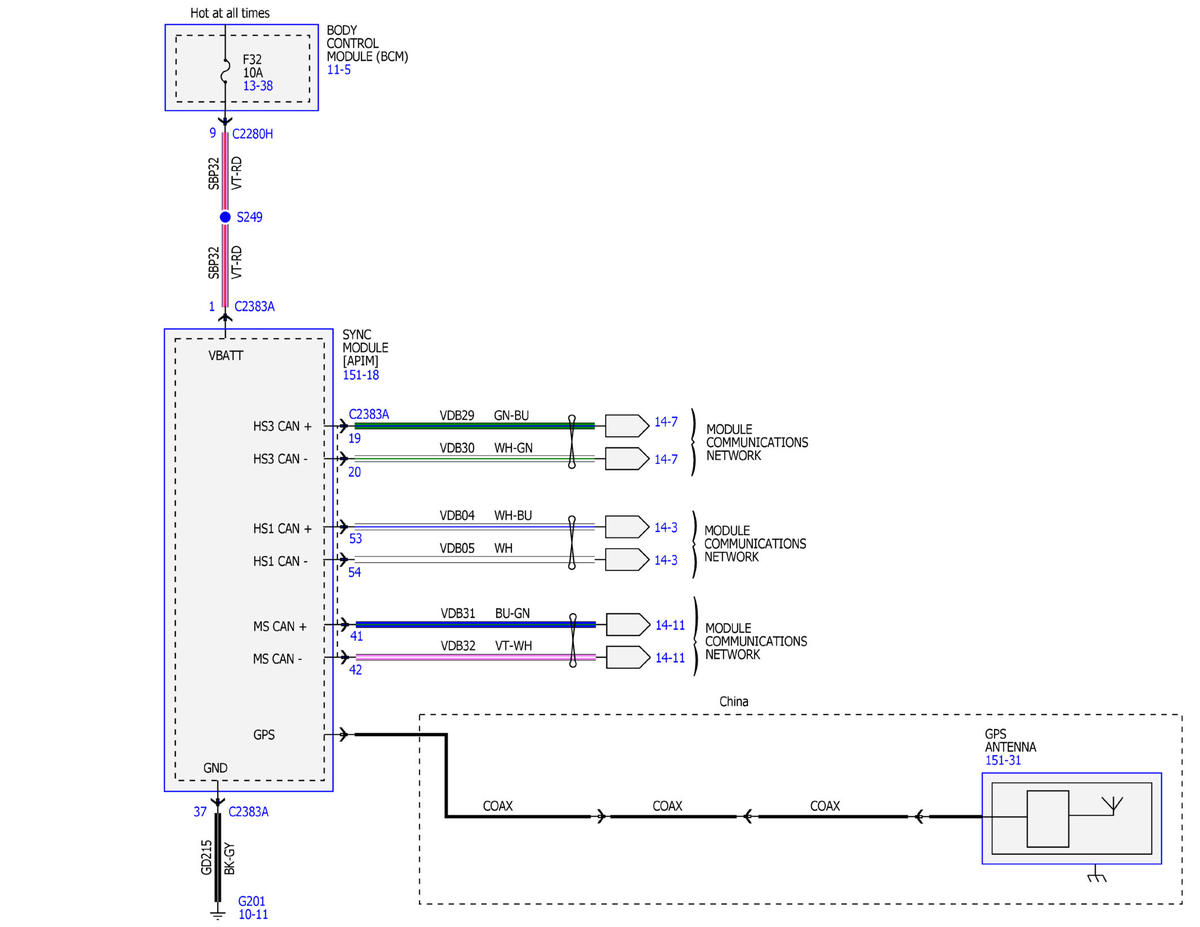

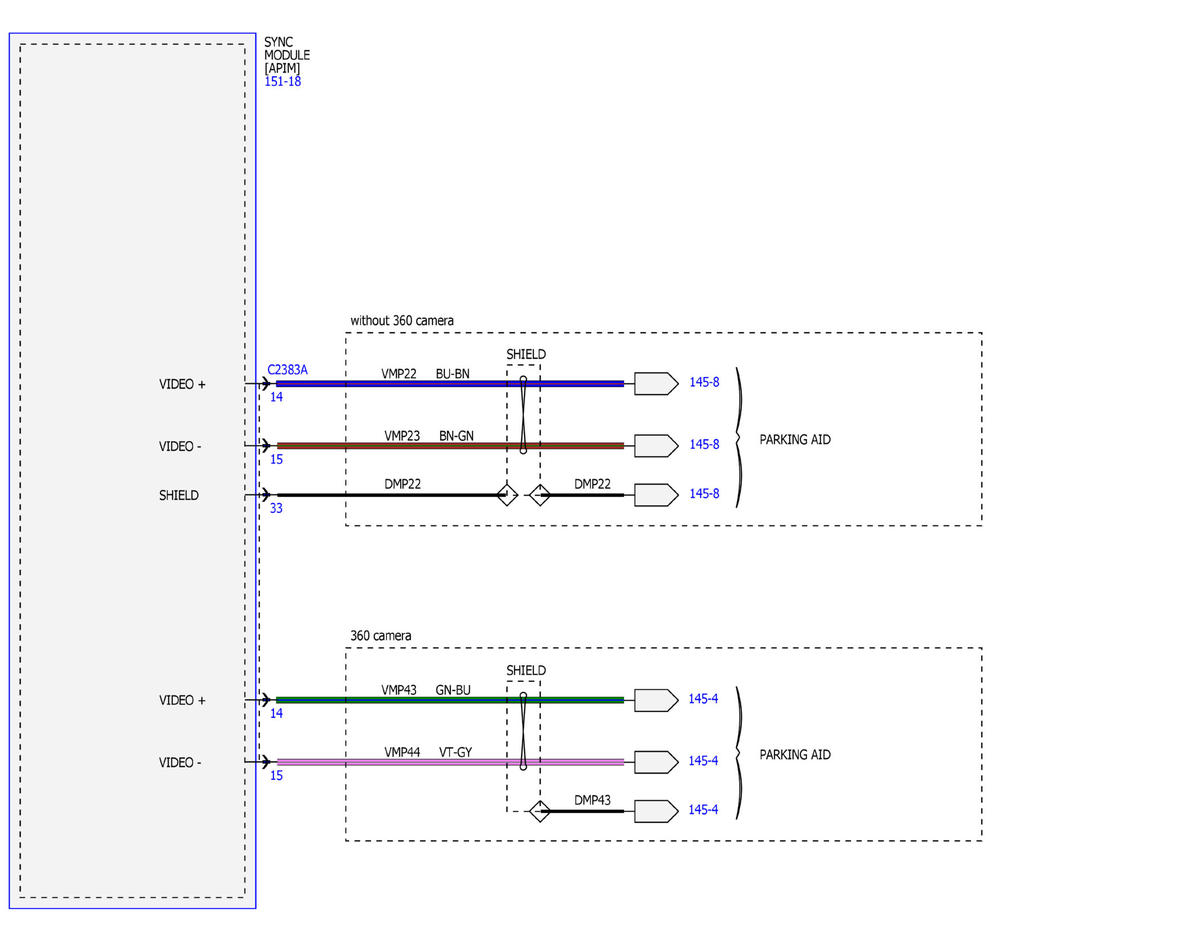

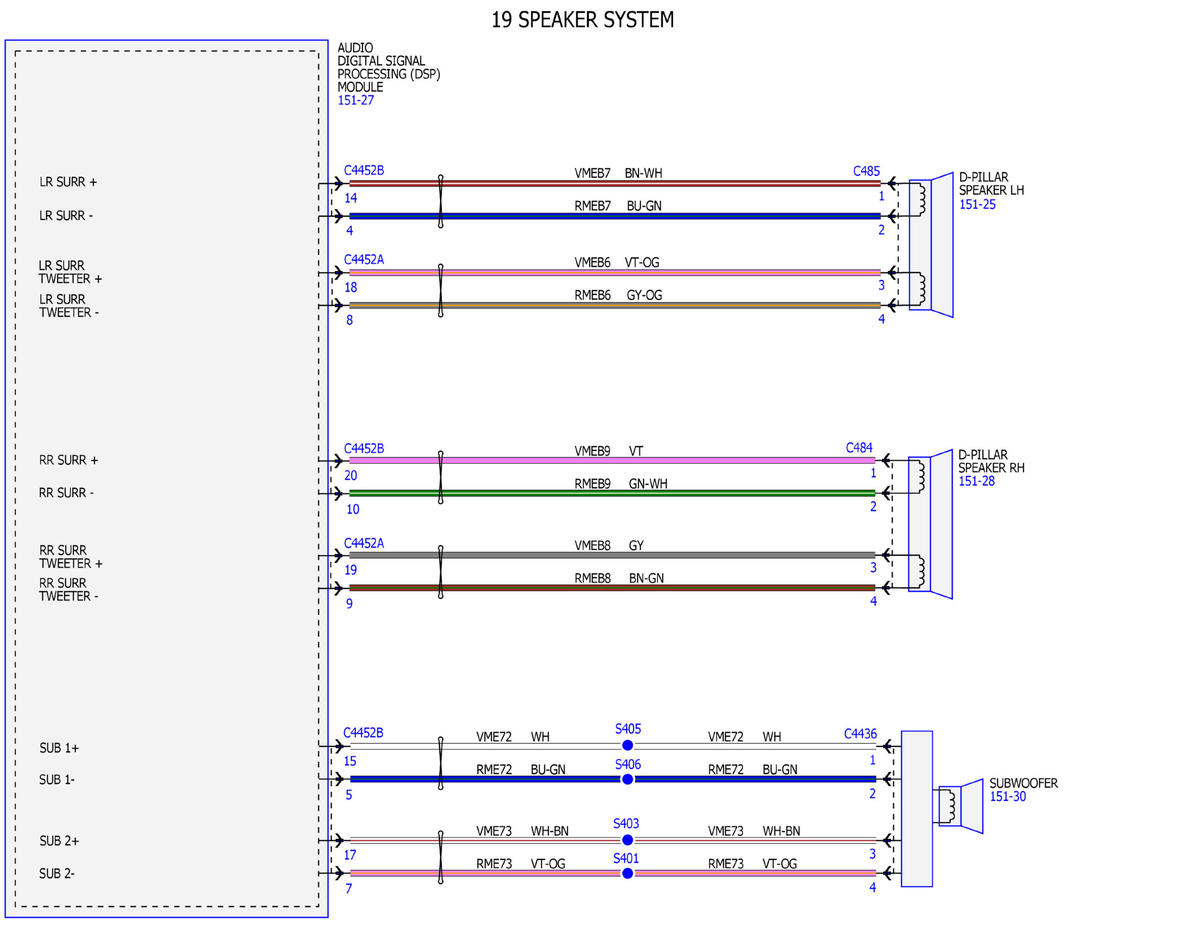

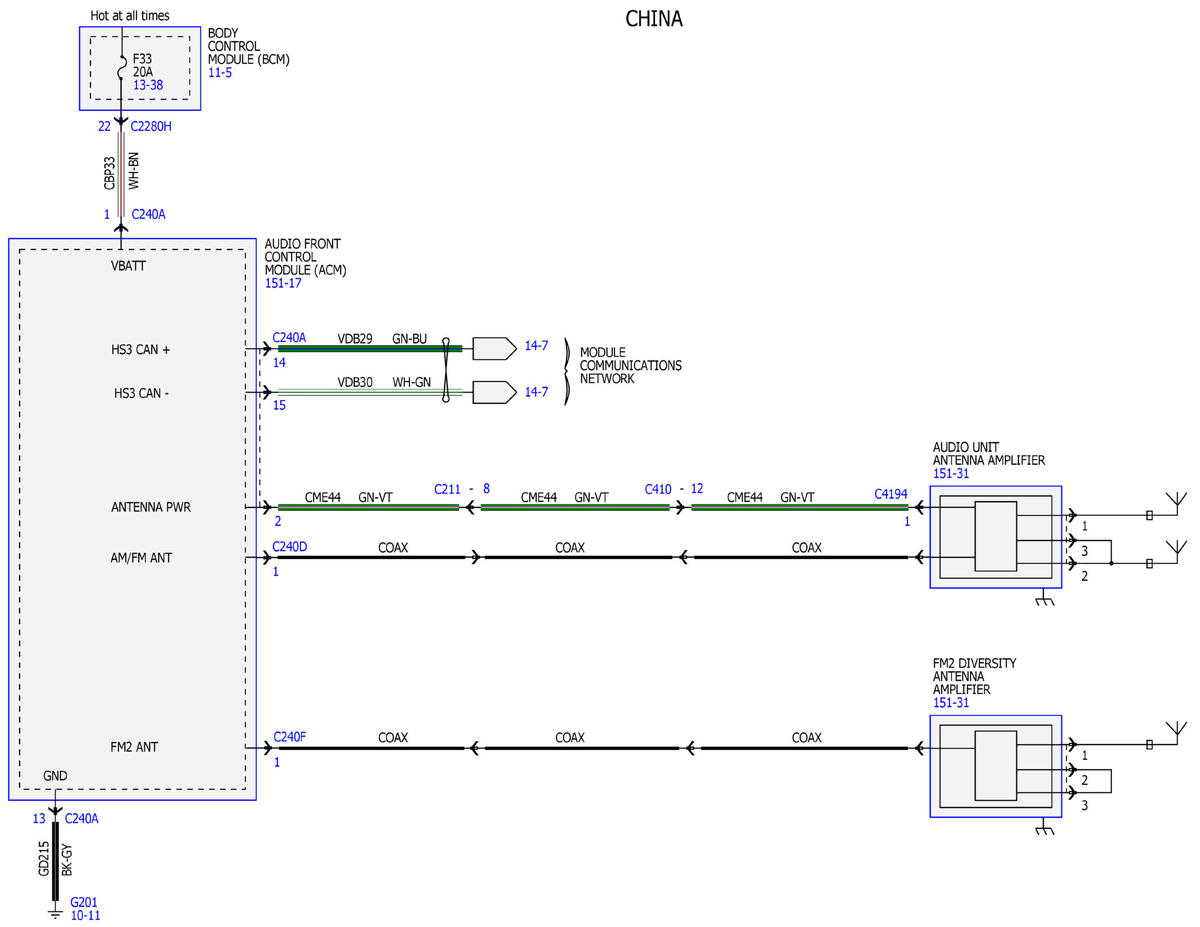

Fig 1: Audio System/Navigation Wiring Diagram (1 of 27)
Courtesy of FORD MOTOR COMPANY

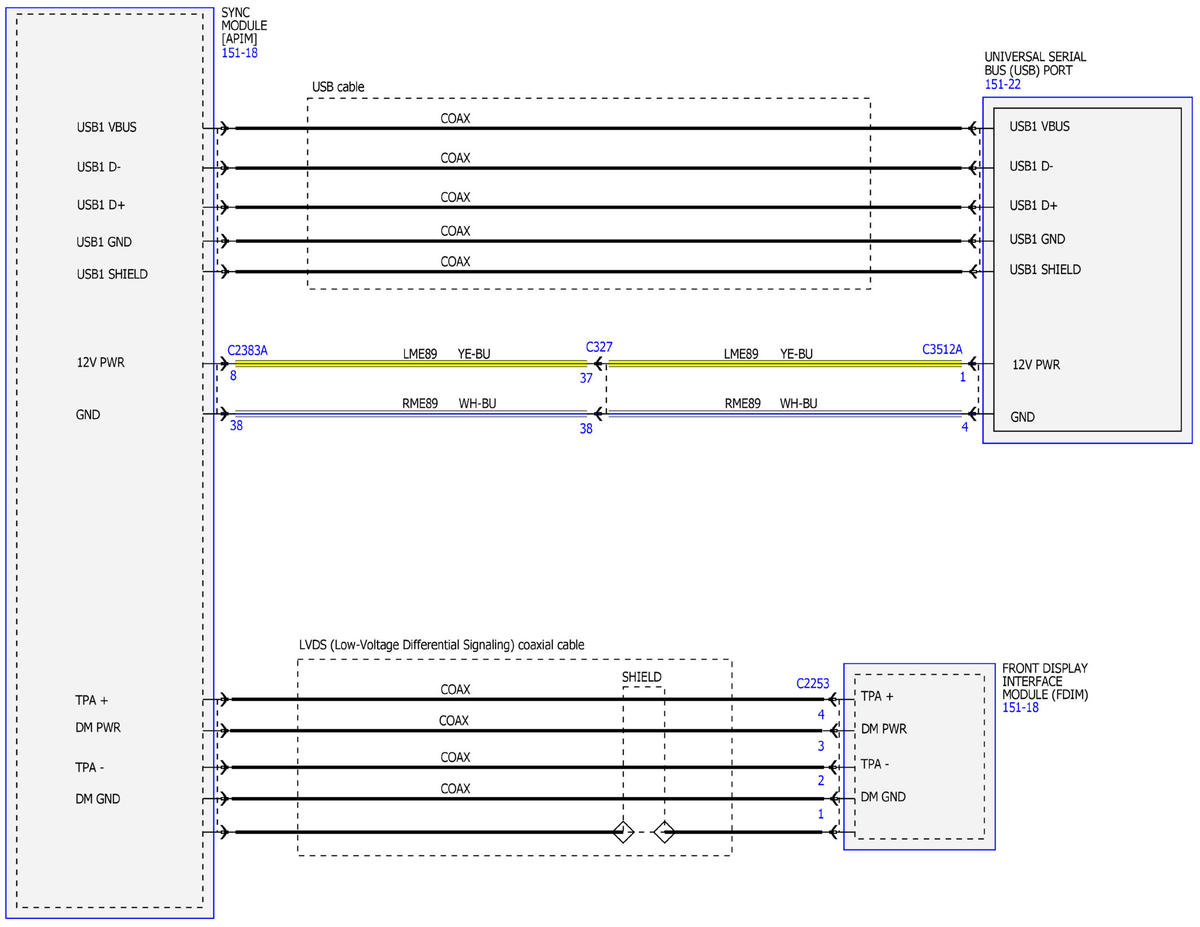

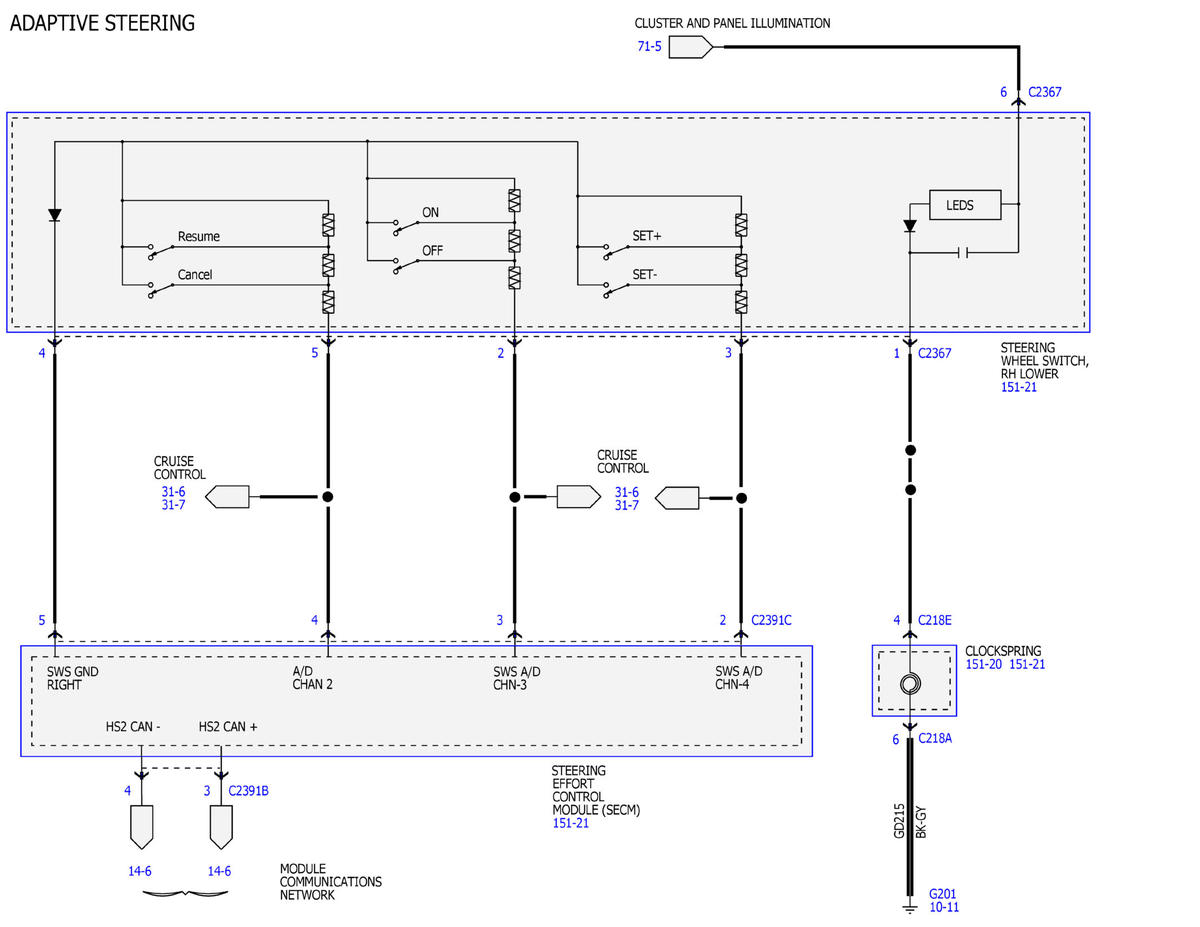

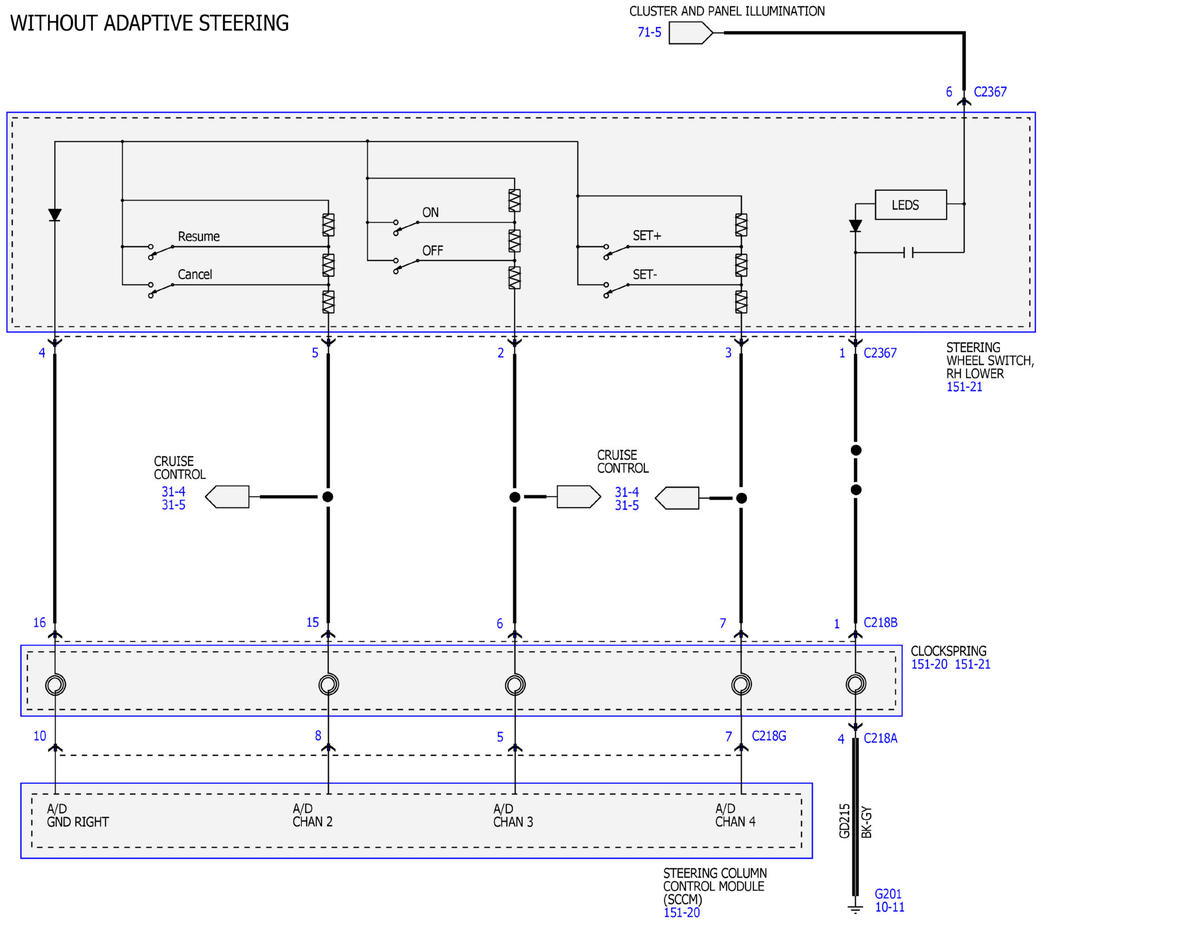

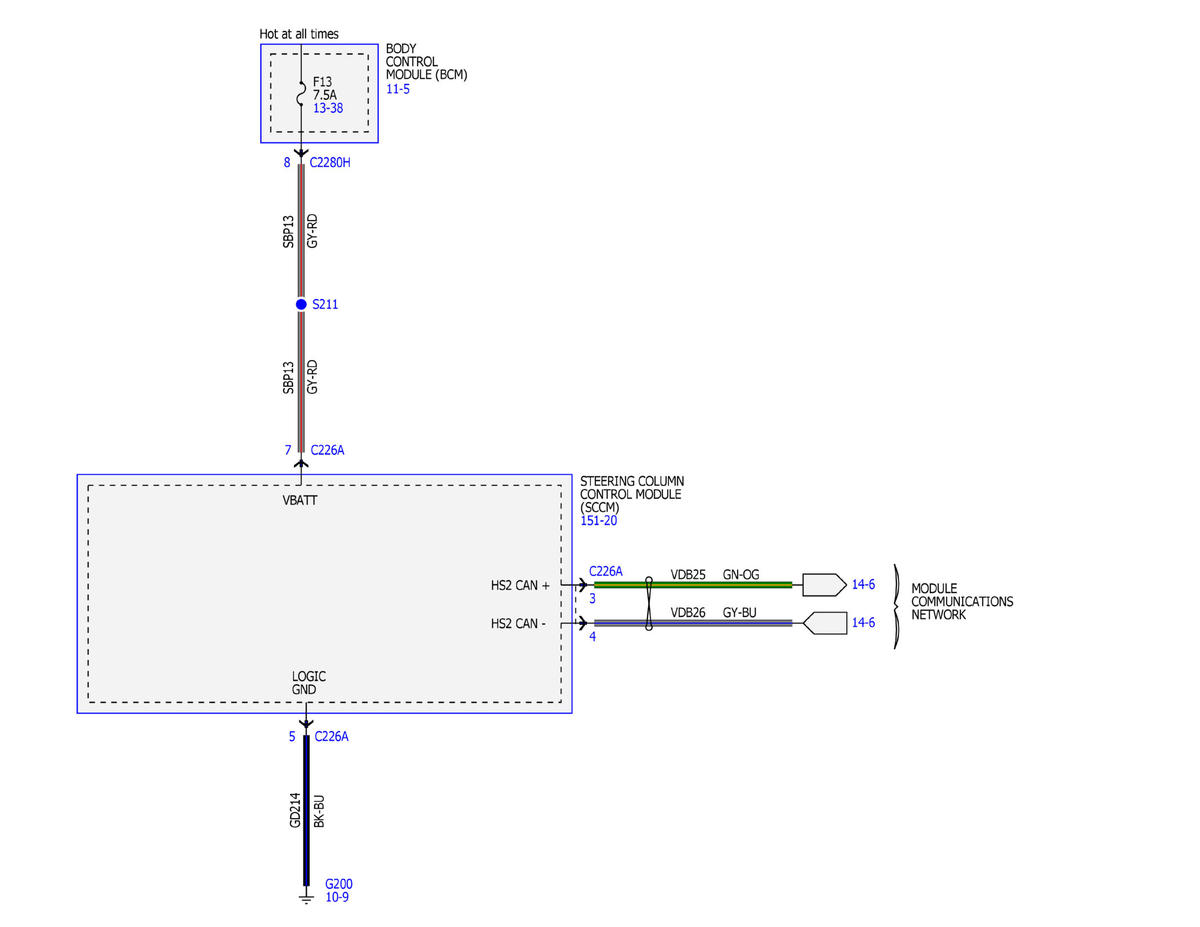

Fig 2: Audio System/Navigation Wiring Diagram (2 of 27)
Courtesy of FORD MOTOR COMPANY

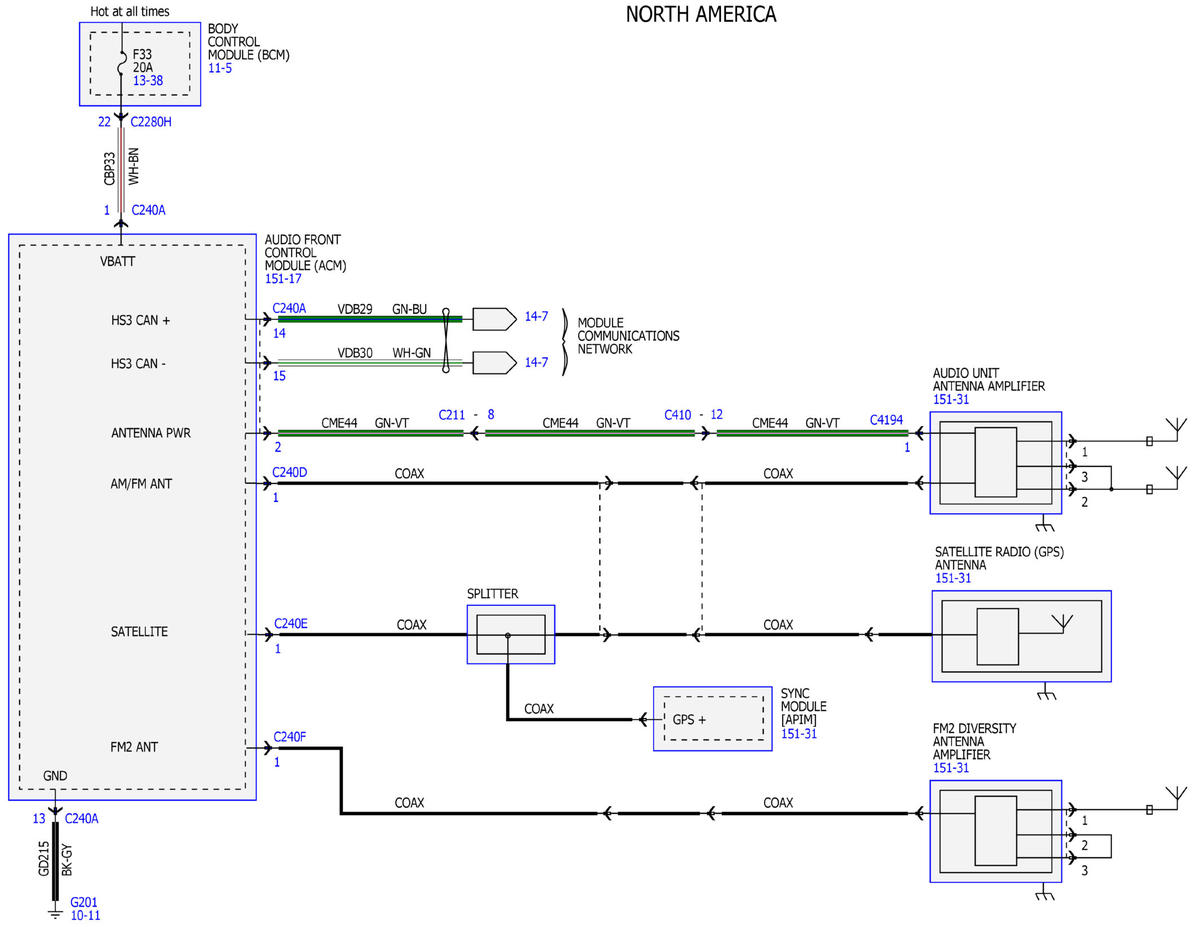

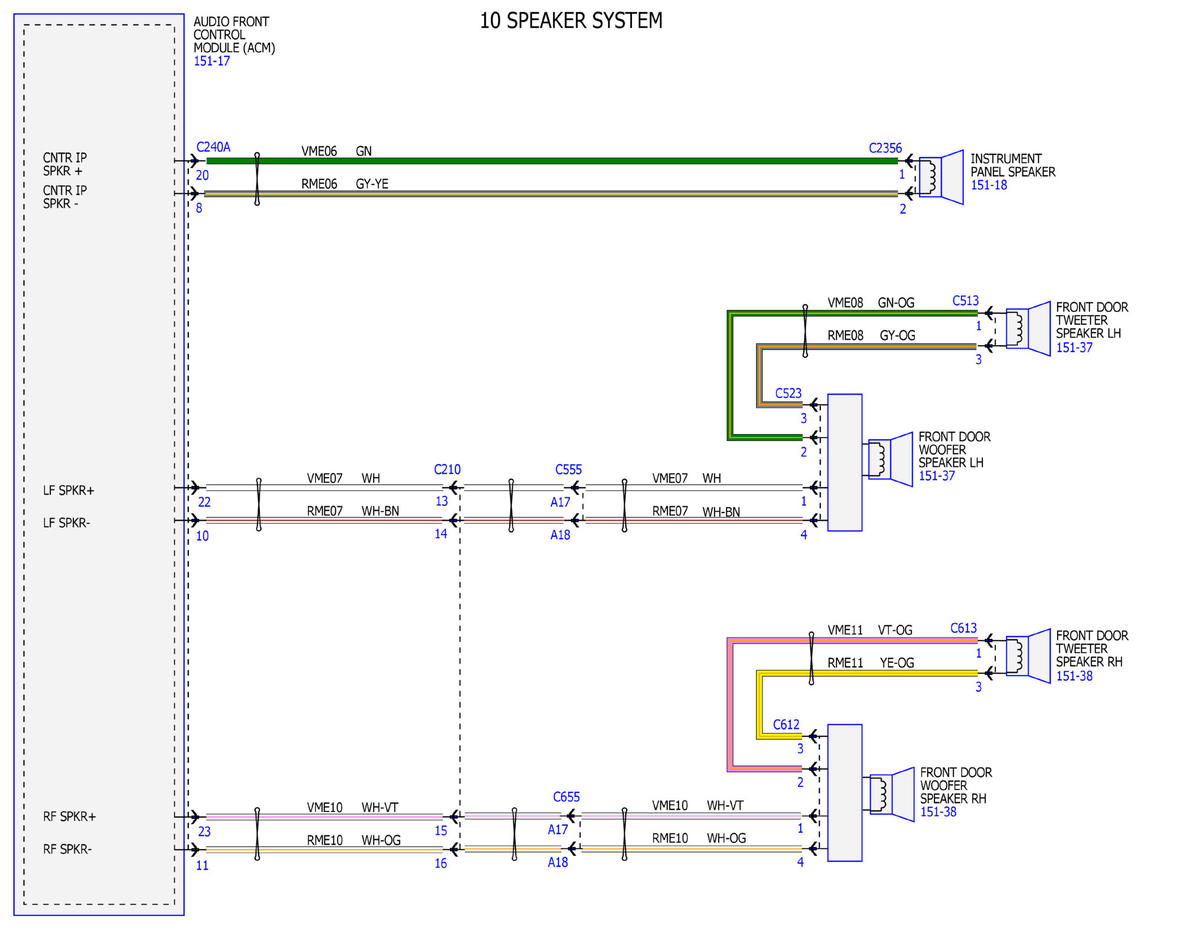

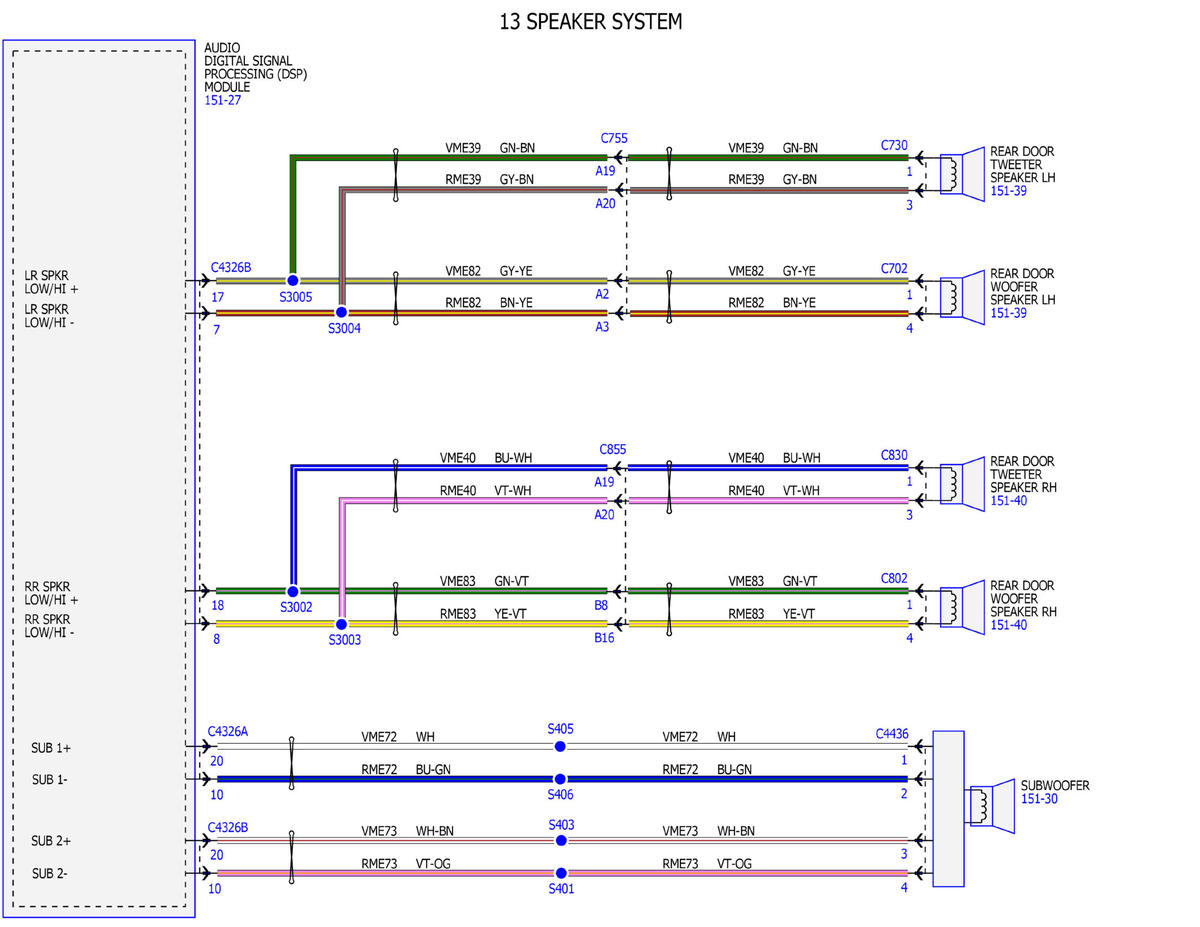

Fig 3: Audio System/Navigation Wiring Diagram (3 of 27)
Courtesy of FORD MOTOR COMPANY

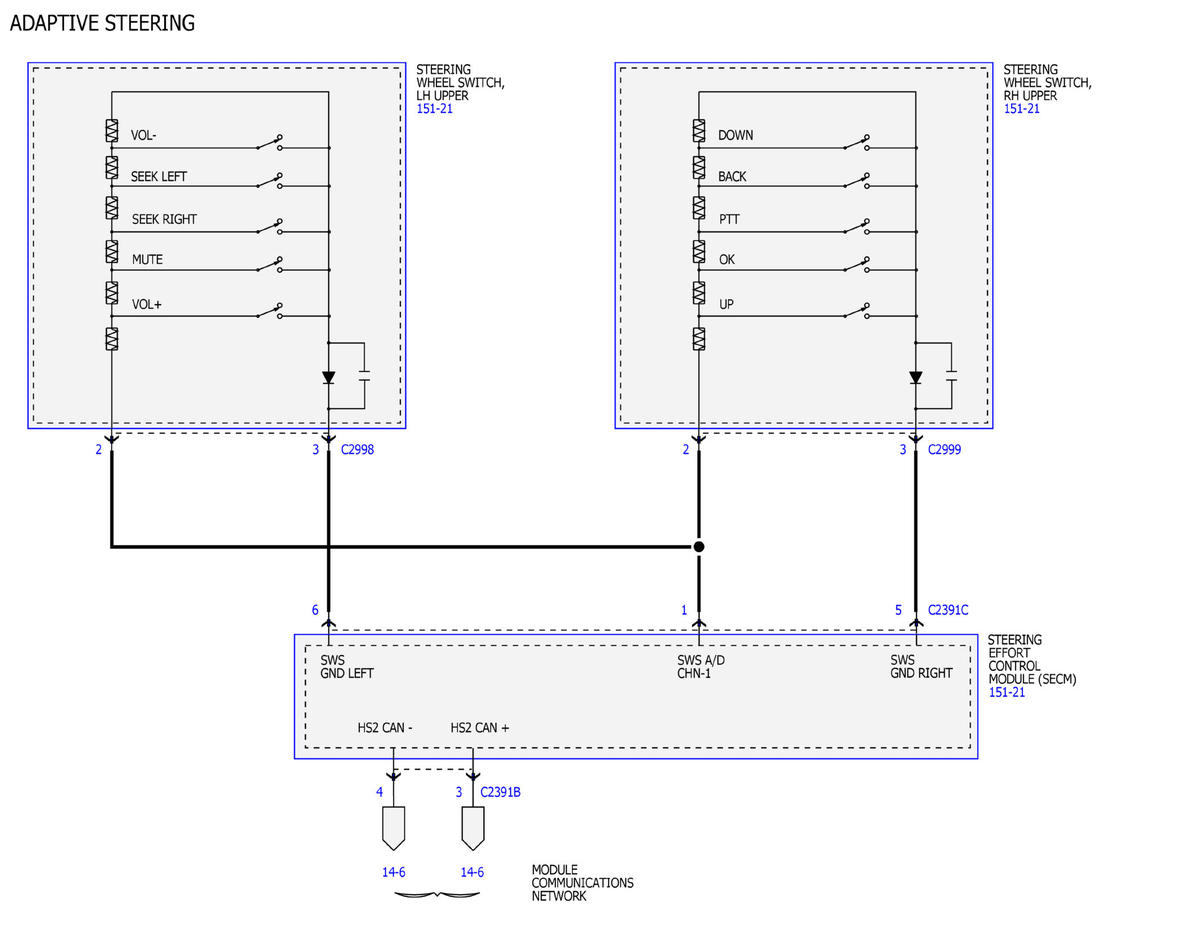

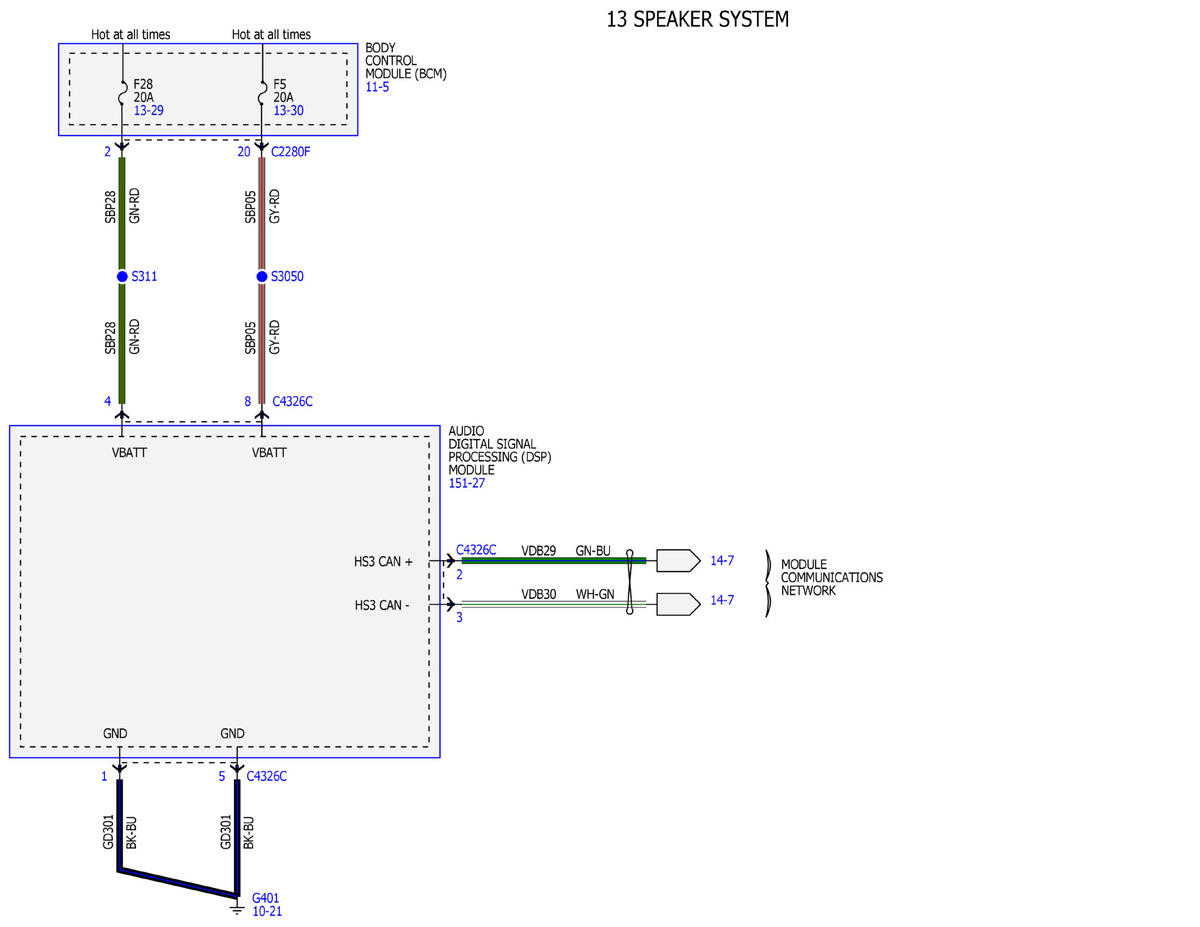

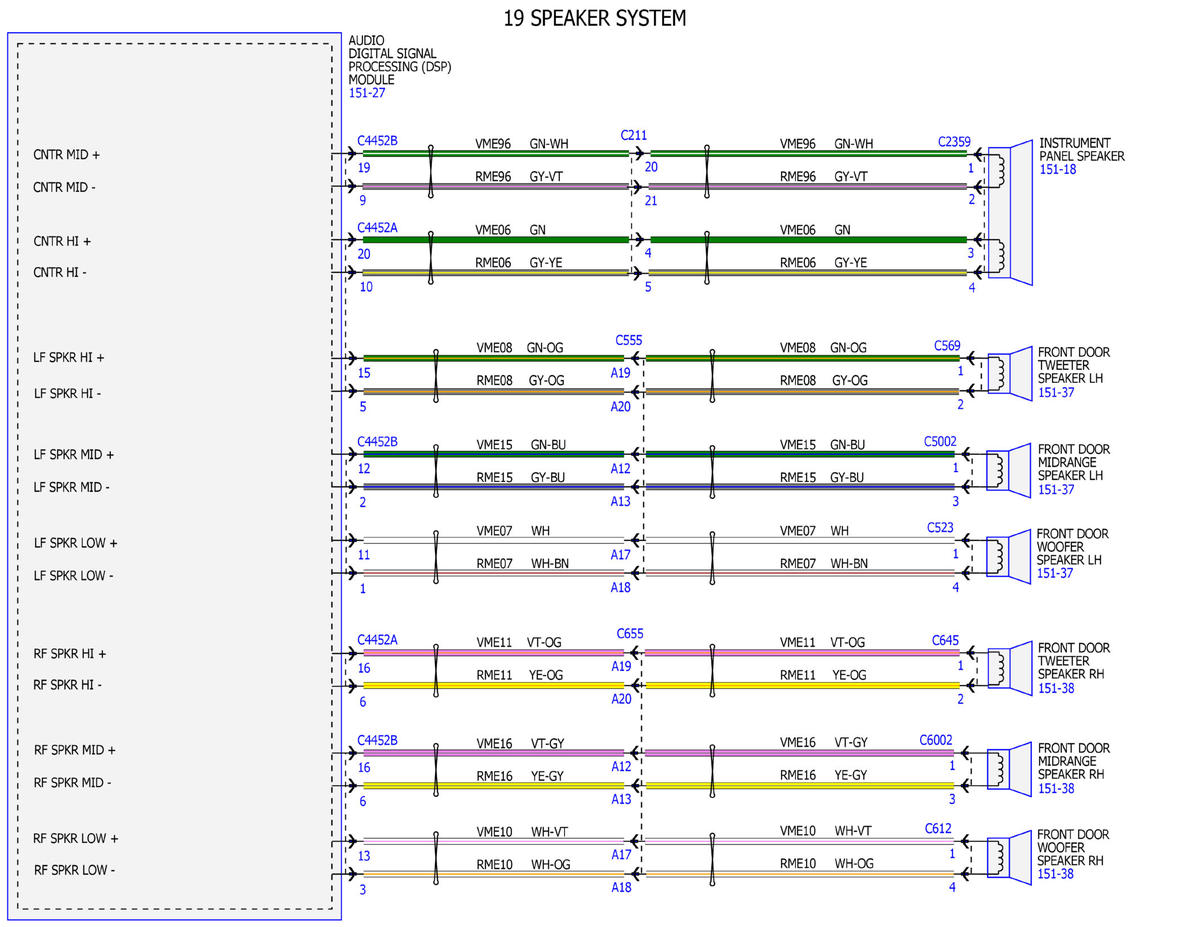

Fig 4: Audio System/Navigation Wiring Diagram (4 of 27)
Courtesy of FORD MOTOR COMPANY

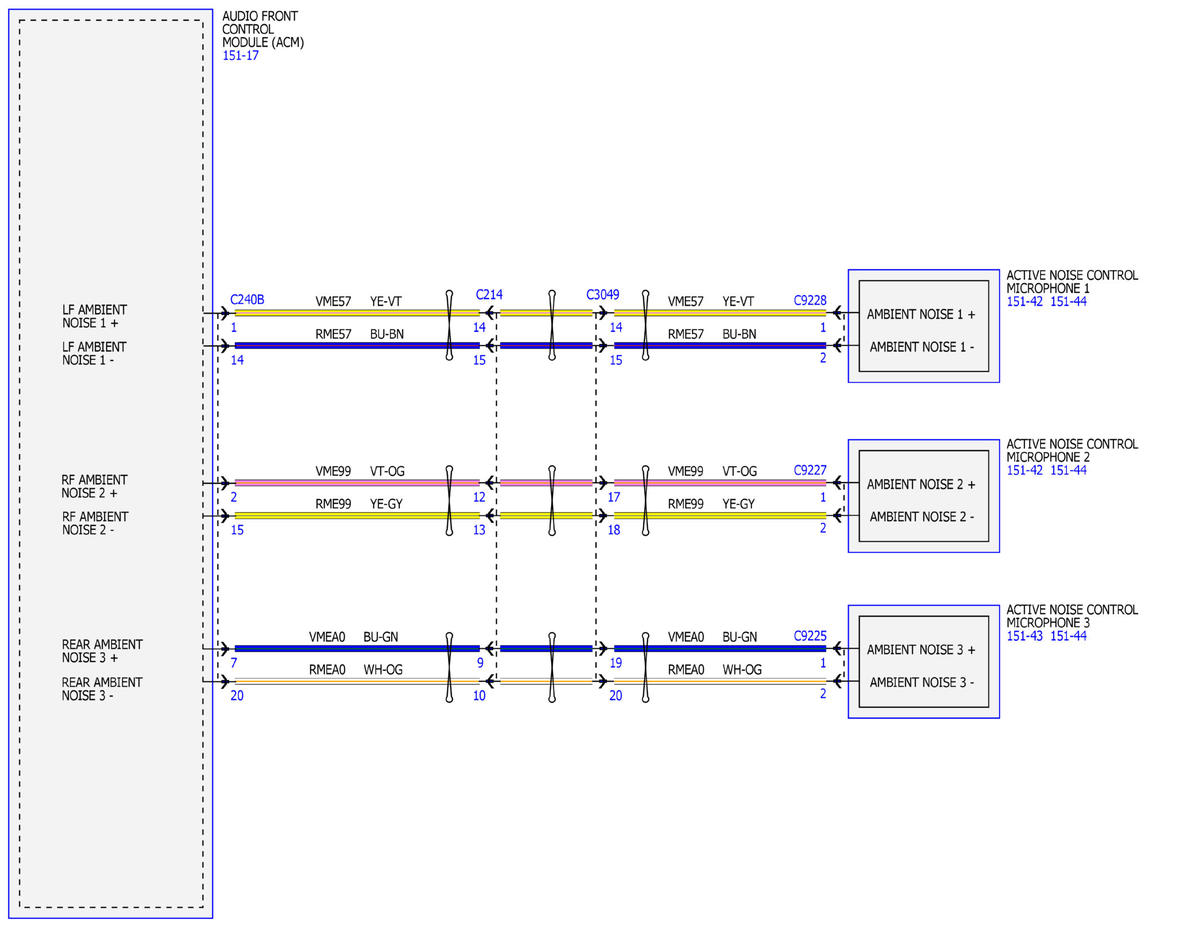

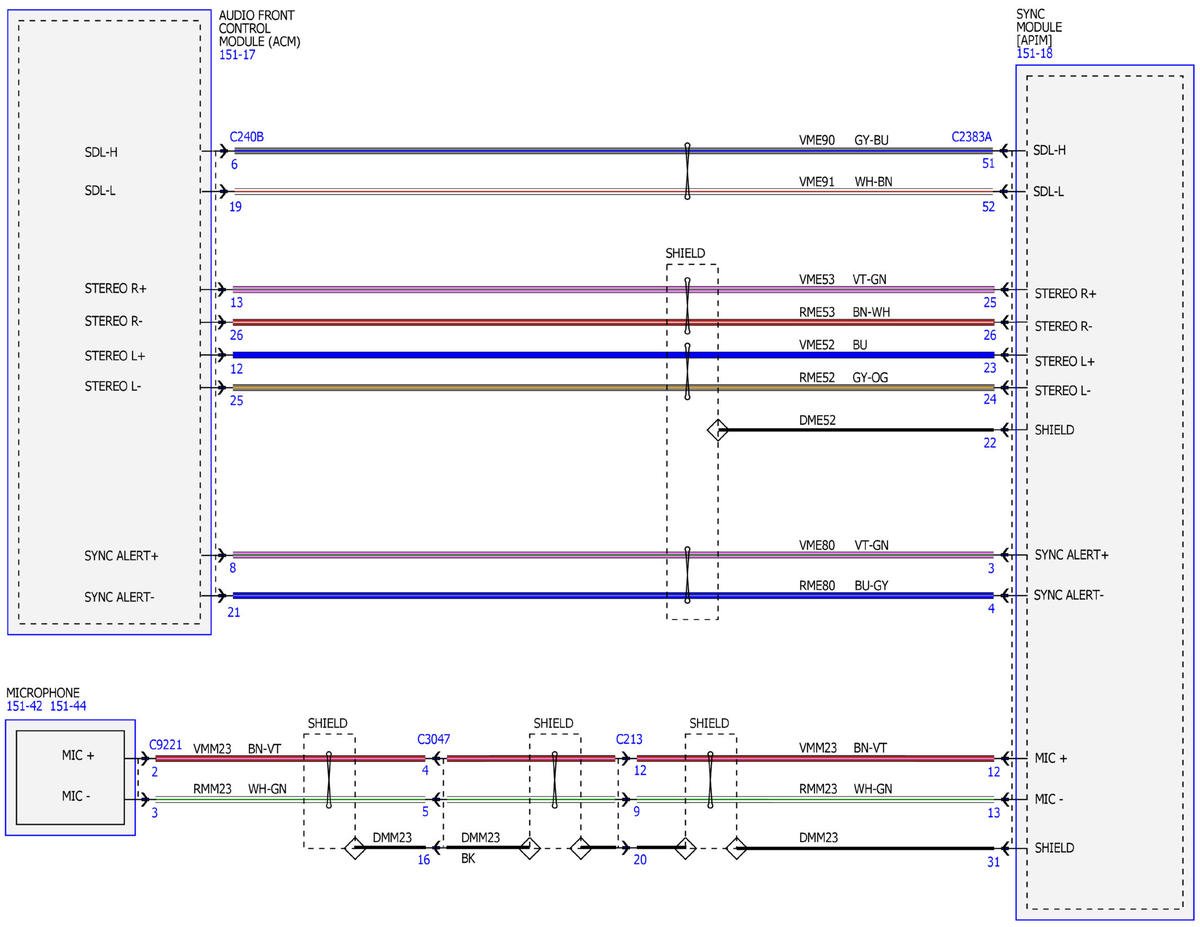

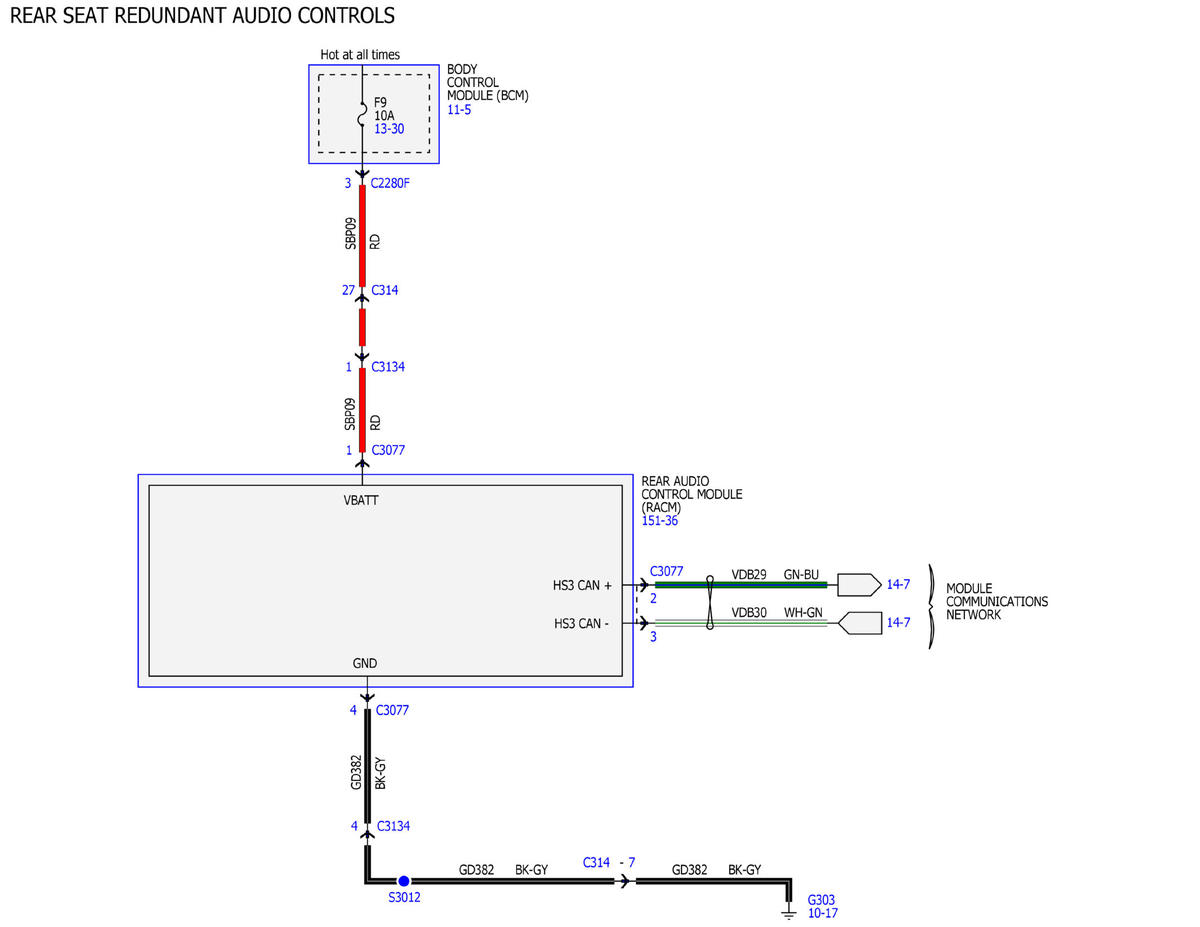

Fig 5: Audio System/Navigation Wiring Diagram (5 of 27)
Courtesy of FORD MOTOR COMPANY

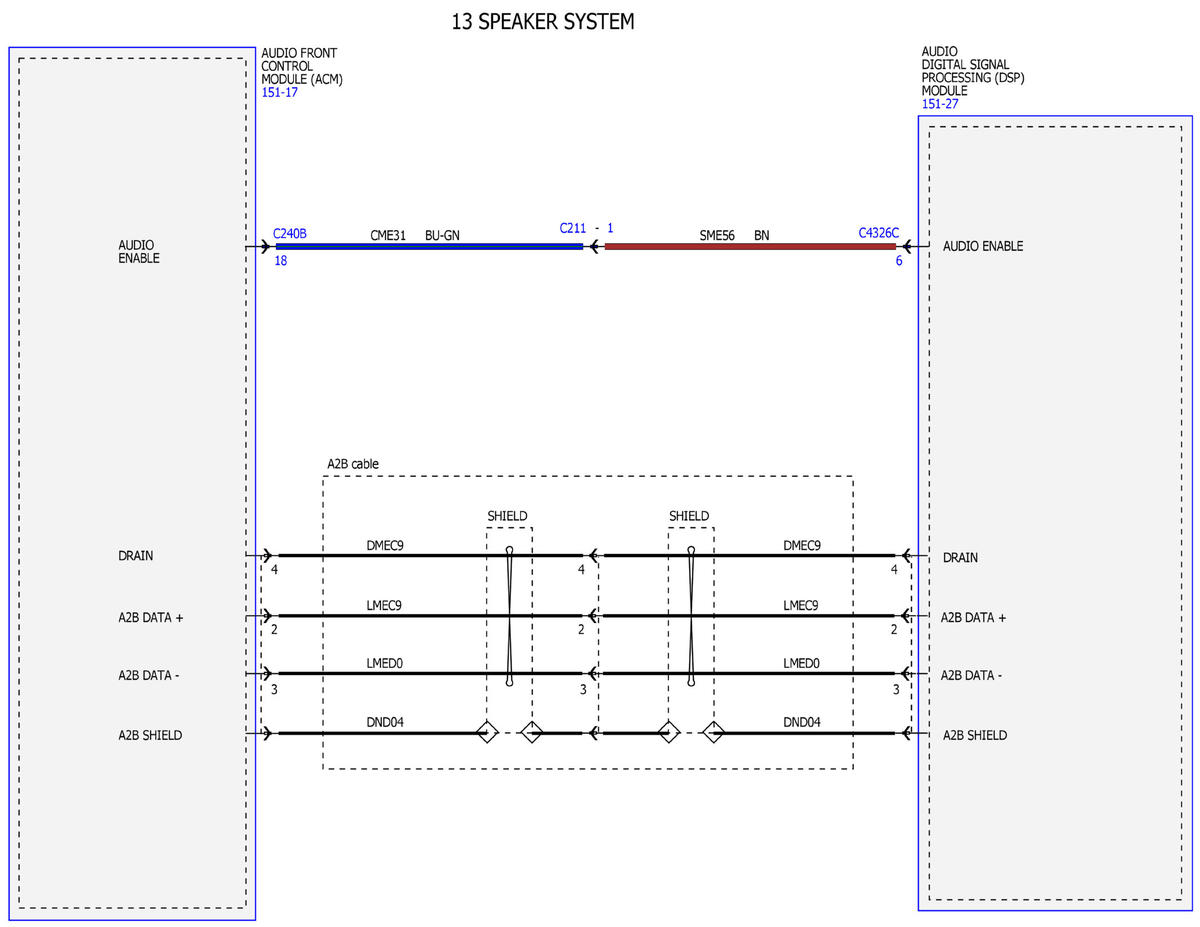

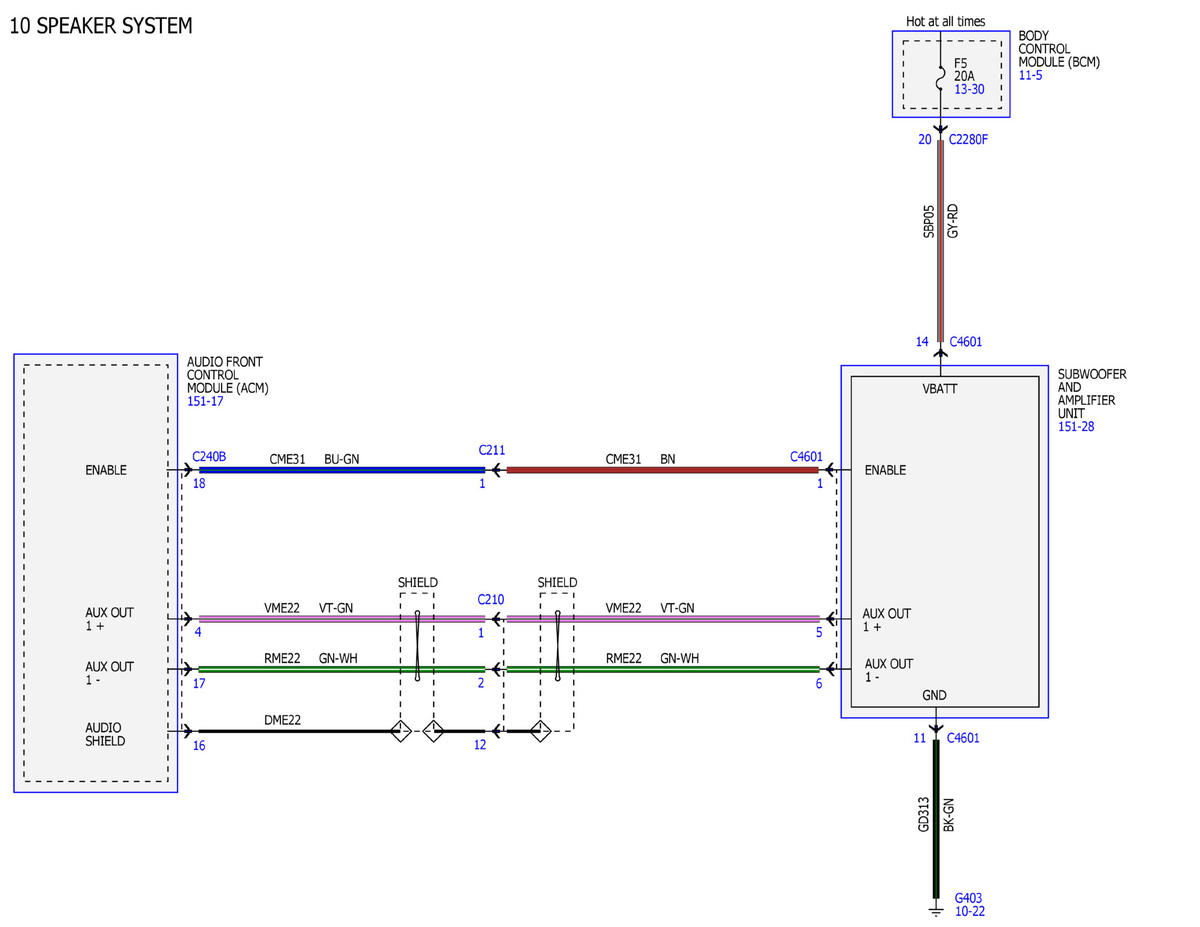

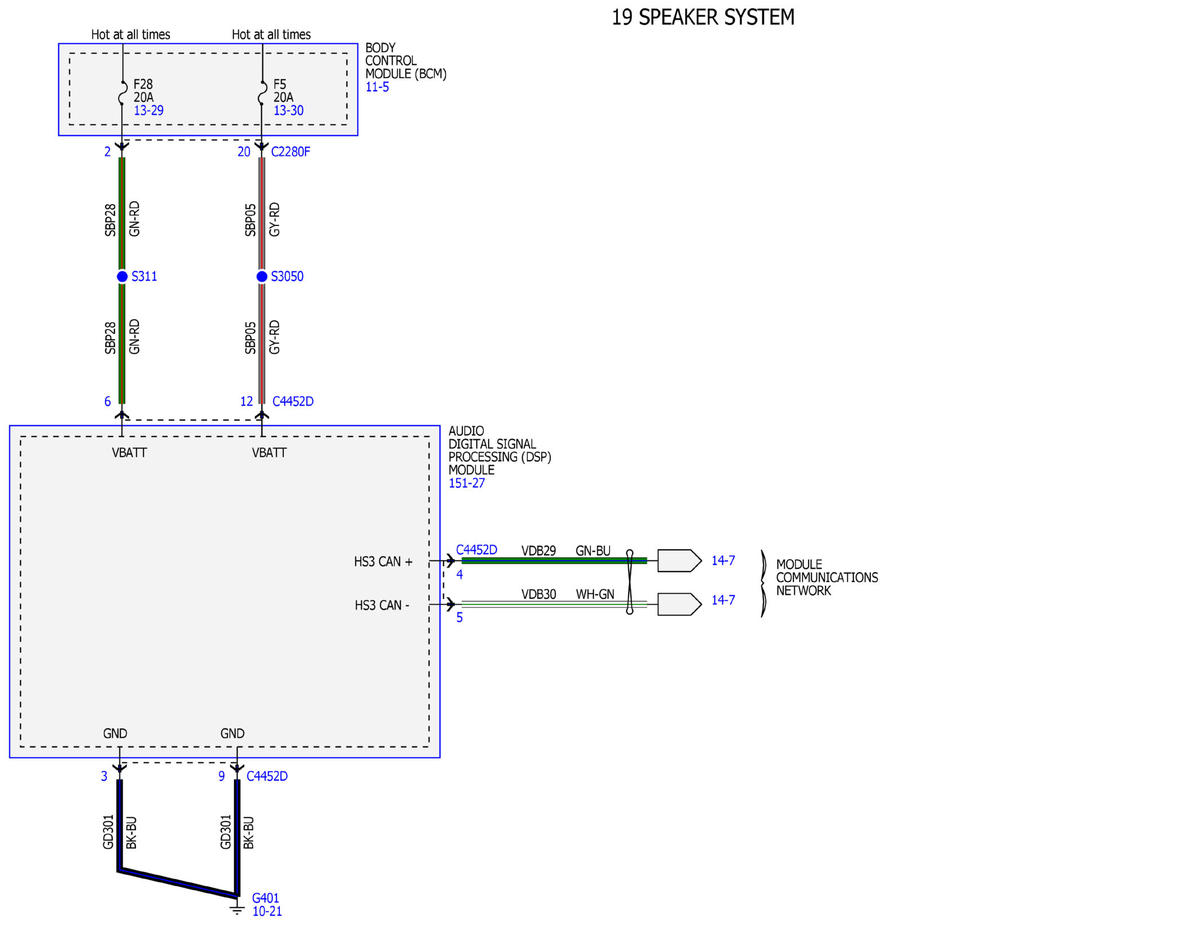

Fig 6: Audio System/Navigation Wiring Diagram (6 of 27)
Courtesy of FORD MOTOR COMPANY

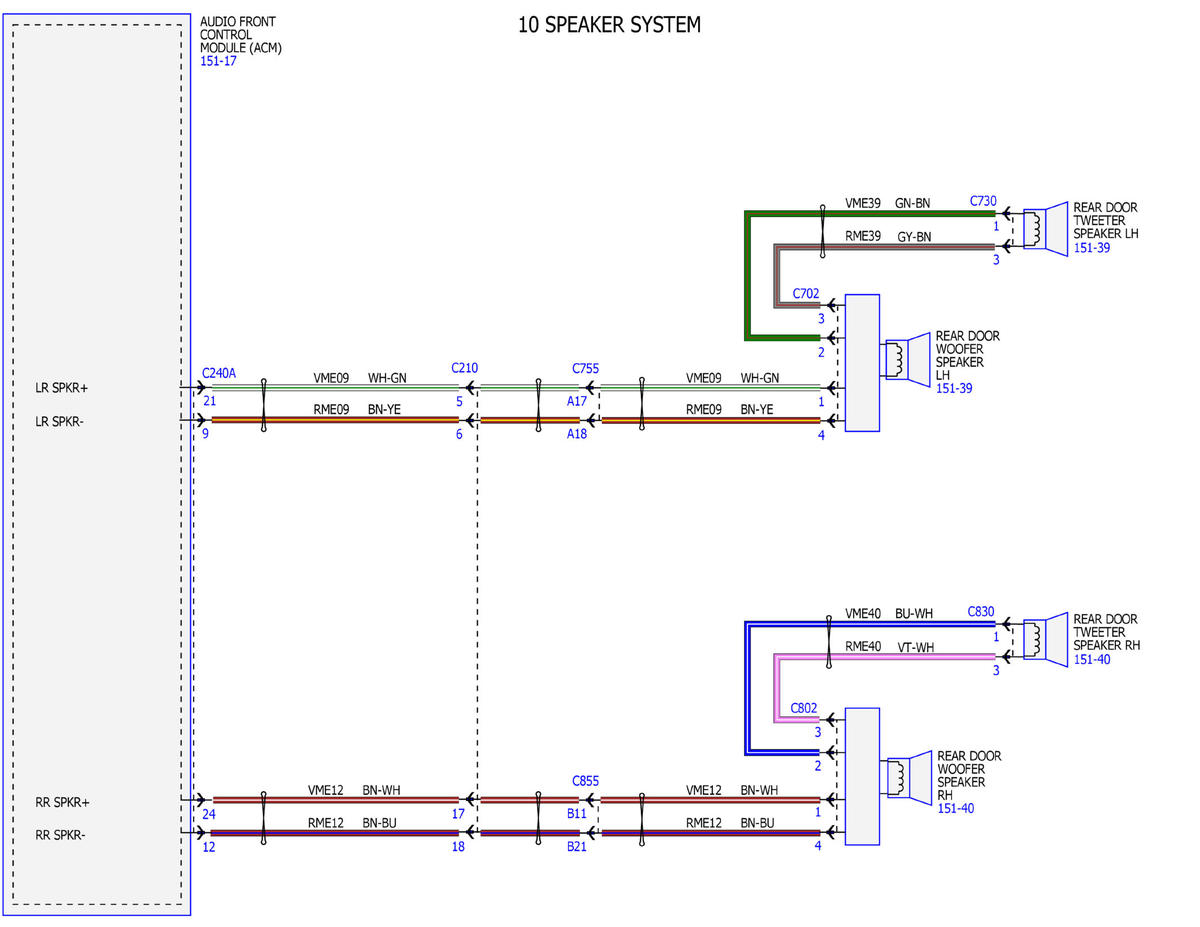

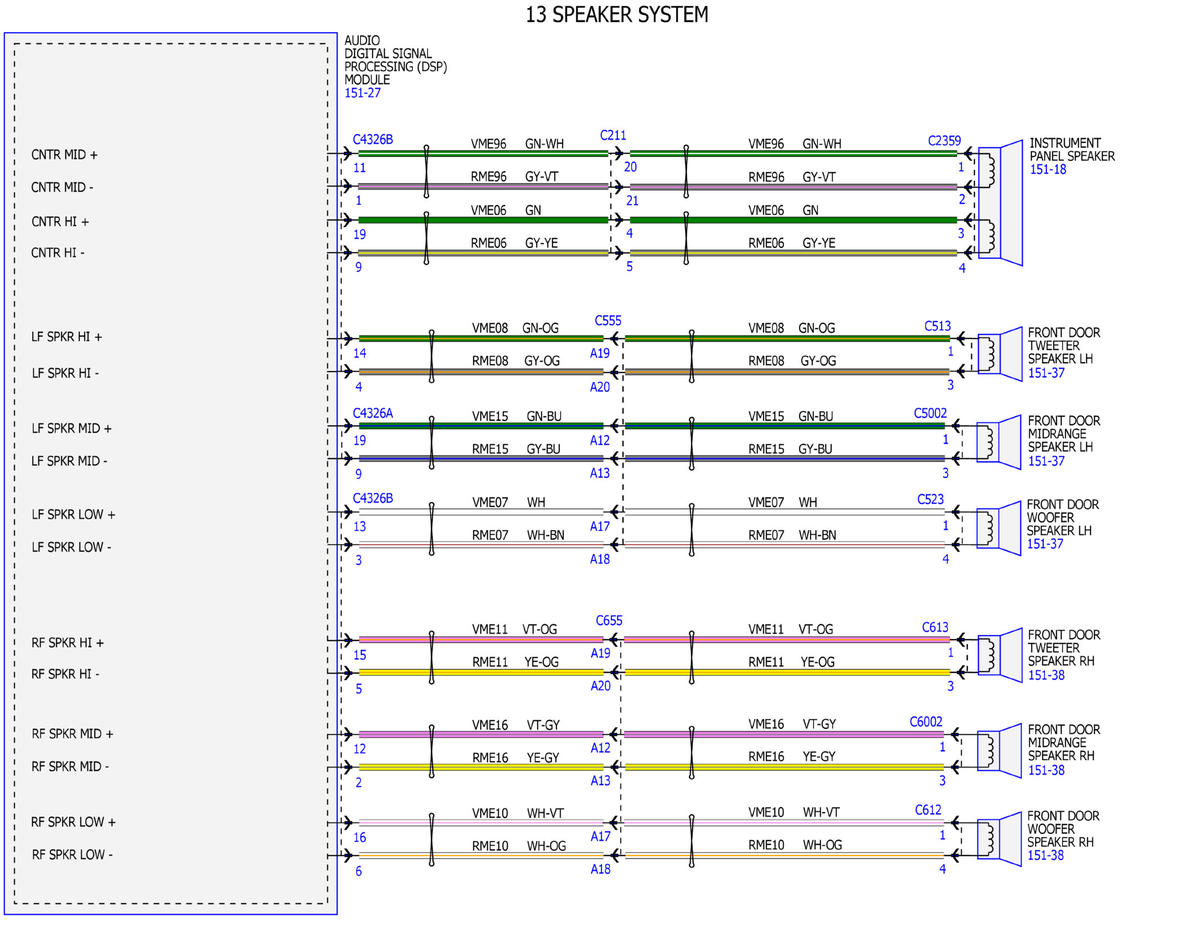

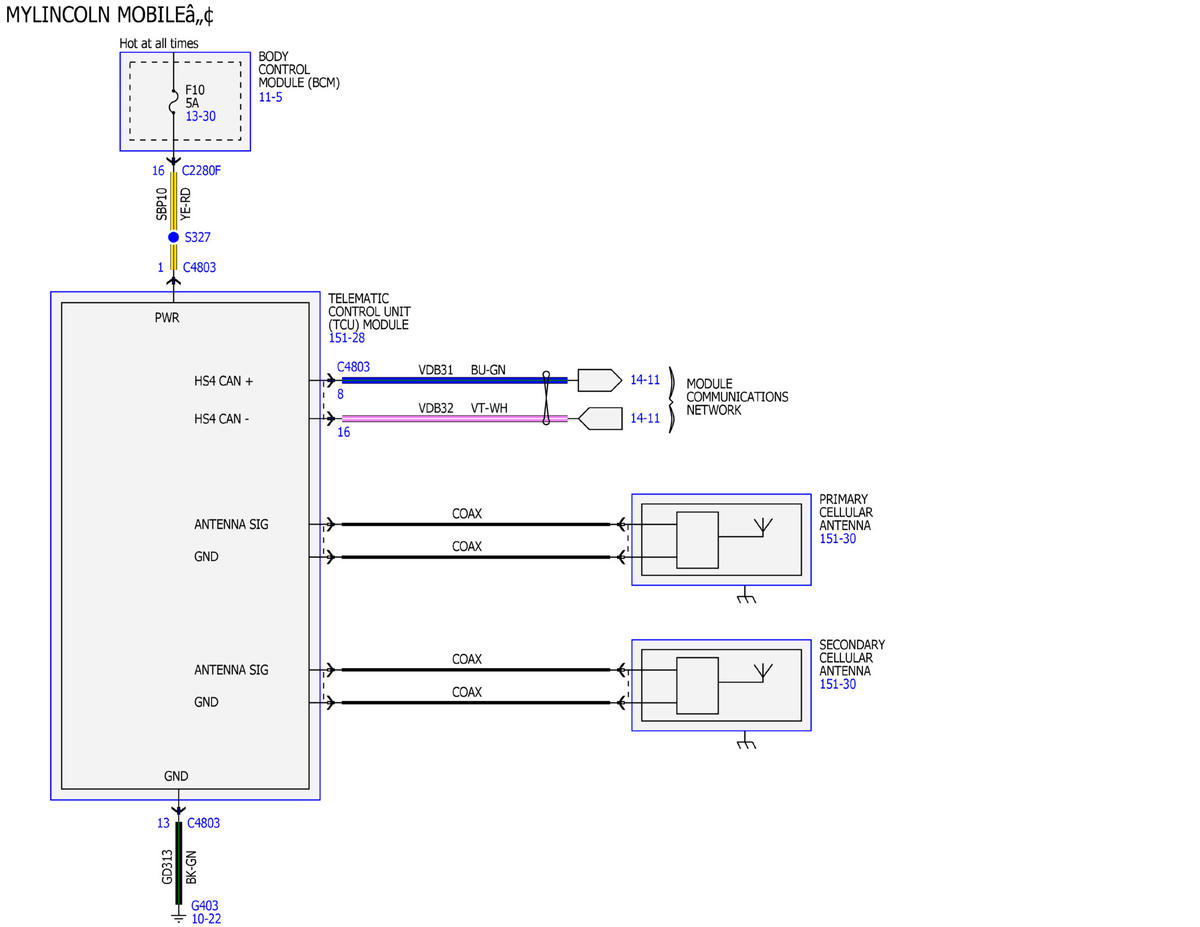

Fig 7: Audio System/Navigation Wiring Diagram (7 of 27)
Courtesy of FORD MOTOR COMPANY

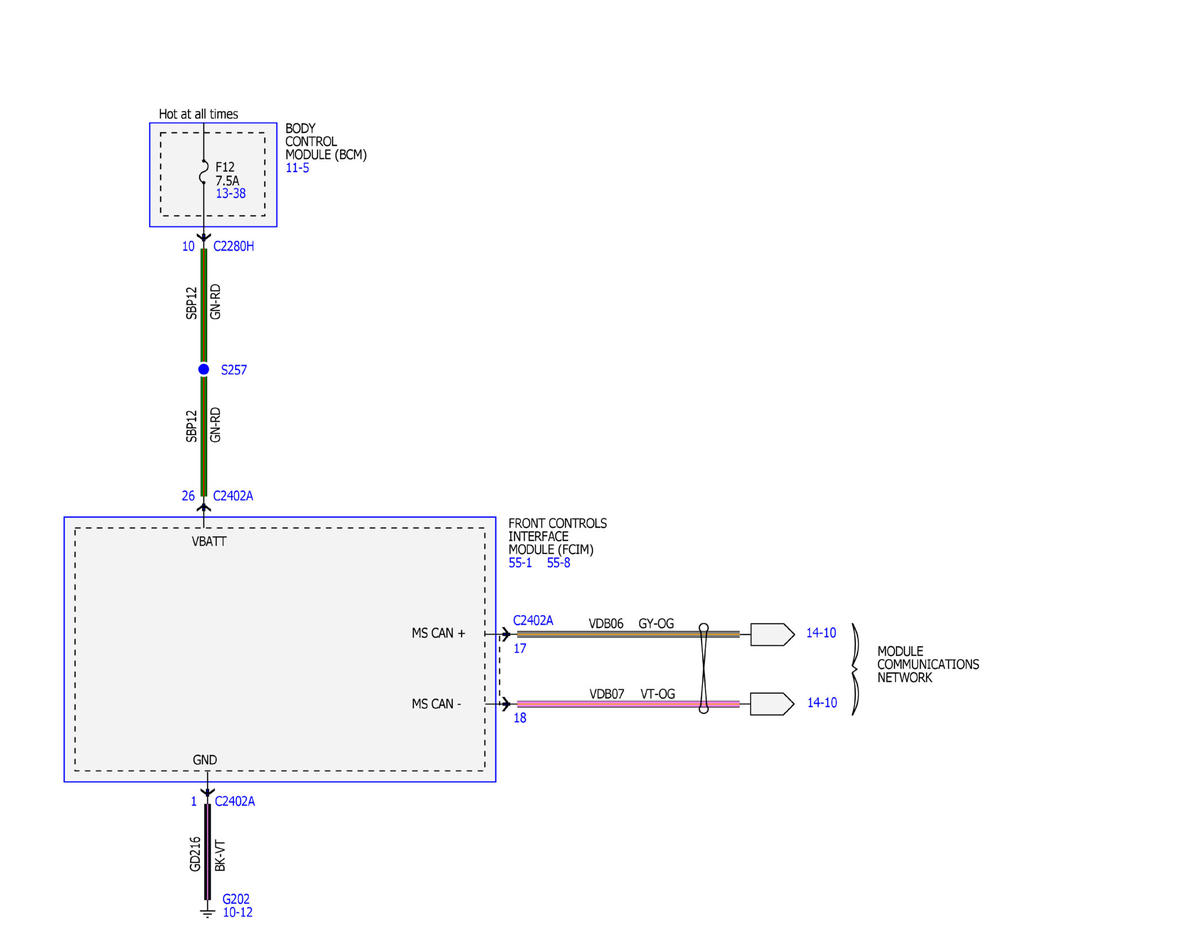

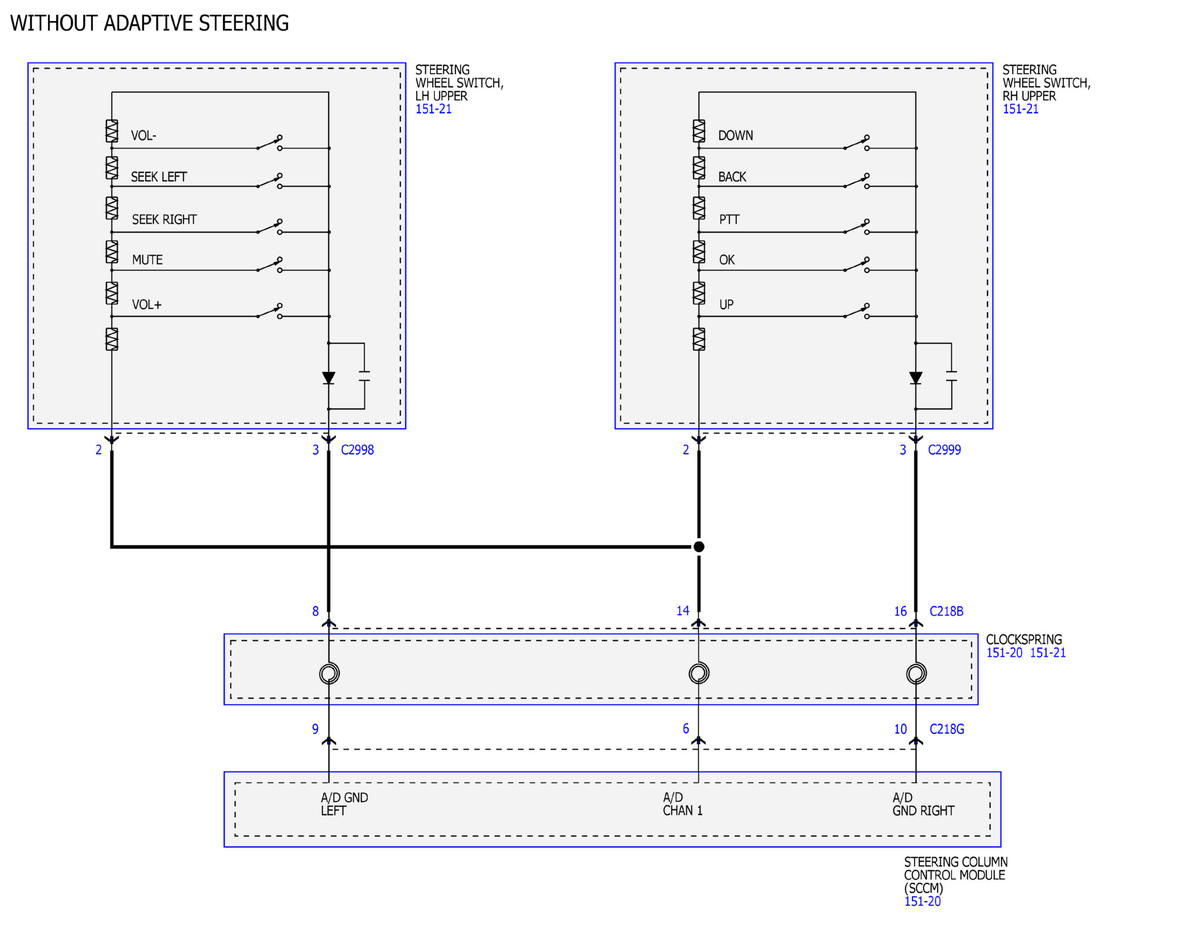

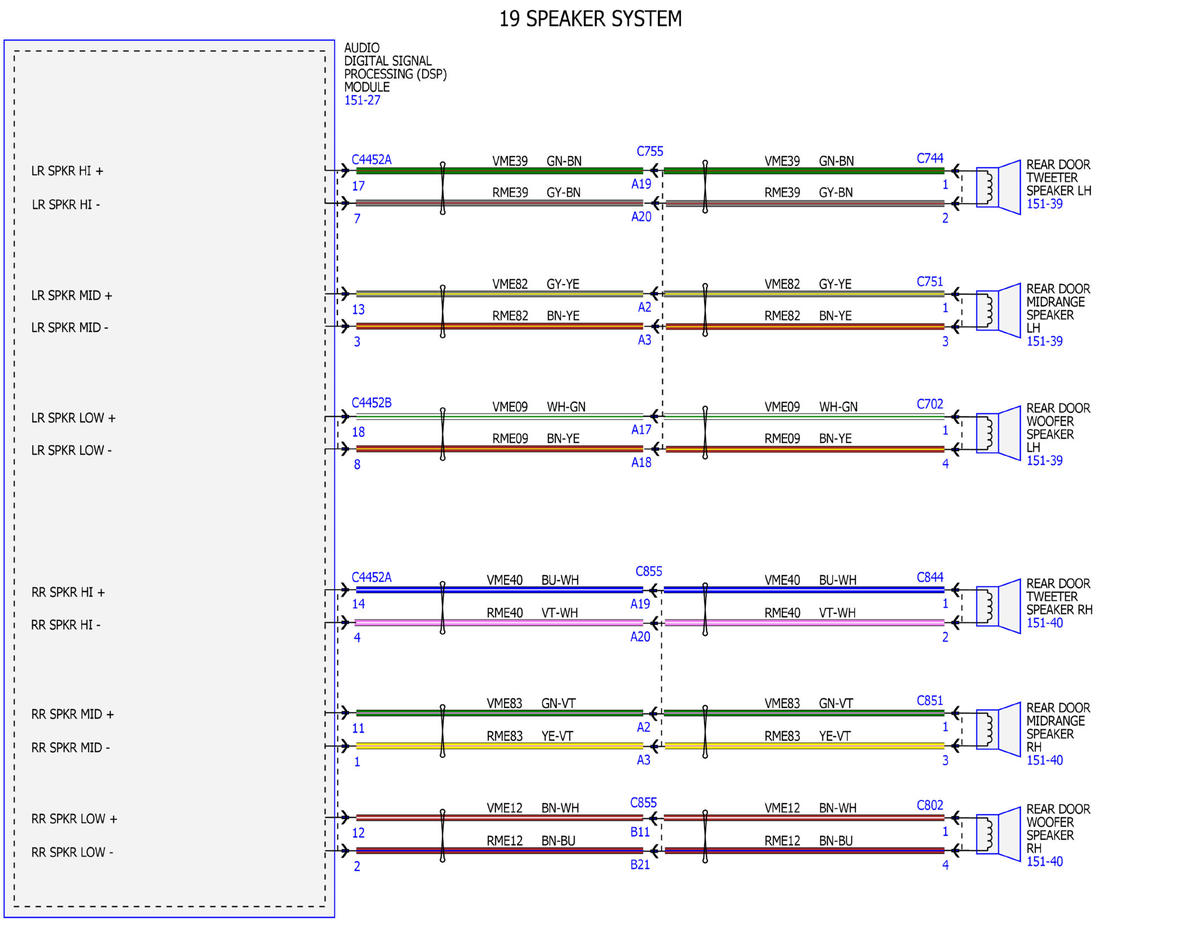

Fig 8: Audio System/Navigation Wiring Diagram (8 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation Wiring Diagram (9 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation Wiring Diagram (10 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation Wiring Diagram (11 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 12: Audio System/Navigation Wiring Diagram (12 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 13: Audio System/Navigation Wiring Diagram (13 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 14: Audio System/Navigation Wiring Diagram (14 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 15: Audio System/Navigation Wiring Diagram (15 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 16: Audio System/Navigation Wiring Diagram (16 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 17: Audio System/Navigation Wiring Diagram (17 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 18: Audio System/Navigation Wiring Diagram (18 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 19: Audio System/Navigation Wiring Diagram (19 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 20: Audio System/Navigation Wiring Diagram (20 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 21: Audio System/Navigation Wiring Diagram (21 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 22: Audio System/Navigation Wiring Diagram (22 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 23: Audio System/Navigation Wiring Diagram (23 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 24: Audio System/Navigation Wiring Diagram (24 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 25: Audio System/Navigation Wiring Diagram (25 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 26: Audio System/Navigation Wiring Diagram (26 of 27)
Courtesy of FORD MOTOR COMPANY
Fig 27: Audio System/Navigation Wiring Diagram (27 of 27)
